DIPLOMAT PREMIUM LARGE WITH CARE INSERT
DIPLOMAT PREMIUM LARGE WITH CARE INSERT
The extra-wide premium entrance mat with the robust Care insert is exceptionally abrasion resistant and the number-one choice for the effective reduction of fine dirt. Optimally designed for buildings exposed to average to heavy footfall.
FEATURES
FEATURES
(covered, Zone 1+2)
INFORMATION
BRAND
Emco
PRODUCT TYPE
Technical Mats
APPROX. HEIGHT (MM)
- 12
- 17
- 22
COLOUR
- 47.02 grey
- 47.04 beige
- Anthracite 76.01
ACCESSIBILITY
- Prams
- Hand trolleys
- Wheelchairs
- Sack-/hand truck
- Light shopping trolleys
REVOLVING DOOR DRIVES
Our mats with a profile spacing of 3mm in accordance with din en 16005 are available for revolving door drives.
INSERT STYLE
Care
PROFILE WIDTH (MM)
44 mm
USAGE AREA
- Hotel
- Sports hall
- Family home
- Apartment building
- Offices and administrative buildings
- School
- Retail sector
- Medical practice
- Kindergarten/Nursery
- Retirement homes and Care
-Nursery Homes
COLLECTION
Diplomat
CONNECTION
Thanks to plastic-coated steel cable
STANDARD PROFILE CLEARANCE A
- 5 mm
- Rubber spacers
WEIGHT (KG/M²)
- 9.5
- 10.5
- 08.9
TYPE OF DIRT
Rubs off fine and damp dirt
SLIP RESISTANCE
R 12 slip resistance as per DIN 51130

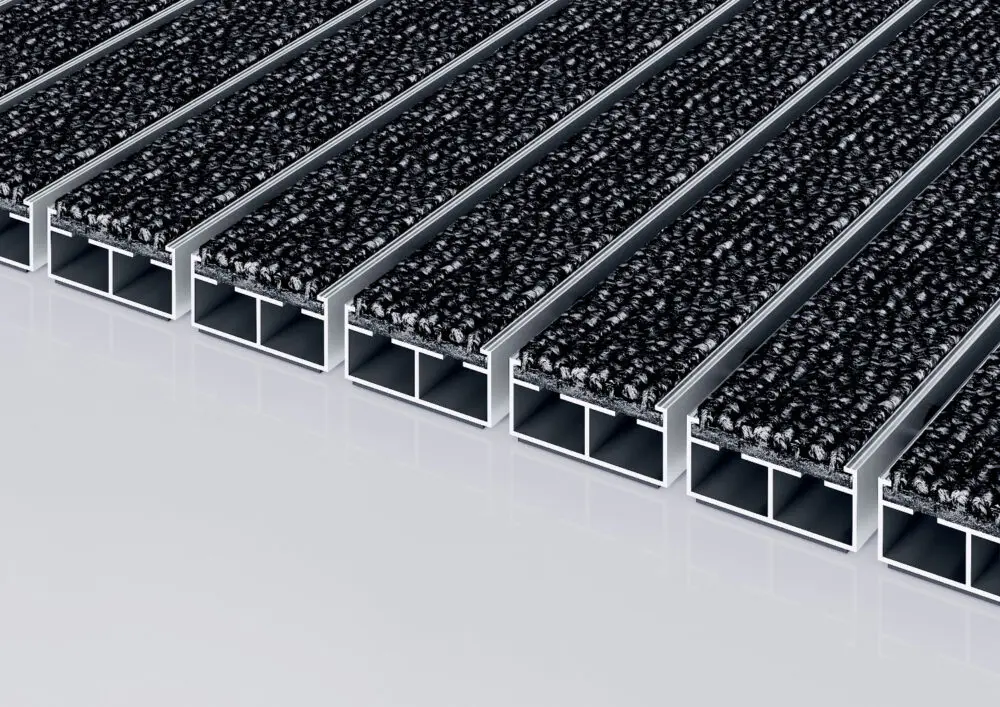

SUPPORT CHASSIS
Made using aluminium with sound absorbing insulation on the underside
TREAD SURFACE
The robust and extremely abrasion-resistant care insert for effective reduction of fine dirt. Made from recycled econyl Yarn.
INSERT TYPE
Premium
MAT TYPE
Emco Diplomat
SUPPORT CHASSIS COLOUR
Anodised colours for an additional charge: ev3 gold, c33 mid-bronze, c35 black or c31 stainless steel
MAT DIVISION AS PER FACTORY
- From a profile length of 3000 mm or a maximum mat weight of 25 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request.
- From a profile length of 3000 mm or a maximum mat weight of 30 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request.
DOWNLOADS
PILE MATERIAL
100% PA 6 (polyamide)
PROFILE WIDTH
Large
ADDITIONAL PROFILES
None
BACTERIAL REDUCTION EHEC AST
11.9 %
BACTERIAL REDUCTION STAPHYLO
45.0 %
COLOUR FASTNESS TO ARTIFICIA
good 5-6
AREA
Covered Outdoor Areas Indoor Areas
EXAMPLES OF TYPE OF DIRT
- Damp Street Dust, Damp Sand Deposits, Dust, Etc.
- Street Dust, Hair, Sand, Ash, Textile Fibres, Small Leaves And Twigs, Etc.
FLAMMABILITY
Fire classification for the complete mat system Cfl-s1 in accordance with EN 13501
DIRT COLLECTION ZONE
Indoor and outdoor (covered, Zone 1+2)
USE CLASSIFICATION EN1307
Property suitable inlay 33
BACTERIAL REDUCTION KLEBSIEL
99.8 %
COLOUR FASTNESS TO WATER ISO
good 4-5
COLOUR FASTNESS TO RUBBING I
good 4-5

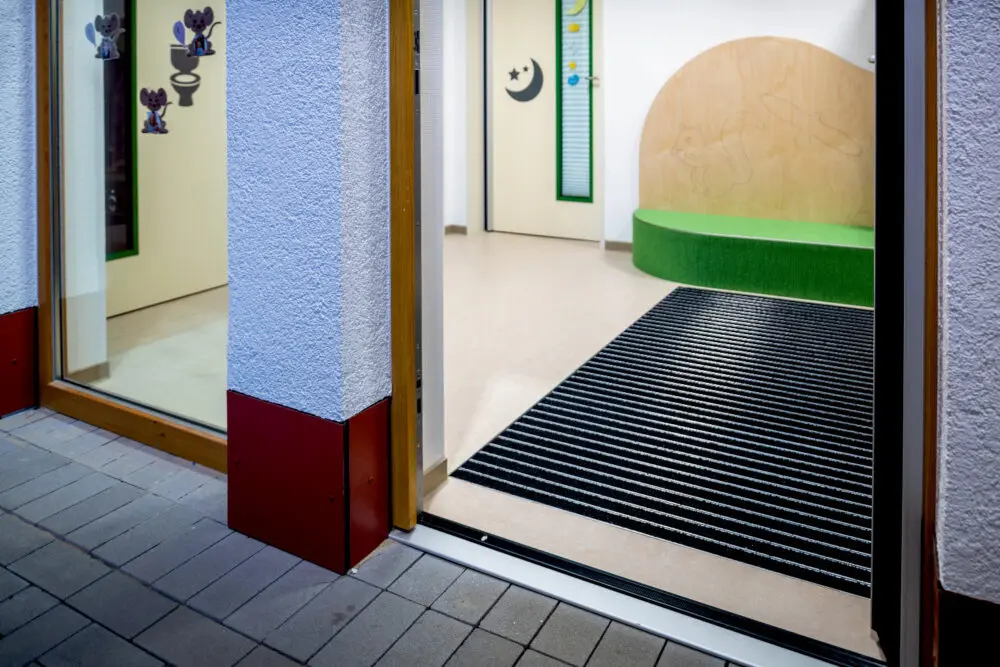

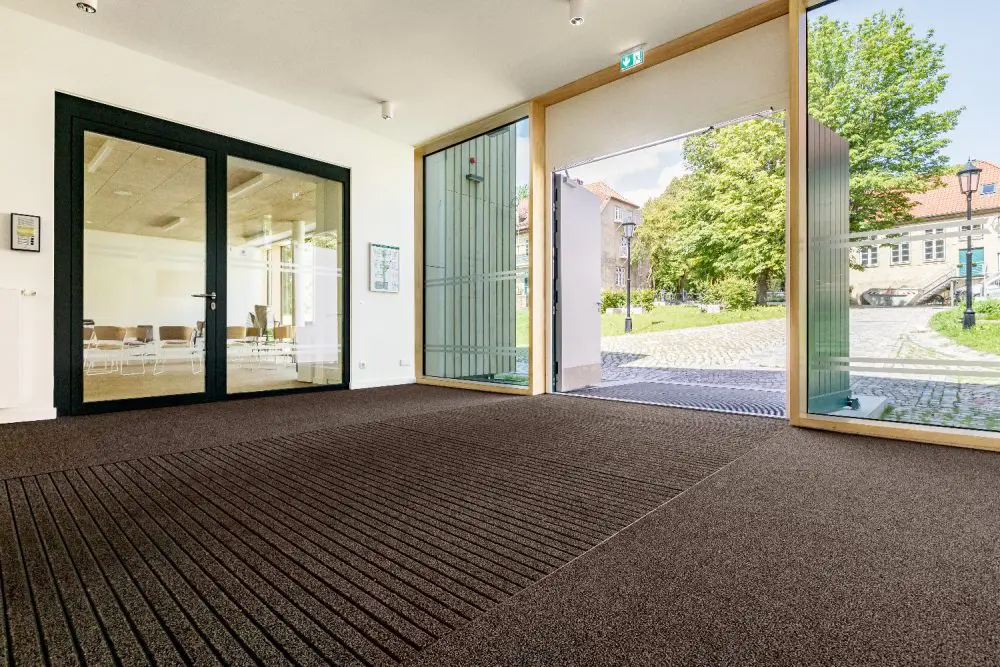

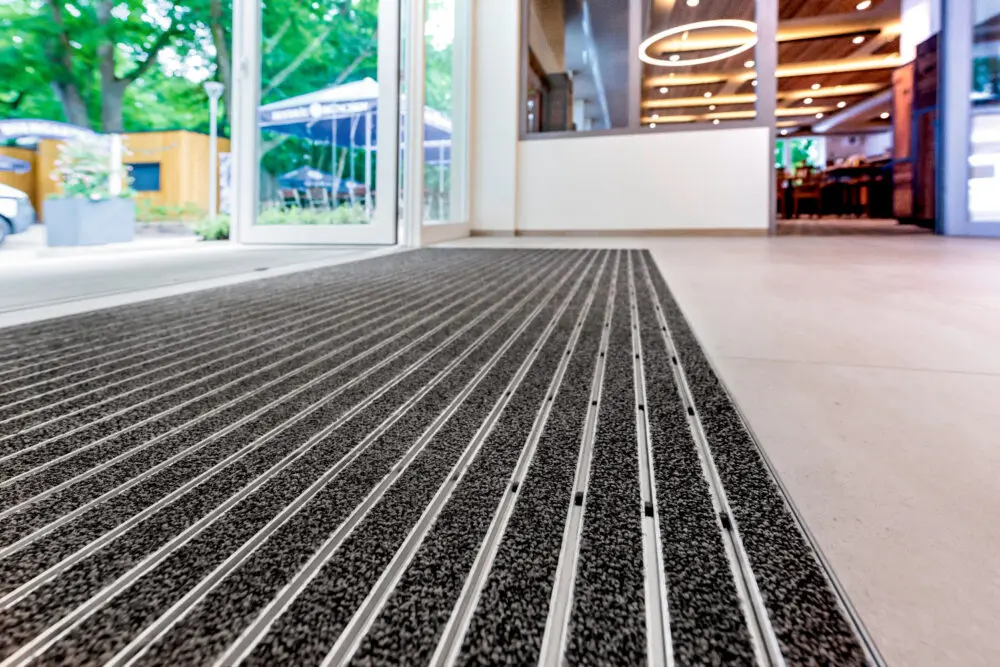

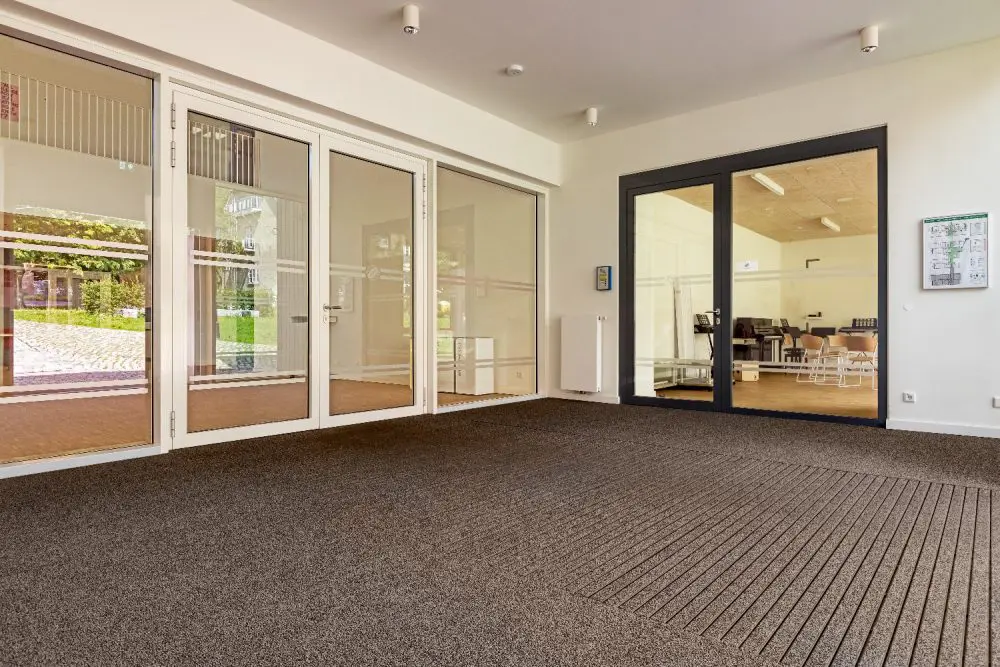

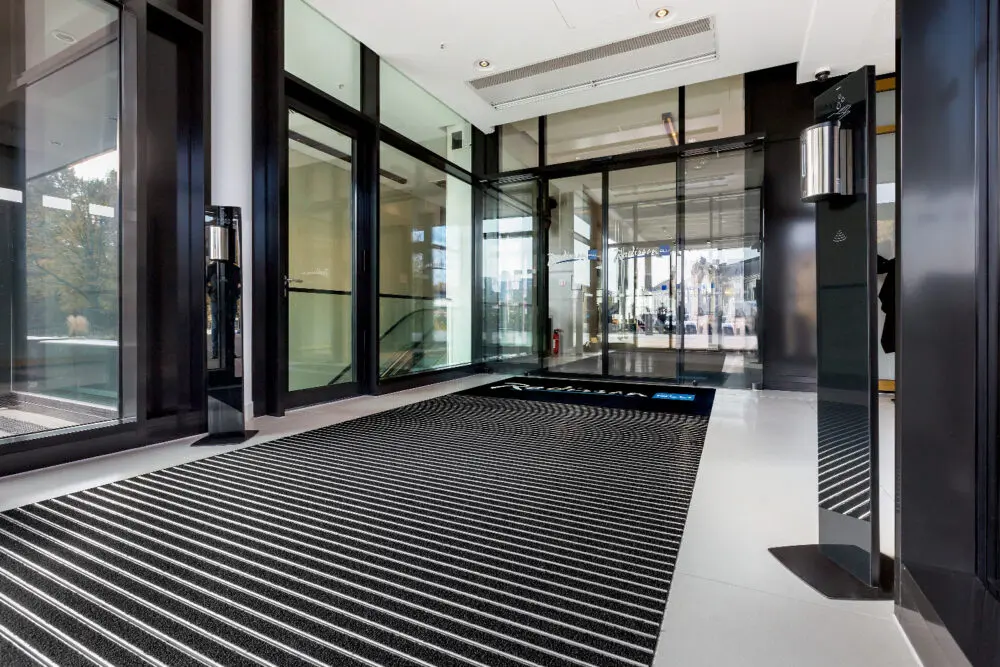

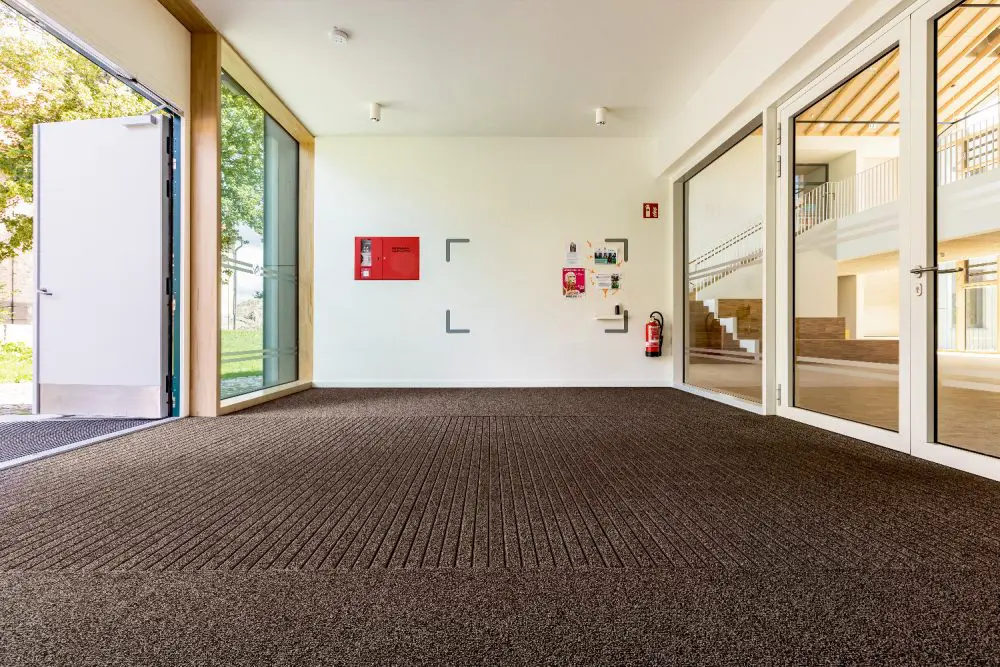

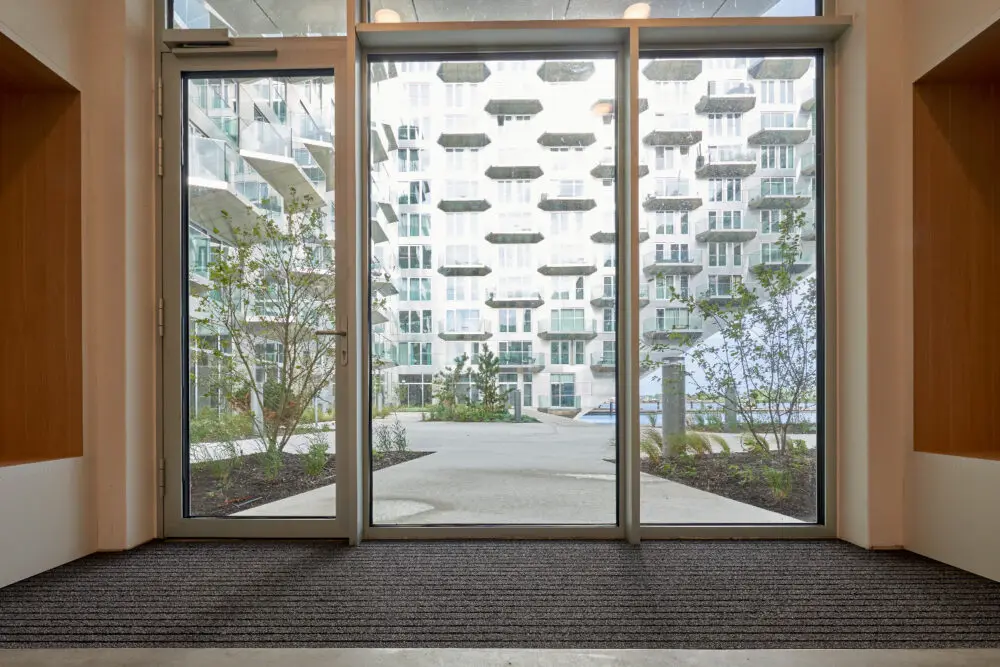

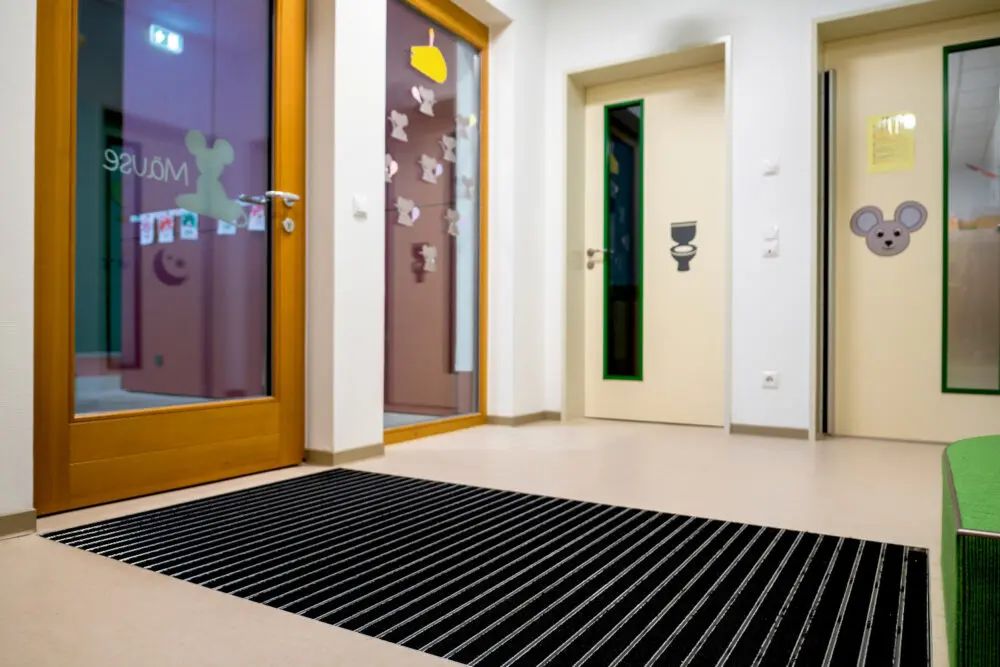

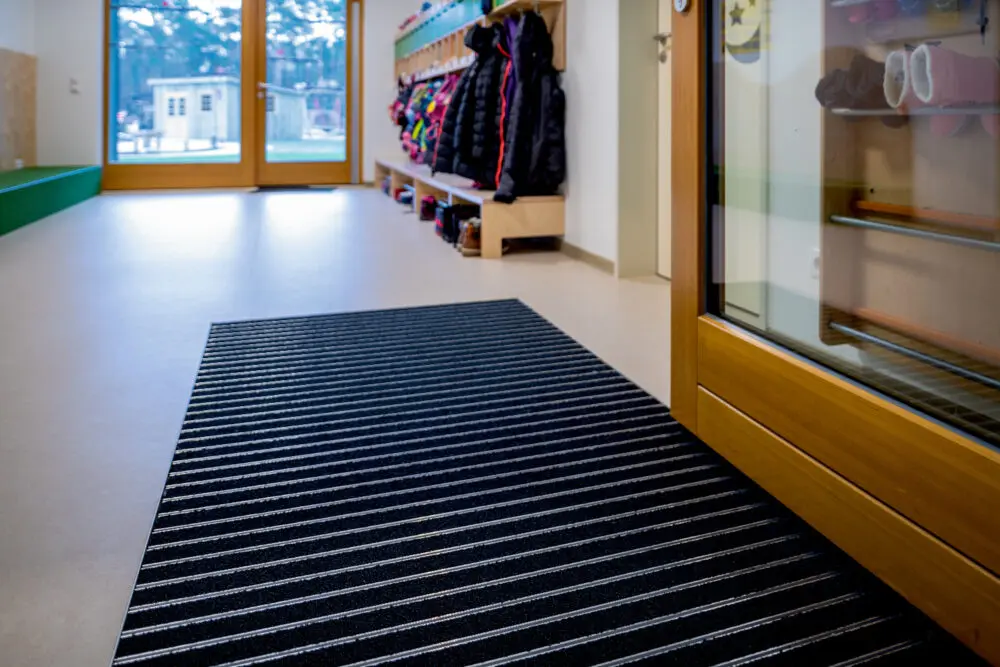

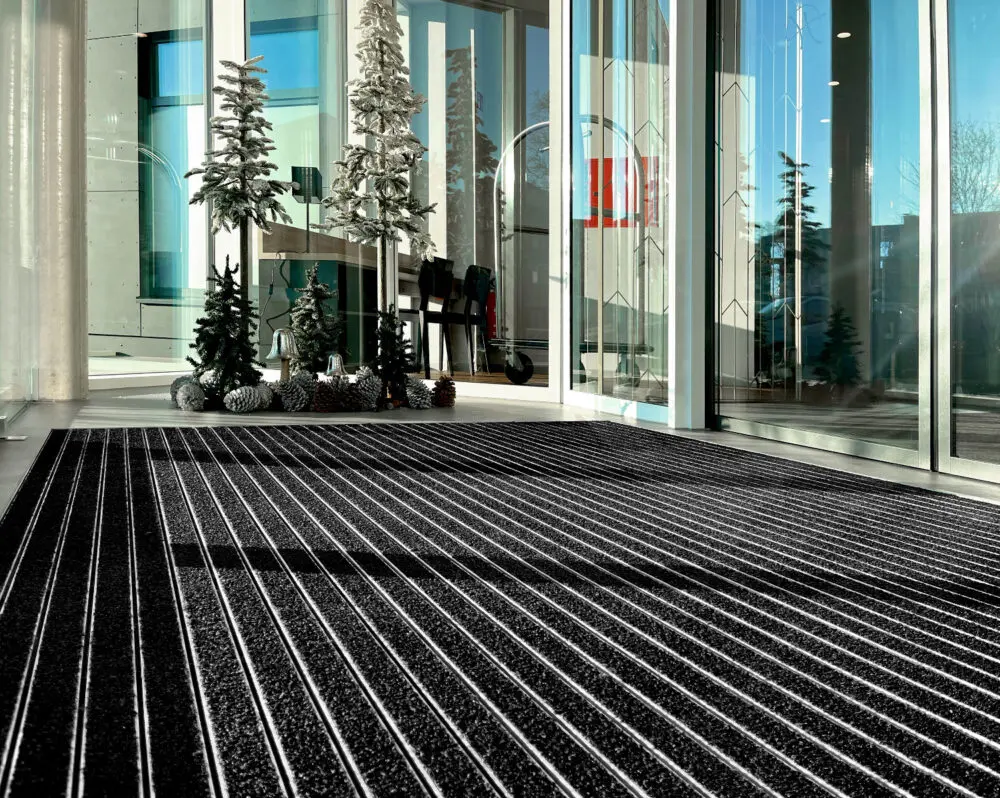

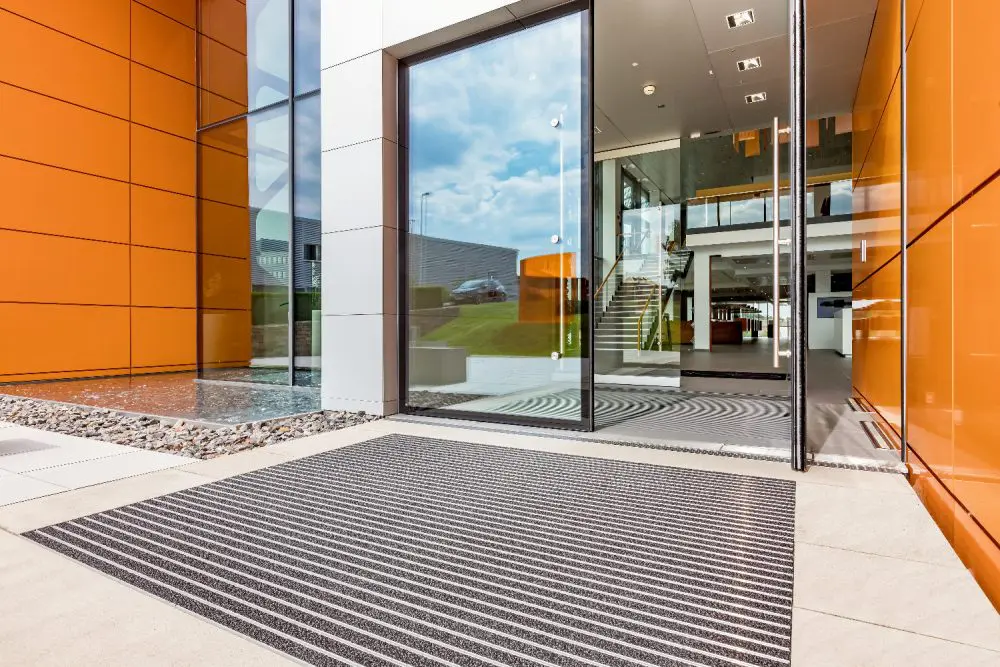

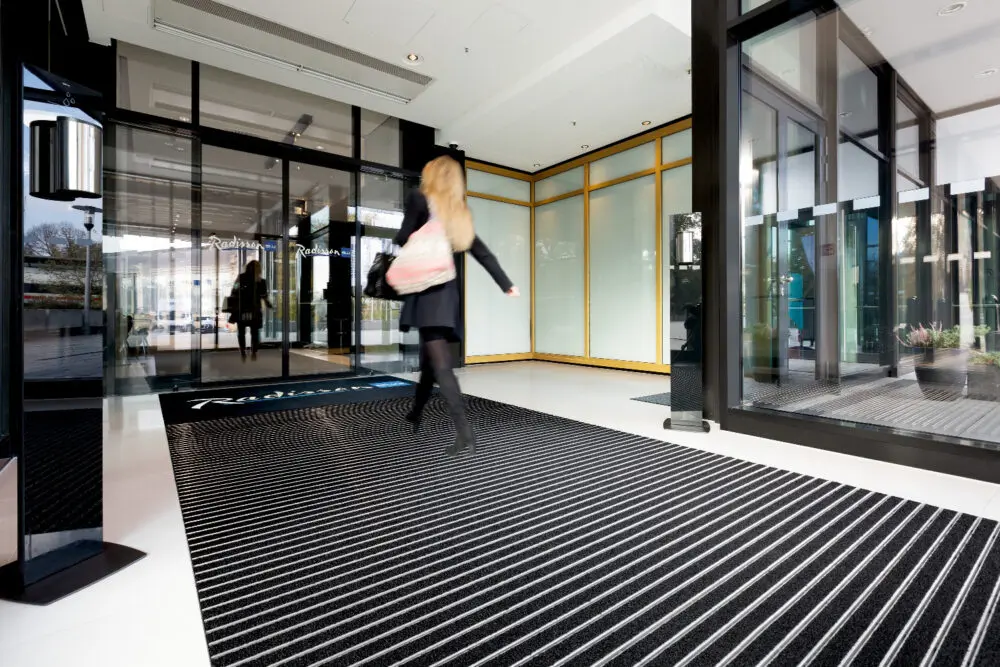

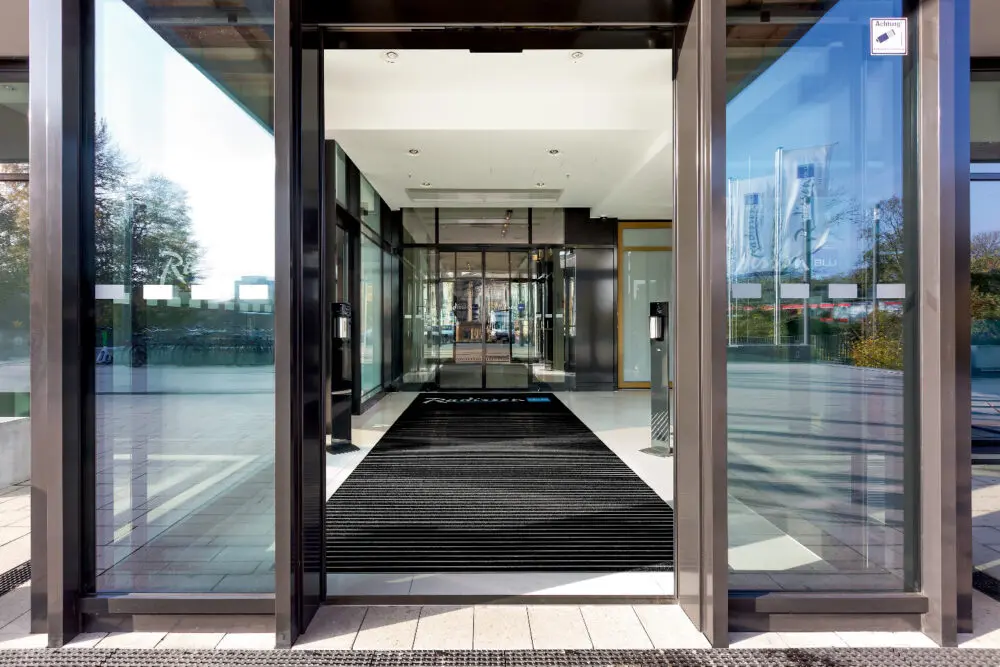

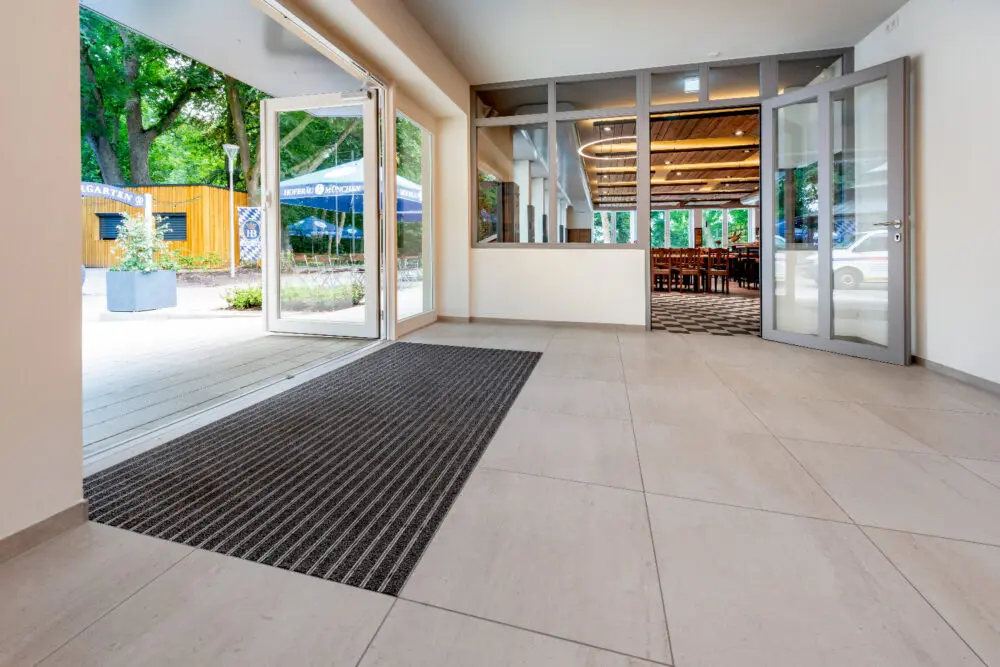

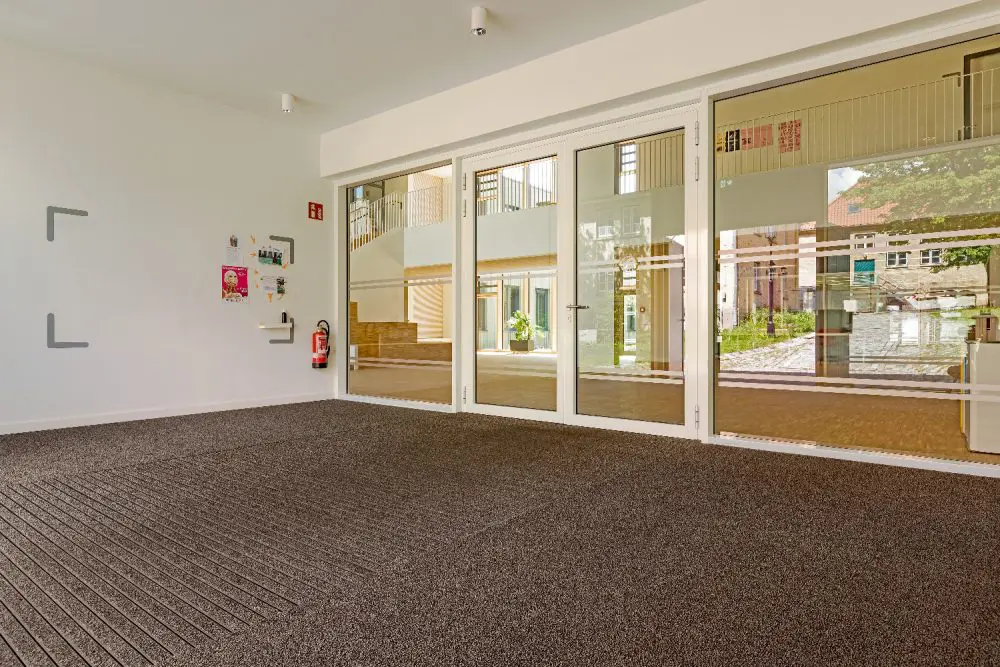

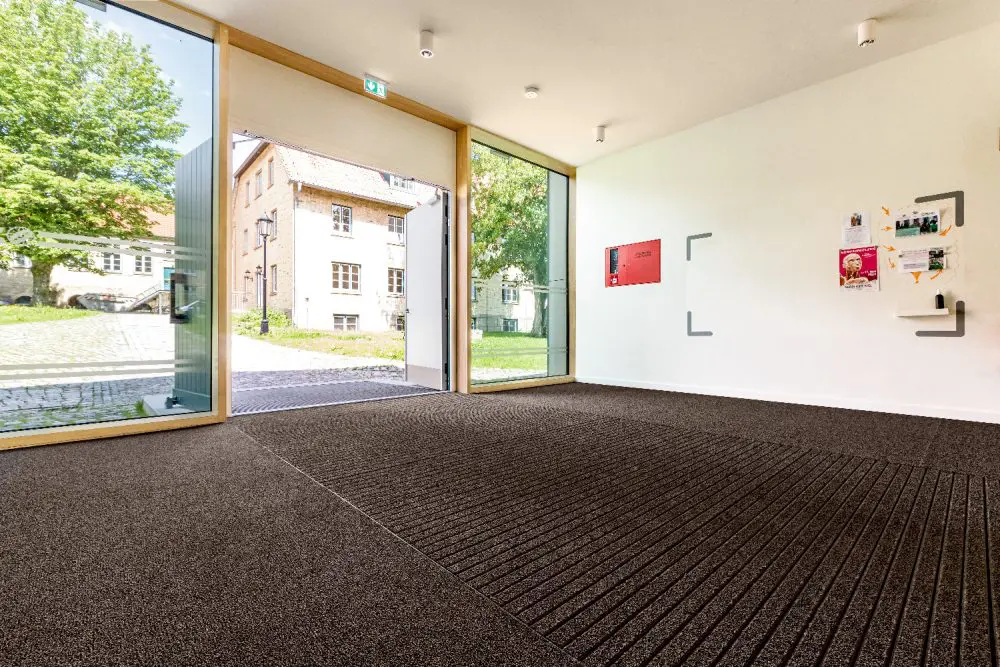

GALLERY
