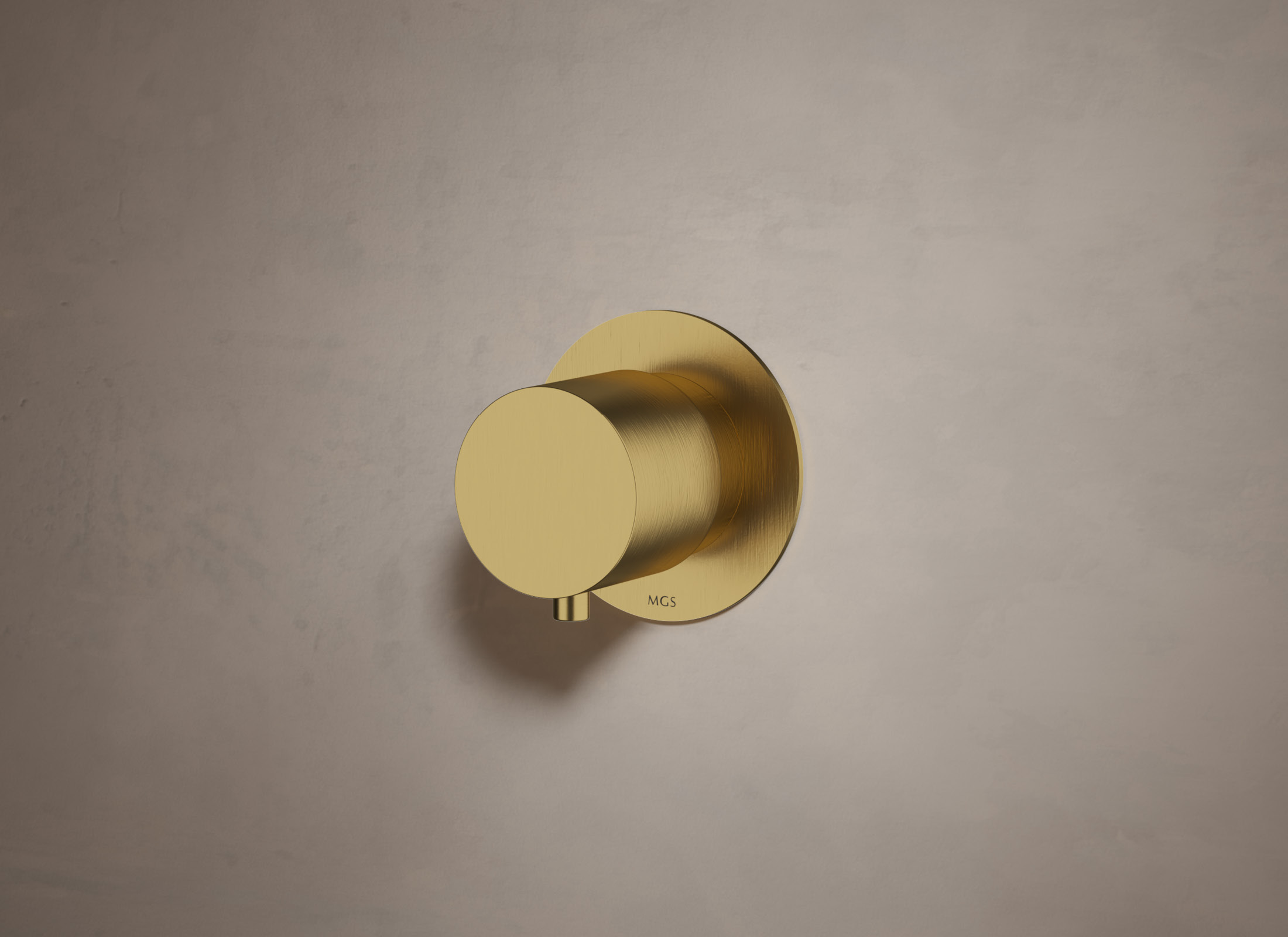

Mgs Mb446 – Mb704 Volume Control

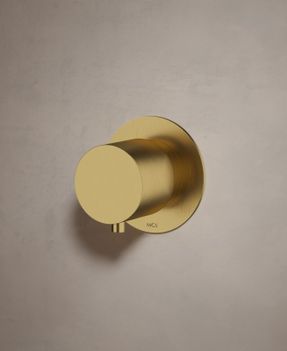

MB446 – MB704 VOLUME CONTROL
MB446 – MB704 VOLUME CONTROL
New smooth handle design with short stick.
The bathroom collections by MGS stand out for their balance between sophisticated design and everyday practicality.
Crafted with great attention to detail, they bring a timeless touch of elegance to any space.
information
BRAND
Mgs
PRODUCT TYPE
Bathroom Collections
RECOMMENDED OPERATING PRESSURE
14 to 60 PSI (1 - 4 bar)
MAXIMUM HOT WATER TEMPERATURE
185 °F (85°C)
MARINE GRADE
Marine grade stainless steel AISI316.
COLLECTION
Mb446
OPERATING PRESSURE
Max 145 PSI (10 bar)
EXTENSION KIT
SV9KPM.228 – 34 mm extension kit is available.
WORKING PRESSURES
- Maximum : 10 bar (145 psi)
- Minimum : 0,1 bar (1,5 psi)
MATERIAL
Steel
COMPLIANT
ADA compliant
MATTE
Hand polished to matte or polished stainless finish.
PRODUCTION
Made in United Kingdom
SUPPLY PRESSURE
5 bar (72 psi)
THERMOSTATIC MIXER
Volume control to be installed with MB444N thermostatic mixer.
AVAILABLE COLORS
6
RECOMMENDED HOT WATER TEMPERATURE
149 °F (65°C)
SUITABLE
This mixer is suitable for all water heating systems provided it is installed correctly by a competent and qualified installer.

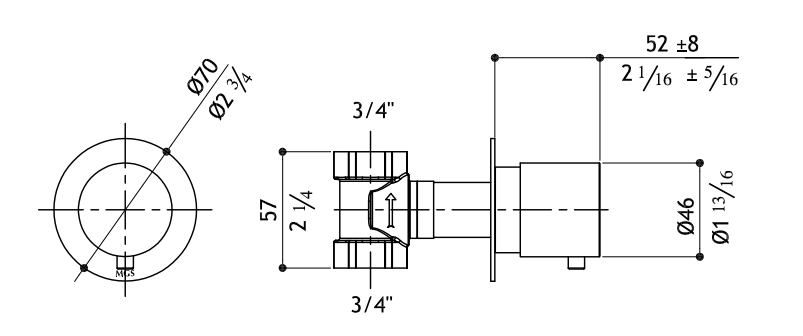

TECHNICAL DRAWINGS
WARRANTY
MGS products installed in a residential indoor application are covered by a limited 5 year functional and finish warranty from purchasing date. During this period, parts with construction defects in material or workmanship will be replaced free of charge. This warranty is subject to the warranty conditions and limitations as set forth below. This warranty will not cover faults caused by unsuitable or improper use, incorrect installation, natural wear, improper or careless treatment, incorrect usage of cleaning or maintenance products.
MGS will not assume liability for labor expended, freight cost or damages accruing from the use of the material purchased from us. If material is defective, MGS will either supply the replacement part or it will reimburse the price of the defective material. Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to MGS for all warranty claims.
The warranty is not transferrable and is extended solely to the original purchaser of the product. MGS products installed outdoor and/or for commercial applications are covered by a 2 year functional and finish warranty from purchasing date. This warranty applies to MGS faucets installed in USA or Canada.
CARE & MAINTENANCE
OUTDOOR INSTALLATION
Marine grade stainless steel is ideal for outdoor installation and it is extremely resistant to oxidation. Nevertheless, it is not oxidation proof or stain proof. In order to maintain the long lasting beauty of the stainless steel surface it is necessary to regularly clean it. This is particularly important in marine environment where saline deposits over time will affect the surface and cause oxidation. In such conditions the surface must be cleaned more frequently in order to be preserved.
ALL FINISHES
Do not use bleach, caustic, ammonia or ACID based cleaning materials or detergents containing chloride, or any other strong household cleaning products, even if organic. Even vapors of such products could damage the chemical balance of the stainless steel surface. When using strong chemical products in the room, we recommend to air it out. Do not use abrasive materials, cleaning pads, scouring sponges, files or other hard objects. Do not use oily rags or greasy cloths when wiping the product surface.
MATTE AND POLISHED STAINLESS STEEL
In order to preserve the finish of your product, we recommend regular cleaning with a soft wet cloth. For regular cleaning it is not necessary to use detergents. In case of need, we recommend the use of a mild detergent or even better, a specific stainless steel detergent. In this case, please follow the specific instructions of the detergent manufacturer. When using a detergent rinse well with water immediately after cleaning, until all detergent is removed from the surface. Dry with a soft cloth.
PVD FINISHES (BLACK STEEL / TITANIUM / ROSE GOLD / GOLD)
PVD technology is used to create a smooth, resistant and long lasting finish. A soft wet cloth is sufficient for daily cleaning. For resistant stains and fingerprints we recommend the use of a diluted mild soap and water solution to be applied using a soft cloth. Rinse thoroughly after cleaning. In order to avoid water stains we recommend to dry the surface with a soft cloth. As it is not a coating but the result of a chemical reaction, a characteristic of PVD is that objects of different shapes and dimensions can absorb color differently, resulting in slight color variations. These are not to be considered defects.

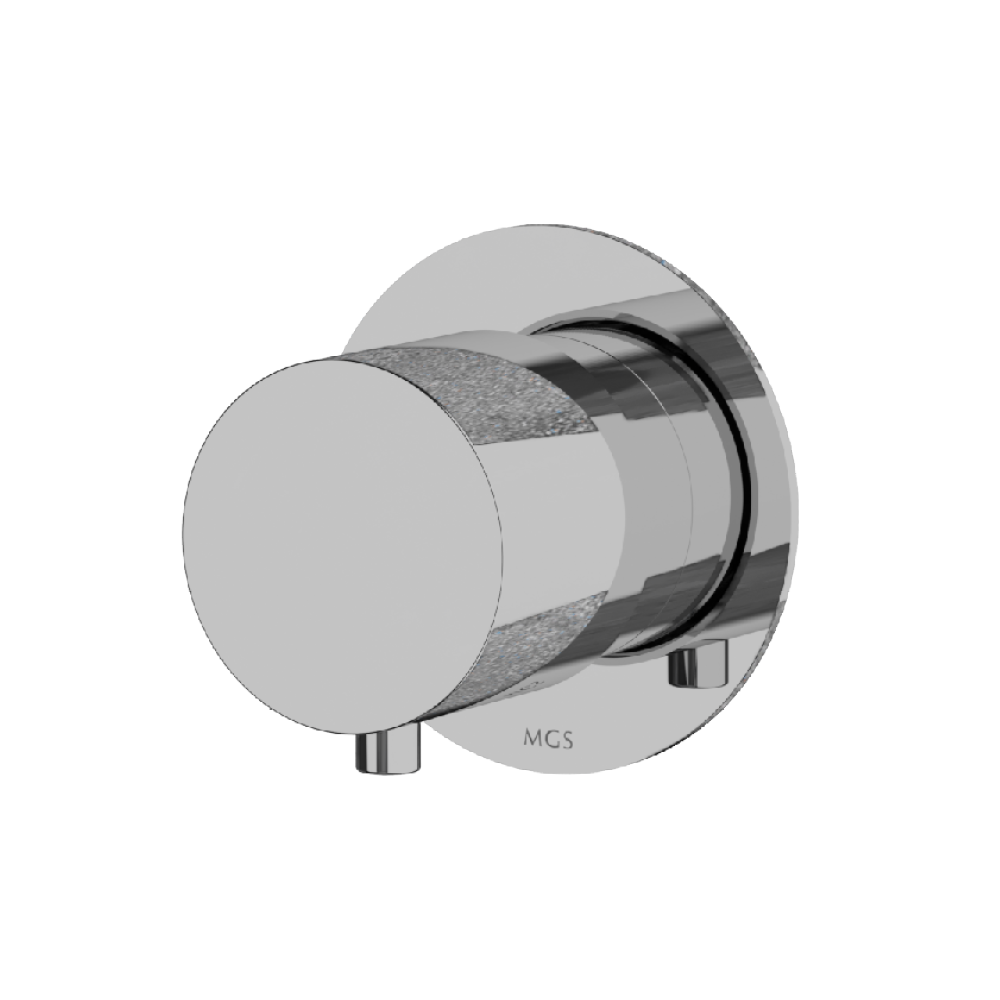

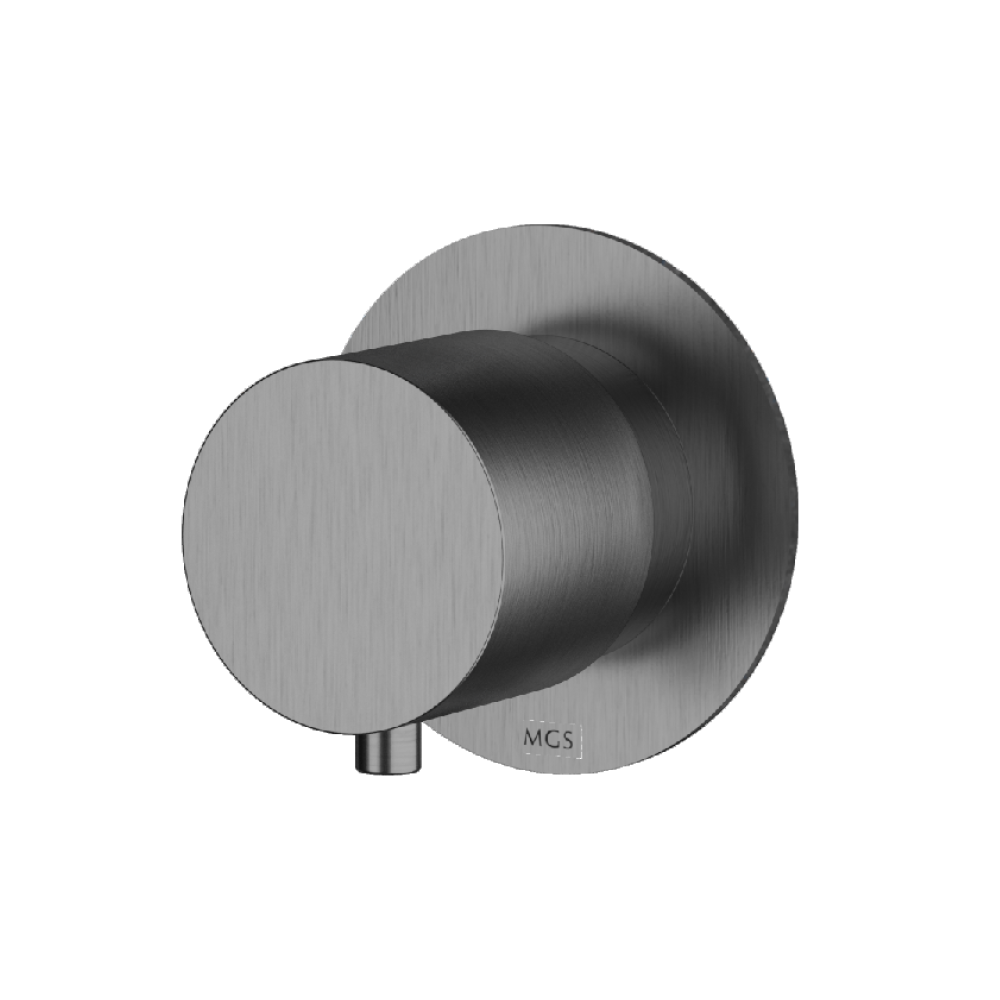

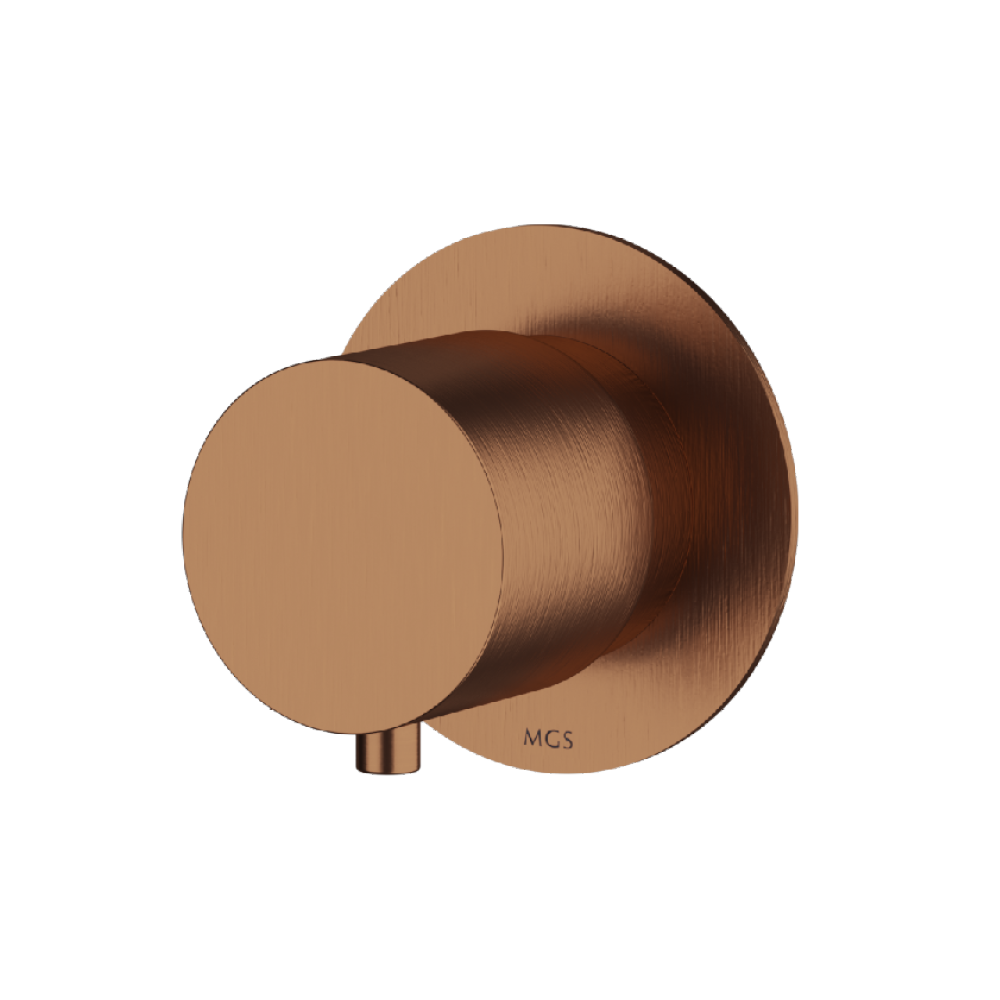

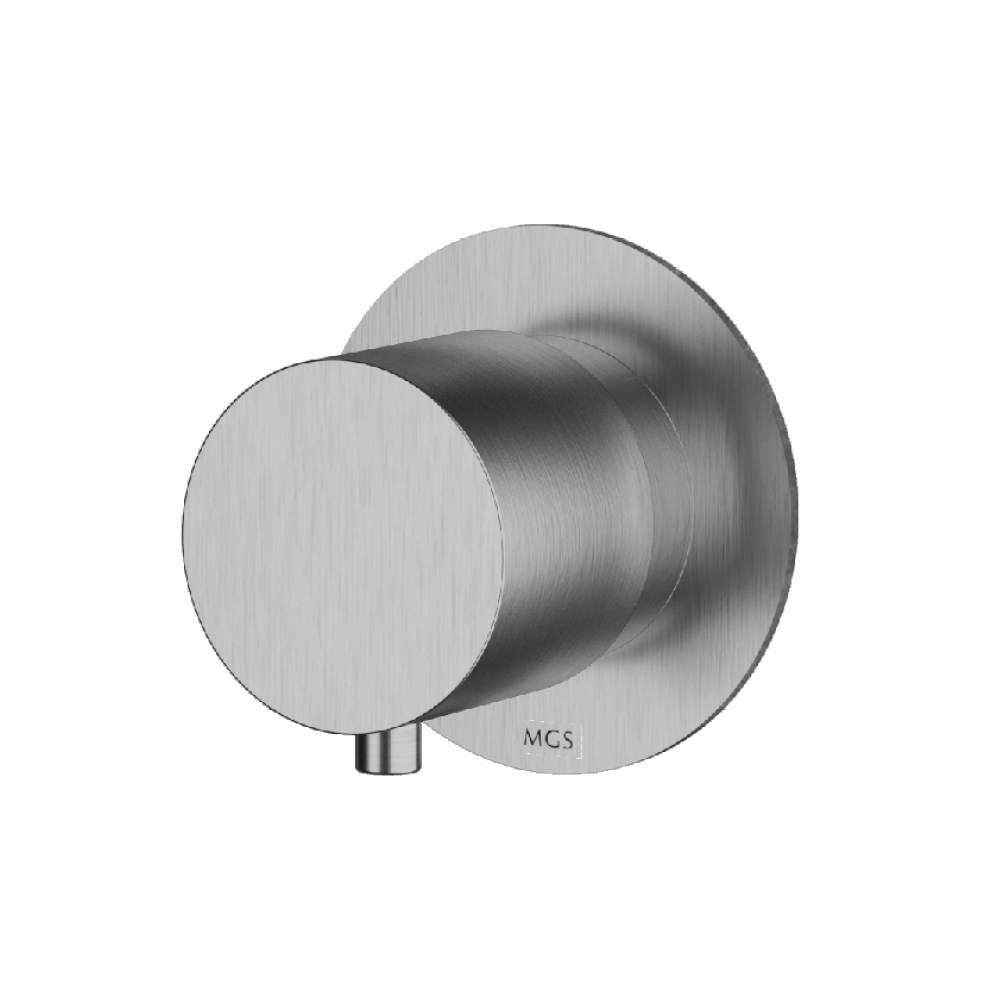

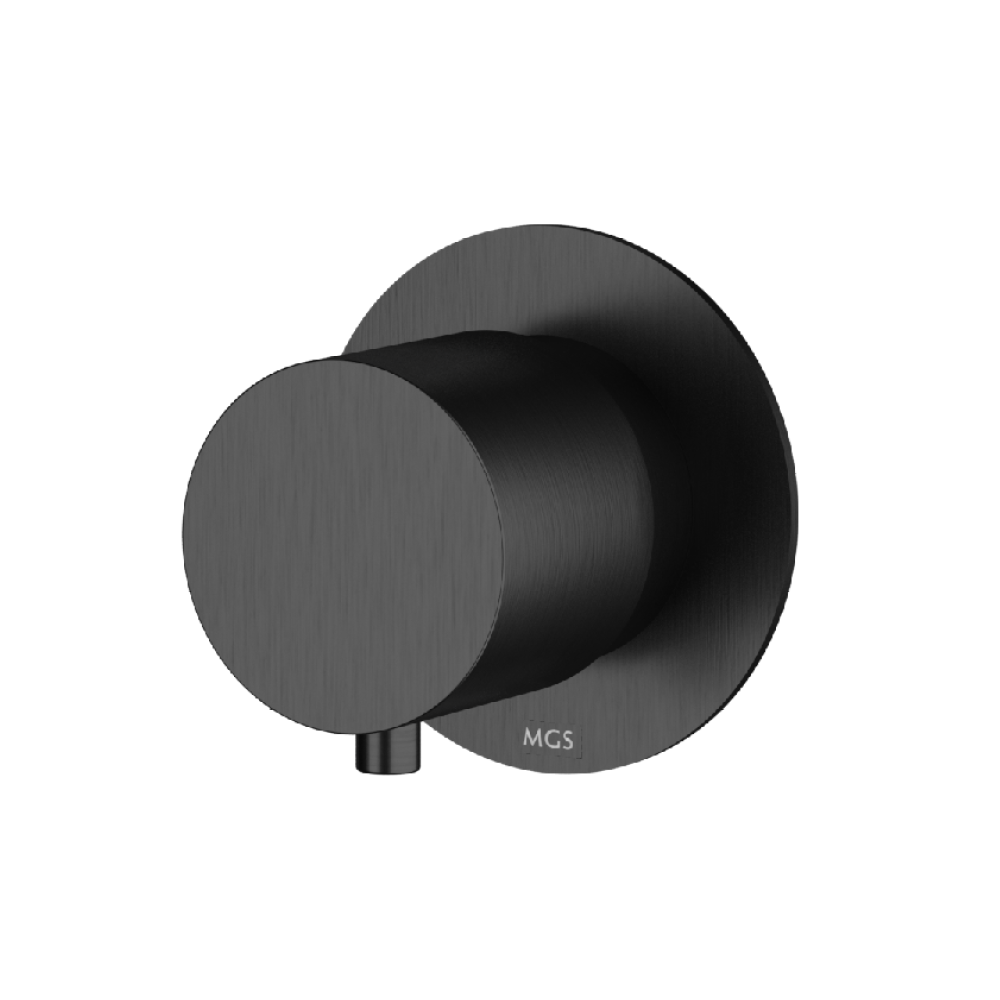

COLORS
COLORS
