FRONTERA KITCHEN TAPS
FRONTERA KITCHEN TAPS

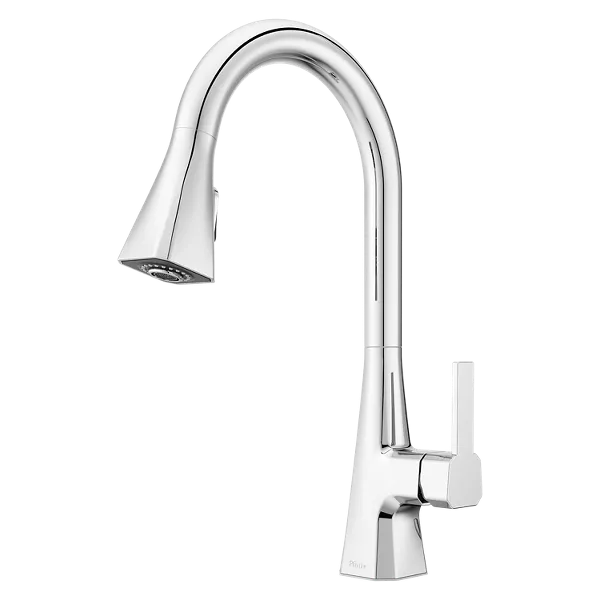

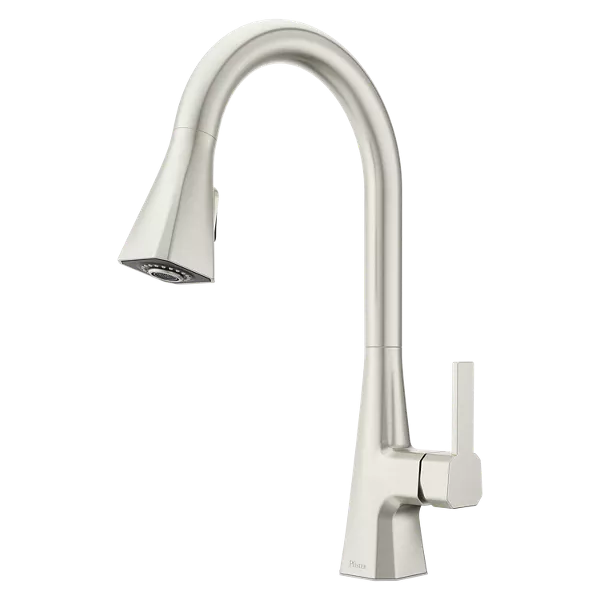

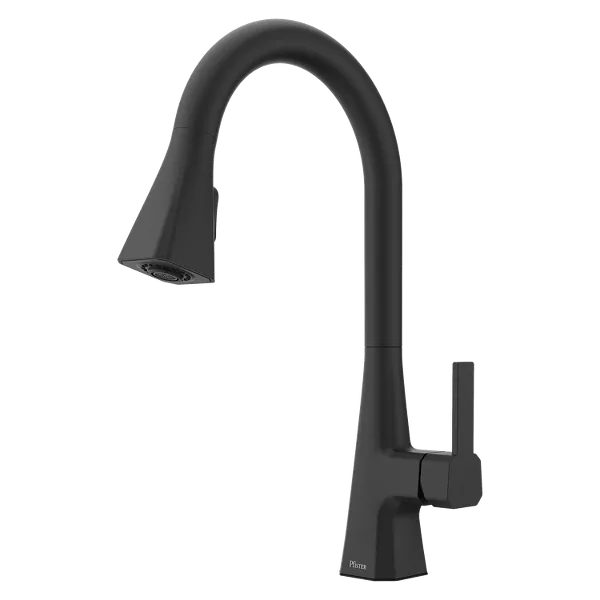

1-Handle Pull-Down Kitchen Faucet
Frontera™ blends modern and transitional design elements for a look that shines in any kitchen.
The 8-sided spray head adds visual interest and dimension while mirroring the distinctive base and handle.
These unique details beautifully capture light as well as the attention of everyone in the room.
INFORMATION
WATER FLOWS

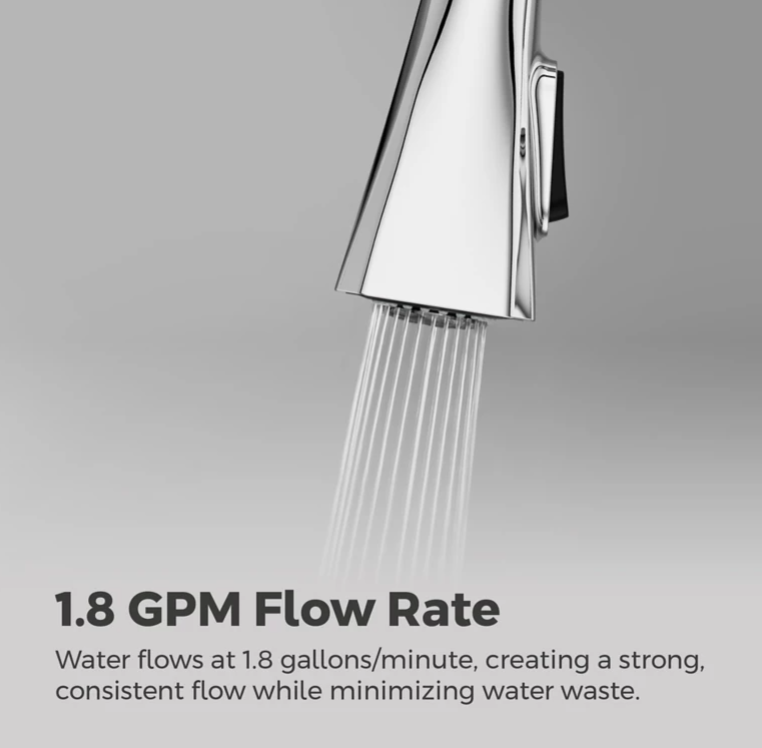

Water flows at 1.8 gallons per minute, creating a strong, consistent flow while minimizing water waste
BRAND
Pfister Faucets
PRODUCT TYPE
Kitchen Taps
SPRAY

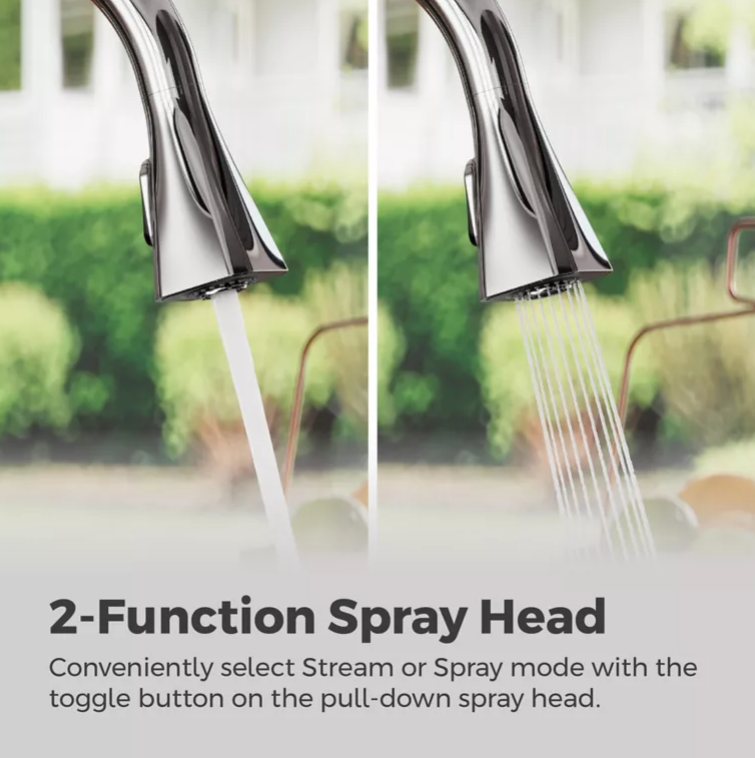

Pull-down spray head with toggle button to select Stream or Spray mode conveniently in the palm of your hand
PRODUCTION
Made in USA
GPM FLOW RATE
1.8
CODE COMPLIANCE
- ADA Compliant
- CEC Certified
- NSF/ANSI/CAN 61 : Q≤1
- IAPMO Certified to ASME A112.18.1/CSA B125.1
# OF HANDLES
1
CONFIGURATIONS
1-Hole
FAUCET ARC TYPE
High-Arc
PULL-OUT/DOWN HOSE MATERIAL
Braided Nylon
TECHNOLOGY
TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
DIMENSION
- Total Spout Height :
16-5/16
- Deck To Aerator Height : 8-15/16
DECKPLATE INCLUDED
No
MAX DECK THICKNESS
3
SOAP DISPENSER
No
SECURE, TIGHT CONNECTION EVERY TIME.
AccuDock™ is an advanced docking technology which ensures that the pull-down spray head stays firmly in place when docked. Powerful, spring-loaded arms inside of the spout are designed to grip the spray head and hold it in place for reliable performance with every use.
FEATURES
- Complies with Federal and State safe drinking water legislation
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
PFOREVER

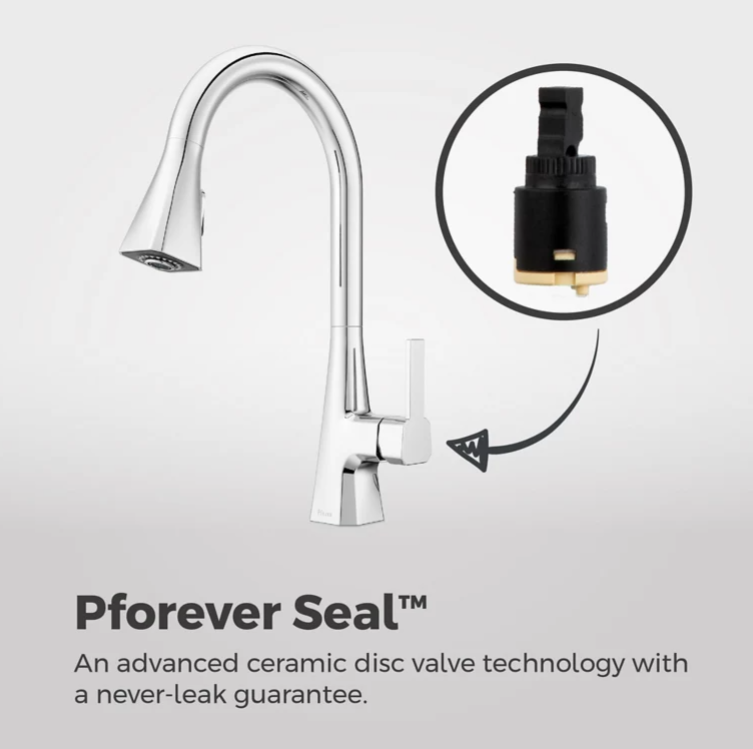

Pforever Seal™—advanced ceramic disc valve technology with a never leak guarantee
OPTIONAL DECORATIVE
Optional decorative deck plate sold separately; order 961-287X separately
RATED TO MEET
Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
QUICK CLICK
Pfast Connect™ technology securely connects water supply lines with a quick click
DETAIL
- Supply Lines
- AccuDock
- TiteSeal® Deckplate
- Pfast Connect Kitchen
- 2-Function Spray Head
- Forward Only Handle
- Wipe Clean Nozzles
- 360 Degree Swivel
- Pforever Seal®

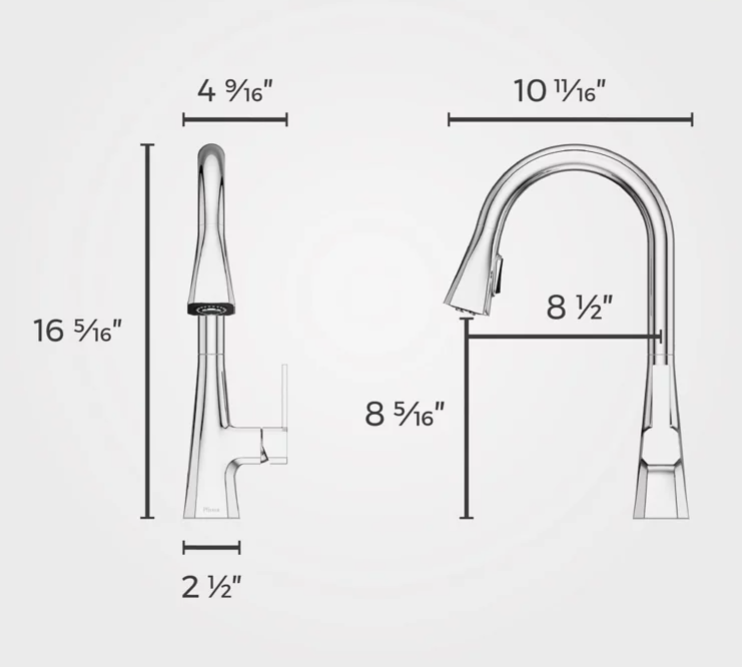

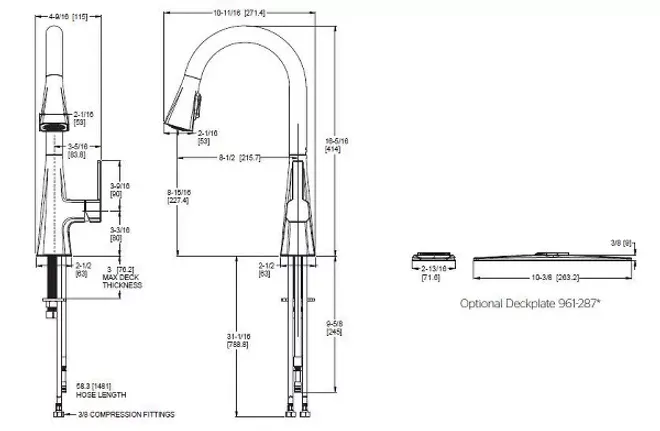

TECHNICAL DRAWING
SPRAY FUNCTIONS
Spray and Stream
COMPLIES
Complies with Federal and State safe drinking water legislation
INTEGRATED

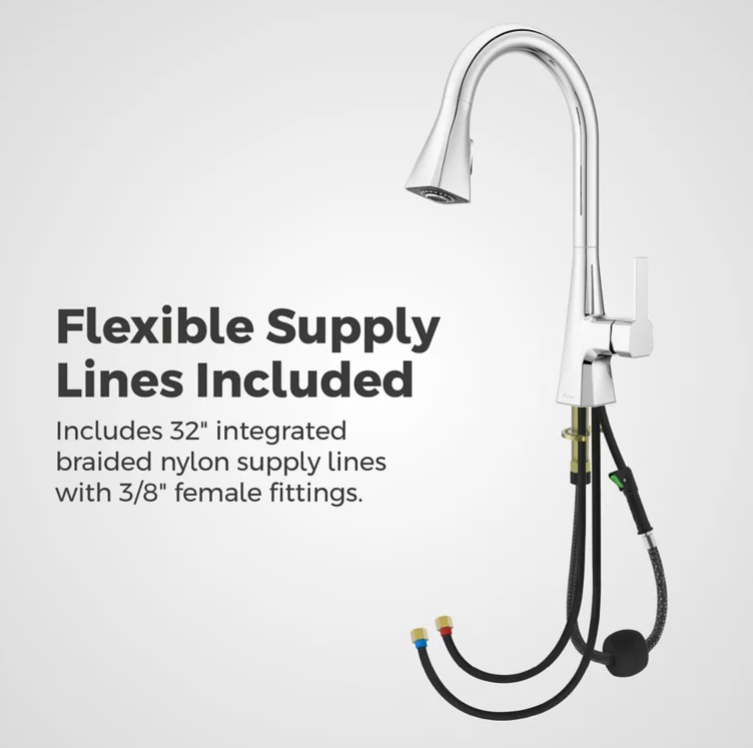

Includes 32” integrated braided nylon supply lines with 3/8” female fittings. No need to purchase separate water-supply connection lines
