Mgs Mb509 Mixer With Hand Shower
MB509 MIXER WITH HAND SHOWER
MB509 MIXER WITH HAND SHOWER

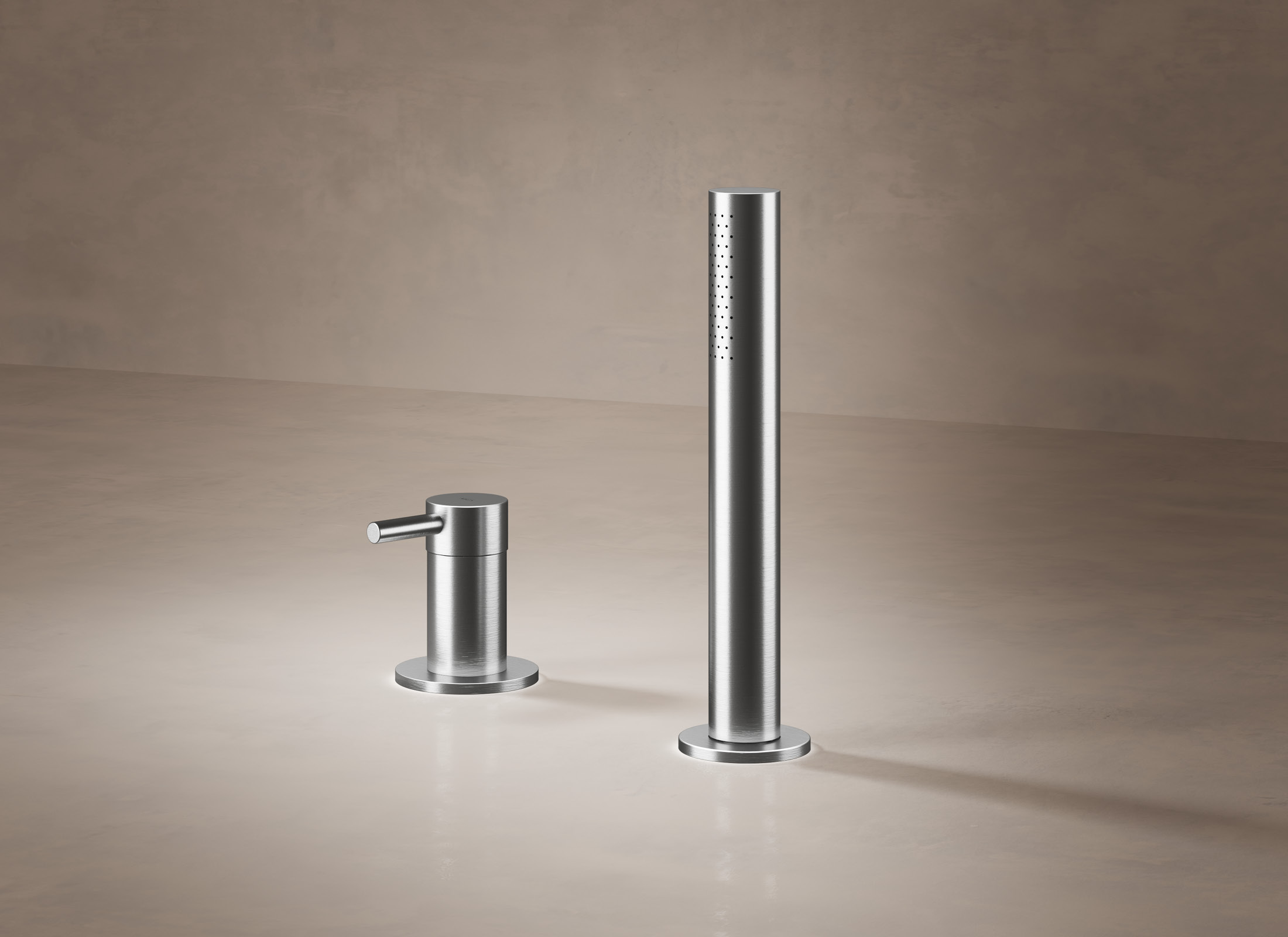

Single lever mixer with hand shower.
The bathroom collections by MGS stand out for their balance between sophisticated design and everyday practicality.
information
BRAND
Mgs
PRODUCT TYPE
Shower Valve
MIXER
Single lever mixer with hand shower
FINISH
Hand polished to matte or glossy finish
RECOMMENDED OPERATING PRESSURE
1 - 5 bar
COLLECTION
PE294
OPERATING PRESSURE
Max. (10 bar)
DECK MOUNTED
The deck mounted hand shower support is included

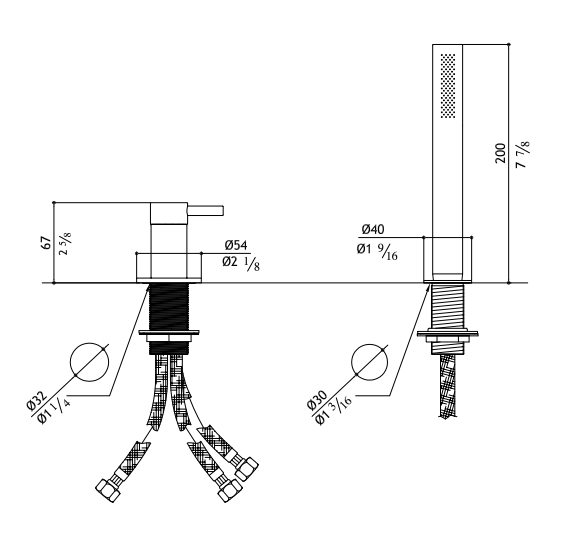

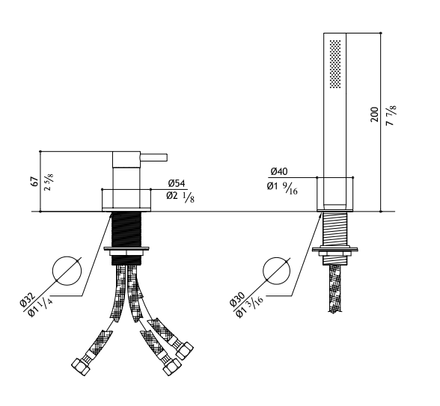

DIMENSIONS
- Height : 67 mm (2 5/8")
- Hole Diameter : Ø32 mm (1 1/4")
- Connection Diameter: Ø54 mm (2 1/8")
- Body Diameter : Ø40 mm (1 9/16")
FLEXIBILITY
The independent mixer allows maximum installation flexibility
RECOMMENDED HOT WATER TEMPERATURE
65° C
MATERIAL
Steel
AVAILABLE COLORS
6
HOT WATER TEMPERATURE
Max. 85° C
Marine grade stainless steel AISI316L.
ELEGANCE TO ANY SPACE
Crafted with great attention to detail, they bring a timeless touch of elegance to any space.
DETAIL
Also availble in four exclusive PVD finishes Titanium, Black Steel, Bronze and Gilded over matte stainless steel

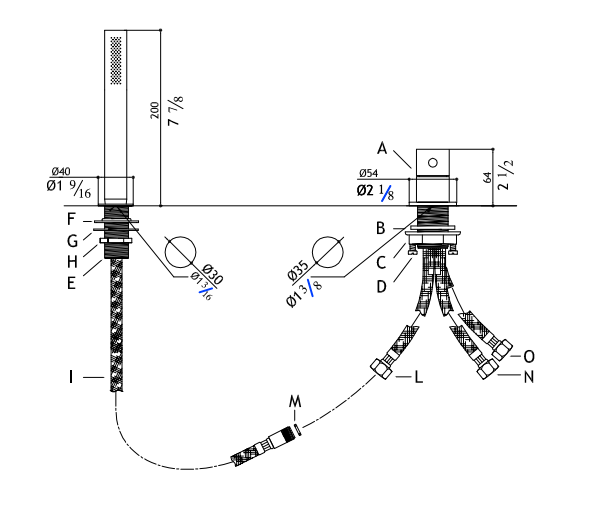

ASSEMBLY
- Flush through the supply pipes.
- Insert body "A" through the countertop hole.
- Place washer "B", hand tighten nut "C" and fix with 3 screws "D".
- Connect flexible hoses "N" and "O" to the mains (red for hot water and blue for cold water).
- Connect shower hose "I" to flexible hose "L" after inserting gasket "M".
- We recommend to install between the mains and the faucet a water filter which should be regularly cleaned.
- Place shank "E" through the countertop hole. Insert gasket "F", washer "G"
and tighten nut "H".
WARRANTY
MGS products are covered by a warranty of 5 years from purchasing date on all stainless steel parts and of 2 years on all other components. During this period, parts with construction defects in materials or workmanship will be replaced free of charge. This warranty will not respond in the case of faults caused by unsuitable or improper use, wrong installation, natural wear, improper or careless treatment, wrong usage of cleaning or maintenance products.
MGS will not assume liability for labour expended, freight cost or damages accruing from the use of the material purchased from us. If material is defective, the limit of damage is the price of the defective material. Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to MGS for all warranty claims. The warranty is not transferable and is extended solely to the original purchaser of the product.
COLORS
COLORS

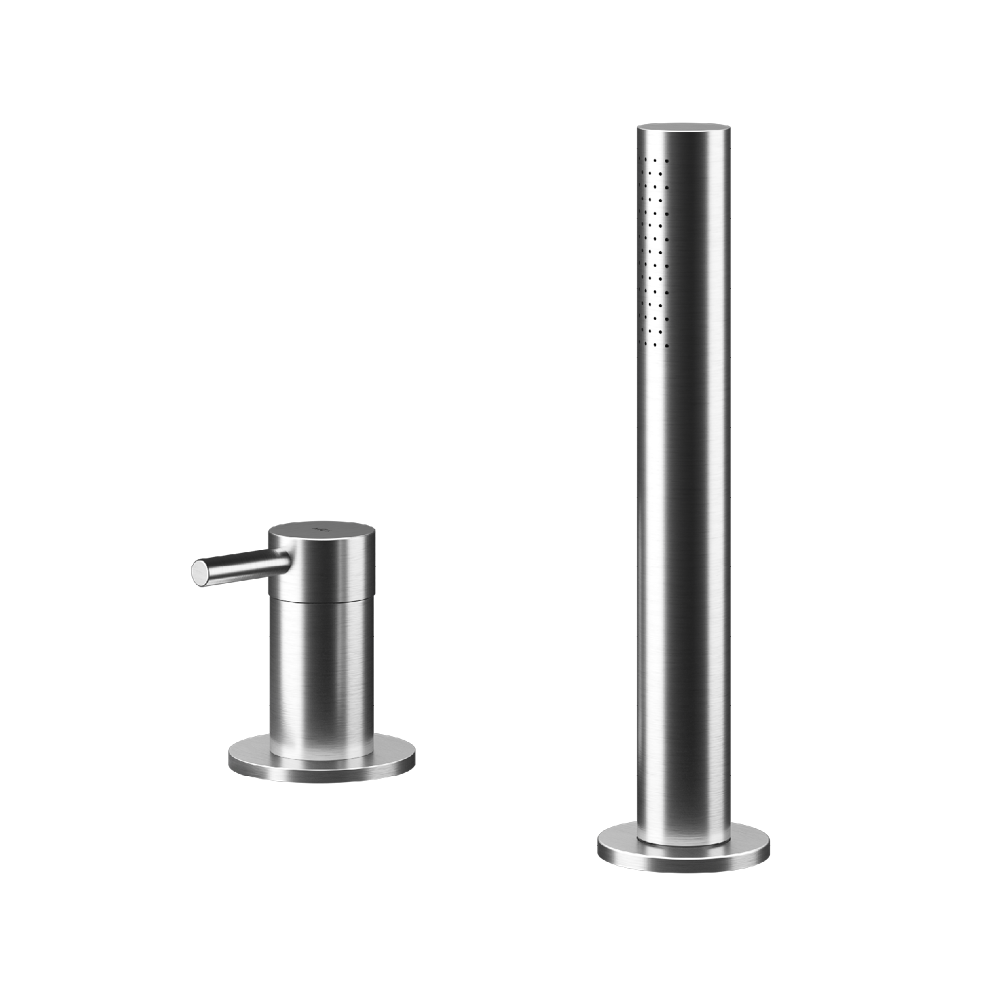

- Stainless Steel

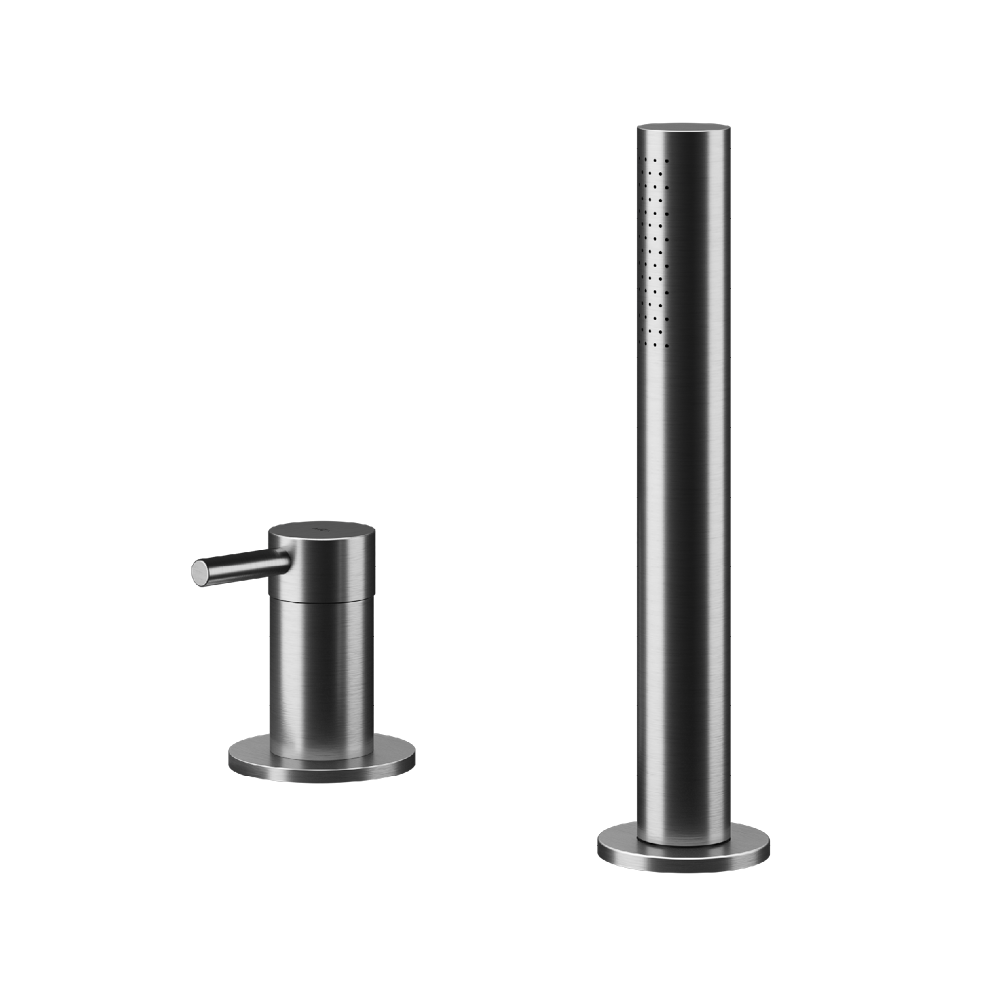

- Titanium
- Black Steel
- Light Gold
- Matte Bronze
