INFINITE FULL HEIGHT WITH FIXING CEILING & FLOORING BLOCKS
INFINITE FULL HEIGHT WITH FIXING CEILING & FLOORING BLOCKS
Sleek and strong ceiling and floor fixing blocks create a full floor-to-ceiling, flush-fronted, endless cubicle finish, ideal for the most luxurious washroom settings.Maximum ceiling height
INFORMATION
BRAND
Venesta
COLLECTION
Infinite
PRODUCT TYPE
Ceiling & Flooring Blocks
PRODUCTION
Made in United Kingdom
ACCESSORIES
Coat hooks and toilet roll holders available. Optional choice of black, brass or bronze effect coatings.
EDGE TREATMENT
- HPL : 0.5mm matching melamine lipping.
- Veneer : 0.5mm matching melamine lipping.
- Bamboo : 40mm - 5 ply visible edge, 25mm - 3 ply visible edge.
- ColourCoat : Edges are sprayed with one coat of primer and finished with 20% glos s pigmented polyurethane lacquer.
- ColourCoat High Gloss : Edges are sprayed with one coat of primer and finished with 80% gloss pigmented polyurethane lacquer.
LOOK
Modern
ENVIRONMENT
Indoor
DOWNLOADS
↓ Color Selector
↓ Product Portfolio
↓ Infinite & Infinite Full Height Brochure
↓ Infinite & Infinite Full Height Data Sheet
↓ Infinite Full Height with Fixing Blocks Veneer
↓ Infinite Full Height with Fixing Blocks ColourCoat High Gloss
↓ Infinite Full Height with Fixing Blocks ColourCoat
↓ NBS/Cubicles/Infinite Full Height with Fixing Blocks HPL
MINIMUM CEILING CLEARANCE
30 mm
FITTING
Stainless Steel & Aluminium
MAXIMUM CEILING HEIGHT
- HPL : 2815mm.
- Veneer : 2815mm.
- ColourCoat : 2815mm.
- ColourCoat High Gloss : 2815mm.
MAXIMUM DEPTH
- HPL : 2090mm.
- Veneer : 2090mm.
- Bamboo : 2090mm.
- ColourCoat: 2090mm.
- ColourCoat High Gloss: 2090mm.
COLOUR FINISH
- HPL : 34 colours from the standard range.
- Veneer : 11 Alpi real wood veneers (varying price points).
- Bamboo : Caramel, side pressed in construction with a medium colouring.
- ColourCoat and ColourCoat High Gloss : Any RAL classic colour, excluding metallic and fluorescent colours.
- Cubicle hardware : Stainless steel and aluminium. Optional choice of black, brass or bronze effect coatings.
PANELS AND DOORS
Available in HPL, ColourCoat, ColourCoat High Gloss, Veneer and Bamboo.
FLOOR CLEARANCE
- 20mm to cubicle fronts.
- Partitions taken to the floor in a privacy channel.
FEATURES & BENEFITS
-V3 - Premium cubicles. -A minimal, modern look with clean lines. -Bespoke cubicles for various configurations. -Full height cubicle range guarantees maximum privacy for end users. -Specify Infinite Full Height cubicles with floor and ceiling blocks for end user privacy and maximum durability.
-Self-closing hinges for a minimal, sleek look while cubicles are vacant. -A much-loved, premium flush fronted cubicle design perfectly suited to luxury commercial washroom settings. -Sleek stainless steel and aluminium fittings that not only look great, but are equally as durable and hardwearing too.
-Elevate the design of your Infinite cubicles with stylish brass, bronze or black hardware. -Maximum design flexibility with Infinite, as you can specify the cubicles in HPL, real wood veneers, ColourCoat or ColourCoat High Gloss in any RAL Classic colour. -Also available in Bamboo, offering a sustainable solid panel option.
PERFORMANCE
VENEER
Doors and pilasters are 44mm nominal thickness MDF faced with real wood veneer, partitions are 25mm MDF core faced with real wood veneer. Door, pilaster and partition edging in 0.5mm matching melamine lipping from the Venesta standard colour range.
HPL
Doors and pilasters are 45mm nominal thickness with an MDF core, partitions are 26mm nominal thickness.
COLOURCOAT
Doors and pilasters are 44mm nominal thickness MDF, partitions are 25mm MDF, both are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer.
COLOURCOAT HIGH GLOSS
Doors and pilasters are 44mm nominal thickness MDF, partitions are 25mm MDF, both are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer.
BAMBOO
Doors and pilasters are manufactured from solid bamboo panels 40mm thick, and partitions are 25mm. As a natural material, variation in colour and tone will occur.
HARDWARE
FIXING
- Pilaster to partition : Steel Z-clips. Optional choice of black, brass or bronze effect coatings.
- Partition to wall : Satin anodised aluminium H-channel and Z-clips. Optional choice of black, brass or bronze effect coatings.
- Pilaster to wall : Satin anodised aluminium H-channel and Z-clips. Optional choice of black, brass or bronze effect coatings.
- Floor and ceiling fixing : Stainless steel effect aluminium fixing blocks (Infinite Full Height only). Optional choice of black, brass or bronze effect coatings.
INDICATOR BOLT
Stainless steel effect aluminium hinge (lift off available). Optional choice of black, brass or bronze effect coatings.

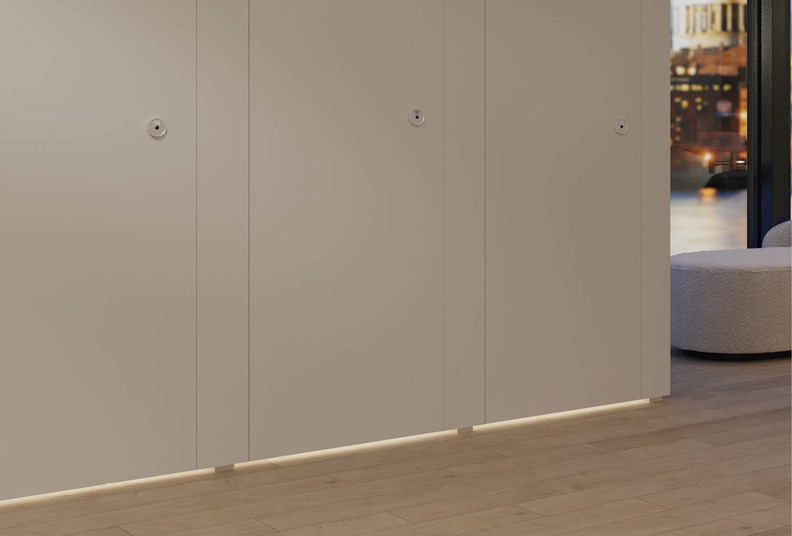

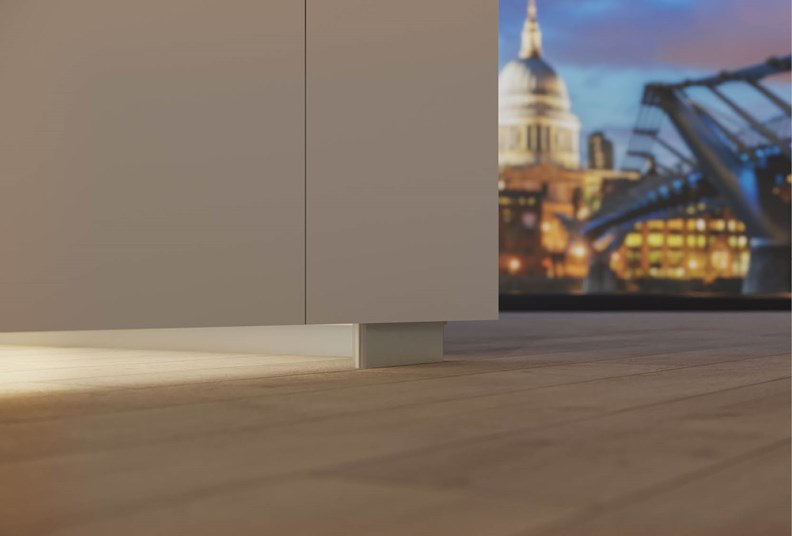

FIXING BLOCKS
Stainless steel effect aluminium fixing blocks to floor and ceiling. Optional choice of black, brass or bronze effect coatings.
HINGE
Stainless steel effect aluminium hinge (lift off available). Optional choice of black, brass or bronze effect coatings.
MATERIAL
COLOUR COAT HIGH GLOSS
-ColourCoat High Gloss is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat High Gloss have a gloss value of 80%. -Edges are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer.
-Note: for V3 ColourCoat High Gloss products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).
SGL (SOLID GRADE LAMINATE)
Best for : Wet areas and high vandalism environments
-SGL is a solid laminate panel manufactured from layers of kraft paper bonded with phenolic resins under heat and pressure, forming an extremely dense and durable material. It is fully waterproof and highly impact resistant. Panels are 13mm nominal thickness with polished radiused edges.
-SGL is ideal for leisure centres, stadiums, transport hubs and other demanding environments, where durability and hygiene are essential. -Available in 34 laminate colours with both standard and bespoke sizing options.
MFC (MELAMINE FACED CHIPBOARD)
Best for : Dry environments with light to moderate use
-MFC panels are manufactured from moisture-resistant chipboard faced with decorative paper and a melamine resin surface. This creates a durable, cost-effective finish suitable for lower traffic washrooms. Panels are 19mm nominal thickness with ABS-lipped edges for protection.
-MFC is a practical choice for offices, commercial buildings and other low-use environments where style and value are important. -Available in 34 laminate colours and across all Venesta V ranges.
HPL (HIGH PRESSURE LAMINATE)
Best for : Busier washrooms and higher traffic environments
-HPL panels feature a high pressure laminate surface made from multiple layers of kraft paper bonded together with phenolic resins, finished with a decorative layer. The laminate is then bonded to a moisture-resistant chipboard core, creating a panel that is more resistant to impact, scratches and general wear. Panels are 19mm nominal thickness with ABS-lipped edges.
-HPL is commonly specified for schools, universities, offices and shopping centres, where washrooms experience heavier daily use. -Available in 34 laminate colours across a wide range of Venesta cubicle systems.
REAL WOOD VENEER
Our sleek Alpi real wood veneer washroom finishes have been carefully selected to bring warmth, vitality and luxury to your designs. Hardwearing, sustainable and great to look at, our real wood veneers are available across a range of our washroom systems.
Our real wood veneers are split into price brackets, with Group 1 being the lowest and Group 3 being the highest costs:
- Group 1 : Ash (Crown Cut), European Oak (Crown Cut)
- Group 2 : American Black Walnut (Crown Cut), American Black Walnut (Straight Grain), European Oak (Straight Grain), Fumed Oak (Half Crown), American White Oak (Straight Grain), Teak (Straight Grain), Wenge (Straight Grain)
- Group 3 : Ebony (Straight Grain), Rosewood (Crown Cut)
DETAIL

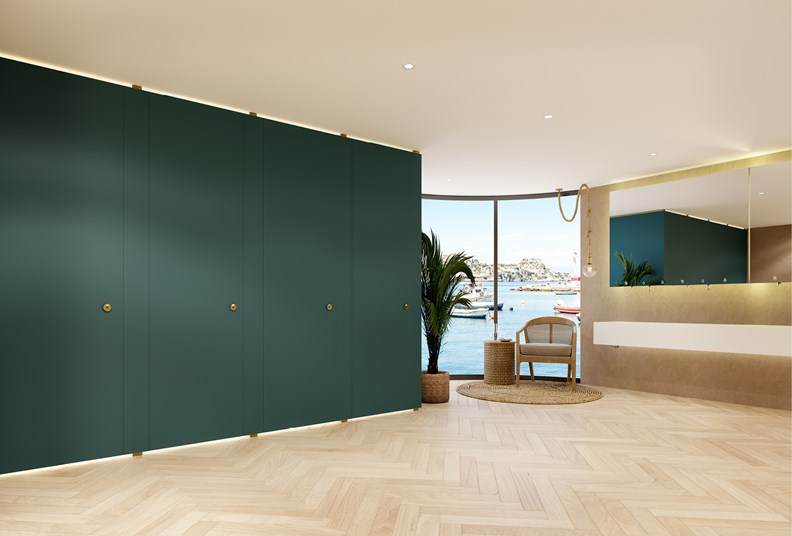

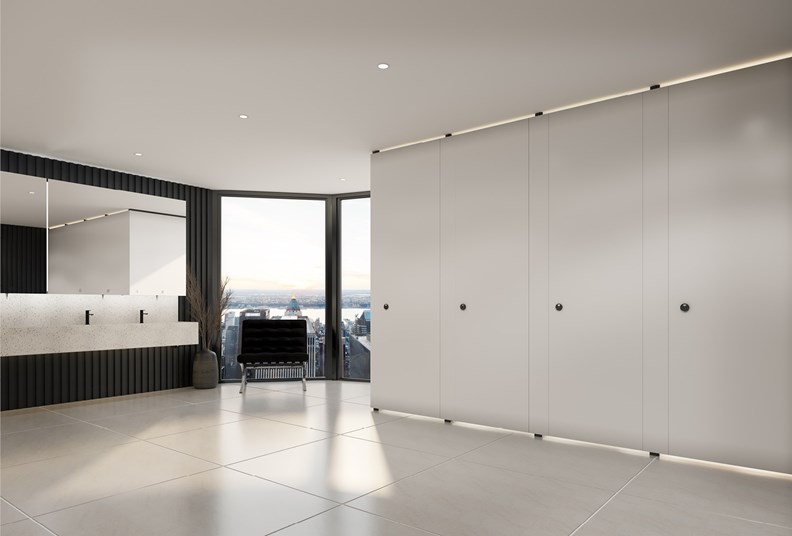

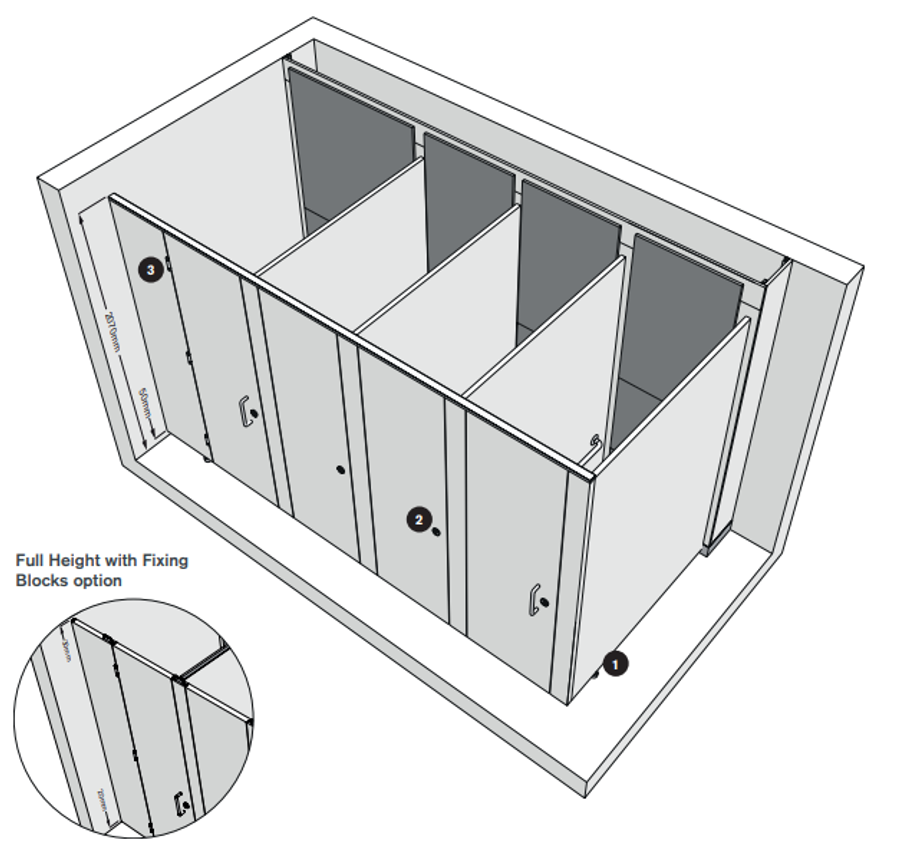

INFINITE FULL HEIGHT WITH FIXING BLOCK CUBICLES
Style and privacy are met in equal measure with Infinite Full Height with Fixing Block cubicles.
Our Infinite Full Height with Fixing Block cubicle range boasts several innovative features including floating pilasters and durable floor and ceiling fixing blocks that give a flush-fronted, endless finish.

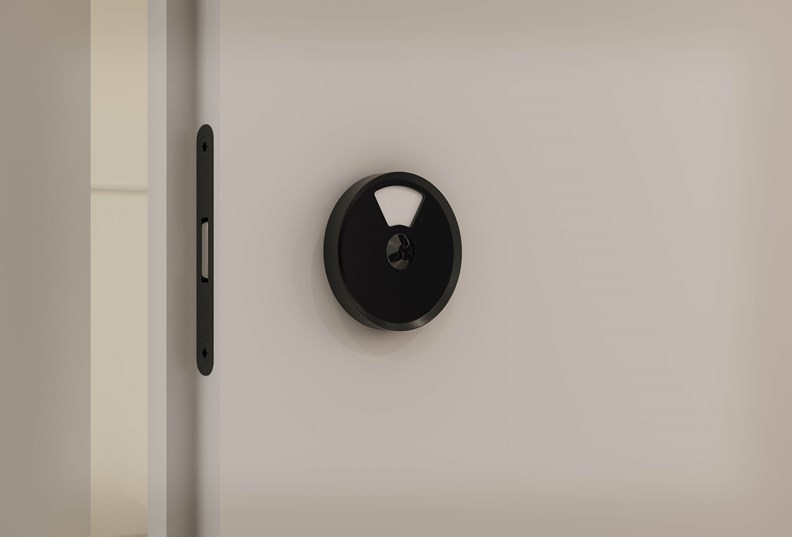

Infinite Full Height with Fixing Blocks also features our most secure emergency release indicator bolt to date, offering quick and safe access to inside locked cubicles in the event of an emergency.
Available in four high grade finishes, including HPL, real wood veneers in a range of rich, earthy tones or ColourCoat and ColourCoat High Gloss in any RAL colour, Infinite Full Height premium toilet cubicles give you endless design possibilities for premium commercial washroom settings.
Infinite is now available with a renewable bamboo core option. Bamboo is a fast-growing, renewable material that can be replenished quickly without deforestation and offers a clear sustainability advantage over traditional timber products.
For maximum design flexibility, you can now specify our V3 Infinite Full Height with Fixing Block cubicles with stainless steel and aluminium fittings in our standard, brass, bronze or black finishes.
If you like the look of Infinite Full Height with Fixing Blocks but are looking for a standard height solution, we're proud to offer Infinite cubicles. Not stopping there, we also offer Infinite Full Height with Headrail - the design possibilities are endless with this V3 range.
FITTING SOLUTIONS
-Minimal fittings as standard on this premium toilet cubicle range. -A luxurious floating, flush fronted toilet cubicle solution. -A choice of standard, bronze, brass or black cubicle fittings. -Strong and secure floor and ceiling fixing blocks for maximum durability and privacy.
COLORS

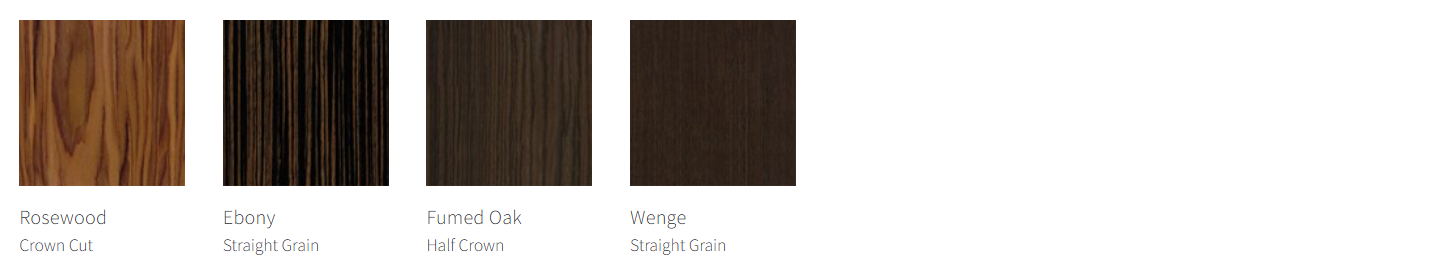

VENEER

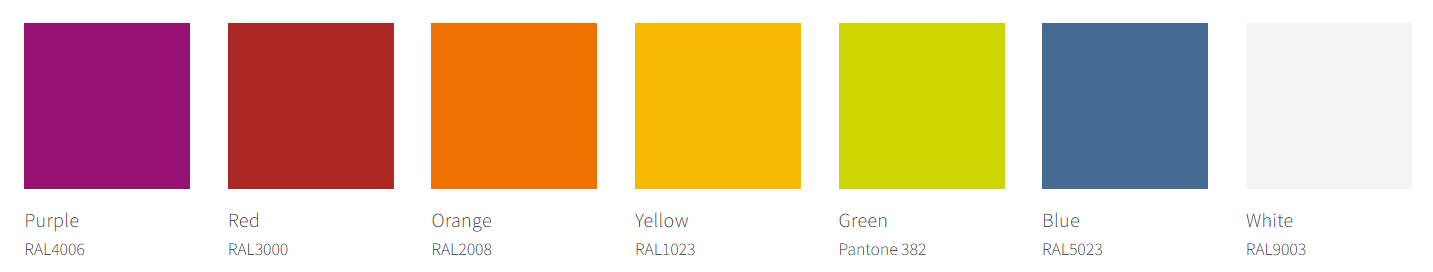

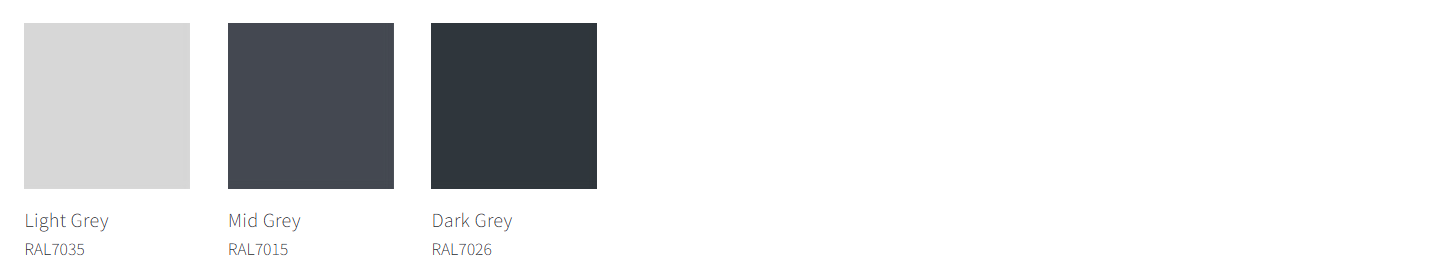

COLOURCOAT HIGH GLOSS
LAMINATE
