Ecosmart Fire Flex 50SS Fireplaces
FLEX 50SS FIREPLACES
FLEX 50SS FIREPLACES

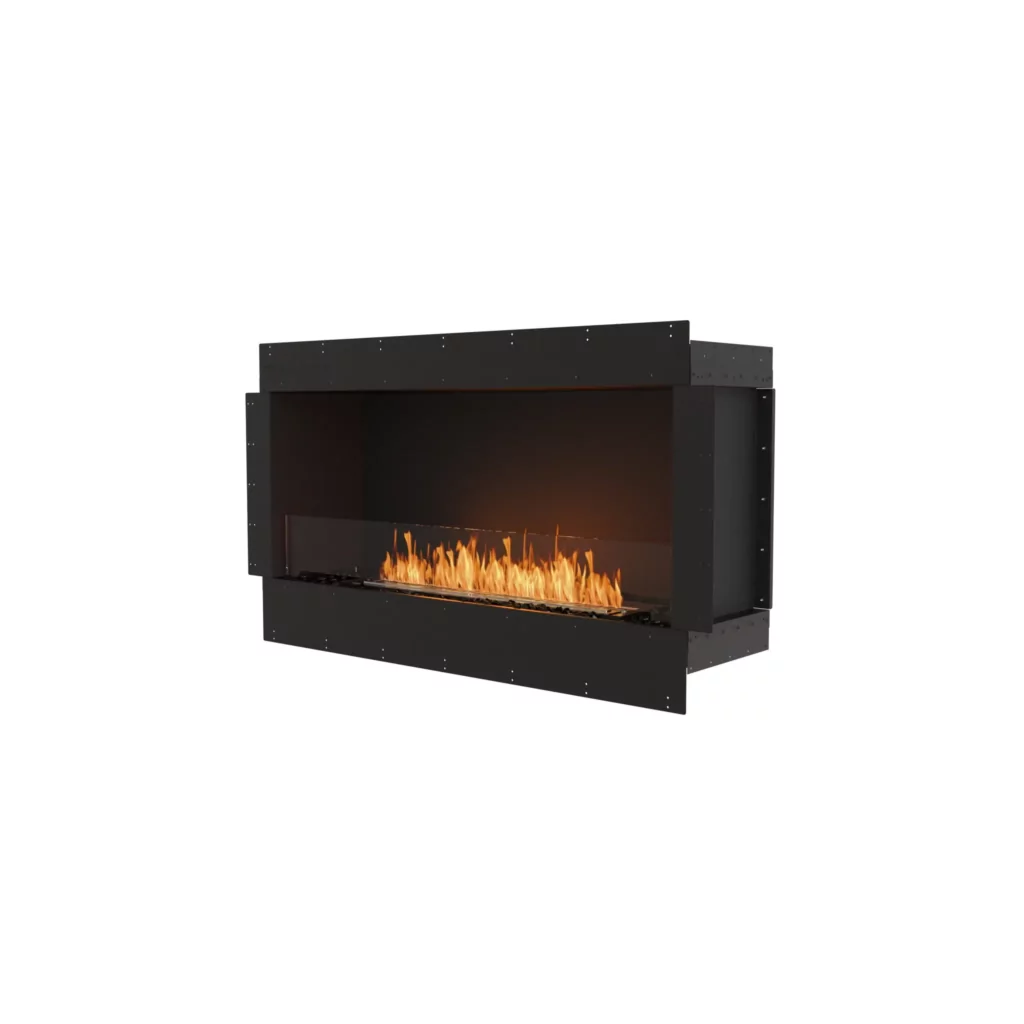

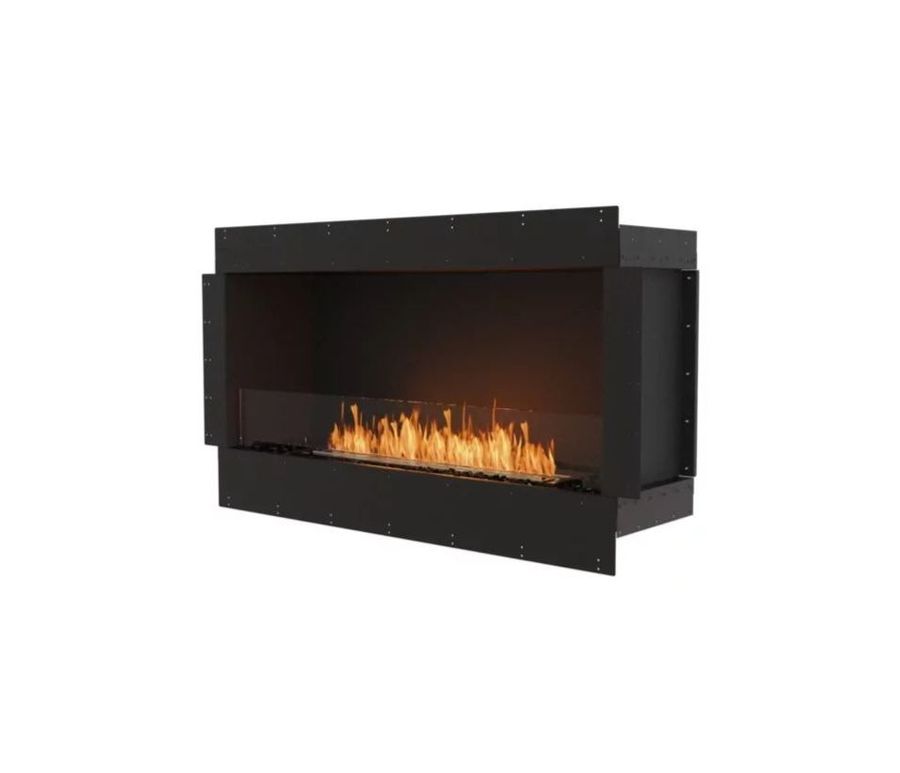

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front.
INFORMATION
BRAND
Ecosmart Fire
PRODUCT TYPE
Fireplace
AWARDS
2020 BIMsmith Best Award (USA) and 2018 Attendees Choice Award (USA)
INDOOR OR OUTDOOR APPLICATION
Powered by clean-burning e-NRG ethanol fuel, Flex 50SS is suitable for indoor or outdoor installation. Ethanol is a sustainable fuel choice made by fermenting plants like sugarcane or corn.
COLLECTION
Flex
WEIGHT
71.4 kg

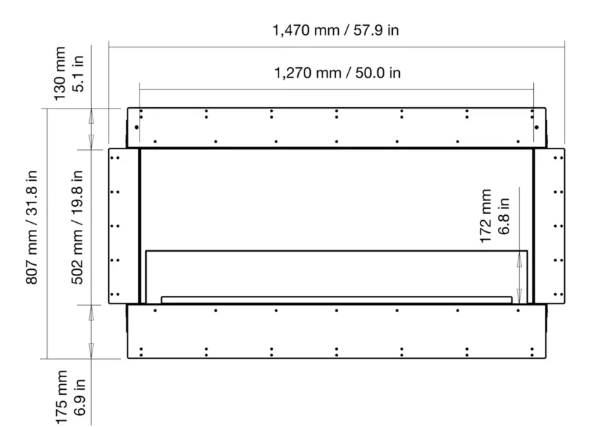

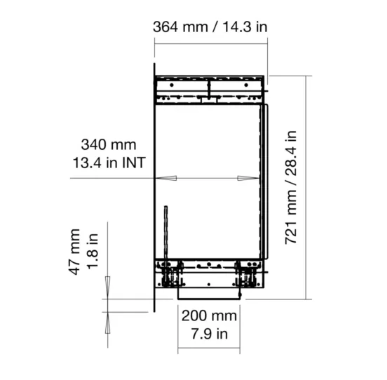

DIMENSIONS
- Width : 1.470 mm/ 1.270 mm
- Height : 807 mm/ 502 mm
- Depth : 365 mm/ 340 mm
UNMATCHED HEAT EFFICIENCY
Unlike gas fireplaces that lose 30% of heat through vents, Flex’s closed combustion system keeps every BTU in your room. Warmth stays where it belongs—no energy wasted, no chimneys needed.

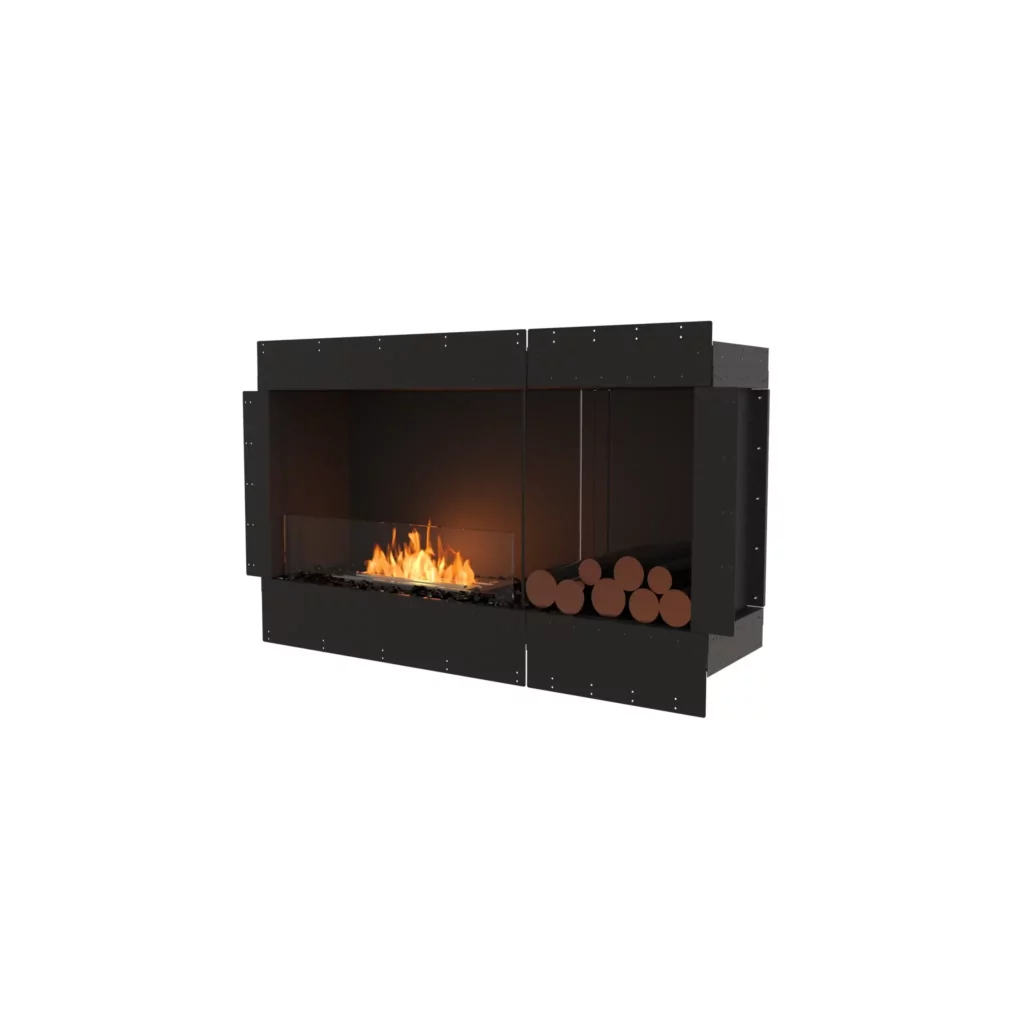

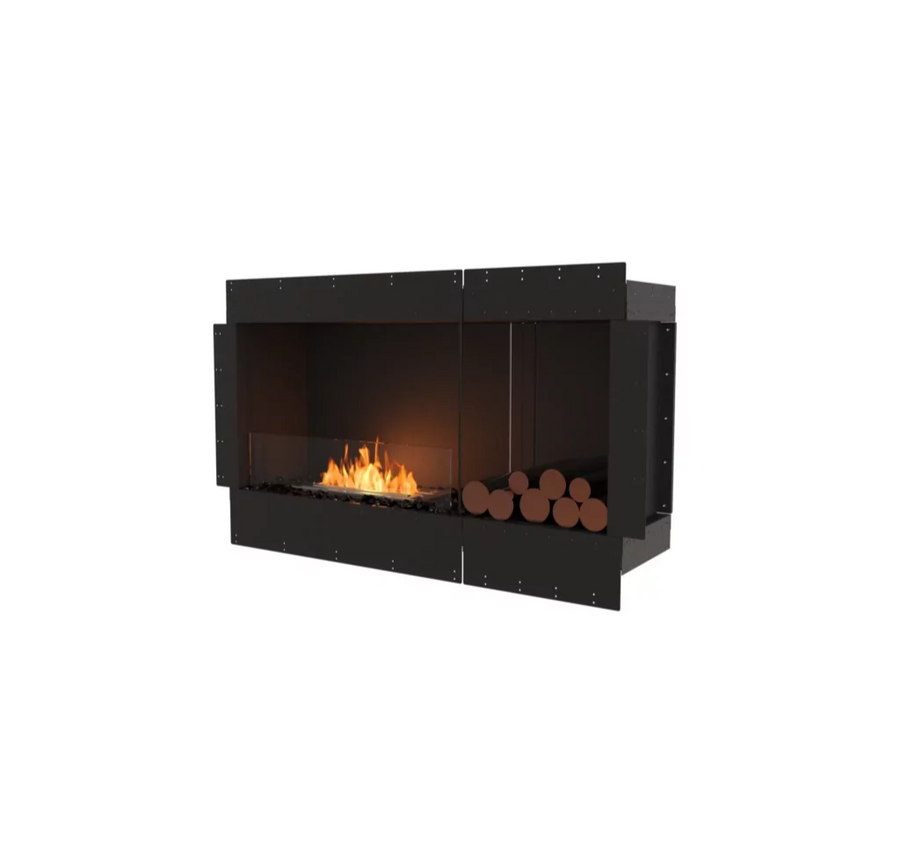

INDUSTRY EXCLUSIVE DECORATIVE BOX

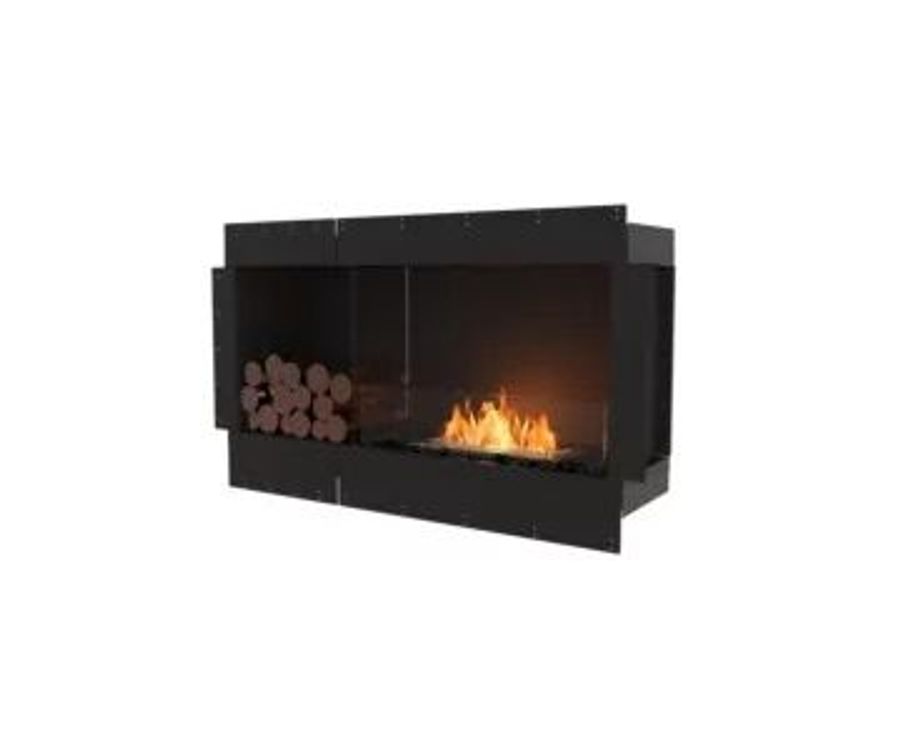

Optional or included box configurations for select firebox lengths. Fill with any non-combustible accessory or choose our optional eye-catching log set available in copper finish.
QUICK AND EASY INSTALLATION
With no need for ventilation or utility connections, integrating a fire feature has never been simpler. Flex installs fast and is ready for the finishing touches in less than an hour.
INCLUDED ACCESSORIES
Each Flex comes with decorative Black Glass Charcoal and integrated fire screen which sits flush behind the frame.
MATERIAL
Mild Steel (Zinc Sealed, High-Temp Powder Coat) Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Ethanol Burner
USE
Heating
PRODUCTION
100% Made in Germany
AVAILABLE IN 12 OPENING SIZES
Flex fireplaces transform any room with a range of sizes to choose from. Elevate your space with the perfect ambiance no matter how big or small.
TRUE ZERO CLEARANCE
Self-contained, zero clearance construction provides unlimited installation freedom and flexibility for builders, architects, interior designers, landscapers and homeowners.
COLOUR
- Black
- Stainless Steel
APPLICATION
- Indoor
- Outdoor
EFFICIENCY
EFFICIENCY
| BURNER INFORMATION | ALL FLAME | BOX LEFT/RIGHT |
|---|---|---|
| Burner Configuration - Compatible With This Model | XL900 | XL500 |
| Volume Capacity - How Much Fuel | 9 L | 5 L |
| Thermal Output - How Much It Heats | 15.83 MJ/h - 4 kW | 12.06 MJ/h - 3 kW |
| Burn Time - How Long It Lasts | 8-13 h 9 L | 10-13 h 5 L |
| Fuel Consumption - How Long It Lasts | 0.8 L/h | 0.5 L/h |
| Heats On Average - How Much Space It Heats | 60 m² | 40 m² |
| Minimum Room Size - Required For This Config | 110 m³ | 80 m³ |
ACCESSORIES
XL BAFFLES
Purpose-designed baffle inserts allow you to regulate and further stabilise the flame at the same time as increasing fuel efficiency of the burner.
JERRY CAN 5L
Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system. Enables safe storage and decanting of e-NRG.
FIRE LIGHTER
This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.
LIGHTING ROD
This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.
BOTTLE ADAPTOR
The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
BLACK GLASS CHARCOAL
The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC without ever cracking, or losing its colour or shape. Black Glass Charcoal does not emit any toxic fumes, smoke, or ash so it is extremely easy to maintain and clean.
