Emco Emco Diplomat Premium With Conform Insert
EMCO DIPLOMAT PREMIUM WITH CONFORM INSERT
EMCO DIPLOMAT PREMIUM WITH CONFORM INSERT

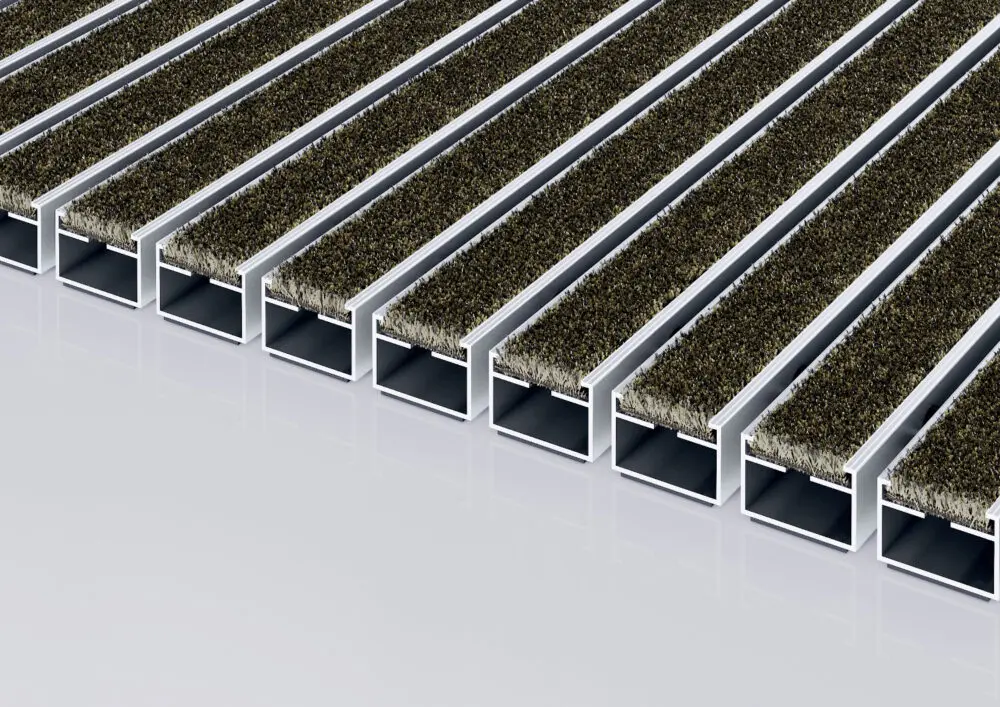

The premium entrance mat with the Conform insert made of recycled materials is the perfect complement to wooden surroundings and can be used in a whole host of environments. Particularly ideal for collecting fine dirt. Optimally designed for buildings exposed to average to heavy footfall.
FEATURES
FEATURES
(covered, Zone 1+2)
INFORMATION
BRAND
Emco
PRODUCT TYPE
Technical Mats
SUPPORT CHASSIS
Made using aluminium with sound absorbing insulation on the underside
FLAMMABILITY
Fire classification for the complete mat system Cfl-s1 in accordance with EN 13501
APPROX. HEIGHT (MM)
- 12
- 17
- 22
WEIGHT (KG/M²)
- 10.7
- 8.8
- 9.5
INSERT TYPE
Premium
USE CLASSIFICATION EN1307
Property suitable inlay 33
USAGE AREA
- Hotel
- School
- Sports hall
- Retail sector
- Retirement homes and Care-/Nursery Homes
- Family home
- Medical practice
- Apartment building
- Kindergarten/Nursery
- Offices and administrative buildings
COLLECTION
Diplomat
PROFILE WIDTH (MM)
27.5 mm

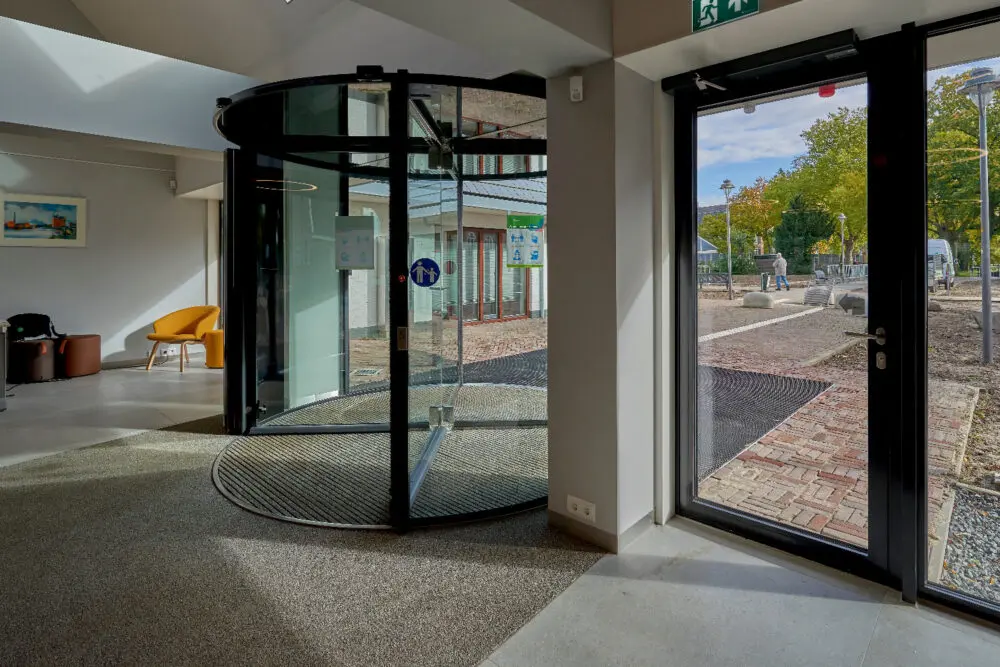

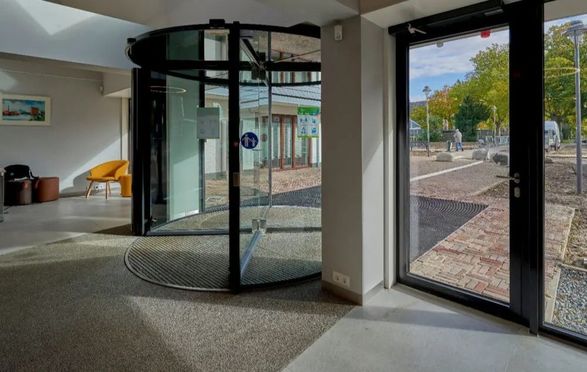

REVOLVING DOOR DRIVES
Our mats with a profile spacing of 3mm in accordance with din en 16005 are available for revolving door drives
SUPPORT CHASSIS COLOUR
Anodised colours for an additional charge: EV3 gold, C33 mid-bronze, C35 black or C31 stainless steel
MAT DIVISION AS PER FACTORY
- From a profile length of 3000 mm or a maximum mat weight of 25 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request.
- From a profile length of 3000 mm or a maximum mat weight of 30 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request.
AREA
Covered outdoor areas indoor areas
STANDARD PROFILE CLEARANCE A
5 mm, rubber spacers
COLOUR
- Brown 76.04
- Anthracite 76.01
PROFILE WIDTH
Normal
TYPE OF DIRT
Rubs Off Fine And Damp Dirt
NOTE ON HEIGHT
The Insert Can Actually Be Approx. 2 Mm Higher Due To The Wear Layer.
CONNECTION
Thanks to plastic-coated steel cable
SLIP RESISTANCE
R 12 slip resistance as per DIN 51130
BACTERIAL REDUCTION EHEC AST
16.1 %
EXAMPLES OF TYPE OF DIRT
- Damp street dust, damp sand deposits, dust, etc.
- Street dust, hair, sand, ash, textile fibres, small leaves and twigs, etc.
TREAD SURFACE

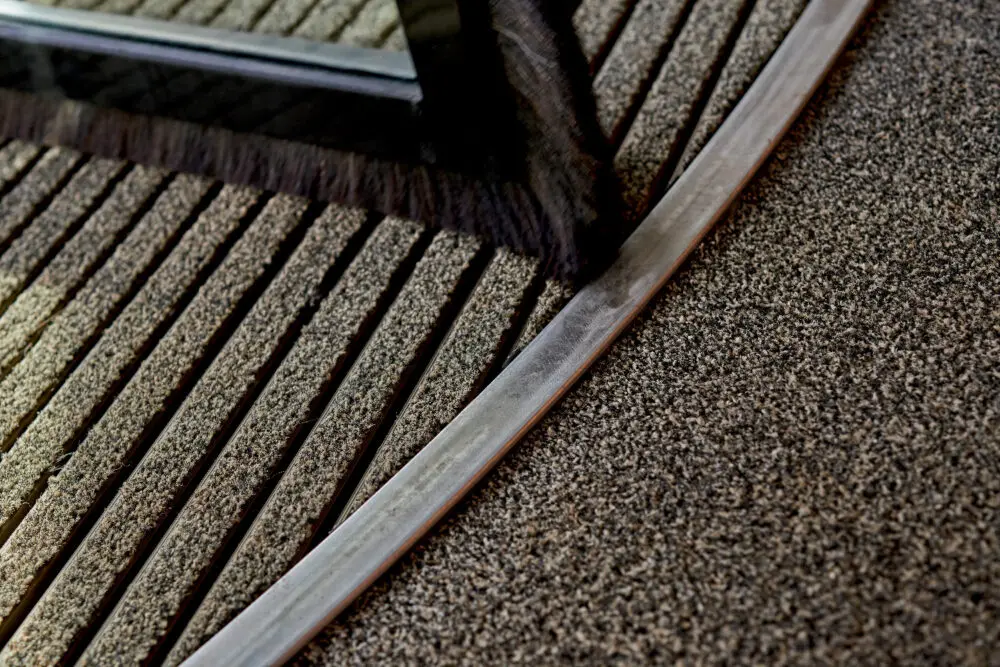

The Conform insert made of recycled materials is the perfect complement to wooden surroundings and can be used in a whole host of environments.
ACCESSIBILITY
- Prams
- Wheelchairs
- Hand Trolleys
- Sack-/hand Truck
- Light Shopping Trolleys
DOWNLOADS
MAT TYPE
Emco Diplomat
INSERT STYLE
Conform
BACTERIAL REDUCTION KLEBSIEL
65.6 %
PILE MATERIAL
100% PA 6 (polyamide)
BACTERIAL REDUCTION STAPHYLO
0,0 %
DIRT COLLECTION ZONE
Indoor and outdoor (covered, Zone 1+2)
