Omnires Y Basin Mixer
Y BASIN MIXER
Y BASIN MIXER
Designed by Janusz Langner, Omnires Studio

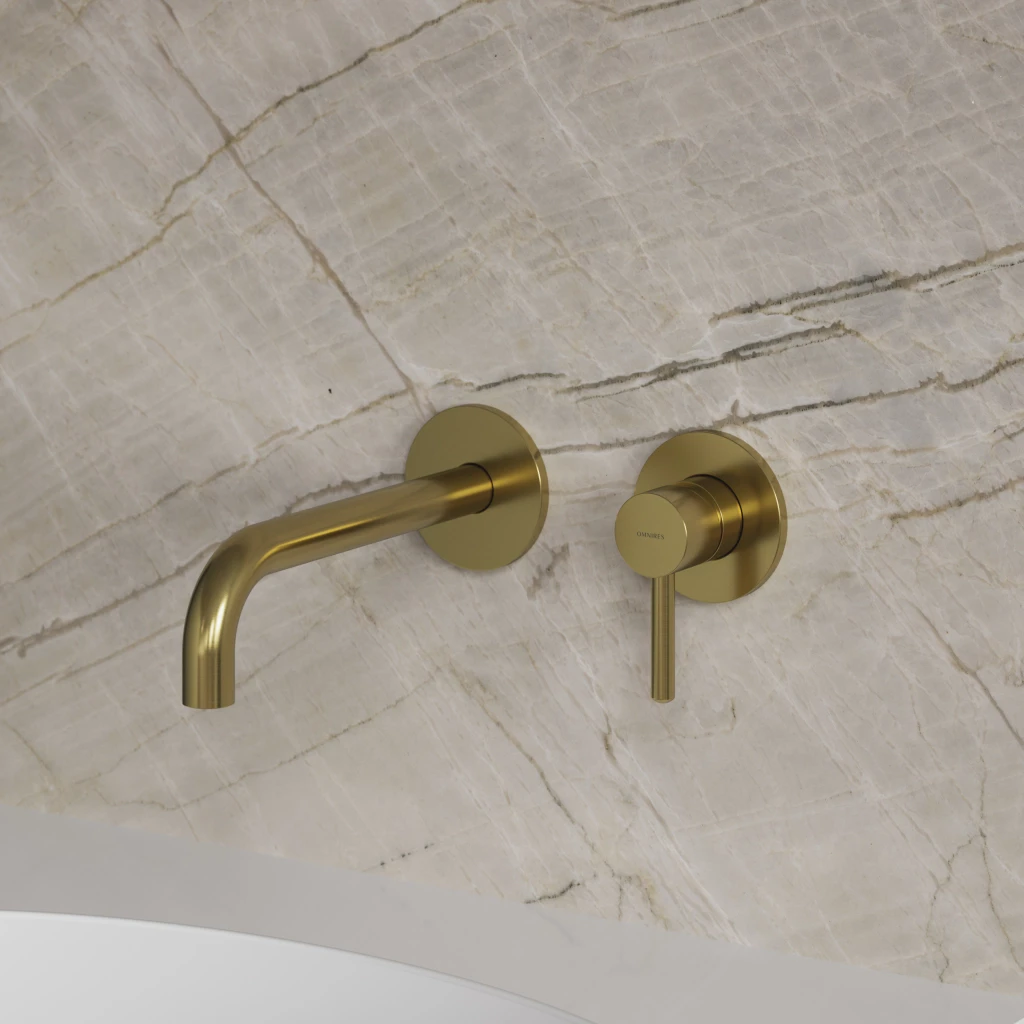

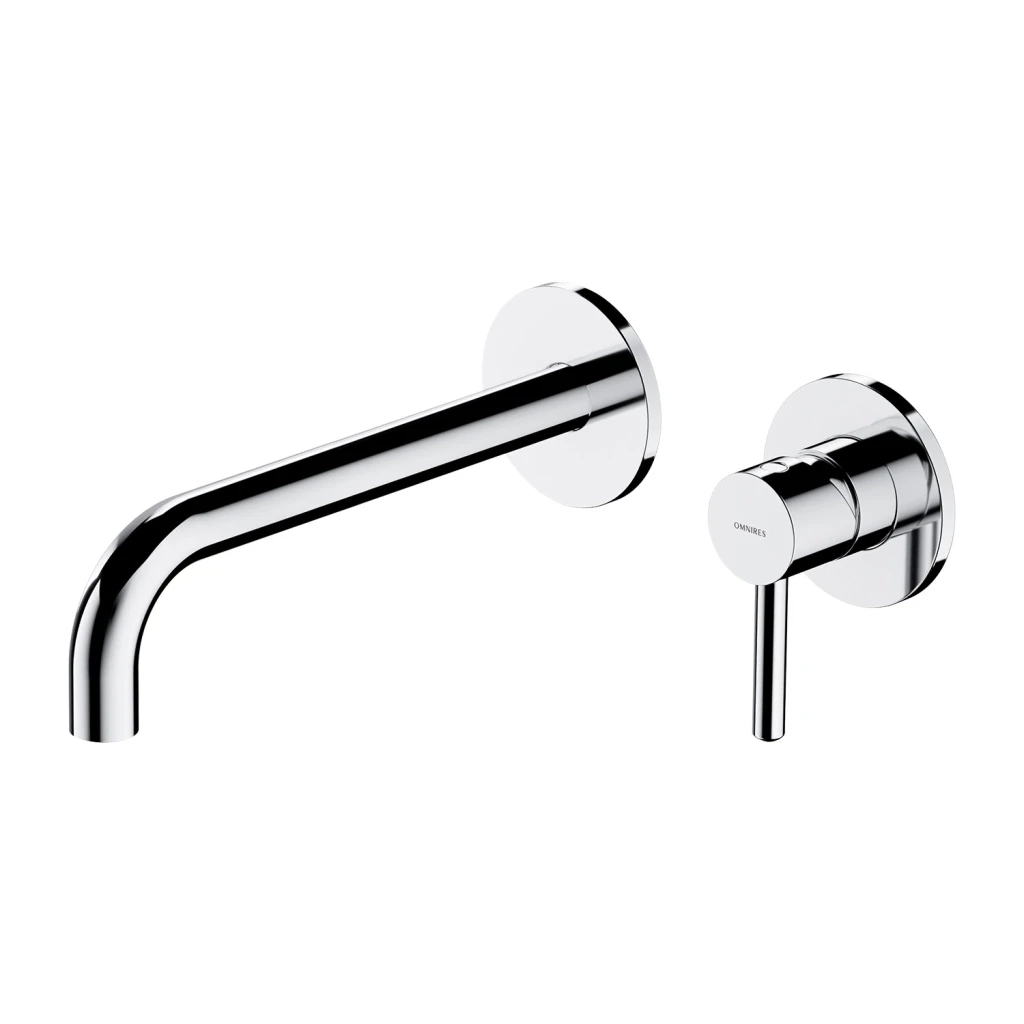

Basin mixer for concealed installation with long spout
The OMNIRES Y collection thrills with its simple line and an impeccable form which expresses the passion in pursuit for the ideal.
The design has been inspired by and based on the shape of a circle. Its timeless and perfectly refined design, created in the spirit of minimalism, offers the maximum of interior design options, while the extended spout makes it ideal for larger basins or those fitted away from the wall.
Made of high grade brass, the mixer is equipped with a superior quality ceramic cartridge. Innovative technological solutions reduce water consumption by 50% while offering comfort and ease of use.
INFORMATION
BRAND
Omnires
PRODUCT TYPE
Basin Mixer
COLLECTION
Y
PRODUCTION
Made in Poland
CODE
Y1215HL
DESIGNER
Janusz Langner, OMNIRES Studio
FEATURES

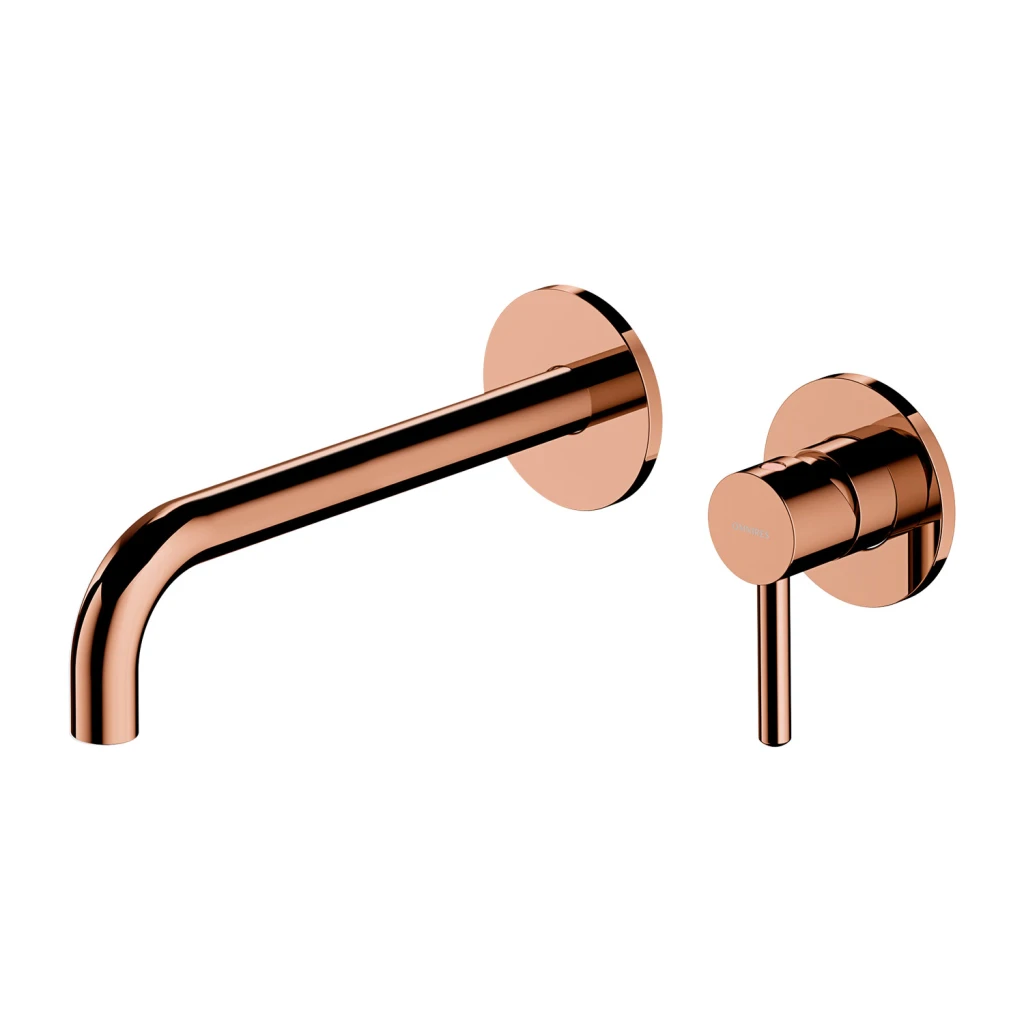

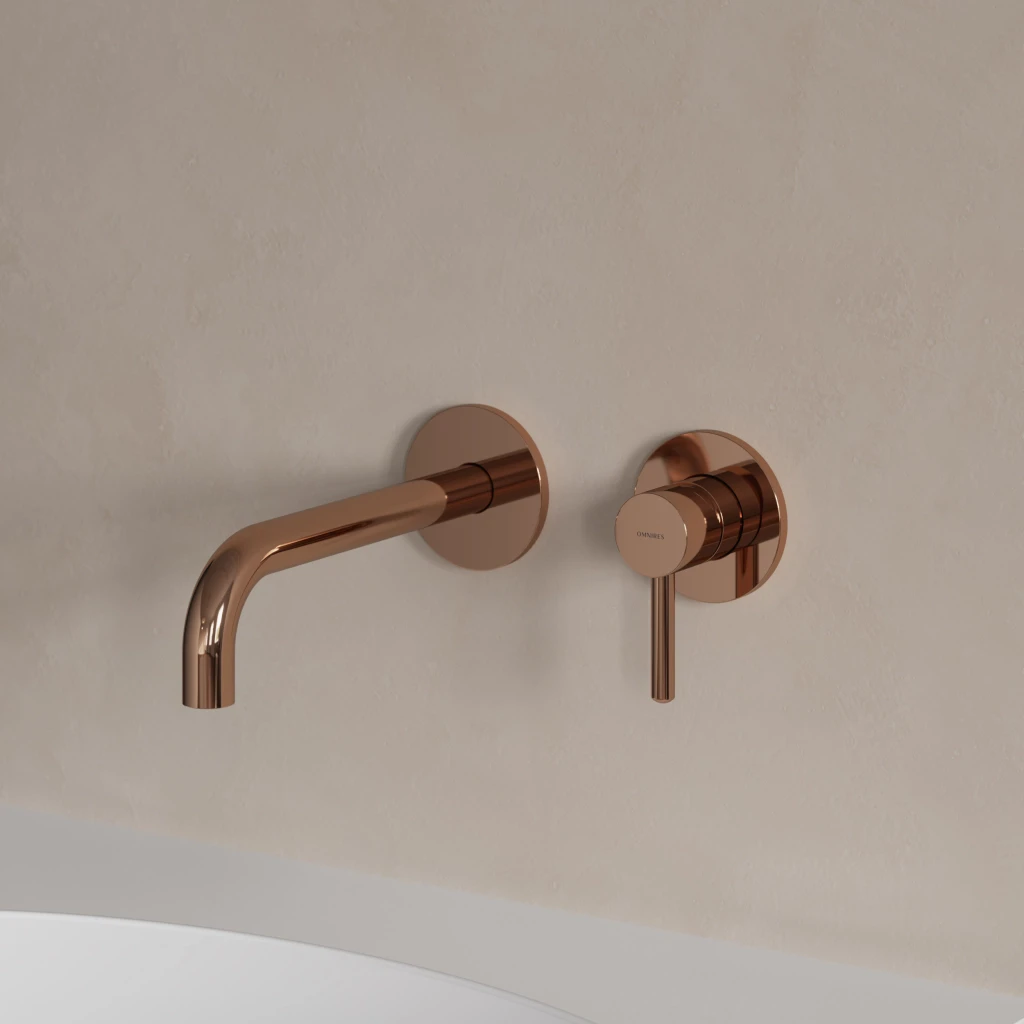

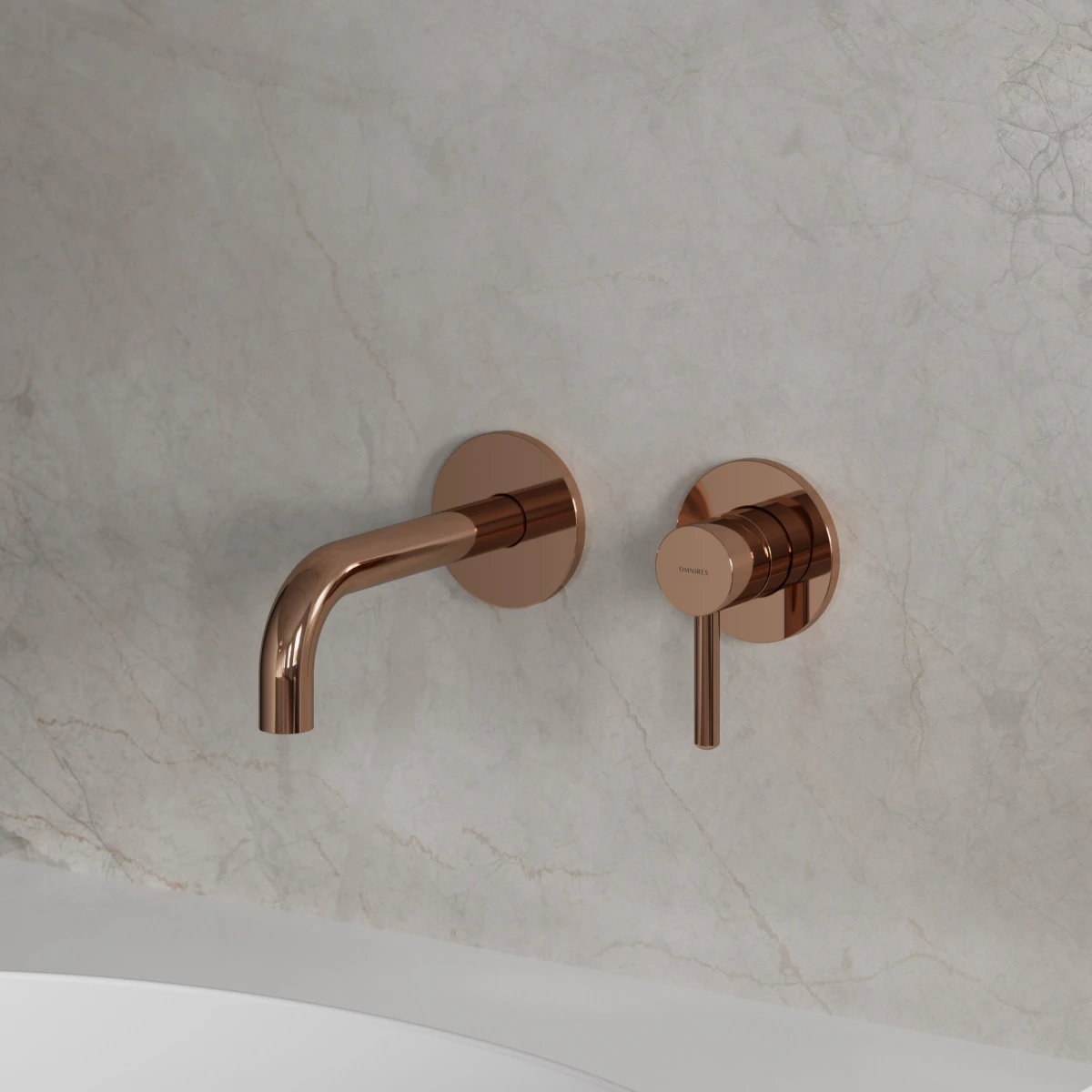

Copper is a sophisticated finish with a warm red-brown hue and a perfectly smooth, lustrous surface. The product is coated using advanced PVD technology.
CERAMIC CARTRIDGE
ø25 mm
INCLUDED
Built-in parts included
WARRANTY
The product has a 5-year warranty
SPOUT REACH FROM TILED SURFACE
19-21.5 cm (dependent on the installation depth of the mixer in the wall)
ROSETTE DIMENSIONS
ø7.2 cm
MINIMUM WALL DEPTH
4.5 cm
DOWNLOADS
↓ Product 3D files
↓ Collection 3D files
↓ Product Data Sheet
↓ Technical drawing
↓ OMNIRES Y Folder
↓ Installation and maintenance instructions
HOT WATER SUPPLY
Max. 90 °C
WATER FLOW AT 3 BAR
7 l/min
DESIGNER - JANUSZ LANGNER, OMNIRES STUDIO
The OMNIRES Y collection thrills with its simple line and impeccable form, which expresses the passion in pursuit of the ideal. The design has been inspired by and based on the shape of a circle. Its timeless and perfectly refined design, created in the spirit of minimalism, offers the maximum of interior design options.
ACOUSTIC GROUP
I
ENVIRONMENT
Indoor
WORKING PRESSURE
1-5 bar
APPLICATION
Bathroom mixers

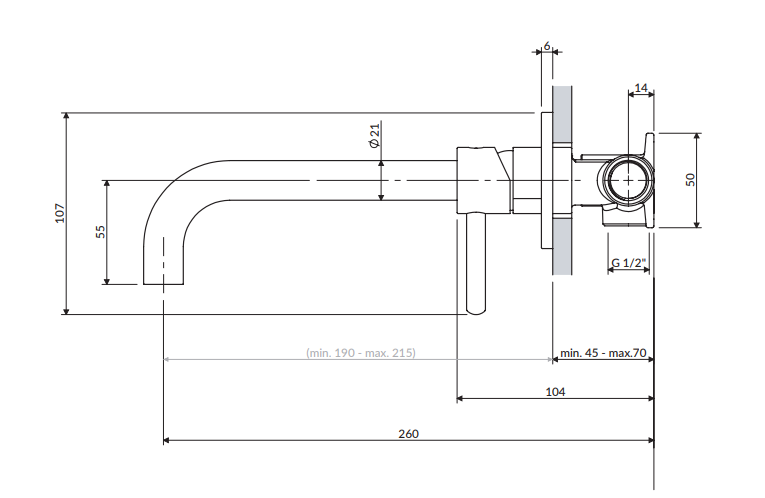

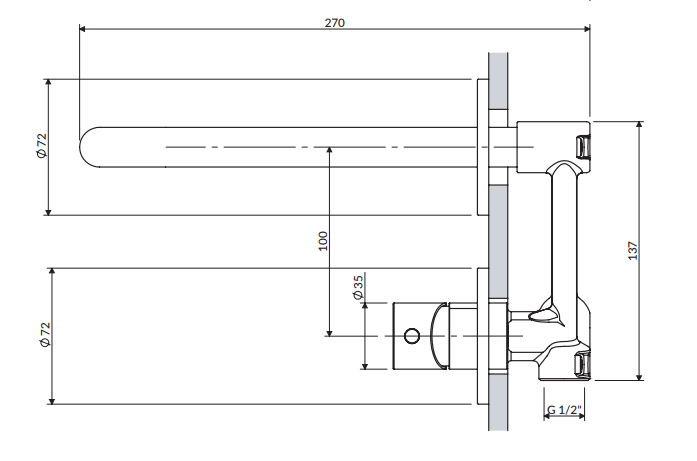

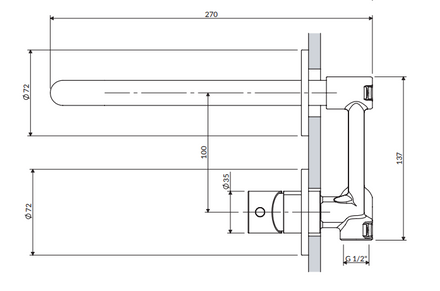

TECHNICAL DRAWINGS
TECHNOLOGIES
BODY
The mixer's body, the valve and the rosette are all made of high quality A-grade bras
USING
The product is coated using the advanced PVD technology which guarantees the highest possible durability and facilitates cleaning.
ECO WATER
The eco water technology minimizes environmental footprint by reducing the water consumption by approx. 50%, without compromising on the overall product experience.
QUALITY
The mixer is equipped with the highest quality ceramic cartridge which ensures smooth and precise water flow control whilst guaranteeing long term product performance.
AIR WATER
Thanks to the air water technology, the water is soft and pleasant to the touch. The stream does not spray and it is quiet and consistent, even if any variations in water pressure occur.
CARE
HOW TO TAKE CARE OF BATHROOM AND KITCHEN FITTINGS?
You should clean your bathroom and kitchen fittings regularly, preferably after each use, so as to prevent the build-up of hard-to-remove dirt.
For daily maintenance of external surfaces, use a soft cloth (for example, a microfibre cloth) and a solution of water with a mild cleaning agent with a natural composition, then rinse the product thoroughly with clean water and wipe it dry.
It is not recommended to use rough or abrasive materials and corrosive or bleaching substances to prevent damaging the surface of the product.
For more stubborn dirt, use a 10% citric acid solution with water. Apply this solution directly to the product or cover the product with a cloth soaked in the solution.
After 10 minutes, rinse the product thoroughly with clean water and wipe it dry. If necessary, the process can be repeated.
WHAT IS THE BEST METHOD FOR CLEANING THE AERATOR?
Remember to regularly control the flow of water through the aerator so as to ensure its problem-free operation and protect it from damage.
In the case of small contaminants in the water or “hard” water, remove the aerator once every few weeks and clean it with a brush. In the case of more stubborn dirt, we recommend soaking the aerator for 10 minutes in a 10% citric acid solution with water.
FINISHES
FINISHES

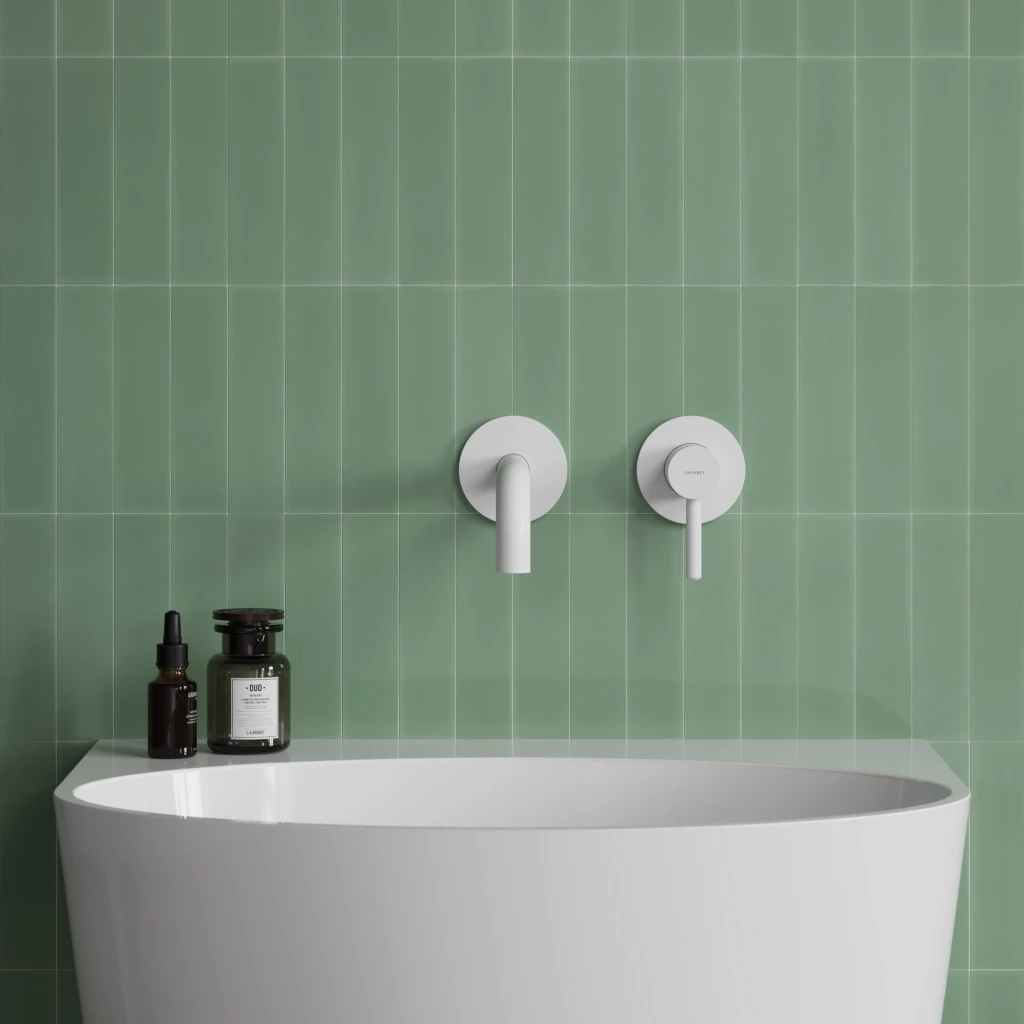

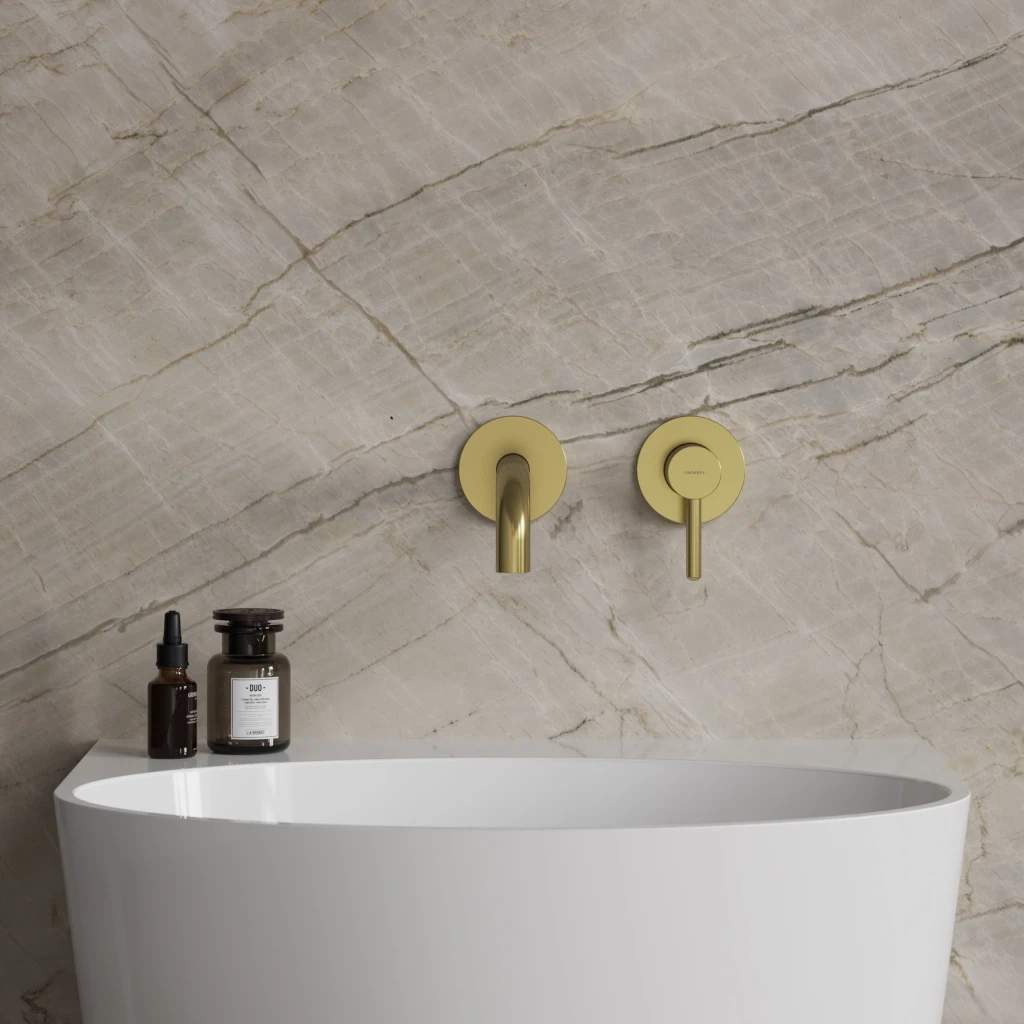

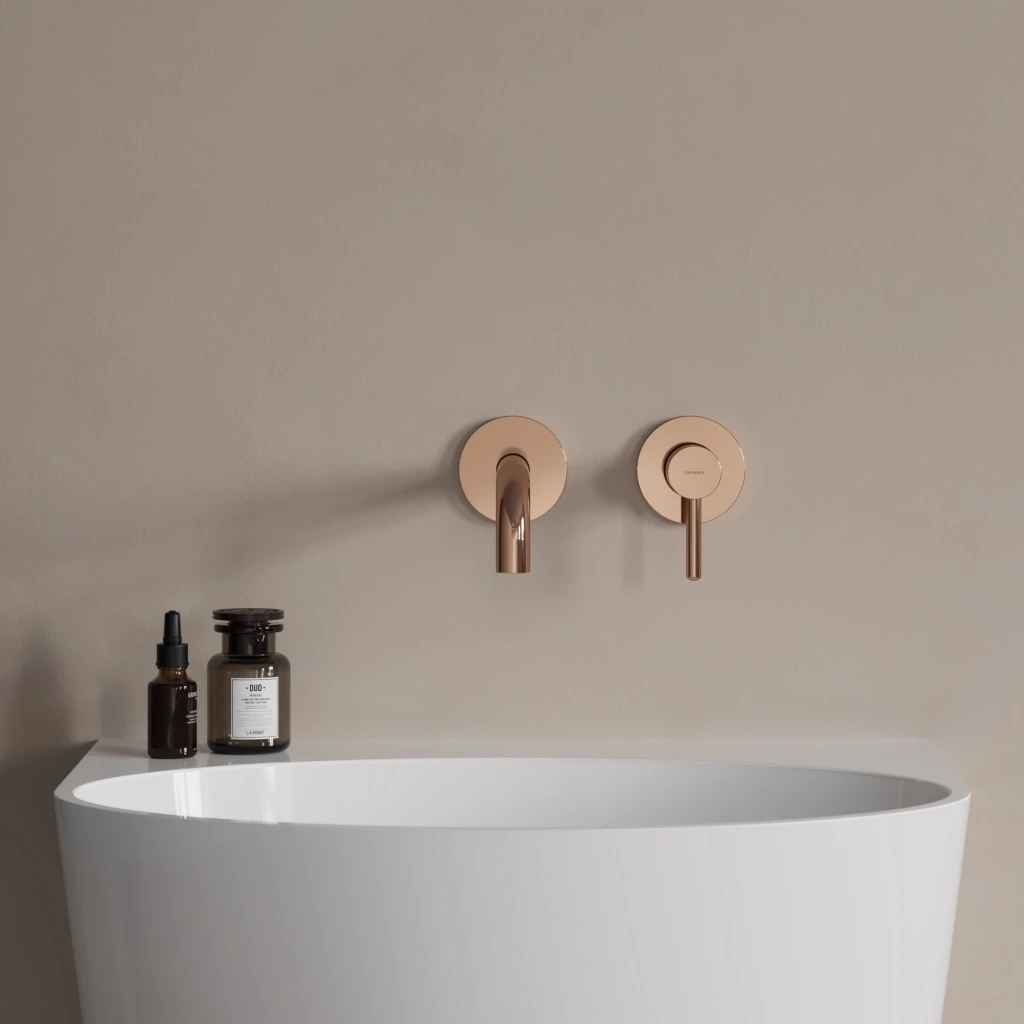

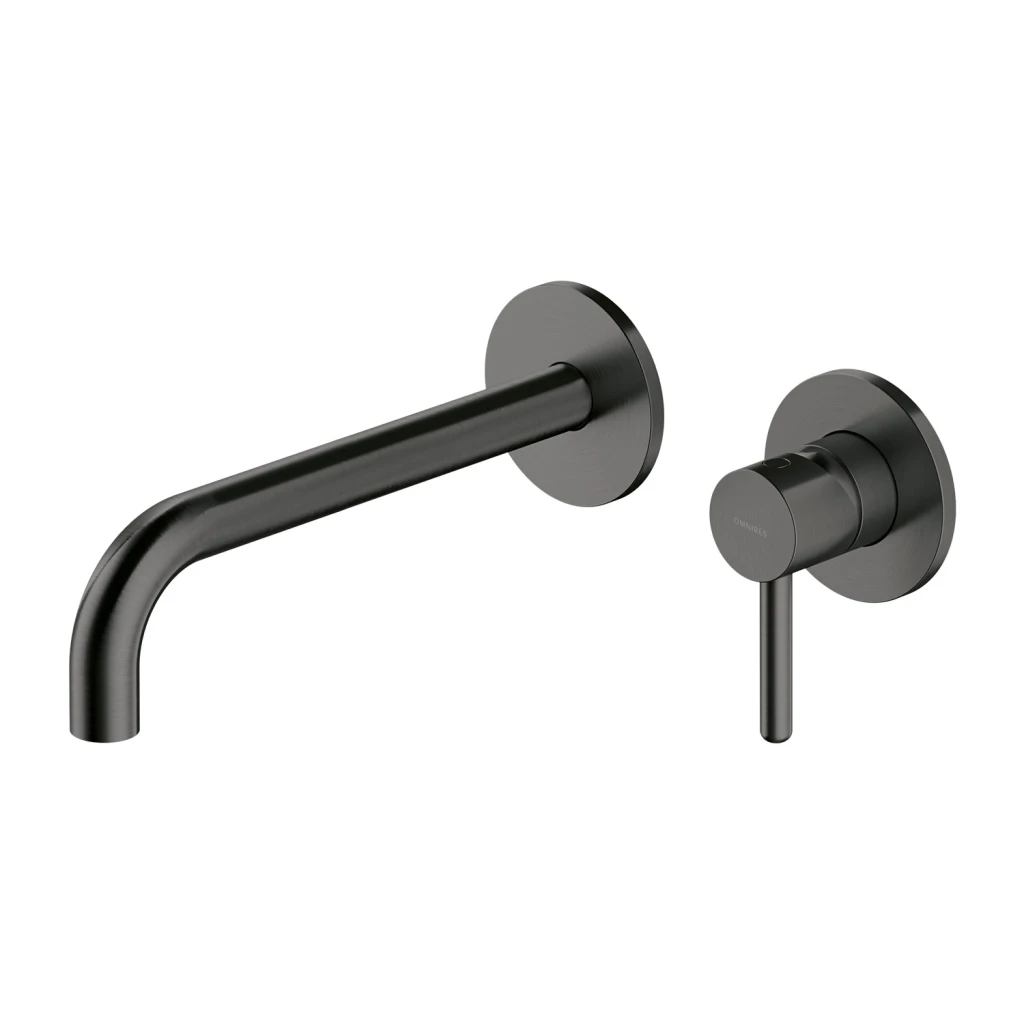

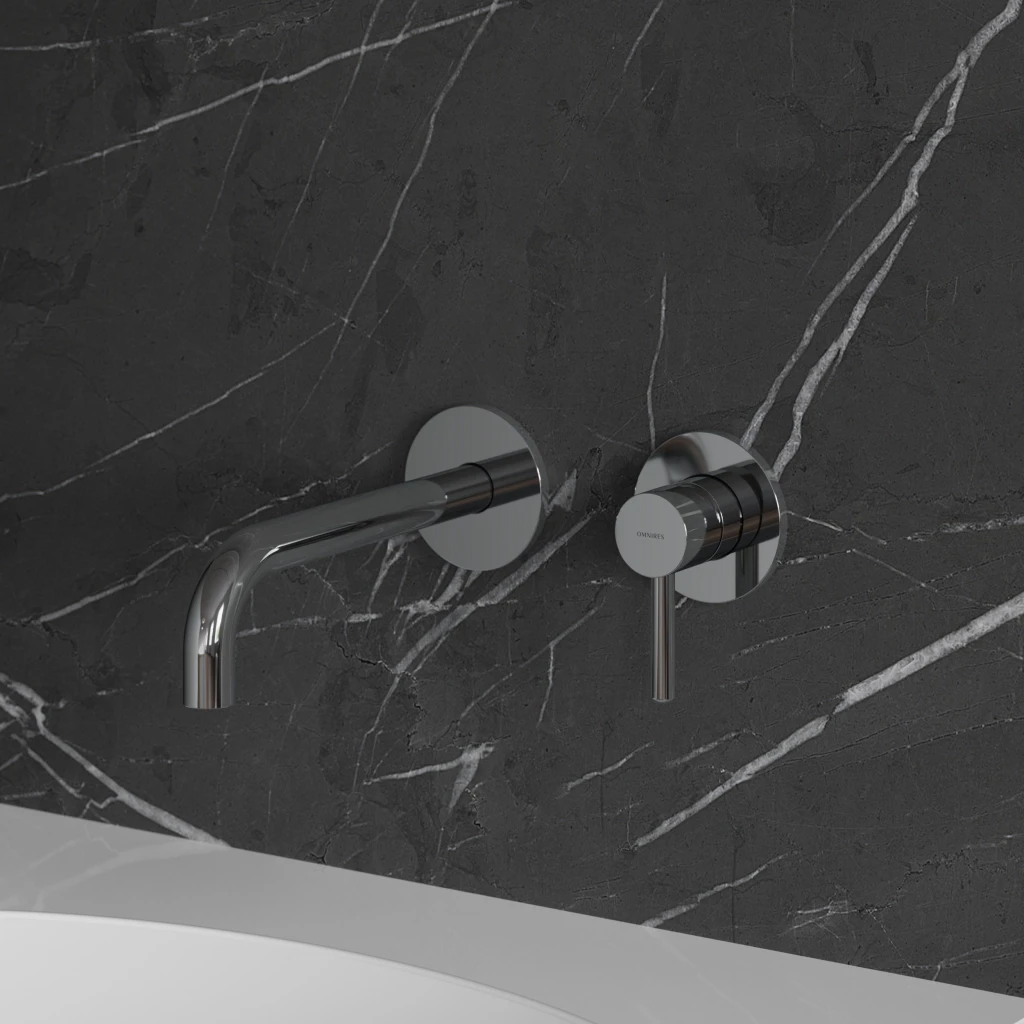

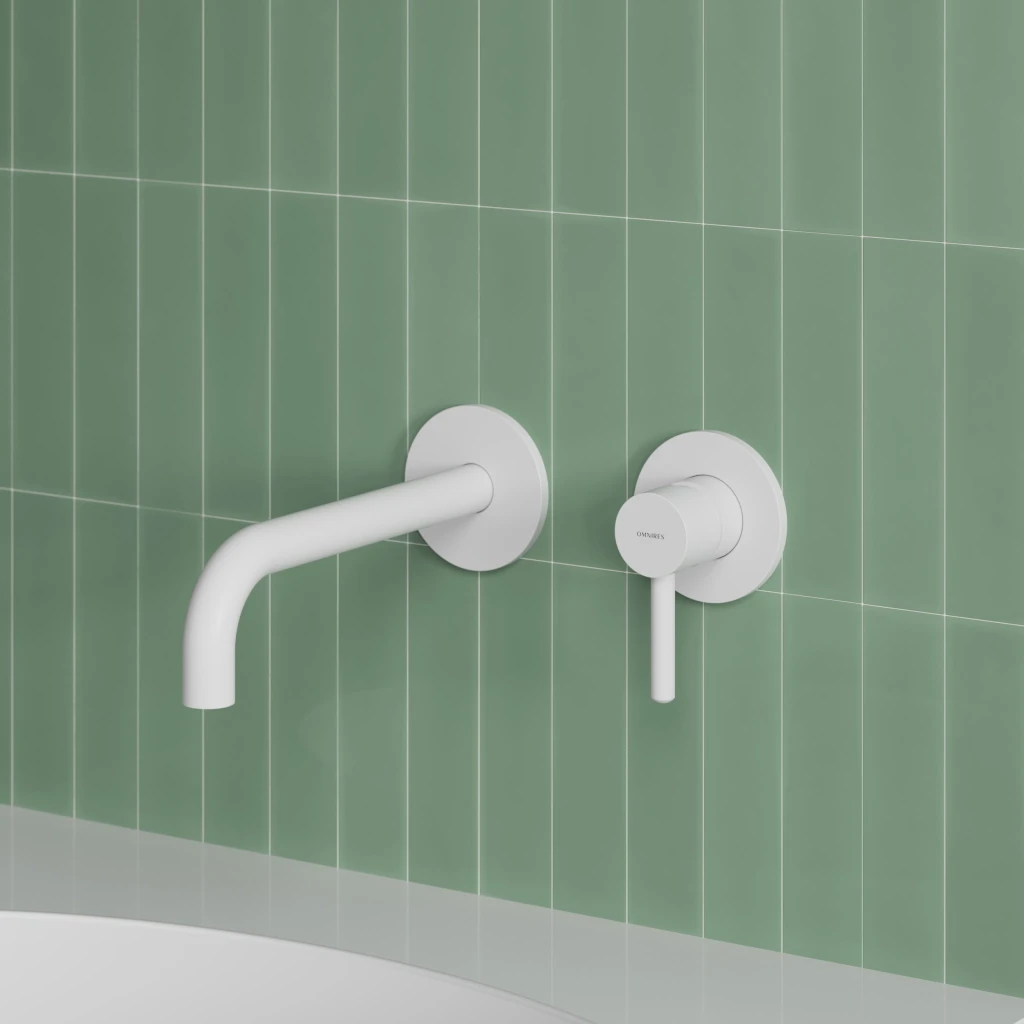

-Brushed Brass (Bsb) -Matt white (wm) -Polished chrome (cr) -Brushed nickel (ni) -Brushed graphite (gr) -Semi-matt black (blh) -Polished Copper (Cp) -Brushed copper (cpb) -Polished gold (gl) -Brushed Gold (GLB)
