Easydrain Aqua Brilliant Shower Drains
AQUA BRILLIANT SHOWER DRAINS
AQUA BRILLIANT SHOWER DRAINS
Premium technology
Vertical and horizontal connectivity combined in a single shower drain!
Aqua Brilliant is easy to install, due to its unique shape and flexible flange, and very low installation depth. Aqua Brilliant is also ideal for renovations, thanks to its patented technology and compliance with the DIN EN 1253 standard.
information
BRAND
Easydrain
PRODUCT TYPE
Shower Drains
COLLECTION
Aqua
PRODUCTION
Made in Netherland
CUTTING-EDGE TECHNOLOGY

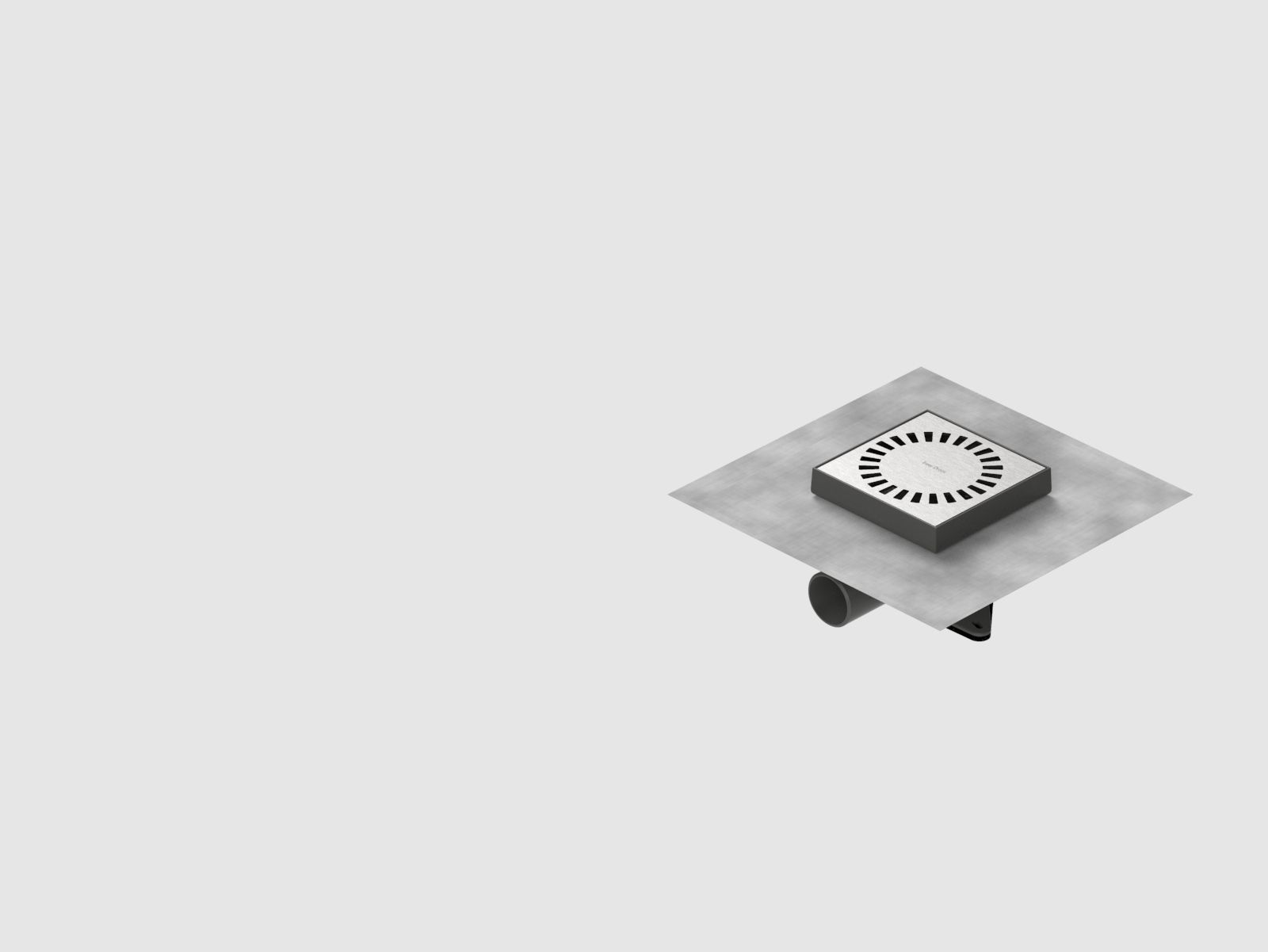

The exceptionally flat Aqua Brilliant point drain has a variable connection for horizontal or vertical installation. With an installation depth starting from 75 mm and a 50 mm adjustable water seal according to EN 1253, Aqua Brilliant is the ideal solution for renovation projects.
WARRANTY
10 Yeras
USE
Washroom
AVAILABLE COLOR
1
WATERPROOF
100% Waterproof
WATER SEAL
50 mm
TILE THICKNESS
Max. 18 mm
INSTALLATION DEPTH
Mini. 65 mm
DRAINAGE CAPACITY
Max. 39 mm
COMPLIANCE
DIN EN 1253 standard
DESIGN OPTIONS
4
CLEAN
Easy to clean
ENVIRONMENT
Indoor
INSTALL
Easy Installation
FINISH
Brushed Stainless Steel
DETAIL

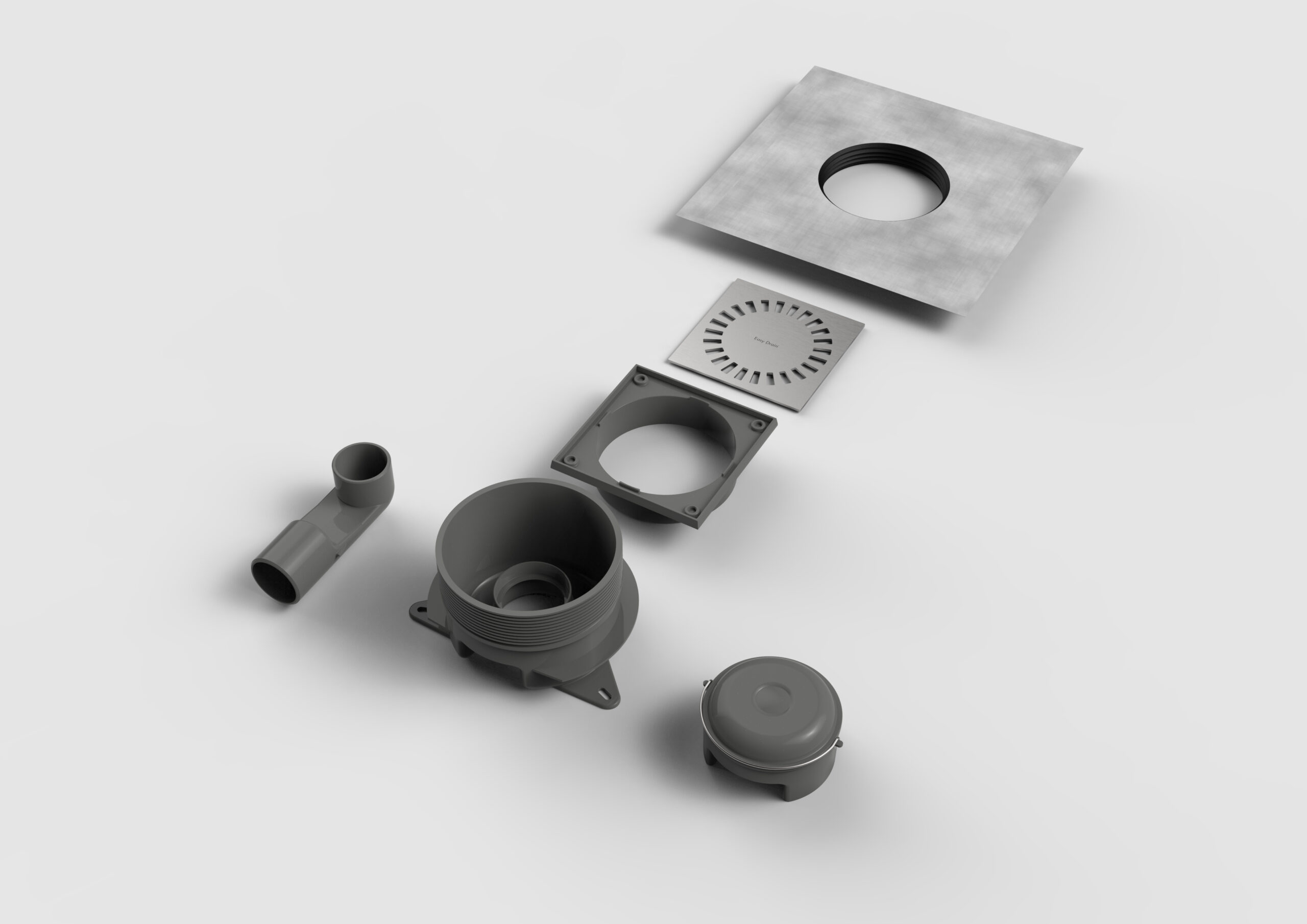

-Horizontal outlet -Vertical outlet -Height adjustable ABS trap body -Easy removable and cleanable siphon -Height adjustable grate support -High-quality stainless steel grate -Tileable stainless steel grate -Water Protection System (WPS); a factory pre-assembled sealing membrane that offers 10 years warranty
