EMCO DIPLOMAT PREMIUM WITH MAXIMUS INSERT TECHNICAL MATS
EMCO DIPLOMAT PREMIUM WITH MAXIMUS INSERT TECHNICAL MATS

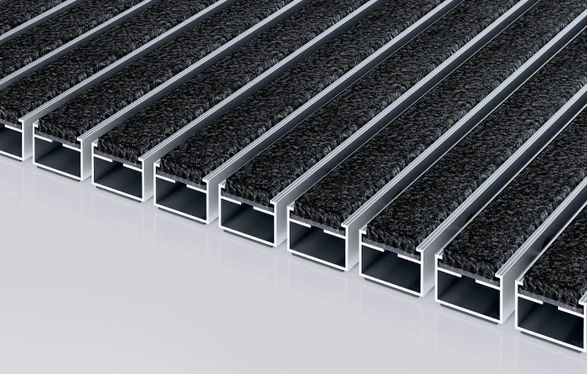

The premium entrance mat with the stylish, carpet-look Maximus insert stands out from the crowd with its premium-quality tufted velour and high-end design.
Particularly ideal for collecting fine dirt. Optimally designed for buildings exposed to average to heavy footfall.
FEATURES
FEATURES
-Indoor and outdoor (covered, Zone 1+2) -Street dust, hair, sand, ash, textile fibres, small leaves and twigs, etc. - Flammability -Damp street dust, damp sand deposits, dust, etc. -Flammability in accordance with European standard Bfl-s1. (Tested by the Textiles & Flooring Institute GmbH). -5 years guarantee
INFORMATION
COLOUR
- Anthracite 80.02
- Black 80.01
- Black mottled 81.01
BRAND
Emco
PRODUCT TYPE
Technical Mats
ACCESSIBILITY
- Hand trolleys
- Light shopping trolleys
- Prams
- Sack-/hand truck
- Wheelchairs
CONNECTION
Thanks to plastic-coated steel cable
SLIP RESISTANCE
R 12 slip resistance as per DIN 51130
PROFILE WIDTH
27.5 mm
NOTE ON HEIGHT
The insert can actually be approx. 2-3 mm higher due to the wear layer.
APPROX. HEIGHT
- 12 mm
- 17 mm
- 22 mm
TREAD SURFACE

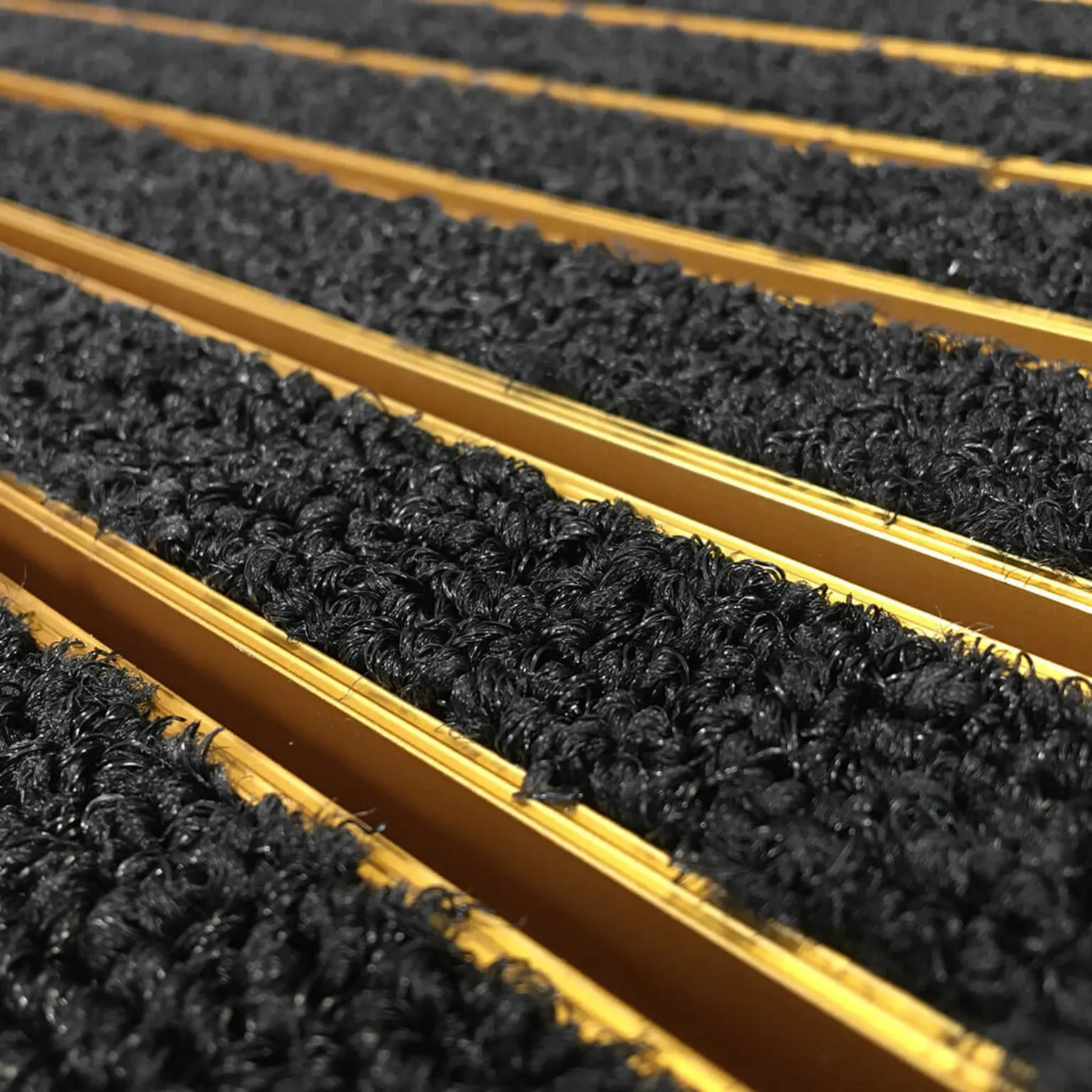

The stylish Maximus insert stands out from the crowd with its premium-quality tufted velour and high-end design.
WEIGHT
- 10.5 kg/m²
- 8.7 kg/m²
- 09.4 kg/m²
USAGE AREA
- School
- Hotel
- Sports hall
- Retail sector
- Apartment building
Family home
- Kindergarten/Nursery
- Medical practice
- Offices and administrative buildings
- Retirement homes and Care-/Nursery Homes

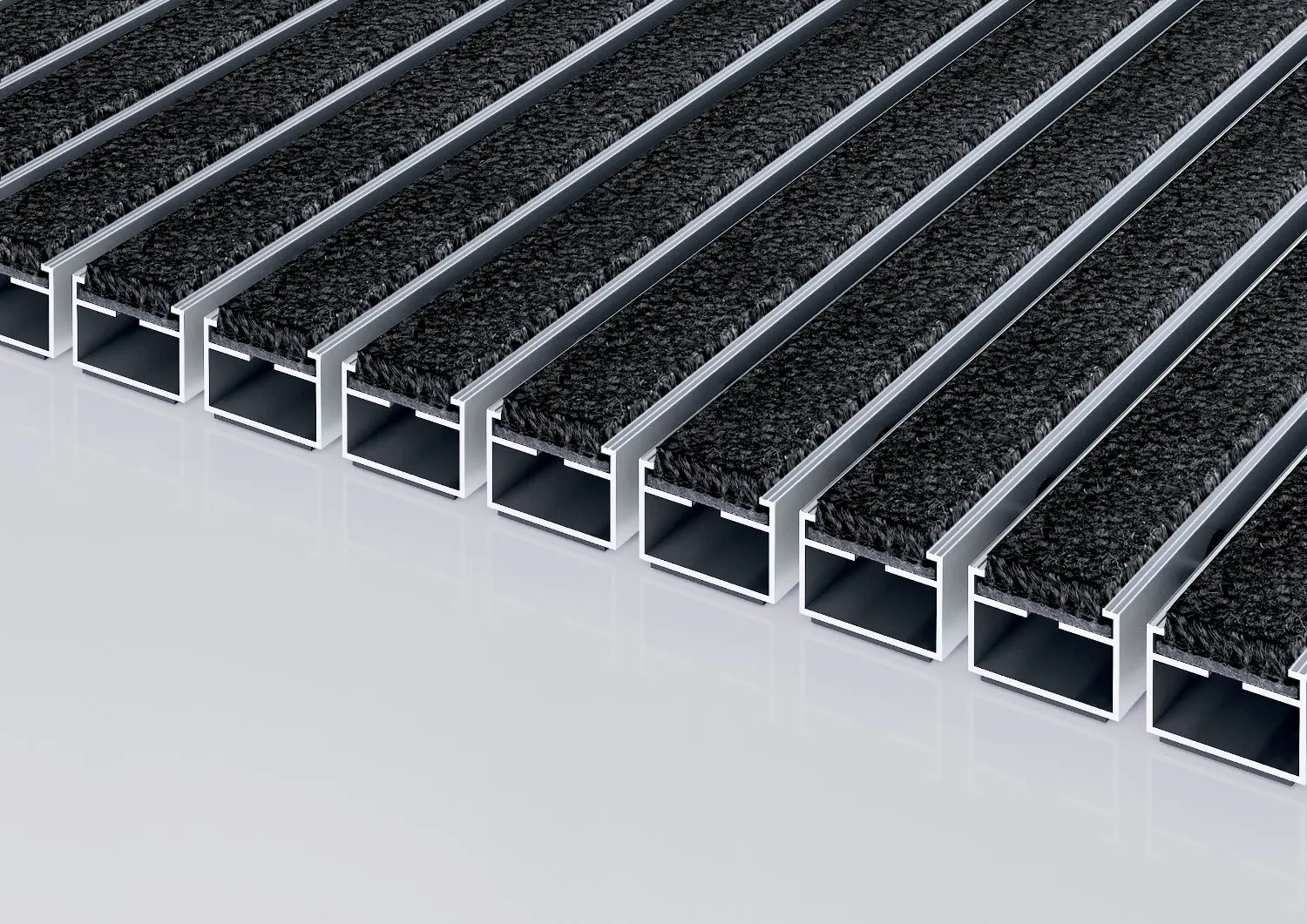

SUPPORT CHASSIS
Made using aluminium with sound absorbing insulation on the underside
COLLECTION
Diplomat
PRODUCTON
Made in Germany
SUPPORT CHASSIS COLOUR
Anodised colours for an additional charge: EV3 gold, C33 mid-bronze, C35 black or C31 stainless steel
USE CLASSIFICATION EN1307
Property suitable inlay 33
DIRT COLLECTION ZONE
Indoor and outdoor (covered, Zone 1+2)
ADDITIONAL PROFILES
None
PROFILE WIDTH
Normal
TYPE OF DIRT
Rubs off fine and damp dirt
FLAMMABILITY
Fire classification for the complete mat system Bfl-s1 in accordance with EN 13501
EXAMPLES OF TYPE OF DIRT
- Damp street dust, damp sand deposits, dust, etc.
- Street dust, hair, sand, ash, textile fibres, small leaves and twigs, etc.
EMCO SERVICE REFIT
We promise a top notch Service. From planning and measuring to installation and afterwards. We are there for you!
- Planning
- Building consultation
- Taking measurements
- Laying service
- Renovation & Renewal
MAT TYPE
Emco diplomat
INSERT STYLE
Maximus
AREA
- Covered outdoor areas
- Indoor areas
INSERT TYPE
Premium
ANODISED PROFILES
Anodised profiles create new design possibilities. The combination with insert types and inlay colours leads to interesting harmonious and contrasting designs.

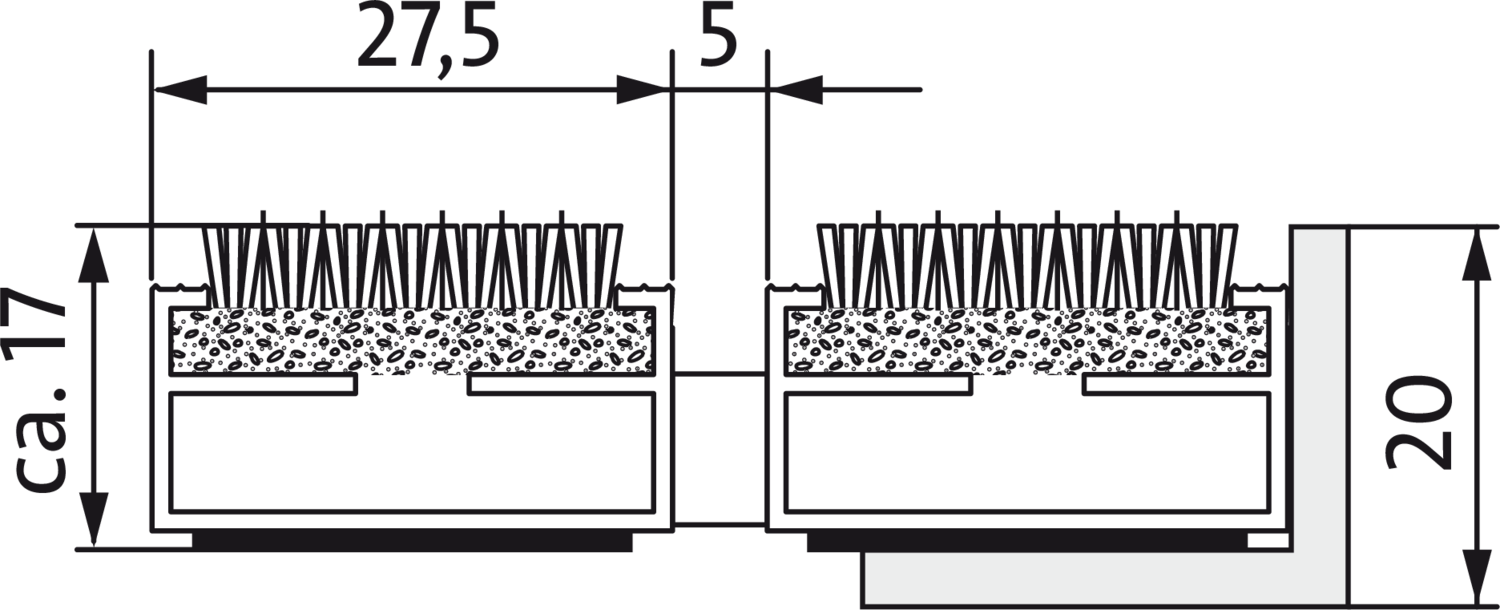

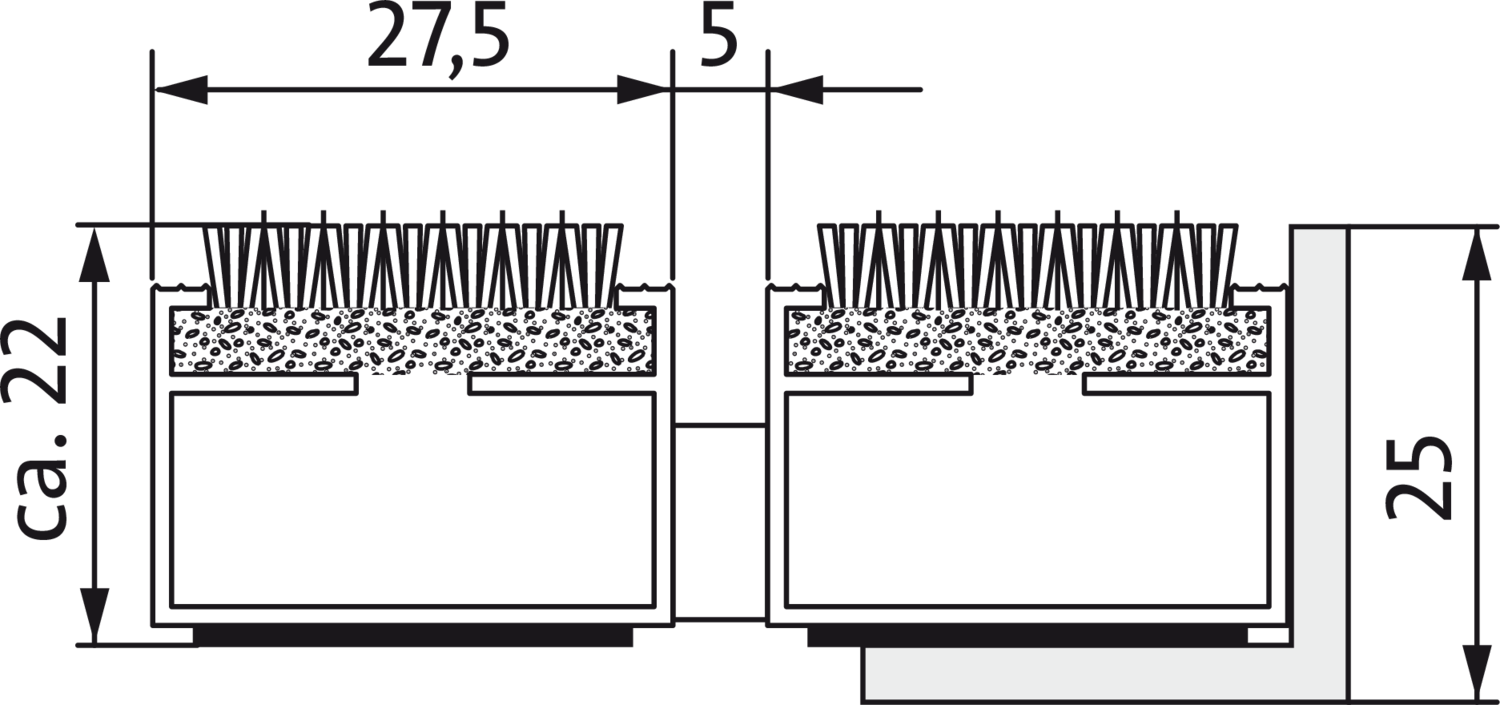

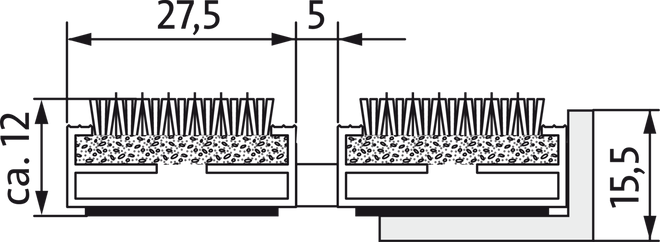

TECHNICAL DRAWING
APPROX. HEIGHT (MM): 12, COLOUR: ANTHRACITE 80.02
APPROX. HEIGHT (MM): 17, COLOUR: ANTHRACITE 80.02
APPROX. HEIGHT (MM): 22, COLOUR: ANTHRACITE 80.02
