SCHINDLER 9700 ESCALATOR
SCHINDLER 9700 ESCALATOR
The escalator for high-traffic public spaces
The Schindler 9700 escalator system provides mobility solutions for large public spaces with high-traffic demands, such as airports, subways, and railroad stations.
Schindler offers flexibility in planning, which is especially important with the complex specifications and high-quality standards concerning passenger safety, availability, and service delivery.
FEATURES
WE ELEVATE... MOMENTS THAT MATTER
At Schindler, we don’t just make, maintain, and install our equipment. Just like you, we ride it every day with our families. All Schindler equipment passes a rigorous safety check from an independent team before being turned over to you.
SMART DESIGN
The Schindler 9700 offers appealing transparent, stainless steel, or sandwich panel balustrades. Reduction of the overall width to 93 inches (1600 mm) means it fits into existing pit dimensions, making it ideal for replacing older escalators no longer able to handle a high-traffic environment.
READY FOR ANYTHING
The Schindler 9700 offers outstanding performance at an optimal price for standard public transportation applications where step rollers outside the chain links are required. For Schindler 9700, extreme workloads are routine. High-quality component options meet most mass transit authority specifications for speed and long life.
INFORMATION
BRAND
Schindler
PRODUCT TYPE
Escalator
PRODUCTION
Made in United States
DEGREE OF PROTECTION
IP55
FLEXIBILITY
Together with a variety of options and special features, modular components enable customization to specific requirements.
POWER CONSUMPTION
<9.8W
DESIGN LIFETIME
15,000 hrs (until 85% of initial irradiation
COORDINATION
Schindler project managers oversee all aspects of your project through to the final handover and startup.
CONFIGURED TO INDIVIDUAL REQUIREMENTS
The Schindler 9700 escalator is modular. Its components can be adapted to meet the specifications of most public transportation facilities. Drives, chains, tracks, and trusses can all be tailored to your unique needs. It meets the world’s toughest regulatory standards for speed and product life, including of the American Public Transportation Association (APTA), which makes the Schindler 9700 suitable for ultra-high-rise applications as well.
IRRADITATION AREA
100mm x 100mm
INSTALLATION LOCATION
Handrail
ANTIMICROBIAL EFFECT
Uninterrupted and automatic disinfection of the surface from bacteria and viruses
SAFETY AT HIGHER SPEEDS
Larger transition curve radii and longer horizontal step runs safeguard passenger comfort at traveling speeds of 120 or 125 fpm (0.6 or 0.65 m/s). The Schindler 9300-20 can be ordered with transition curves of 4’-11”/3’-3 3/8” (1500/1000 mm), and with horizontal step runs of up to 5’-3” (1600 mm). With the Type 30 variant, speeds of up to 150 fpm (0.75 m/s) and transition curves of 8’-10 1/4”/ 6’-6 3/4” (2700/2000 mm) are possible.
RELIABILITY WITHIN
Drive, chain and step system components, built to European engineering and quality standards, assure smooth performance and high availability

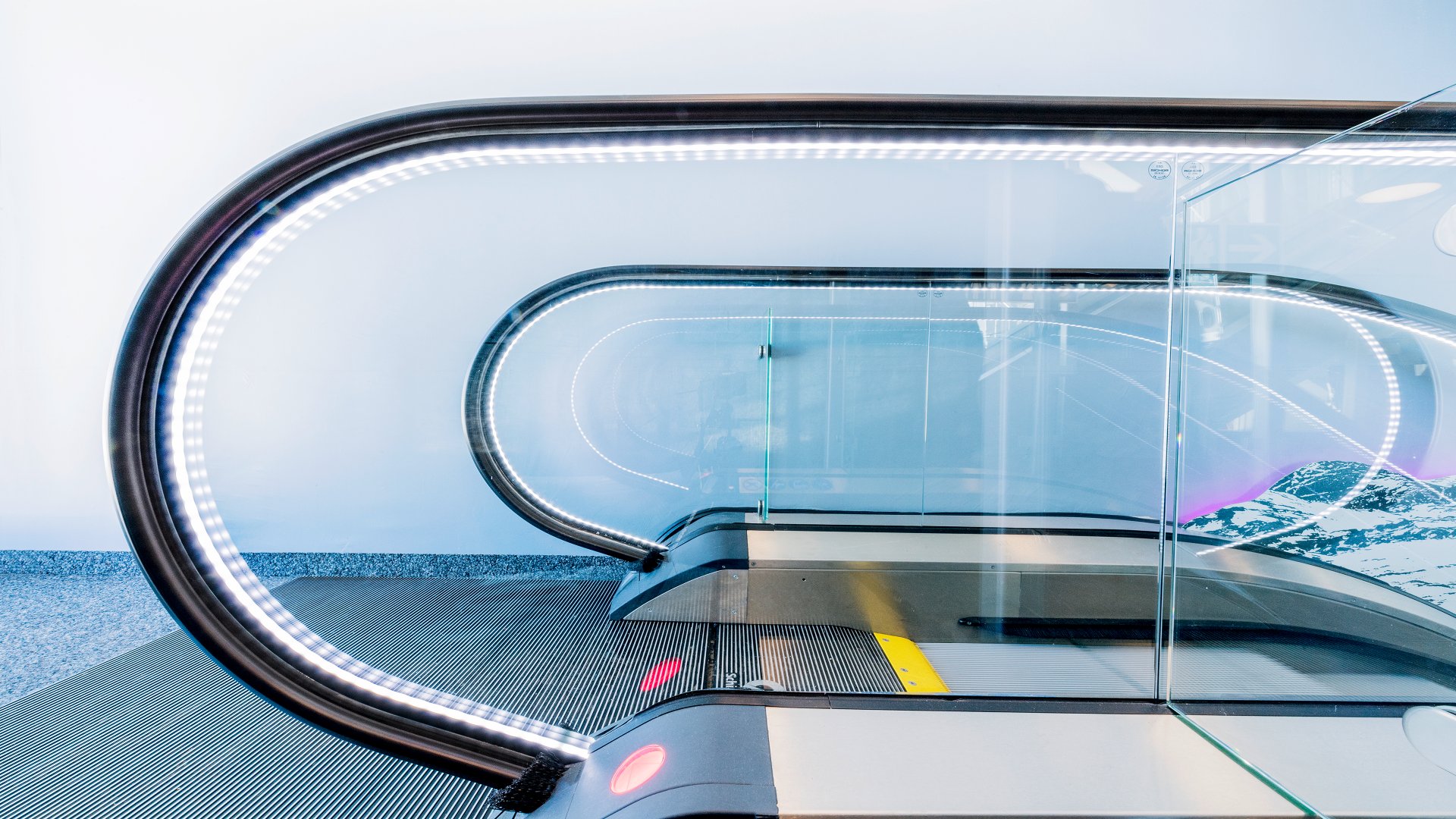

ADVANCED HANDRAIL SOLUTIONS FOR PASSENGERS
Explore our Schindler CleanMobility handrail options for escalators and moving walks.
BENEFITS FOR USER
Schindler CleanMobility branding on the handrail notifies riders of the antimicrobial properties protecting the handrail
STRONG AND DURABLE
Over 20 features are available to strengthen resistance to the effects of climatic conditions and vandalism.
COORDINATION
Schindler project managers oversee all aspects of your project through to the final handover and startup.
KNOWLEDGE
From project planning to installation, operation and maintenance, Schindler experts come up with the optimal solution at every stage.
DETAIL
ELEGANT ON THE OUTSIDE
Designed for rises of up to 26’-2 7/8” (8 m) and speeds of up to 100 fpm (0.5 m/s), the Schindler 9300-10 can be integrated successfully into any architectural setting. From the structural elements to materials, finishes and colors, an extensive range of standard design variants and options allows optimal harmonization.
UP TO THE MINUTE
Schindler design and upgrade technologies are continually improved to maximize unit availability and provide a safe and comfortable ride.
HIGH-CAPACITY SOLUTION
The Schindler 9300-10 transport escalator is geared to the high-capacity transportation needs of airports, railway stations, trade fairs and convention centers. Boosting retail revenue can be an integral part of running a public transportation facility. The Schindler 9300 AE’s distinctive looks, ease of use and dependable operation make shopping even more attractive. Schindler customers benefit from our many decades of experience in both public transportation and the commercial sector.
DETAIL
Public transportation infrastructure is a longterm investment. To deliver lasting value in a high-traffic environment, escalators and moving walks are expected to offer the utmost in reliable performance. Schindler has been moving passengers safely and efficiently for over half a century. Our rigorously tested, top-quality products and comprehensive services cover the wide-ranging needs of transportation facilities around the world. At the same time, Schindler‘s experience-based technological advances are one step ahead of the future demands of the sector.
SMOOTH OPERATION
The reduced chordal action of the 19-tooth step chain sprockets minimizes vibration and therefore wear and tear. The track and chain system with diverter sprockets was specially developed for extreme conditions in the public transportation sector.
