Pilosio Flydeck Steel Frame
FLYDECK STEEL FRAME
FLYDECK STEEL FRAME

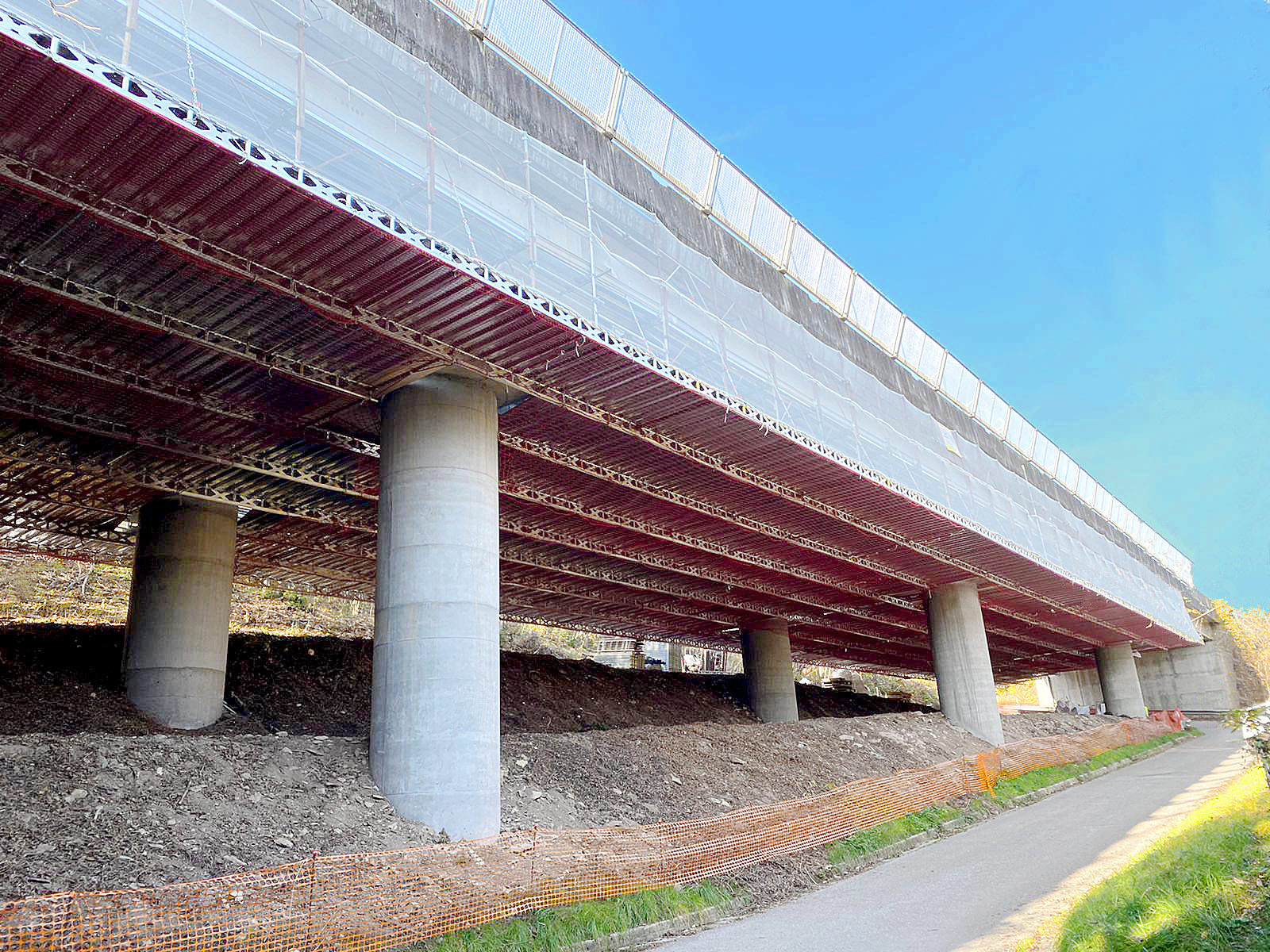

The FLYDECK system is a patented and certified soffit plane made to simplify, speed up and make the assembly of temporary structures safer.
You will have a perfectly horizontal plane to work comfortably on any construction site where a suspended solution is needed.
Furthermore, with the use of the FLYRAIL beam for mounting the FLYDECK table, you can work without any difficulty and in complete safety.
INFORMATION
BRAND
Pilosio
PRODCUT TYPE
Scaffolding System
SYSTEM
The FLYRAIL system can also be used with other types of truss.
SPACE
Space reduced by half for storage thanks to the 25 cm beams;
LOAD CAPACITY
No limitation in width, length or load capacity. As the system is modular and uses beams and scaffolding decks of any make, model, shape and size.
PILLARS

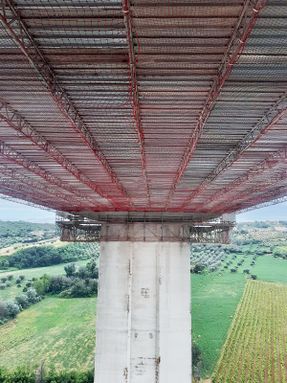

With this solution, pillars and pier-caps can be encircled and continued in the next span.
COLLECTION
Flydeck
PRODUCTION
Made in Italy

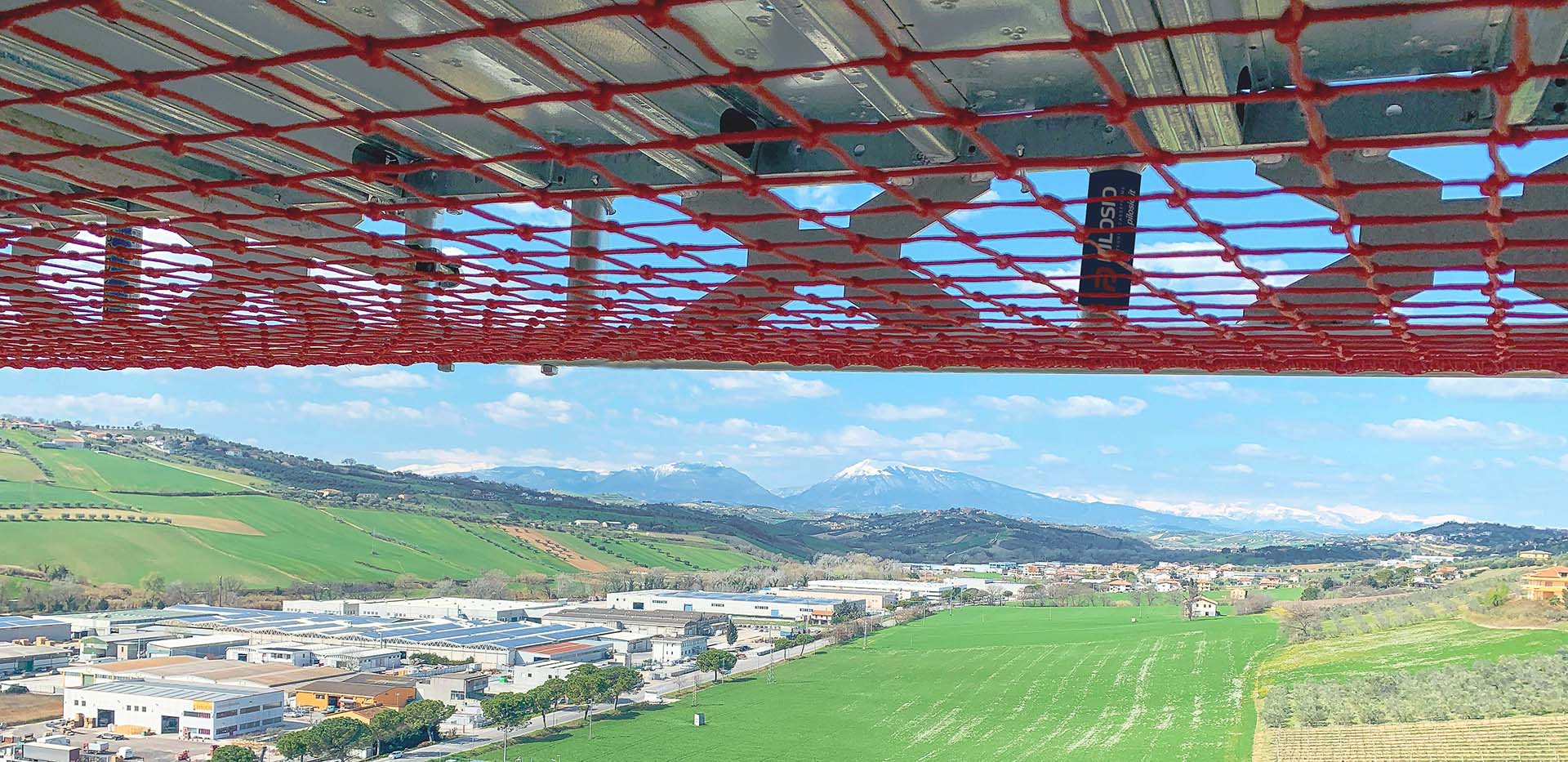

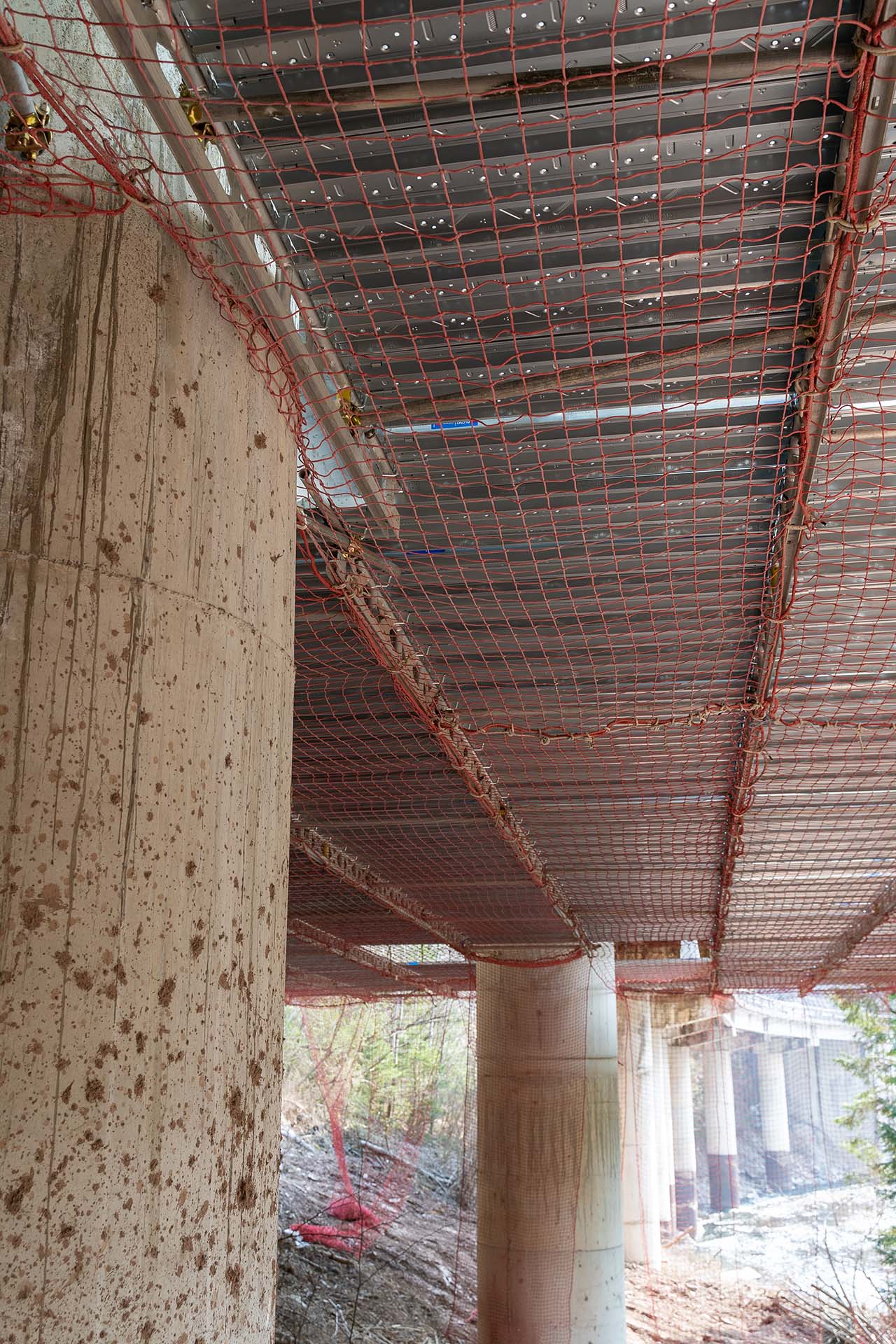

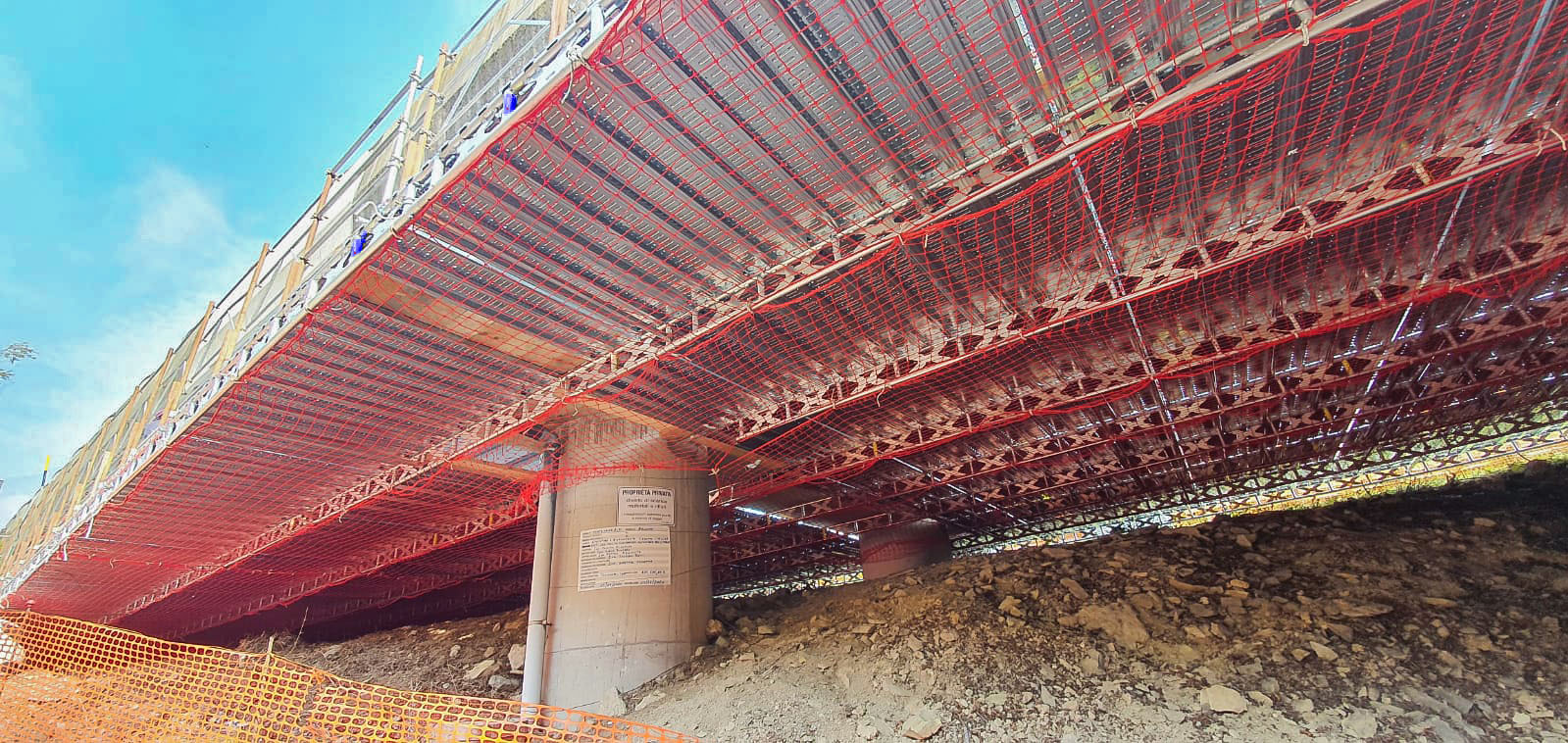

USE OF SAFETY NET WITH NO LOWER PLATFORM

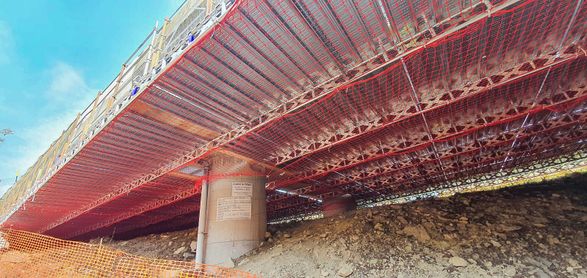

The complete suspended structure with a safety net under the platform weighs 48% less than the same structure with a lower platform made of steel planks. In addition, the 25 cm high Flydeck beams with tube ensure that the net can be fixed easily and quickly
LOAND CAPACITY
Up to 150kg/m²
LOADING CAPACITY
300kg/m²
SIGNIFICANT REDUCTION
Significant reduction in set-up times due to the use of the FLYRAIL beam, high manoeuvrability of the elements and connection speed.
USING FLYRAIL GUIDES THERE IS NO NEED FOR BRIDGE INSPECTION MACHINE
Rental cost in Italy of a C-licence bridge inspection machine for a span of around 500 m²: € 1,000 per day. It allows the setting up at the same speed as Pilosio system with Flyrail guides, but using Flydeck system with Flyrail guides, with the mounting of only 8-9 spans the Flyrail system pays for itself, as well as not disrupting traffic.
VOLUME
3.75 m3
SAFETY
Total safety for the workers during the anchorage phases.
MATERIAL
Steel & Aluminum
RAIL ROUTES
No need to interrupt road or rail routes thanks to the possibility of setting up the FLYDECK plan with FLYRAIL beam from any access point and then continuing in any direction.
ADVANTAGES
- The provisional structure is accessed from a pile or embankment without interrupting road flow;
- It is always possible to complete the FLYDECK deck with your own railings or any type of scaffolding.
- Considerable fatigue relief for the workers due to the Flyrail beam that supports the weight of the cantilever beams;
- 25 cm aluminium truss with special X-reinforcement for high manoeuvrability and excellent load-bearing capacity;
- Connection of the beams by spigot and special spring pins that make the connection much faster than using screw nuts;
- Laying of safety nets during the creation of the work surface: no need for sub-bridges with a significant reduction in set-up time and overall weight of the structure;
APPLICATIONS
APPLICATIONS
- Events
- Residential Constructions
- Industrial Construction
- Bridge Maintenance
- Renovation & Restoration
