Mgs PE294 Two Hole Wall Mounted Mixer

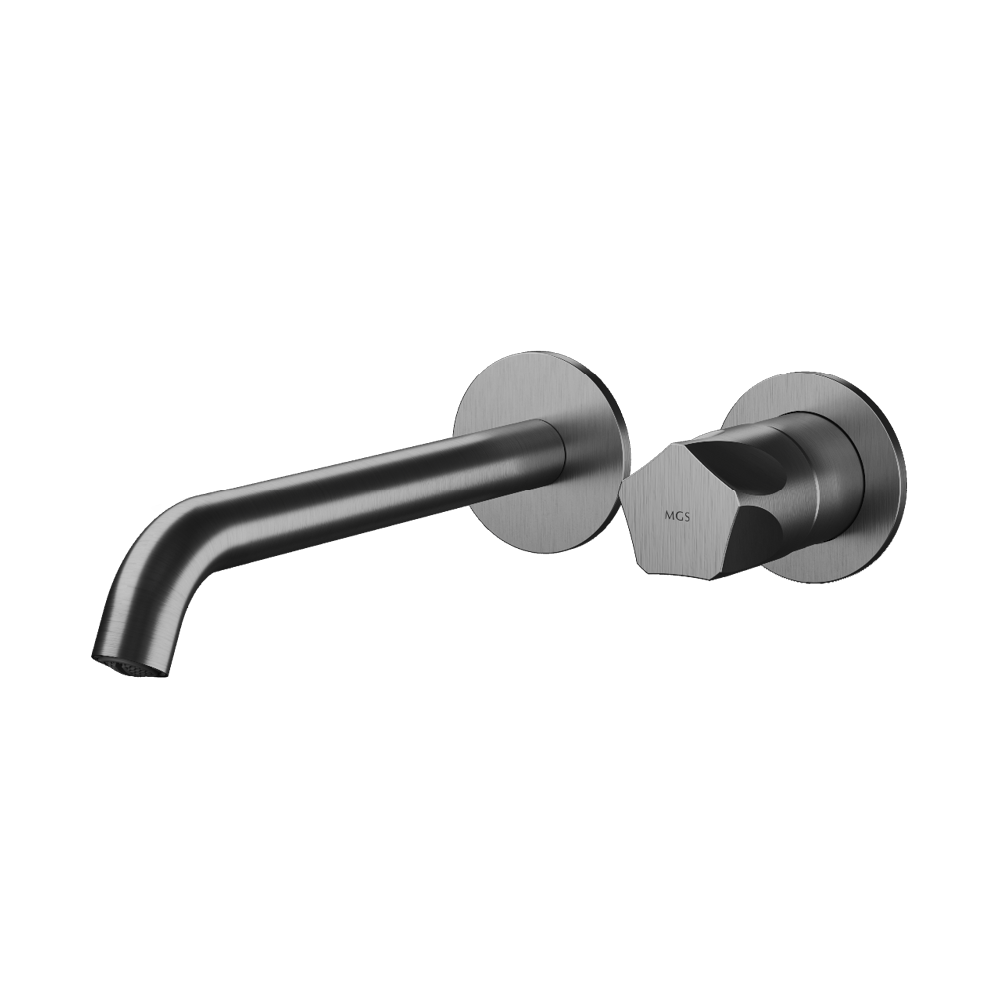

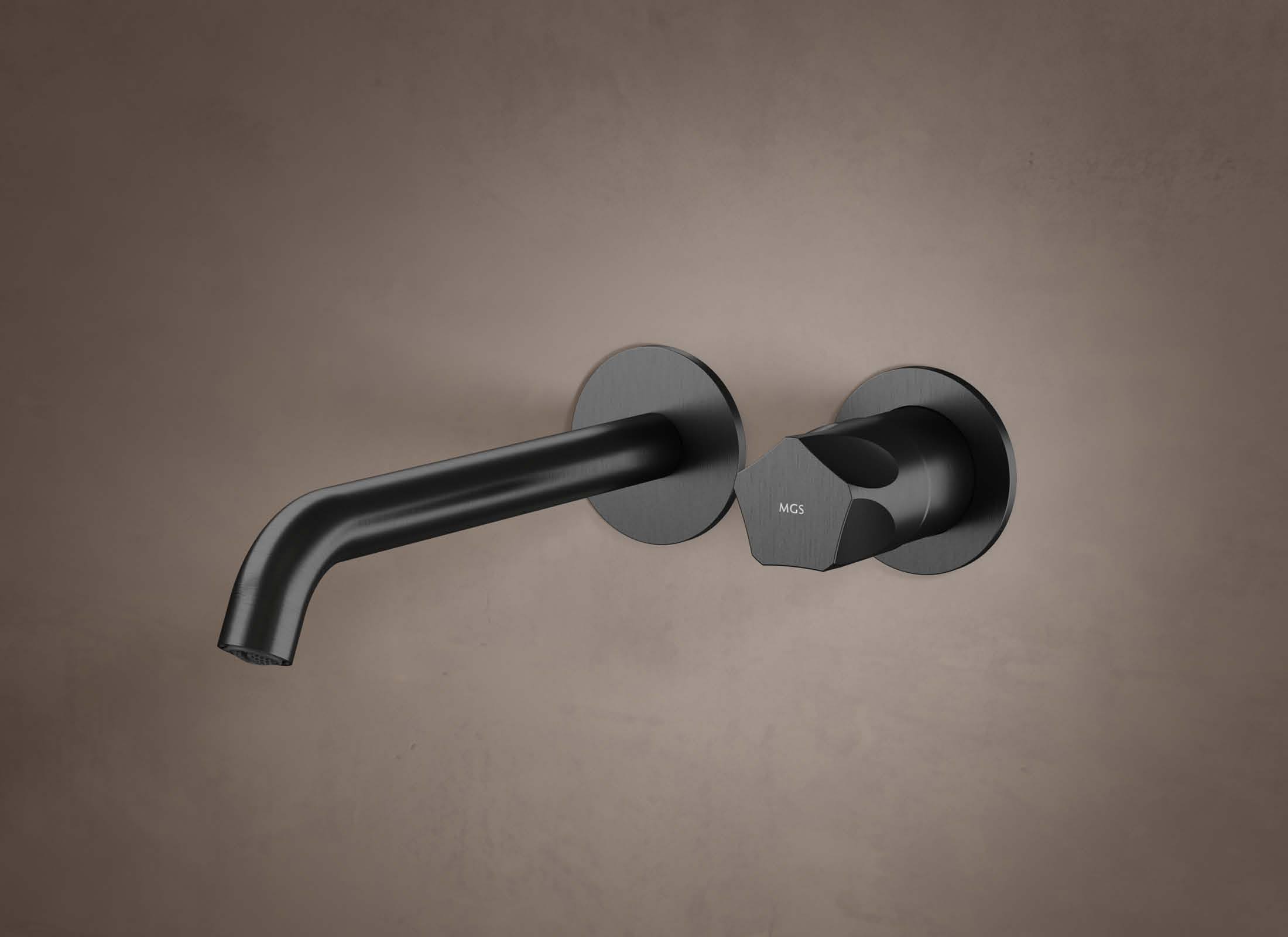

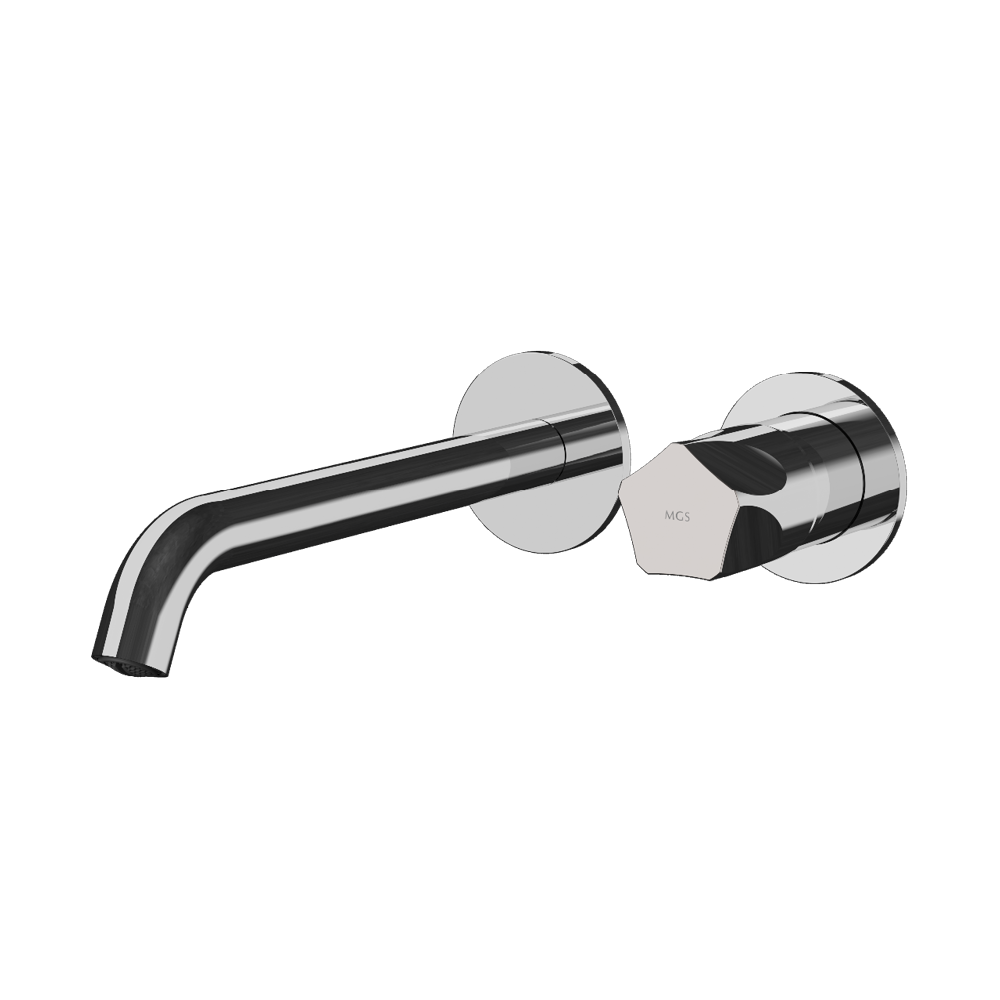

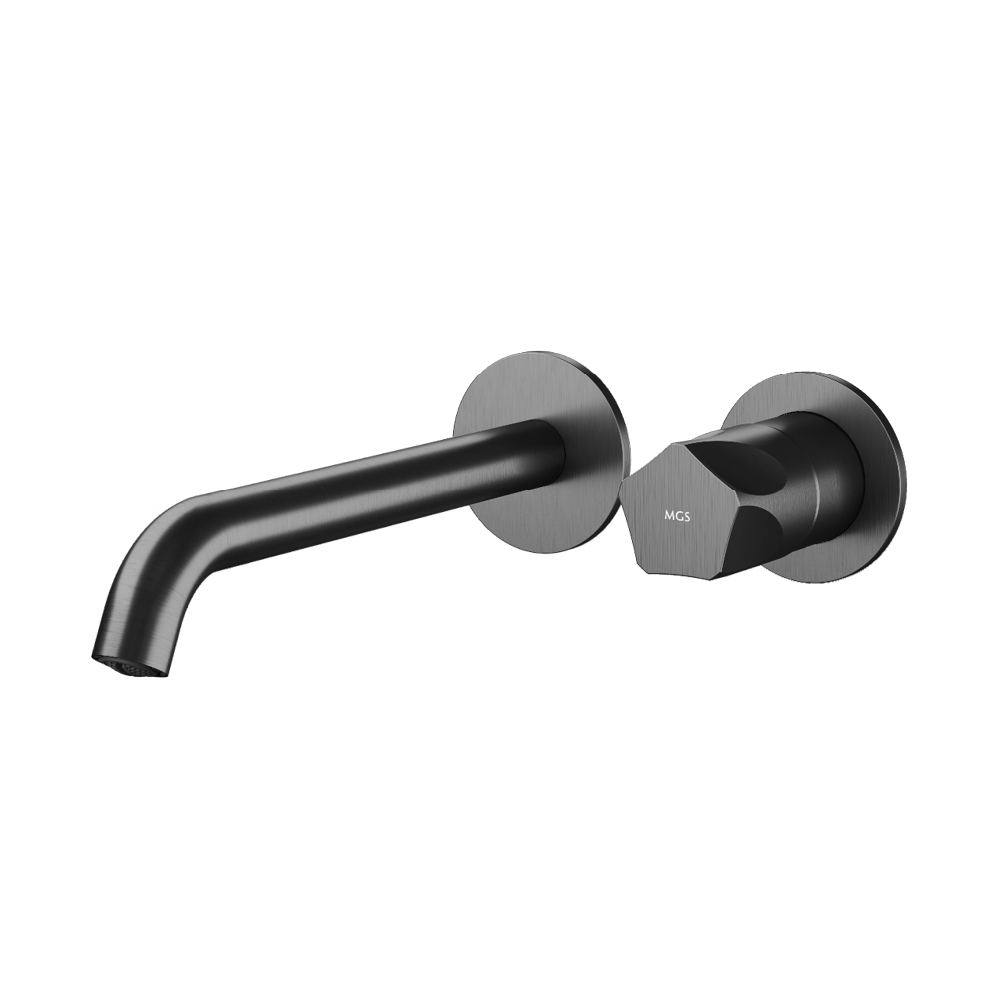

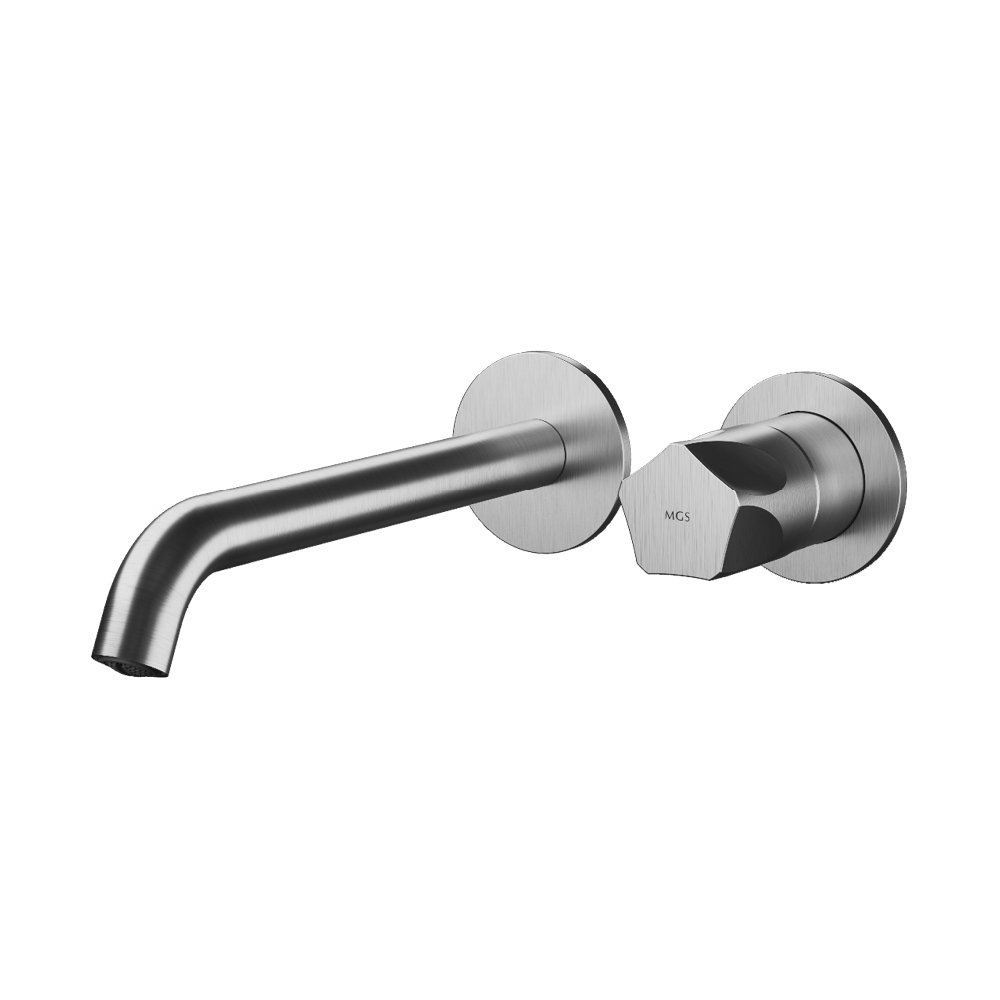

PE294 TWO HOLE WALL MOUNTED MIXER
PE294 TWO HOLE WALL MOUNTED MIXER
Designed by Ervas Basilico Girardi
The bathroom collections by MGS stand out for their balance between sophisticated design and everyday practicality.
Crafted with great attention to detail, they bring a timeless touch of elegance to any space.
information
BRAND
Mgs
PRODUCT TYPE
Shower Valve
RECOMMENDED OPERATING PRESSURE
14 to 60 PSI (1 - 4 bar)
MAXIMUM HOT WATER TEMPERATURE
185 °F (85°C)
RECTANGULAR PLATE
The optional rectangular plate can be ordered separately.
COLLECTION
PE294
OPERATING PRESSURE
Max 145 PSI (10 bar)
BUILT-IN UNIT
The built-in unit is also availble for installation with handle on the left
HANDLE
Two hole wall mounted mixer with an ergonomic handle that is carved out of a solid steel bar.
MATERIAL
Steel
TIMELESS ELEGANCE
Timeless elegance for bathrooms
PRODUCTION
Made in United Kingdom
WASTE
The pop up waste is not included
SUPPORT

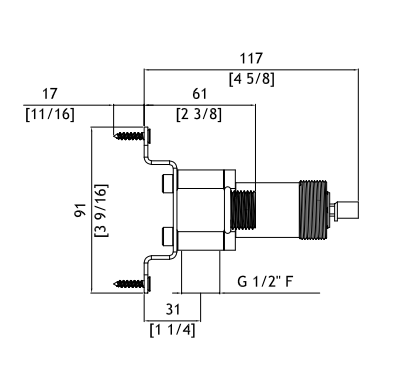

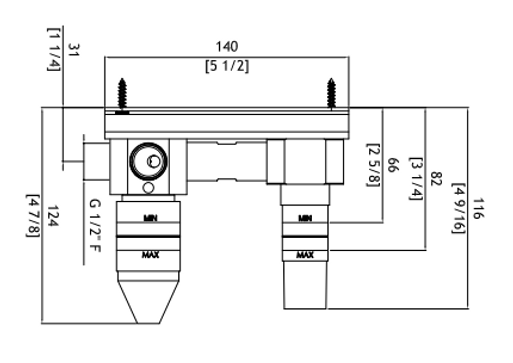

Marine grade stainless steel universal rough-in unit, fitted on a stainless steel support, available in EU version (G1/2“) and US version (1/2“ NPT). The same rough-in is used for all finishes.
SPOUT LENGTH
Spout length 200 mm – 7 7/8“. Model PE295 is available with spout length 130 mm – 5 1/8“
ELEGANTLY CURVED SPOUT
Elegantly curved spout with concealed aerator paired with a 38 mm diameter, perfectly proportioned mixer.
DESIGNED
ErvasBasilicoGirardi
DESIGN
Sophisticated design meets practicality
AVAILABLE COLORS
6
RECOMMENDED HOT WATER TEMPERATURE
149 °F (65°C)
MARINE GRADE AISI316L
Marine grade AISI316L solid stainless steel trim, hand polished by expert artisans to a matte or polished finish.
EU VERSION
Flow rate 12 l/min at 3 bar.
US VERSION
Flow rate 1.2 GPM at 60 PSI.
TRIM
The trim is also available in our exclusive PVD finishes Black Steel, Titanium, Light Gold and Bronze over matte stainless.
WARRANTY
MGS products are covered by a warranty of 5 years from purchasing date on all stainless-steel parts and of 2 years on all other components. During this period, parts with construction defects in materials or workmanship will be replaced free of charge. This warranty will not respond in the case of faults caused by unsuitable or improper use, wrong installation, natural wear, improper or careless treatment, wrong usage of cleaning or maintenance products.
MGS will not assume liability for labour expended, freight cost or damages accruing from the use of the material purchased from us. If material is defective, the limit of damage is the price of the defective material. Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to MGS for all warranty claims. The warranty is not transferable and is extended solely to the original purchaser of the product.
CARE & MAINTENANCE
OUTDOOR INSTALLATION
Marine grade stainless steel is ideal for outdoor installation and it is extremely resistant to oxidation. Nevertheless, it is not oxidation proof or stain proof. In order to maintain the long lasting beauty of the stainless steel surface it is necessary to regularly clean it. This is particularly important in marine environment where saline deposits over time will affect the surface and cause oxidation. In such conditions the surface must be cleaned more frequently in order to be preserved.
ALL FINISHES
Do not use bleach, caustic, ammonia or ACID based cleaning materials or detergents containing chloride, or any other strong household cleaning products, even if organic. Even vapors of such products could damage the chemical balance of the stainless steel surface. When using strong chemical products in the room, we recommend to air it out. Do not use abrasive materials, cleaning pads, scouring sponges, files or other hard objects. Do not use oily rags or greasy cloths when wiping the product surface.
MATTE AND POLISHED STAINLESS STEEL
In order to preserve the finish of your product, we recommend regular cleaning with a soft wet cloth. For regular cleaning it is not necessary to use detergents. In case of need, we recommend the use of a mild detergent or even better, a specific stainless steel detergent. In this case, please follow the specific instructions of the detergent manufacturer. When using a detergent rinse well with water immediately after cleaning, until all detergent is removed from the surface. Dry with a soft cloth.
PVD FINISHES (BLACK STEEL / TITANIUM / ROSE GOLD / GOLD)
PVD technology is used to create a smooth, resistant and long lasting finish. A soft wet cloth is sufficient for daily cleaning. For resistant stains and fingerprints we recommend the use of a diluted mild soap and water solution to be applied using a soft cloth. Rinse thoroughly after cleaning. In order to avoid water stains we recommend to dry the surface with a soft cloth. As it is not a coating but the result of a chemical reaction, a characteristic of PVD is that objects of different shapes and dimensions can absorb color differently, resulting in slight color variations. These are not to be considered defects.
