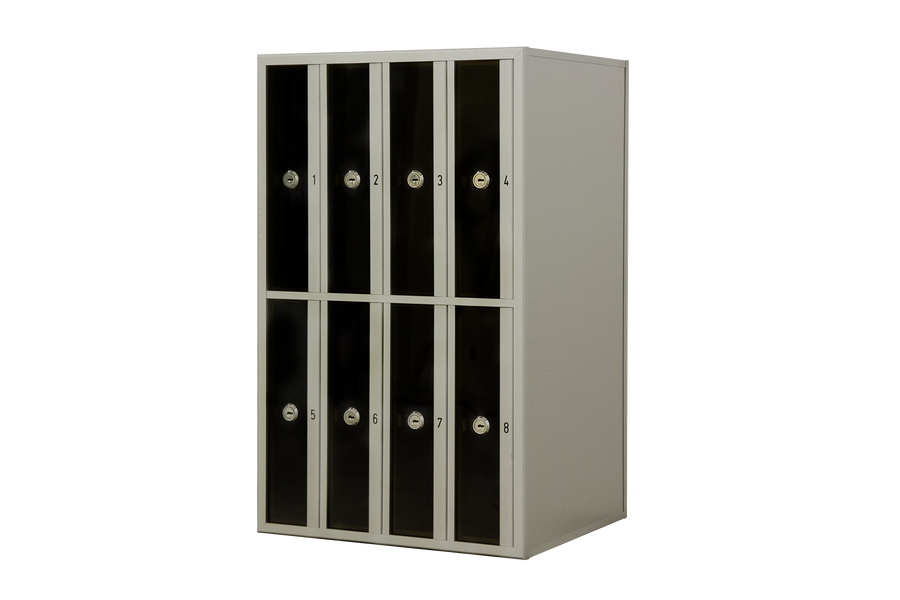

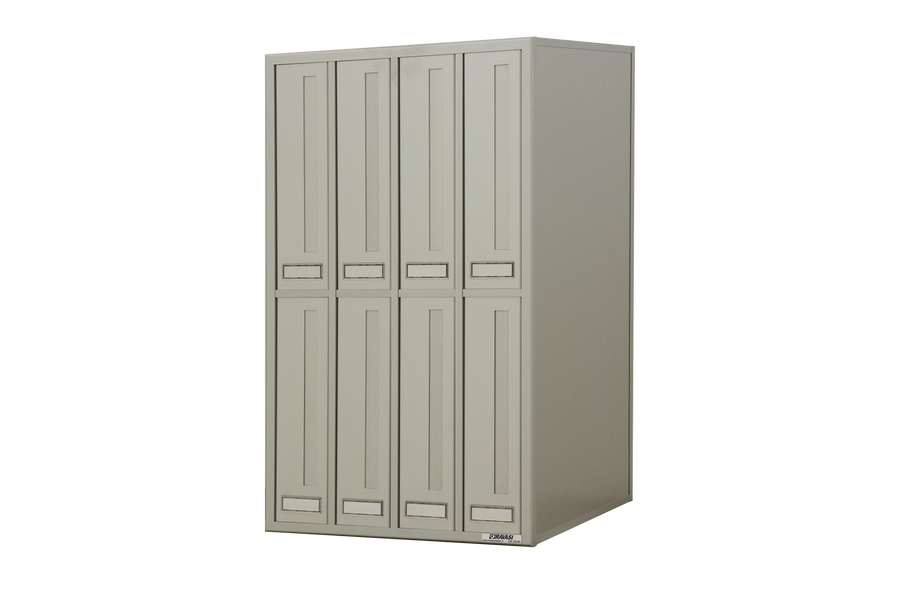

Ravasi Outdoor Mailbox Mod. DFV – Mod. DF35V
OUTDOOR MAILBOX MOD. DFV – MOD. DF35V
OUTDOOR MAILBOX MOD. DFV – MOD. DF35V

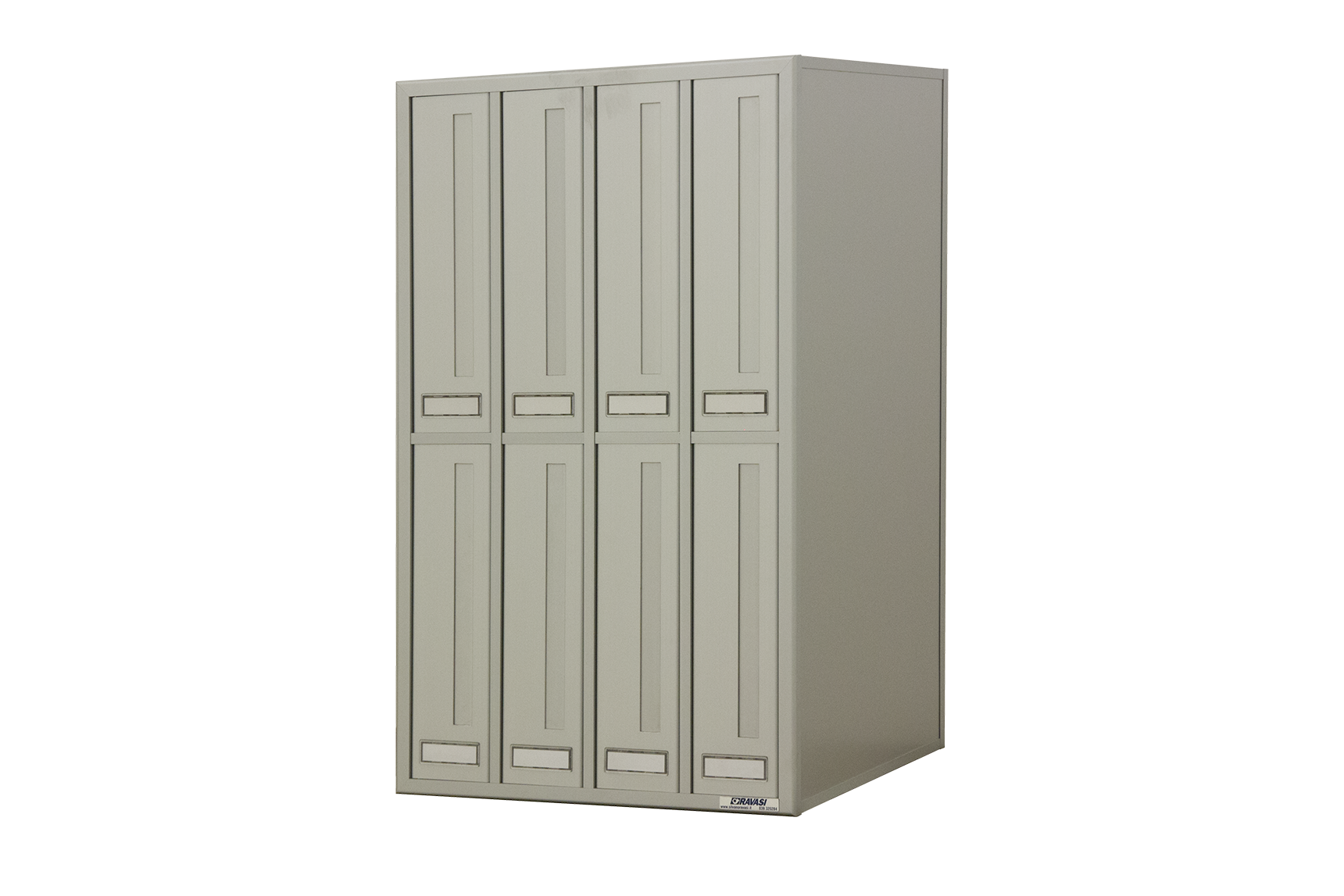

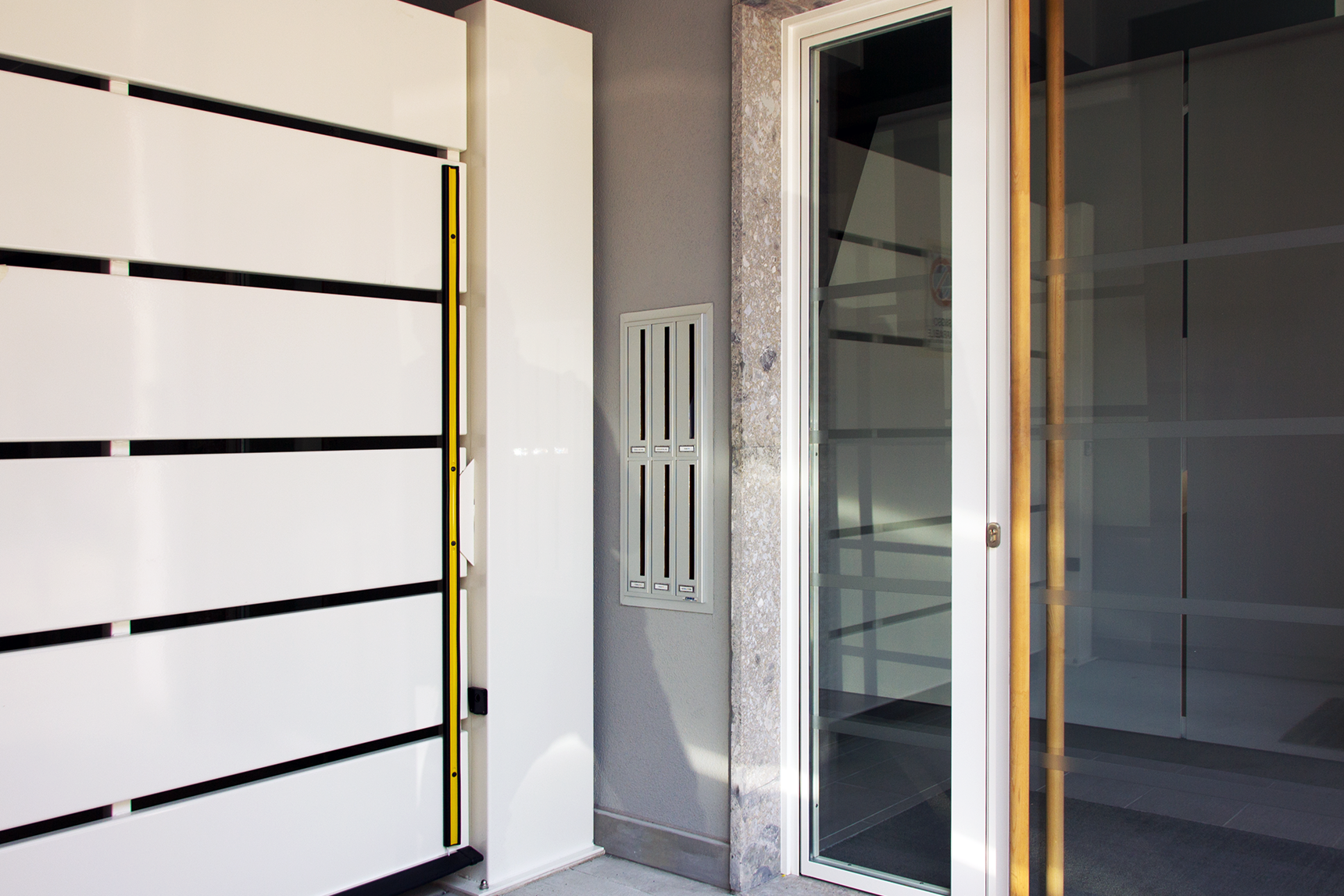

A natural complement to the vertical line, these
models are installed through walls, gates or window frames to provide a practical solution that allows mail to be inserted from the outside and withdrawn safely from inside.
information
BRAND
Ravasi
PRODUCT TYPE
Outdoor Mailbox
STRUCTURE
Multi-layer phenolic marine plywood structure.
EDGE PROFILE
Edges, profiles, finishes and casing in thick aluminium.
ENVIRONMENT
Outdoor
PRODUCTION
Made in Italy

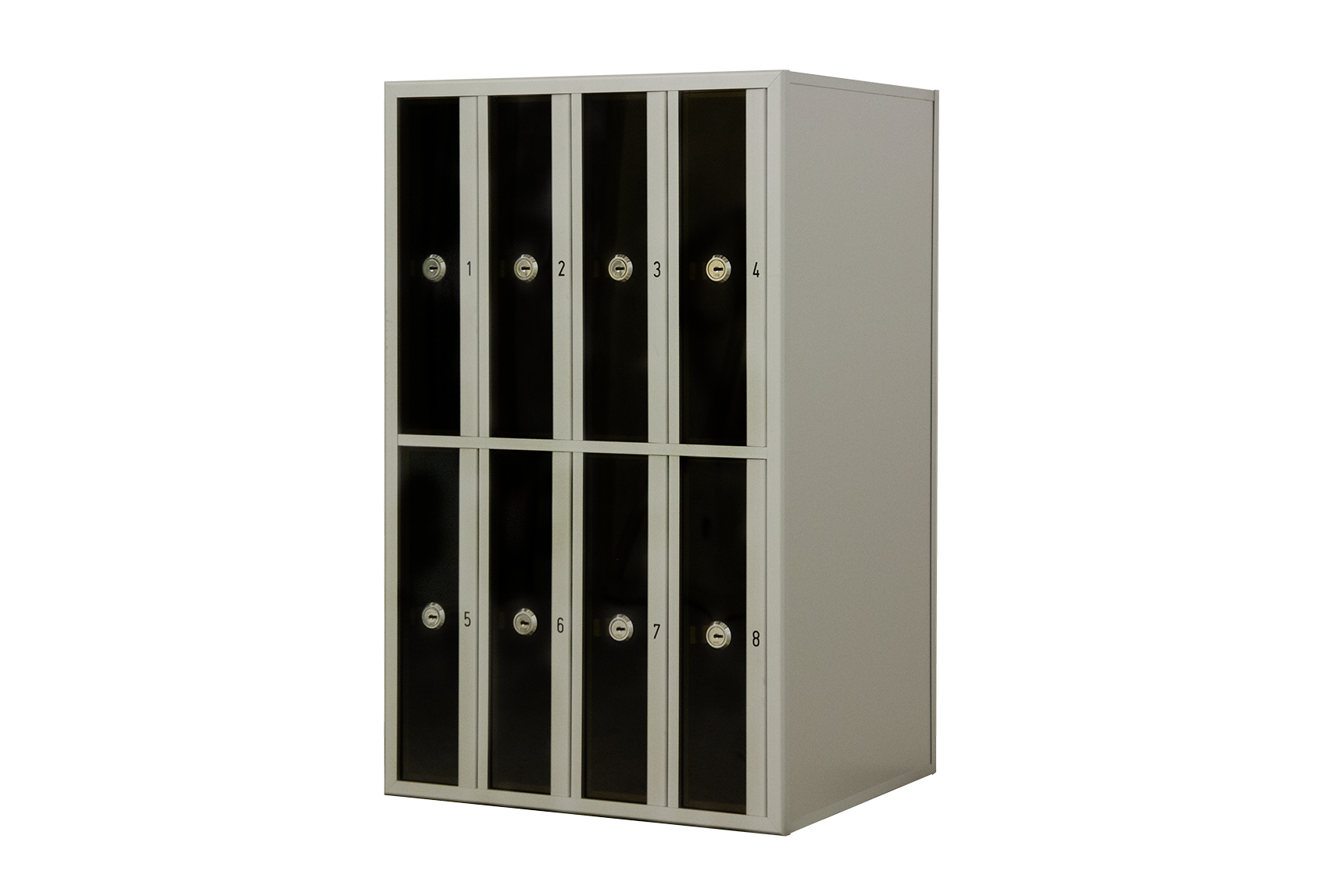

INNER SIDE
Inner side of the smoked Plexiglas door, with a thickness of 5 mm, security lock with 2 keys.
OUTER SIDE
Outer side in extruded aluminium with vandal-proof name-holder and slot.
DIMENSIONS

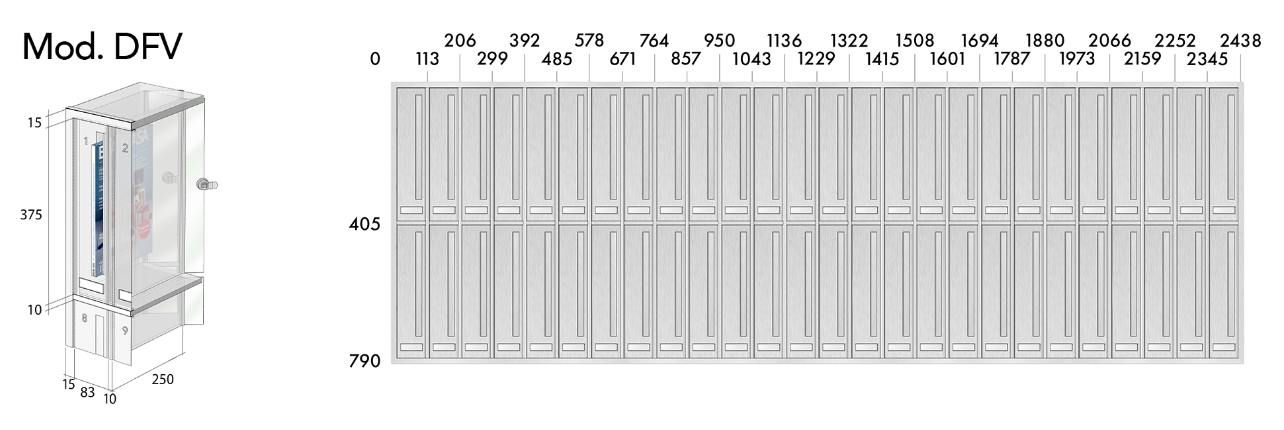

DIMENSIONS 1 (MOD. DFV)
- Width : 250 mm
- Depth : 83 mm
- Height : 405 mm
- Internal Height : 375 mm
- Top Thickness : 15 mm
- Bottom Clearance : 10 mm

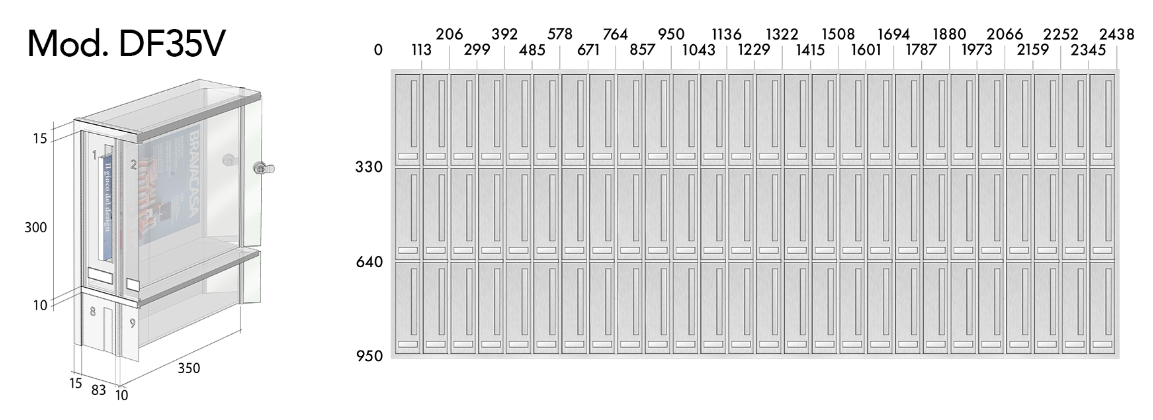

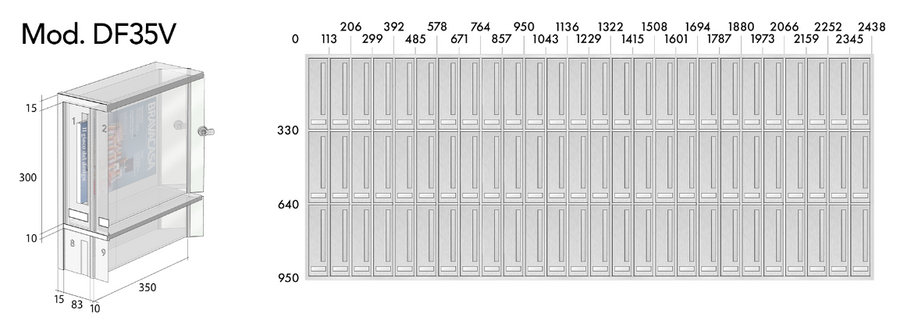

DIMENSIONS 2 (MOD. DF35V)
- Width : 350 mm
- Depth : 83 mm
- Height : 330 mm
- Internal Height : 300 mm
- Top Thickness : 15 mm
- Bottom Clearance : 10 mm
STANDS AND SUPPORTS
STANDS AND SUPPORTS
Epoxy powder-coated steel supports are characterised by their solidity and simple design, being dimensioned according to the mail drops to be supported.

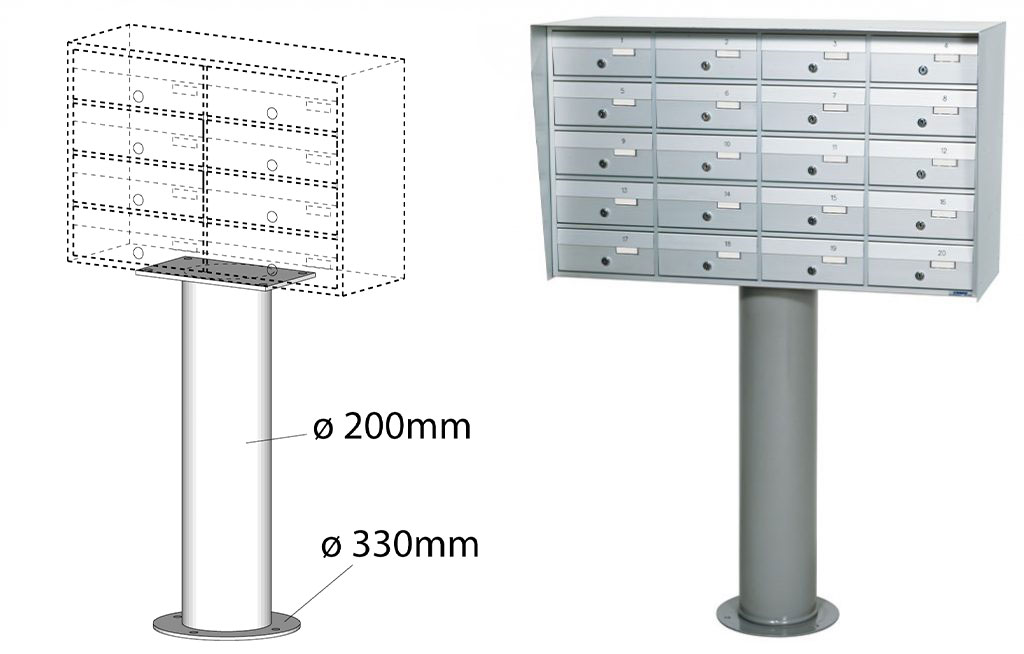

EX POST
- Round tubular post ø 200 mm.
- Base ø 330 mm with 3 fastening holes.

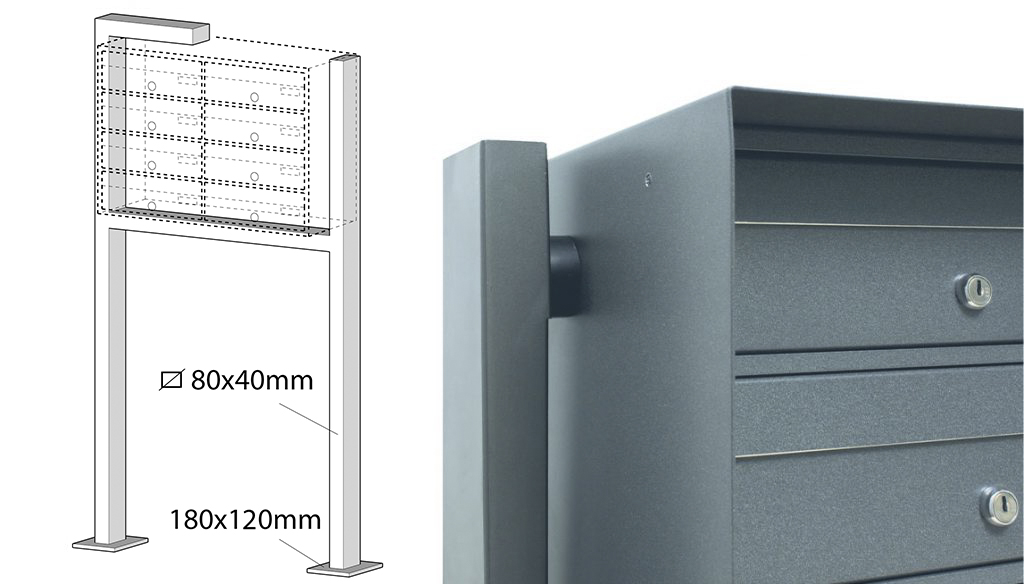

SQUARE TUBE SUPPORT
- Rectangular tube support with a profile of
- 80×40 mm with a base of 180×120 mm
- Can only be made vertically or perimeteral to the mail drops.

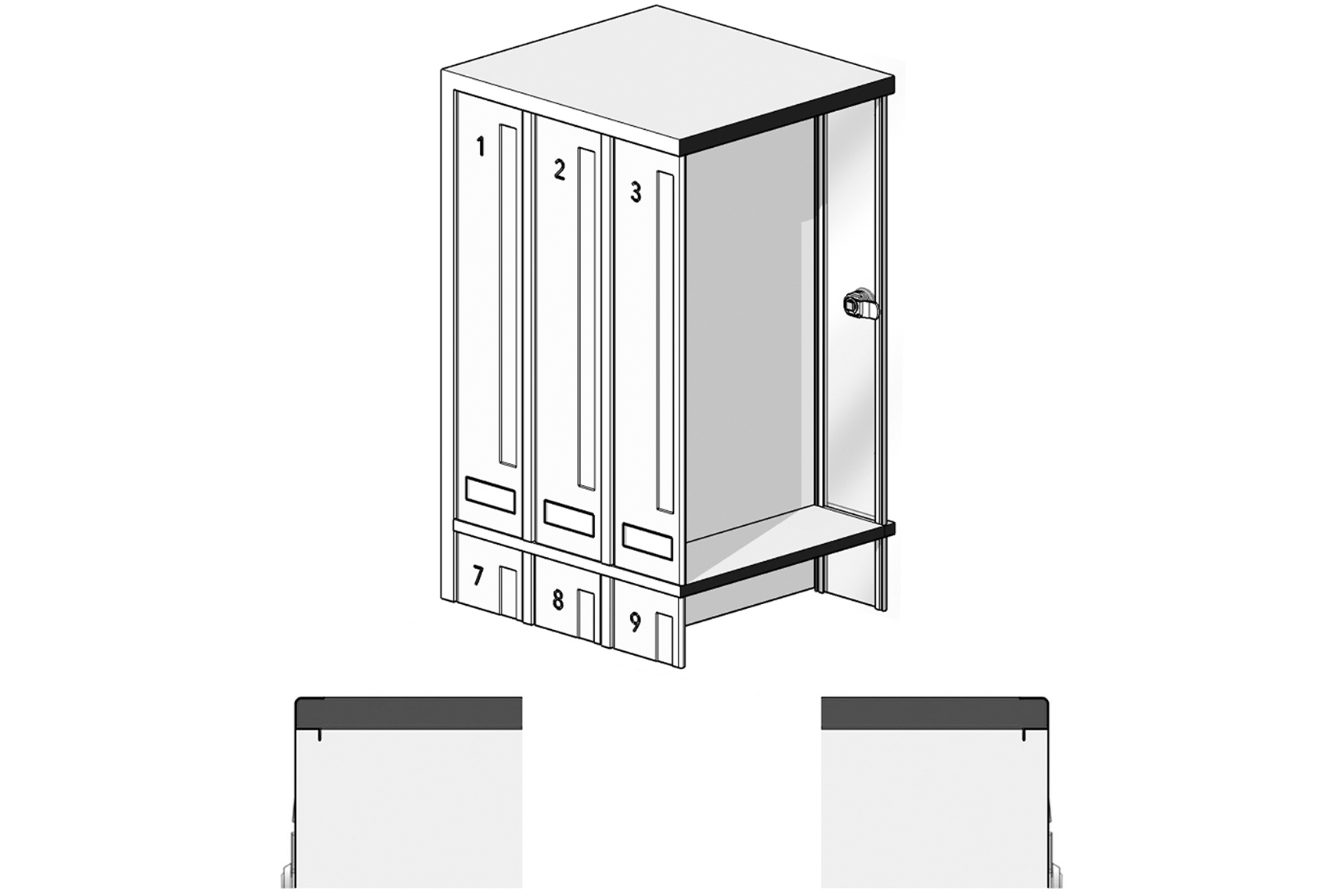

CONSTRUCTION VERSIONS

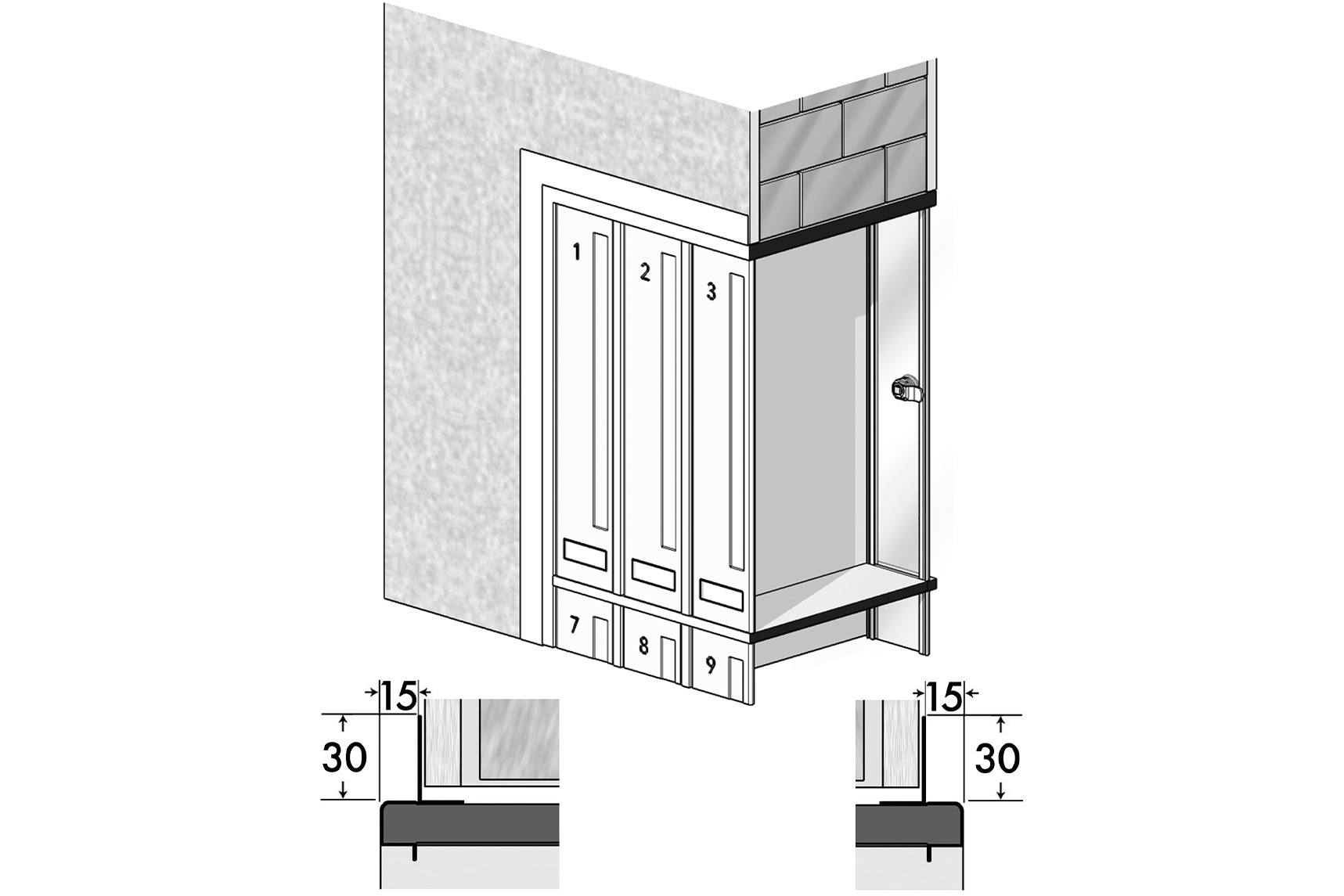

VERSION 0

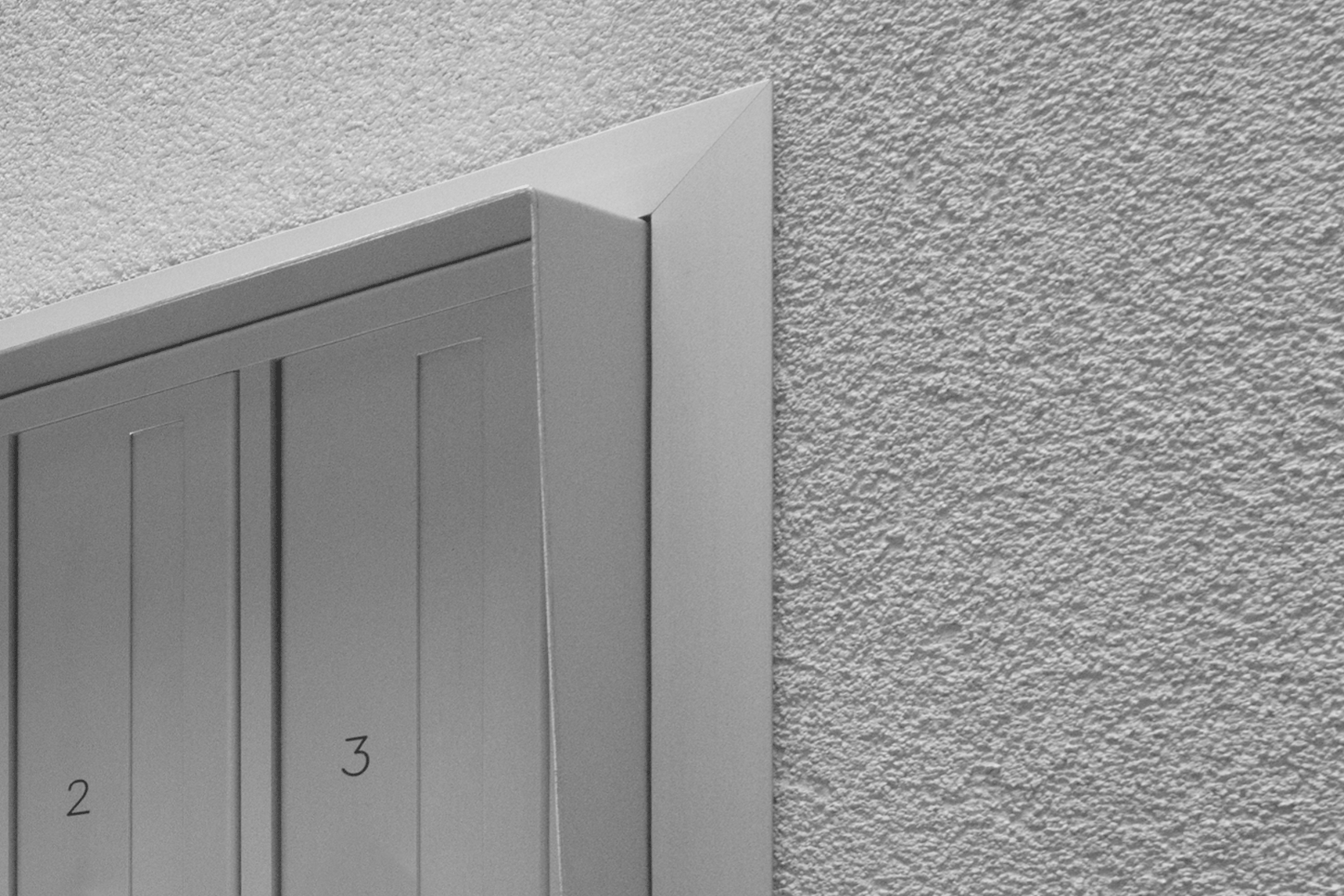

Wall-recessed with flat cover profile h. 3 cm.

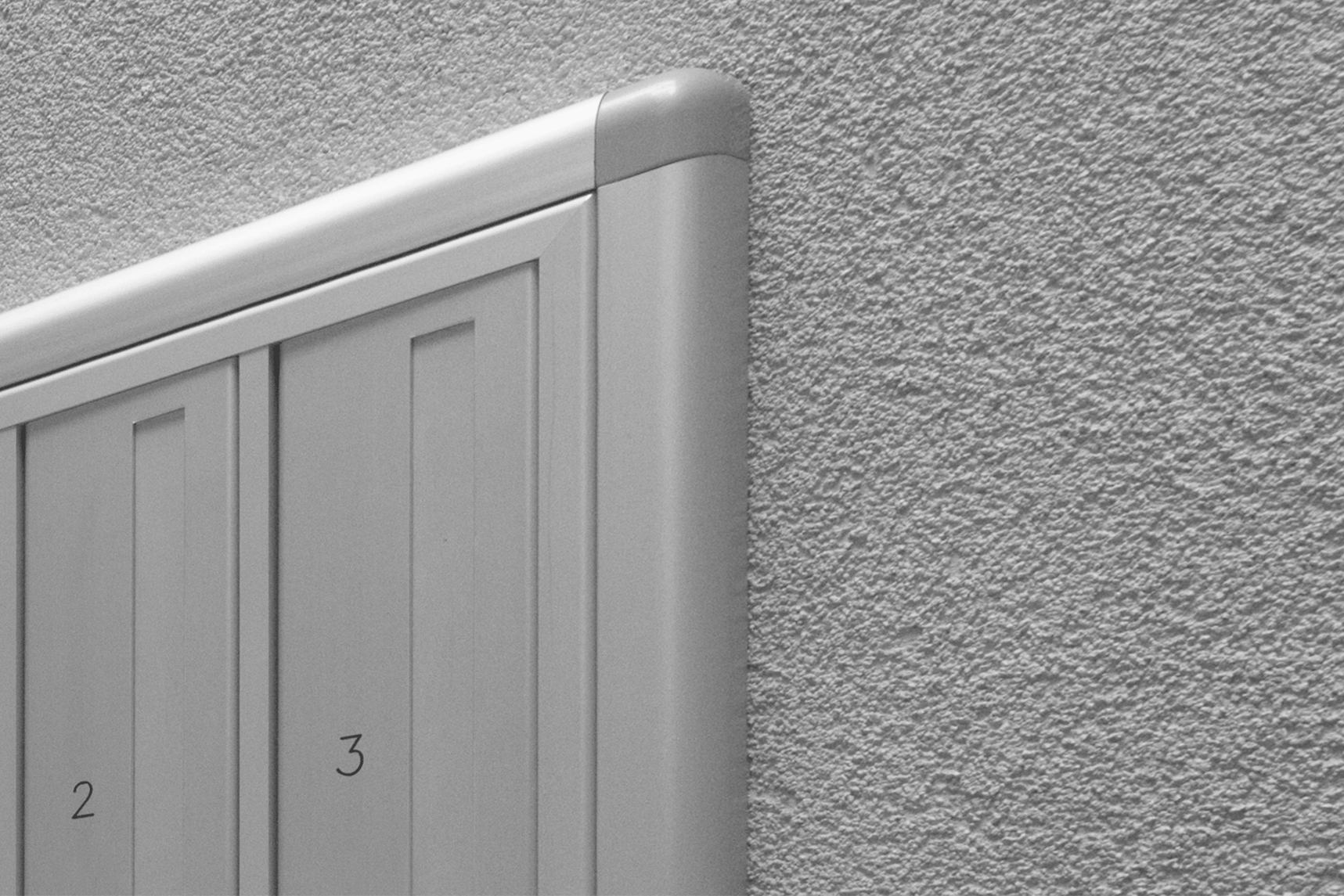

VERSION 0-BT

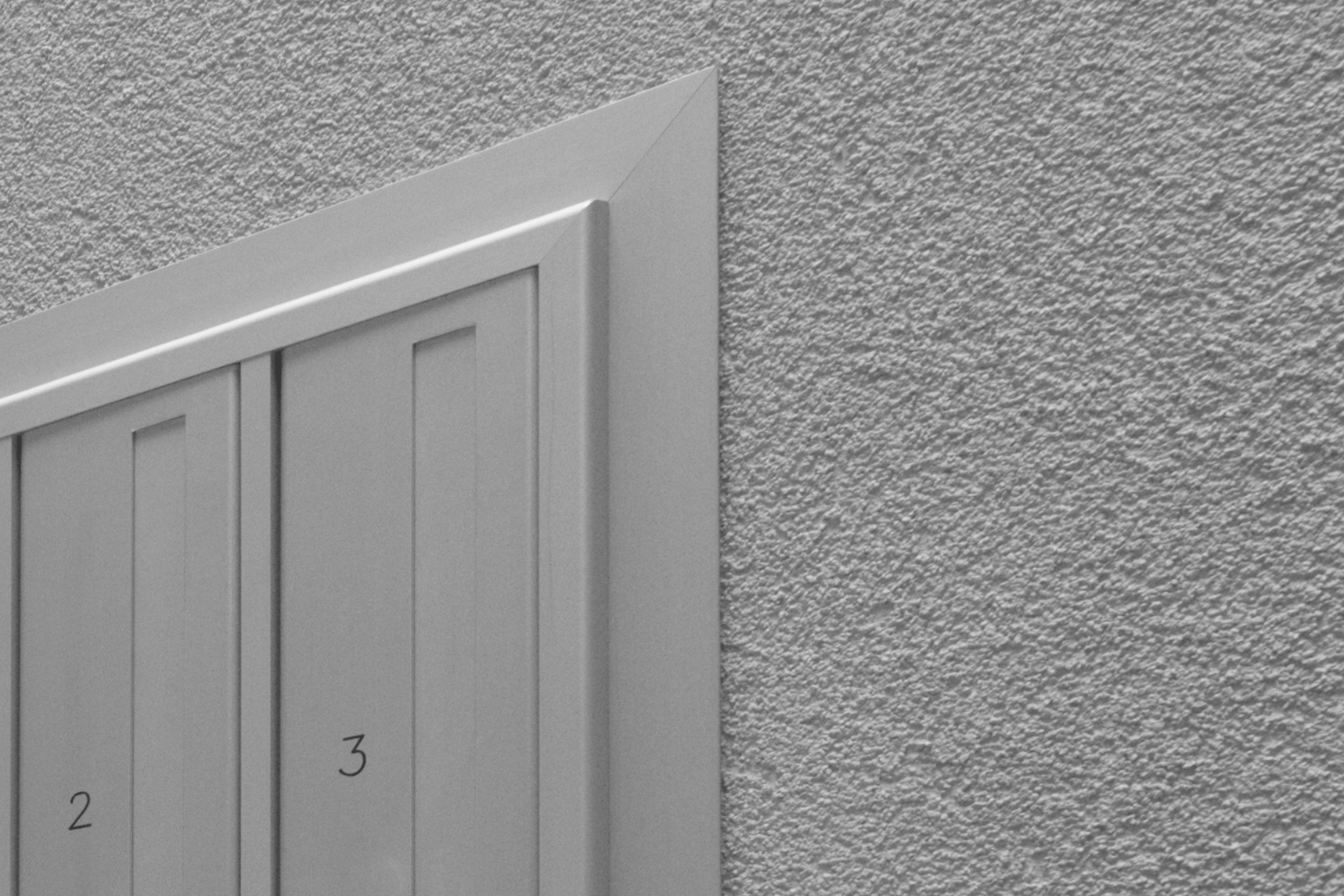

Wall-recessed with round cover profile h. 3 cm.

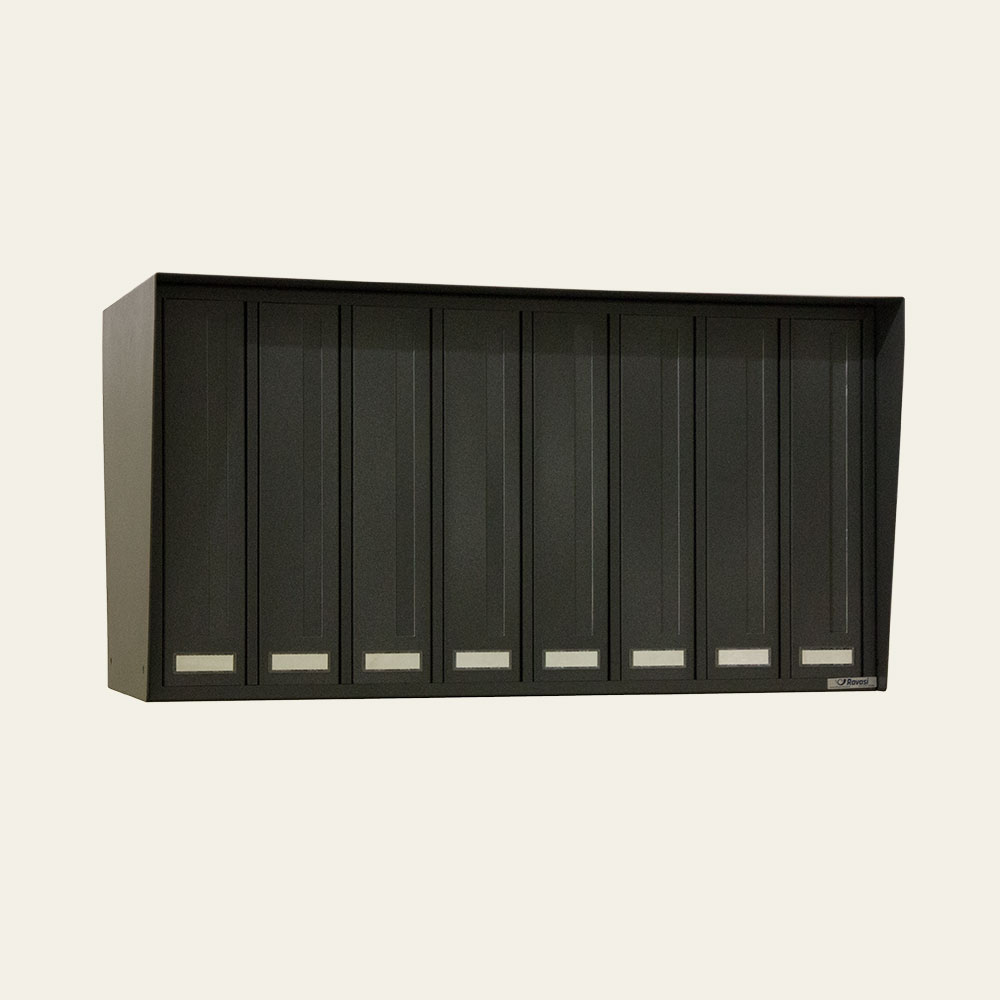

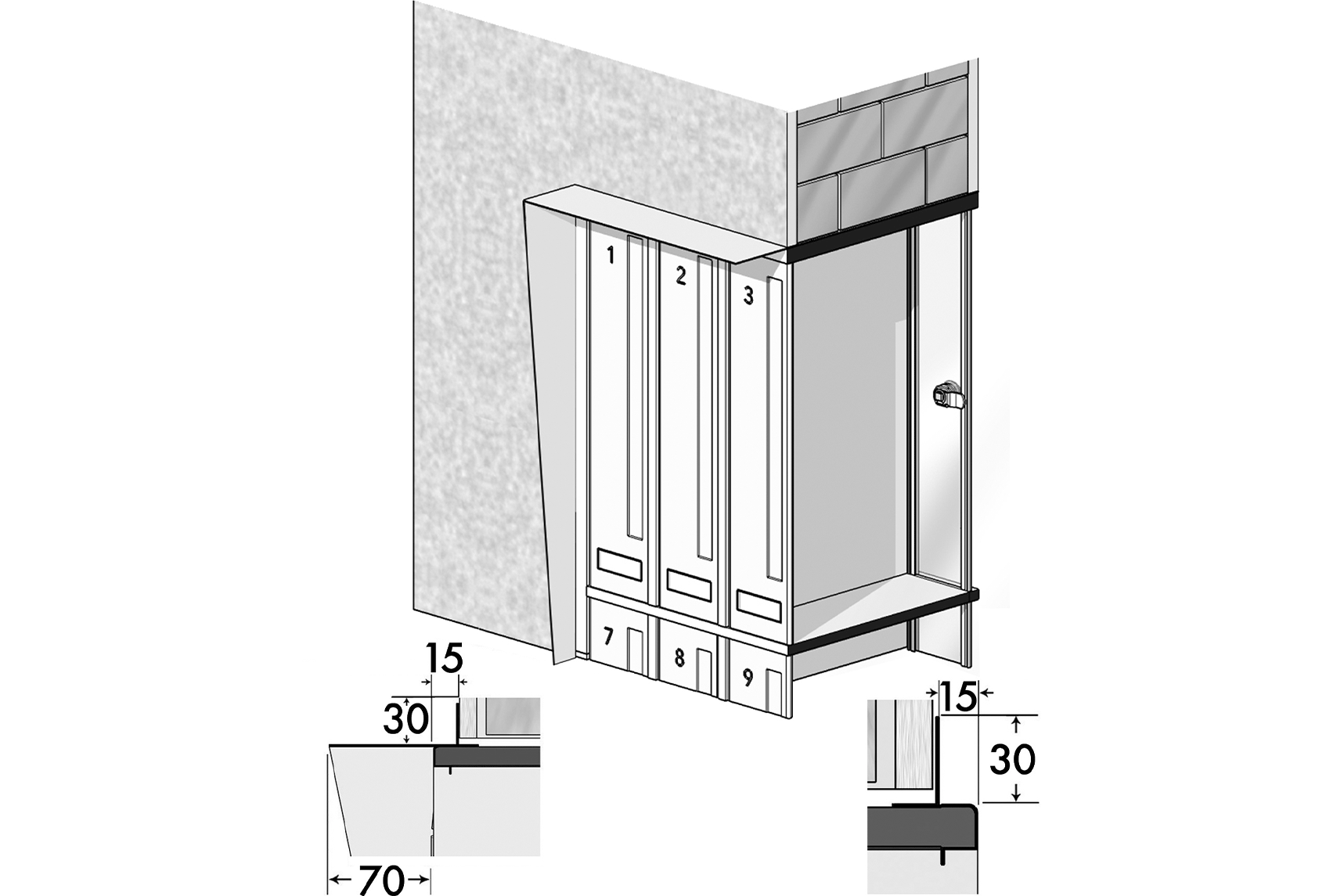

VERSION 1
Wall-recessed with flat cover profile h. 3 cm plus rain cover.

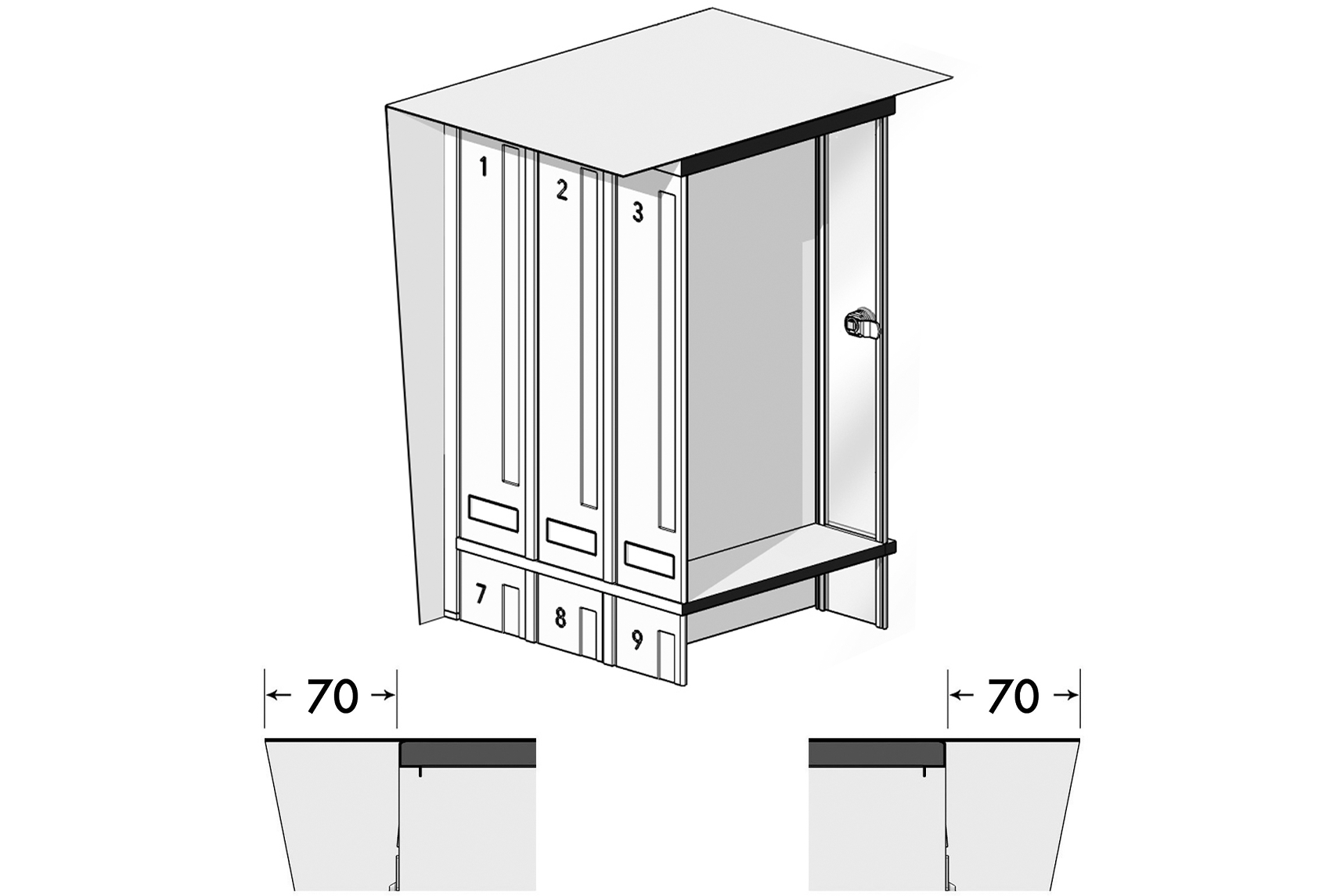

VERSION 2

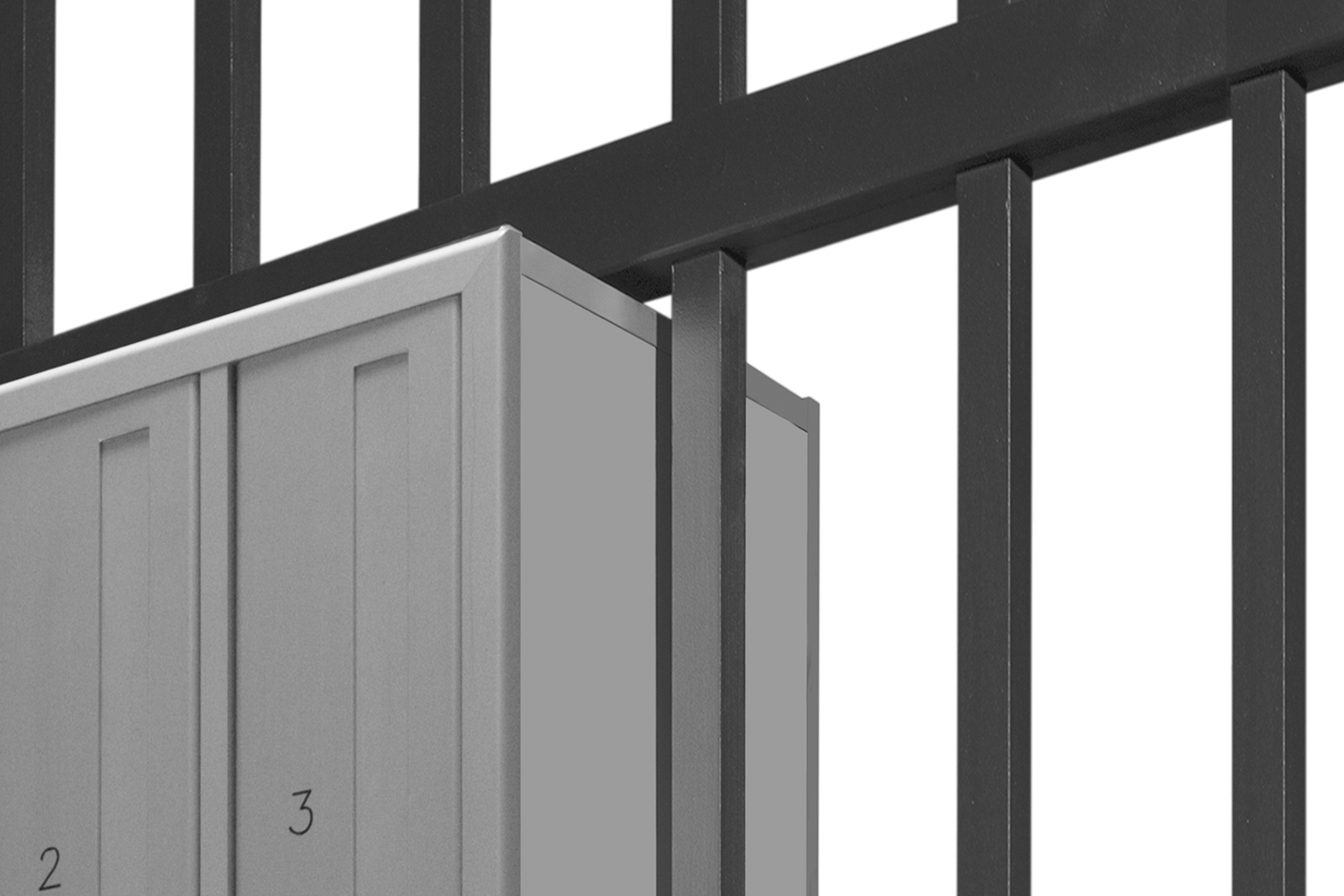

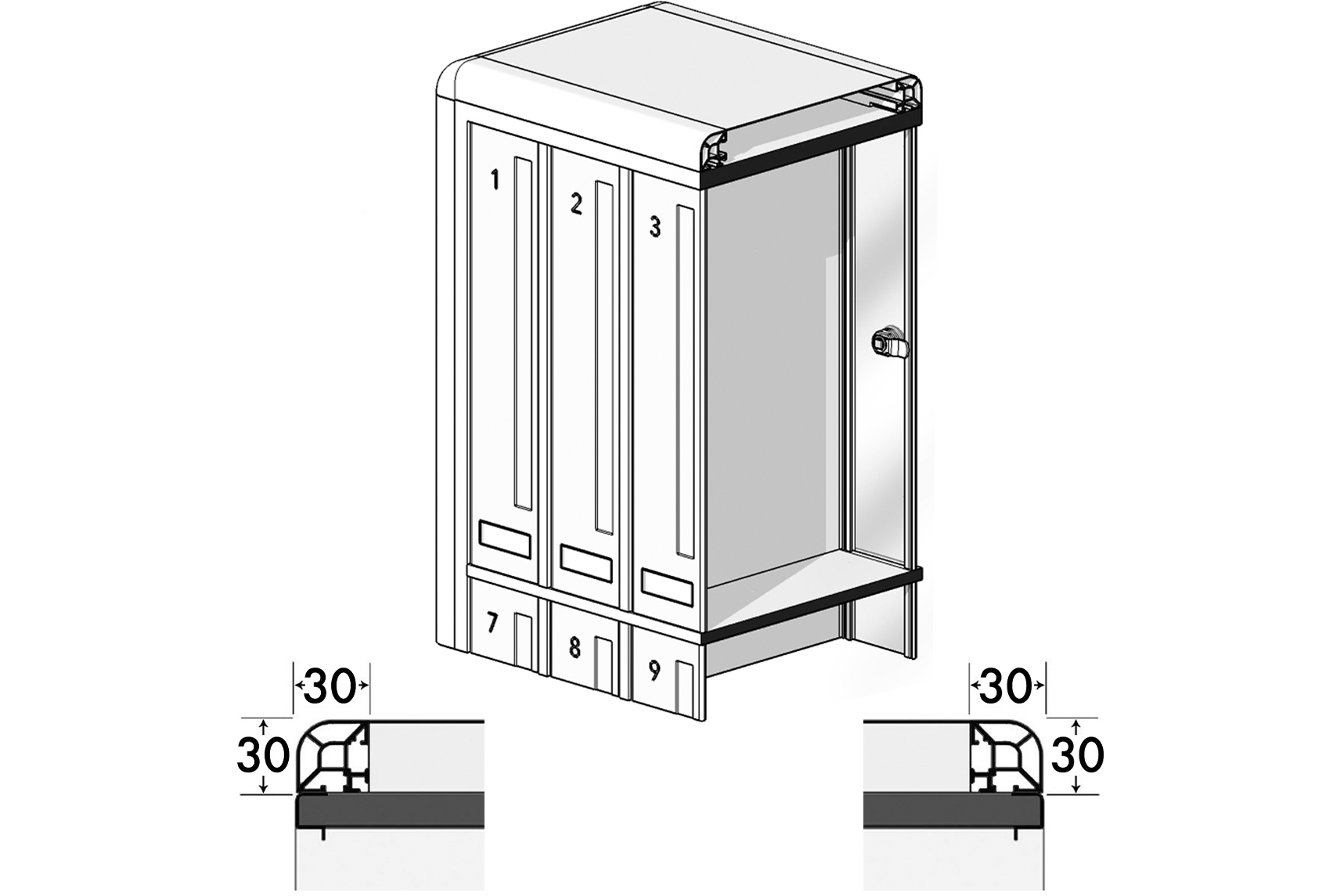

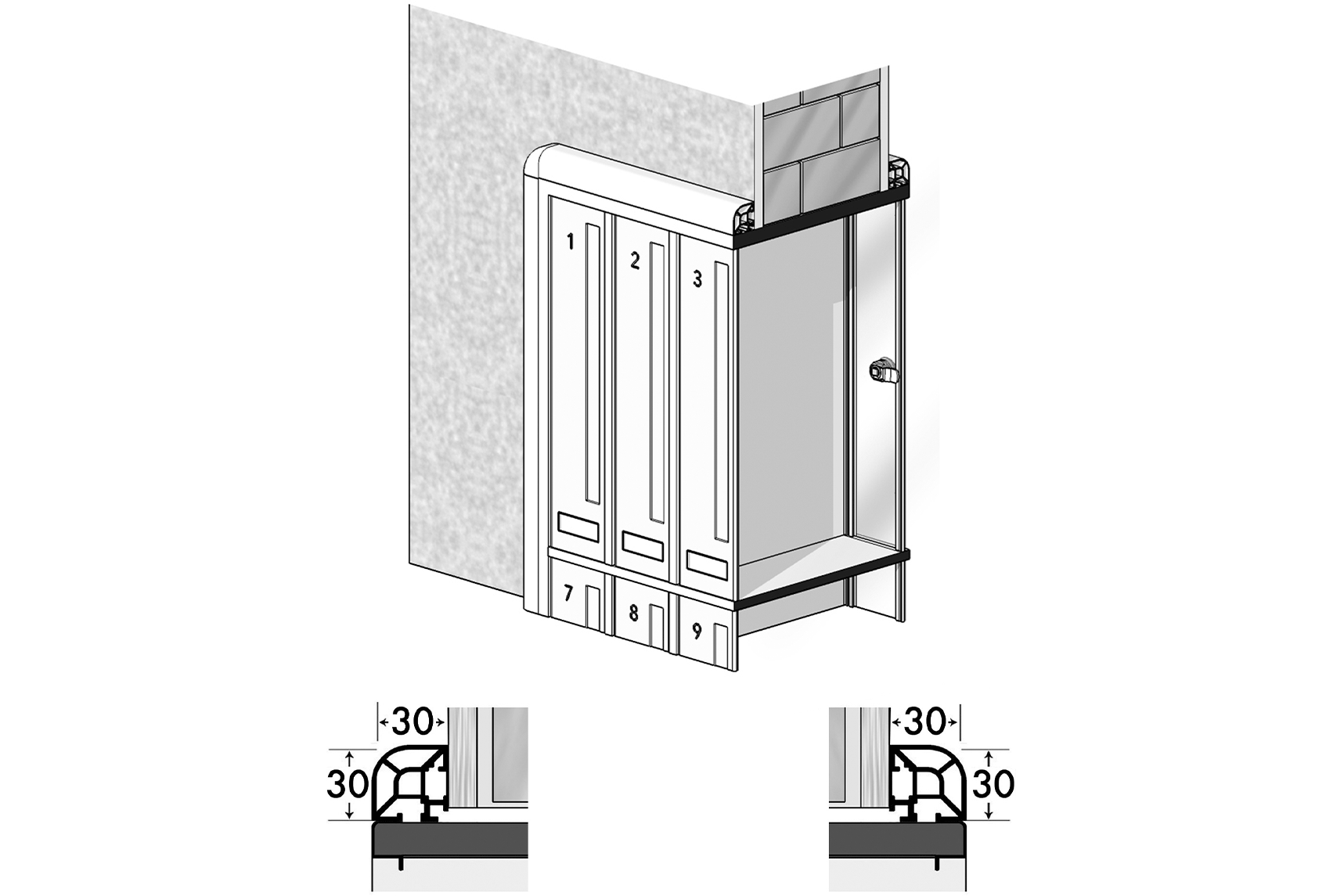

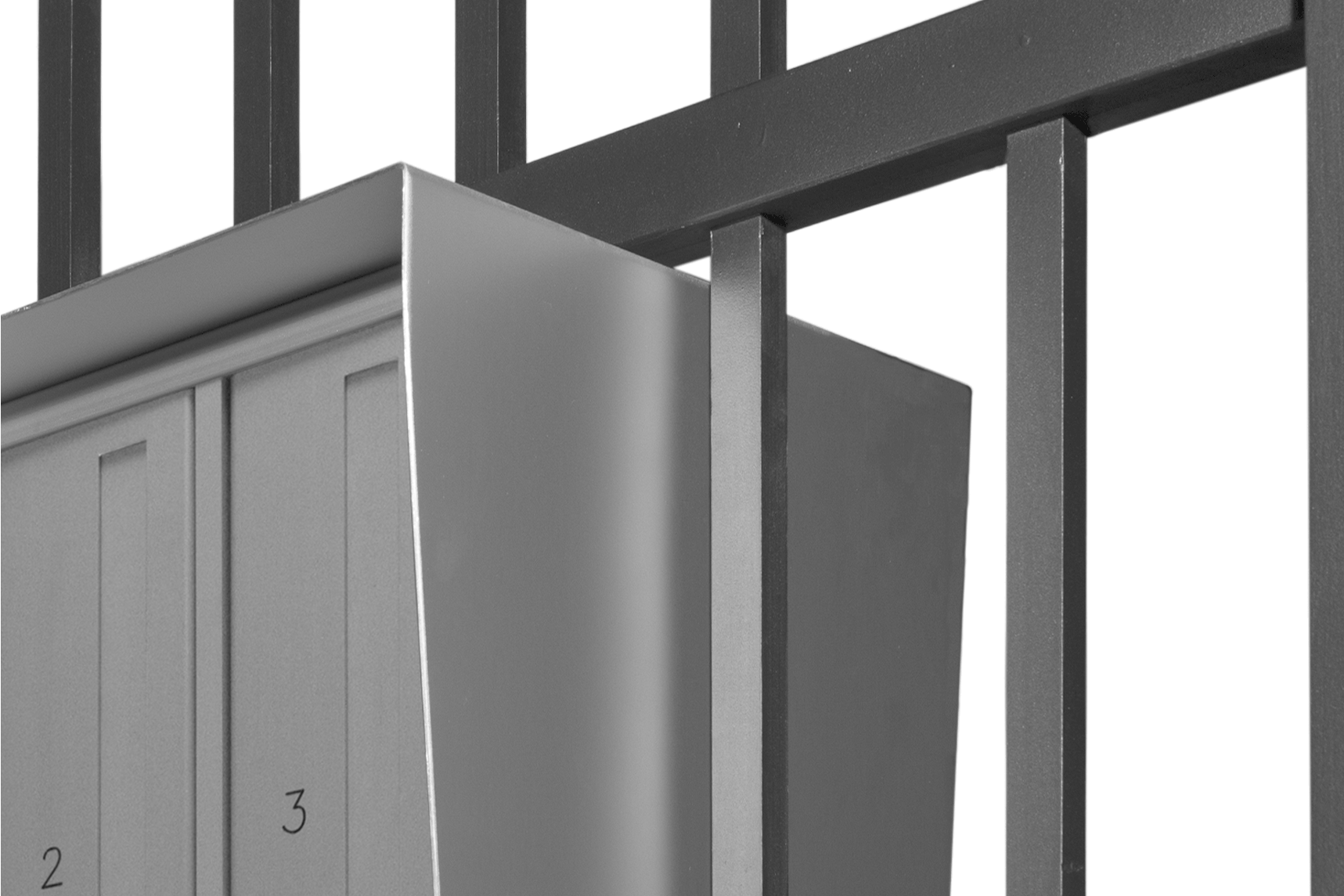

Aluminium cladding, installation in fences, recessed in door or window frames, free-standing with posts.
VERSION 3
Aluminium cladding, installation in fences, recessed in door or window frames, free-standing with posts.
VERSION 5

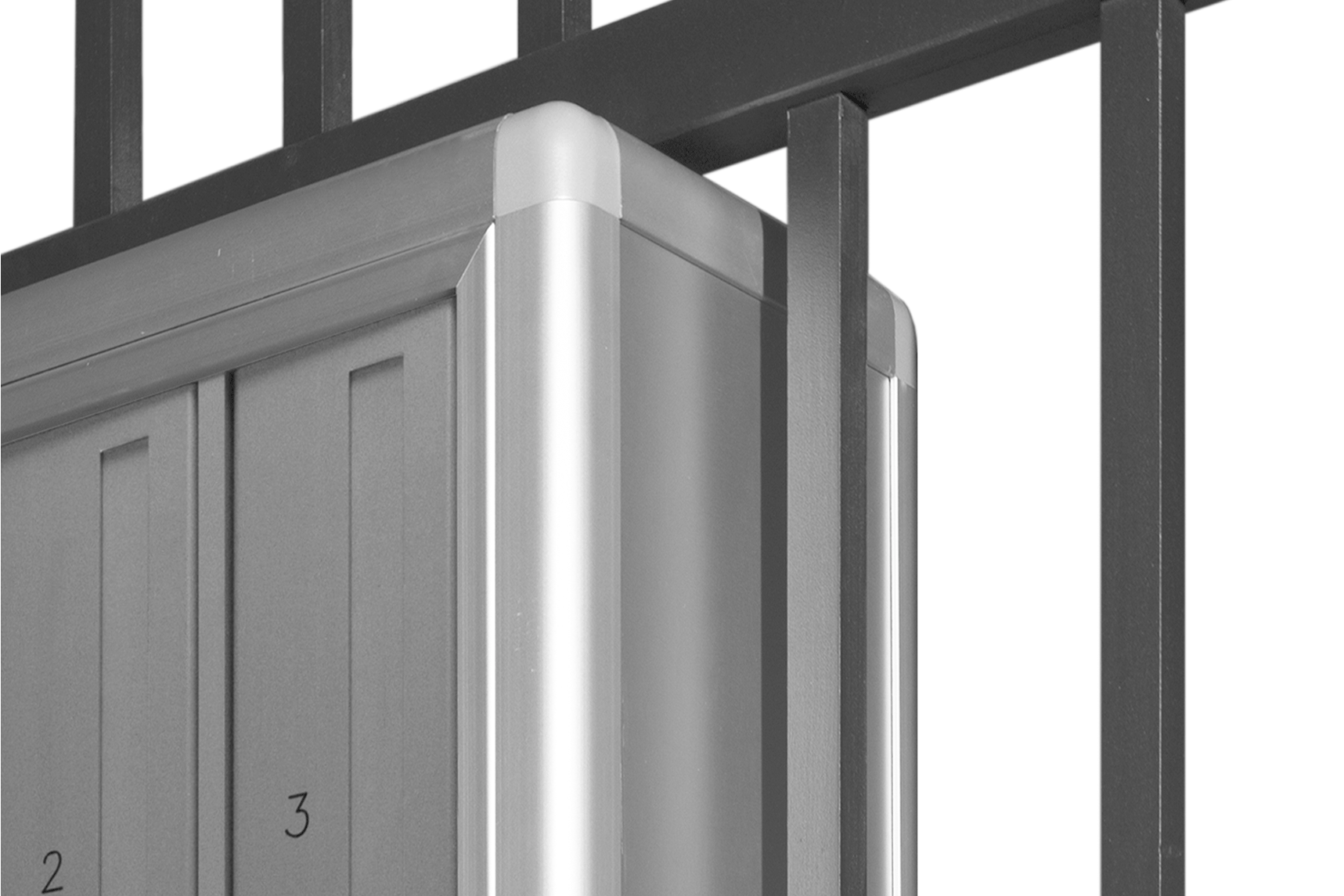

Insertion in a modular aluminium box with rounded corners, installation in fences, recessed in door or window frames, free-standing with posts.
ACCESSORIES
ACCESSORIES
Ravasi mailbox units can be completed with a wide range of accessories according to their specific design and surroundings.

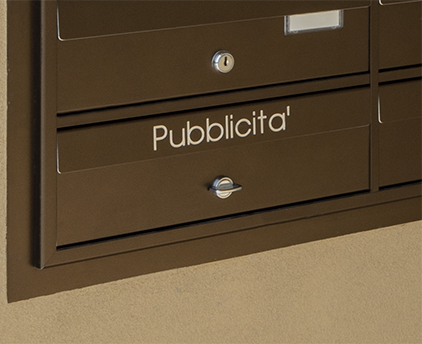

ADVERTISING BOXES
In order to collect advertising and prevent it from being scattered around the entrance, integrated junk mail receptacles are available in single, double or triple the size of standard boxes, harmoniously integrated into the design of the mailboxes themselves.

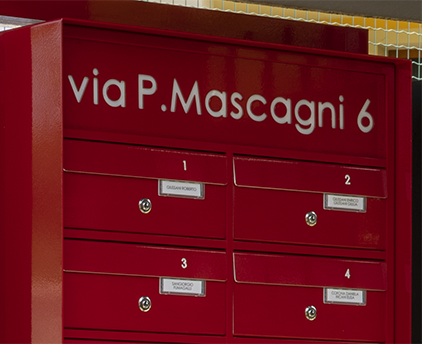

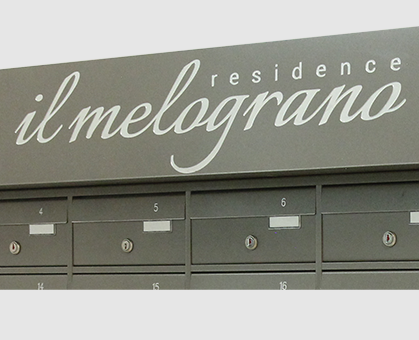

ENGRAVINGS
A further aesthetic choice offered by Ravasi is lettering engraved in a font of your choice and with a finish that stands out on the mail drop, elegantly integrating with and personalising the collection point.
BACKLIT INSCRIPTIONS
An exclusive solution factoring in image and modernity is achieved with the inscriptions that Ravasi produces on aluminium panels, with characters of your choice, perforated and backlit, all to create impressive results.

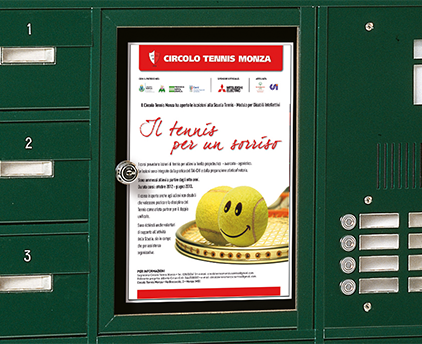

NOTICEBOARDS
Elegantly integrated into the design of the mail drop, these noticeboards have a magnetised base for posting signs plus a lockable transparent Plexiglas door. A useful and functional accessory.

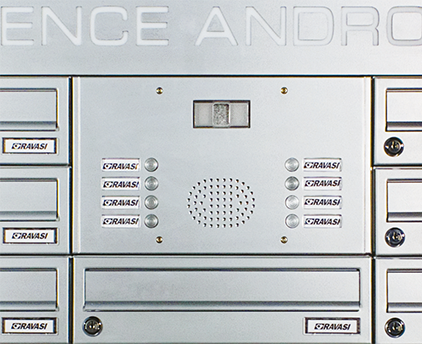

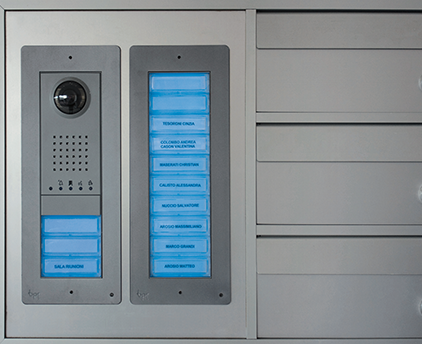

INTERCOMS
In order to extend the function of the mail drop, Ravasi offers its analogue intercom panels compatible with all commercial systems and with dimensions modular to the mailboxes. This intelligent solution customises the mail drop area and renders it more exclusive.
INTEGRATED VIDEO DOOR-PHONE
An important option is the possibility of adding a personal digital video door-phone panel through which to communicate the brand and characteristics. A dedicated housing can be created with a suitably perforated aluminium panel.

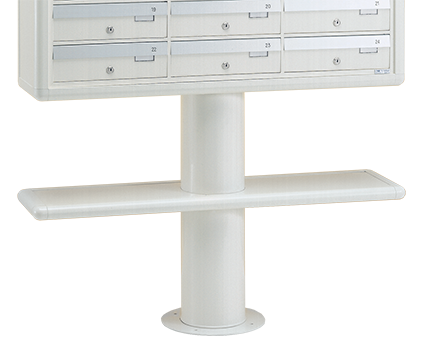

ALUMINIUM SHELVING UNITS
Shelves are available on request to be added to the pedestals created with aluminium profiles bearing rounded vertices and edges. A practical accessory that further enhances the mail drop area.
