Mobilspazio K-120 Mini Kitchen With Shutter
K-120 MINI KITCHEN WITH SHUTTER
K-120 MINI KITCHEN WITH SHUTTER

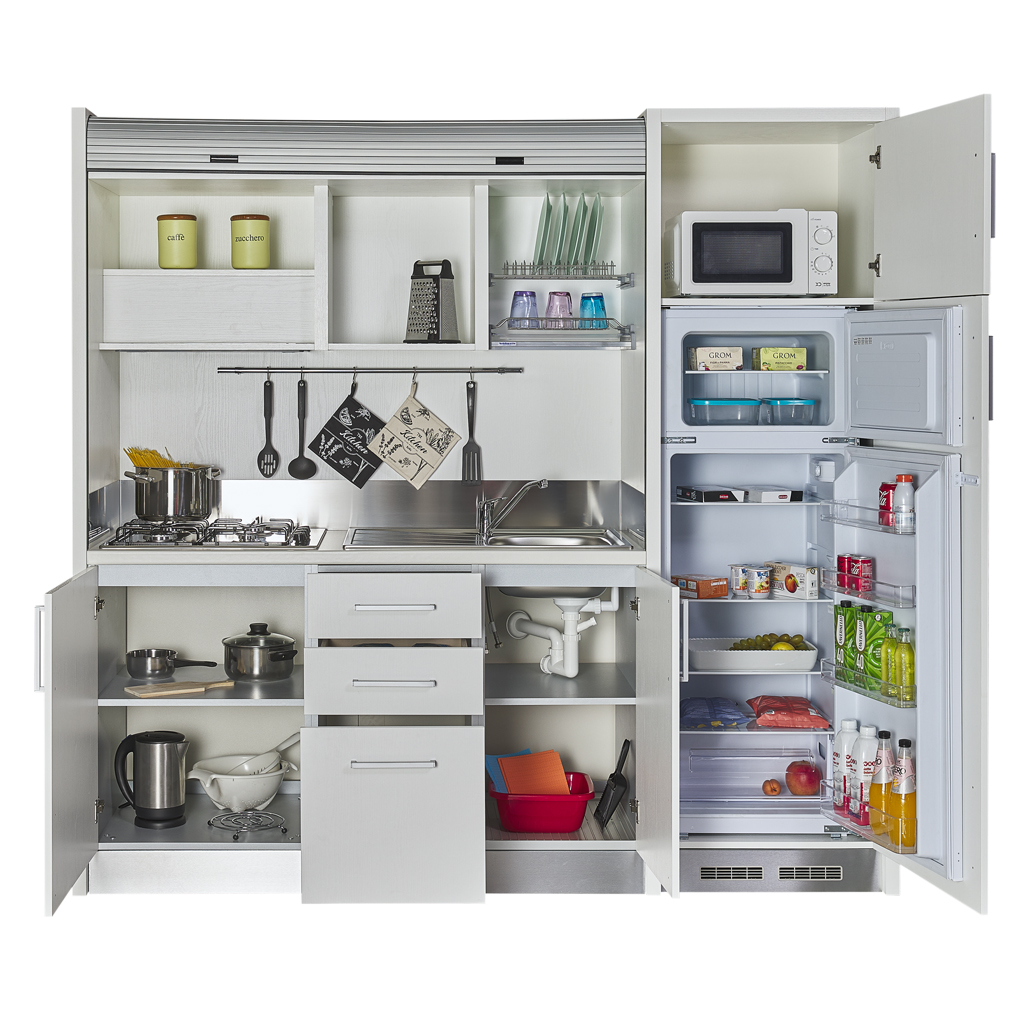

Right-Hand Monoblock Kitchen Unit with Roller Shutter
TECHNICAL FEATURES

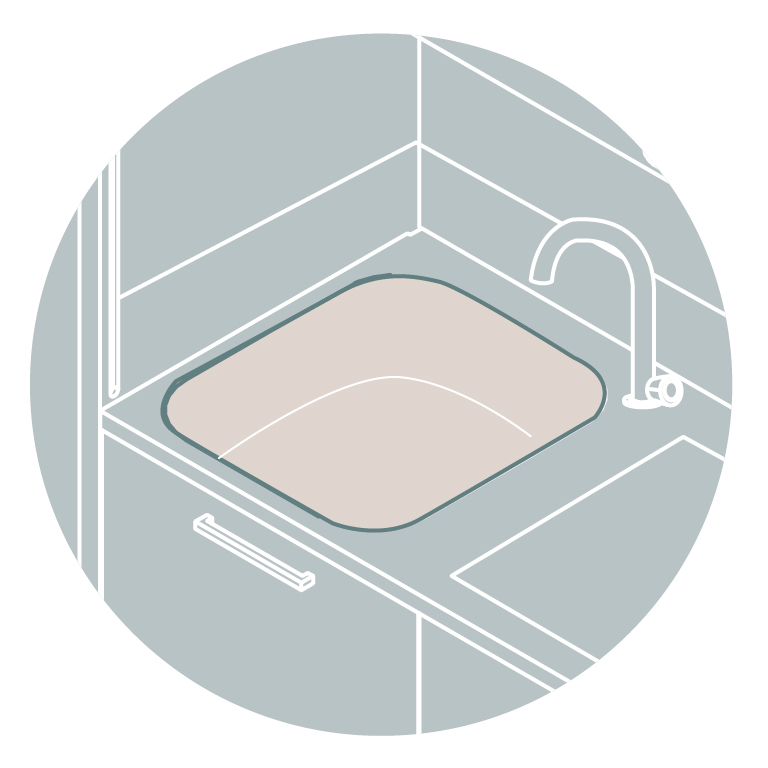

SINK
Stainless steel 18/10 with PVC siphon

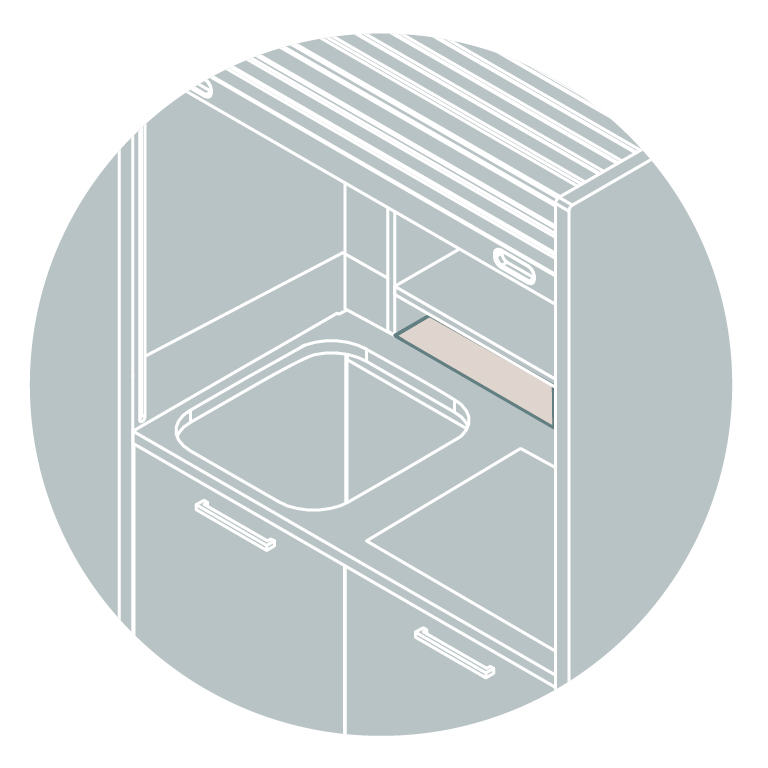

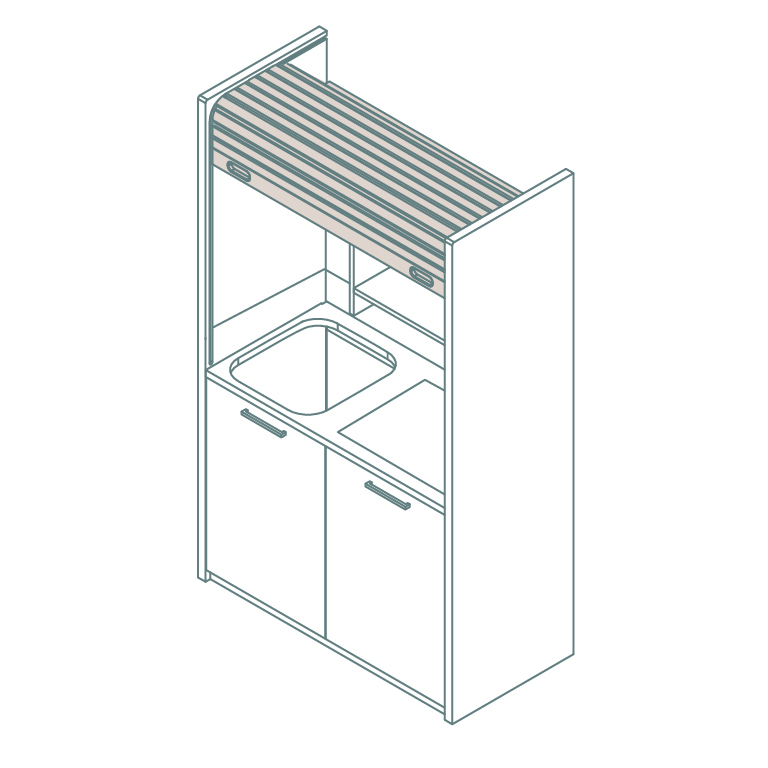

SHUTTER
Colored PVC, with rails and limit switching.

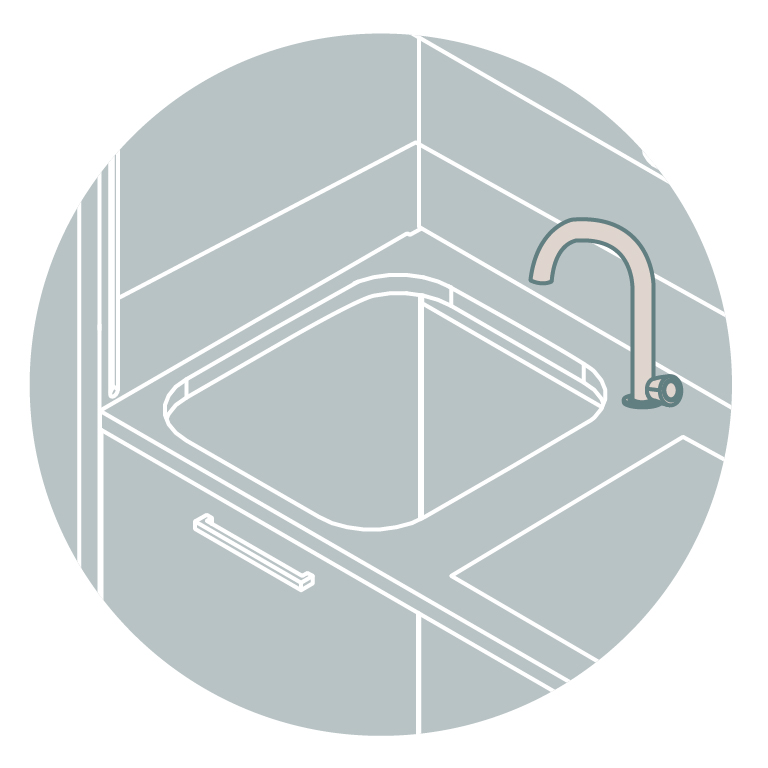

TAP
Mixer tap for hot and cold water.

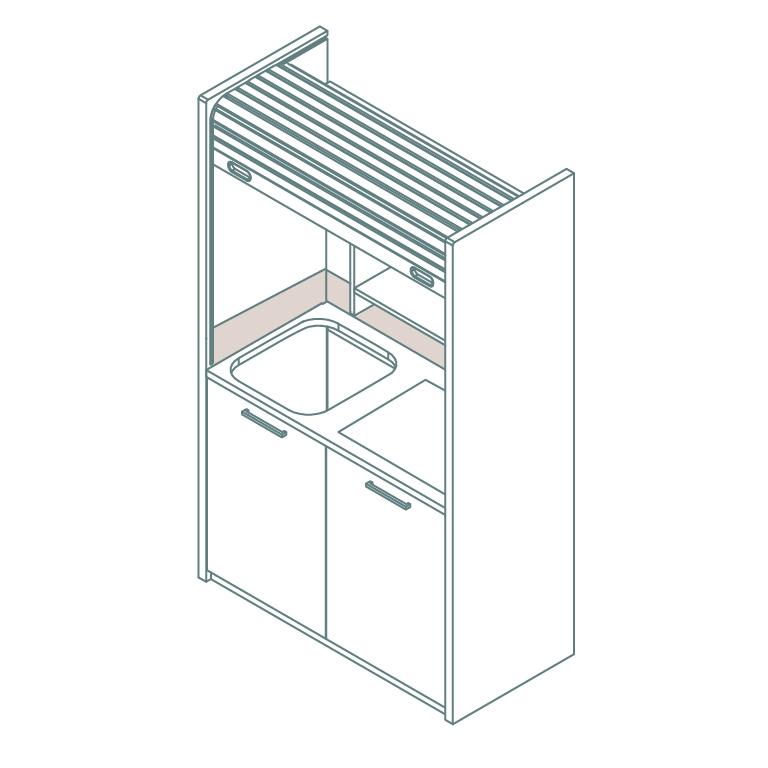

PROTECTION
Steel 18/10 protection on 3 sides, height 150 mm.

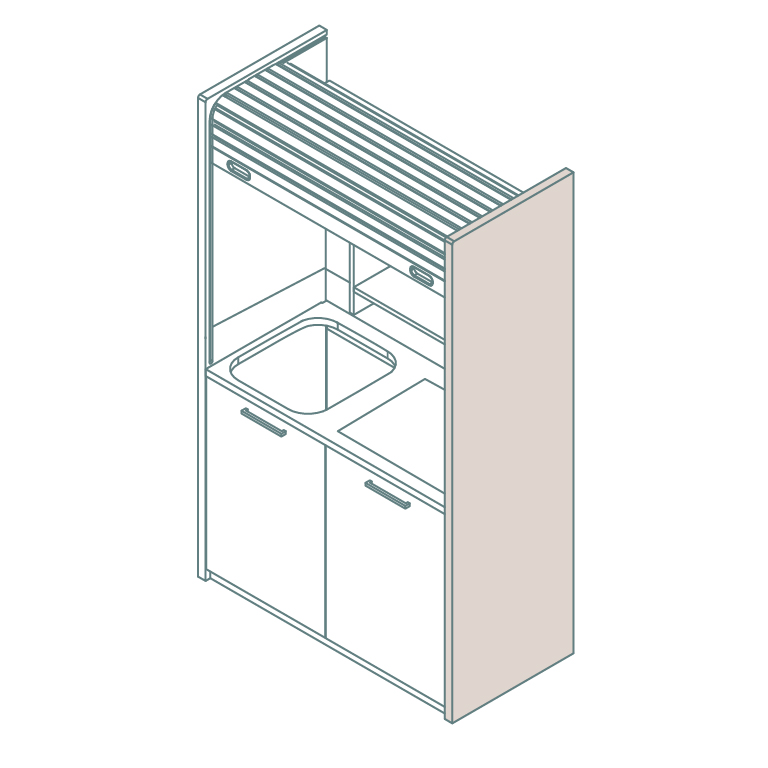

FRAME
Particleboard panels coated in melamine in class E1 with edges in ABS (low formaldehyde emissions according to European regulations). Thickness: 38 mm

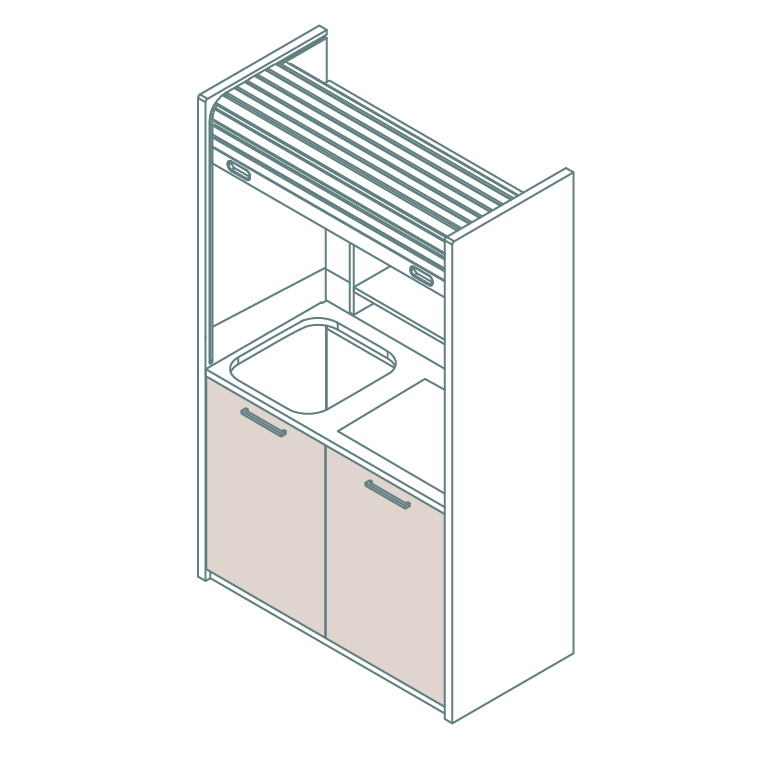

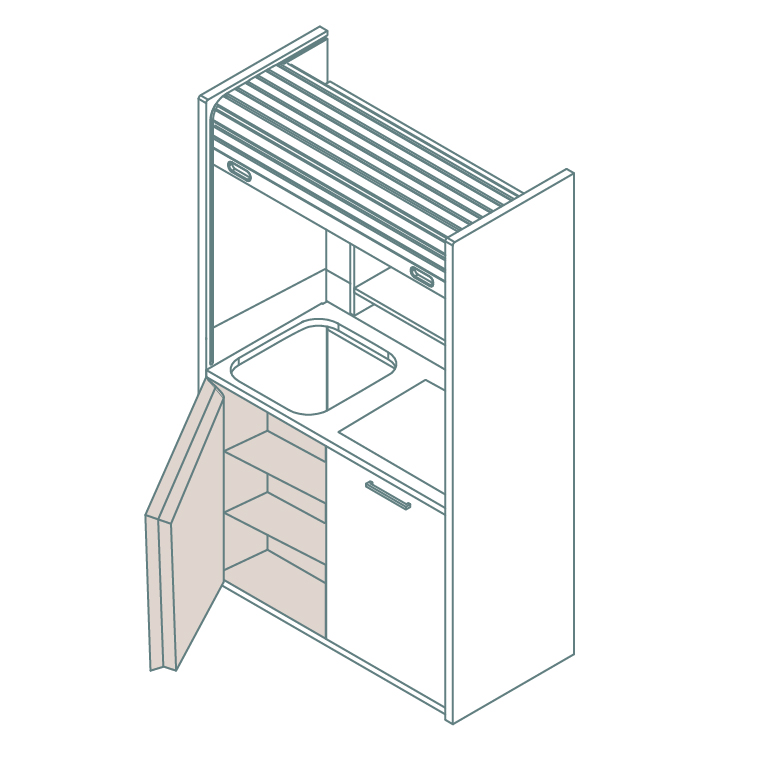

DOOR
Particleboard panels coated in melamine in class E1 with four edges in ABS (low formaldehyde emissions according to European regulations). Thickness: 18 mm

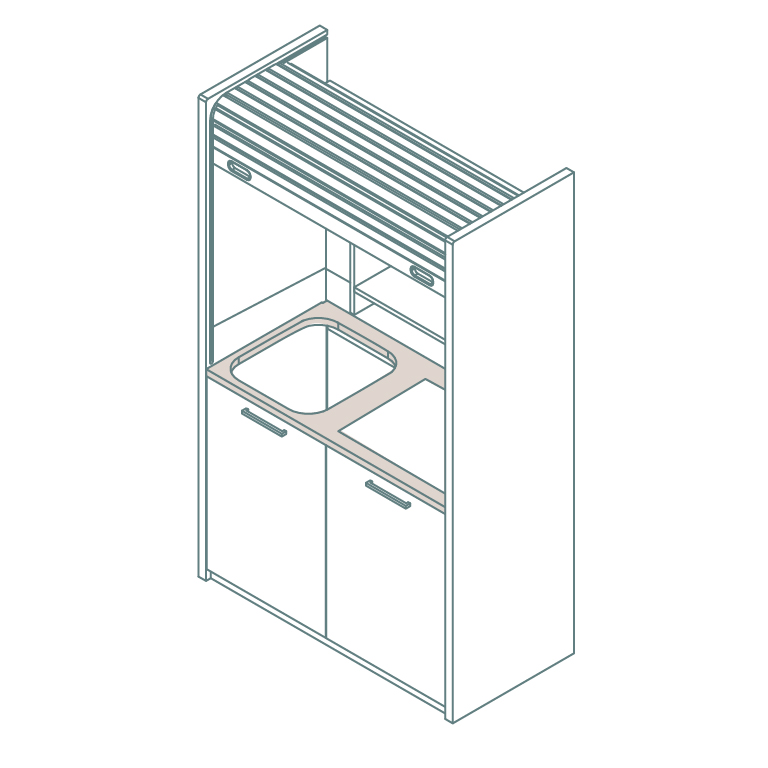

TOP
Particleboard panels coated in melamine in class E1 with edges in ABS (low formaldehyde emissions according to European rules) and water resistant. Thickness: 38 mm.
COOKER HOOD
Stainless steel with extractable glass front; 210 watt engine with 3 speeds; 2x 40 watt lamps; acrylic grease filter; possibility of connection to an external exhaust.

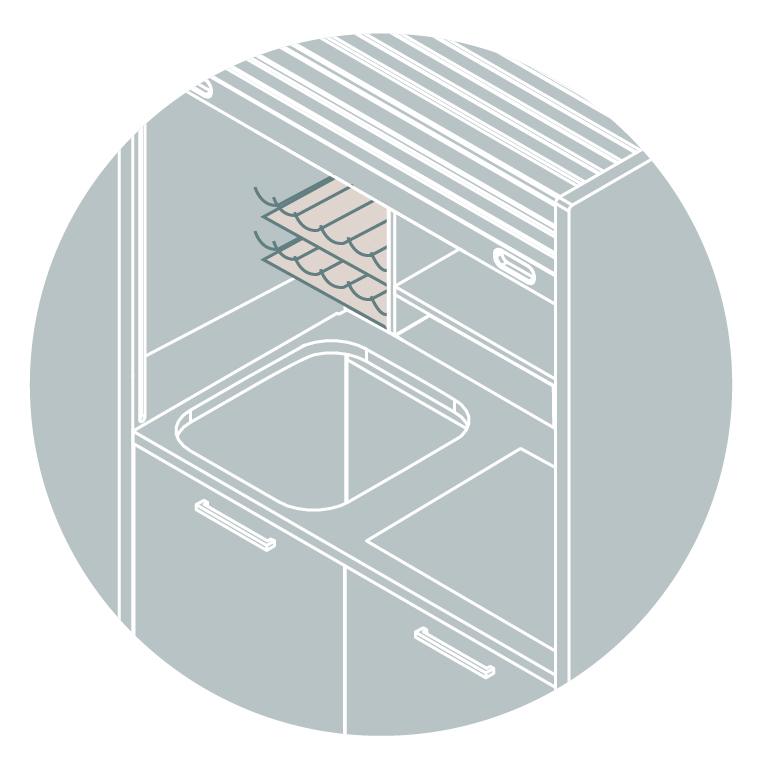

PLATE RACK
Frame in aluminium; PVC tray for water drops; stainless steel rack for glasses and dishes

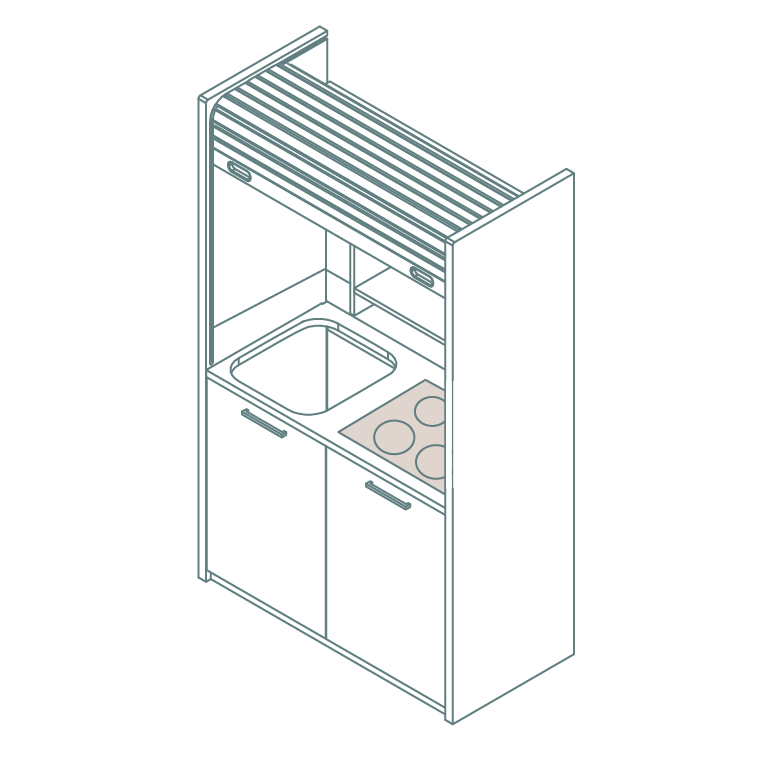

HOB
Electric with 2 or 4 rings; gas with flame safety device with 2 or 4 burners, ceramic with 2 or 4 heating zones; induction with 2 or 4 cooking zones.
REFRIGERATOR
-Built-in base under the working top; total capacity 102 litres; fridge compartment 83 litres; freezer compartment 19 litres. -Built-in fridge in the lateral column; total capacity 226 litres; fridge compartment 184 litres; freezer compartment 42 litres.
INFORMATION
BRAND
Mobilspazio
PRODUCT TYPE
Mini Kitchen
INSTALLATION NOTES
- Right-hand configuration (DX)
- Suitable for compact kitchen layouts
UPPER SECTION
- Dish drainer unit : 45 cm
- Open shelf compartment : 45 cm
- Extractor hood compartment : 60 cm
WORKTOP & BACKSPLASH
- Water-repellent laminate worktop
- Stainless steel perimeter upstand
- Finishing back panel (thickness: 18 mm)
MATERIALS & FINISHES
- Sink : Stainless steel
- Upstand : Stainless steel
- Plinth : PVC (aluminum finish)
- Structure : Laminated panels
- Worktop : Water-repellent laminate
SINK & COOKING AREA
- 4-burner gas hob
- Mixer tap included
- Stainless steel sink with drainer
PRODUCTION
Made in Italy
COLLECTION
K-120
TALL UNIT
- Refrigerator capacity: 220 liters
- Refrigerator column with upper cabinet – 60 cm
DIMENSIONS
- Width : 221.4 cm
- Depth : 61 cm
- Height : 211 cm
VOLUME
1.41 m3
WEIGHT
359.5 kg
ADDITIONAL FEATURES
- Adjustable feet

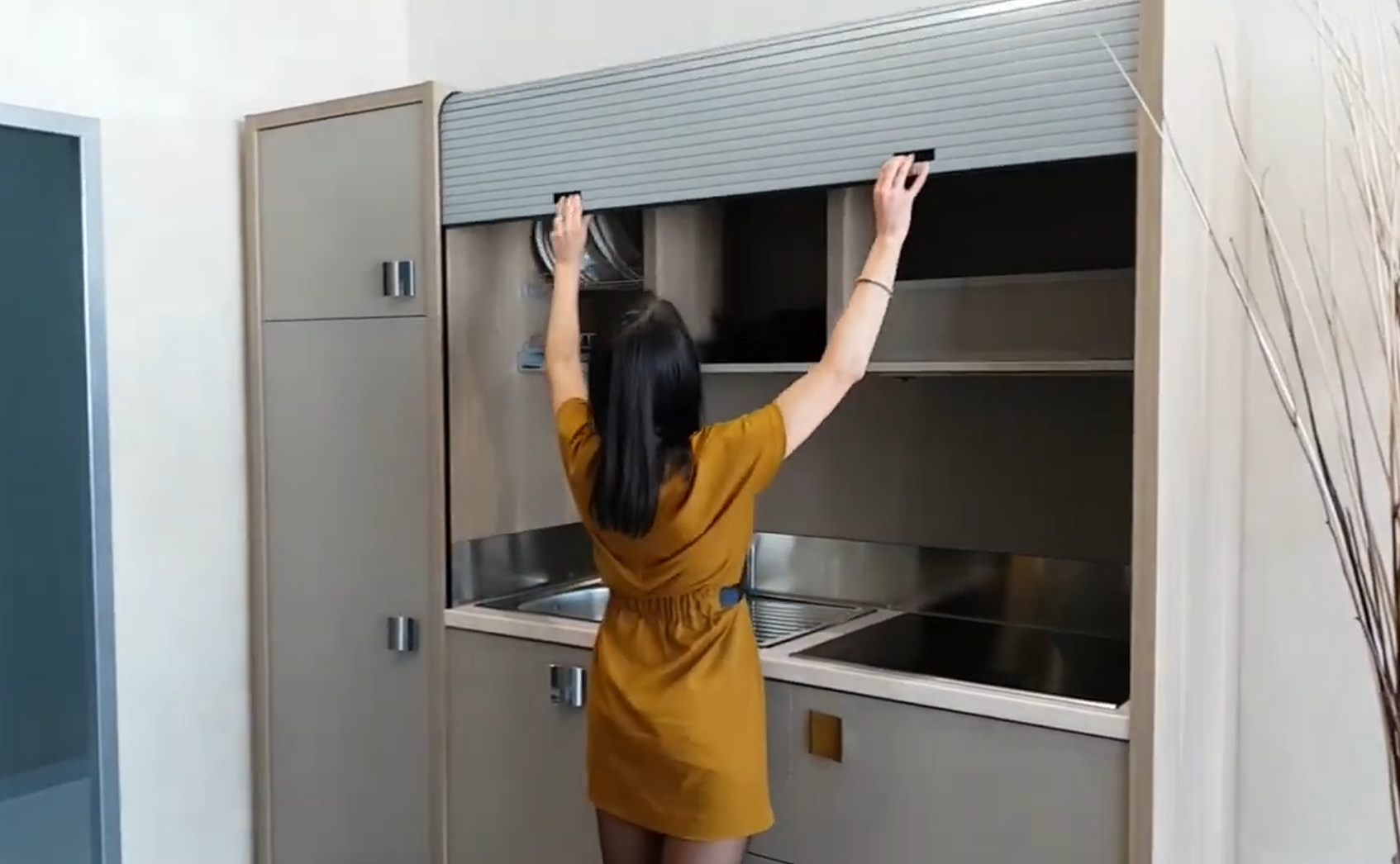

- Roller shutter (tambour door) system
- PVC protective elements in sink unit
BASE UNITS
- Cutlery tray included
- Base cabinet with door and shelf : 60 cm
- Drawer unit (2 drawers + 1 deep drawer) : 45 cm
- Sink base unit with door and PVC protection : 45 cm

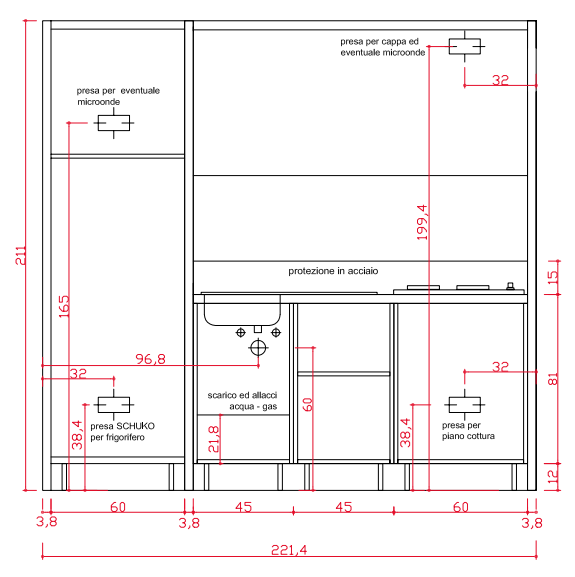

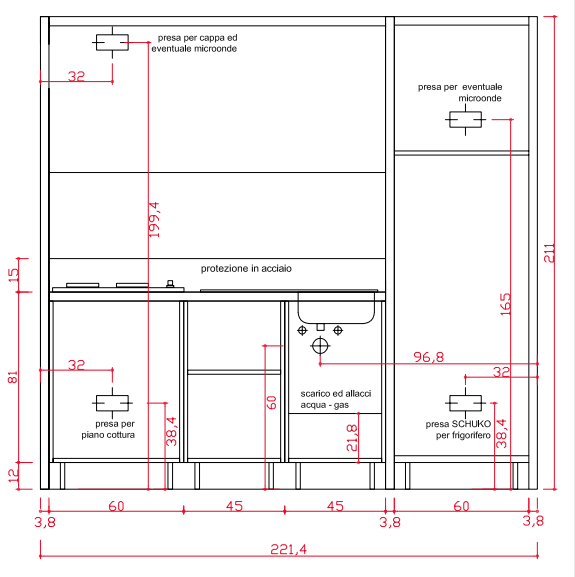

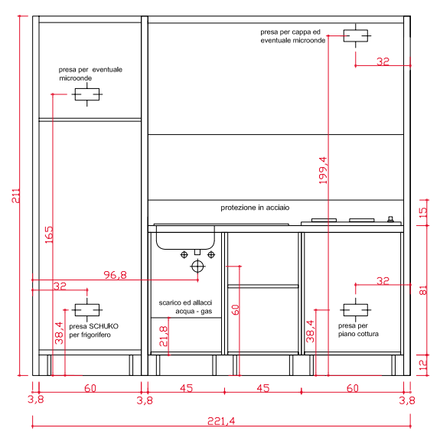

TECHNICAL DRAWINGS
