EUROPOROOM PARTITION WALLS
EUROPOROOM PARTITION WALLS
Designed by Team Glimakra

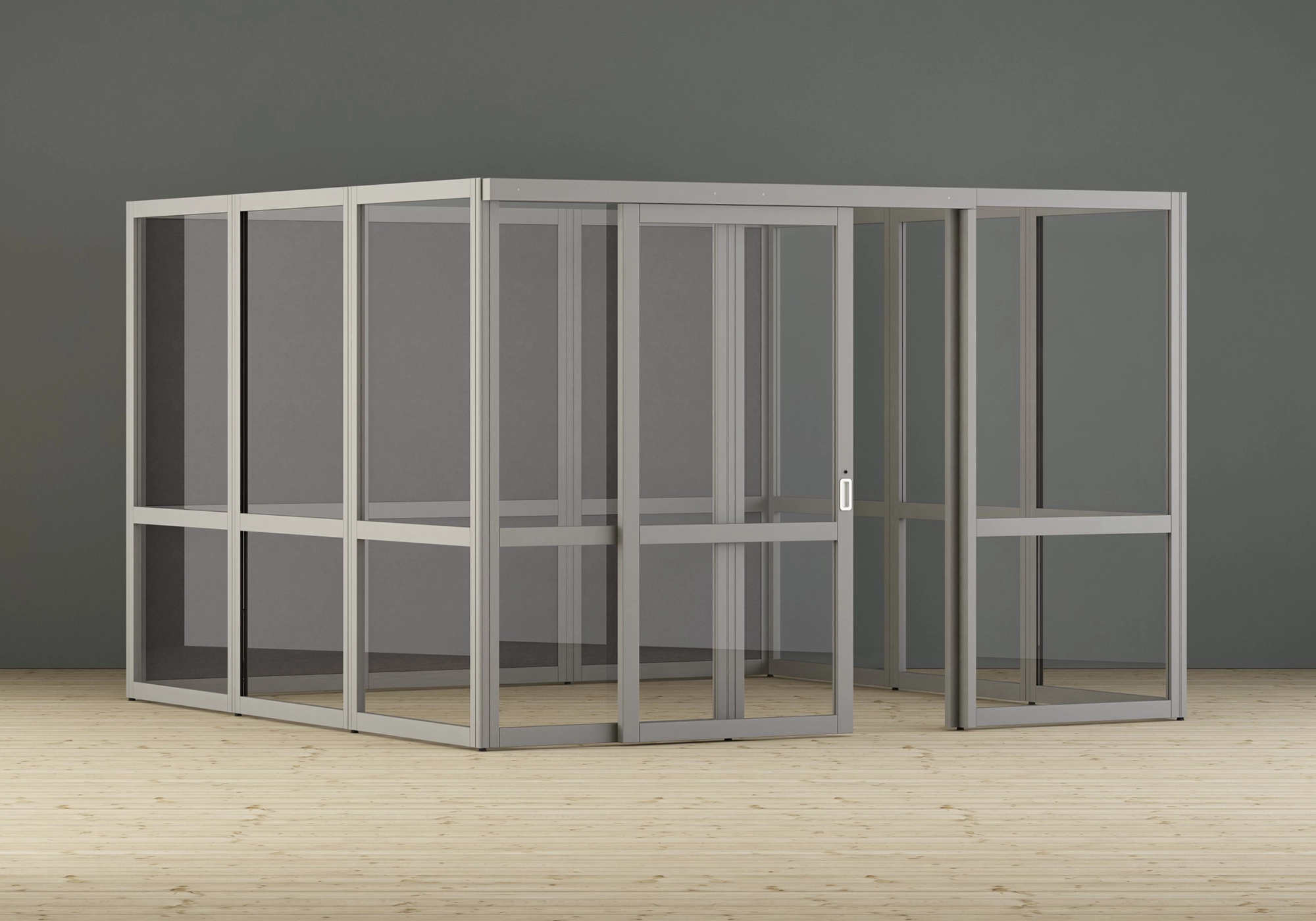

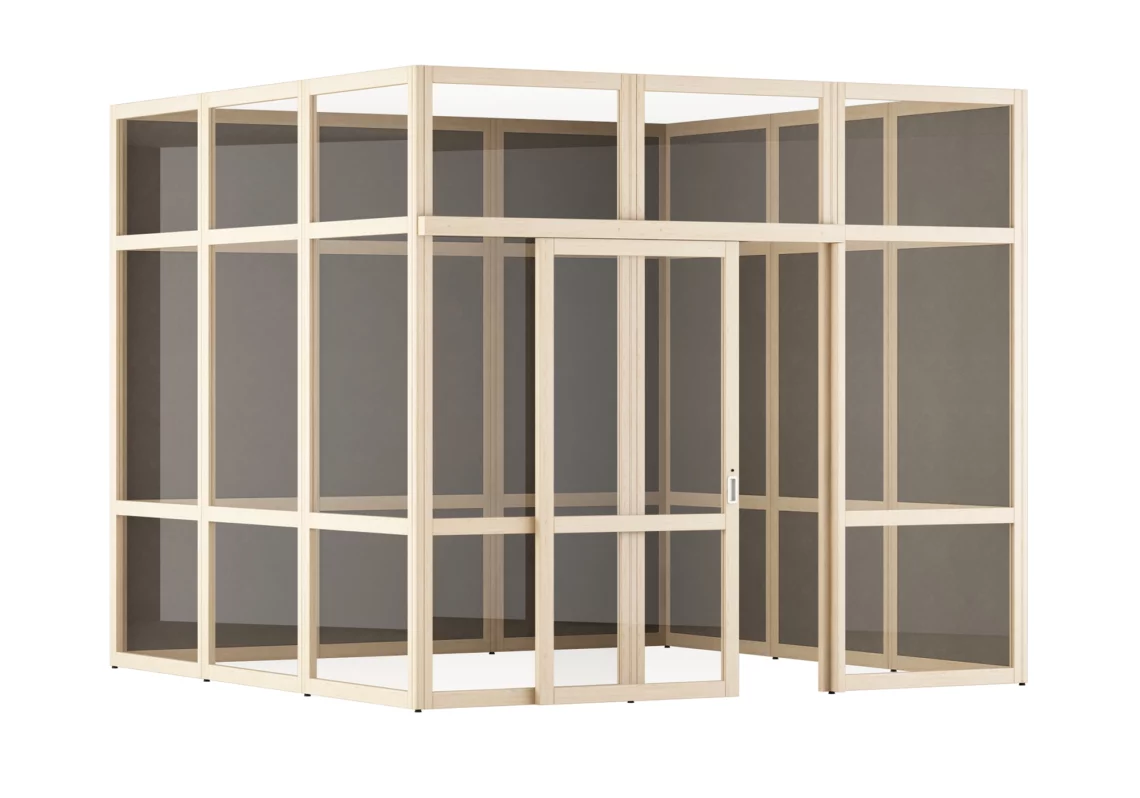

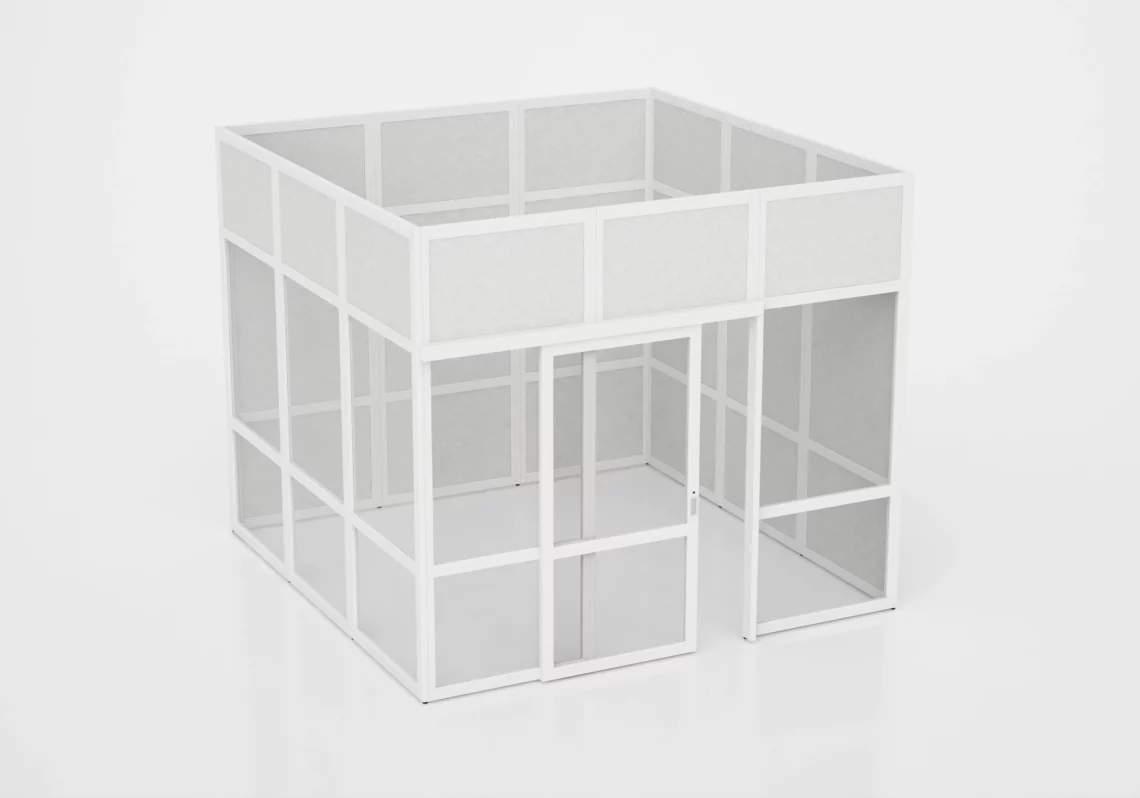

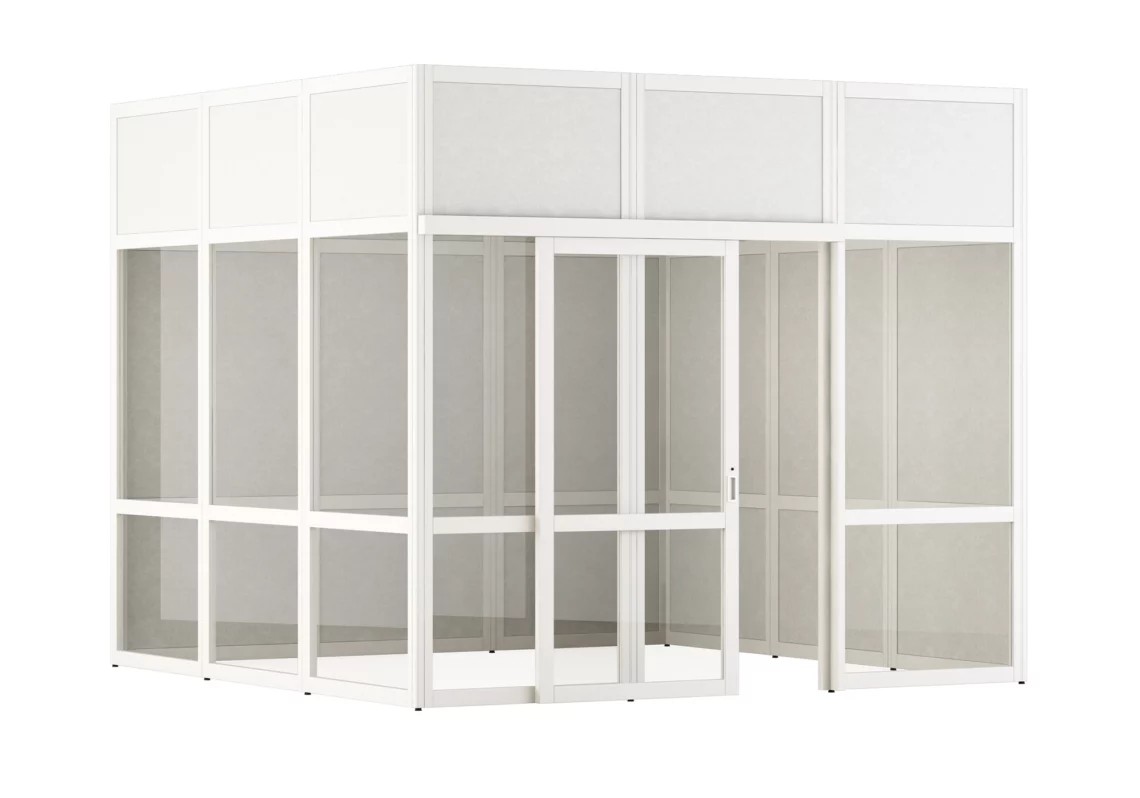

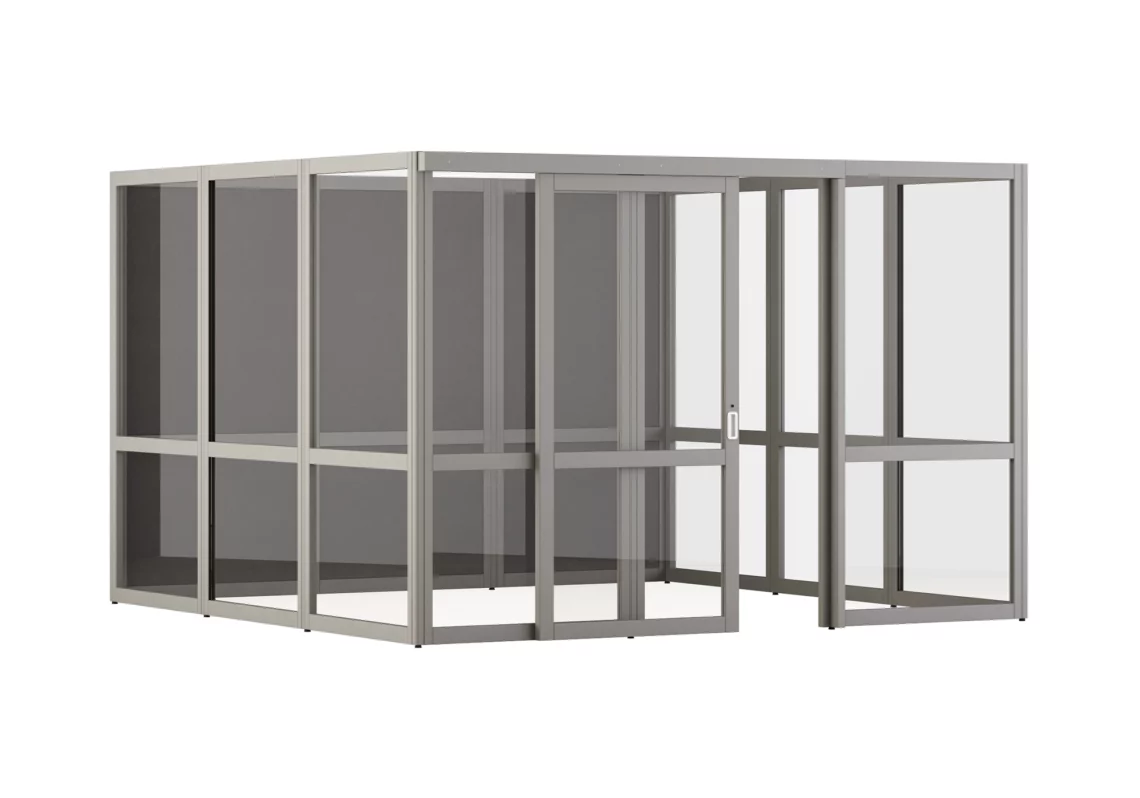

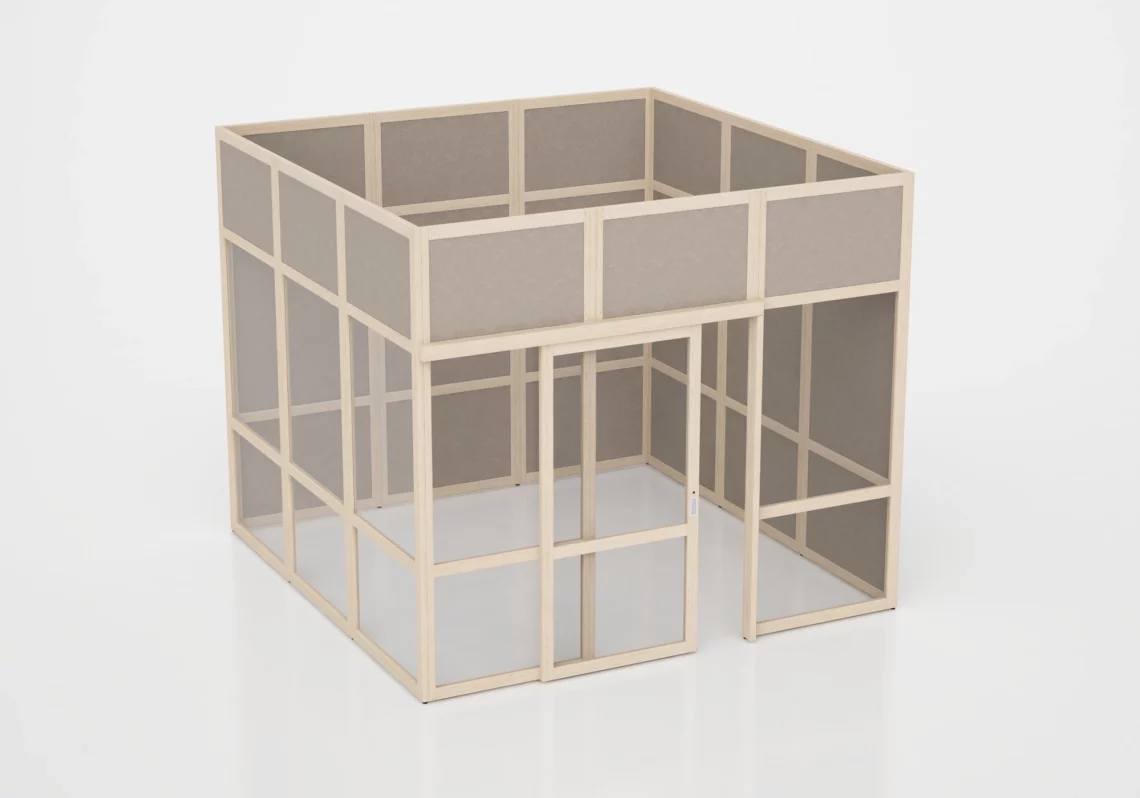

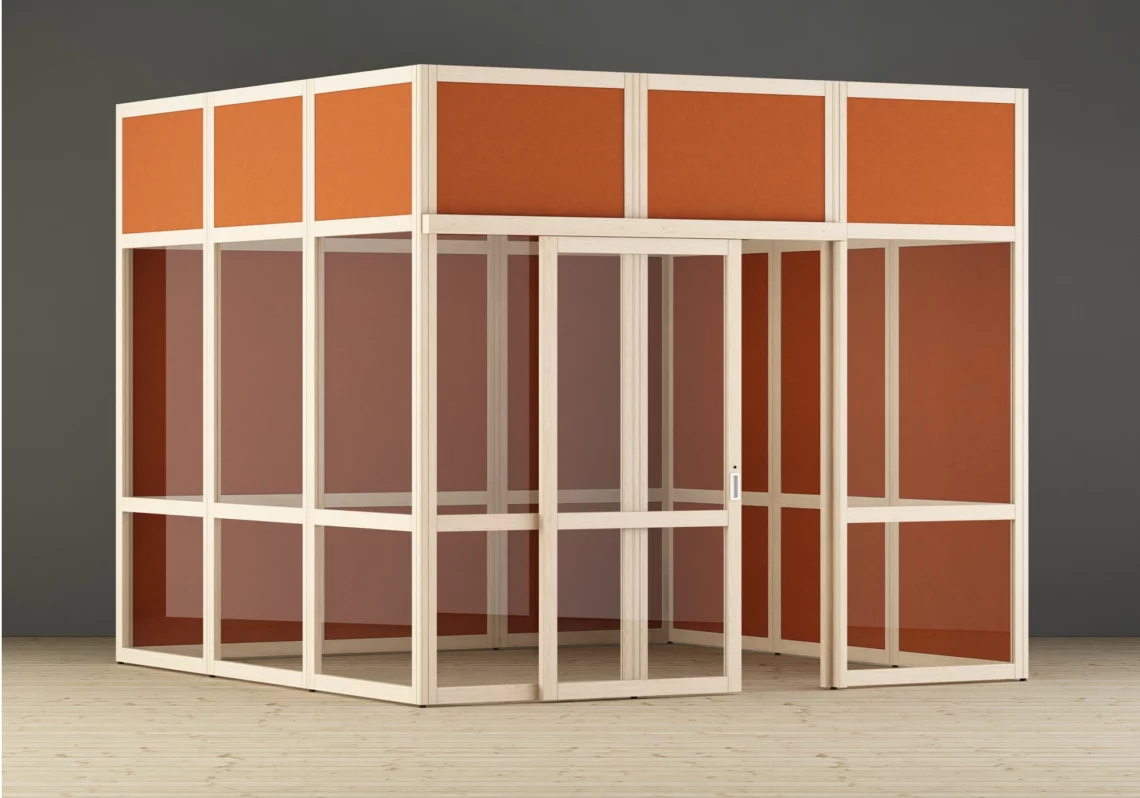

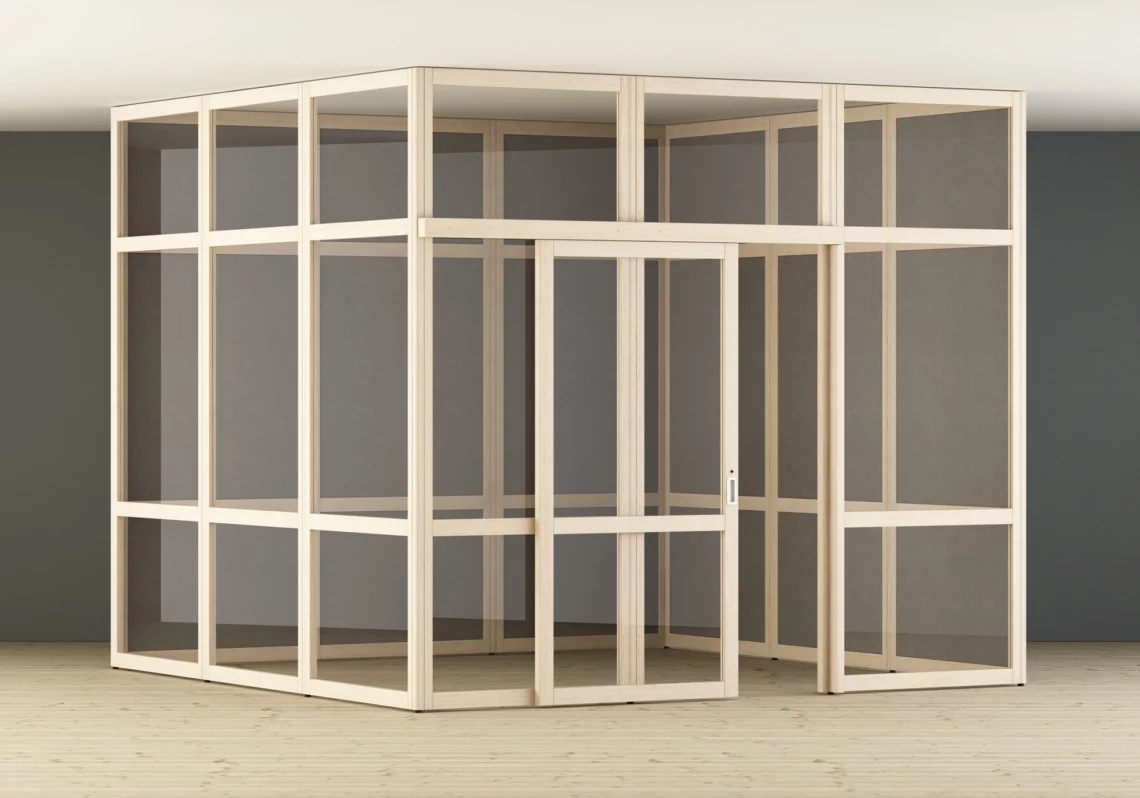

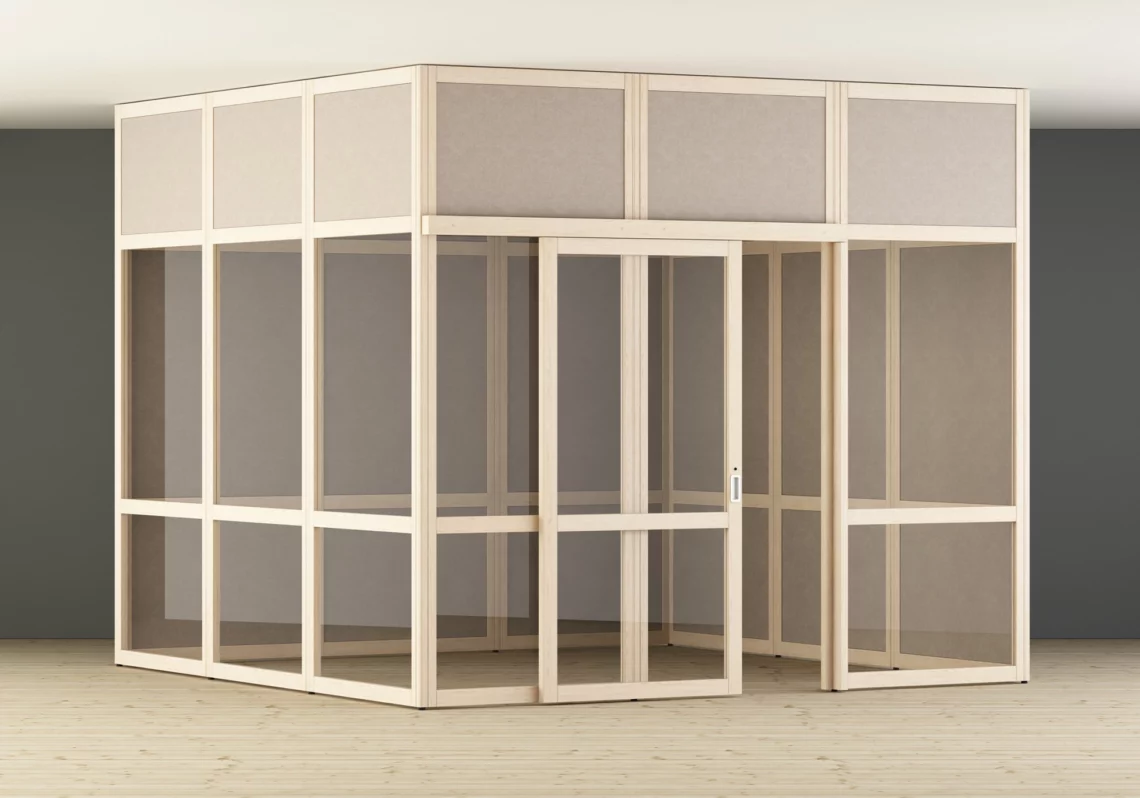

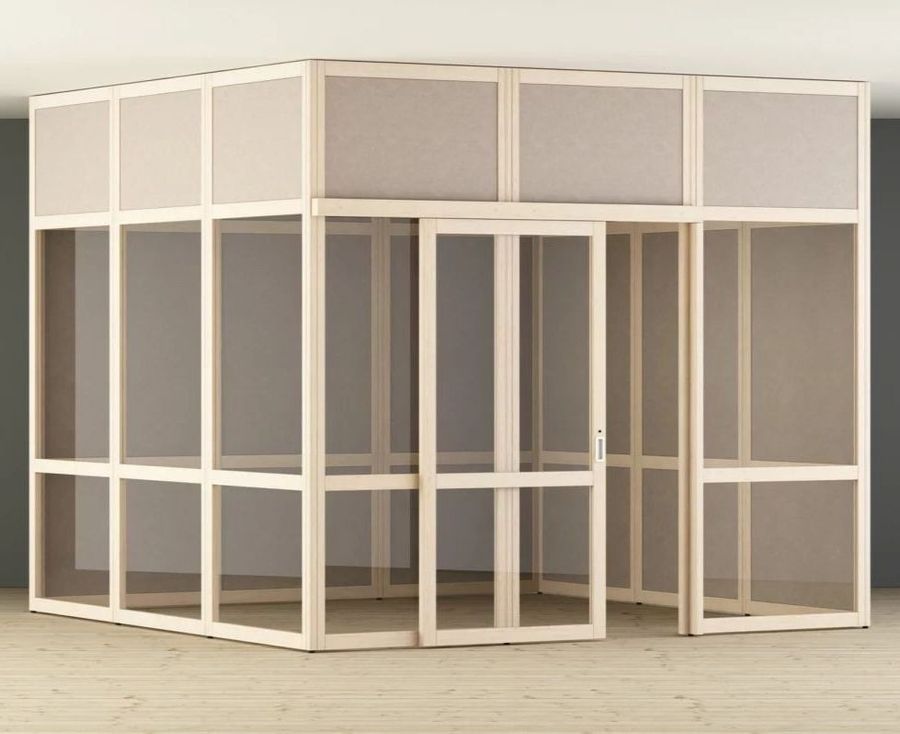

EuropoRoom are flexible partition walls with a wooden frame and many choices for material and colour.
The system can be standalone or wall-mounted and can be height customized to the ceiling from 2070 to 2700 mm. e widths can be adjusted for precise building dimensions and with sliding doors, lockable rooms can be created.

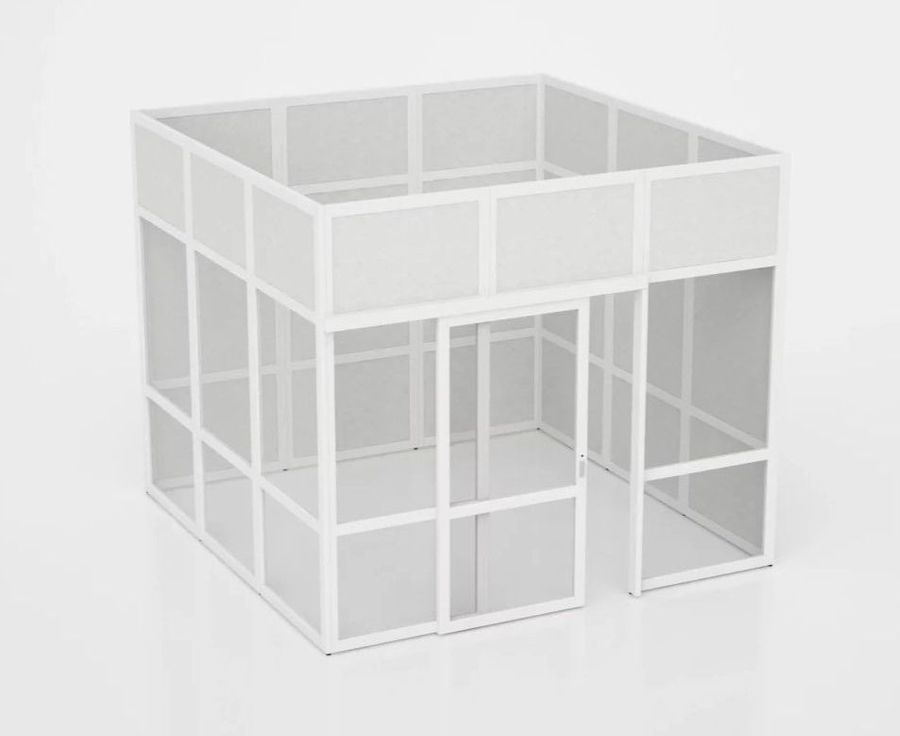

The 2m free-standing room without a ceiling reaches 20dB sound reduction. The sound reduction can be improved a lot by means of sealing strips against the floor and ceiling. The Europo family also includes lower-floor screens and reception desks.
INFORMATION
BRAND
Glimakra
PRODUCT TYPE
Partition Walls
FRAME
Solid birch or beech (quality: extra fine) 40 x 40 mm.
FOOT
Powder coated grey 500 x 40 x 6 mm. 100% recyclable materials.
COLLECTION
Europoroom
PRODUCTION
Made in Sweden
THICKNESS
40 mm
LACQUER
Clear Varnished
CONNECTION TO CEILING
Customized height and ceiling strip
SOUND ABSORBING FILLING
Polyether 2 x 15 mm or 2 x 20 mm
GLASS
Clear or etched, 4 mm.
WEIGHT
Approx. 40 kg / screen
FILLINGS
Glass, veneer, laminate or upholstered with fabric with sound absorbing polyether on both sides of an 8 mm sound reducing MDF board.
LOWEST HEIGHT
2070 mm
VENEER
Birch or beech
FEATURE
Flexible Partitions
ENVIRONMENT
Indoor

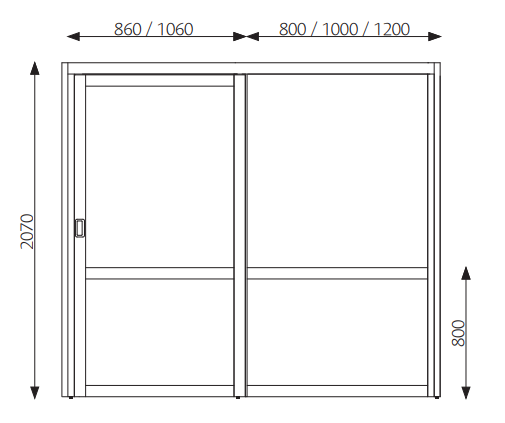

TECHNICAL DRWINGS
DIVIDING BORDER 1
Standard divisions at 800 and 2070 mm.
DIVIDING BORDER 2
Optional number, height 3/4, 2/3, 1/2, 1/3 or 1/4.
END STRIP
End strip with or without diagonal support.
CONNECTION
Connection strip straight / 90°/ 60°/ 45°, 3-way or 4-way
STANDARD COLOURS
- Oak Stain
- White Stain
- Black Stain
- NCS S 0500-N white or NCS S 5000-N grey
MOUNING
The screens are easy to assemble with solid connection strips in different executions. Stability is obtained with wall connections, angled formations, feet, diagonal supports or ceiling strip. The sliding door should be fixed in the floor for the best precision. Glimakra will assists with advice regarding stability, performance and acoustics. The screens are numbered according to the drawing enlosed to the confirmation.
SOUND REDUCTION
20dB
LOCK
Sliding Doors Lockable Rooms

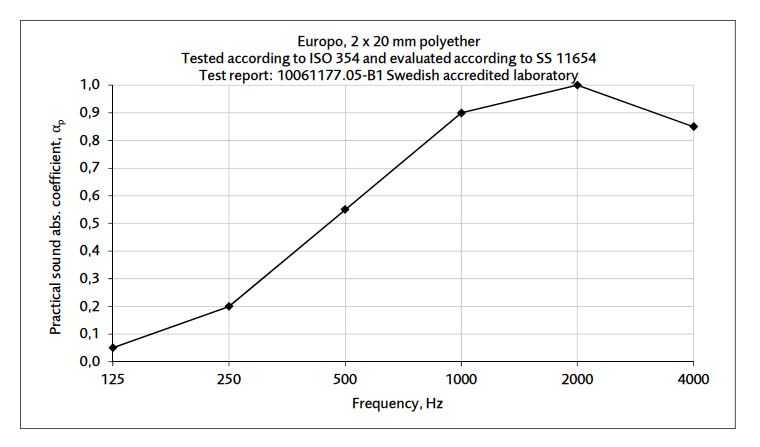

CERTIFICATES - ACOUSTICS

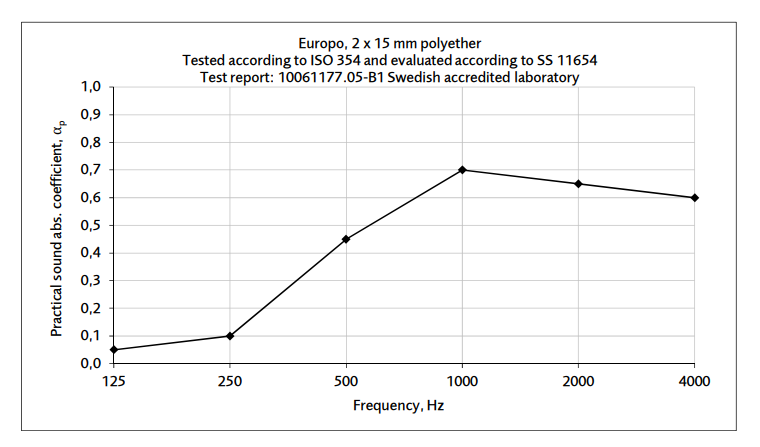

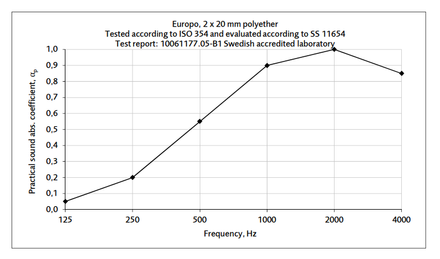

-Measurements made in accordance with ISO 354:2003. Evaluation made according to ISO 11654:1997. (Report 10061177.05-B1, Date 2007-05-21, Akustikverkstan, laboratory accredited by Swedac) -Control measurement of screen reduction made according to ISO 10053. Sound reduction stand-alone screen: ΔLS,W = 20 dB -Glimakra of Sweden AB is certified according to ISO 9001:2015 and ISO 14001:2015.
