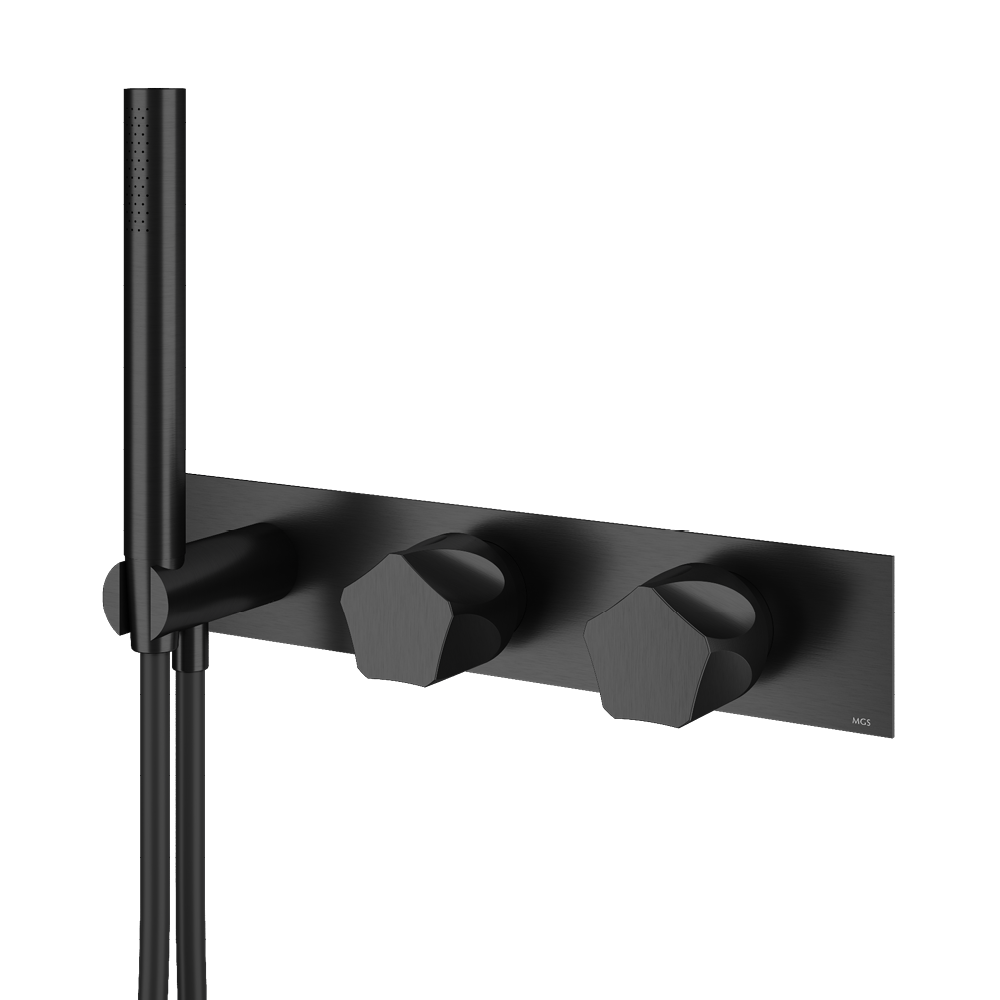

MGS Pe455 – Pe456 Thermostatic Shower Valve
PE455 – PE456 THERMOSTATIC SHOWER VALVE
PE455 – PE456 THERMOSTATIC SHOWER VALVE
Designed by Ervas Basilico Girardi
The bathroom collections by MGS stand out for their balance between sophisticated design and everyday practicality.
information
BRAND
Mgs
PRODUCT TYPE
Shower Valve
RECOMMENDED HOT WATER TEMPERATURE
149 °F (65°C)
MAXIMUM HOT WATER TEMPERATURE
185 °F (85°C
SPACE
Crafted with great attention to detail, they bring a timeless touch of elegance to any space.
COLLECTION
Thermostatic
MAXIMUM HOT WATER TEMPERATURE
185 °f (85°c)
PE455 VOLUME CONTROL
thermostatic control and two way volume control: allows to control the hand shower and one additional water outlet.
PE456 VOLUME CONTROL
thermostatic control and three way volume control: allows to control the hand shower and two additional water outlets.
MATERIAL
Steel
HAND POLISHED
Hand polished to matte or glossy finish.
SMOOTH AND ERGONOMIC HANDLES
Smooth and ergonomic handles: comfortable and pleasant to use.
CONTROL
Thermostatic shower control.
VERSION
Both versions PE455 and PE456 are CalGreen compliant.
HAND SHOWER TO BE ORDERED SEPARATELY
Hand shower to be ordered separately: AC920 or AC922 or AC924
RECOMMENDED OPERATING PRESSURE
14 to 60 PSI (1 - 4 bar
WORKING PRESSURES
- Maximum : 5 bar (145 psi)
- Minimum : 0,1 bar (1,5 psi)
DESIGNED
ErvasBasilicoGirardi
BUILT-IN VALVE
Built-in valve to be ordered separately.
AVAILABLE COLORS
6
INCLUDED
Water outlet with hand shower support are included.

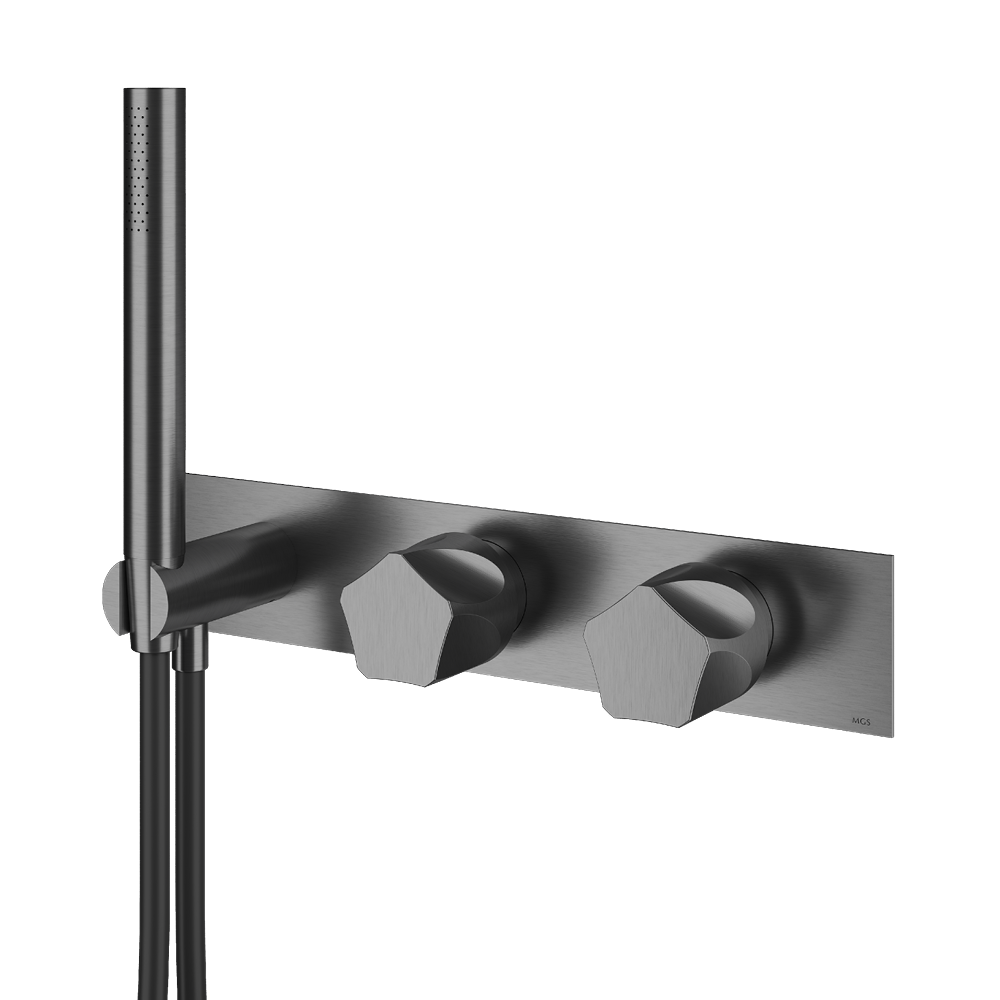

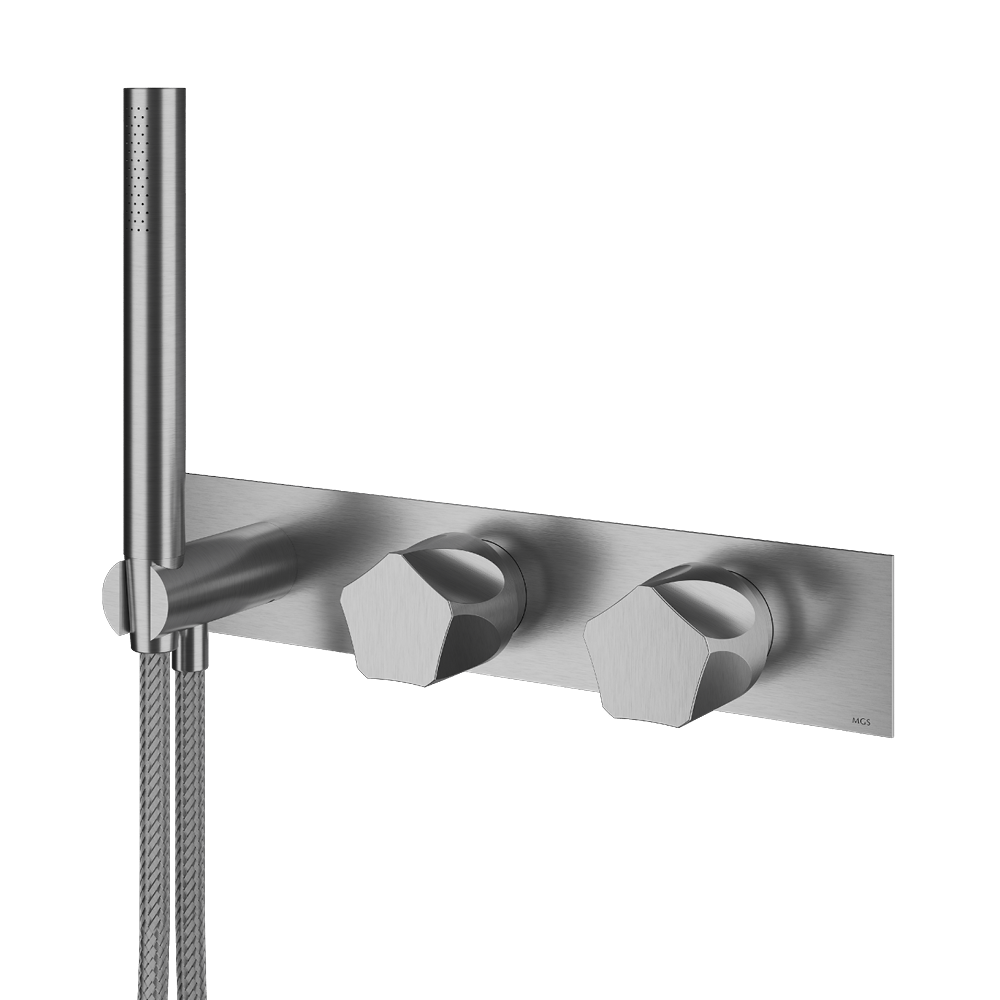

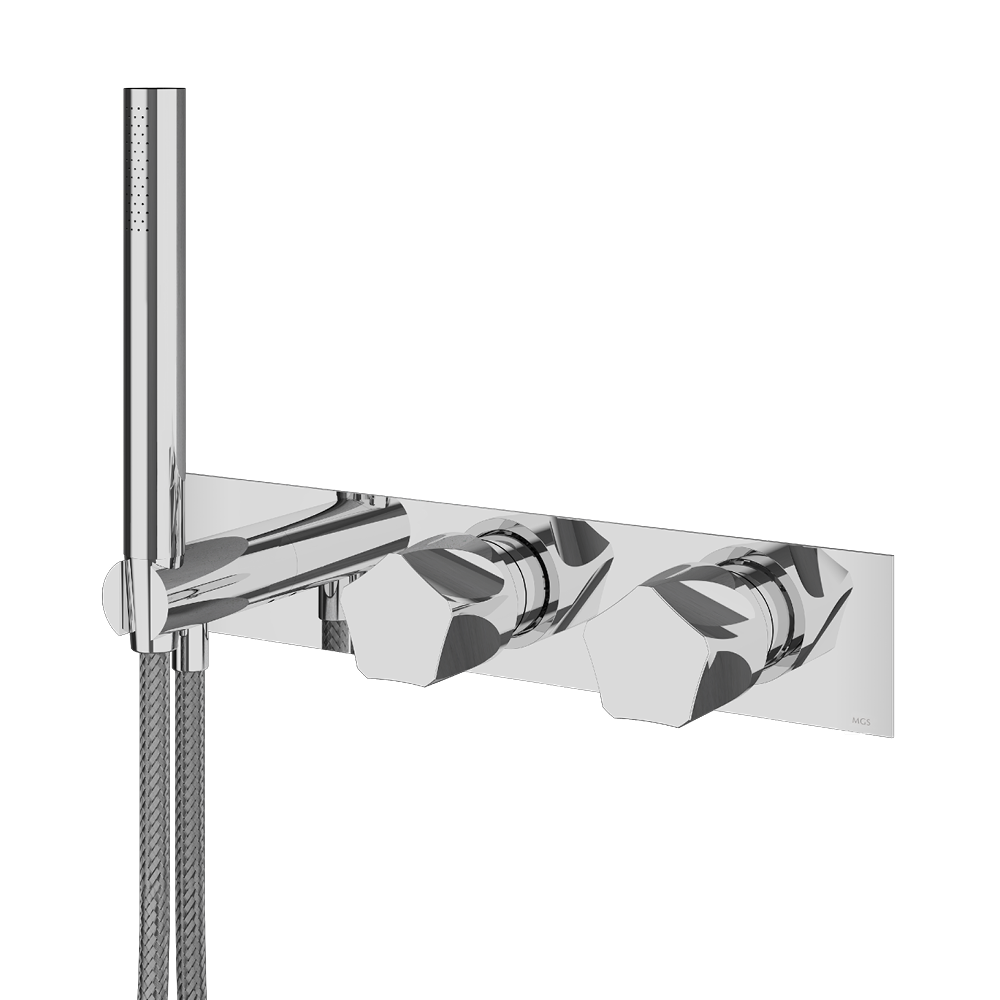

FINISHES

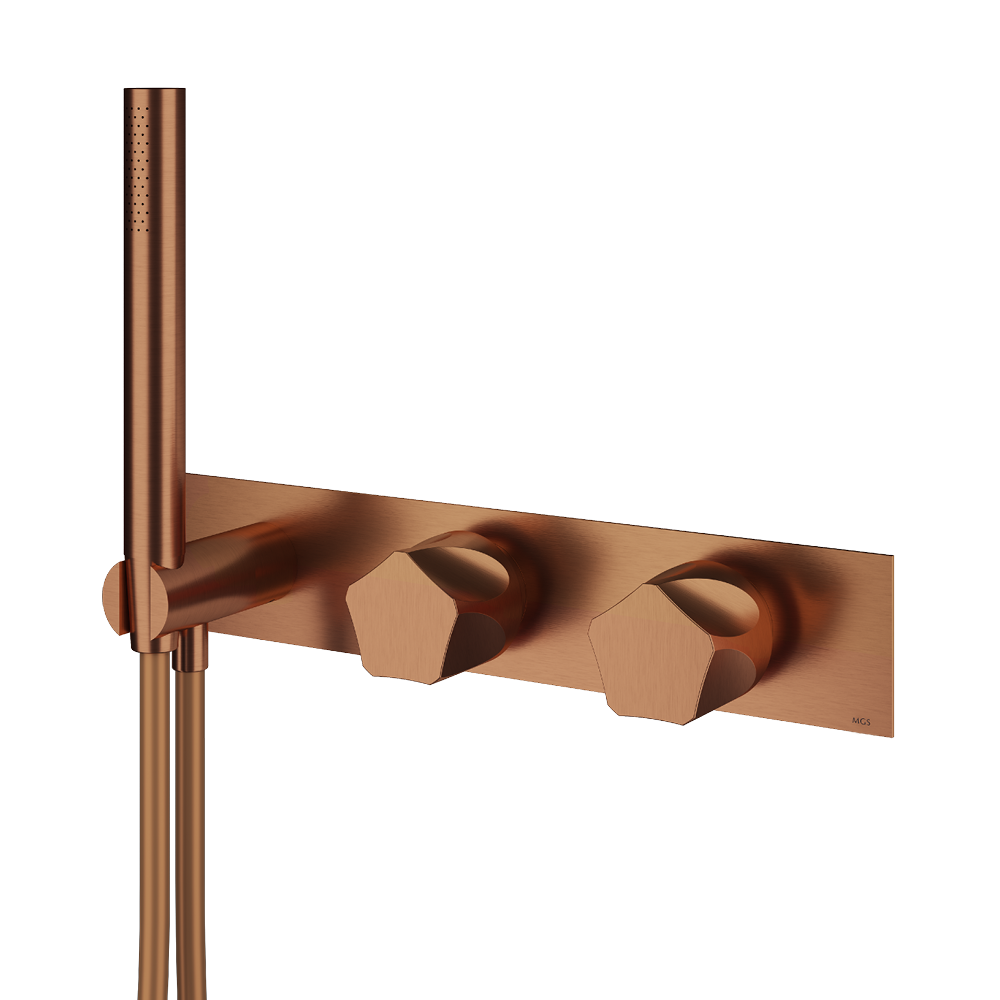

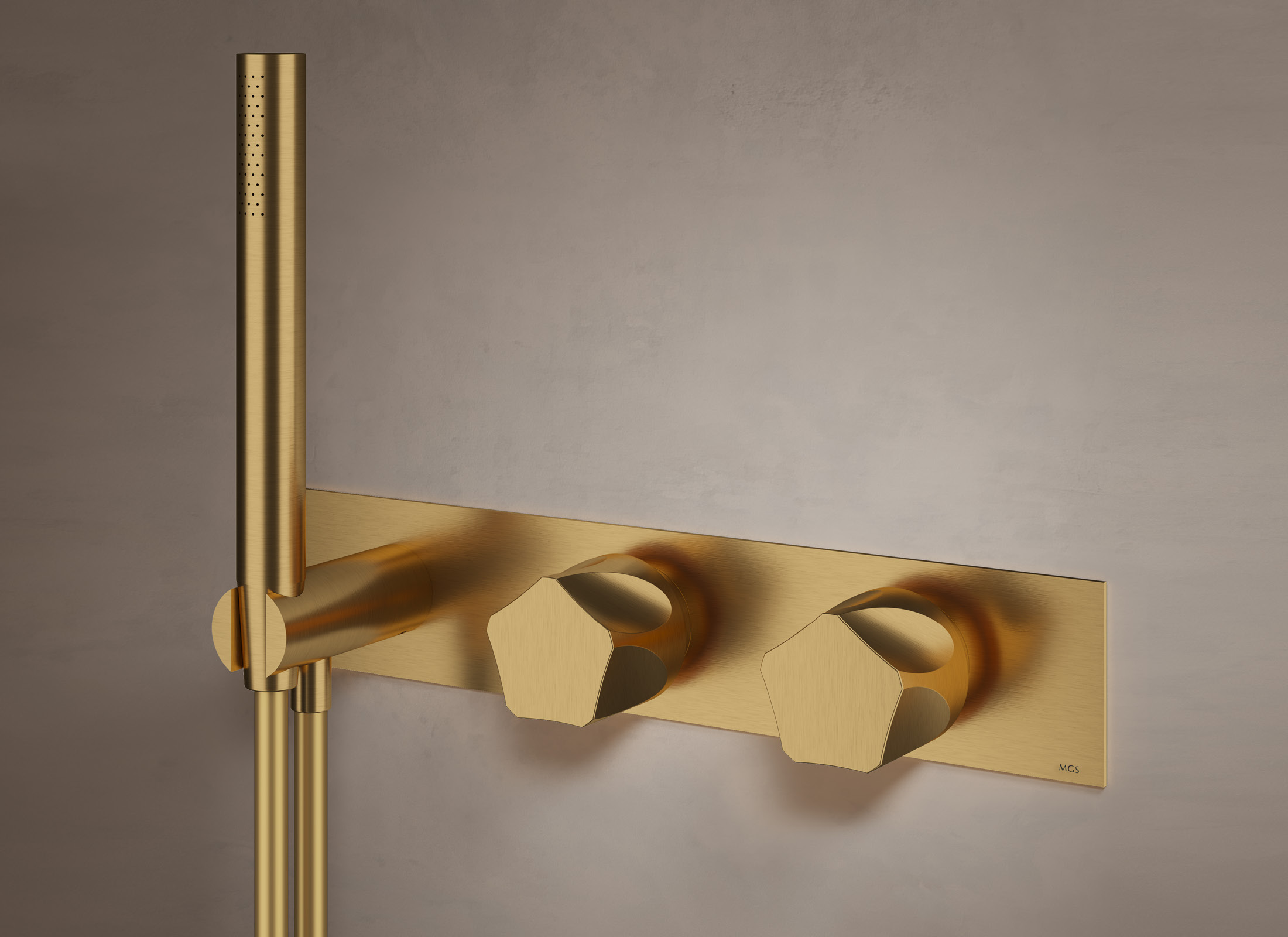

Also available in our exclusive PVD finishes Black Steel, Titanium, Gilded and Bronze over matte stainless.
INSTALLATION
The trim is made of marine grade stainless steel AISI316L, which is ideal for installation indoor and outdoor.
PRODUCTION
Made in United Kingdom
FLOW RATE
8.7 GPM at 20 PSI – 32 l/min a 1.4 bar
TEMPERATURE DETAIL

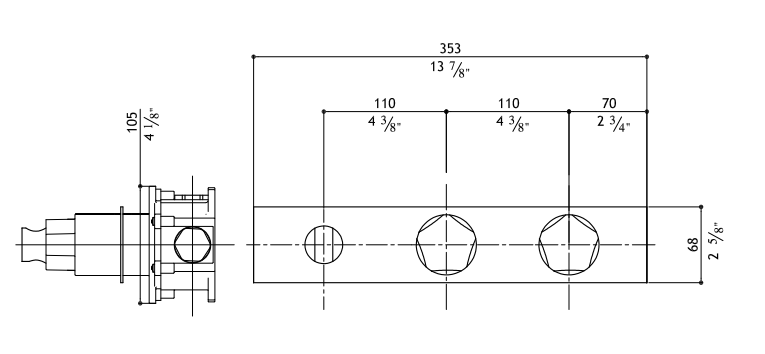

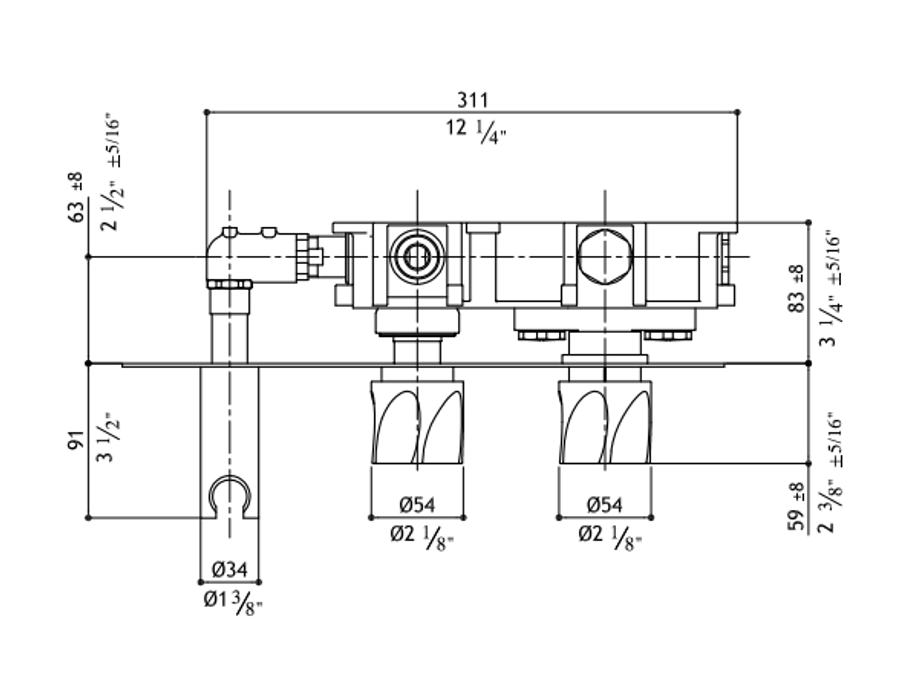

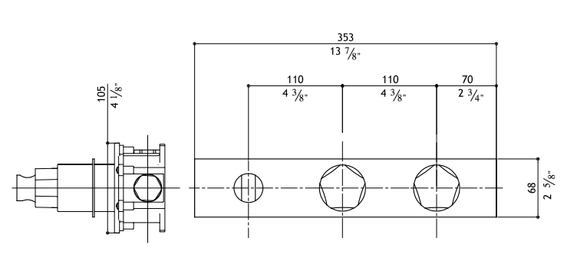

The mixer is supplied with covers for the installation at a depth from 2 1/8" to 2 3/4" from the centre of the mains tube to the finished wall. The temperature control knob is pre-set from the manufacturer at 38°C (100° F) with stop at 44°C +/-2°C. (111° F +/- 36° F) The mixer ports are supplied with female threads NPT ¾”
OPERATING PRESSURE
Max 145 PSI (10 bar)
EXTENSION KIT
34 mm valve extension kit is available – code SV9KPM.318
WARRANTY
MGS products are covered by a warranty of 5 years from purchasing date on all stainless steel parts and of 2 years on all other components. During this period, parts with construction defects in materials or workmanship will be replaced free of charge.
This warranty will not r espond in the case of faults caused by unsuitable or improper use, wrong installation, natural wear, improper or careless treatment, wrong usage of cleaning or maintenance products. MGS will not assume liability for labour expended, freight cost or damages accruing from the use of the material purchased from us. If material is defective, the limit of damage is the price of the defective material.
Proof of purchase (original sales receipt) from the original consumer purchase r must be made available to MGS for all warranty claims. The warranty is n ot transferable and is extended solely to the original purchaser of the product.
CARE & MAINTENANCE
OUTDOOR INSTALLATION
Marine grade stainless steel is ideal for outdoor installation and it is extremely resistant to oxidation. Nevertheless, it is not oxidation proof or stain proof. In order to maintain the long lasting beauty of the stainless steel surface it is necessary to regularly clean it. This is particularly important in marine environment where saline deposits over time will affect the surface and cause oxidation. In such conditions the surface must be cleaned more frequently in order to be preserved.
ALL FINISHES
DO NOT use bleach, caustic, ammonia or acid based cleaning materials or detergents containing chloride, or any other strong household cleaning products, even if organic. Even vapors of such products could damage the chemical balance of the stainless steel surface. When using strong chemical products in the room, we recommend to air it out. DO NOT use abrasive materials, cleaning pads, scouring sponges, files or other hard objects. DO NOT use oily rags or greasy cloths when wiping the product surface.
MATTE AND POLISHED STAINLESS STEEL
In order to preserve the finish of your product, we recommend regular cleaning with a soft wet cloth. For regular cleaning it is not necessary to use detergents. In case of need, we recommend the use of a mild detergent or even better, a specific stainless steel detergent. In this case, please follow the specific instructions of the detergent manufacturer. When using a detergent rinse well with water immediately after cleaning, until all detergent is removed from the surface. Dry with a soft cloth.
PVD FINISHES (BLACK STEEL / TITANIUM / ROSE GOLD / GOLD)
PVD technology is used to create a smooth, resistant and long lasting finish. A soft wet cloth is sufficient for daily cleaning. For resistant stains and fingerprints we recommend the use of a diluted mild soap and water solution to be applied using a soft cloth. Rinse thoroughly after cleaning. In order to avoid water stains we recommend to dry the surface with a soft cloth. As it is not a coating but the result of a chemical reaction, a characteristic of PVD is that objects of different shapes and dimensions can absorb color differently, resulting in slight color variations. These are not to be considered defects.
