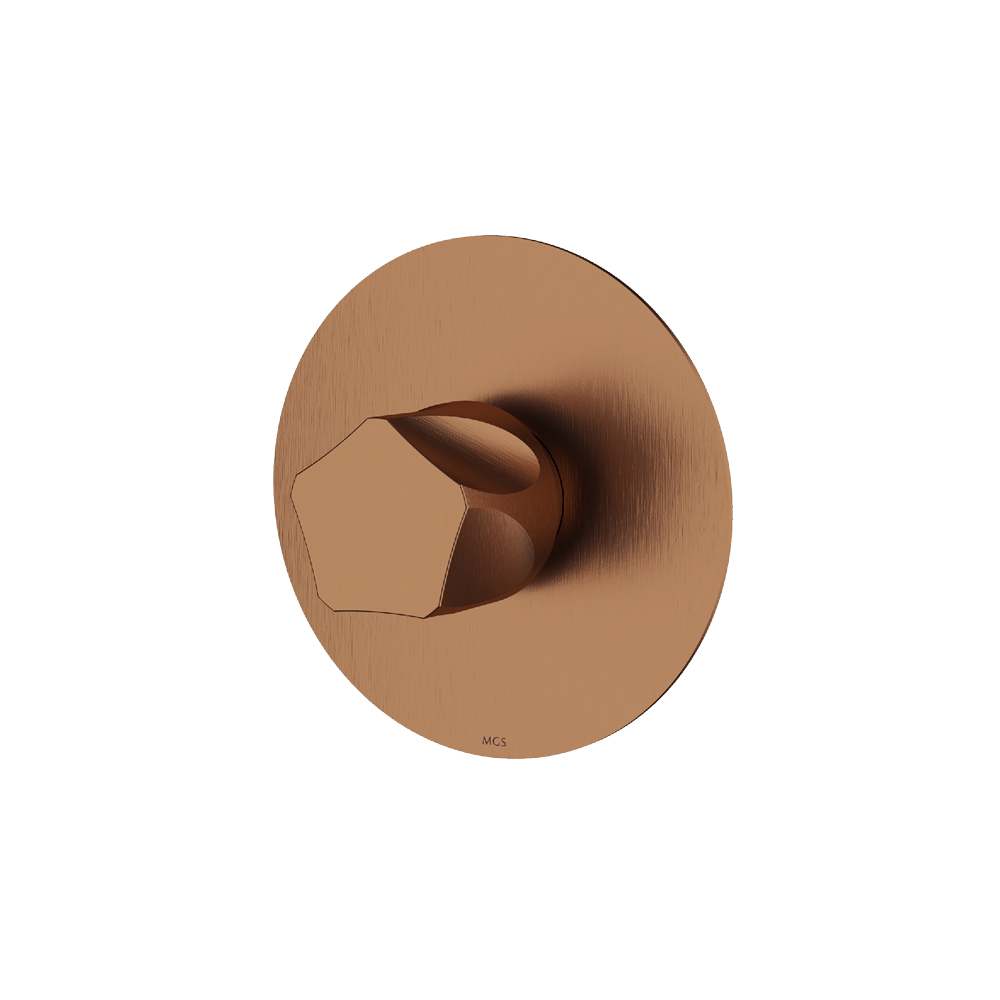

PE444: THERMOSTATIC SHOWER VALVE
PE444: THERMOSTATIC SHOWER VALVE
Designed by Ervas Basilico Girardi
The bathroom collections by MGS stand out for their balance between sophisticated design and everyday practicality.
information
BRAND
Mgs
PRODUCT TYPE
Shower Valve
RECOMMENDED HOT WATER TEMPERATURE
149 °f (65°c)
MINIMUM COLD WATER TEMPERATURE
41° f (5°c)
ELEGANCE TO ANY SPACE
Crafted with great attention to detail, they bring a timeless touch of elegance to any space.
COLLECTION
Penta
MAXIMUM HOT WATER TEMPERATURE
185 °f (85°c)
HANDLE
Ergonomic handle machined out of a solid steel bar.
HAND POLISHED

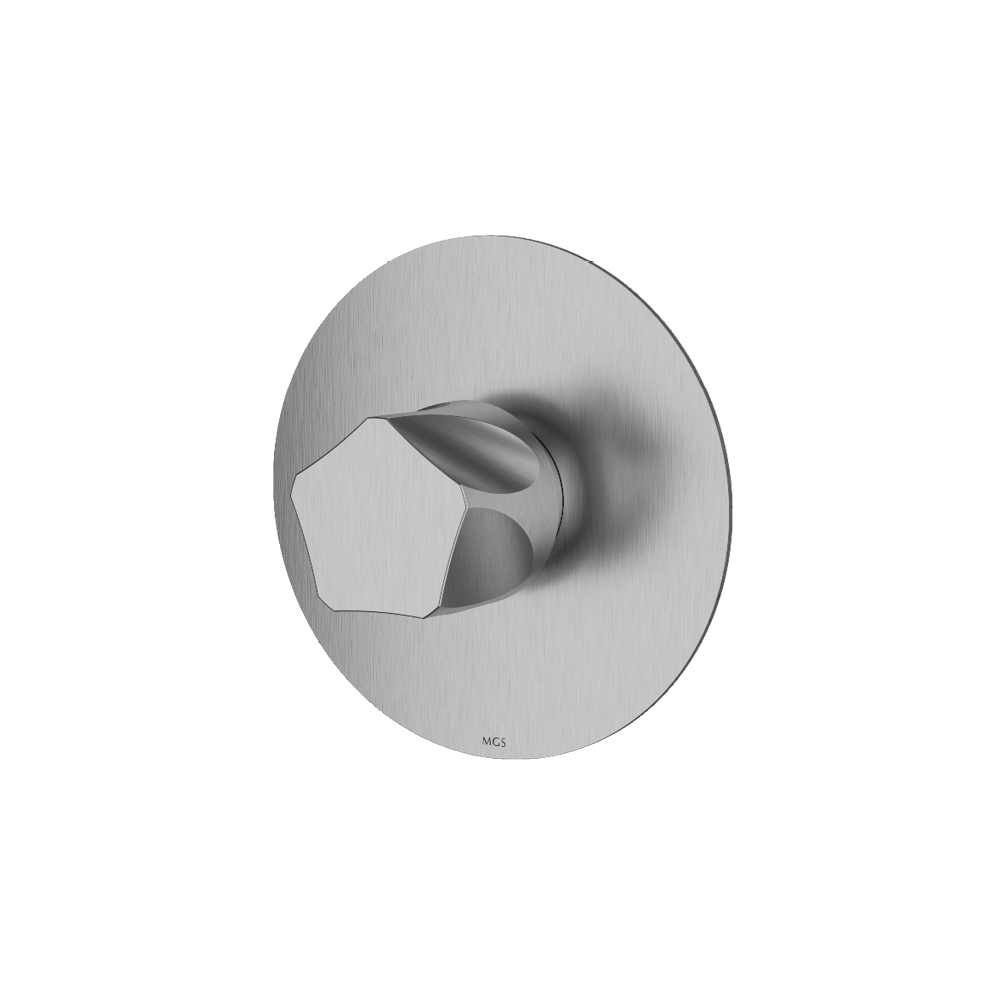

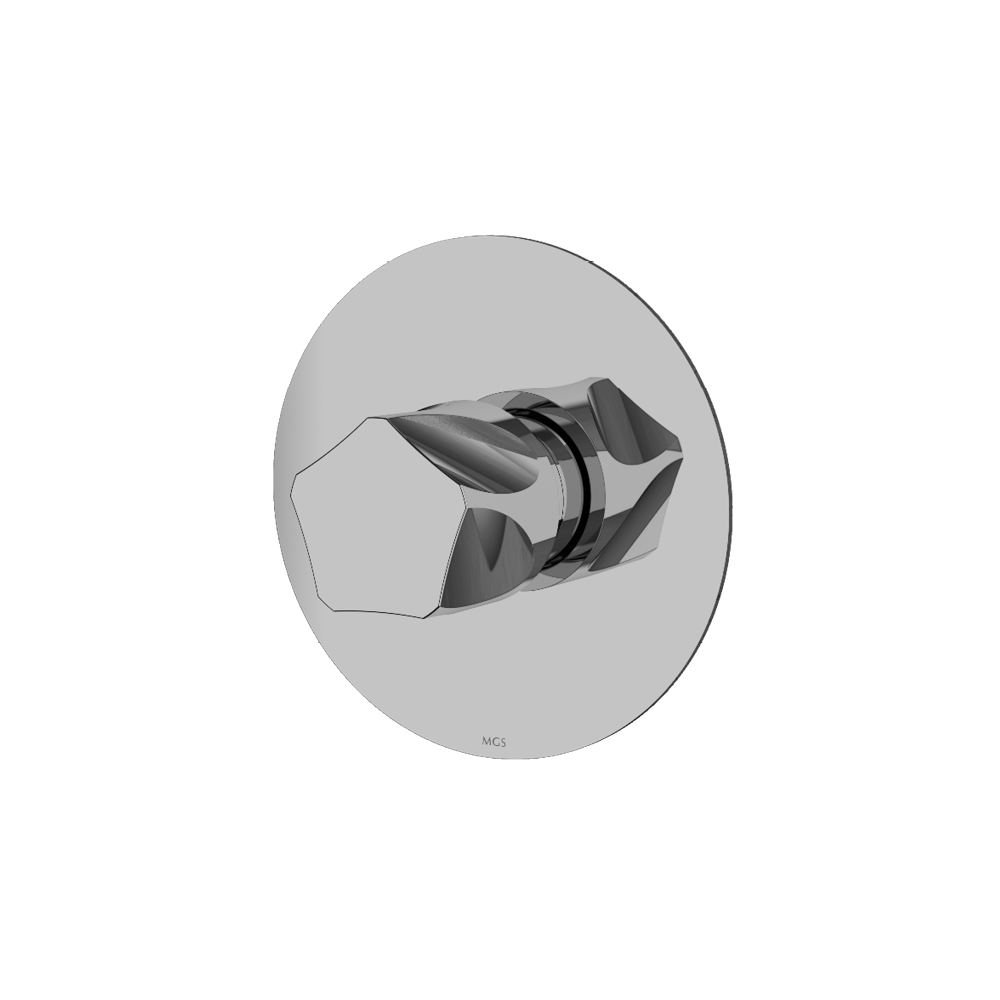

Hand polished to matte or polishes stainless steel
MATERIAL
Steel
CONTROL
Thermostatic shower control.

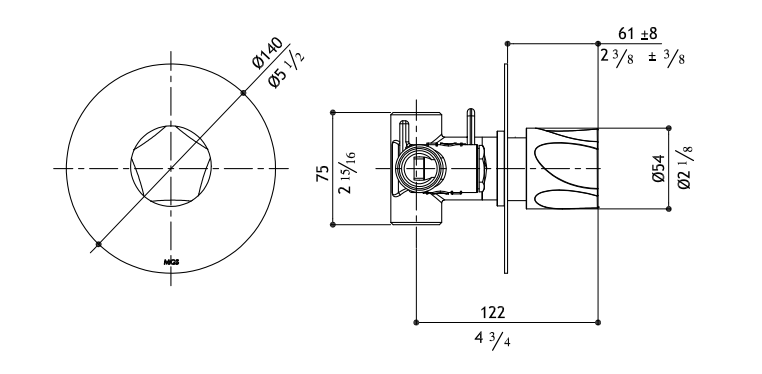

DIMENSIONS
- Plate diameter : Ø140 mm (5½″)
- Thread size : M48
- Left body length : 75 mm (2 15⁄16″)
- Projection from plate : 122 mm (4¾″)
- Right extension length : 61 ± 8 mm (2⅜″ ± 3⁄8″)
- End outer diameter : Ø54 mm
- End inner diameter : Ø21 mm (⅞″)
DESIGNED
ErvasBasilicoGirardi
STOPS
The built-in valve has stops.
MINIMUM DIFFERENCE BETWEEN HOT AND MIXED TEMPERATURE
50 °f (10°c)
RECOMMENDED OPERATING PRESSURE
14 to 60 psi (1 - 4 bar)
MARINE GRADE
Unrivaled high precision machining on marine grade AISI 316 stainless steel.
PRODUCTION
Made in United Kingdom
FLOW RATE
8.4 GPM at 45 PSI – 3o l/min at 3 bar
AVAILABLE COLORS
6
ROUGH-IN VALVE
The rough-in valve must be ordered separately.
FINISHES

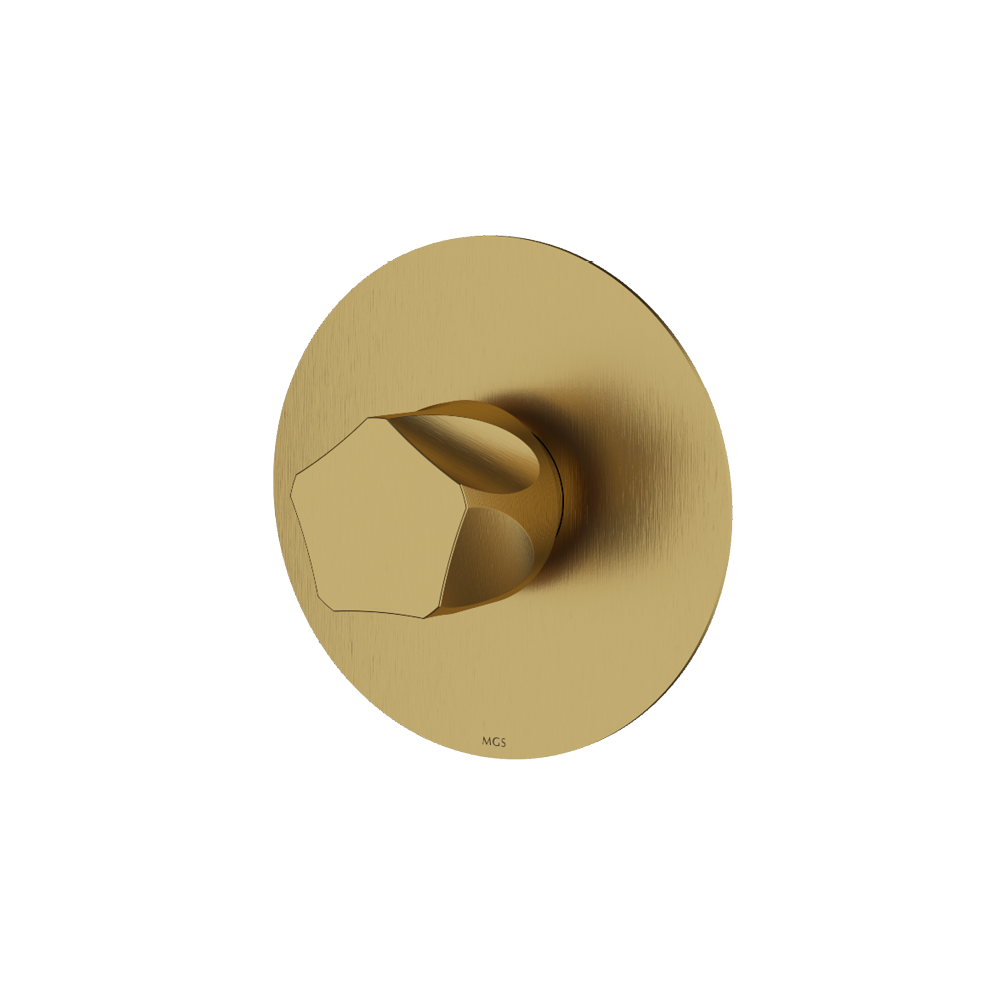

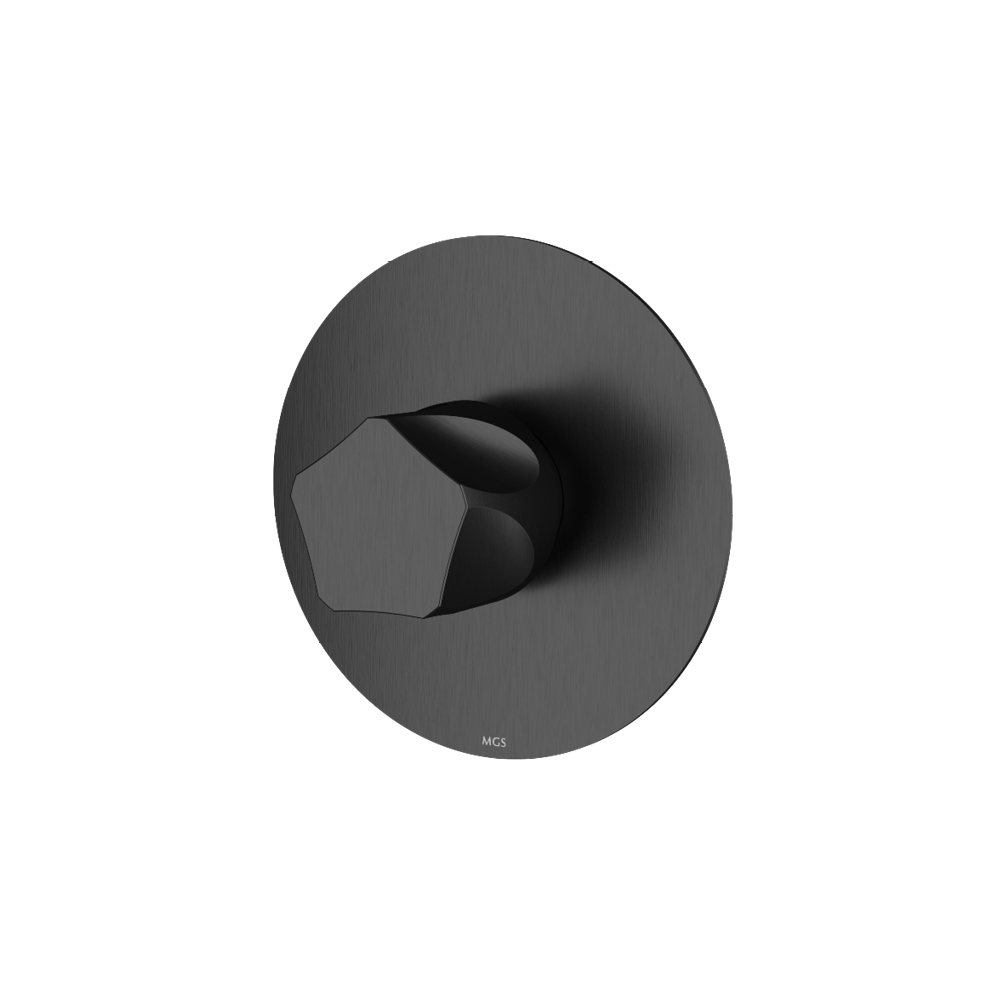

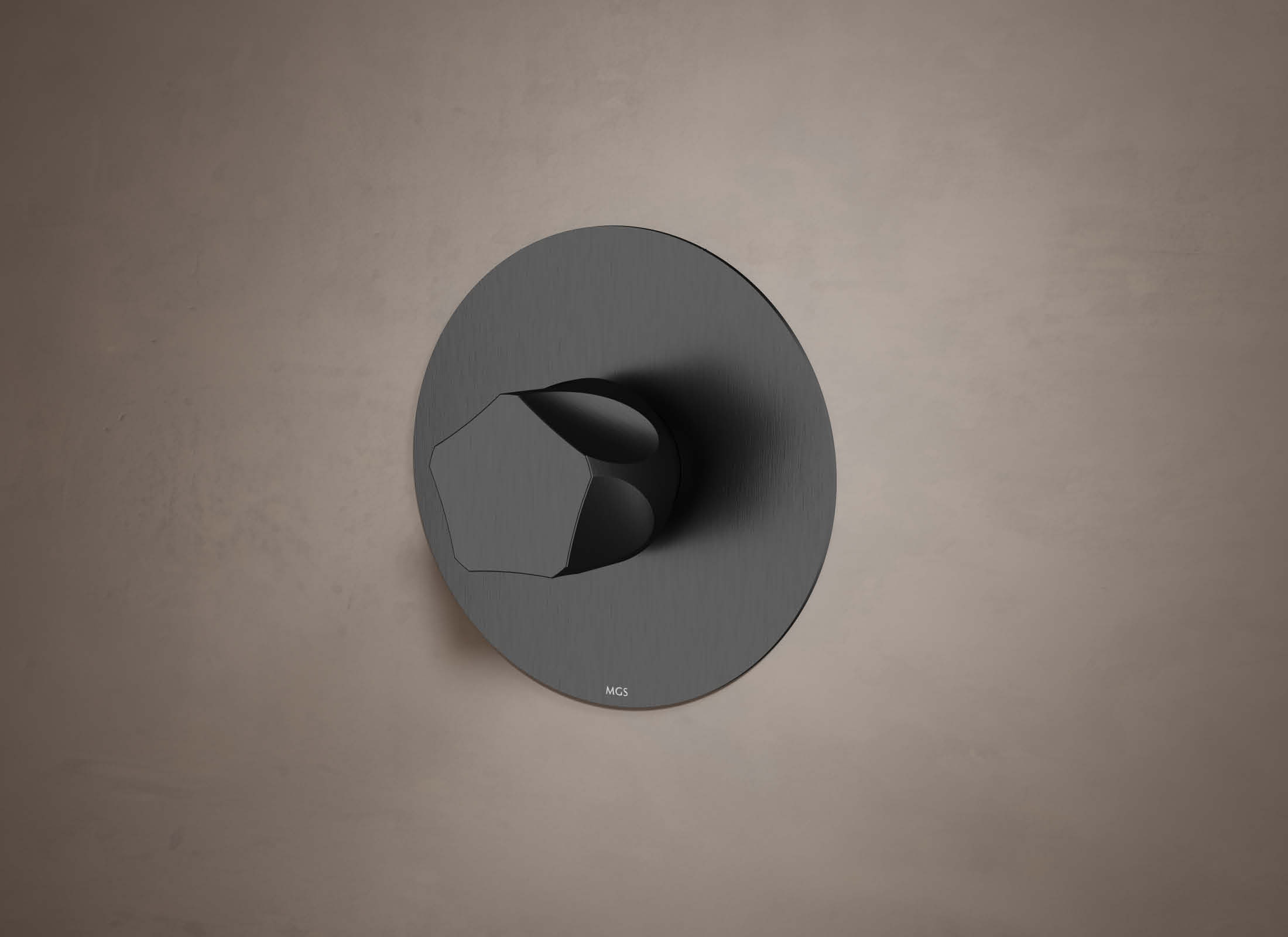

Also availble in our exclusive PVD finishes Black Steel, Titanium, Gilded and Bronze over matte stainless steel
TEMPERATURE DETAIL
The temperature of the inlet hot water must be higher than the maximum mixed water temperature required from the outlet.
The temperature control knob is pre-set from the manufacturer at 100° F (38°C) with stop at 111° F +/- 36° F (44°C +/-2°C).
OPERATING PRESSURE
Max 145 psi (10 bar)
EXTENSION KIT
35 mm extension kit is available.
INSTALLATION &WARRANTY
INSTALLATION
- Flush through the supply pipes.
- Observe all local plumbing codes.
- Inspect water supplies for signs of damage. Replace if necessary.
- The recommended pipe work should be minimum 22 mm (0+7/8") for low
pressure systems.
- If more than one shower mixer is installed, the minimum feed should be 28mm (1+3/32") (ensure adequate end constant supply of both hot and cold water).
- Hot and cold operating pressures should be kept as balanced as possible in order to maintain maximum efficiency.
- When the supply pressure is higher than 5 bar a pressure reducing valve should be fitted before the shower mixer.
- An independent hot and cold water supply is required for the shower system.
- The installer must check for any leaks from the rough-in valve before closing the access point to the valve with the finished wall.
WARRANTY
MGS products installed in a residential indoor application are covered by a limited 5 year functional and finish warranty from purchasing date. During this period, parts with construction defects in material or workmanship will be replaced free of charge. This warranty is subject to the warranty conditions and limitations as set forth below. This warranty will not cover faults caused by unsuitable or improper use, incorrect installation, natural wear, improper or careless treatment, incorrect usage of cleaning or maintenance products.
MGS will not assume liability for labor expended, freight cost or damages accruing from the use of the material purchased from us. If material is defective, MGS will either supply the replacement part or it will reimburse the price of the defective material. Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to MGS for all warranty claims. The warranty is not transferrable and is extended solely to the original purchaser of the product.
MGS products installed outdoor and/or for commercial applications are covered by a 2 year functional and finish warranty from purchasing date. This warranty applies to MGS faucets installed in USA or Canada.
