Alumil Minimal Sliding Insulated System Supreme S500 Phos
MINIMAL SLIDING INSULATED SYSTEM SUPREME S500 PHOS
MINIMAL SLIDING INSULATED SYSTEM SUPREME S500 PHOS
The thermally insulated sliding system supreme s500 phos sets new standards for minimalism with its clear, symmetrical lines, impressive functionality and implementation of advanced technology. The supreme s500 slideair version revolutionises the operation of sliding systems.
Thanks to the innovative and patented gravity-defying magnetic levitation technology, the force required to slide the sash is minimised, the sash is as light as a feather, and the system's operation is easier, smoother and quieter than ever before!
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Sliding
PRODUCTION
Made in Greece
WINDOW TYPE
Sliding
WIND LOAD RESISTANCE
C3
SEALING METHOD
Perimetrical with tri-fin brushes
EXTERIOR SHAPE
Flat
THERMAL INSULATION
Yes
MAXIMUM GLAZING THICKNESS
40 mm
SOUND REDUCTION
41dB
SASH DEPTH
50 mm
MINIMUM THRESHOLD HEIGHT
0 mm
TYPES OF TYPOLOGY
- Meeting stile
- Horizontal sliding sashes
- Combinations with fixed lights - Combinations with fly-screen
SASH WEIGHT
up to 1000 Kg
GLAZING TYPE
Double - Triple
BURGLAR RESISTANCE
RC2
WATER TIGHTNESS
7A
DESIGN
Minimal design with concealed profiles and clear, symmetrical lines for maximum natural light.
TYPE OF THERMAL INSULATION
- ABS
- Polyamides
UW
1,2 W/m2K
AIR PERMEABILITY
4
VERSION
Easy and safe access with the eclipse version, with a fully concealed bottom track covered with the floor finish, providing a flat surface.
ADVANTAGES
- Patented magnetic technology for sliding aluminium systems, offering limitless dimensions and typologies.
- Guaranteed ease in sliding sashes weighing up to 1000 Kg, without the need for electricity or additional space to install magnetic technology.
- Certified durability, delivering unmatched resilience in highly corrosive environments.
- Narrow interlocking profile of only 25 mm face width for unobstructed views.

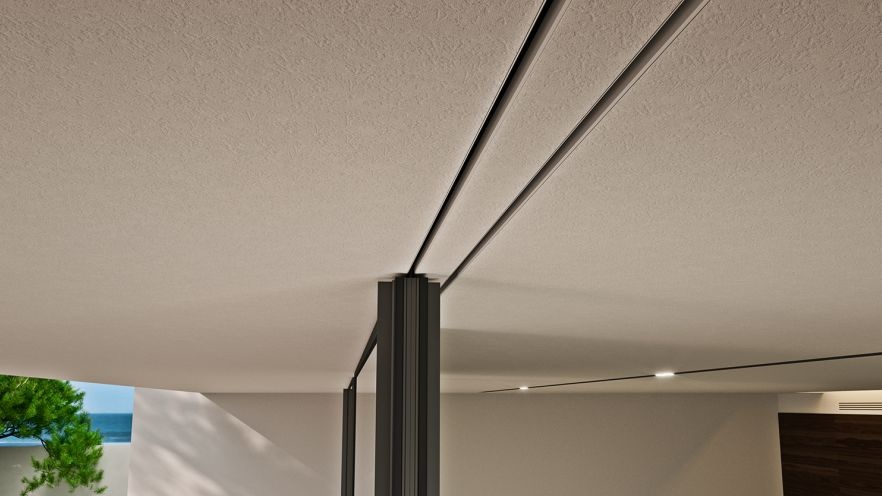

- Ultimate minimal design in the Total Eclipse version, with all tracks covered by the ceiling, floor, and walls, resulting in a seamless appearance.
SECTIONS & TYPOLOGIES
SECTIONS

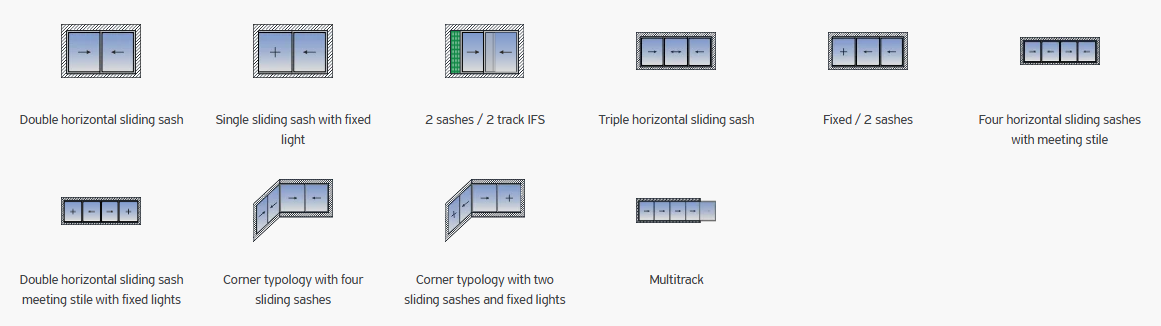

TYPOLOGIES
