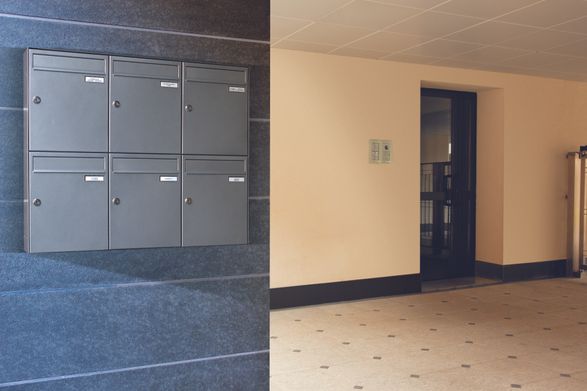

Ravasi Outdoor Mailbox Mod. Euro37f – Mod. Euro26f
OUTDOOR MAILBOX MOD. EURO37F – MOD. EURO26F
OUTDOOR MAILBOX MOD. LP – MOD. LX
Mailboxes pursuant to European Regulation EN13724. Manufacturing entirely in steel, an artisan production, expertise and the use of modern technology render Ravasi’s EURO mailbox range truly state-of-the-art.
Ravasi dedicates these vertical models with elegant lines to confined spaces, thanks to a reduced thickness that renders these solutions suitable for the most precise spaces, without compromising performance due to their high capacity and safety.
information
STRUCTURE
Galvanised and varnished steel sheet structure.
BRAND
Ravasi
PRODUCT TYPE
Outdoor Mailbox
COLLECTION
Mailbox
PRODUCTION
Made in Italy
DOOR
Galvanised and painted galvanised steel door, folding opening, slot protected by an extruded aluminium flap, vandal-proof name-holder and security lock with 2 keys.
ORIENTATION
Edges, profiles, finishes and casing in thick aluminium.
DOWNLOAD
↓ Data Sheet
EUROPEAN REGULATION
EN13724.
STANDS AND SUPPORTS
Epoxy powder-coated steel supports are characterised by their solidity and simple design, being dimensioned according to the mail drops to be supported.

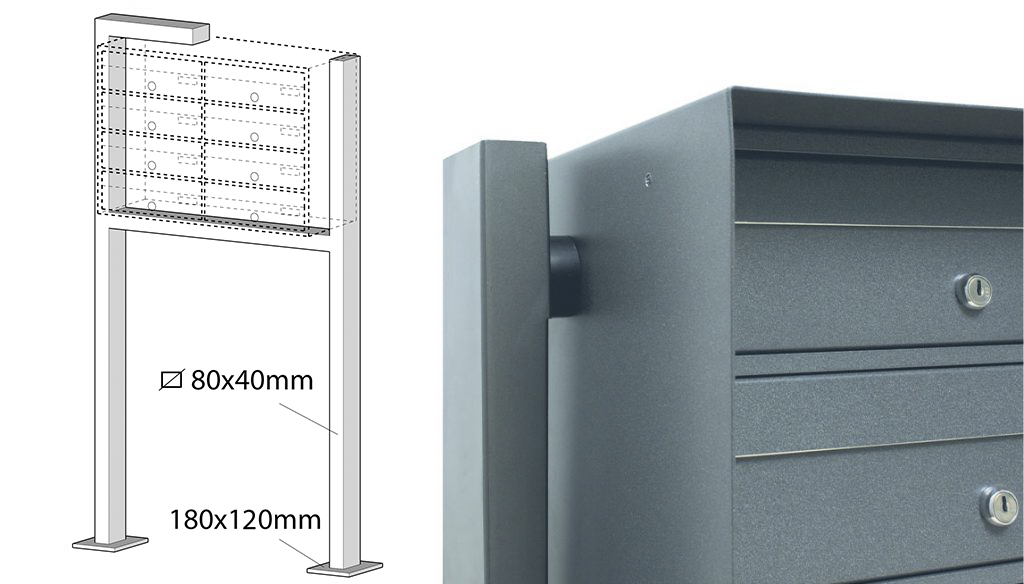

Square tube support
Rectangular tube support with a profile of 80×40 mm with a base of 180×120 mm can only be made vertically or perimeteral to the mail drops.
DIMENSIONS
DIMENSIONS 1 (MOD. LX)
- Width : 350 mm
- Depth : 110 mm
- Height : 350 mm
- Vertical increments : 330 mm
- Horizontal increments : 350 mm

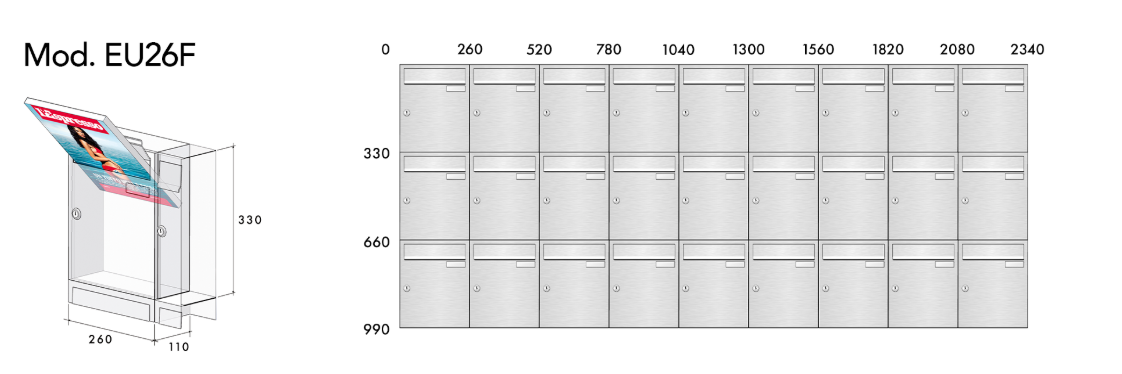

DIMENSIONS 2 (MOD. LP)
- Width : 260 mm
- Depth : 110 mm
- Height : 330 mm
- Vertical increments : 330 mm
- Horizontal increments : 260 mm
CONSTRUCTION VERSIONS

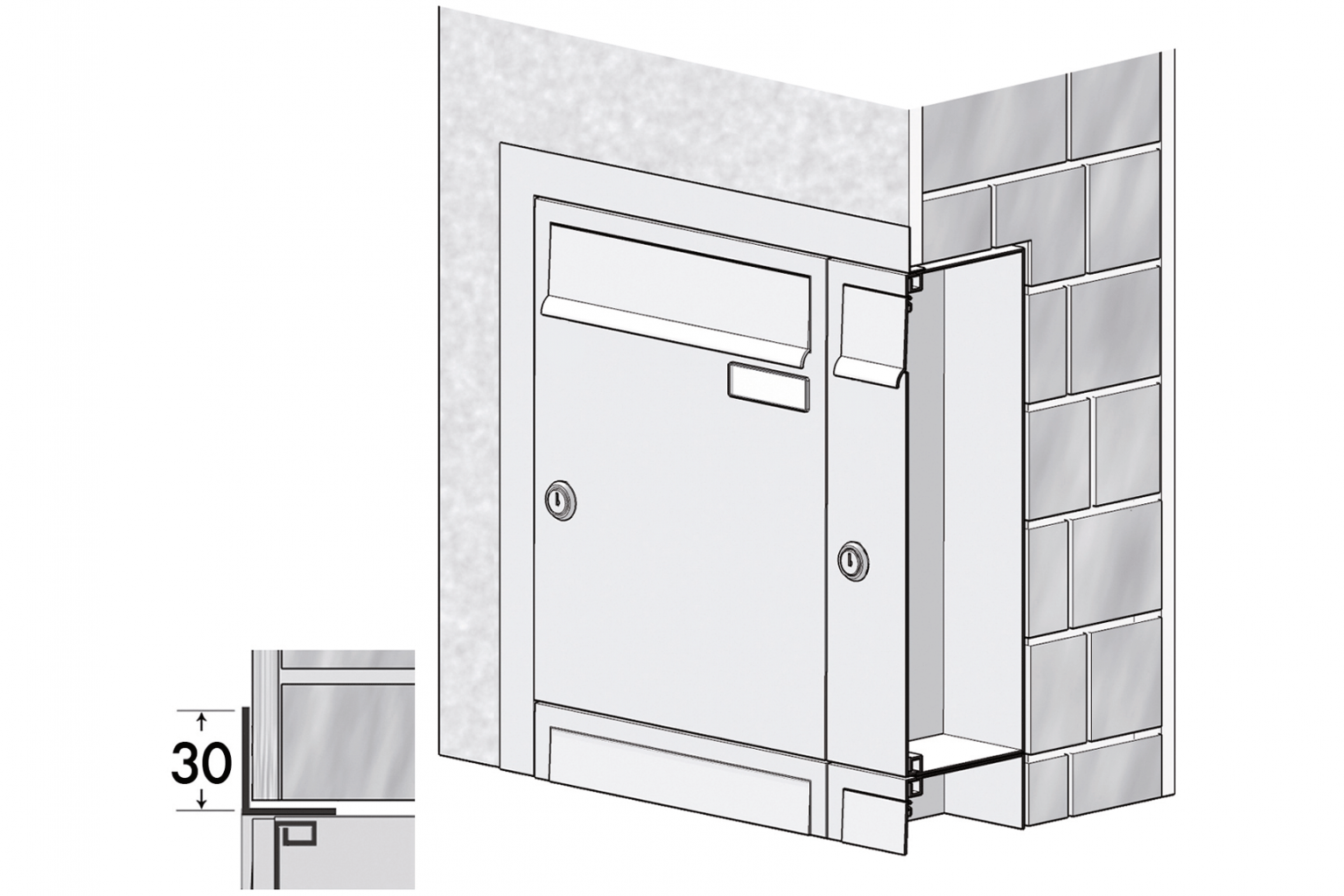

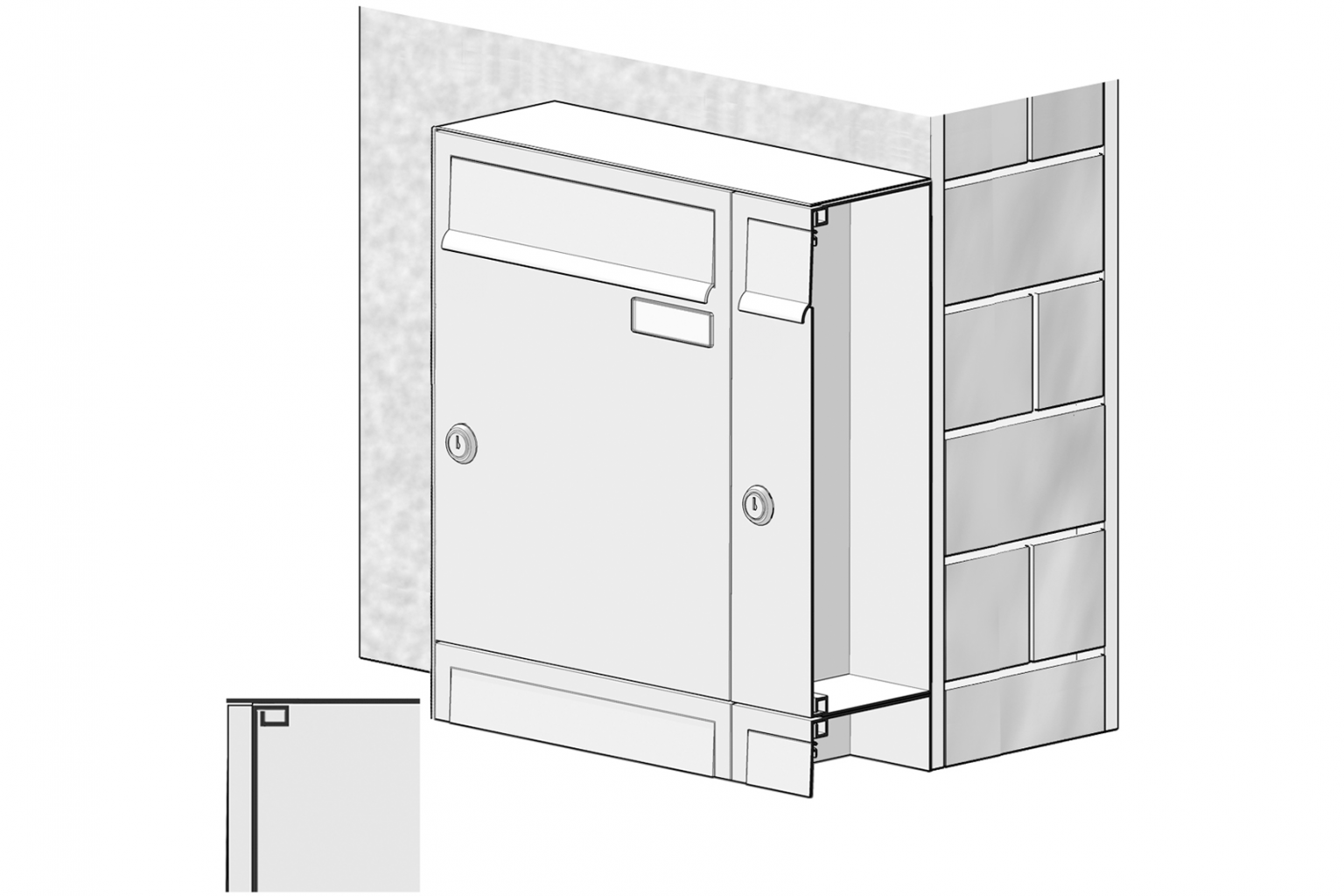

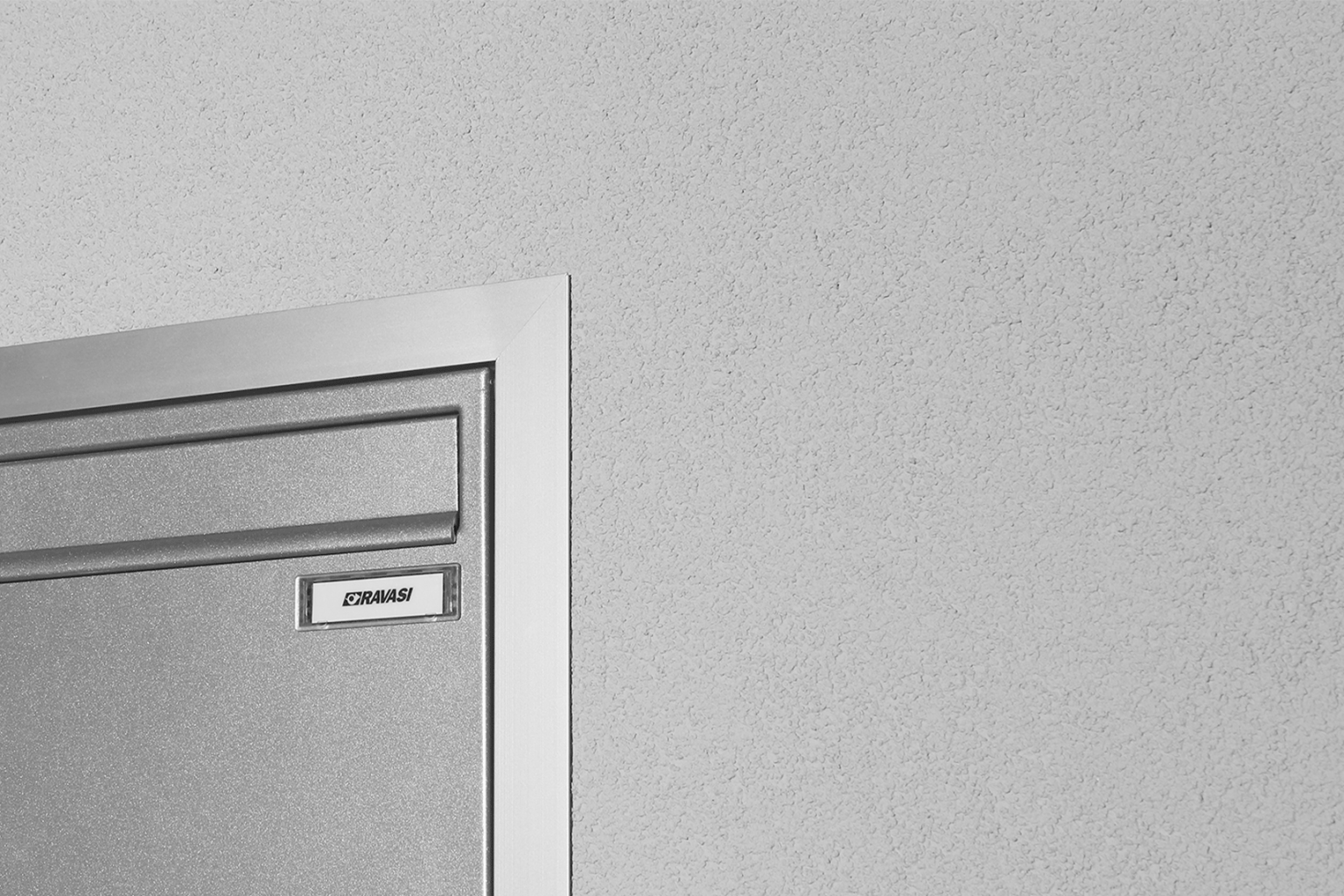

VERSION 0

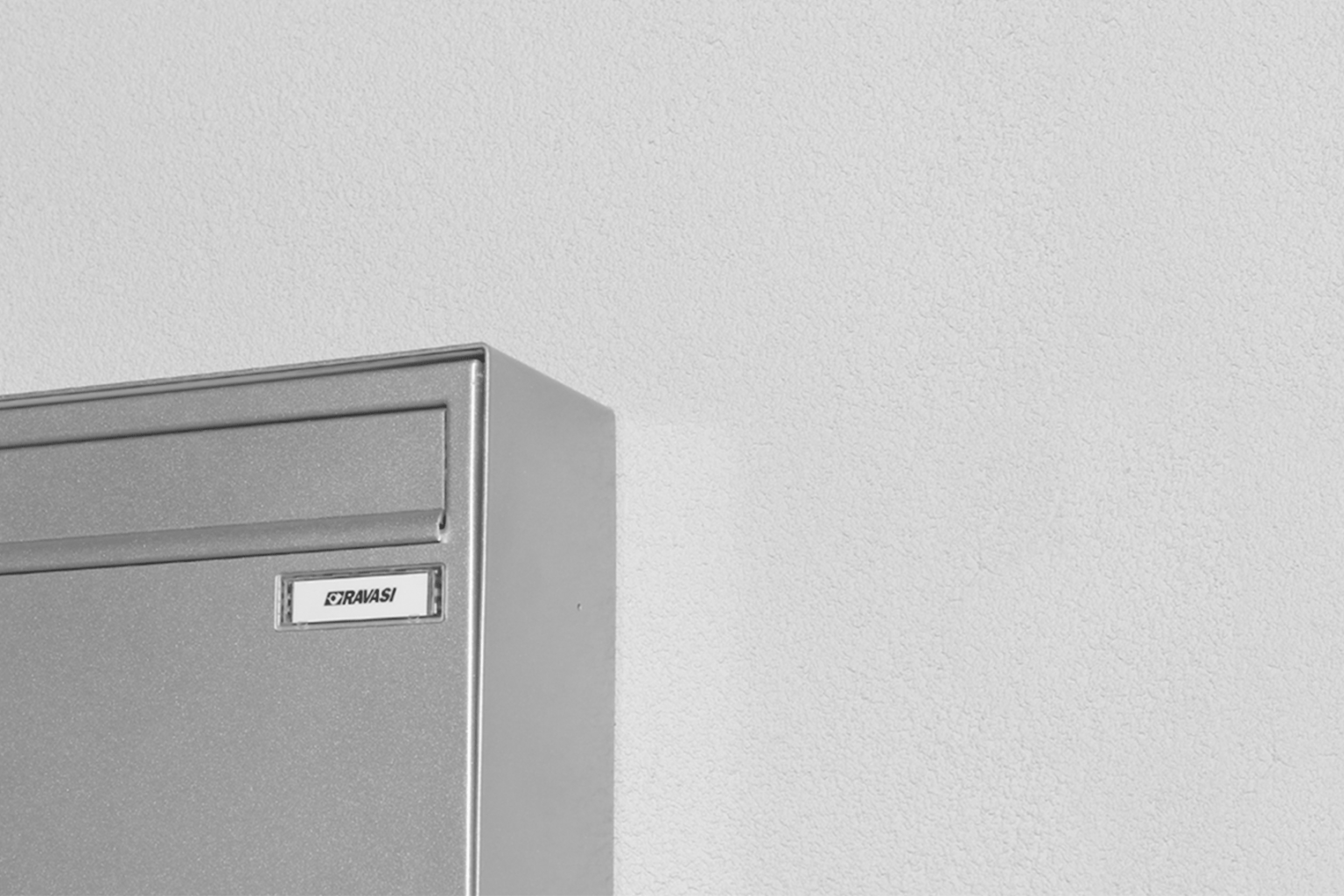

Wall-recessed with flat cover profile h. 3 cm.

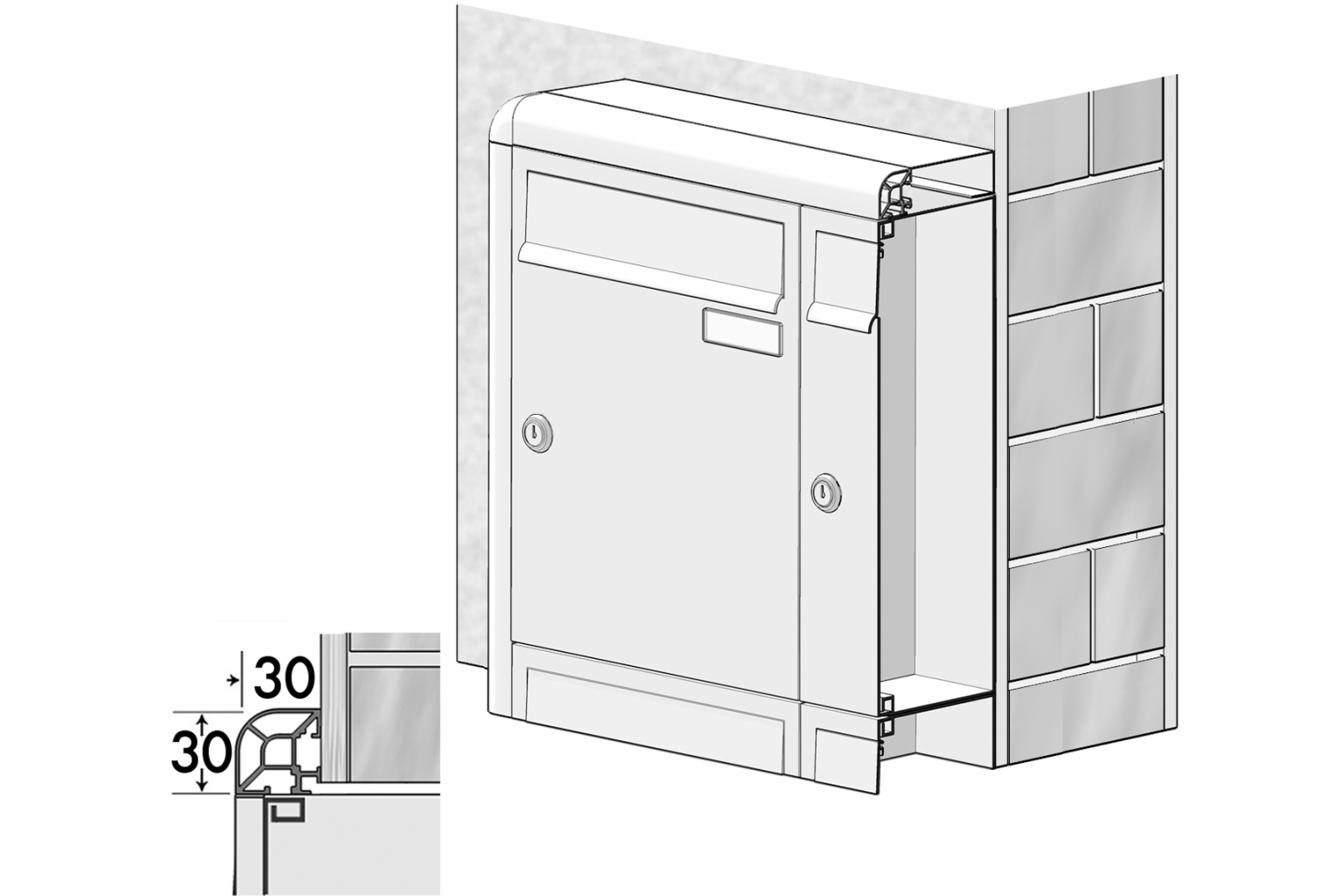

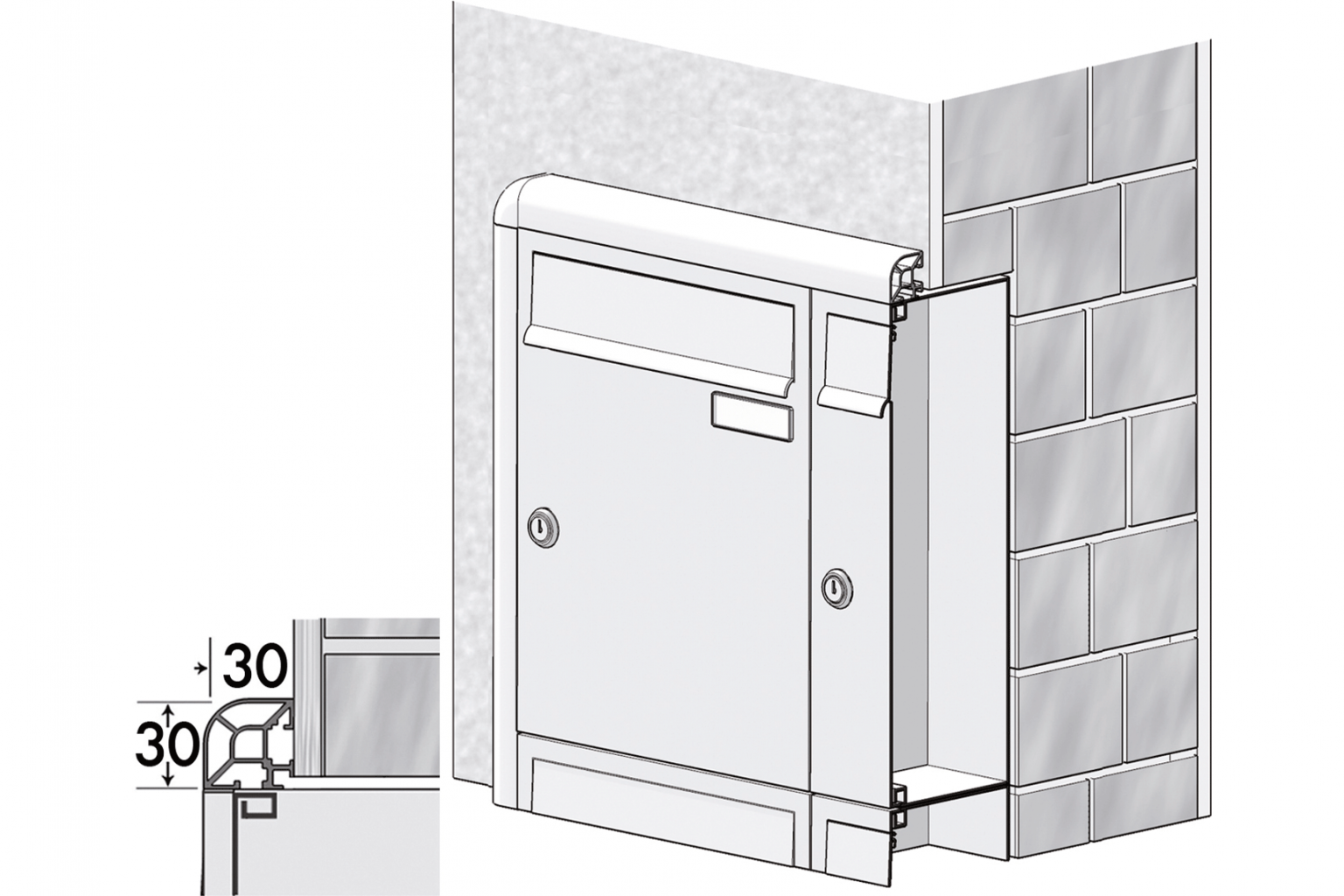

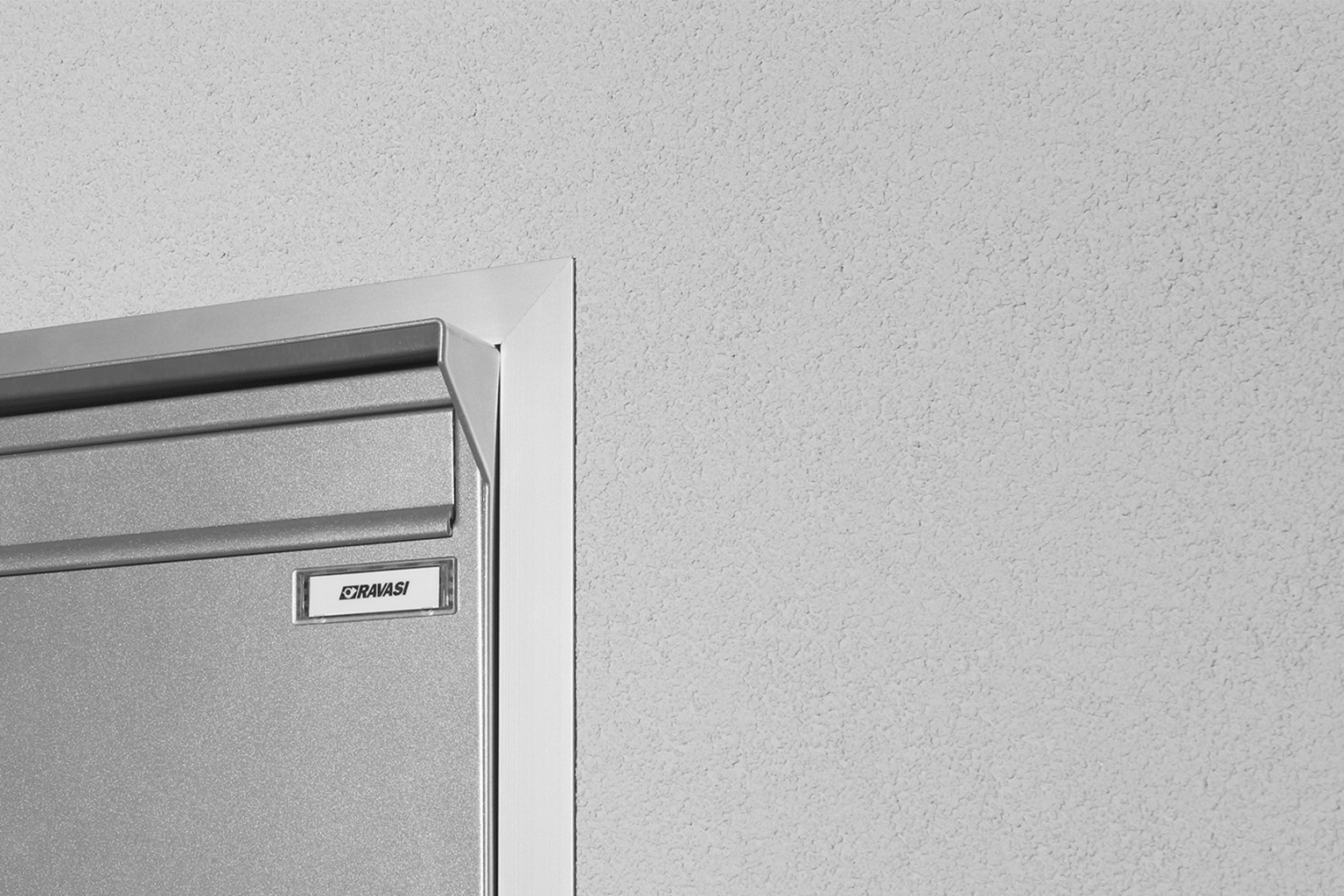

VERSION 0-BT

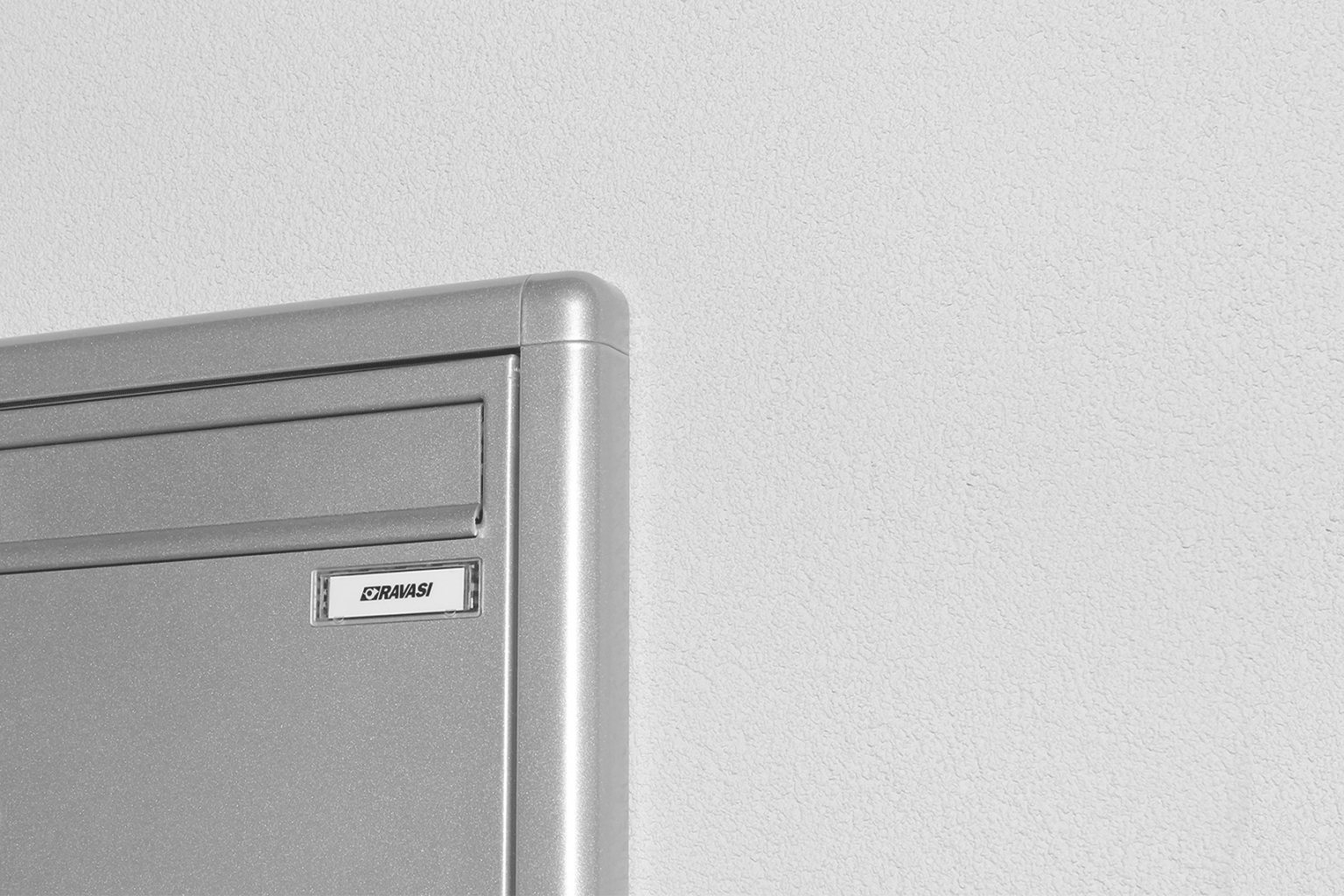

Wall-recessed with round cover profile h. 3 cm.

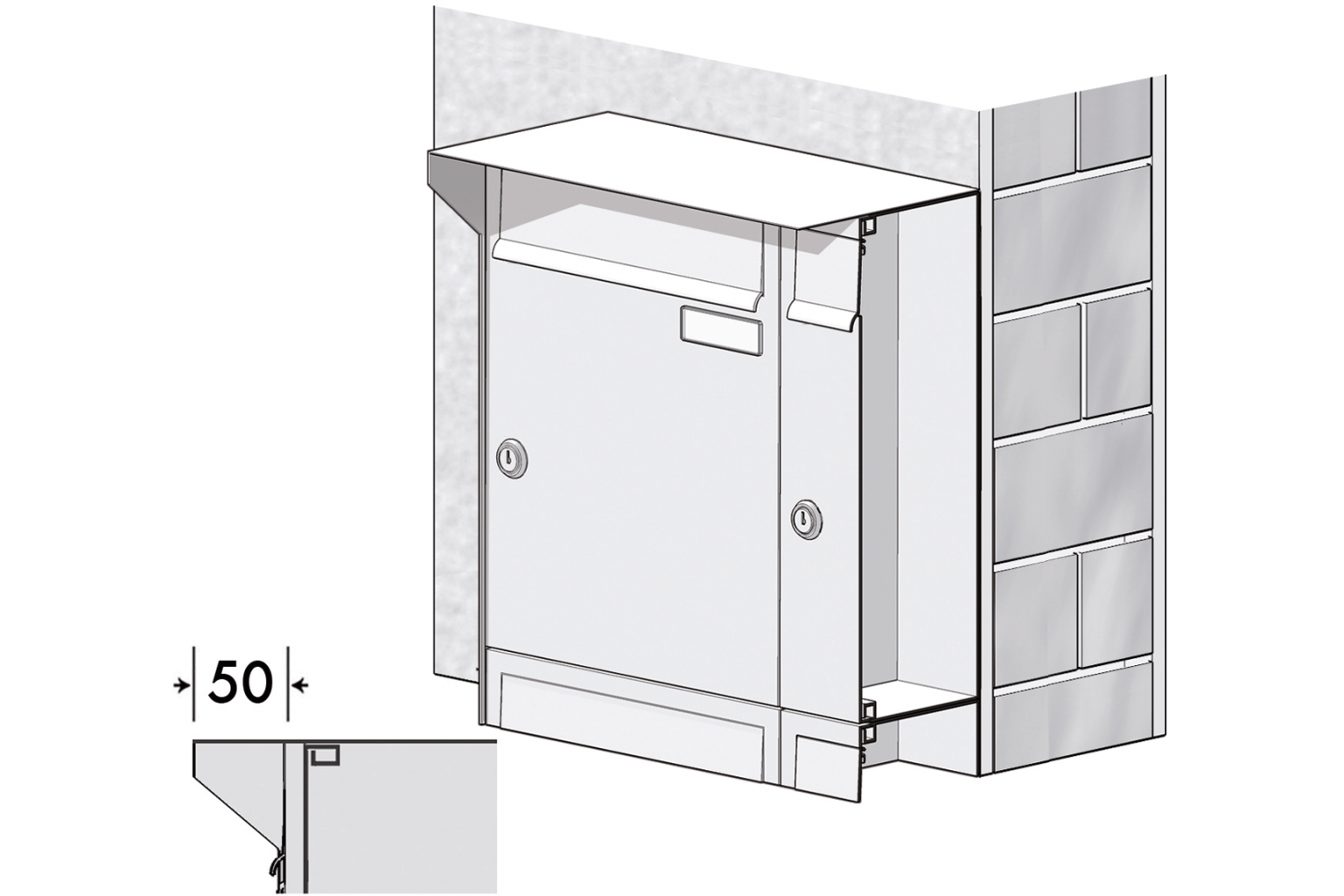

VERSION 1

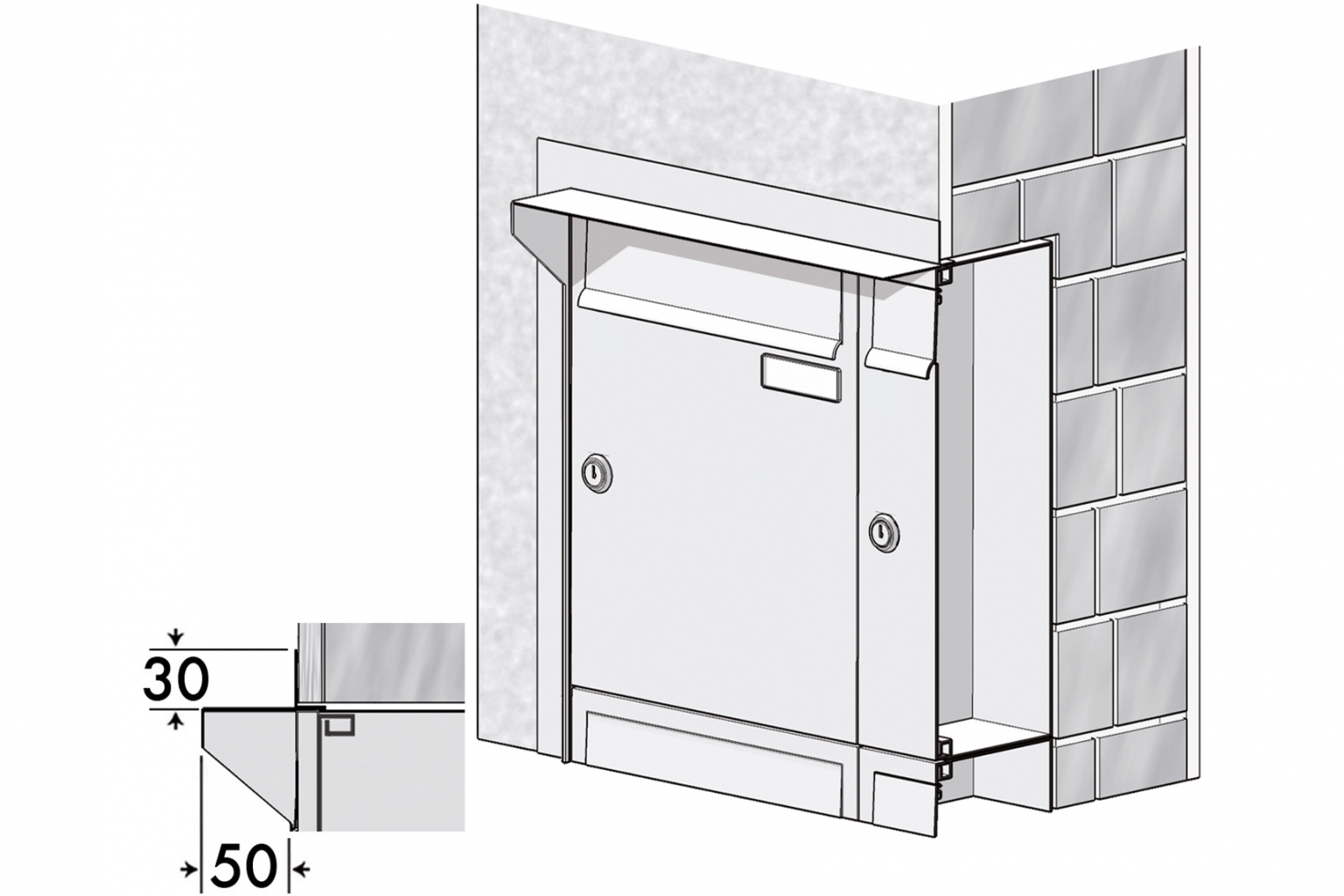

Wall-recessed with flat cover profile h. 3 cm plus rain cover.
VERSION 2
Aluminium cladding, wall installation in fences, recessed in door or window frames or free-standing on posts.
VERSION 3
Aluminium cover, wall installation, in fences, recessed in door or window frames or free-standing with posts.
VERSION 4/5
Insertion in modular aluminium box with rounded corners, mounting on the wall, in fences, recessed in door or window frames or free-standing with posts.
ACCESSORIES
ACCESSORIES
Ravasi mailbox units can be completed with a wide range of accessories according to their specific design and surroundings.
ADVERTISING BOXES
In order to collect advertising and prevent it from being scattered around the entrance, integrated junk mail receptacles are available in single, double or triple the size of standard boxes, harmoniously integrated into the design of the mailboxes themselves.
ENGRAVINGS
A further aesthetic choice offered by Ravasi is lettering engraved in a font of your choice and with a finish that stands out on the mail drop, elegantly integrating with and personalising the collection point.
BACKLIT INSCRIPTIONS
An exclusive solution factoring in image and modernity is achieved with the inscriptions that Ravasi produces on aluminium panels, with characters of your choice, perforated and backlit, all to create impressive results.
NOTICEBOARDS
Elegantly integrated into the design of the mail drop, these noticeboards have a magnetised base for posting signs plus a lockable transparent Plexiglas door. A useful and functional accessory.
INTERCOMS
In order to extend the function of the mail drop, Ravasi offers its analogue intercom panels compatible with all commercial systems and with dimensions modular to the mailboxes. This intelligent solution customises the mail drop area and renders it more exclusive.
INTEGRATED VIDEO DOOR-PHONE
An important option is the possibility of adding a personal digital video door-phone panel through which to communicate the brand and characteristics. A dedicated housing can be created with a suitably perforated aluminium panel.
