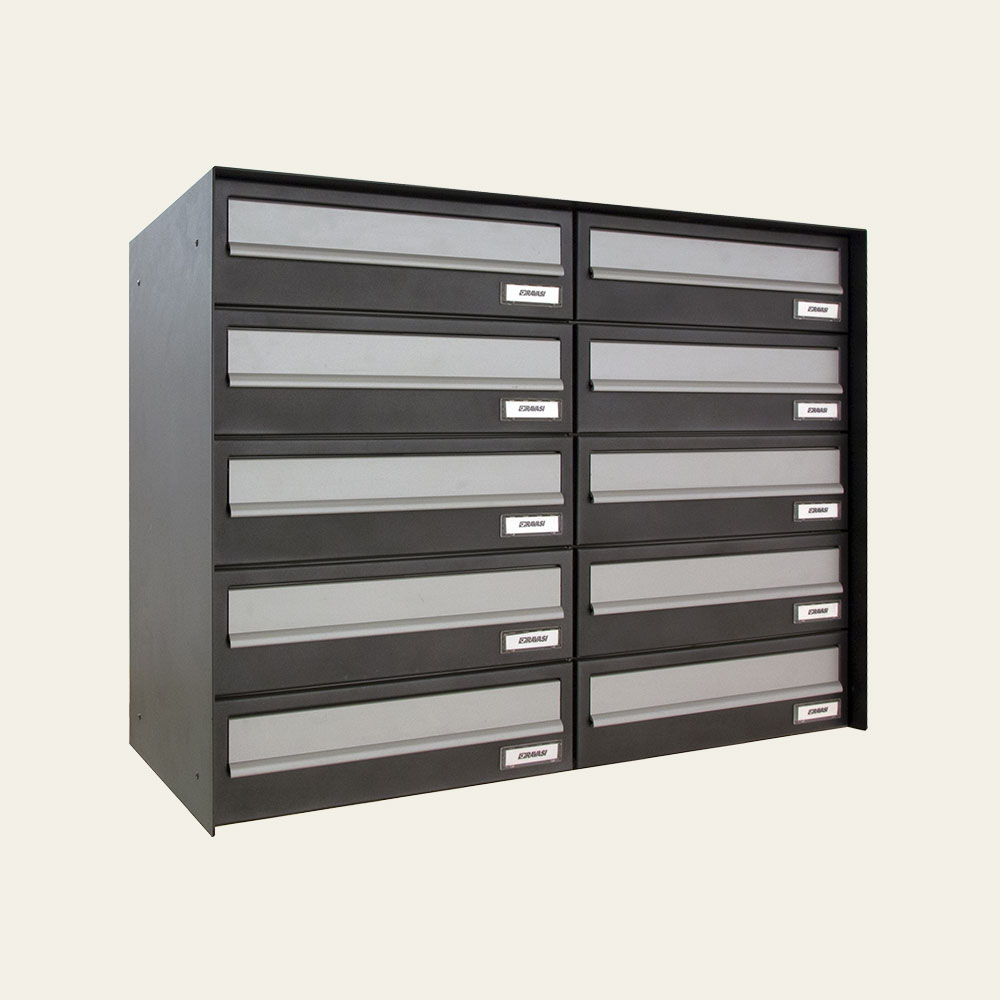

OUTDOOR MAILBOX MOD. EURO37P – MOD. EURO26P
OUTDOOR MAILBOX MOD. EURO37P – MOD. EURO26P
Mailboxes pursuant to European Regulation EN13724. Manufacturing entirely in steel, an artisan production, expertise and the use of modern technology render Ravasi’s EURO mailbox range truly state-of-the-art.

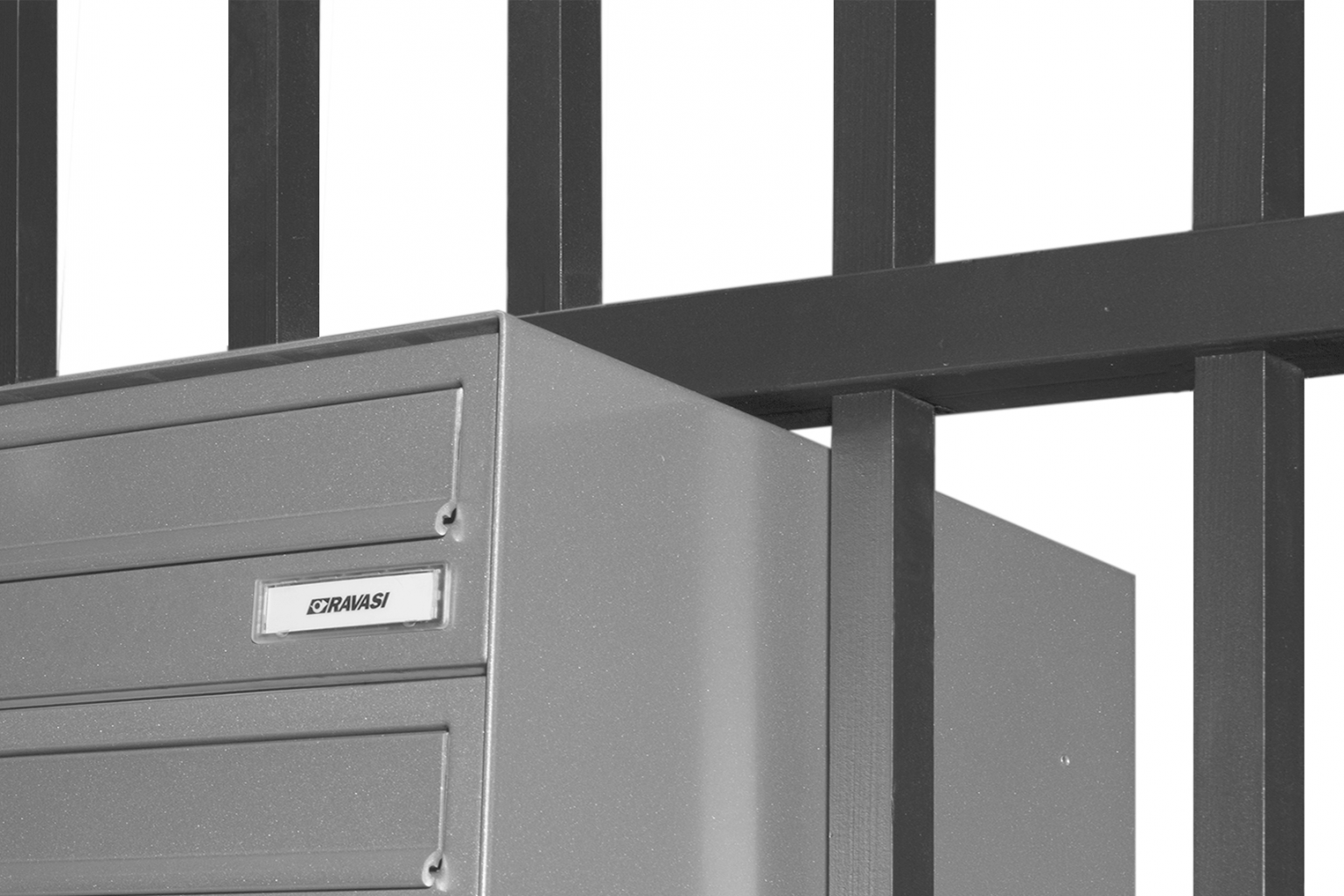

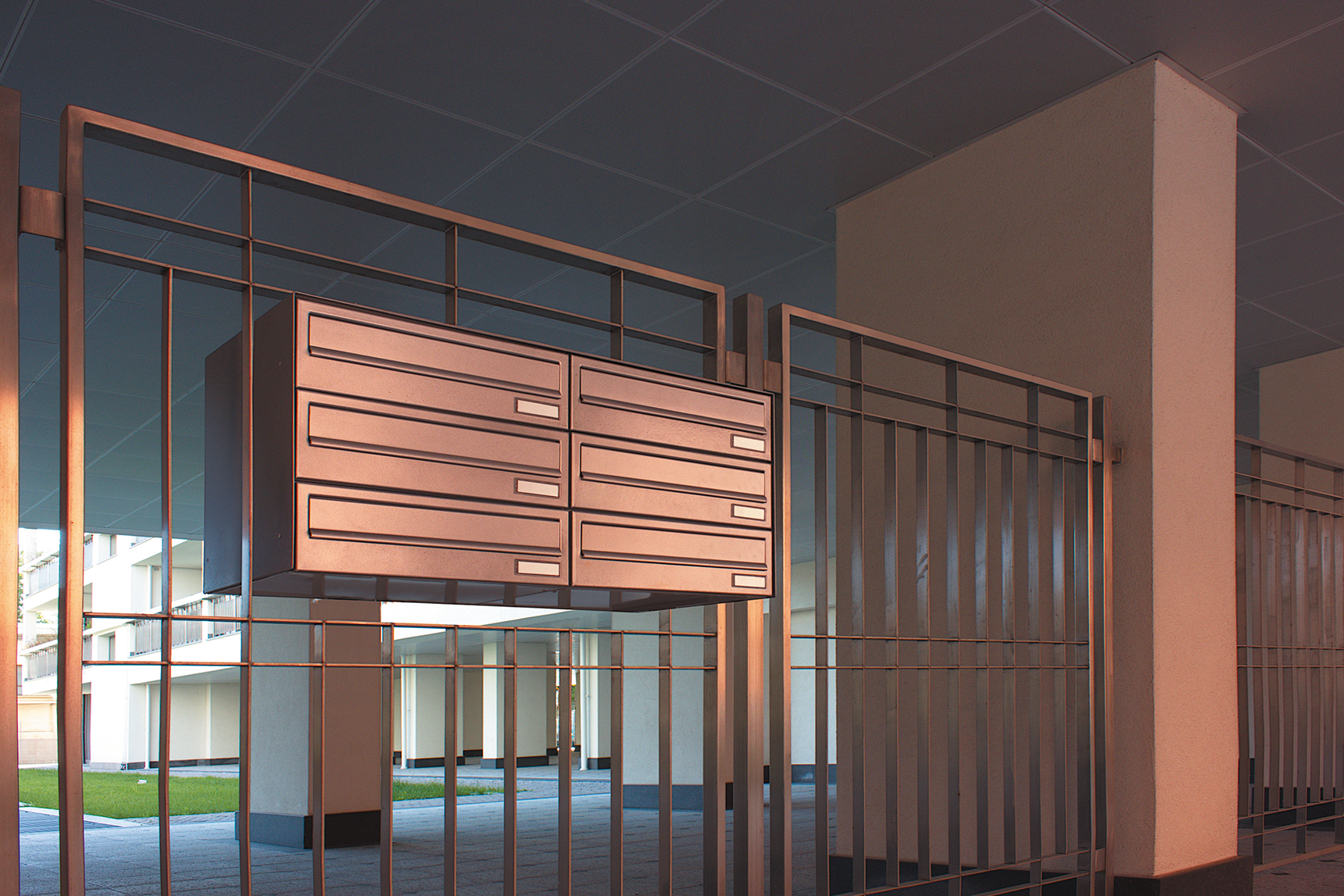

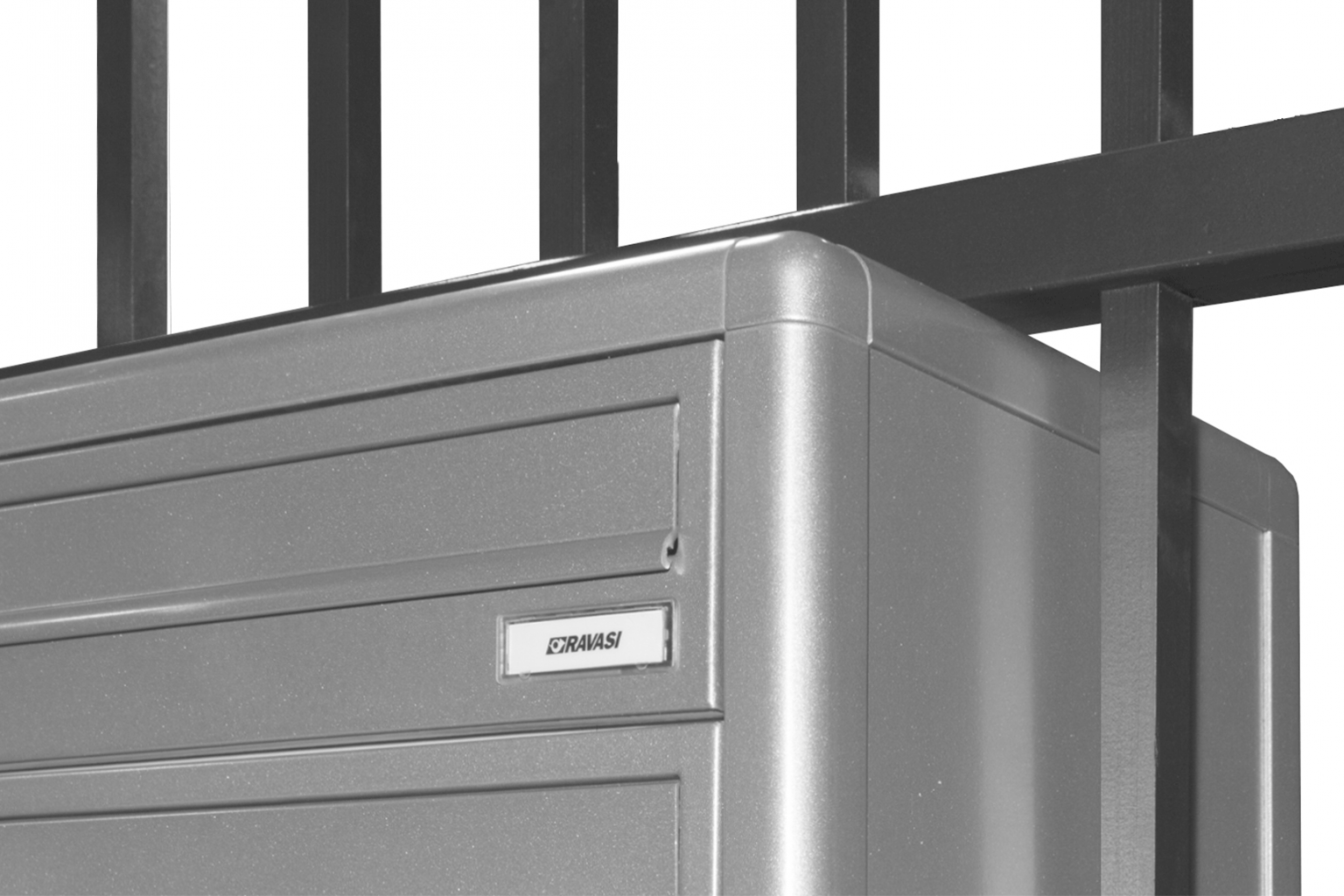

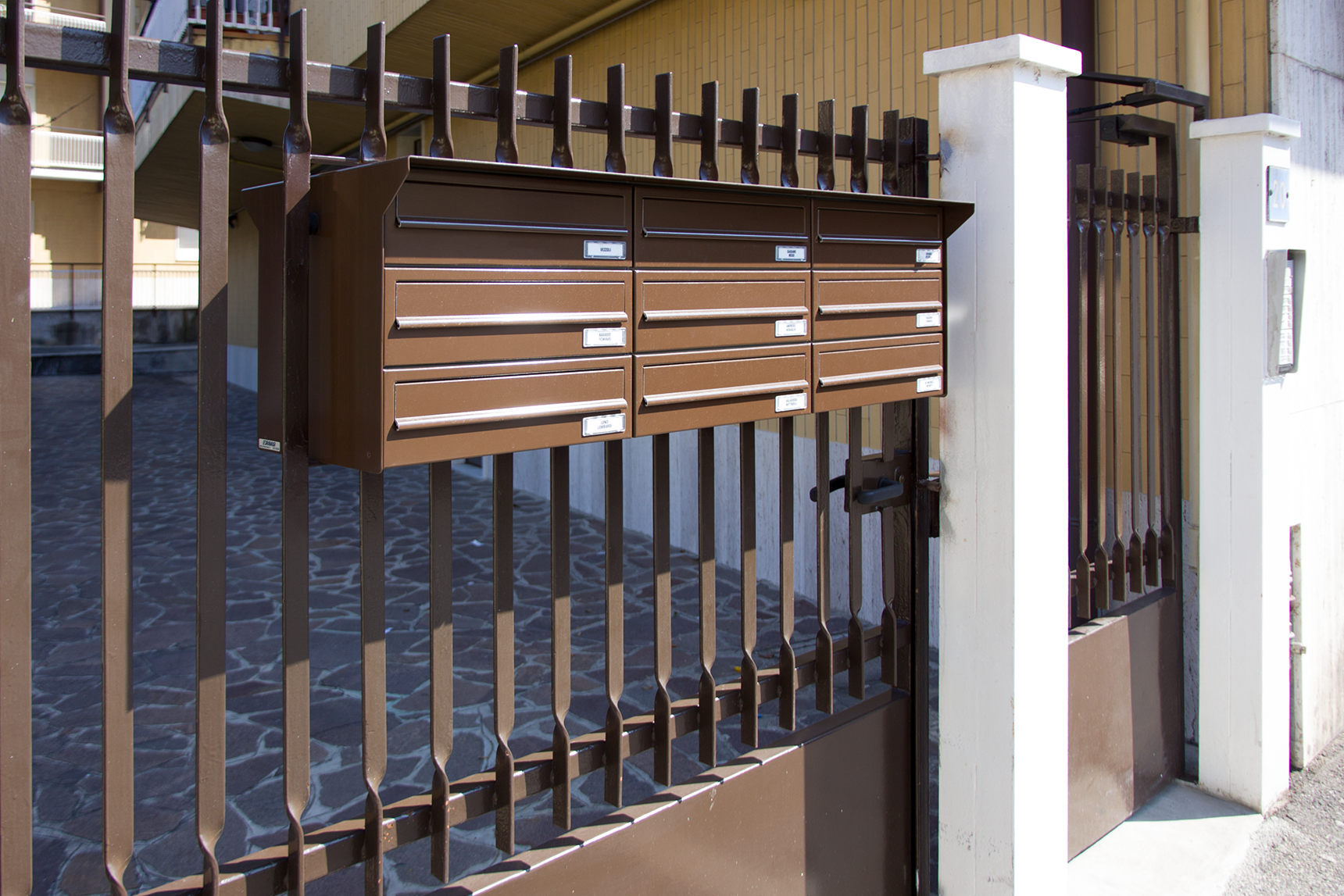

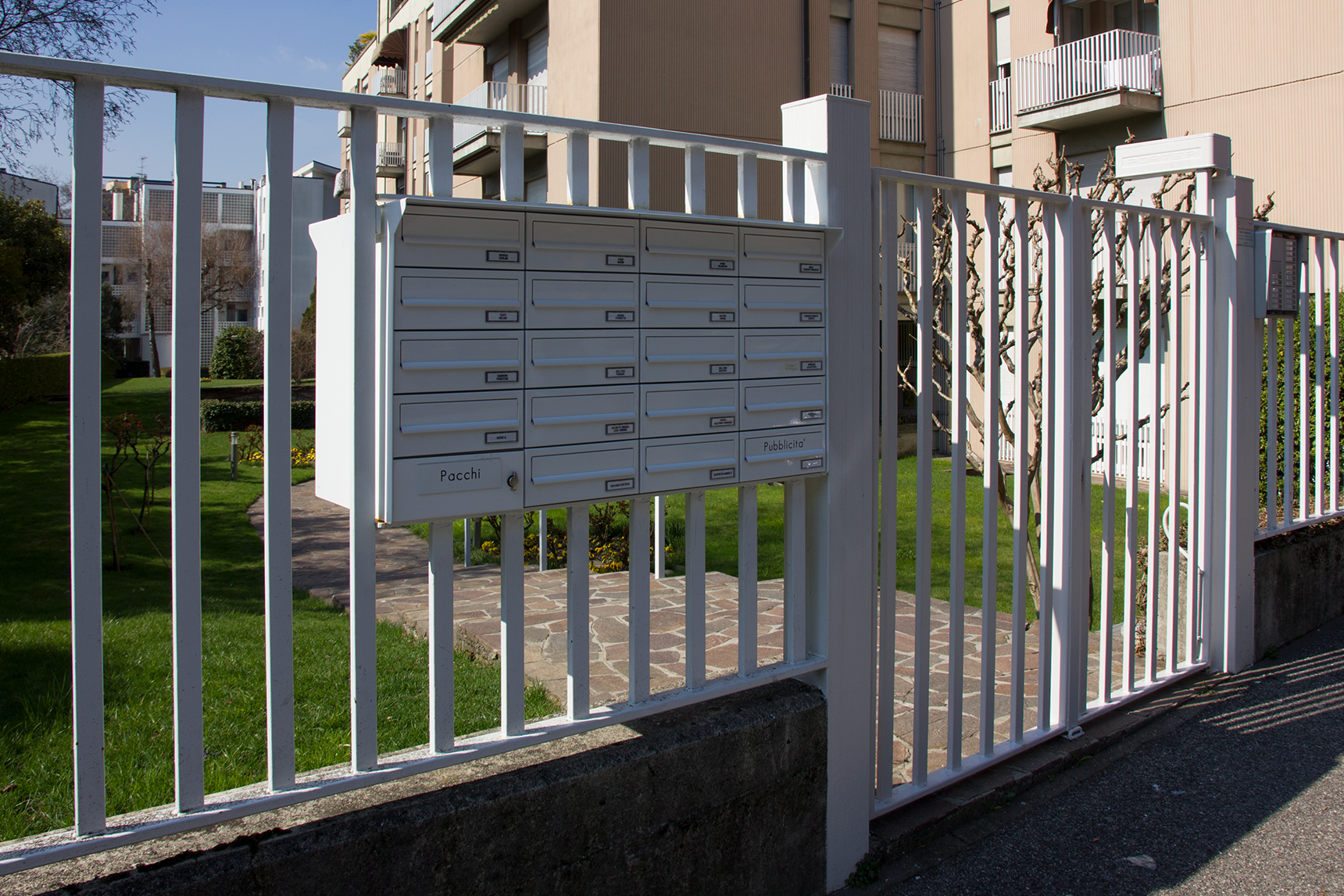

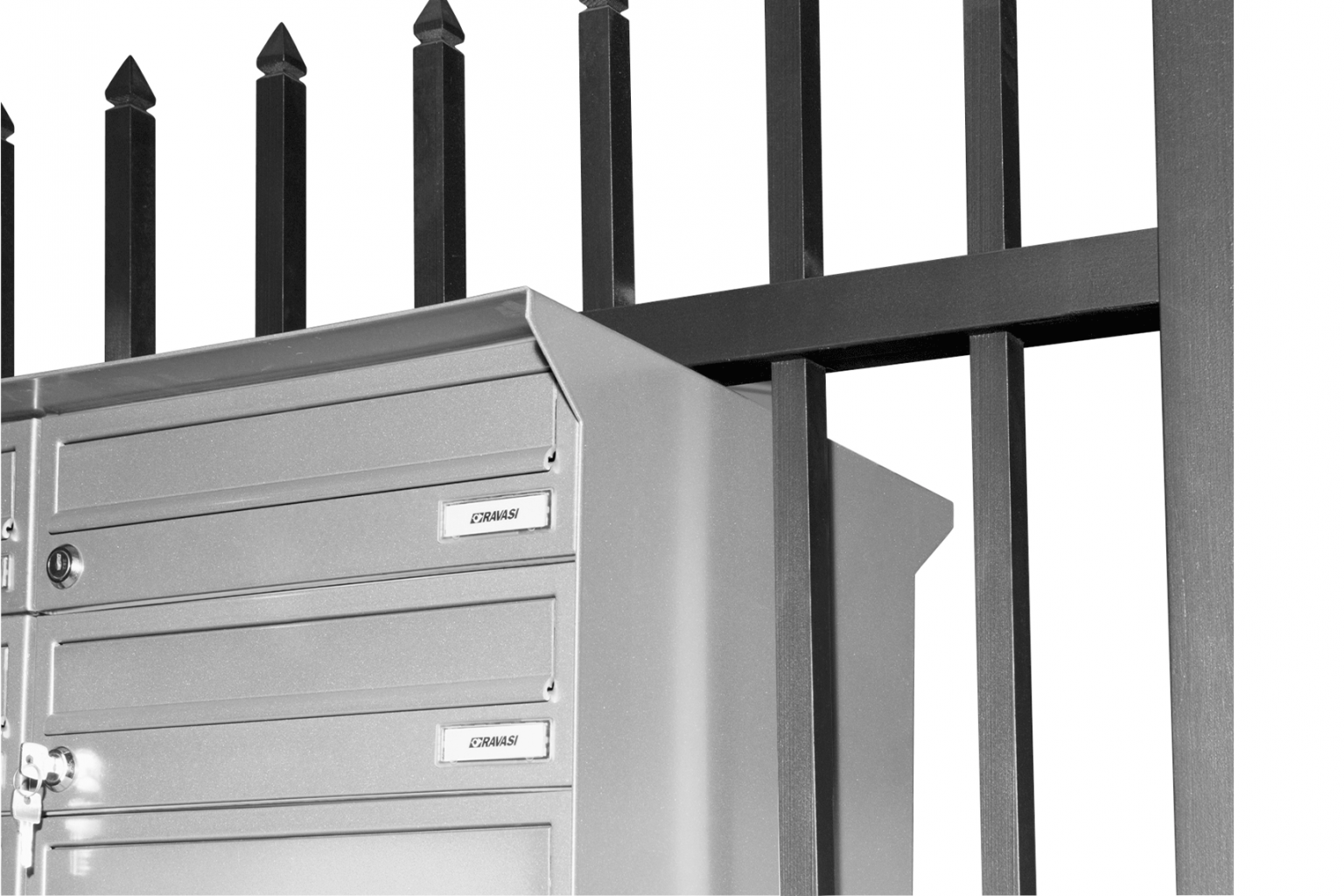

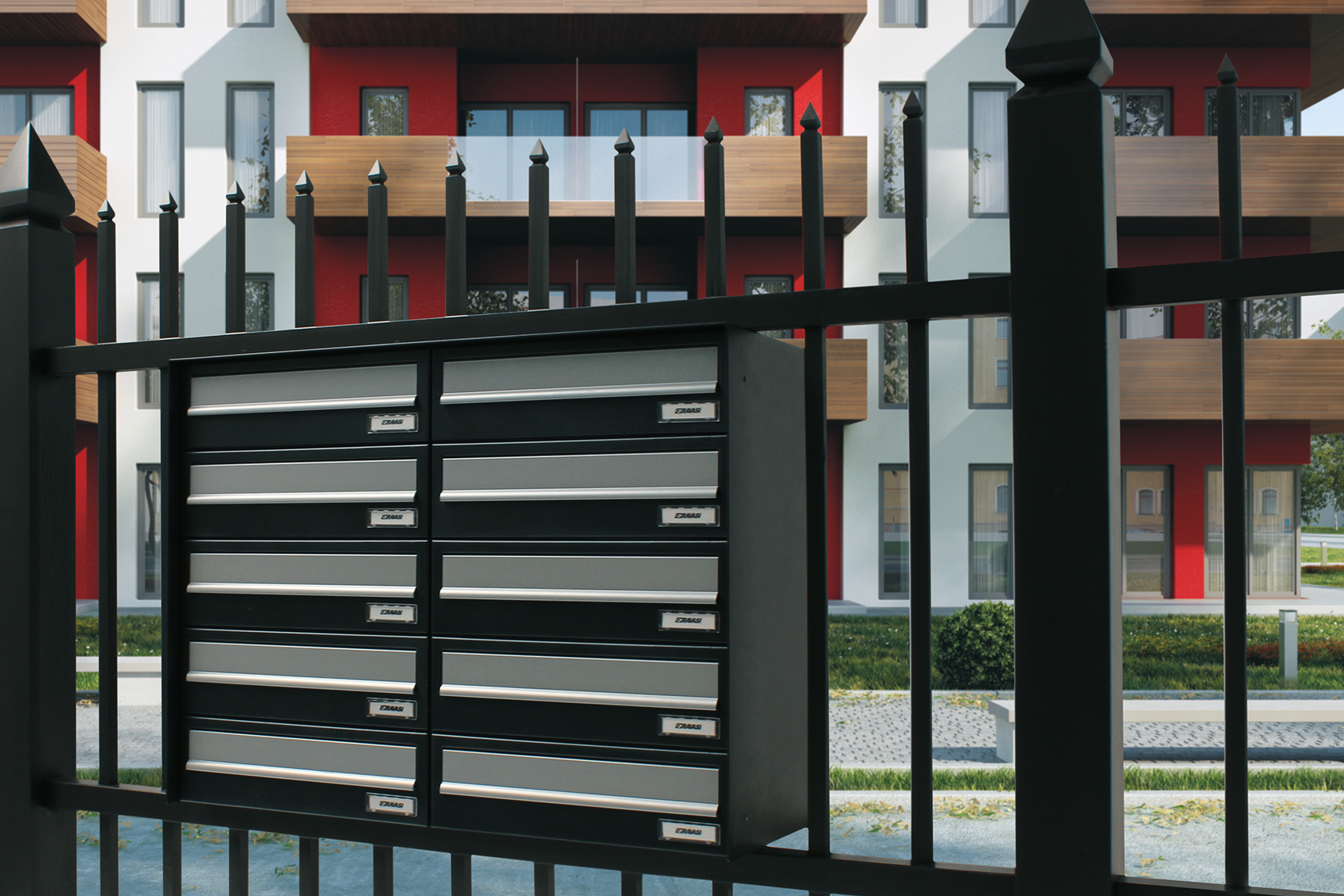

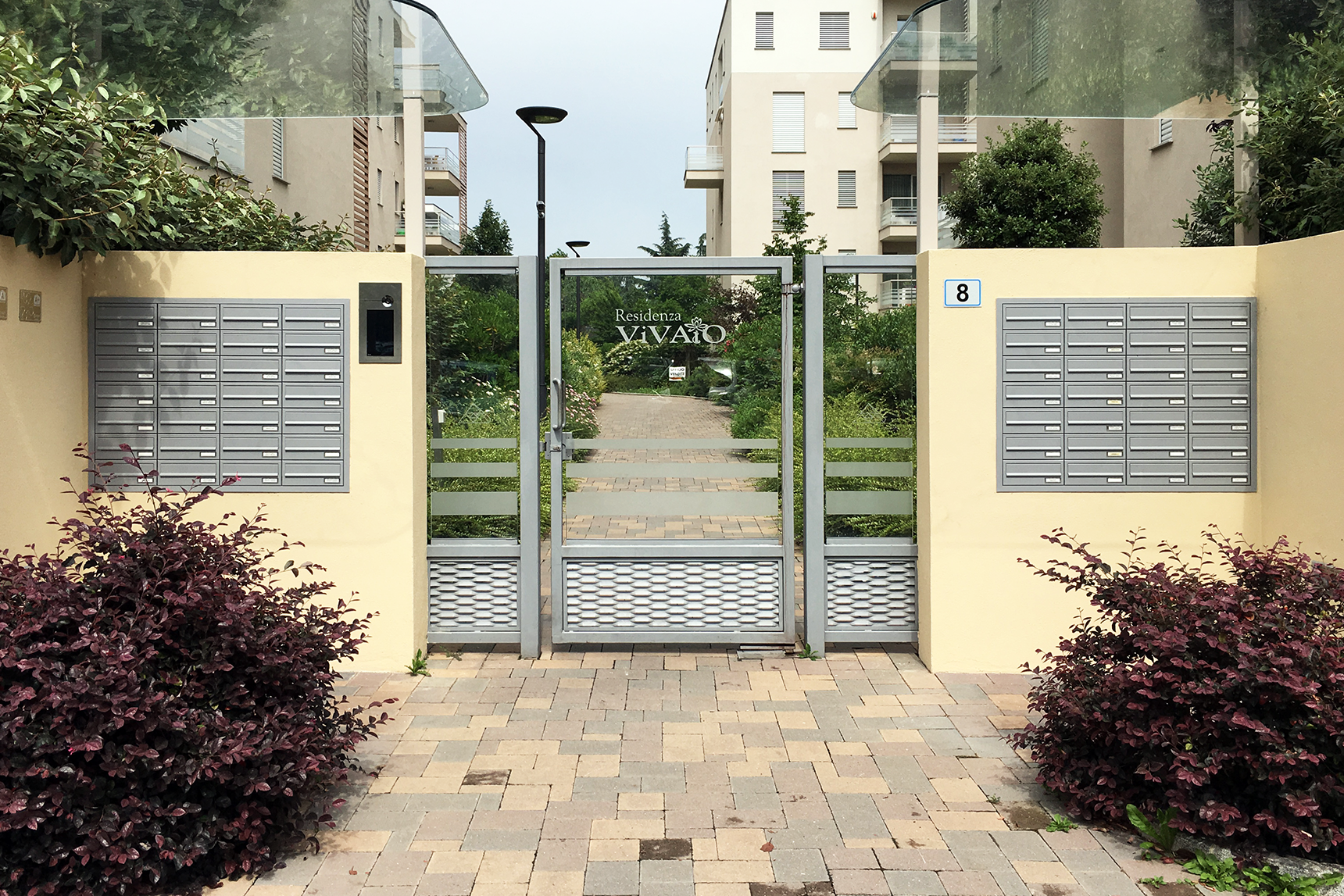

Horizontal model with mail insertion and retrieval on opposite sides. A practical system that allows mailboxes to be installed through walls, gates or door or window frames, to store mail safely and conveniently on the property, preventing any intrusion of strangers from outside.
information
BRAND
Ravasi
PRODUCT TYPE
Outdoor Mailbox
STRUCTURE
Galvanised and varnished steel sheet structure.
HORIZONTAL MODEL
Horizontal model with mail insertion and retrieval on opposite sides
COLLECTION
Mailbox
PRODUCTION
Made in Italy
DOOR
The inner side (for mail collection) has a folding door made of galvanised, painted steel sheeting and security lock with 2 keys.
DOWNLOAD
↓ Data Sheet
DESIGN
Classic elegant mailbox design
DOOR
Aluminium door with viewpanes

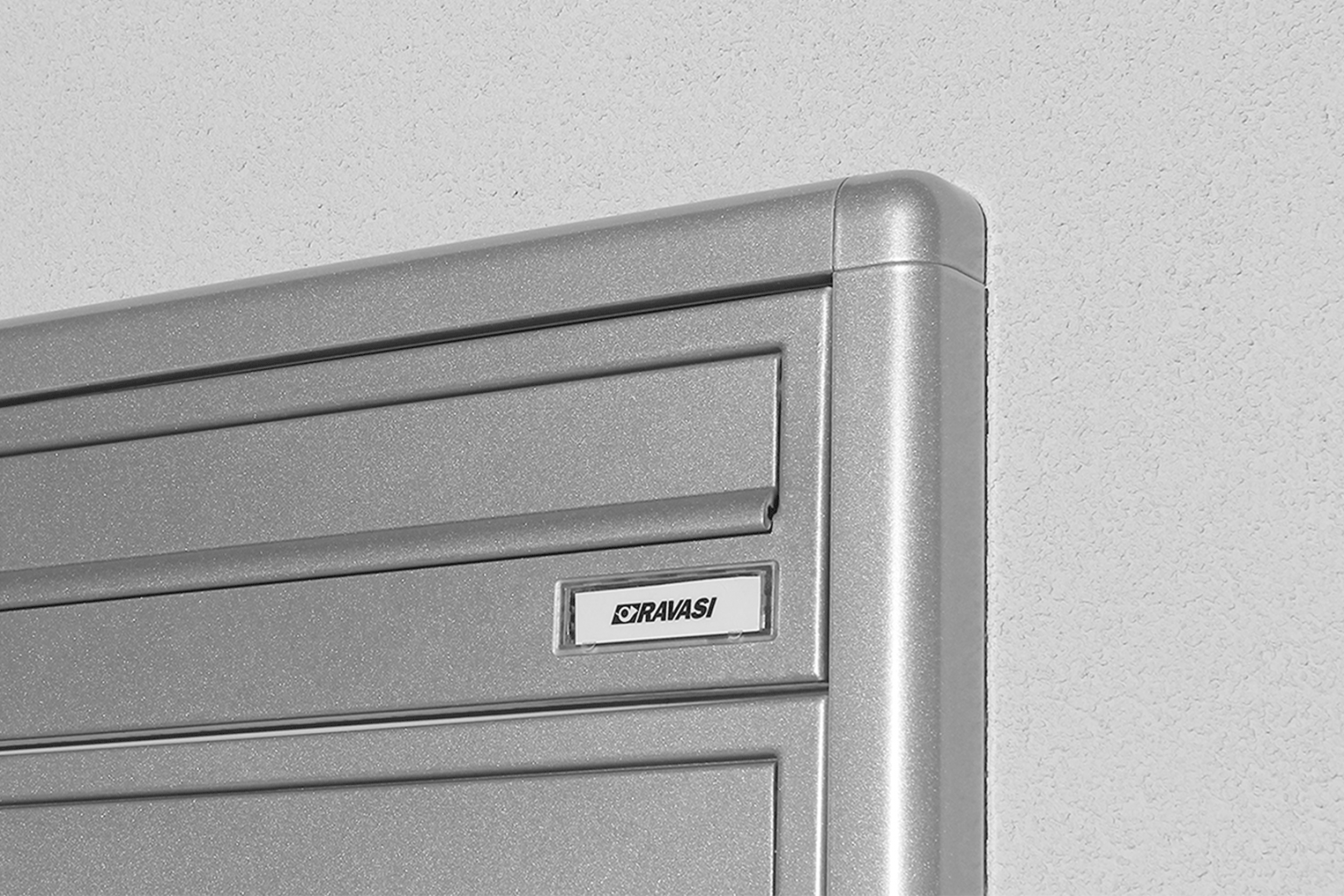

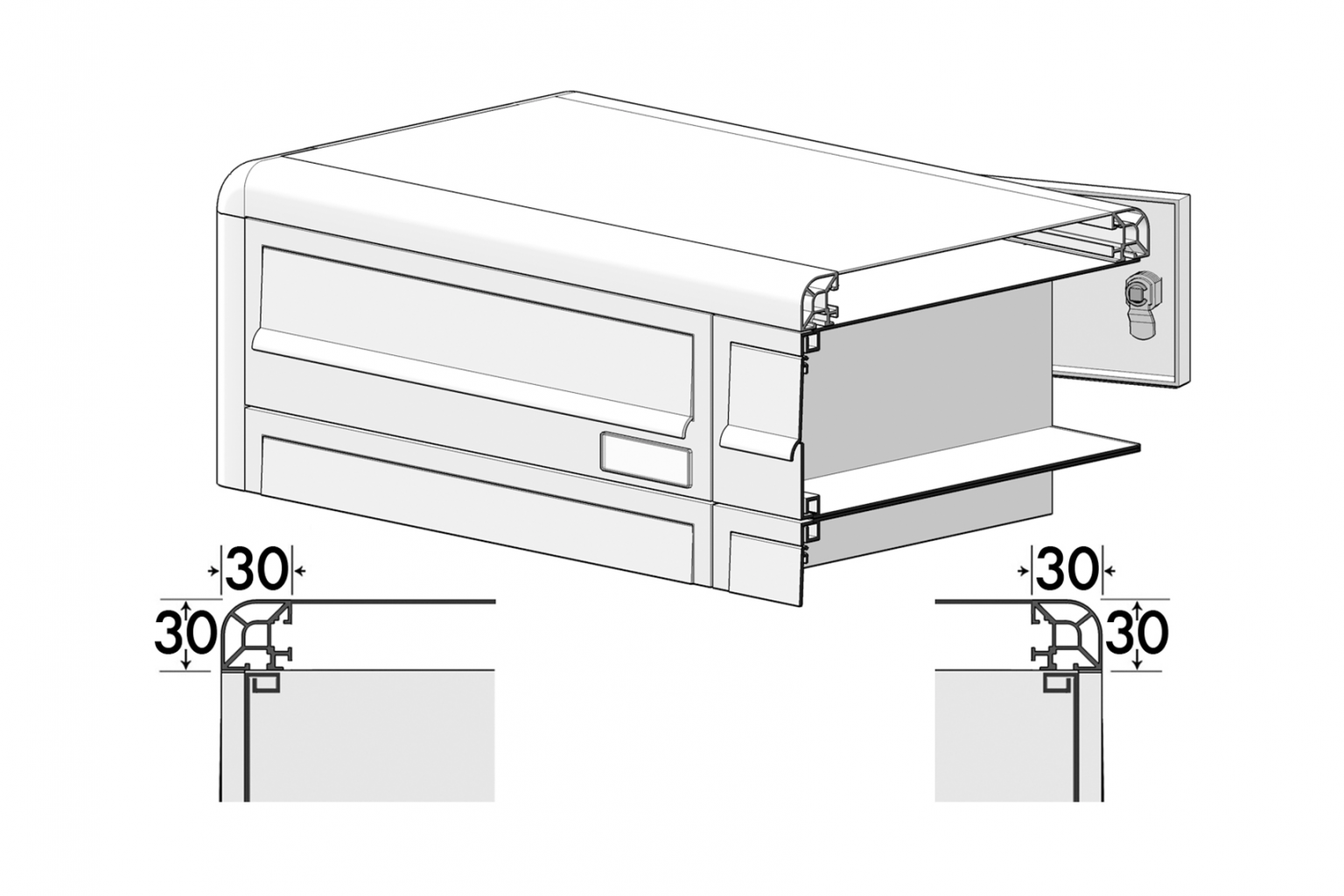

THICK ALUMINIUM

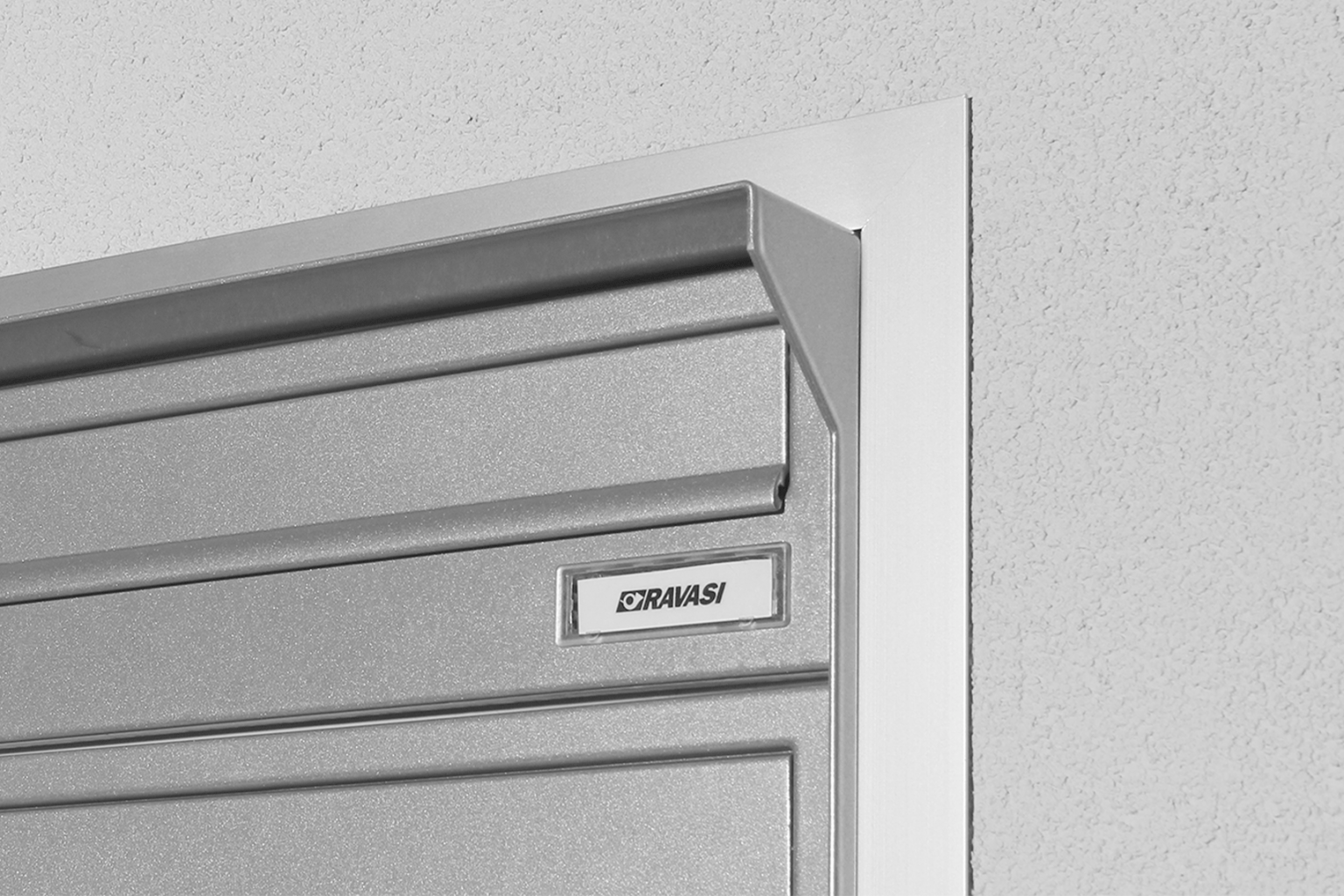

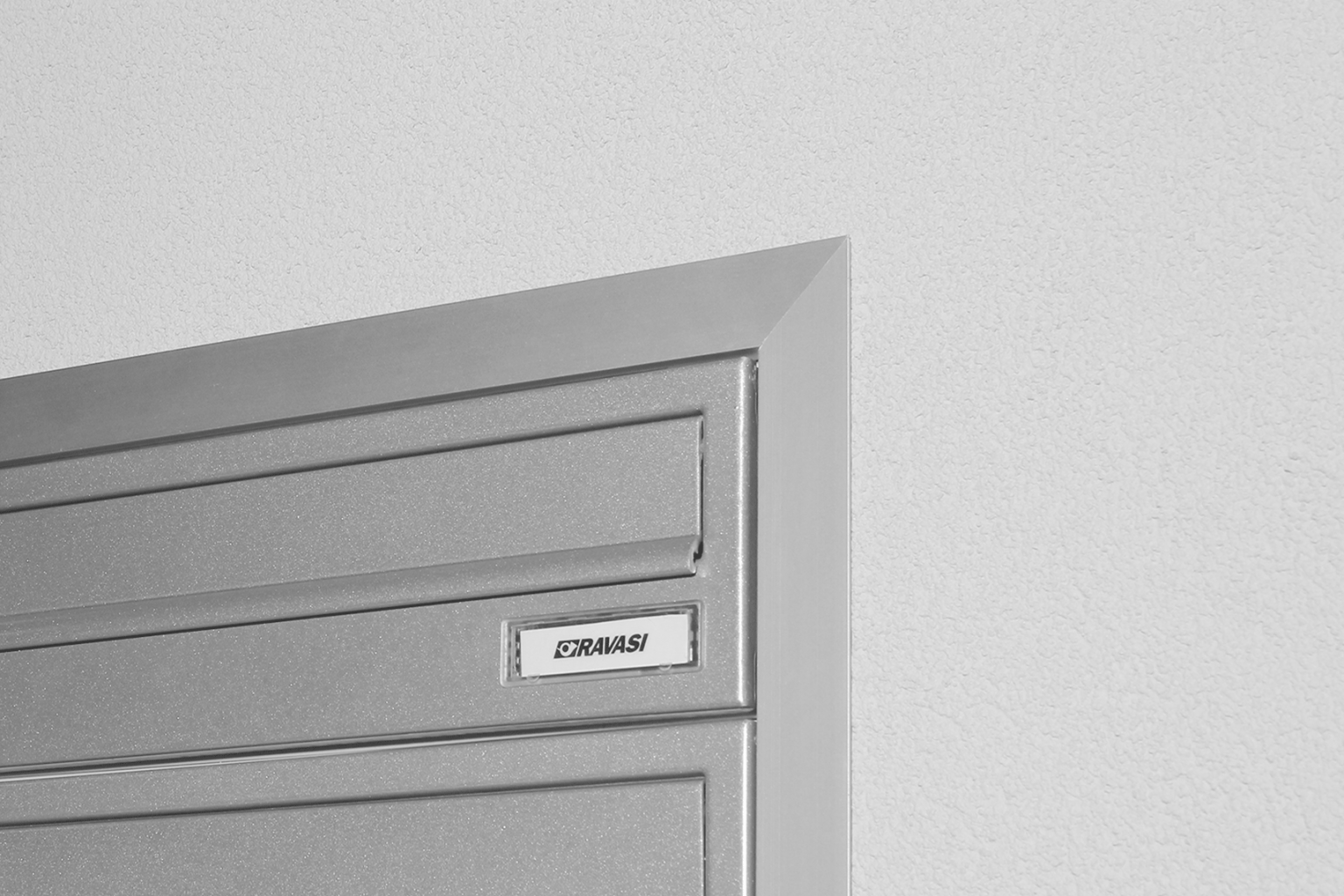

Edges, profiles, finishes and casing in thick aluminium.
OUTER SIDE
The outer side (for mail insertion) is in galvanised, painted steel sheeting with a slot protected by an extruded aluminium flap, bearing a vandal-proof name holder.

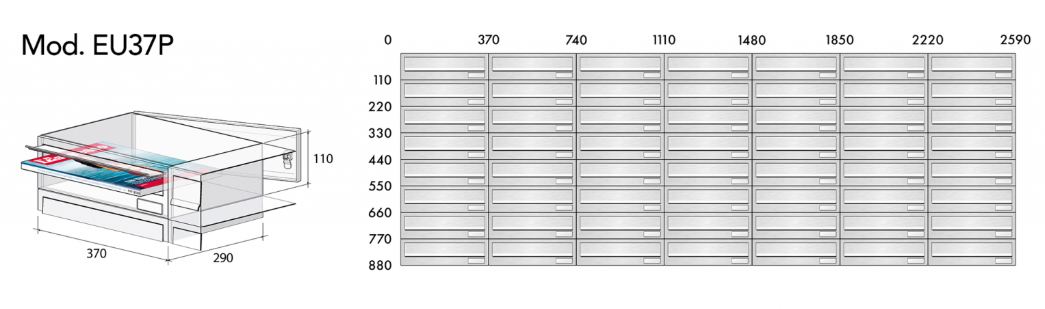

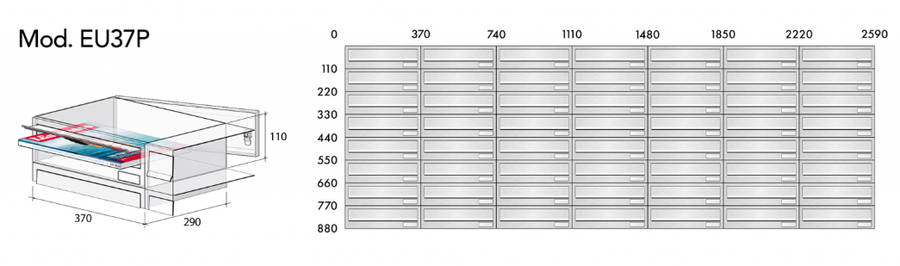

DIMENSIONS
DIMENSIONS (MOD. EU37P)
- Width : 370 mm
- Height : 110 mm
- Depth : 290 mm
DIMENSIONS (MOD. EU26P)
- Width : 2590 mm
- Height : 880 mm
- Depth : 290 mm
STANDS AND SUPPORTS
STANDS AND SUPPORTS
Epoxy powder-coated steel supports are characterised by their solidity and simple design, being dimensioned according to the mail drops to be supported.

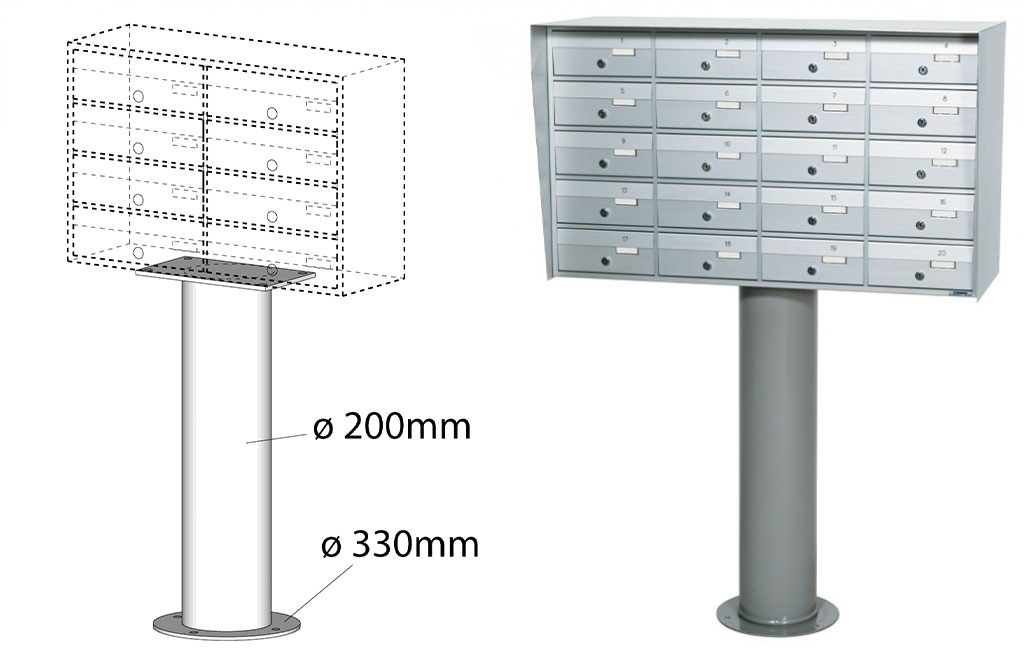

EX POST
Round tubular post ø 200 mm. Base ø 330 mm with 3 fastening holes.

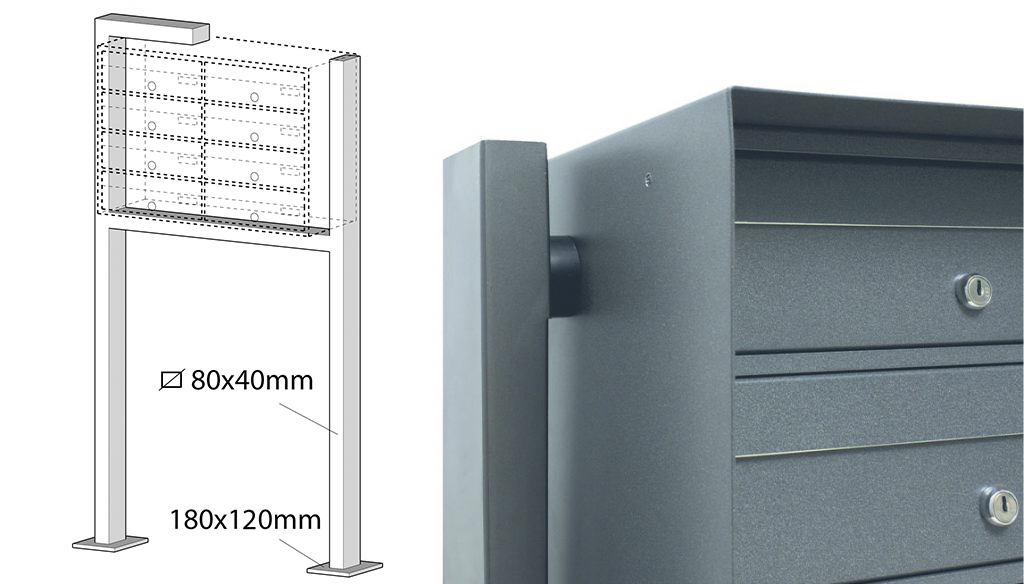

SQUARE TUBE SUPPORT
Rectangular tube support with a profile of 80×40 mm with a base of 180×120 mm Can only be made vertically or perimeteral to the mail drops.

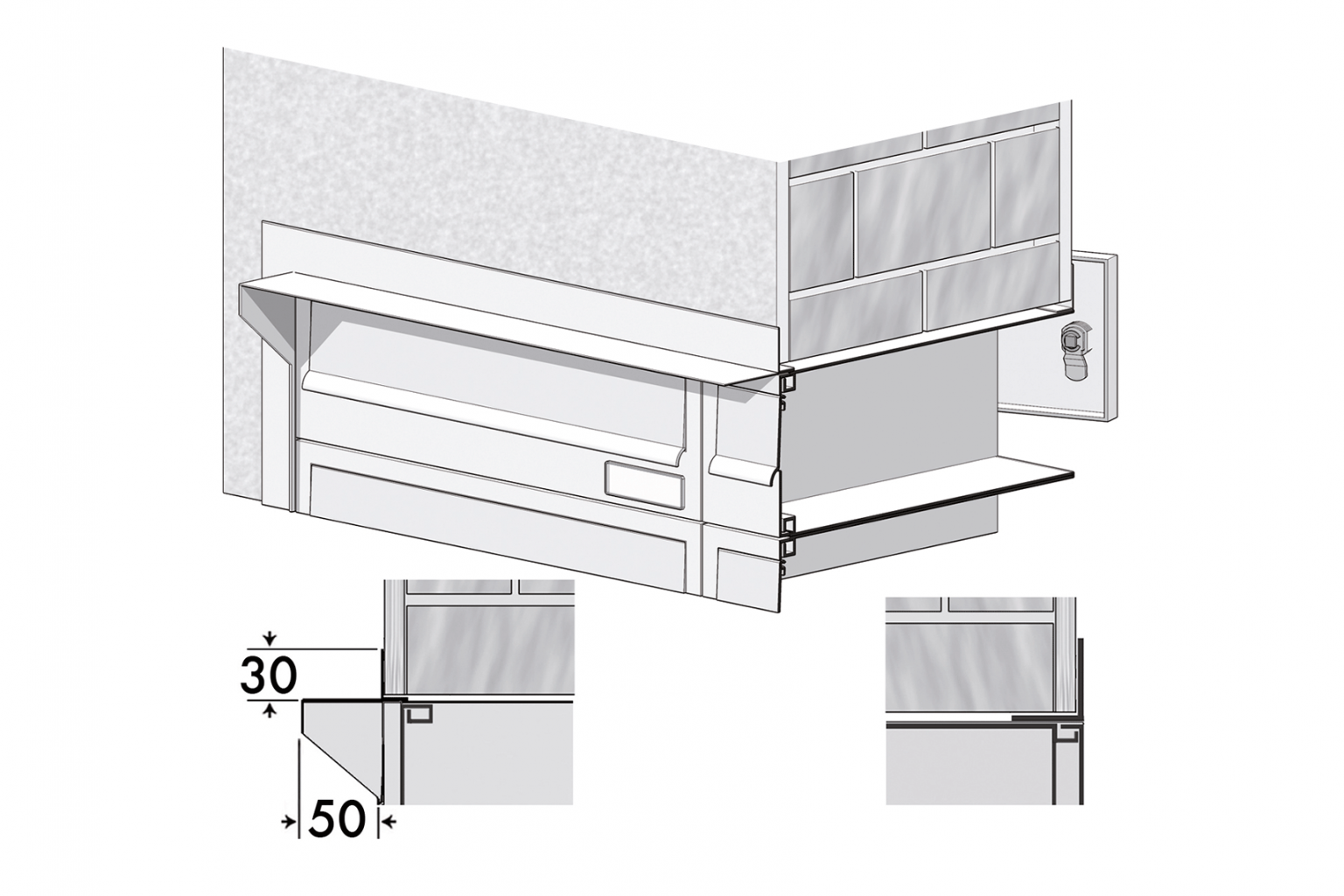

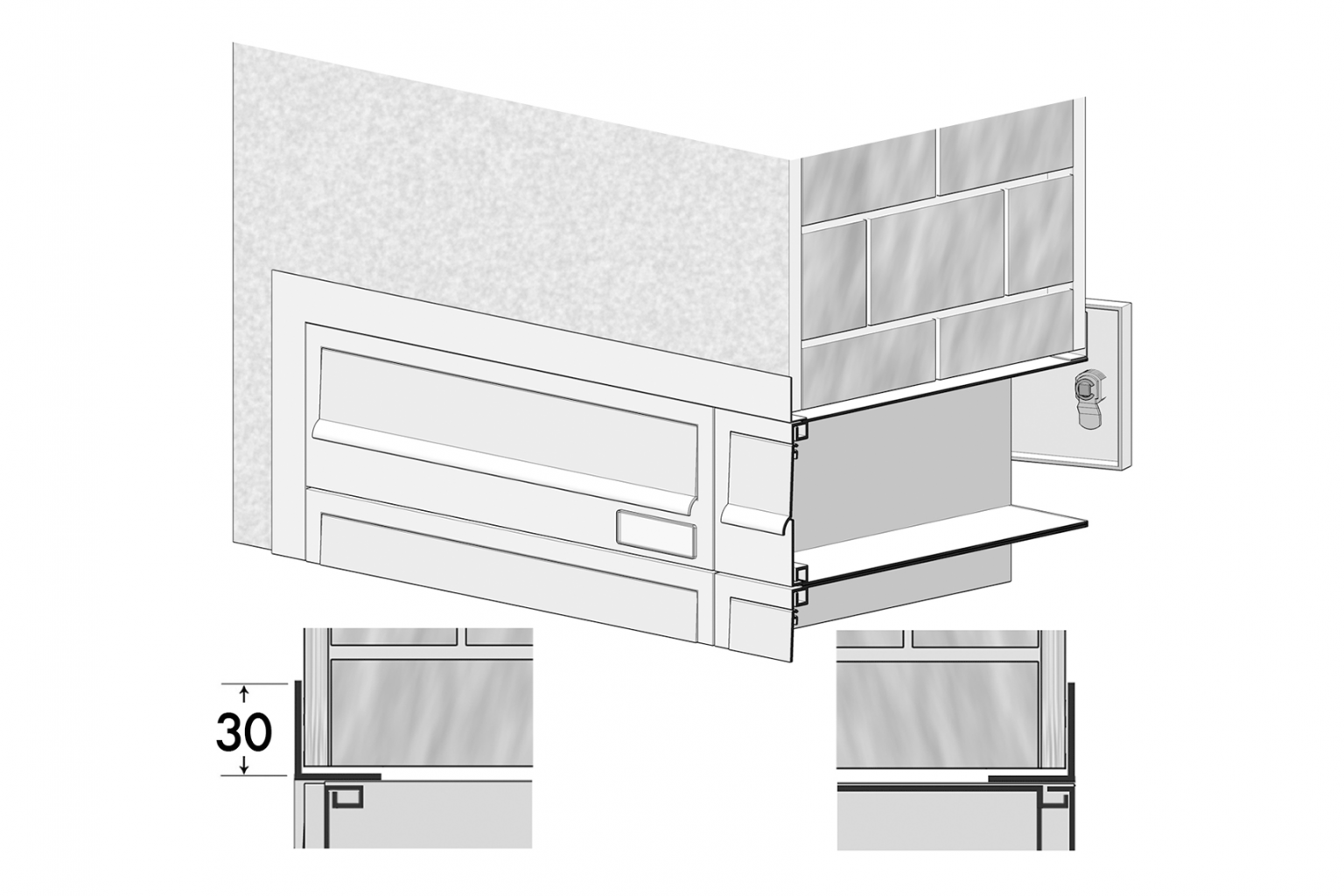

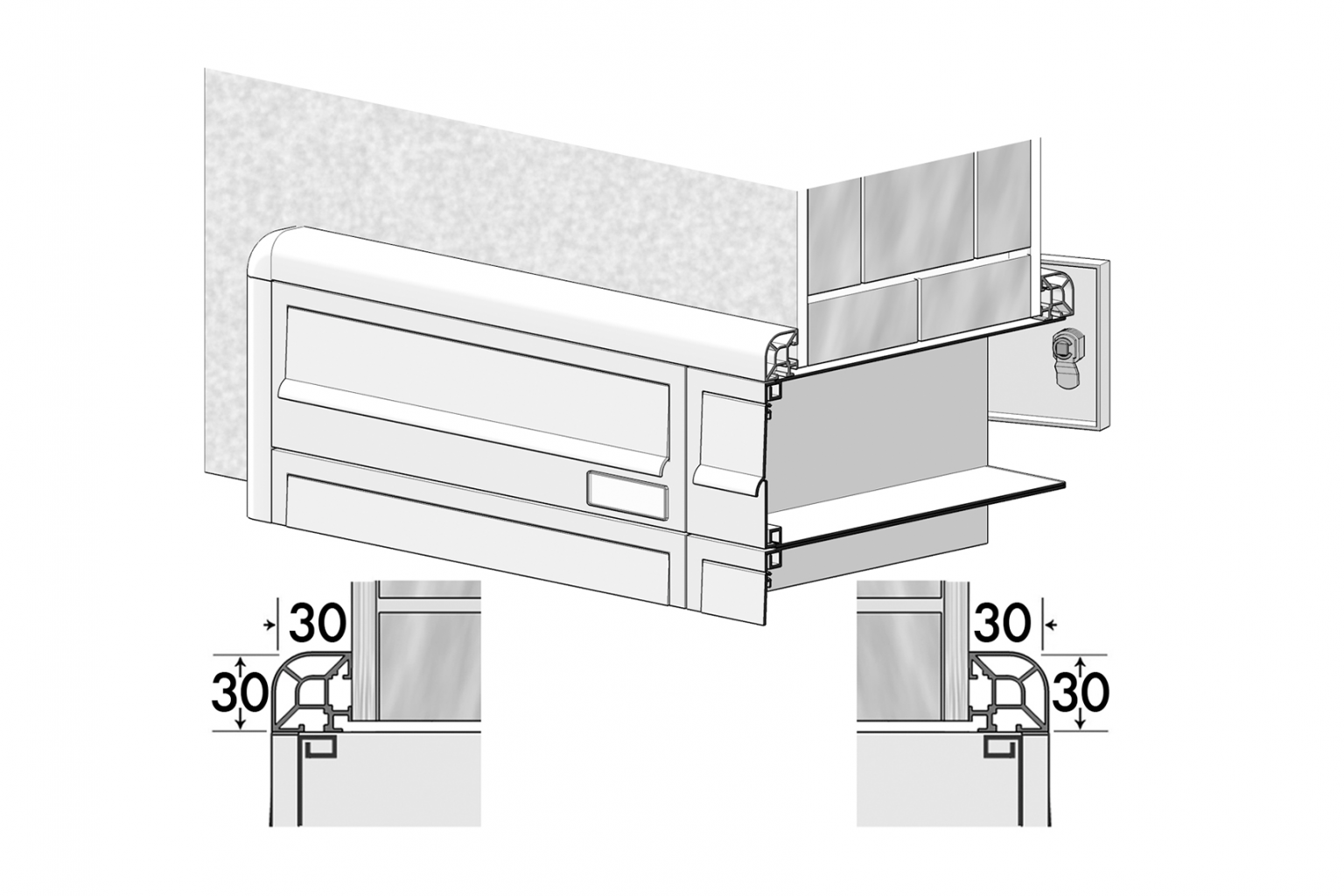

CONSTRUCTION VERSIONS

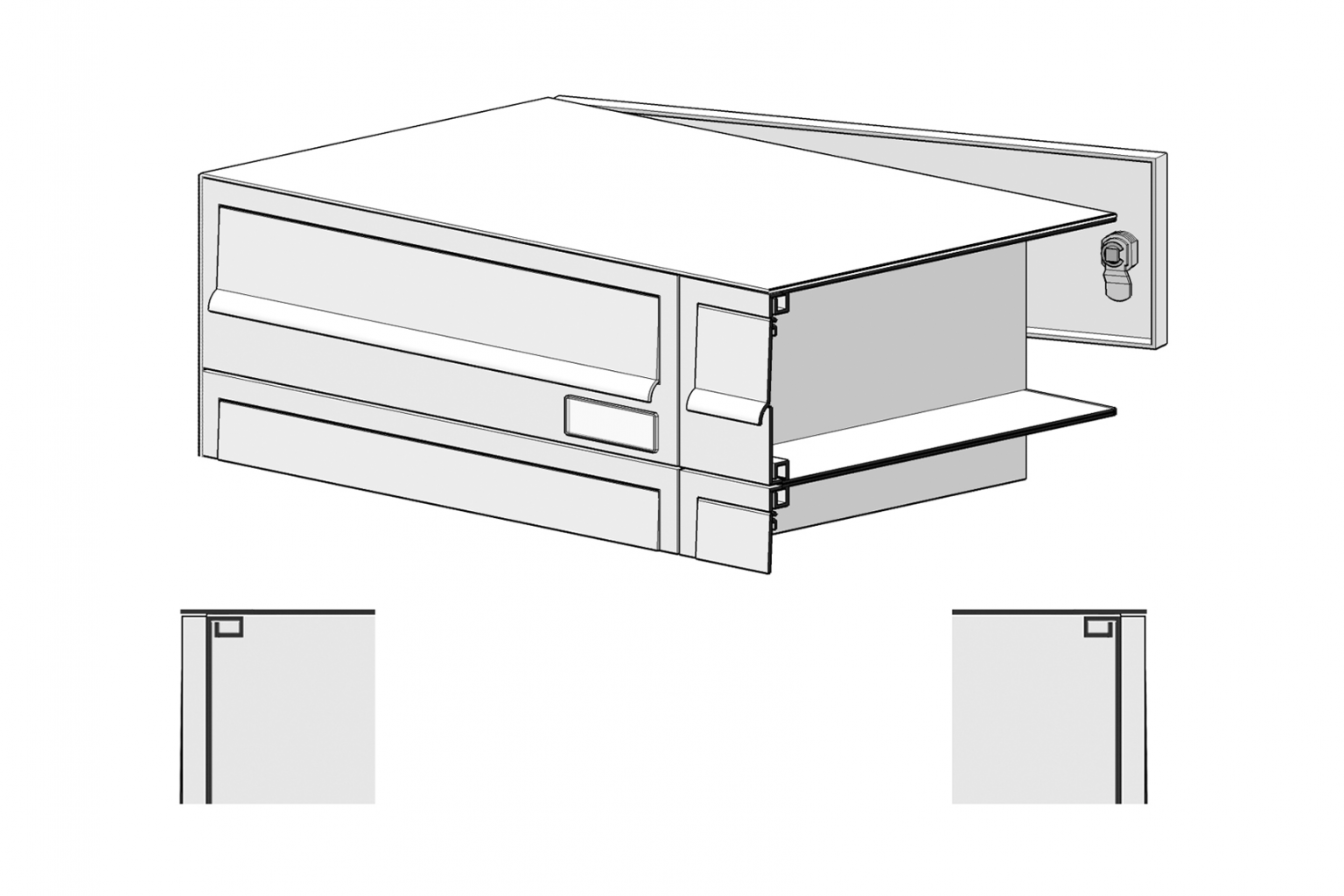

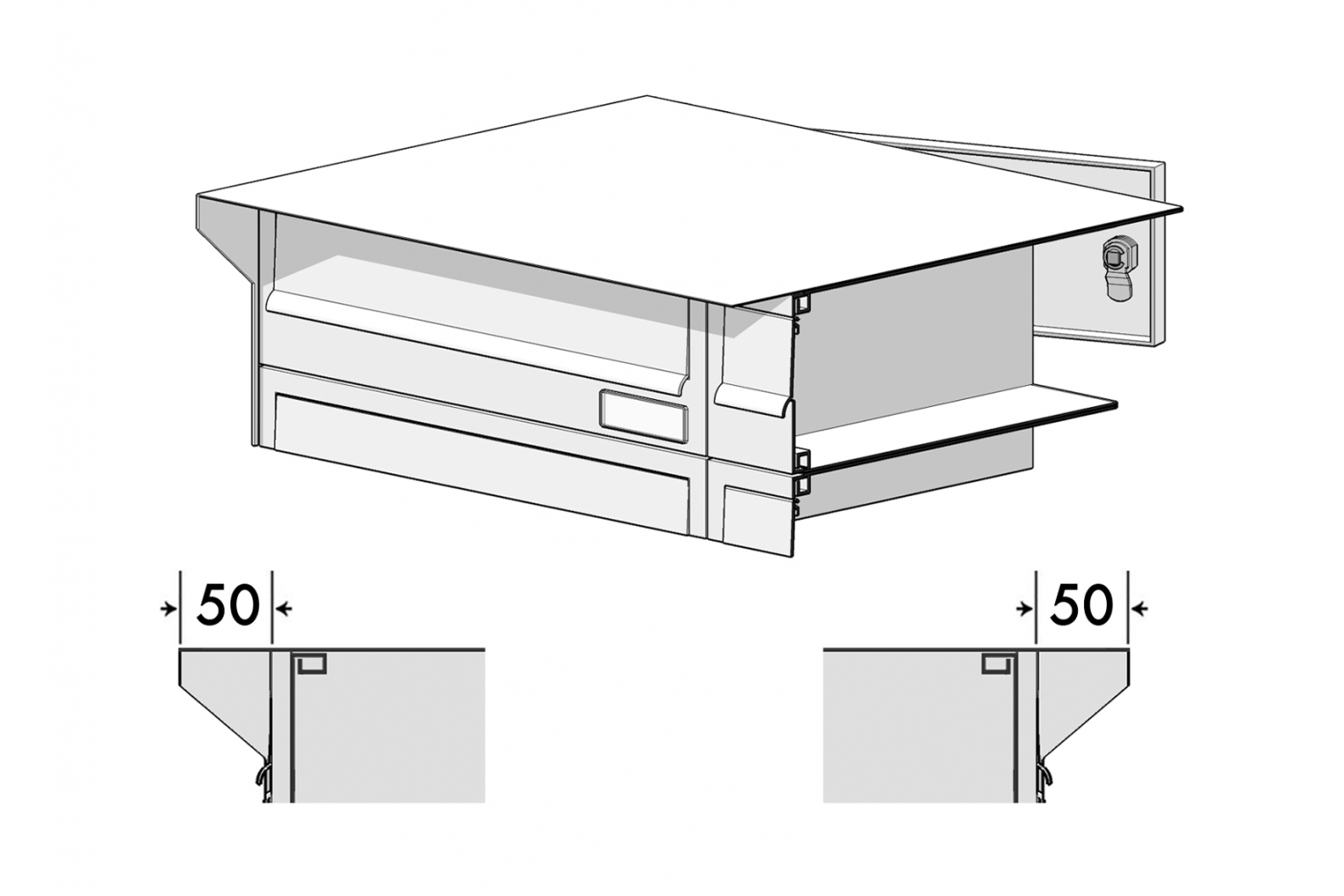

VERSION 0
VERSION 0-BT
VERSION 1
VERSION 2
VERSION 3
VERSION 4/5
ACCESSORIES
ACCESSORIES
Ravasi mailbox units can be completed with a wide range of accessories according to their specific design and surroundings.

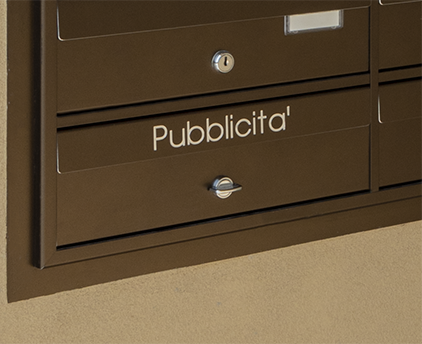

ADVERTISING BOXES
In order to collect advertising and prevent it from being scattered around the entrance, integrated junk mail receptacles are available in single, double or triple the size of standard boxes, harmoniously integrated into the design of the mailboxes themselves.
ALUMINIUM SHELVING UNITS
Shelves are available on request to be added to the pedestals created with aluminium profiles bearing rounded vertices and edges. A practical accessory that further enhances the mail drop area.

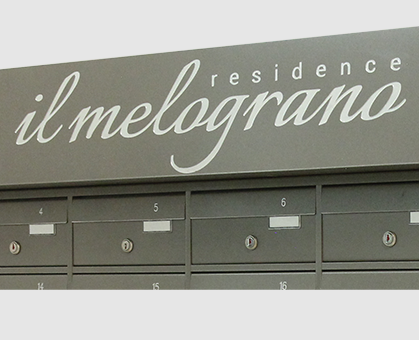

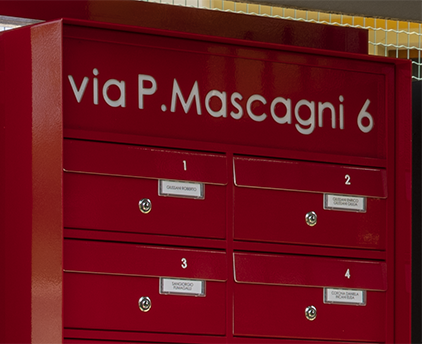

ENGRAVINGS
A further aesthetic choice offered by Ravasi is lettering engraved in a font of your choice and with a finish that stands out on the mail drop, elegantly integrating with and personalising the collection point.
BACKLIT INSCRIPTIONS
An exclusive solution factoring in image and modernity is achieved with the inscriptions that Ravasi produces on aluminium panels, with characters of your choice, perforated and backlit, all to create impressive results.

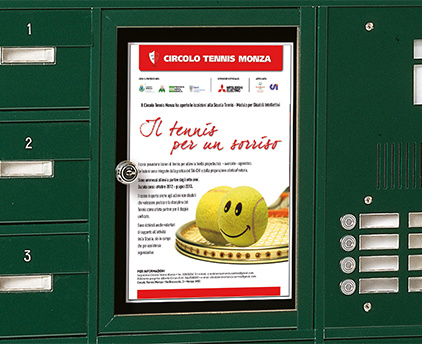

NOTICEBOARDS
Elegantly integrated into the design of the mail drop, these noticeboards have a magnetised base for posting signs plus a lockable transparent Plexiglas door. A useful and functional accessory.

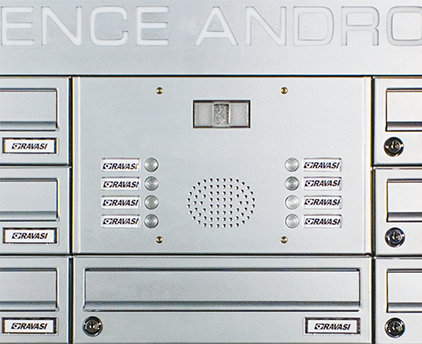

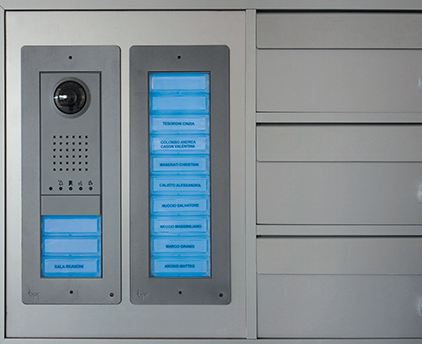

INTEGRATED VIDEO DOOR-PHONE
An important option is the possibility of adding a personal digital video door-phone panel through which to communicate the brand and characteristics. A dedicated housing can be created with a suitably perforated aluminium panel.
INTERCOMS
In order to extend the function of the mail drop, Ravasi offers its analogue intercom panels compatible with all commercial systems and with dimensions modular to the mailboxes. This intelligent solution customises the mail drop area and renders it more exclusive.
