Venesta Prison Toilet Bathroom Panels
PRISON TOILET BATHROOM PANELS
PRISON TOILET BATHROOM PANELS
Designed to suit the specific needs of custodial environments, our strong and durable Prison toilet cubicles feature robust core materials and fittings as standard to ensure the safety of inmates and staff.
INFORMATION
DURABILITY AND SAFETY
Floor to ceiling posts fitted to the floor with anti-tamper fixings for added durability and safety
BRAND
Venesta
PRODUCT TYPE
Bathroom Panels
REDUCED DOOR
Reduced door heights as standard for staff supervision, where necessary.
MAXIMUM HEIGHT
1500 mm
FLOOR CLEARANCE
150 mm
MAXIMUM DEPTH
1900mm
CUBICLES
Emergency release indicator bolts for user safety, allowing quick and safe access to inside locked cubicles.
FITTINGS
All fittings provided are security fixings to suit the environment
CUBICLE SIZES
Fully customisable cubicle sizes to suit your specific brief.
CONTINUOUS
Continuous satin anodised aluminium floor to ceiling posts for added cubicle strength and rigidity.
FIXINGS
- Partition to wall: Satin anodised aluminium angle.
- Pilaster to partition: Satin anodised aluminium floor to ceiling post with aluminium angles.
-Pilaster to wall : Satin anodised aluminium angle.
- Cubicle fixings: M6 pin torx security heads barrel bolts to pilasters and end panels.
PRISON CUBICLES
- Reduced door heights, at 1500mm FFL for staff supervision.
- Tamper proof emergency release indicator bolts as standard.
- Robust and secure fittings for maximum safety and security.
- Specify Prison cubicles in durable SGL, available in 34 finishes.
ROBUST
Robust fittings with unique safety features come as standard.
DESIGN
A choice of 34 laminate finishes for design flexibility
ENVIRONMENT
Ideal for demanding custodial washroom environments.
SGL
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
FLOOR TO CEILING POSTS
Satin anodised aluminium floor to ceiling posts with satin anodised aluminium effect floor fixings.
PANELS AND DOORS
Available in SGL.
EDGE TREATMENT
SGL: Polished black radiused edge.
COLOUR FINISH
- SGL: 34 colours from the standard range.
- Cubicle hardware: Satin anodised aluminium.

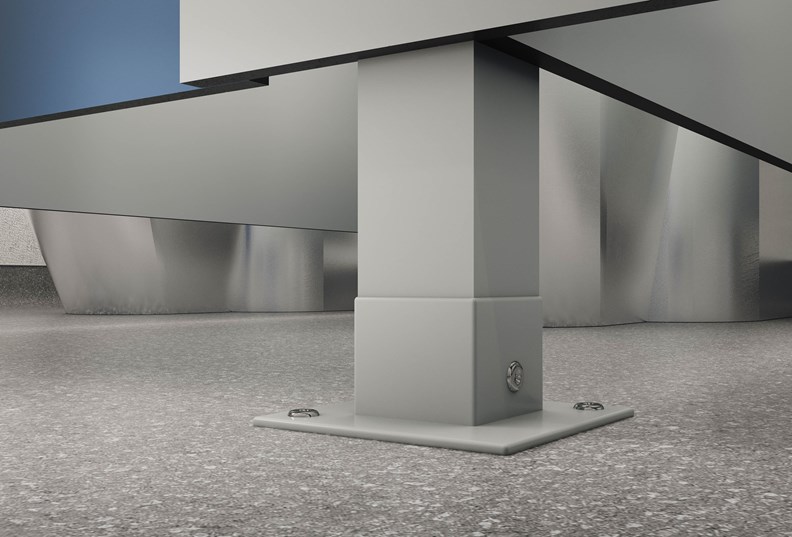

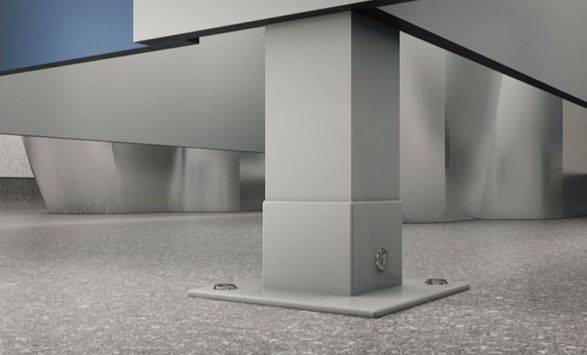

PEDESTAL
Rigid satin anodised aluminium floor to ceiling posts are fixed to the floor with security pan head screws.
SATIN
Satin anodised effect anti-finger trap hinges come as standard, to minimise trapped and crushed fingers
HINGE
Satin anodised aluminium effect anti-finger trap hinge.
SUITABLE
Suitable for use in wet and dry environments, including toilet and shower areas.

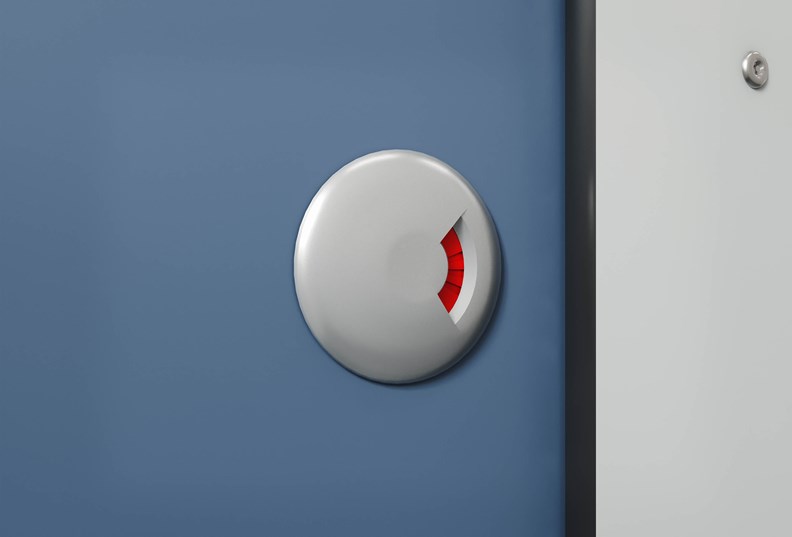

INDICATOR BOLT
Satin anodised effect powder coated zinc easy grip sliding bolt with emergency release facility and concealed fixings.
DETAIL

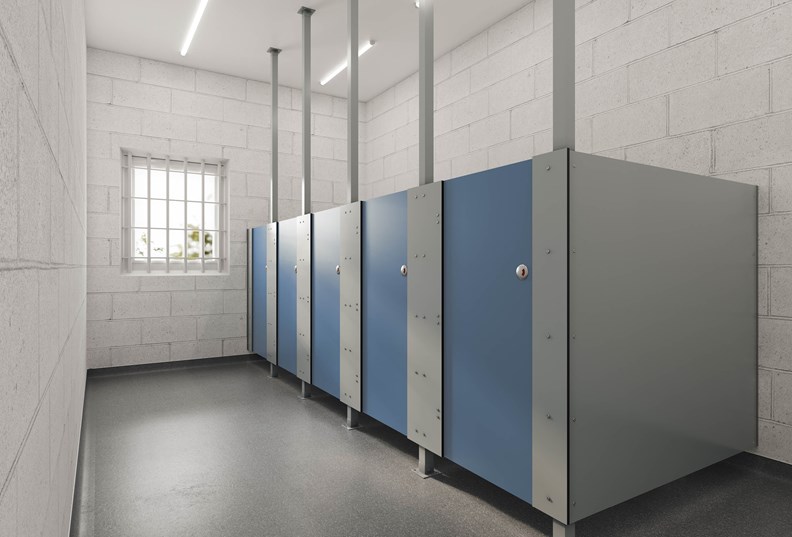

DURABLE CUBICLES FOR CUSTODIAL SETTINGS
Our tried and tested Prison cubicle range has been designed to be durable and robust, with materials and fixings that can withstand the harsh conditions of custodial settings.
Specially designed security fixings are used as standard throughout the range and help prevent unauthorised access or tampering, keeping inmates and staff safe.
Manufactured to your bespoke requirements, our strong Prison cubicles are available in 34 panel colours on Solid Grade Laminate (SGL) core board.
Manufactured from tough, 13mm SGL, our Prison commercial washroom cubicle range meets the most stringent specifications of durability and hygiene.
It's an impact, scratch and waterproof material that can be specified in both wet and dry environments, ideal for both toilet and shower cubicles.
So you can rest assured you will be specifying the most appropriate option to meet the site demands.
Strong and durable satin anodised aluminium cubicle hardware is standard across the range, adding to the rigidity offered by our Prison cubicles. The anodising process creates a hard, durable oxide layer that protects the aluminium from wear and corrosion and is guaranteed to function and look its best for decades to come.
COLORS
COLOUR FINISH
MFC, HPL and SGL: 34 colours from the standard range.
