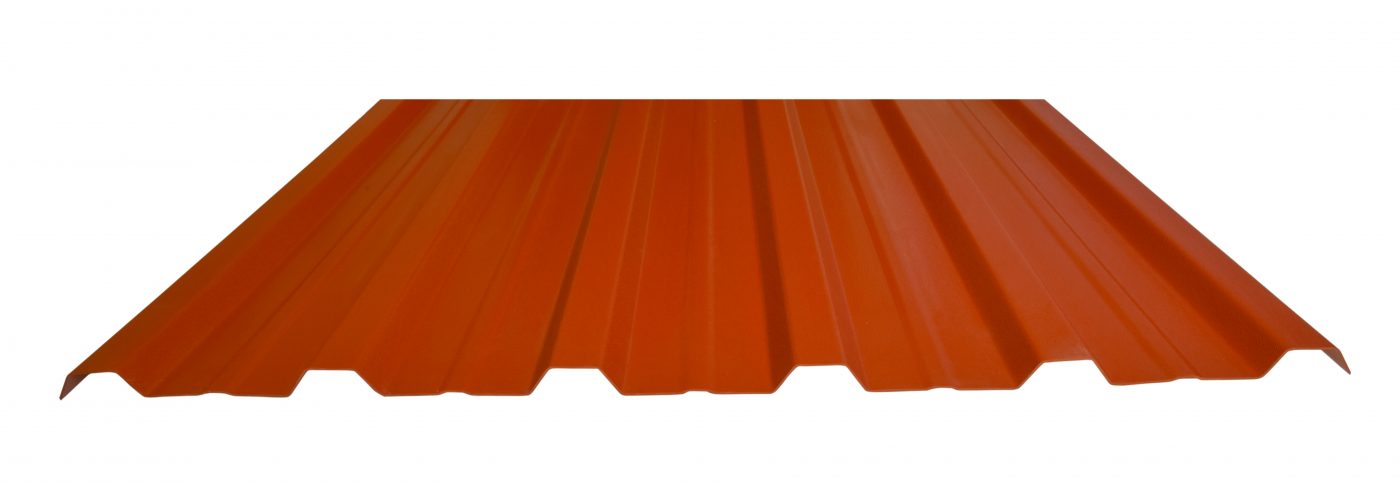

ONDUMIT T-1080 ROOF SHEETS AND PANEL
ONDUMIT T-1080 ROOF SHEETS AND PANEL

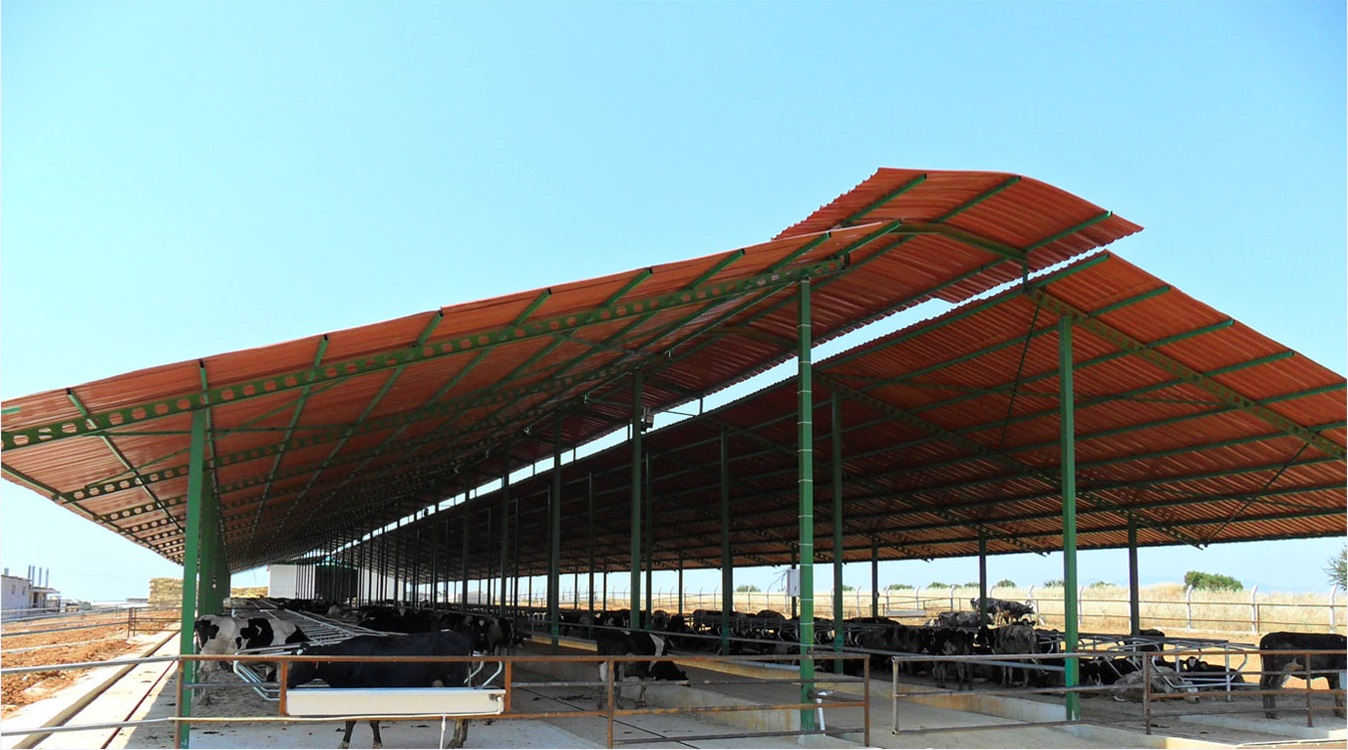

The problems such as rotting, sweating, oxidation and similar problems occurring on the roofs of livestock farms, barns and similar places now come to an end with the T-1080 model.
The product, which has a very high performance in hot and cold permeability, makes life easier in the living areas of animals and industrial buildings.
INFORMATION
BRAND
Ondumit
PRODUCT TYPE
Roof Sheets And Panel
HIGHEST LOAD CAPACITY
Ondumit sheets, among all other alternatives, has the highest load capacity. They can carry more than 600kg of spread weight on a sqm.
WARRANTED
Warranted for 30 Years against Atmospheric Conditions. Fit for All Climates

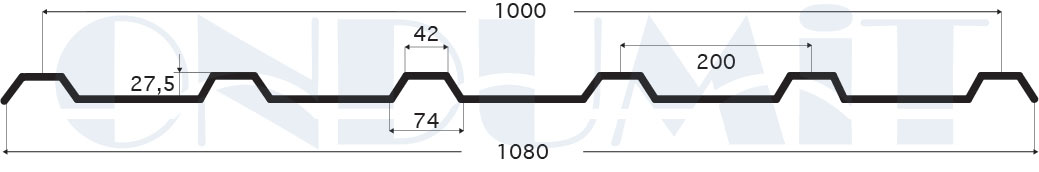

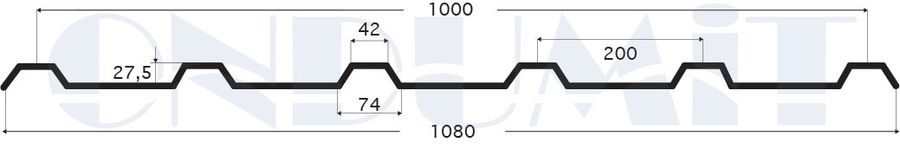

DIMENSIONS
- Width : 1080 mm
- Length : Customize
PERFECT SOUND AND HEAT INSULATION
Ondumit sheets insulate rain sound perfectly even under stormy weathers. With a very low thermal conductivity rate of 0,19W/mK they insulate the buildings without the need for extra insulation materials.
RESISTANT TO IMPACTS. DON’T BREAK OR CRACK.
No breaking or cracking were observed during a test while which a 25 kg weight was dropped onto an Ondumit sheet which had been installed with a purlin space of 1m.
APPLICATIONS
- Ranch
- Garages
- Fertilizer
- Bazaar Palace
- Sports facilities
- Industrial Buildings
- Chemical & Chlor - Alkali
LIGHT WEIGHT
The weight is 5 kg per square meters. Belonging to light structural material, it can effectively reduce the load of the building and save the consumption of building framework materials. In the mean time, it is easy to be handled and lifted, whichreduces the construction cost.
LONG LASTING COLOR STABILITY AND PHYSICAL RESISTANCE
Thanks to PVC and ASA raw materials in it, Ondumit is perfectly resistant to both colour and shape deformations. No such deformation was observed during the tests ranging from -40°C to +94°C.
WARRANTED FOR 30 YEARS AGAINST ATMOSPHERIC CONDITIONS. FIT FOR ALL CLIMATES
ASA, produced by Samsung, which covers the surface of Ondumit sheets, provides perfect resistance both to sunlight and frosting. Ondumit sheets are warranted for 30 years against atmospheric conditions.
NONDEFORMABLE IN ACIDIC ENVIRONMENT, NON-CORRODIBLE
Ondumit sheets don’t react with salt, alkali, and acids under 60% concentration.
PROTECTION AGAINST WATER AND HUMIDITY
Ondumit sheets have just a 0.02% of water absorption rate. Without the need for any extra material, they insulate the building against water.
TRANSPORTATION AND INSTALLATION ARE CHEAPER AND EASIER
Ondumit’s lightweight and panel shaped structure creates advantages through all steps from transportation to installation. More than 5000sqm of Ondumit can be carried in a single container. Ease of installation also decreases labor costs by saving time.
COLLECTION
Ondumit
MODEL
T-1080
THICKNESS
2.2 – 2.5 mm
PURLINE SPACE
≤800 mm
CERTIFICATES
- ISO 9001: 2008
- EC Declaration of Comformity
- Comformity Certification
FIREPROOF AND NONFLAMMABLE
Ondumit sheets are in the B1 flammability class. When contacted to flame, they don’t ignite and spread it. They are self extinguished as soon as the contact with the flame source is cut. Ondumit increases the building safety compared especially to the materials containing bitumen.
PRODUCTION
Made in Turkey
DOWNLOAD
↓ Catalogue

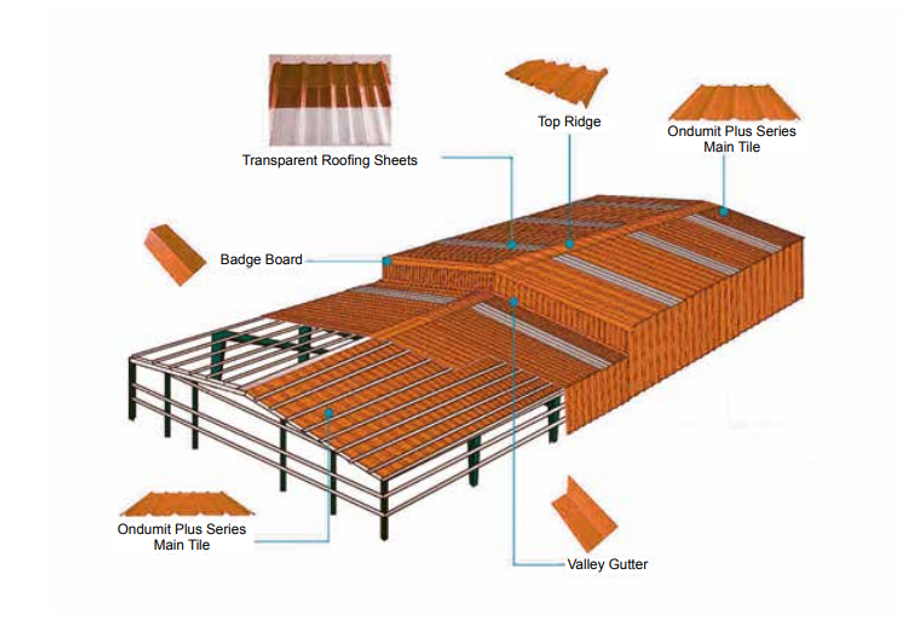

ACCESSORIES
INSTALLATION

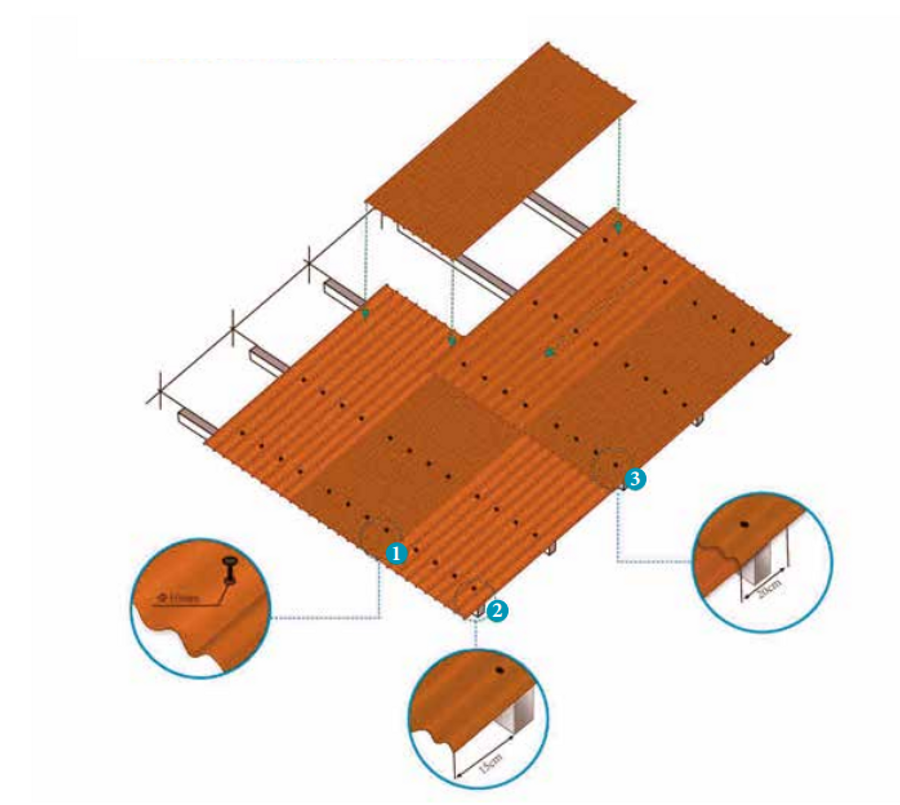

INSTALLATION GUIDELINE
- 1 In order to allow normal linear heat expansion of the sheets, it is necessary to piece the sheet with a Ø 10mm drill bit, then fasten the sheets with Ø 6.3mm fittings.
We advise you not to use direct fixings without piercing the sheets with self perforating screws because doing so prevents any dilatation of the sheet. Do not use a hammer to put the screws in.
ORIGINAL ONDUMIT SUPPLIED FIXINGS MUST ALWAYS BE USED.
- 2 The overhang is 15cm from the bottom purline.
- 3 The vertical overlap is at least 20 cm, and fittings must be fixed on every peak of wave.
- 4 Considering the safety problem, it is only allowed to walk on the purlins during installation and maintenance, while not walk directly on the roofing sheet.
- 5 Installation work can not be processed when temperature below -50 C, or in rainy, snowy or heavy windy weather.
