Nupi Smart LPG Piping System
SMART LPG PIPING SYSTEM
SMART LPG PIPING SYSTEM
Complete Pipe and Fitting System for the transport of LPG
Smartlpg is the product range developed by nupi industrie italiane s.P.A. For the conveyance of lpg.
It is a thermoplastic piping system reinforced with Polyester fibres. It is non hydroscopic, biocompatible and 100% recyclable.
INFORMATION
MATERIAL

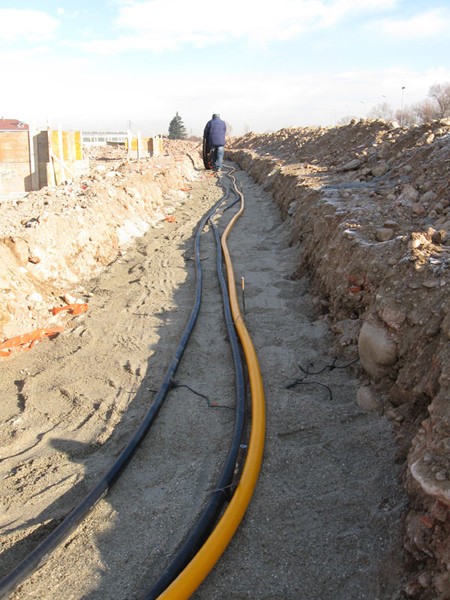

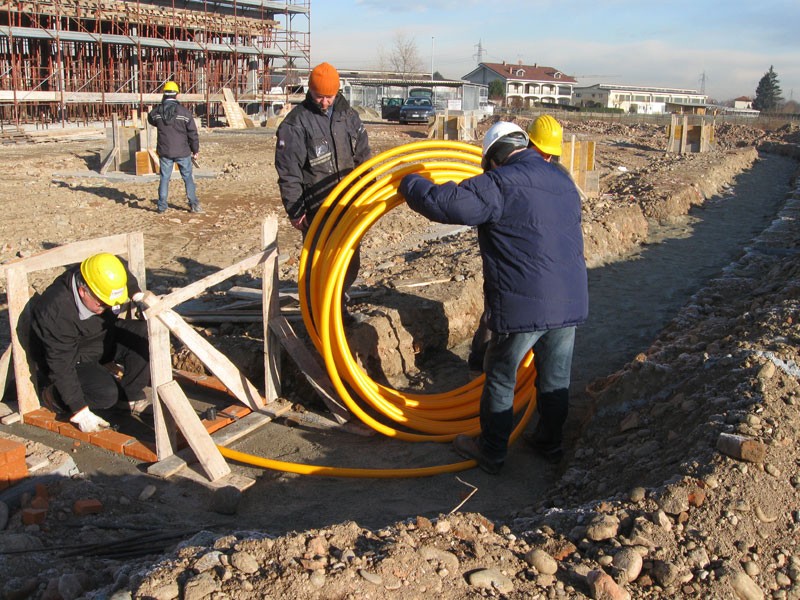

The quality of the materials used and the stringent quality controls guarantee its reliability for more than 50 years and ensure a product warranty of 25 years. The smartlpg system is used in underground installations for the conveyance of automotive lpg from tank to dispenser.
BRAND
Nupi
PRODUCT TYPE
Piping System
PRODUCTION
Made in Italy
COLLECTION
Smart
INSTALLATIONS
The smartlpg system is suitable for the following installations :
- Vent
- Filling
- Product
- Vapour recovery
LINEAR
Thanks to its polyamide inner barrier liner, the smartlpg piping is suitable for the conveyance of lpg.
USE
Construction
ENVIRONMENT
Outdoor
THE PIPE

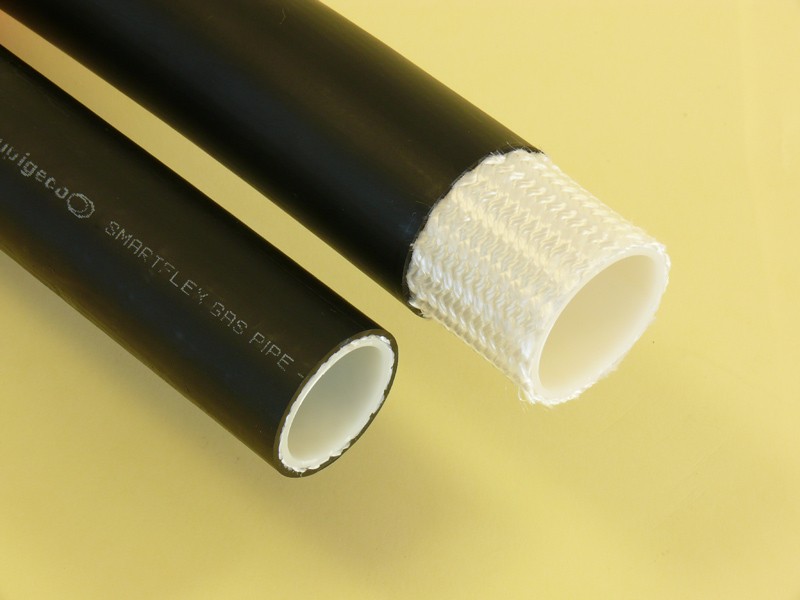

The SMARTlpg pipe has an inner layer made of a special Polyamide resistant to LPG, an intermediate reinforcing layer made of closed frame Polyester fibre and an external PE100RC (rock pipe) layer that is resistant to crack and point loading. The construction and design characteristics of the pipe guarantee the following performance :
- Flexibility
- Limited head losses
- PN 35 bars (508 psi)
- Resistance to corrosion
- Resistance to abrasion
- Durability for over 25 years
- Resistance to the transported fluid
- Bursting pressure > 200 bars (2900 psi)

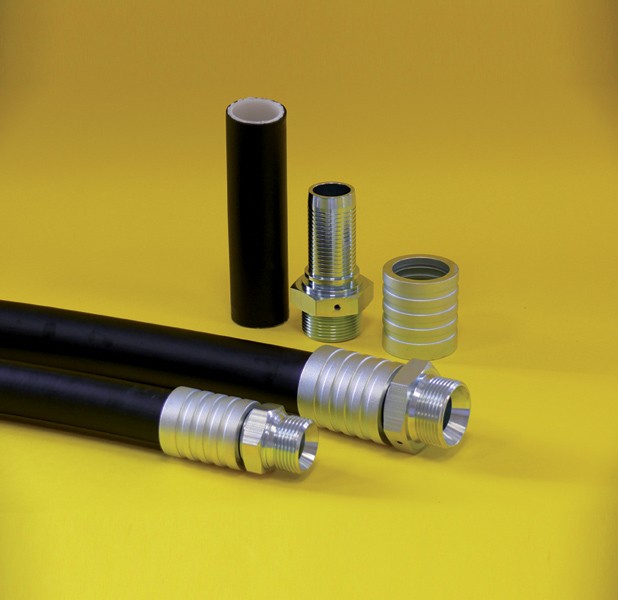

THE FITTINGS

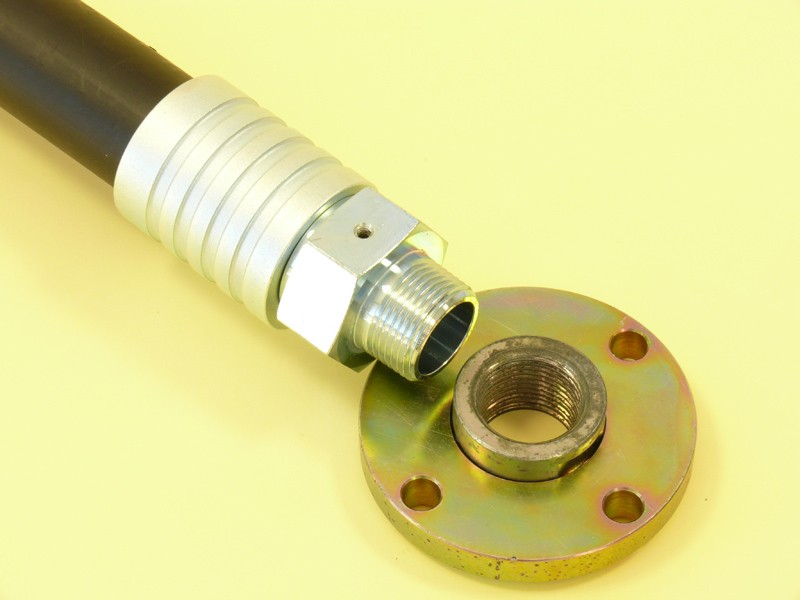

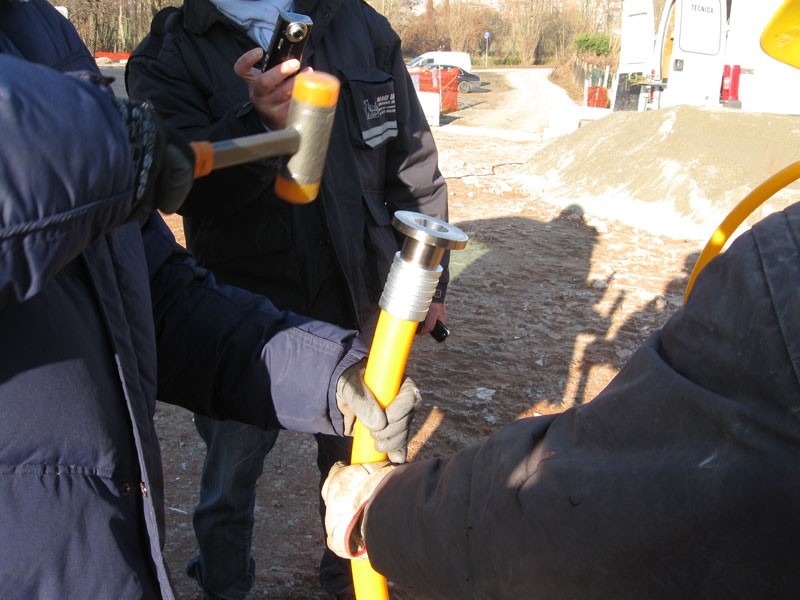

The SMARTlpg fitting range includes Chrome-Molibdene 4 steel alloy fittings made up of a terminating fitting and a crimping bush. They have a resilience to low working temperatures higher than 27 Joules. Flanged fittings and male threaded termination fittings are available with the following thread types :
- NPT conic gas threaded
- BSPT conic gas threaded
- BSPP cilindric gas threaded and conical ogive with 60° gas tightness

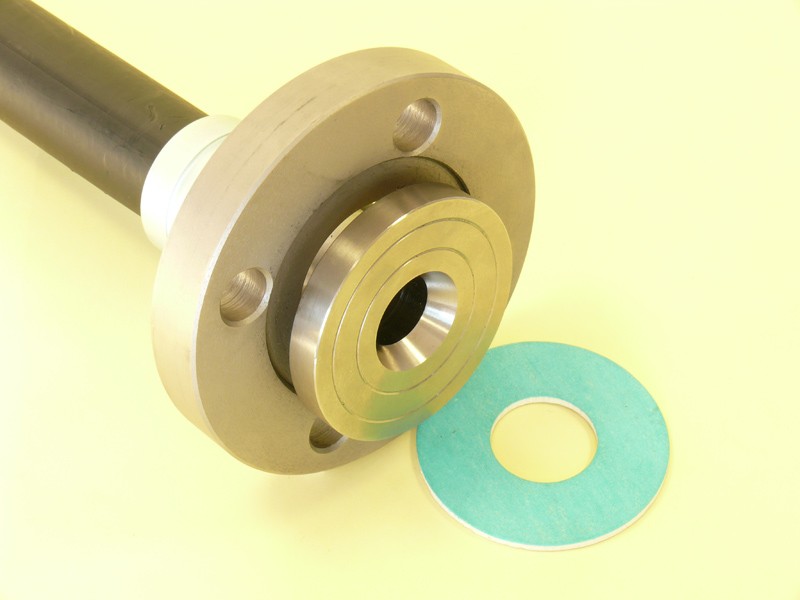

- Threaded flanges for flanged connections (EN1092-1) and fittings with stub end and flange with crimping bush are also available.
