Favaro1 Antico Progetto Locking Blocks
ANTICO PROGETTO LOCKING BLOCKS
ANTICO PROGETTO LOCKING BLOCKS
Flooring made with self-locking blocks of vibro-compressed concrete model Antico Progetto by FAVARO1, with a wear layer having a minimum thickness of 4 mm.
INFORMATION
BRAND
Favaro1
PRODUCTION
Made in Italy
PRODUCT TYPE
Locking Blocks
ENVIRONMENT
Outdoor
PLUSES
- Quartz
- Biotanium
COLLECTION
Antico
MATERIAL
Concrete
PALLET WEIGHT
1680 kg
PACKAGING WEIGHT
152.7Kg
PHYSICAL AND MECHANICAL CHARACTERISTICS
Physical and mechanical characteristics according to UNI EN 1338: nominal dimensions 92x94 mm, nominal thickness 70 mm, tolerance on nominal thickness ±3 mm, characteristic indirect tensile strength for shear ≥3.6 MPa, minimum breaking load for shear ≥250 N /mm, abrasion resistance ≤ 20 mm, water absorption ≤ 6%, average resistance to freezing/thawing in the presence of salt ≤ 1.00 kg/m^2, satisfactory slip/slide resistance.
INSTALLED
Installed according to the reference methods indicated by the UNI 11241 standard on a ballast prepared according to the type of traffic expected and the state of the natural ground based on the indications of the "Catalogue for the sizing of pavements in urban areas" published by Assobeton, 2005: the materials used for the bedding and ballast layer and their compaction conditions must in any case guarantee the necessary load-bearing capacity.
USE
Flooring
THICKNESS
70 mm
CERTIFICATIONS
- CE
- CAM
- Freeze/thaw resistance
- DIN 51130 anti-slip classification
- DIN 51097 anti-slip classification
- Solar reflectance index SRI ASTM E1980
- Content of recycled materials DM 11/01/17
- Non-slip flooring DM 14/06/1989 n. 236 par. 8.2.2
LEVEL 3A DRIVEABILITY
Urban or similar roads subject to a maximum traffic of 500 vehicles per day and in each direction, excluding heavy if not occasional traffic

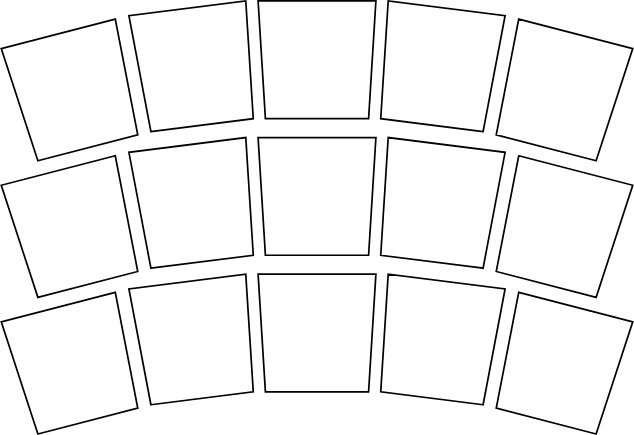

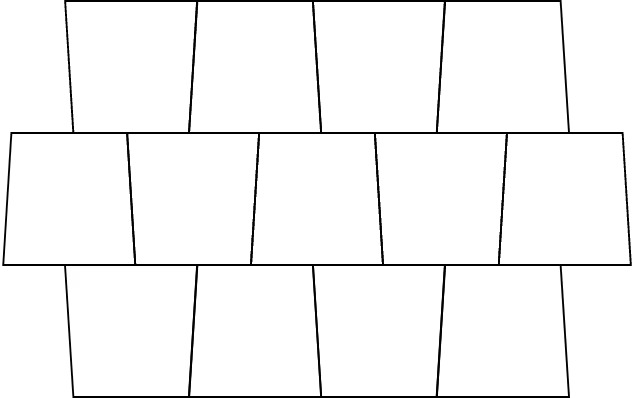

INSTALLATION TYPES
Design and quality outdoor flooring. Discover all Favaro1 floorings and find the perfect solution for your needs.
ENVIRONMENTAL SUSTAINABILITY
Absence of asbestos, content of recycled materials CAM EDILIZIA (Decree of 23-06-2022) ≥10.8%, solar reflectance index SRI (for gray material or white-based colours) according to ASTM E1980 ≥29. Titanium dioxide (only present in the white colour): this is a new class of materials produced with BIOTANIO®, a latest generation mixture studied in our laboratories capable of reducing organic compounds (dirt, pollution deposits and microorganisms) which can deposit on the product. BIOTANIO® makes the products self-cleaning and antibacterial.
SIZES
92 x 94 mm
DIMENSION
Pallet : 11mq
DISCOVER ANTICATO PAVING

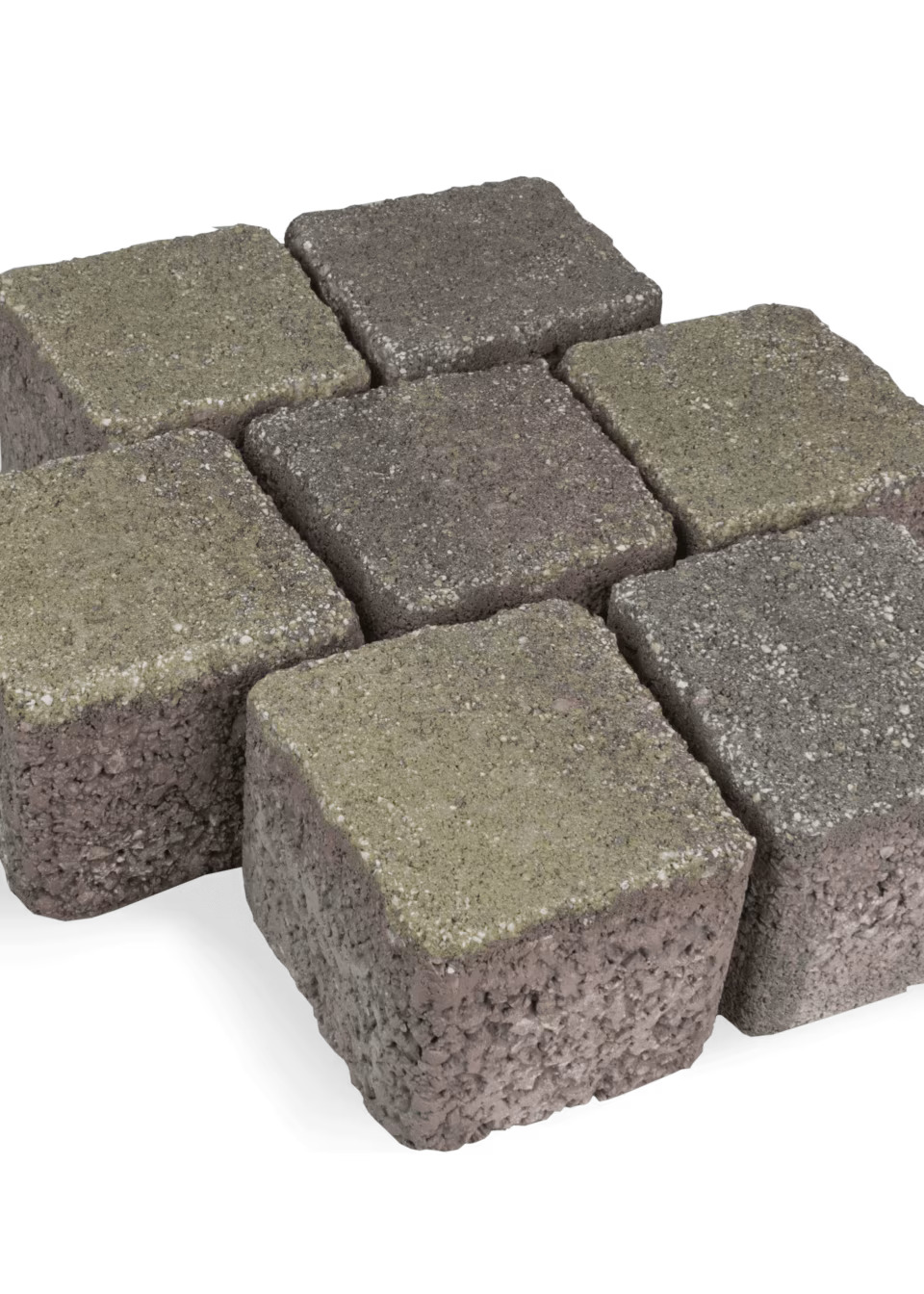

Antico Progetto is a self-locking block designed in a slightly trapezoidal shape (the classic concrete block) and with refined color gradations to emphasize the same elegance of porphyry flooring. Obtained through a typical antiquing process, Antico Progetto is considered a solid block with high resistance to abrasion, thanks also to an additional quartz finish. It is ideal for private flooring and can also be used in large public spaces.
Antico Progetto is offered in Yellow-Grey, White and Motivi colours, for the possible use of solid wood in ornamental motifs such as lines, edges and frets.
