Bette BetteFlat Shower Tray
BETTEFLAT SHOWER TRAY
BETTEFLAT SHOWER TRAY

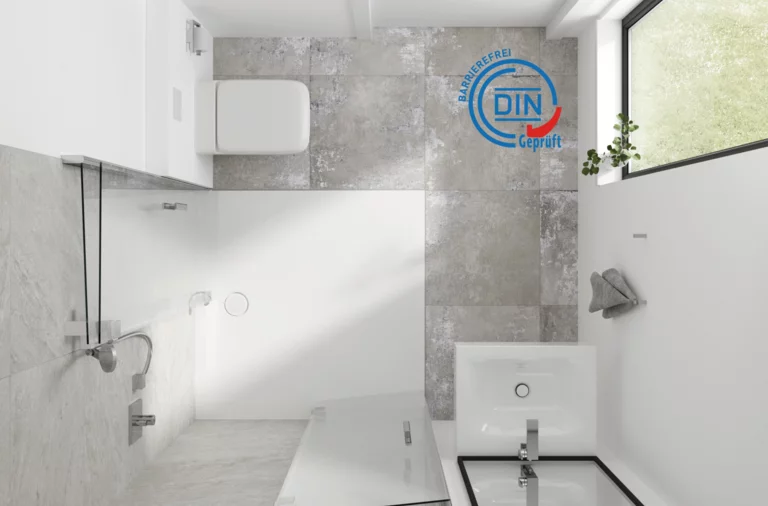

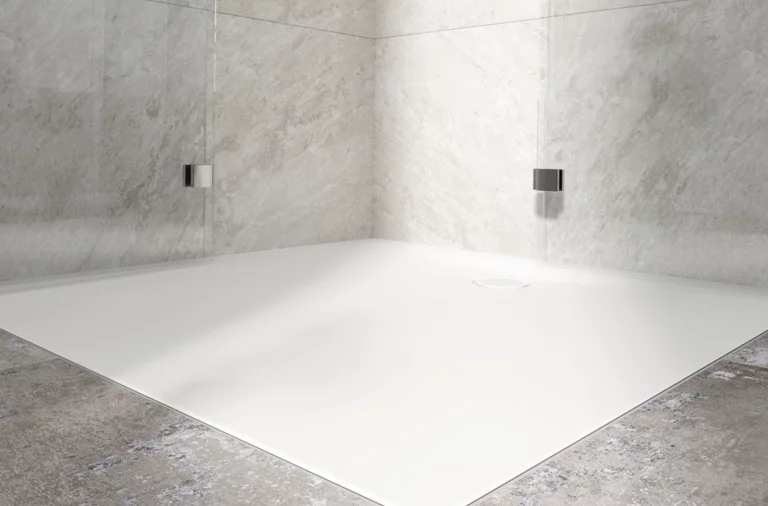

BetteFlat is a shower area made of glazed titanium-steel, which we have developed especially for the standard-compliant barrier-free furnishing of apartments in the housing industry.
information
BRAND
Bette
PRODUCT TYPE
Shower Tray
PRODUCTION
Made in Germany
COLLECTION
Betteflat
SCOPE OF DELIVERY
Standard with Anti-slip Pro surface.
DESIGN
Showerfloors
SHAPE
Rectangular
DETAIL

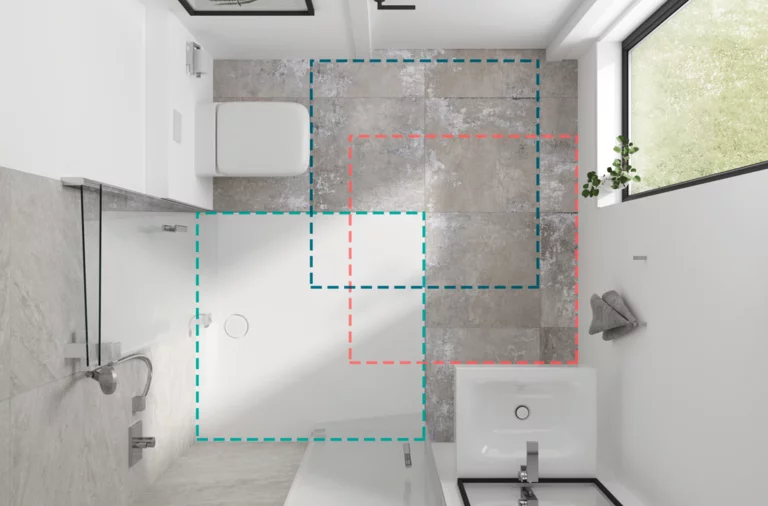

The product not only allows for the required movement spaces, but the surface also provides slip resistance according to rating class b. The accessibility is certified by din certco. Betteflat can be planned in small bathrooms where the movement areas of the shower, washbasin and wc overlap, as up to 50 percent of its surface can be added to the required area.
WARRENTY
30 Years
MATERIAL
Glazed Titanium - Steel
CERTIFICATION
Up to 50 % of the shower area can be added to the movement area. Accessibility according to din 18040-2 has been certified by din certco (registration number p1b100).
SUITABLE
It is suitable for bathrooms for immobile people. And for bathrooms specifically designed for young families, as well as seniors.
WEIGHT
41 kg
USE
Washroom
QUALITY
Sustainable
ENVIRONMENT
Indoor
TECHNICAL ADVICE
For installation, we recommend the universal installation system, the basic installation system, adjustment range 67–205 mm, the minimum support (pre-assembled at the factory) or the bettelevel mounting feet, adjustment range 85–225 mm. Alternatively, the foot system, adjustment range 80–200 mm.
ITEM NO.
3372 AE
DIMENSIONS
1200 x 1200 mm
INSTALLATION TYPE
Flush to floor
WASTE DIAMETER
90 mm
PRODUCT DATA
↓ Care instructions
↓ Brand certificates
↓ Assembly instruction
↓ Performance Declaration
↓ Dimensional Data Sheet
BROCHURE
↓ Theme Brochure
PICTURES & VIDEOS
↓ Picture 1
↓ Picture 2

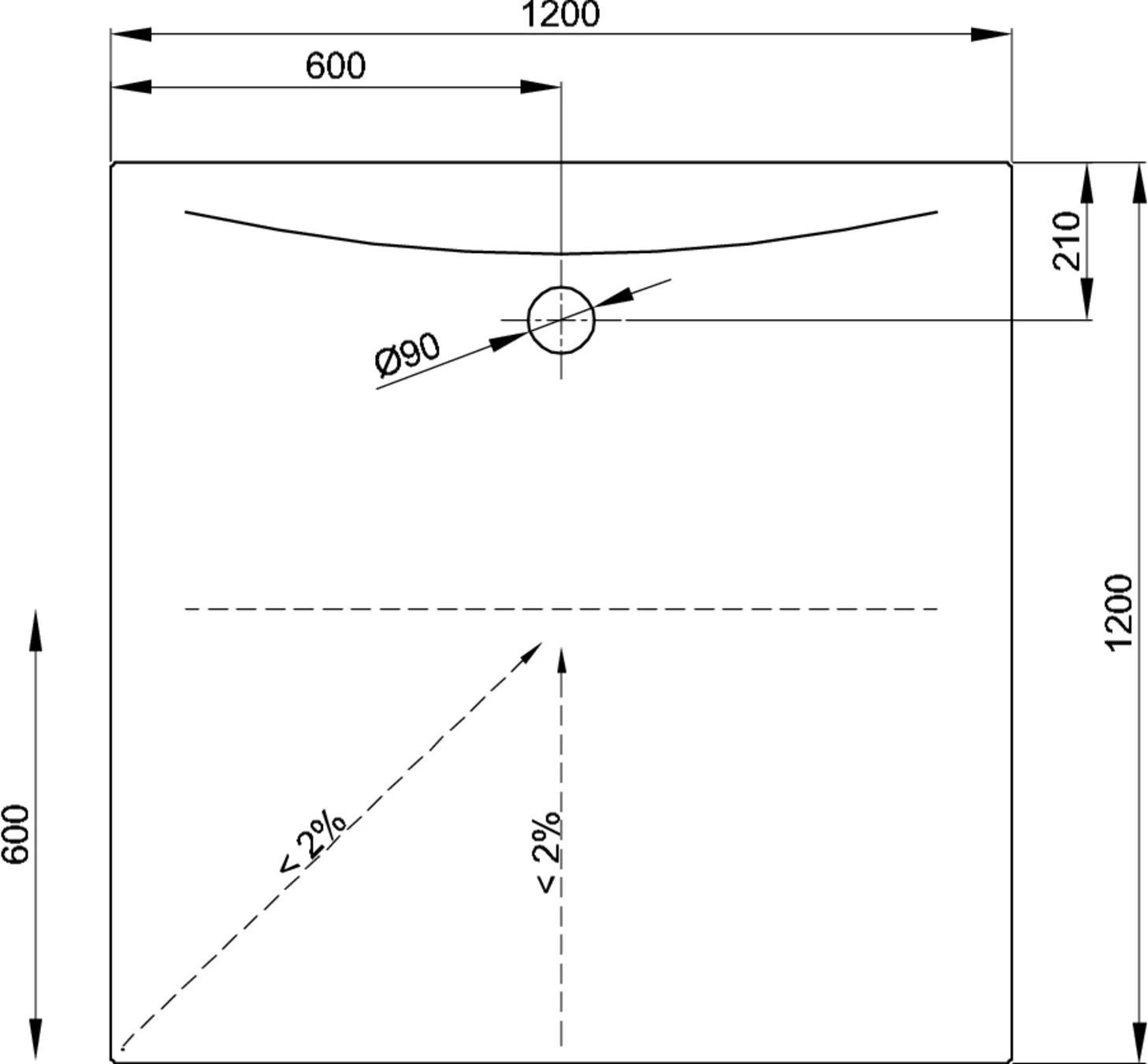

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
COLORS
GLOSSY & MATT COLORS
002
001
000
