MINIMAL SLIDING INSULATED SYSTEM SUPREME S650 PHOS
MINIMAL SLIDING INSULATED SYSTEM SUPREME S650 PHOS

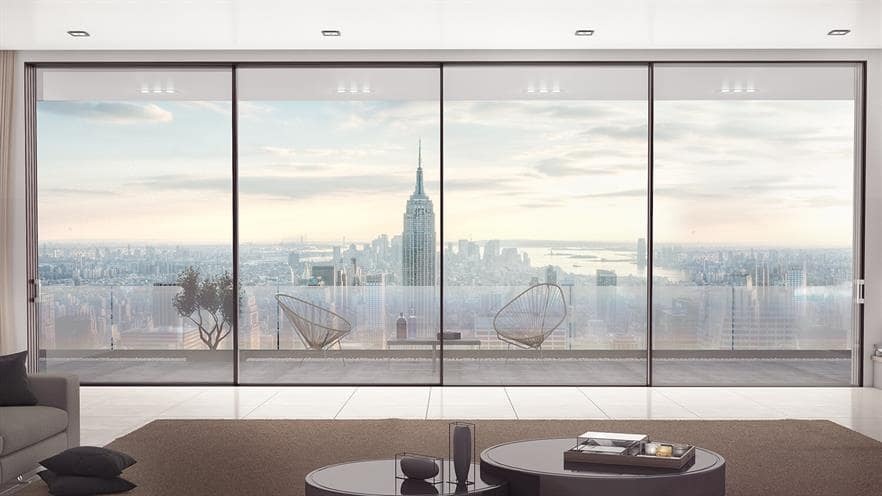

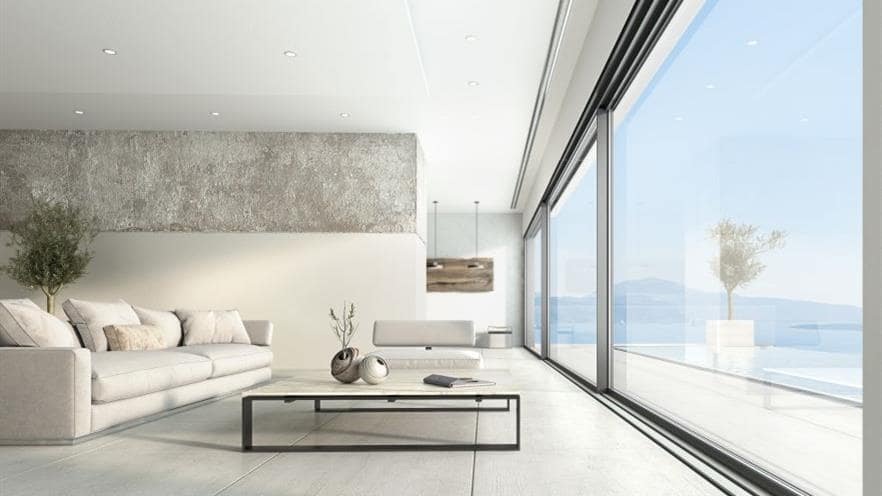

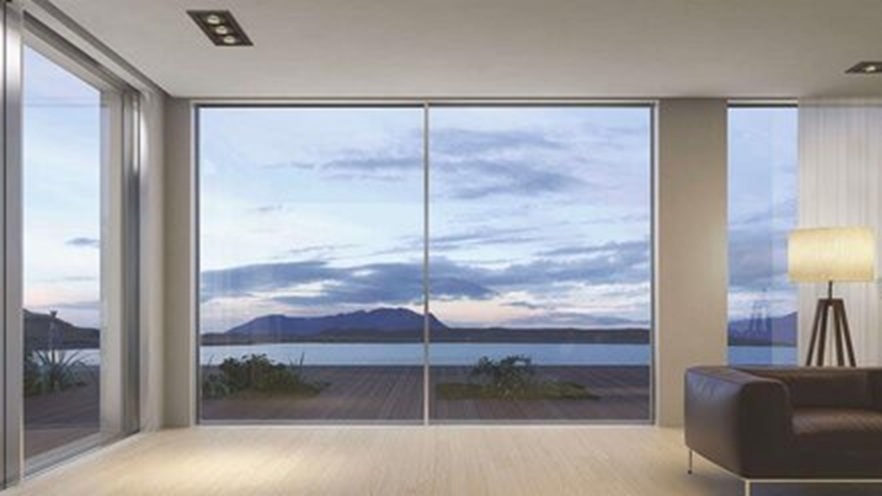

The thermally insulated sliding system SUPREME S650 PHOS is the ideal solution for projects requiring wide spans with minimal aluminium sight lines. Massive yet elegant glazing surfaces are achieved while maintaining high functionality, performances and minimal architectural design.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Sliding
PRODUCTION
Made in Greece
WINDOW TYPE
Sliding
DOWNLOADS
↓ PREQ IFS
↓ Supreme Brochure
↓ SUPREME S650 PHOS
↓ Pre-Qualification Supreme S650
↓ Pre-Qualification Supreme S650
WIND LOAD RESISTANCE
C5
SEALING METHOD
Perimetrical with tri-fin brushes
EXTERIOR SHAPE
Flat
THERMAL INSULATION
Yes
MAXIMUM GLAZING THICKNESS
up to 46 mm
SOUND REDUCTION
46dB
SASH DEPTH
62 mm
MINIMUM THRESHOLD HEIGHT
35 mm
TYPES OF TYPOLOGY
- Meeting stile
- Multiple tracks

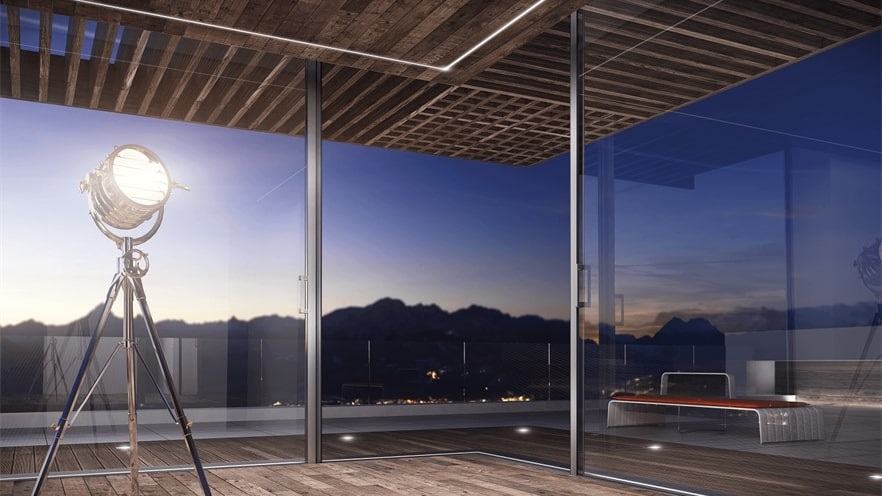

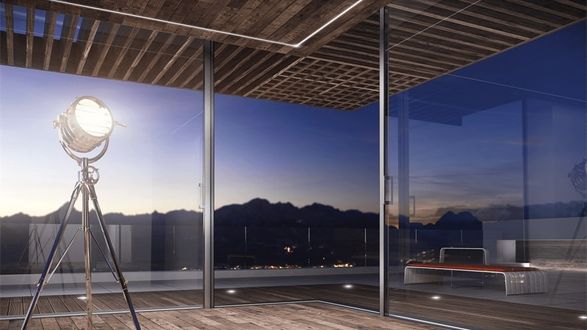

- Corner typologies
- Horizontal sliding sashes
- Sliding into the wall cavity
- Combinations with fixed lights - Combinations with fly-screen
SASH WEIGHT
up to 1000 Kg
GLAZING TYPE
Double - Triple
BURGLAR RESISTANCE
RC2
WATER TIGHTNESS
CLASS 9A
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed profiles
TYPE OF THERMAL INSULATION
- Polyamides
- Thermoplastic
UW
1,1 W/m²K
AIR PERMEABILITY
CLASS 4
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm
ADVANTAGES
-Enhanced natural light thanks to the system's minimal design and the wide glazing surfaces -High energy savings thanks to exceptional energy efficiency -High-security level -Exceptional sound insulation -Maximum ease of use and high functionality
-Available three alternative solutions for the on-floor installation, in-floor installation or totally concealed in-floor installation covered with the floor finish (version SUPREME S650 PHOS Eclipse) -Alternative version for automated sliding sashes (SUPREME S650 e-ΜΟΤΙΟΝ) -Ease of access according to specifications for people with special needs and children -Wide variety of typologies -Ideal for wide spans -Exceptional quality with certified performances -Increased static loads and functionality in case of severe weather conditions.
SECTIONS & TYPOLOGIES

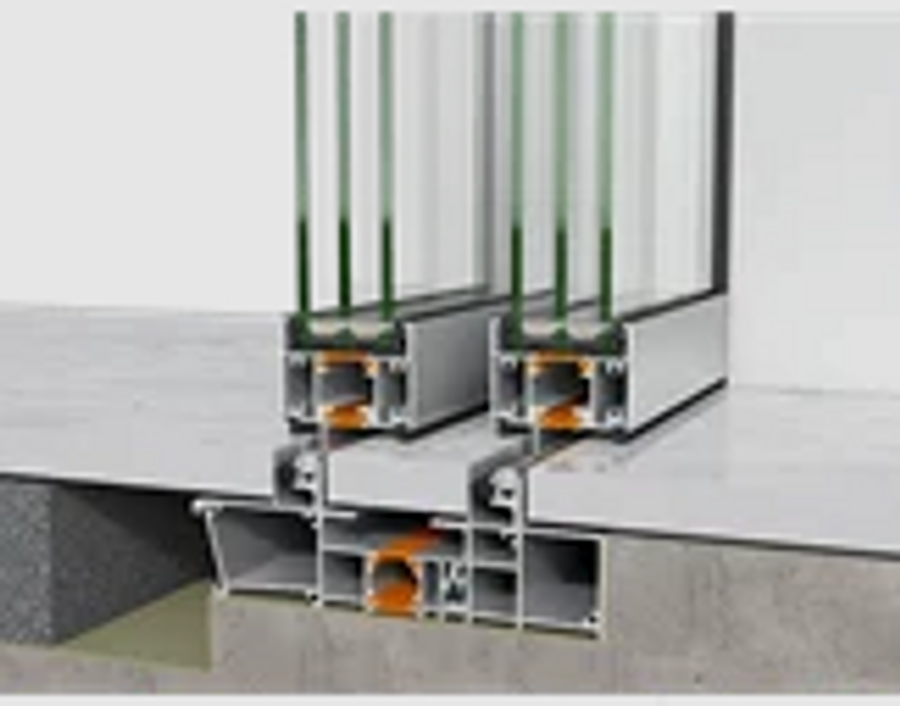

SECTIONS

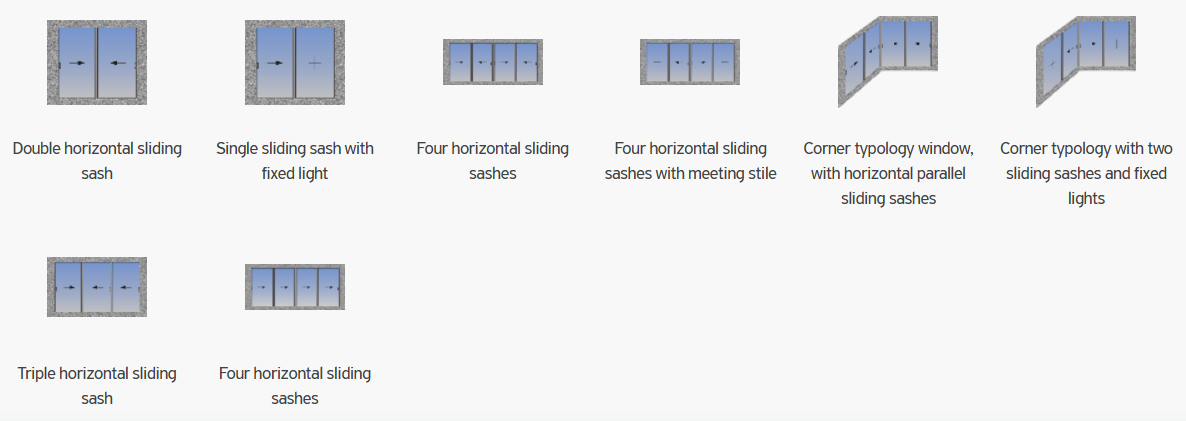

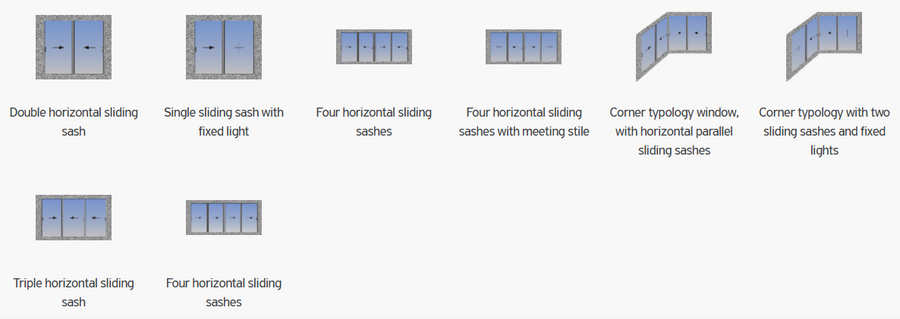

TYPOLOGIES
