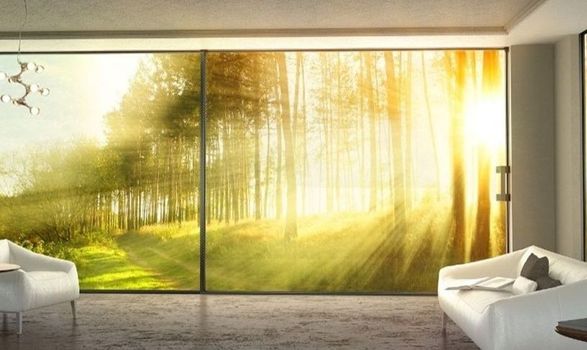

Alumil S650 E-motion Sliding Insulated System
S650 E-MOTION SLIDING INSULATED SYSTEM
S650 E-MOTION SLIDING INSULATED SYSTEM
Automated sliding insulated system supreme s650 e-motion
The SUPREME S650 e-MOTION is the automated version of the SUPREME S650 PHOS series. The elegant design and the electrical automation offering maximum ease of use, make it the perfect solution for projects that require impressive wide spans with the uninterrupted view, as well as perfect comfort.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Sliding Insulated System
PRODUCTION
Made in Greece
EFFICIENCY
High energy savings thanks to exceptional energy efficiency
WINDOW TYPE
Sliding
THERMAL INSULATION
Yes
DESIGN
Enhanced natural light thanks to the system's minimal design and the wide glazing surfaces
CHARACTERISTICS
Types Of Typology : Horizontal sliding sashes, Meeting stile, Corner typologies, Combinations with fixed lights
INSULATION
Exceptional sound insulation
TYPE OF THERMAL INSULATION
- PVC
- Polyamides
FUNCTIONALITY
Maximum ease of use and high functionality thanks to the automatic motion
EXTERIOR SHAPE
Flat
LEVEL
High security level
SPANS
Ideal for extremely wide spans
CERTIFIED
Exceptional quality with certified performances
USE
Extremely safe use thanks to the system's sensors and to safe operation in case of blackout
ALL AVAILABLE TYPOLOGIES
- Double horizontal sliding sash
- Double sliding sash with fixed light
SASH DEPTH
67.4 mm
GLAZING TYPE
Triple
STATIC LOADS
Increased static loads and functionality in case of severe weather conditions
MINIMUM THRESHOLD HEIGHT
45mm
SASH WEIGHT
Up to 1000 Kg
MAXIMUM GLAZING THICKNESS
Up to 52 mm
MECHANISM
Alumil
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed profiles
ACCESS
Ease of access according to specifications for people with special needs and children
SEALING METHOD
Perimetrical with tri-fin brushes
VARIETY
Wide variety of typologies
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm
