Sunroom Tuttovetro Frameless Systems
TUTTOVETRO FRAMELESS SYSTEMS
TUTTOVETRO FRAMELESS SYSTEMS
Tuttovetro (“All Glass”) is exactly like its name: a glazed unit made up of just glass, without vertical profiles. The most important properties of glass are its transparency and its purity. By combining these two characteristics, you can ensure your home or business has its own unique style.
INFORMATION
BRAND
Sunroom
PRODUCT TYPE
Frameless Systems
GATHERED GLAZED UNIT DIMENSIONS
7%
PRODUCTION
Made in Italy
CLOSURES
Top & Bottom
UPPER TRACK PROFILE THICKNESS
55 mm
HEIGHT OF BOTTOM TRACK
42 mm
MAXIMUM PANEL WEIGHT
60 kg
AIR PERMEABILITY CERTIFICATION EN 1026 - EN 12207
Class 2
SLIDING
Top
COLOUR OF ACCESSORIES
Silver
PANEL DIMENSIONS
- Maximum Width : 900 mm
- Maximum Height : 3000 mm
DESIGN
Tuttovetro is pure design and practicality, ideal for enclosing your bioclimatic pergola, Greenhouse, balcony, or portico. Cherished moments, practicality, and crossing the border between indoors and outdoors are the key points of our Tuttovetro frameless glazed unit in its collapsible version.
PANEL ADJUSTMENTS
Yes
DOWNLOAD
↓ Technical Data Sheet
WEIGHT OF GLAZED UNIT
- 30+5 kg/m2 including glazing 12 mm
- 25+5 kg/m2 including glazing 10 mm
- 20+5 kg/m2 including glazing 8 mm
PANELS SLIDE
The panels slide on two tracks and hang from the upper track using special rollers. The bottom part has synthetic rolls on an aluminium track on the floor, which can also be recessed.
DETAIL
The benefits of the Tuttovetro frameless system are not only the zero impact appearance on the overall architecture, but also the ability to be gathered in a pack to create a minimum footprint and recover space for your daily life.
PRODUCT PLUS
- Stainless Steel
- Minimum Footprint
GLAZING
- 8 mm
- 10 mm
- 12 mm
CHARACTERISTICS
The primary advantages of the Tuttovetro frameless system in its collapsible version are related to the aesthetics with zero impact on the overall architecture and the possibility to collapse into a pack to create a minimum footprint. The stainless steel accessories ensure stability and durability.
INWARD / OUTWARD OPENING
Yes
RIGHT / LEFT PACKING
Yes
STAINLESS STEEL ACCESSORIES
The carefully researched and tested materials, such as the stainless steel accessories, ensure the best functionality, reliability, and durability.
MINIMUM FOOTPRINT
The footprint of the packed glazed unit is only 7%, for extremely easy and practical packing. Each panel can be packed individually to the left or right or, for larger glazed units, even divided on both sides.

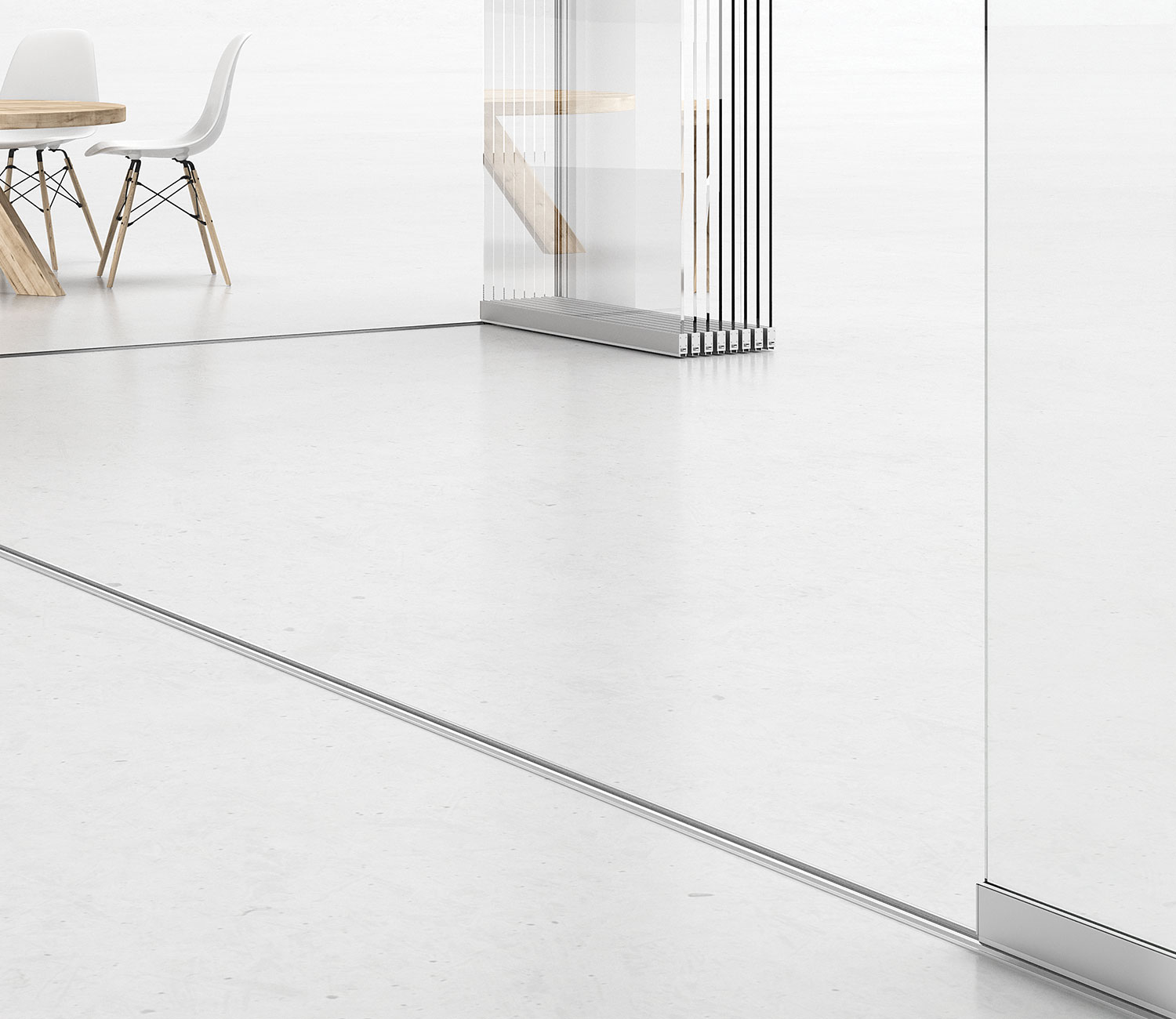

RECESSED TRACK
The track that is flush with the floor can be requested for maximum customization and practicality.

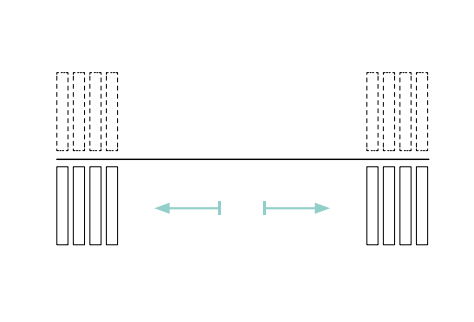

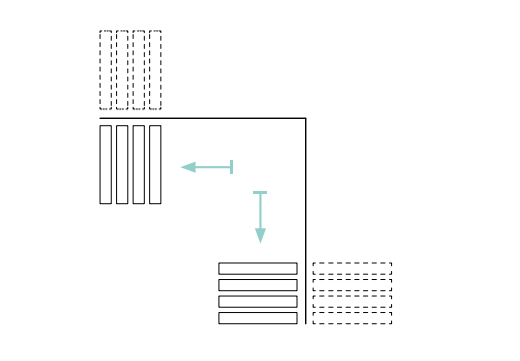

OPENING MODULE SET UP
INWARD OPENING
OUTWARD OPENING
FINISHES
ALL FINISHES
