RABEL 480 LIFT & SLIDE SYSTEM
RABEL 480 LIFT & SLIDE SYSTEM

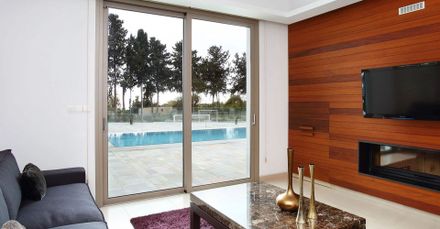

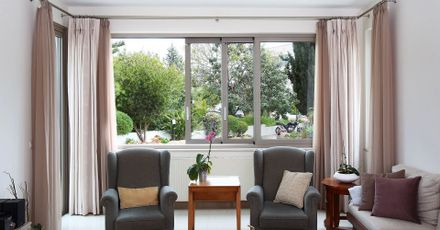

The Rabel 480 super thermal lift & slide is ideal for best value for money projects where top performance is required combined with ease of handling and rolling up to 200Kg per sash.
Regardless of the weight, it slides without any effort making it an ideal choice for many projects. While parked, it seals with two gaskets delivering impressive performance in extreme weather conditions.
INFORMATION
BRAND
Rabel
PRODUCT TYPE
Lift & Slide System
CENTER MULLION WIDTH
84 mm
COLLECTION
Rabel 480
PRODUCTION
Made in Cyprus
FRAME HEIGHT
49 mm
FRAME VISIBLE WIDTH
84 mm
APPLICATION

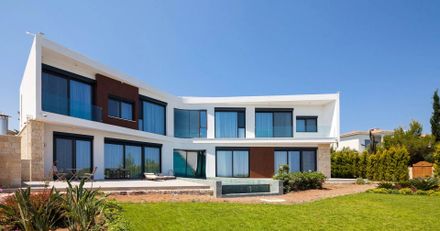

Its relatively flat bottom track satisfies the need of most modern commercial and residential projects with large openings.
THERMAL BREAK WIDTH
24 / 50 mm
MAX. WEIGHT PER SASH
200* Kg
PERFORMANCES
Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) : ≥1.5 W/(m2K)
DESIGN
As standard, it comes with a multipoint locking system that fulfils the highest standards for burglary resistance and is powered by a selection of design handles or recessed latches.
SASH HEIGHT
84 mm
SASH DEPTH
43 mm
ENVIROMENT
Indoor
MATERIAL
Glass
SASH VISIBLE WIDTH
43 mm
SEALING TYPE
2 Gaskets
COMMON TYPOLOGIES
It is available in all common typologies as well as up to 5 tracks.
GLAZING WIDTH POSSIBILITIES
31.5 mm
MAXIMUM LOCKING POINTS
4
FRAMRE
As a standard, it comes with a sophisticated high performance water drainage system that is hidden below the frame.
PERFORMANCE
Being able to take a glazing panel 31.5 mm wide it can accommodate acoustical double glazing panes for soundproofing as well as an internal air space exceeding 16mm thus taking full advantage of the glass thermal performance.
