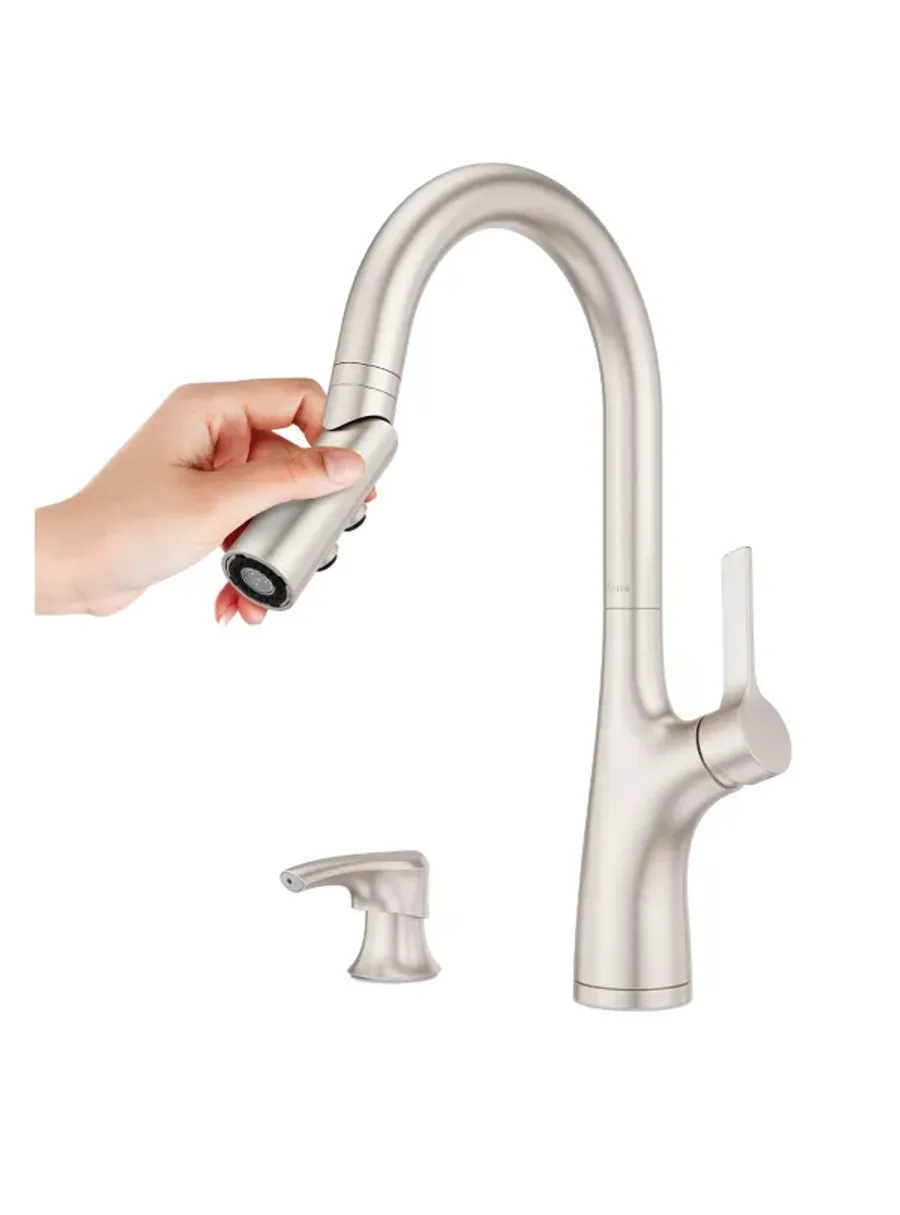

Pfister Faucets Exemplar Kitchen Faucet
EXEMPLAR KITCHEN FAUCET
EXEMPLAR KITCHEN FAUCET
1-Handle Pull-Down Kitchen Faucet
Model : F-529-7EPC
Picture this: an eye-catching yet minimalist kitchen faucet that elevates any home décor.
A distinctive tapered silhouette that’s as bold as it is elegant. Geometric forms that emphasize precision and an ergonomic pivoting spray head. It’s the epitome of modern design and innovation. It’s Exemplar™.
INFORMATION
BRAND
Pfister Faucets
PRODUCTION
Made in USA
PRODUCT TYPE
Kitchen Taps
GPM FLOW RATE
1.8
# OF HANDLES
1
COLLECTION
Exemplar
DECK TO AERATOR HEIGHT
7-9/16
TOTAL SPOUT HEIGHT
16-3/4
CODE COMPLIANCE
- CEC Certified
- ADA Compliant
- NSF/ANSI/CAN 61: Q≤1
- Limited Lifetime Warranty
- IAPMO Certified to ASME A112.18.1/CSA B125.1
DECKPLATE INCLUDED
No
MAX DECK THICKNESS
3
USE
Kitchen
ENVIRONMENT
Indoor

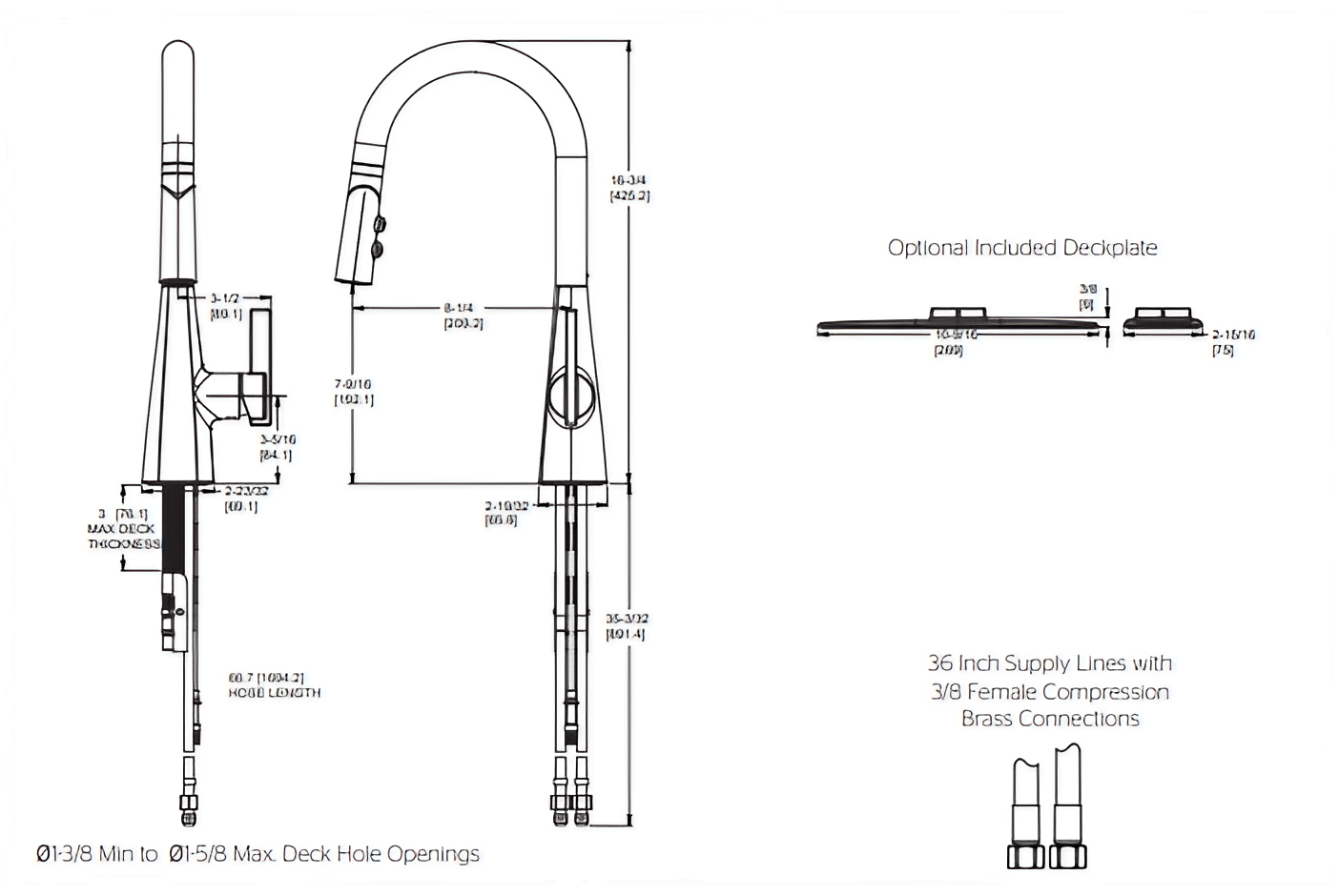

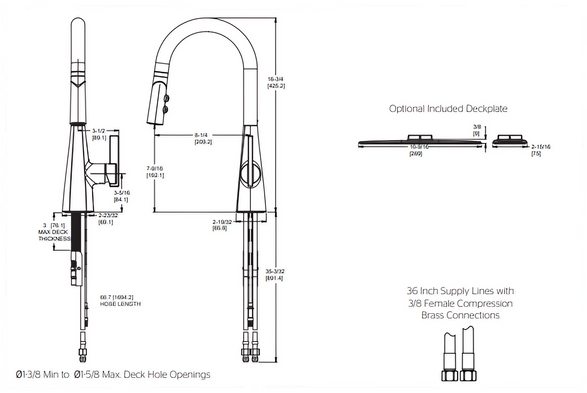

TECNHICAL DRAWINGS
SUPPLY LINES
PERT Flex-Line
SOAP DISPENSER
No
PULL-OUT/DOWN HOSE MATERIAL
Braided Nylon

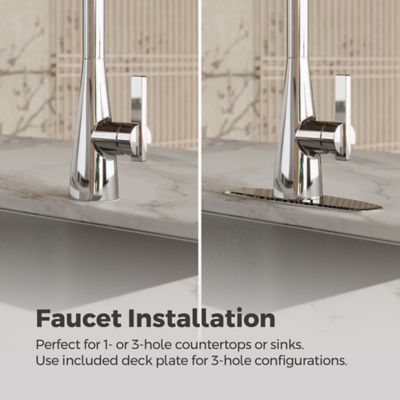

CONFIGURATIONS
- 1 - Hole
- 3 - Hole

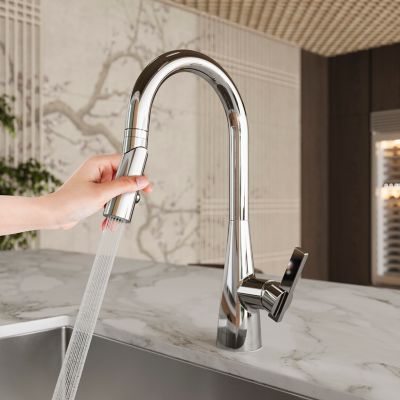

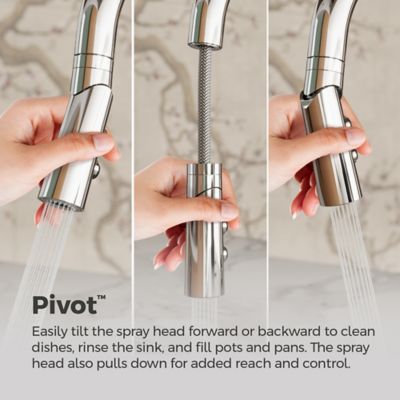

PIVOT™ SPRAY HEAD
Tilt the spray head forward or backward to clean dishes, rinse the sink, and fill pots and pans.
- Pivot™ and Pull-Down Spray Head: The spray head tilts and pulls down, an ergonomic feat in kitchen faucet functionality.
- Full Coverage: Pivot™ technology provides water coverage to all areas of your sink while the spray head is docked or undocked.
- Easy to Use : Easily tilt the spray head over clutter in your sink and direct water exactly where you need it. The spray head stays in the angled position, freeing your hands to do other things. Simply tilt it back when you’re finished.
SPRAY FUNCTIONS
- Spray
- Stream
- Pause Control
FAUCET ARC TYPE
High-Arc
PULL-OUT/DOWN HOSE LENGTH
12.7
MAKES LIFE EASIER

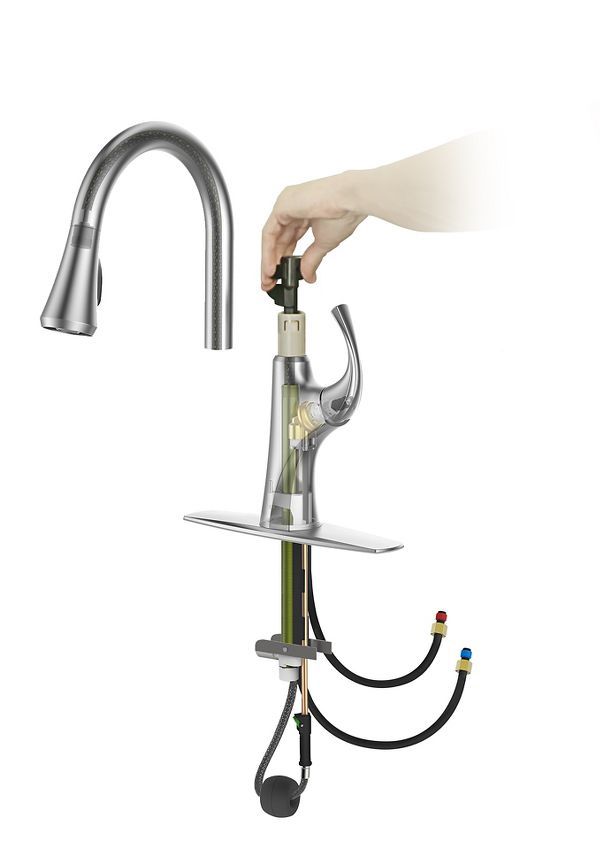

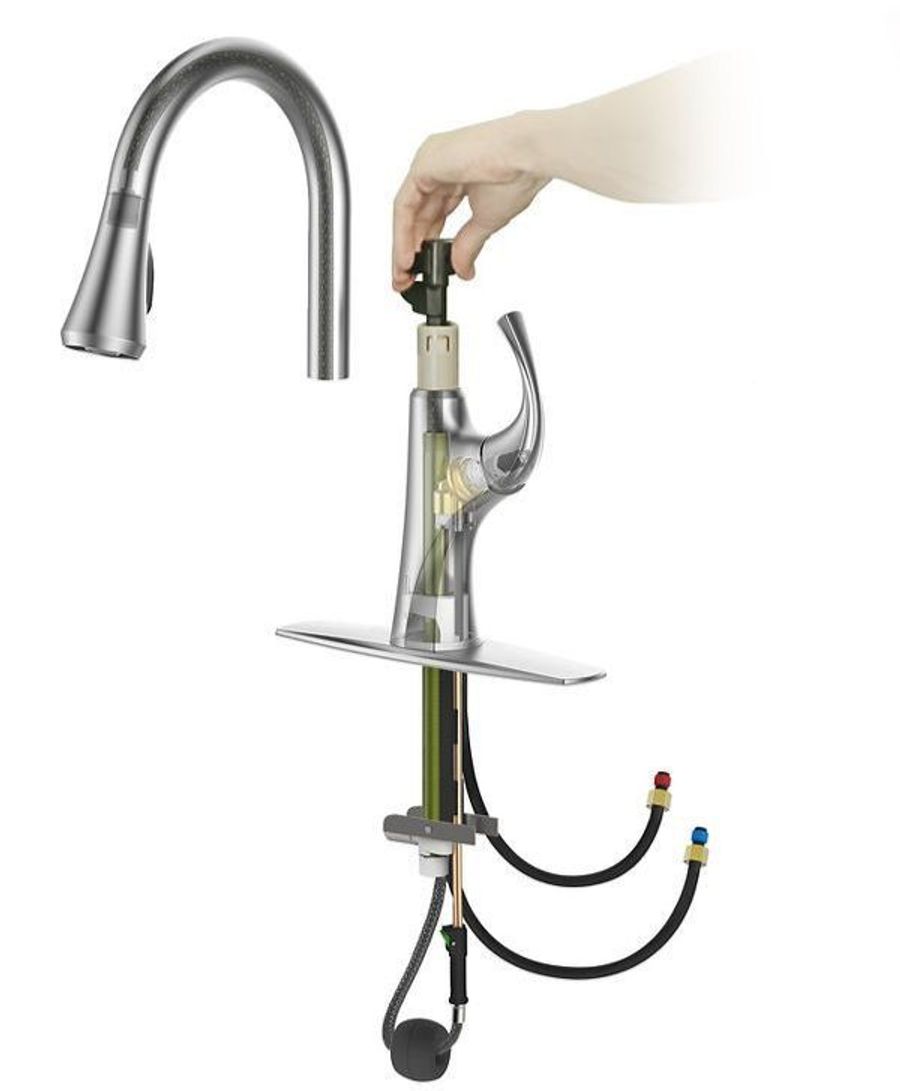

TopPfit® technology allows you to easily install your kitchen faucet from above the sink in minutes! Simply twist the TopPfit™ tool to raise the below-sink swivel bracket for a quick and secure fit. Less hassle, less anger, no yoga poses.
DETAIL
-Water flows at 1.8 gallons per minute, creating a strong, consistent flow while minimizing water waste -Pull-down spray head with toggle button to select Stream or Spray mode conveniently in the palm of your hand -Includes 32” integrated braided nylon supply lines with 3/8” female fittings. No need to purchase separate water-supply connection lines
-TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation) -Pforever Seal™—advanced ceramic disc valve technology with a never leak guarantee -Optional decorative deck plate sold separately; order 961-287X separately -Pfast Connect™ technology securely connects water supply lines with a quick click -Complies with Federal and State safe drinking water legislation -Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons -Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
FINISHES
FETAURES
FETAURES
