Alumil Hinged Insulated System Smartia S67
HINGED INSULATED SYSTEM SMARTIA S67
HINGED INSULATED SYSTEM SMARTIA S67
Smartia s67 is the new complete tilt & turn system of alumil, which combines outstanding thermal insulation performances along with high construction flexibility and exceptional design.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Extruded Rail
PRODUCTION
Made in Greece
WINDOW TYPE
Hinged
DOWNLOADS
↓ Dwg Files
↓ Bim Objects
↓ Product Brochure
↓ Technical Brochure
↓ System Specification
↓ Technical Catalouges
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
93 mm
SASH DEPTH
75 mm
FRAME DEPTH
67 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
151 mm
GLAZING TYPE
Double - Triple
THERMAL INSULATION
Yes
MINIMUM THRESHOLD HEIGHT
14 mm
MAXIMUM GLAZING THICKNESS
up to 58 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
67mm
AIR PERMEABILITY
Class 4
WATER TIGHTNESS
Class Ε1200
MECHANISM
- Euro-nut
- Euro-groove
TYPE OF THERMAL INSULATION
30mm fiber glass polyamides, PE insulation Foam
DETAIL
Ease of access according to specifications for people with special needs and children
ADVANTAGES
-Very good value for money -High energy savings due to the high energy efficiency of the system -Increased level of security -High level of sound insulation -Ease of use and high functionality -Modern design for windows either with flat or curved line -High quality with certified performances -Increased static loads and functionality in case of severe weather conditions
SOUND REDUCTION
45 dB
WIND LOAD RESISTANCE
Class: C5
SASH WEIGHT
up to 180 Kg
UF
from 1,1 to 2,6 W/m²K
TYPES OF TYPOLOGY
For all tilt & turn typologies
BURGLAR RESISTANCE
RC2/RC3
SECTIONS & TYPOLOGIES
SECTIONS

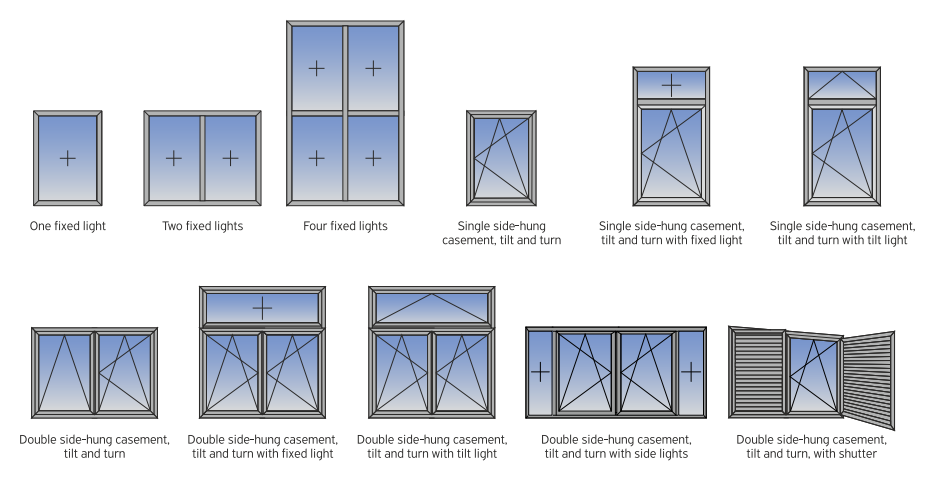

TYPOLOGIES
