Foster Sink Quadra R12
SINK QUADRA R12
SINK QUADRA R12
Model no. : 1737 050
FEATURES
DEEP BOWLS
This bowls reach an important depth, over 20 cm, thanks to the advanced production technology, that can be offer great capiency and practicity in all the washing operations.
HIGH THICKNESS
1mm thick steel. A significant thickness, which guarantees the maximum sturdiness and durability.

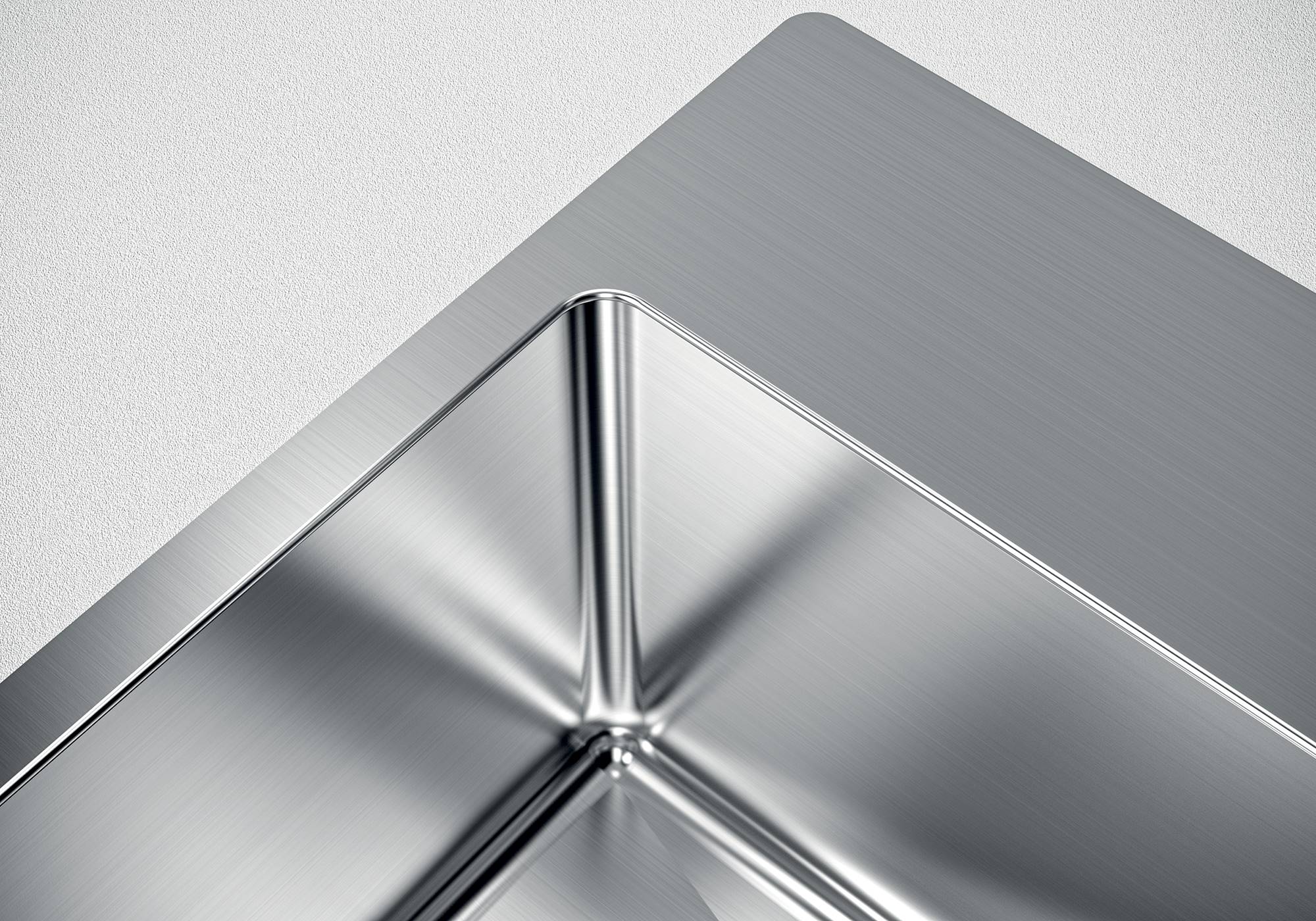

SMALL RADIUS
Bowls with squared shapes with a modern design and an increased capacity, for a minimal aesthetics connected with an extreme practicity.
DIAMOND-SHAPE BOTTOM
The draining of water is an important feature in a sink, and it’s always taken good care of in foster products. In the bent-welded sinks, which would have a flat bottom, the proper draining is guaranteed by the elegant beveling, which helps the water flow.
PERIMETRAL OVERFLOW
The overflow is always a security on the foster sinks that prevents the overflow of water in case of oversights. The perimeter drain solution improves aesthetics thanks to its square and essential shape.
INFORMATION
BRAND
Foster
PRODUCT TYPE
Sink
COLLECTION
Quadra
PRODUCTION
Made in Italy
WIDTH
78 cm
NUMBER OF BOWLS
1 bowl
STANDARD FITTINGS
- Drain
- Gasket
- Fixing hooks
- Boxed Packing
- Overflow and Siphon
MATERIAL
Aisi 304 Stainless Steel
CODE PRODUCT
1737050
USE
Kitchen
TEXTURE
Brushed in line
BASE
80 cm
FINISH
Foster brushed
DIMENSIONS 1
- Width : 520 mm
- Length : 780 mm
DIMENSIONS 2 BOWL
- Width : 430 mm
- Length : 740 mm
EDGE/INSTALLATION TYPE
- Top-mount
- Flush-mount
DRAINER
No
ENVIRONMENT
Indoor
ACCESSORIES

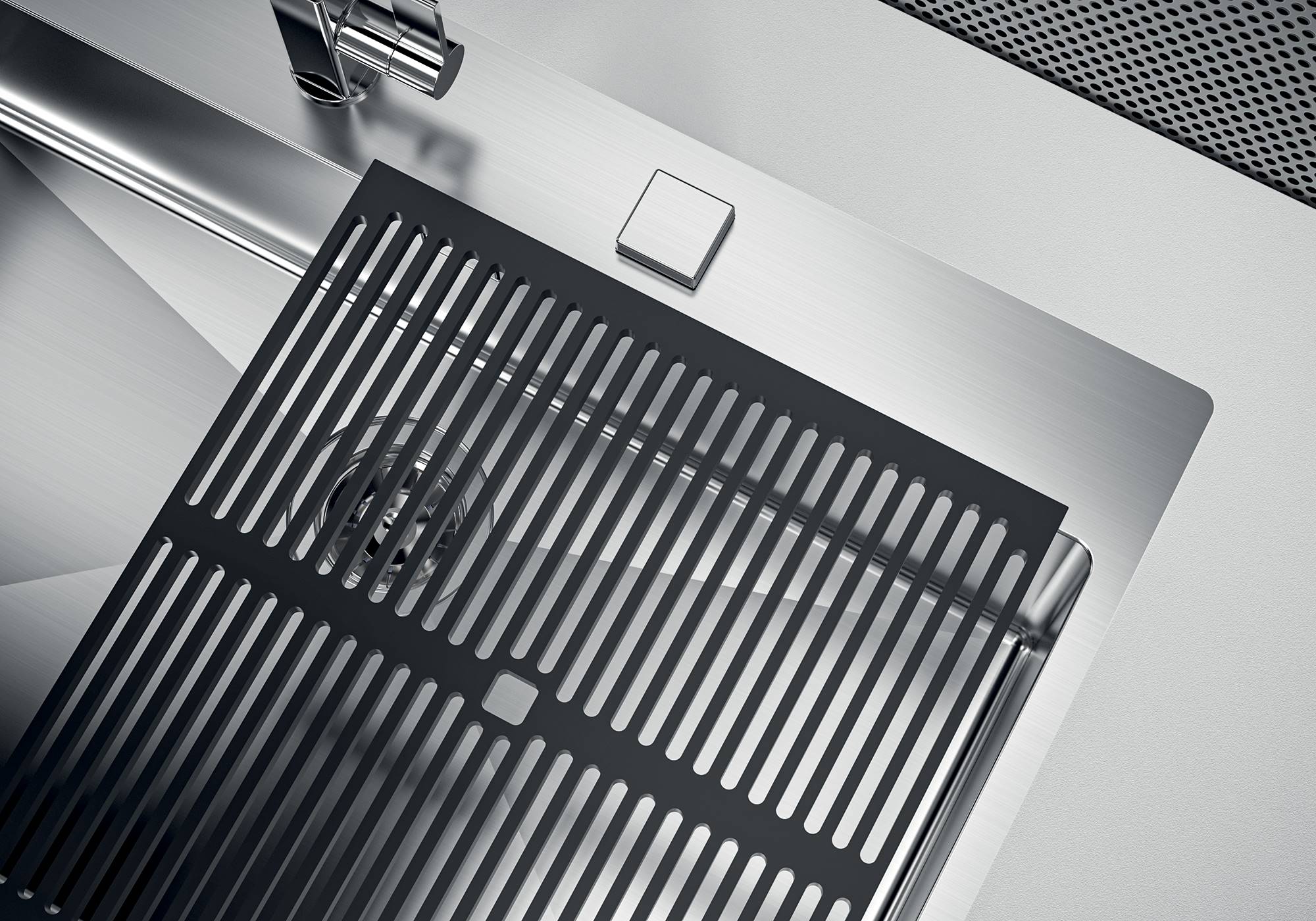

Black Grid
WASTE FITTING
Drain Space 3,5"
MIXER HOLES
- 2 Standard Holes
- 3rd And 4th Holes On Request
DOWNLOADS
↓ User Manual
↓ Technical Sheet
↓ Cut Out Drawing

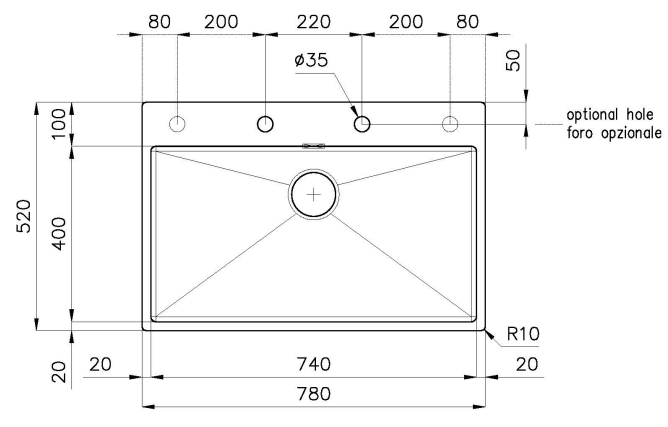

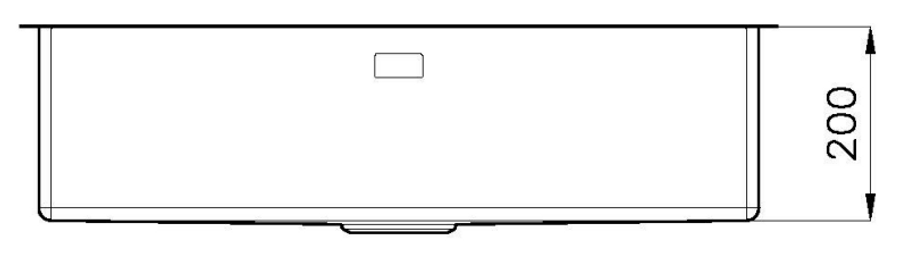

TECHNICAL DRAWINGS

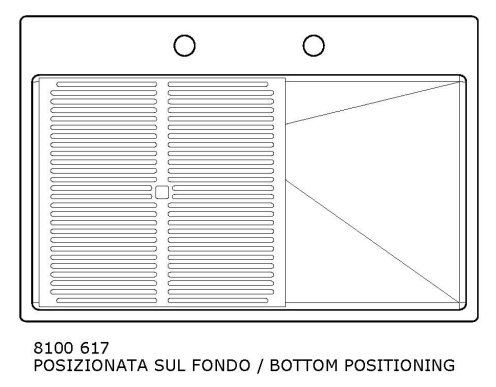

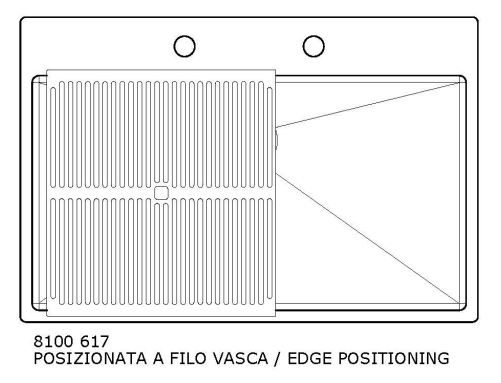

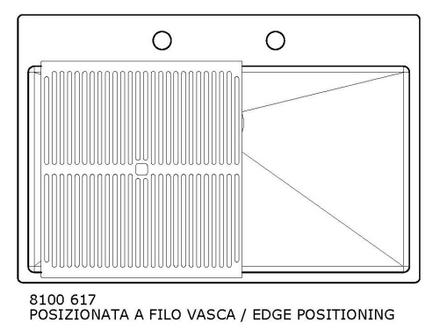

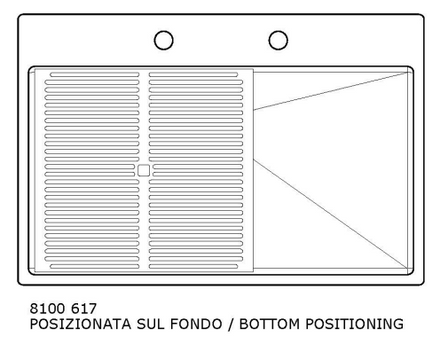

POSITIONING

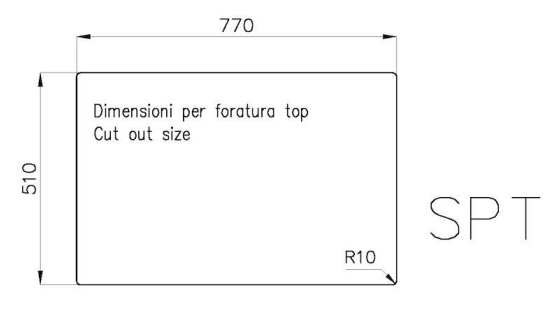

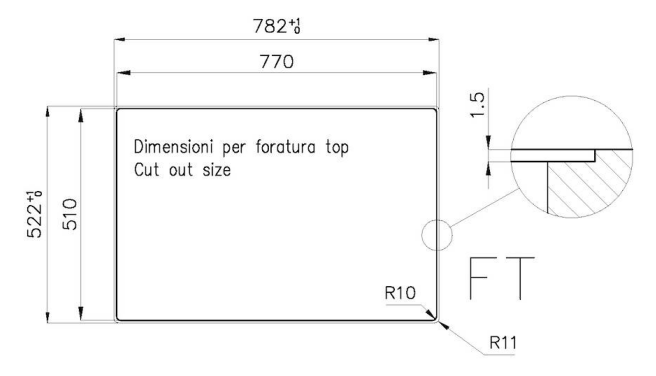

TOP CUT OUT SIZE

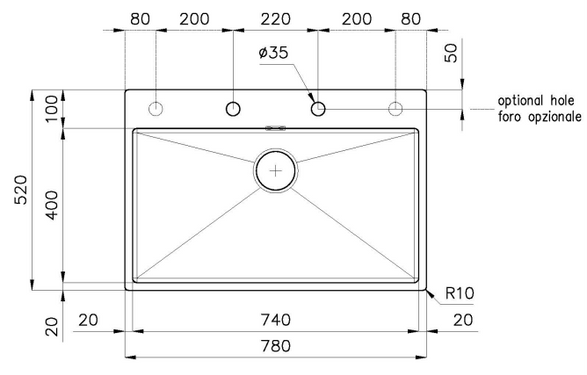

OPTIONAL HOLE
