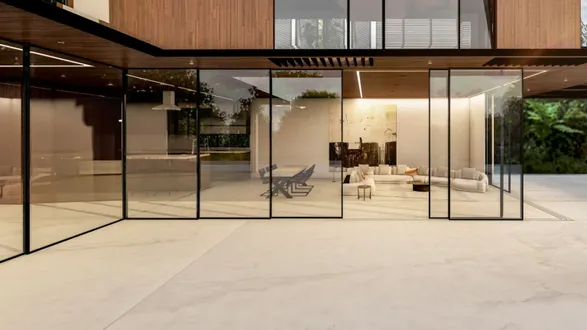

Rabel Rabel 50 Lumen Sliding Doors
RABEL 50 LUMEN SLIDING DOORS
RABEL 50 LUMEN SLIDING DOORS

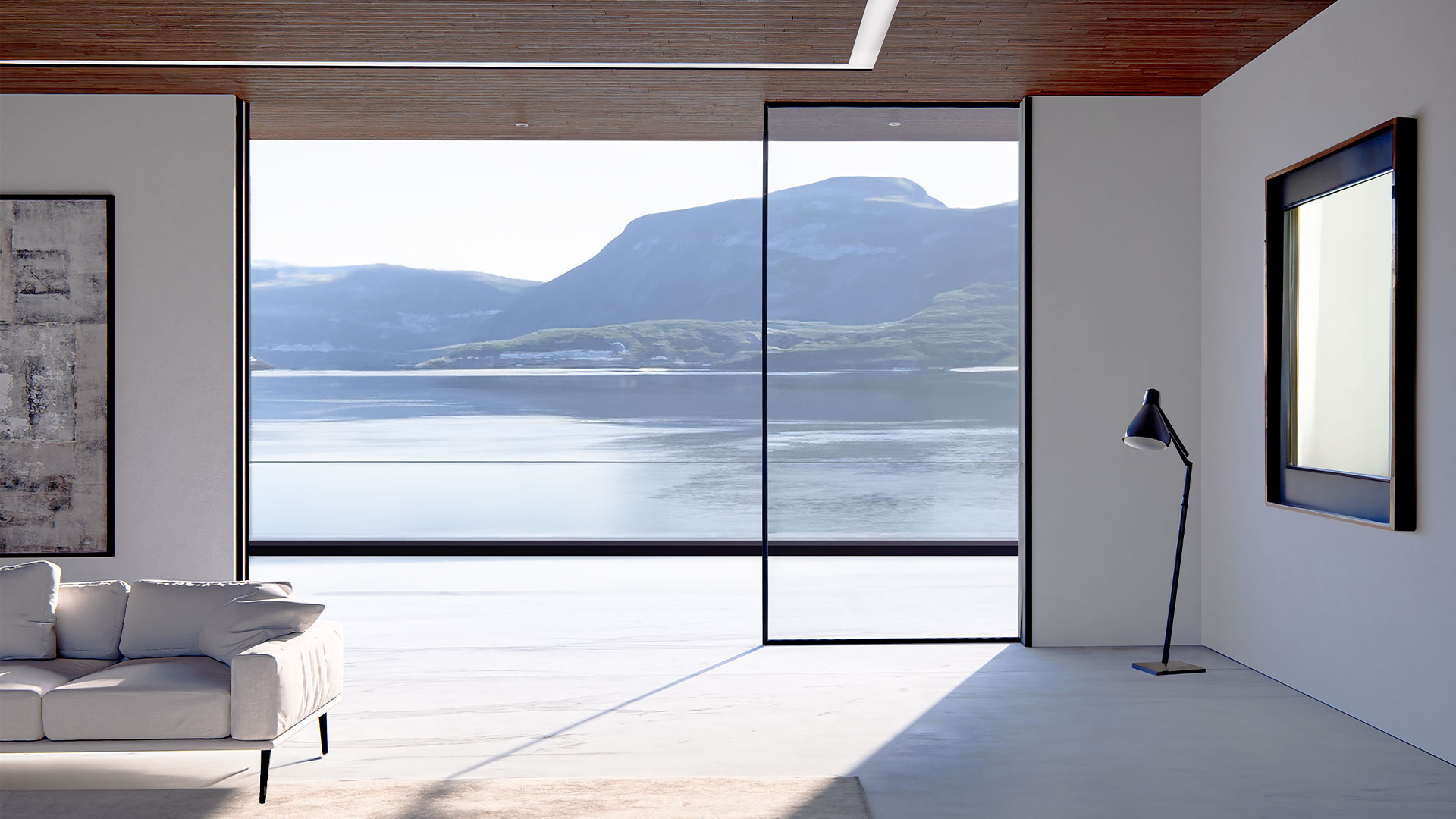

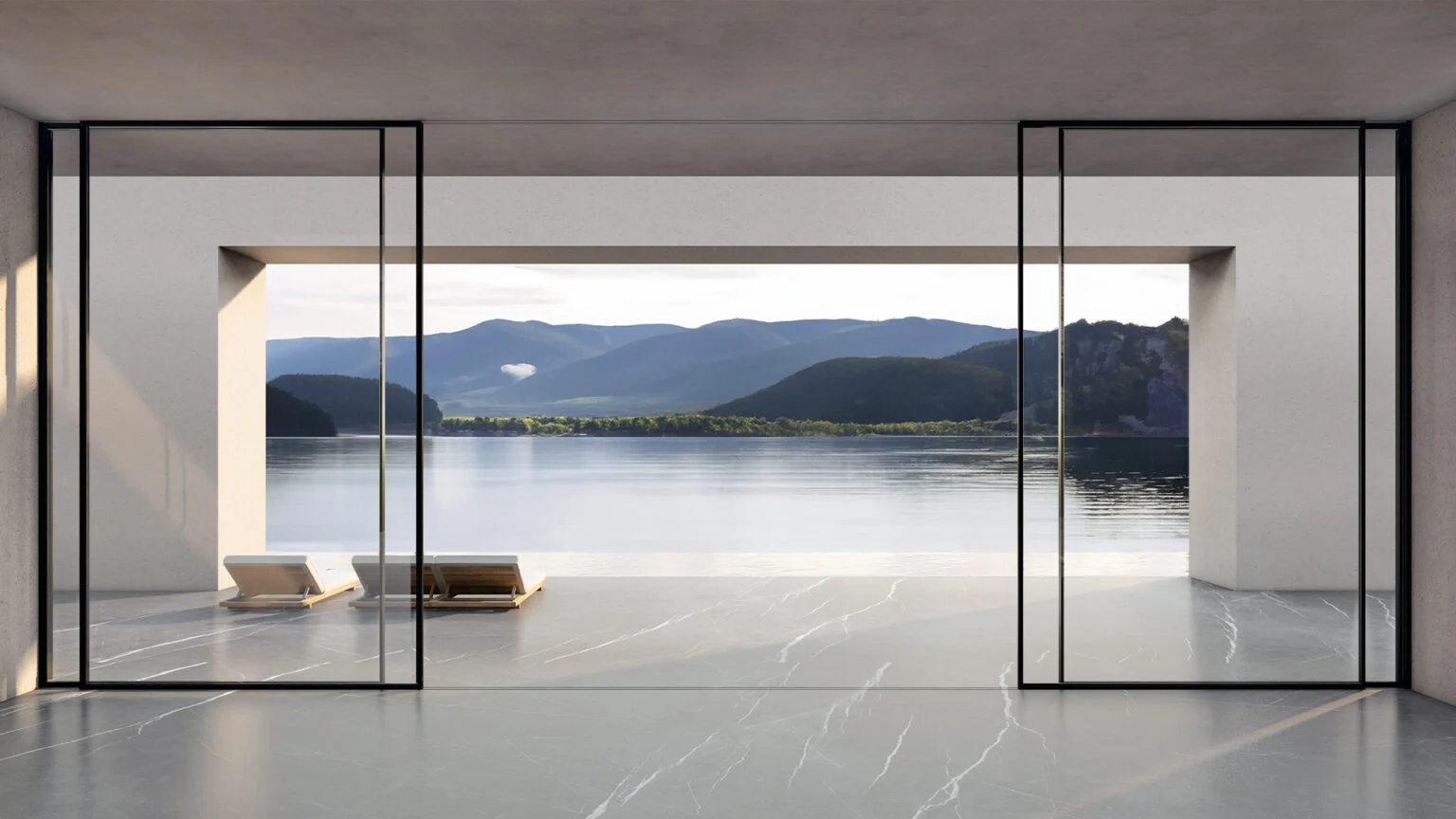

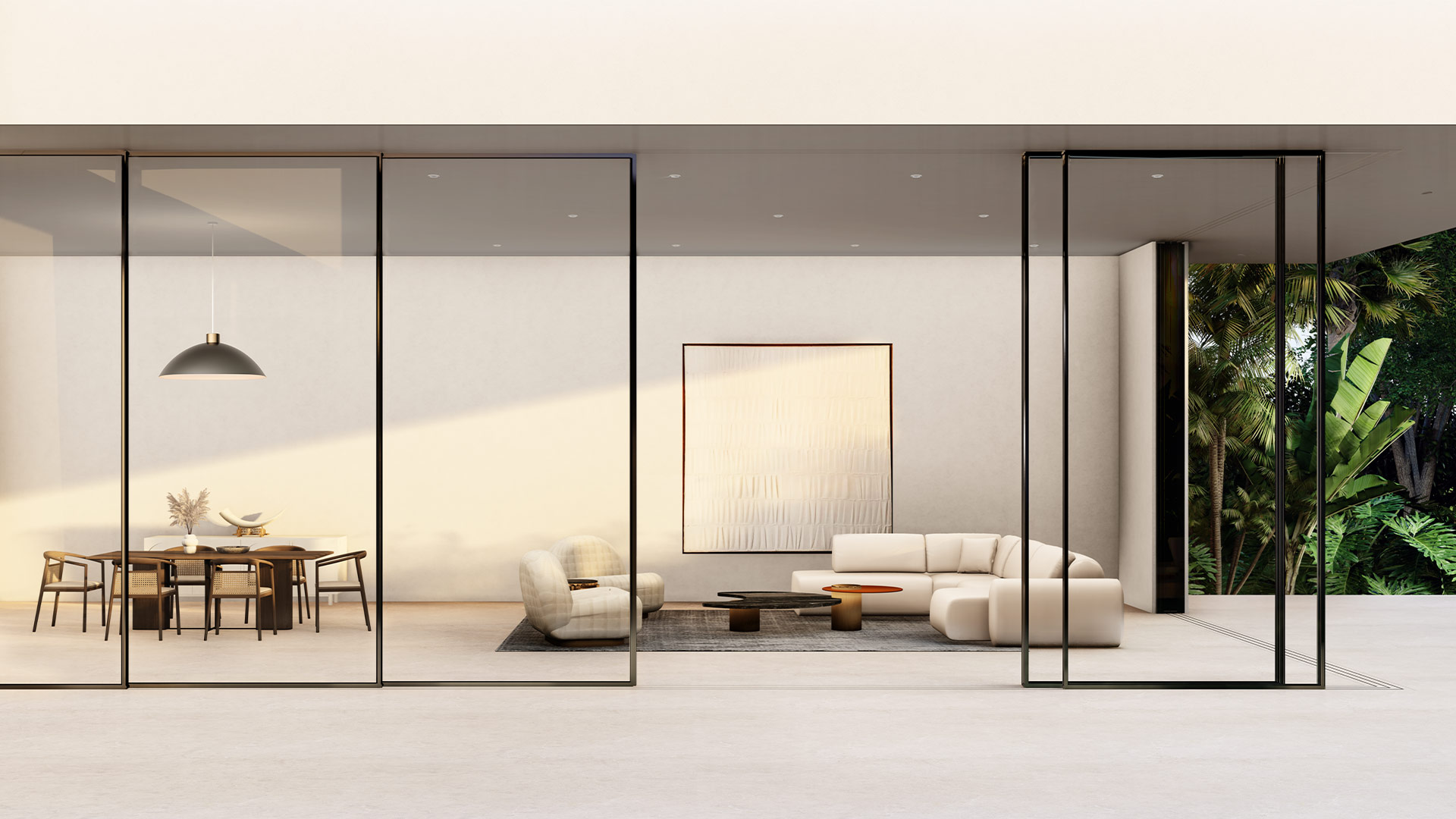

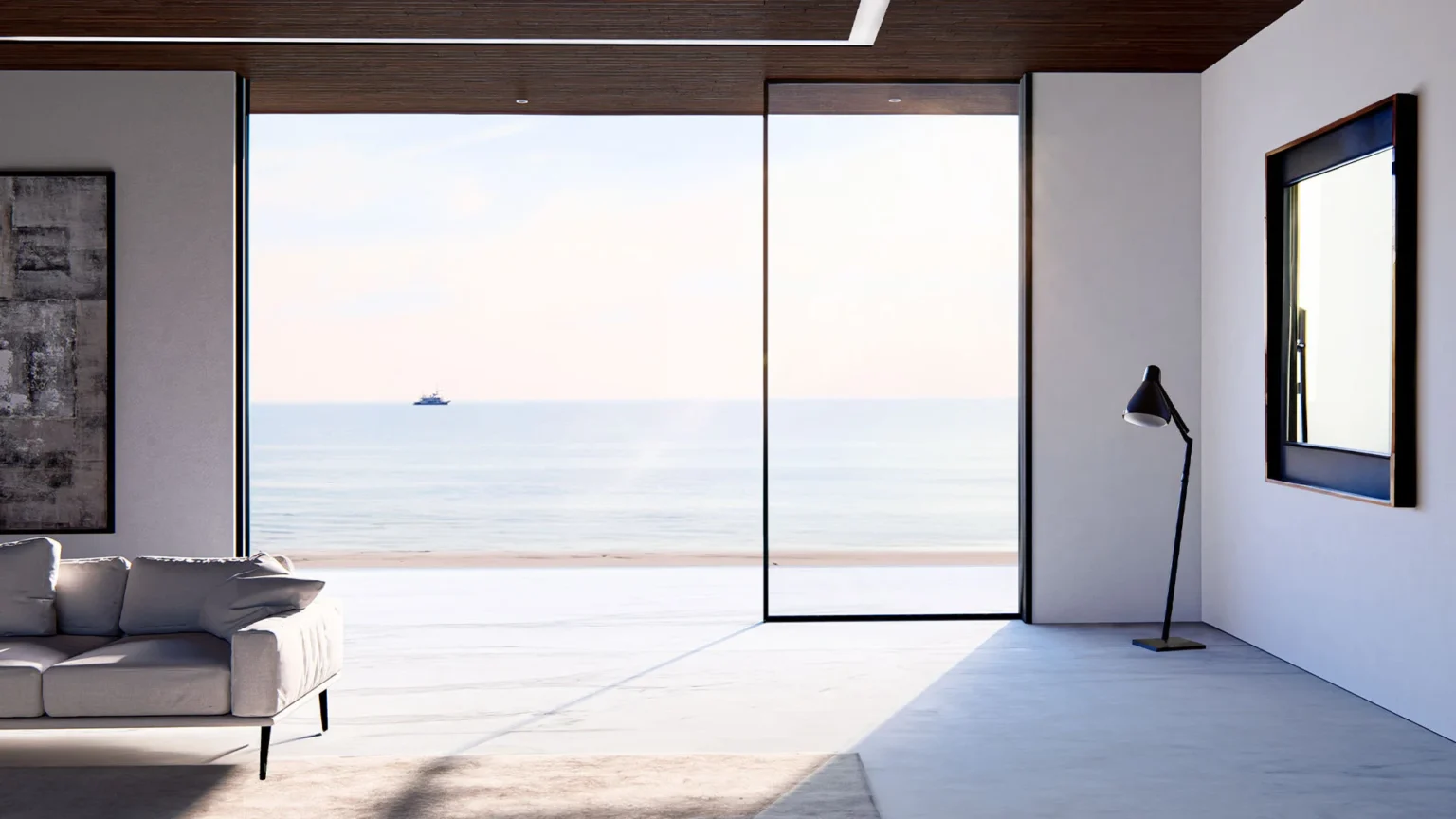

The rabel 50 lumen seamless minimal super thermal is a sliding system of slim profiles, offering a comprehensive solution for buildings and residences by combining innovation, functionality, and aesthetics.
The flexibility of the system to adapt to large openings and complex structures allows it to easily integrate into architectural designs with high requirements.
INFORMATION
BRAND
Rabel
PRODUCT TYPE
Sliding System
COLLECTION
50 Lumen
PRODUCTION
Made in Cyprus
ADVANTAGES

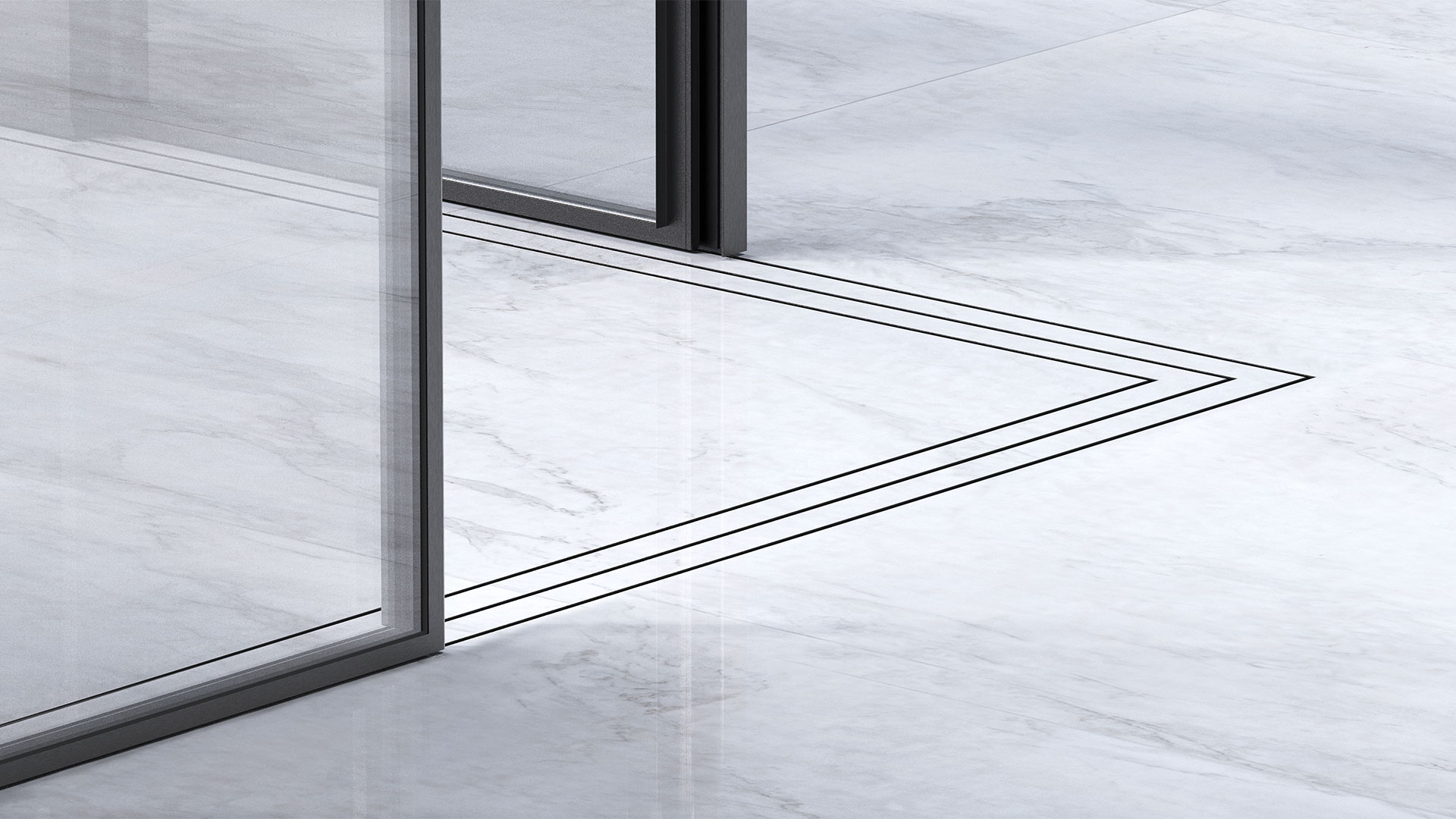

The main advantage of the system is the ability to conceal the floor and ceiling guides with minimal grooves, giving the impression of a seamless floor.
FRAME VISIBLE WIDTH
26/42/55p mm
SASH HEIGHT
27mm
FRAME HEIGHT
42/55/83mm
CENTER MULLION WIDTH
26mm
MATERIAL
The bottom part of the system is fully recessed with a guide height of 83mm, which can be covered with the floor material up to 20mm or with aluminum covers. Water drainage can be achieved using pipes directly attached to the recessed track or by adding a drainage channel.
MAX. WEIGHT PER SASH
400*Kg
GLAZING WIDTH POSSIBILITIES
32mm
TYPE
Seamless
USE
Sliding System
VERSIONS
The upper part of the system is available in two different versions. With a low height of 52mm for a visible guide and fully recessed for a guide with the possibility of covering with plasterboard, architectural materials up to 20mm, and with aluminum covers.
SEALING TYPE
Brush with Cloth + Q-Lon
COVER
Aluminium
MAXIMUM LOCKING POINTS
6
THERMAL BREAK WIDTH
20 - 30mm
FABRICATION THERMAL TRANSMITTANCE EN ISO 10077-2 (UW)
≥ 1.4 W/(m2K)
DOWNLOAD
↓ Brochure
ENVIROMENT
Indoor
DETAIL
Technically, the system fabricates doors up to four meters in height, two meters in width, and 400 kg per sash *.The rabel 50 lumen seamless minimal super thermal is based on a thermally insulated middle pillar of 26mm. The locking system provides three different options. The basic equipment includes a multi-locking system, and optionally, an access system from the outside with a key.
SLIDING

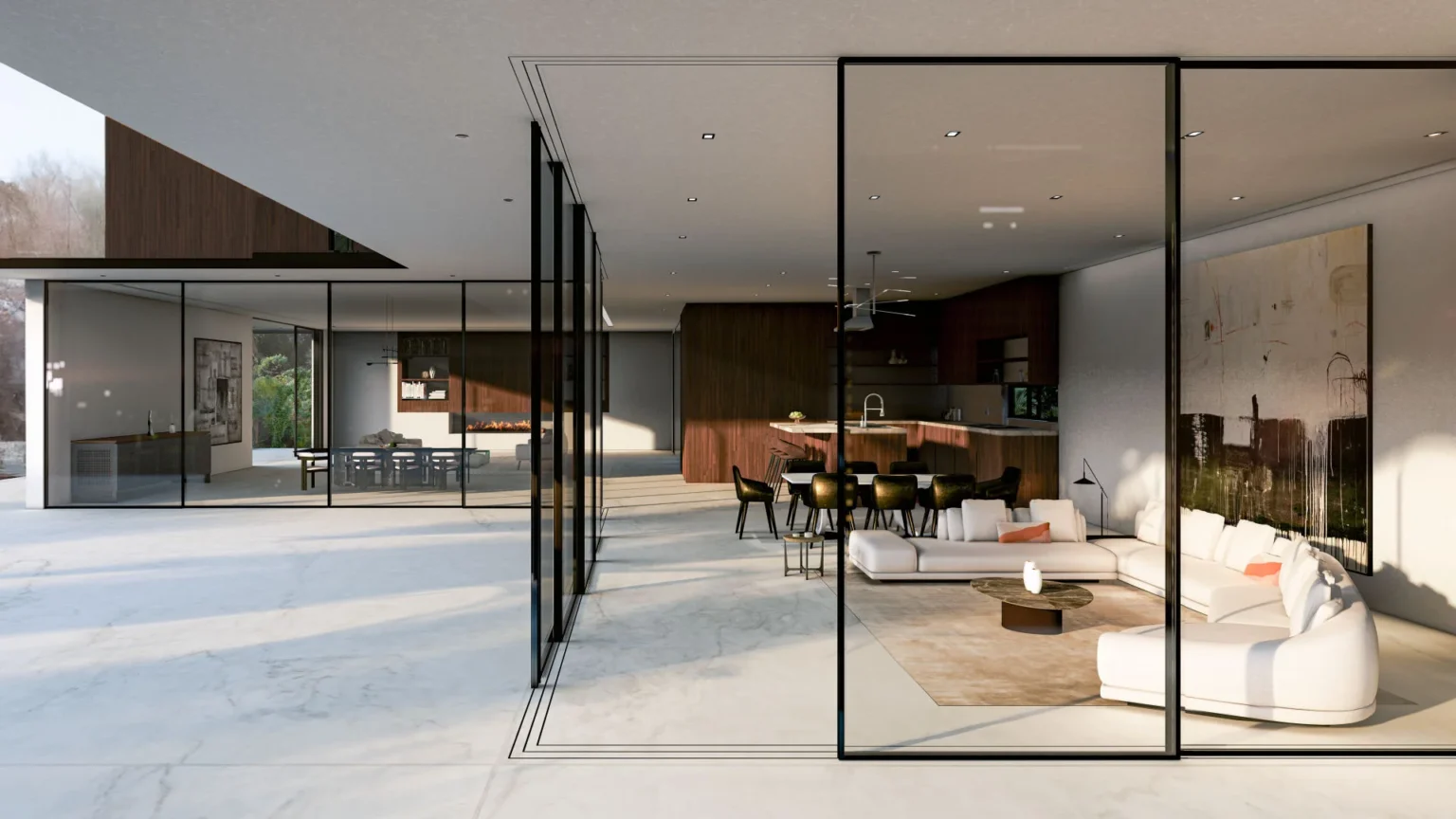

It can also create corners without a pillar, as well as complex typologies, such as sliding with integrated railing, sliding with fixed, and pocket.The rabel 50 lumen seamless minimal super thermal is undoubtedly a high-quality and aesthetically advanced product that meets the modern architectural trends in the market.
