S700 LIFT & SLIDE INSULATED SYSTEM SUPREME
S700 LIFT & SLIDE INSULATED SYSTEM SUPREME

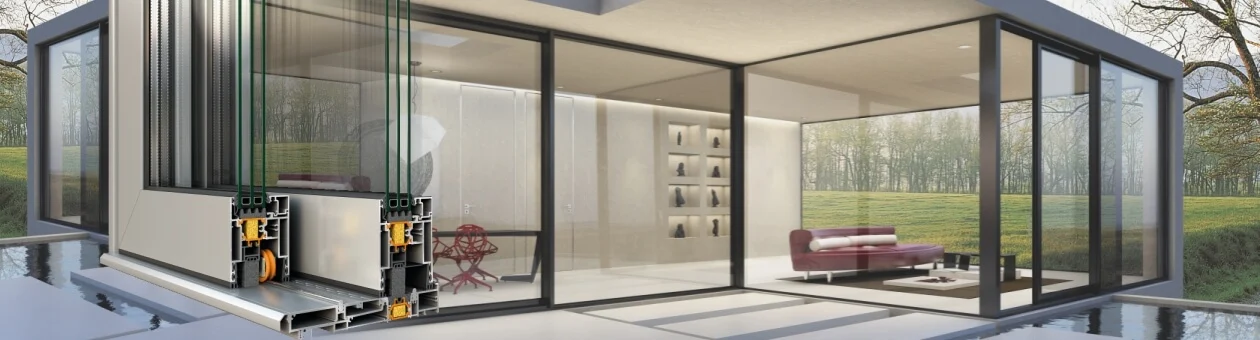

The lift & slide system SUPREME S700 represents the new generation of ALUMIL’s high-end systems.

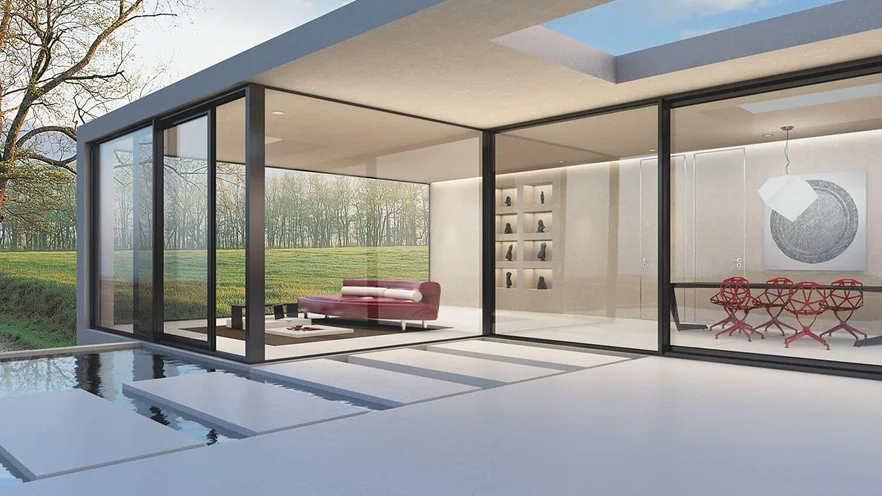

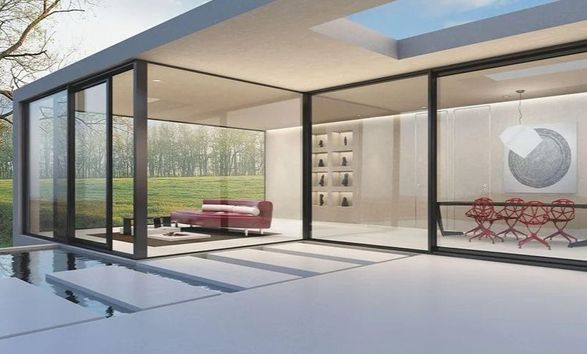

It is an excellent solution for projects with demanding requirements, meeting the trend of “transparent” architecture through extensive glass surfaces, with high thermal insulation, safety and modern design.
Its minimal design and its various innovative characteristics, make it the ideal option for projects requiring wide spans for enhanced daylight, outstanding performance and maximum ease of use.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Thermal Insulation
WINDOW TYPE
Lift & Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
47 mm
SASH DEPTH
70 mm
GLAZING TYPE
Double - Triple

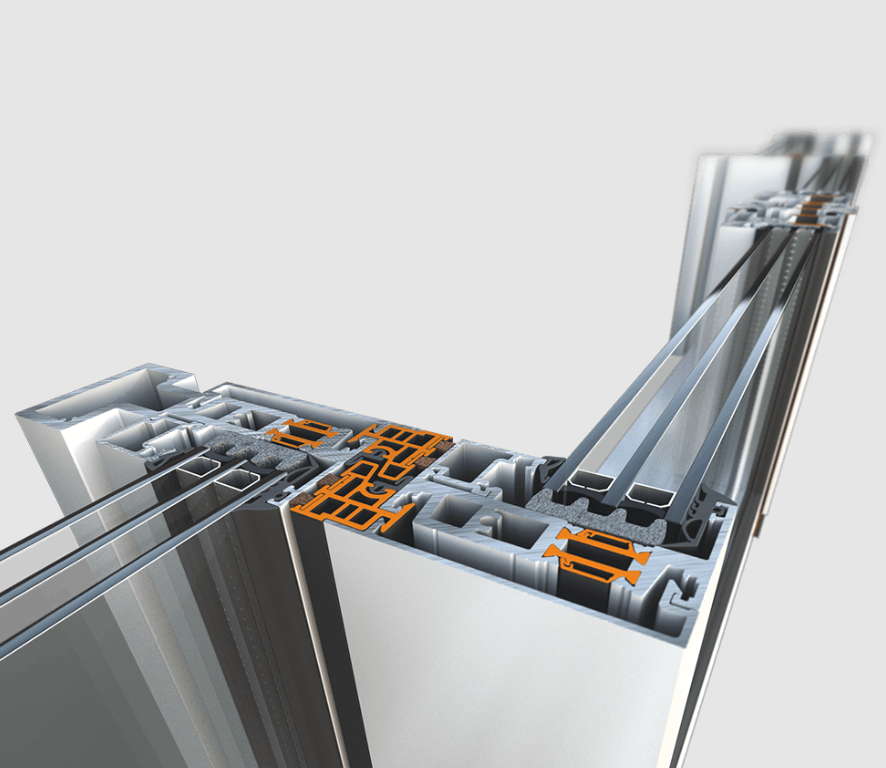

TYPE OF THERMAL INSULATION
- Polyamides
- ALUMIL Energy bar
- Insulation foam
- Thermoplastic
MAXIMUM GLAZING THICKNESS
From 22 to 50 mm
SASH WEIGHT
Up to 600 Kg
MECHANISM
Lift & slide mechanism
MINIMUM THRESHOLD HEIGHT
24 mm
SEALING METHOD
Perimetrical with EPDM gaskets & tri-fin brushes
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
91 mm
WATER TIGHTNESS
Class E900
UW
Uw=1,1W/m²K
ACCESS
Ease of access
BURGLAR RESISTANCE
RC2
AIR PERMEABILITY
Class 4
WIND LOAD RESISTANCE
C4/B4
SOUND REDUCTION
41 dB
CHARACTERISTICS
- Meeting stile
- Multiple tracks

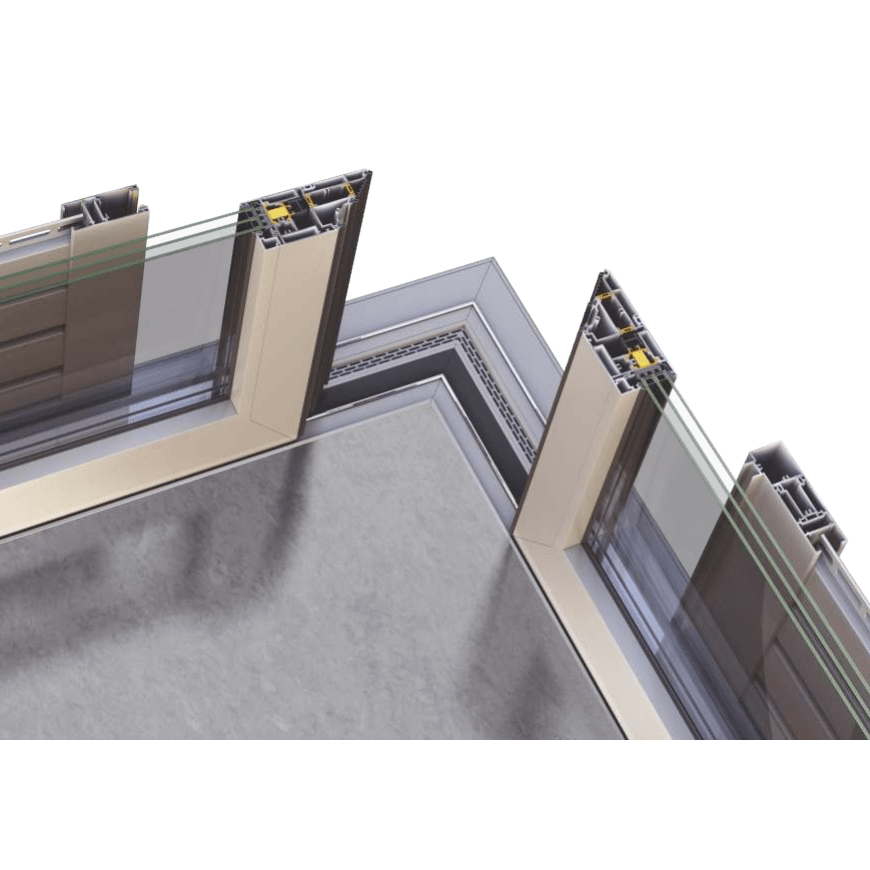

- Corner typologies
- Horizontal sliding sashes
- Sliding into the wall cavity
- Combinations with fixed lights
- Combinations with flyscreen and shutter
ADVANTAGES

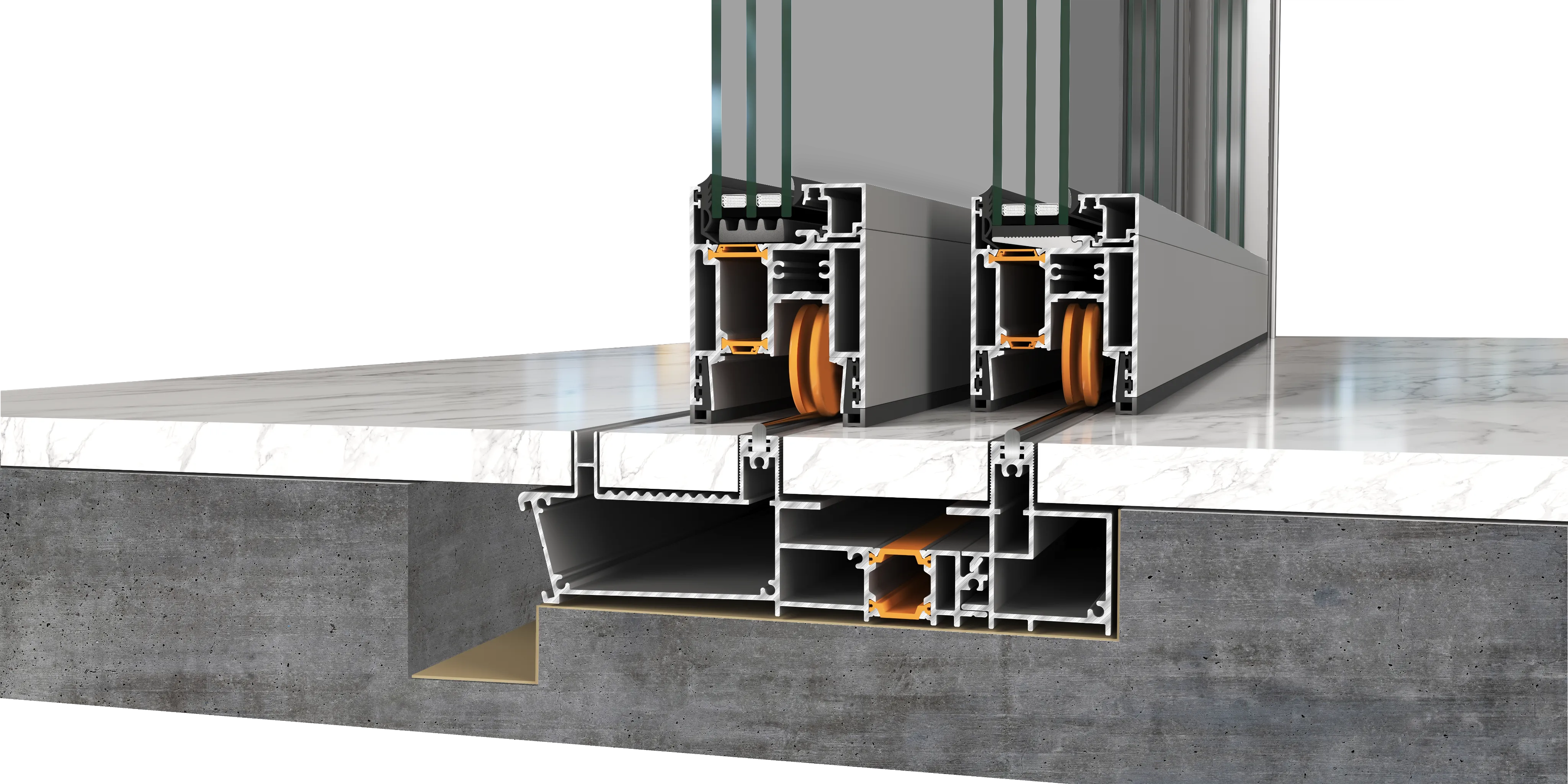

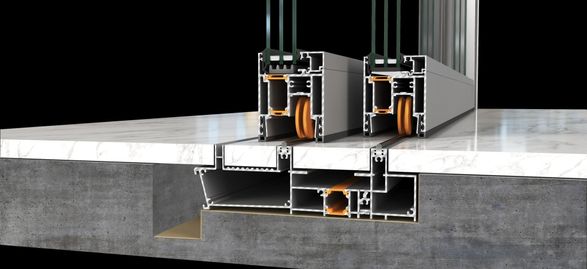

-Wide variety of typologies and solutions -Enhanced natural light thanks to the wide glazing surfaces -High energy savings thanks to the exceptional energy efficency -Maximum ease of use and high functionality, optionally combined with automatic motion -Increased static loads and functionality in case of severe weather conditions -Available solution for totally concealed bottom frame installation covered with the floor finish (version SUPREME S700 Eclipse)
CERTIFICATES
SECURITY
High Security Level
SOUND
Exceptional sound insulation
PERFORMANCES
Exceptional quality with certified performances
DETAIL

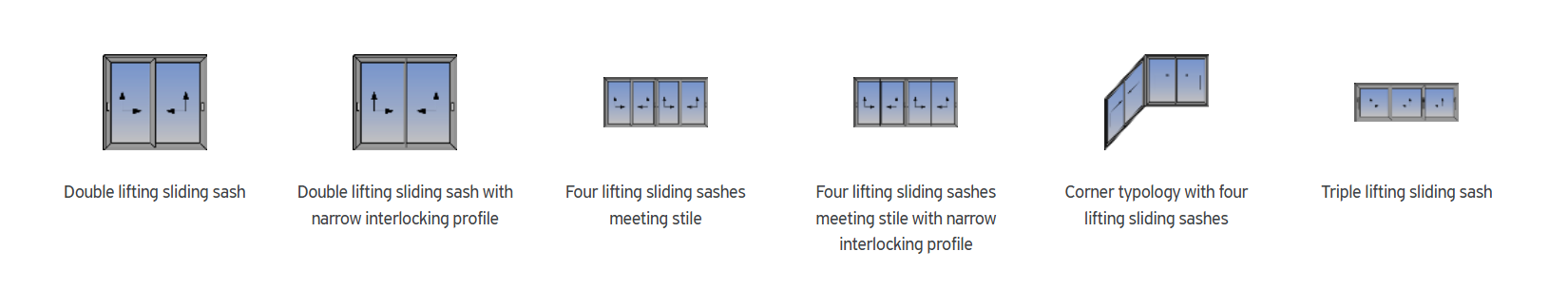

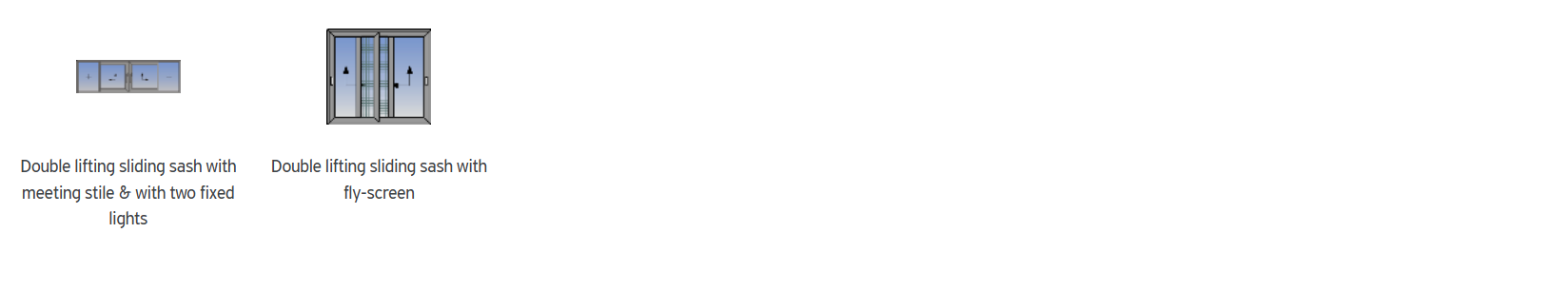

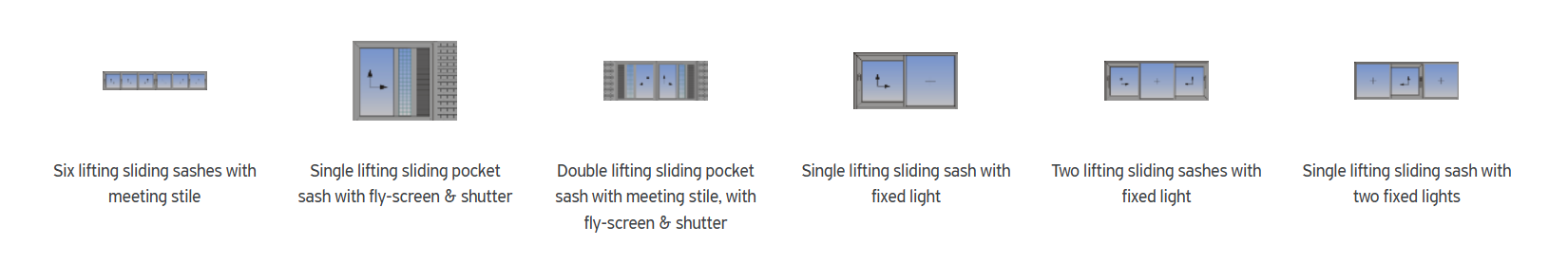

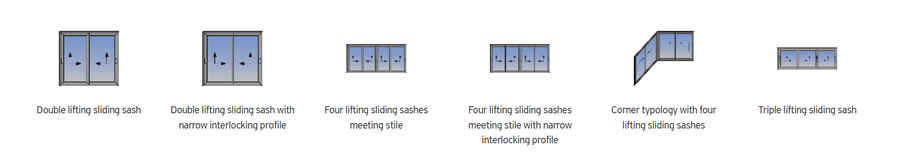

TYPOLOGIES
