SDL ACUBIS CANOPIES
SDL ACUBIS CANOPIES

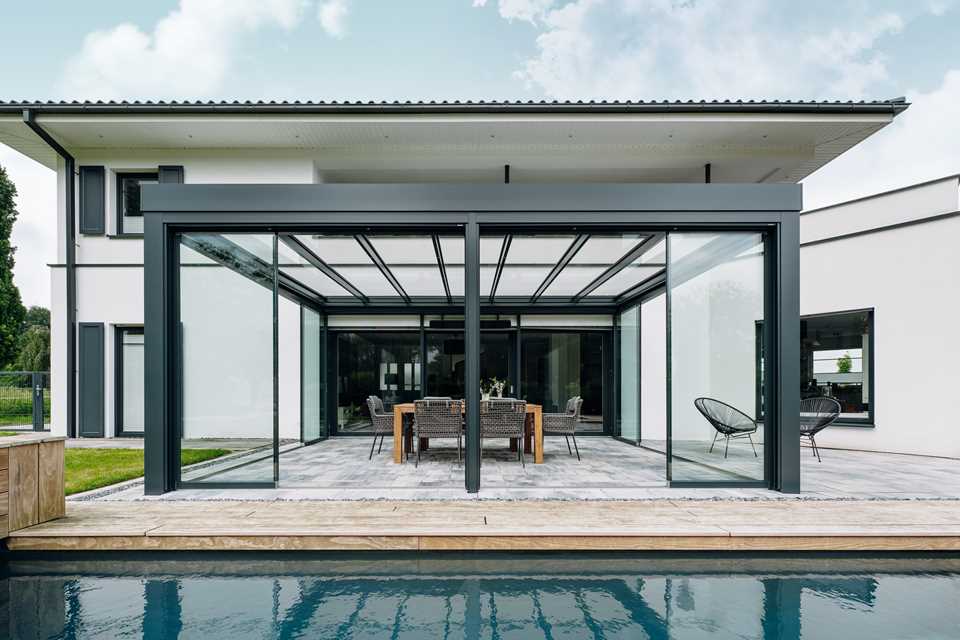

A flat canopy for design purists
The new SDL Acubis flat canopy is a winner in terms of design and functionality, and can be built as a stand-alone unit or an extension to an existing building.
The internal structural members of the non-insulated profile system lend the canopy an air of elegance. The 2° roof pitch is barely visible to the naked eye, but is enough to ensure that water drains off the canopy.

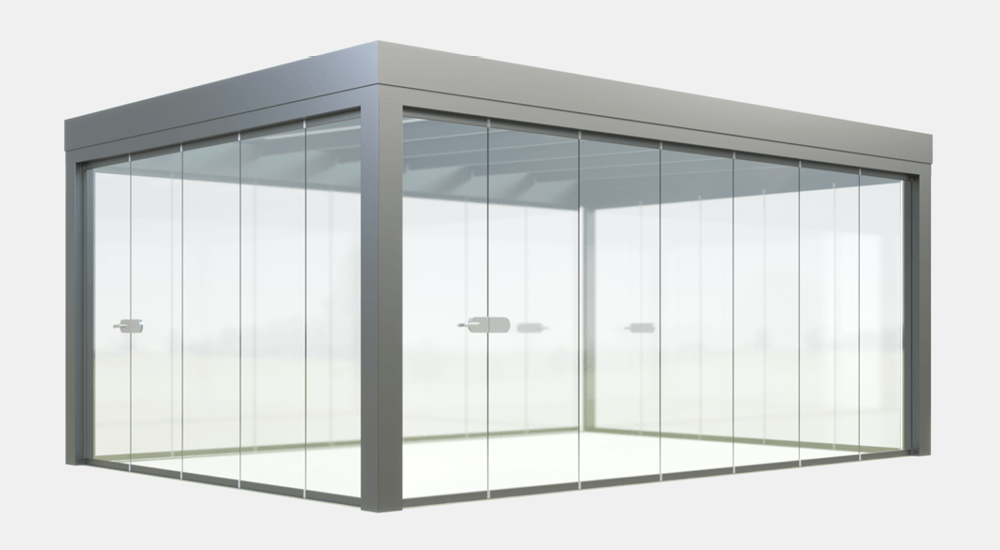

A low, single-piece wall joint lends the canopy a lightweight feel and makes on-site assembly a breeze. It is suitable for use in open, partially closed and closed glass canopies, and also in non-insulated glass houses.
INFORMATION
DESIGN
The powder-coated and rounded Solarlux aluminium system profiles join together to form a harmonic unit. The design has a timeless elegance
BRAND
Solarlux
PRODUCT TYPE
Canopy
INSTALLATION
Monopitch or pitched roof design. Roof drainage via gutter. Concealed drainage or emergency drainage can be installed in the pillars
COLLECTION
SDL Acubis
PITCH
The canopy is always constructed with a pitch of 2°
ARCHITECTURE
Can be set up as a free-standing construction or integrated into the existing house architecture using a wall joint
COMPREHENSIVE RANGE
The comprehensive range of profiles means you can always find the right option for the size and structural requirements of your property. Steel reinforcements can be inserted into the hollow chambers of the bearing profiles. This facilitates large roof constructions and maximum opening widths and spans
MATERIAL
Aluminium
PRODUCTION
Made in Germany

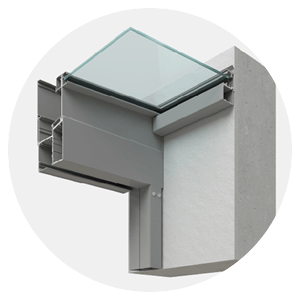

WALL JOINT
The one-piece wall joint allows for simple installation. The rafters are bolted directly onto the wall joint
SYSTEM
The system is also available with an optional under-roof awning and vertical shades
HEIGHT
Three-sided or four-sided all-round facing with a height of just 253 mm, depending on the design
THICKNESS
Single glazing made of laminated safety glass with a thickness of 8, 10 or 12 mm is used

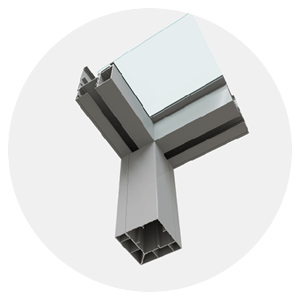

CROSS-SECTIONS
The pillars can be slid into place from the end of the eaves, enabling optimum structural use of the profile cross-sections. The positioning of the pillars is variable.
GLASS CANOPY
The glass canopy can be lit elegantly using spotlights built into the roof beams. The cables are concealed in a cable duct located in the wall joint
DETAIL
The Solarlux SDL Acubis glass canopy system is a non-insulated aluminium profile system with internal structural members.
The profile, which has been specially designed for this application, is used to achieve filigree constructions. It is suitable for use in open, partially closed and closed glass canopies, and also in non-insulated glass houses.
SERVICE FEATURES
-The roof system does not require silicone insulation -If the glass canopy has been ordered glass-ready, the glass dimensions will be enclosed with the order confirmation -The glass canopy is delivered pre-fabricated. The high degree of pre-fabrication significantly reduces the installation time -Solarlux recommends using the following vertical elements in the glass canopy: SL 20e, SL 25, SL 25R, SL 25 XXL, SL 35 and SL 45
-Structural analysis tables are available for construction and calculation purposes during the design phase. Property-specific structural analyses for the system are created shortly before order fulfilment.
STRUCTURE
The pillars can be slid into place from the end of the eaves, enabling optimum structural use of the profile cross-sections. The positioning of the pillars is variable.
Technology
TECHNOLOGY
SHADING
Vertical, under or on roof
CUBIC DESIGN
With filigree profile views
ROOF PITCH
Just 2°
DRAINAGE
Gutter or concealed

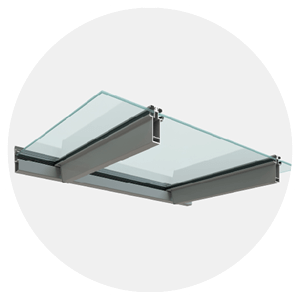

RAFTERS
Slim sight lines, internal structural members
DETAIL
DESIGN AWARDS
The SDL Acubis is the recipient of a “special mention” at the German Design Awards.

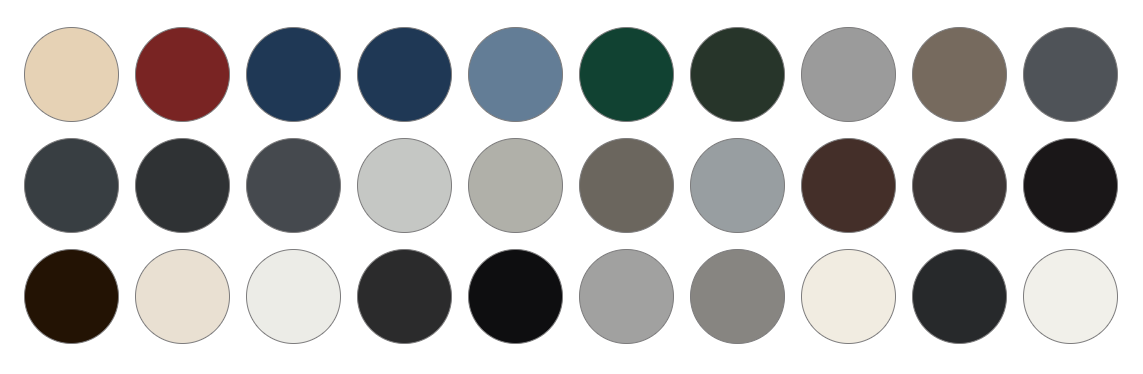

THE SOLARLUX WORLD OF COLOURS
When you choose a Solarlux aluminium system, you opt for individuality. Solarlux standard colour options, which include around 30 RAL colours, offer all the colours of the rainbow in matt and gloss finishes, at no extra cost. This allows every system to be matched with the building’s interior and exterior design. We use our own in-house coating plant – one of the most modern in Europe – for top surface quality.
