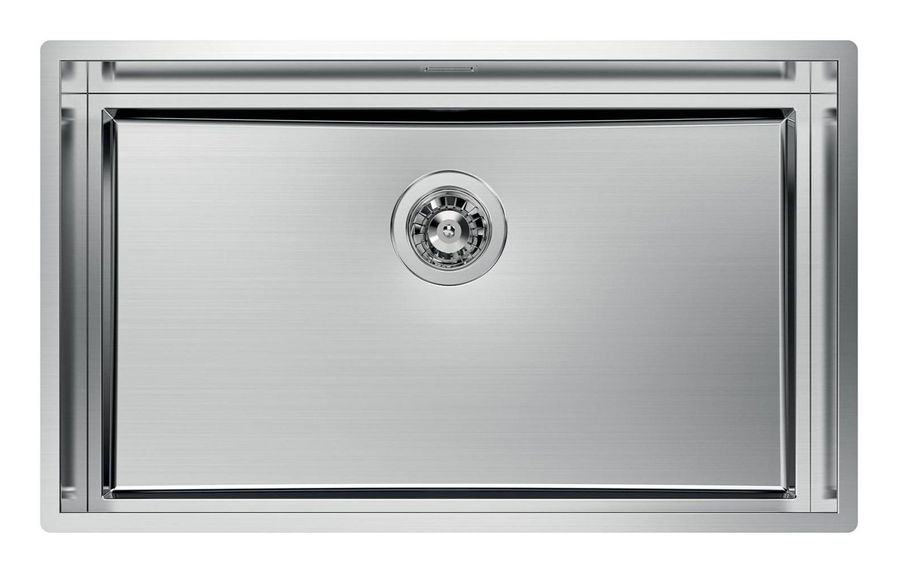

Foster Quadra Evo Sink
QUADRA EVO SINK
QUADRA EVO SINK
Model :1257 050
FEATURES

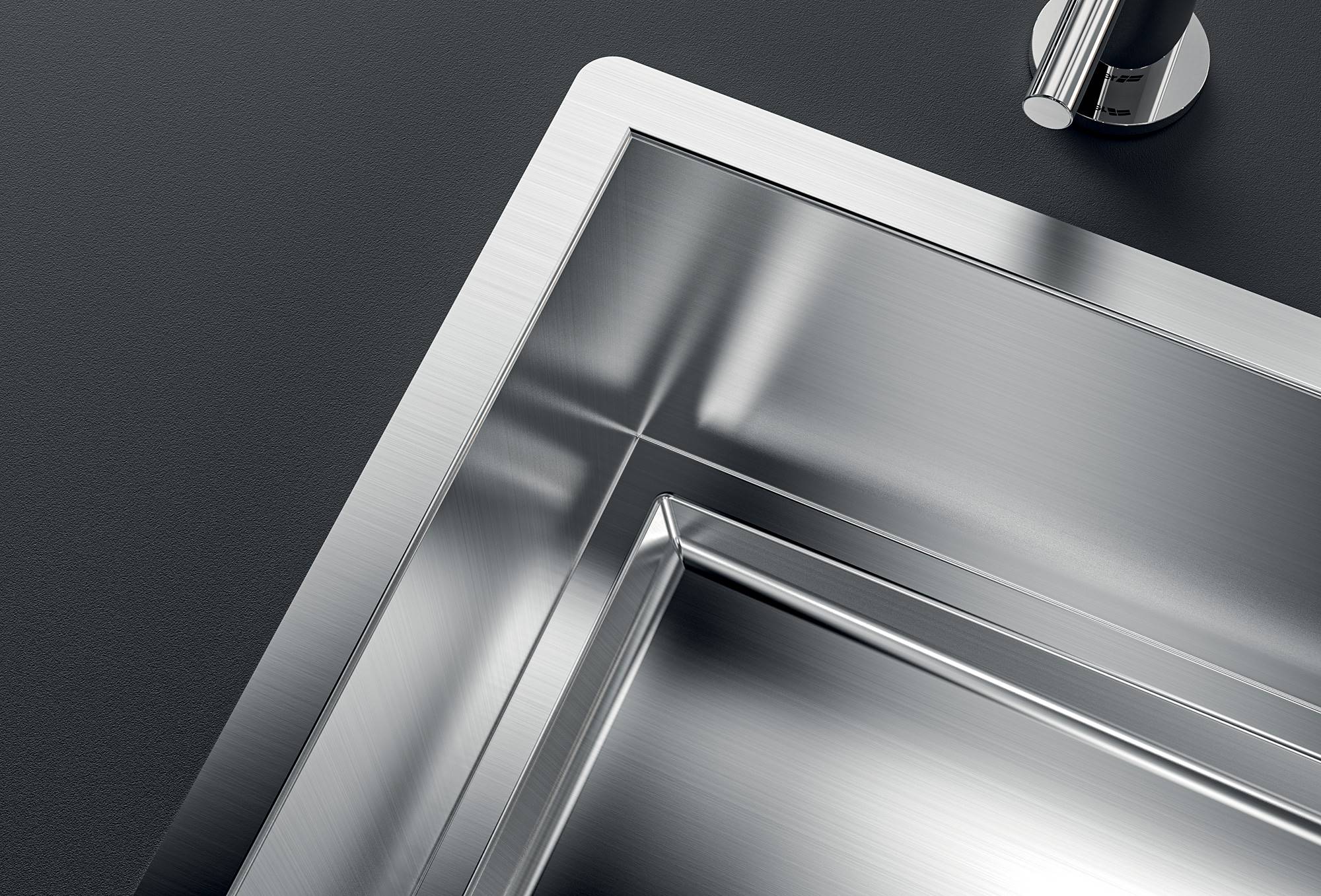

SQUARED BOWLS - 0 RADIUS
The square bowls of Foster have perfectly squared vertical edges.
HIGH THICKNESS
1mm thick steel. A significant thickness, which guarantees the maximum sturdiness and durability.
BASKET 3,5" WASTE FITTING
The drain is equipped with a large 3.5" drain, with the practical basket cap that prevents the discharge of solid parts.
DEEP BOWL
This bowls reach an important depth, over 20 cm, thanks to the advanced production technology, that can be offer great capiency and practicity in all the washing operations.
PERIMETRAL OVERFLOW
The overflow is always a security on the Foster sinks that prevents the overflow of water in case of oversights. The perimeter drain solution improves aesthetics thanks to its square and essential shape.
MOULDED BOTTOM
The moulded bottom guarantees perfect water flow and facilitates cleaning operations thanks to the perimeter step with sloping walls.
INFORMATION
BRAND
Foster
PRODUCT TYPE
Sink
COLLECTION
Quadra Evo
CODE PRODUCT
1257050
WIDTH
78 cm
DIMENSIONS
780 x 470 mm
BOWL DIMENSION
740 x 430 mm
PRODUCTION
Made in Italy
TEXTURE
Brushed in line
EDGE/INSTALLATION TYPE
- Top-mount
- Flush-mount
MIXER HOLES
No standard holes
DRAINER
No
FINISH
Foster brushed
STANDARD FITTINGS
- Drain
- Siphon
- Gasket
- Overflow
- Fixing hooks
- Boxed packing
NUMBER OF BOWLS
1 bowl
WASTE FITTING
3.5" drain
USE
Kitchen
BASE
80 cm
MATERIAL
AISI 304 stainless steel

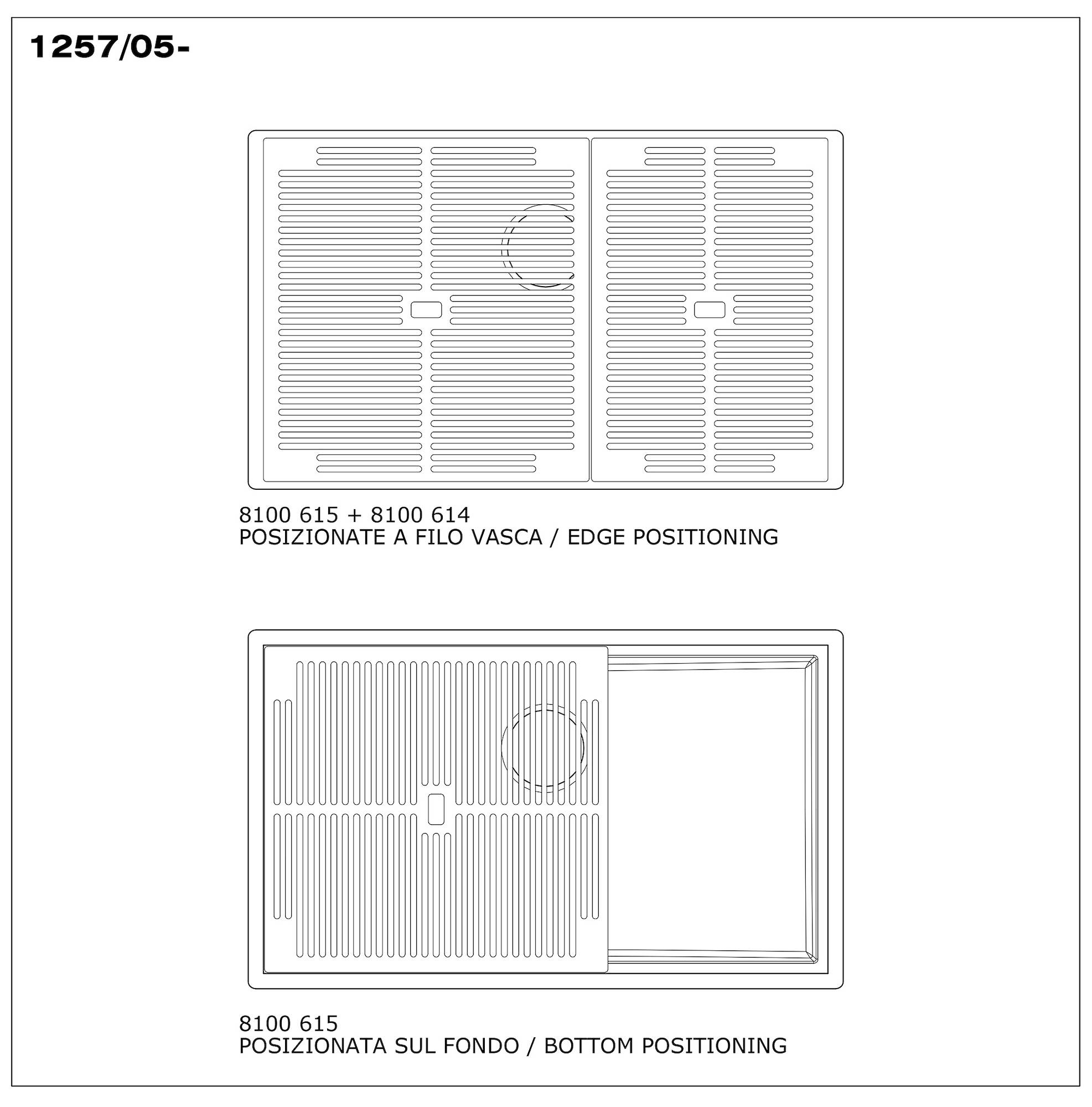

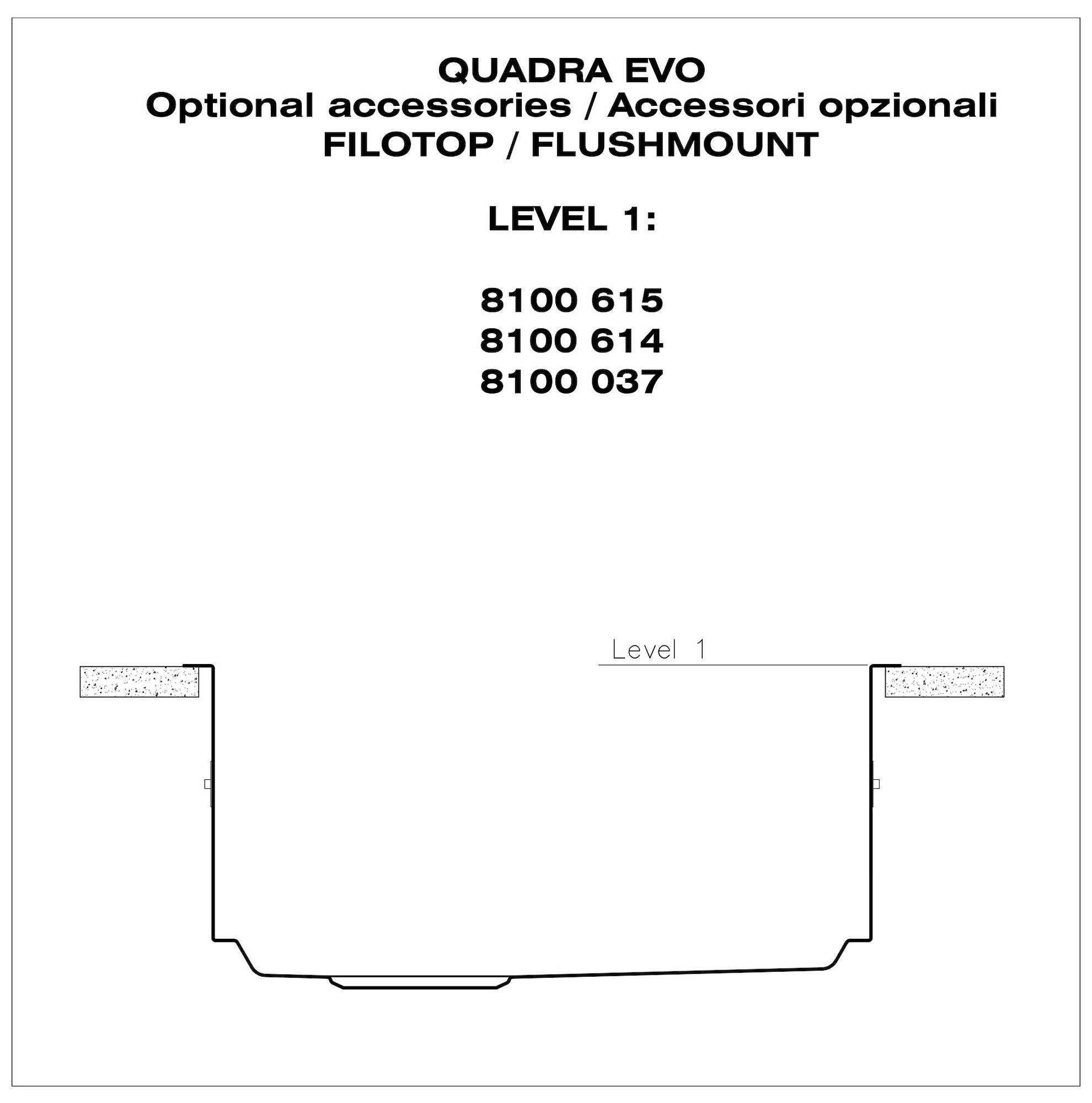

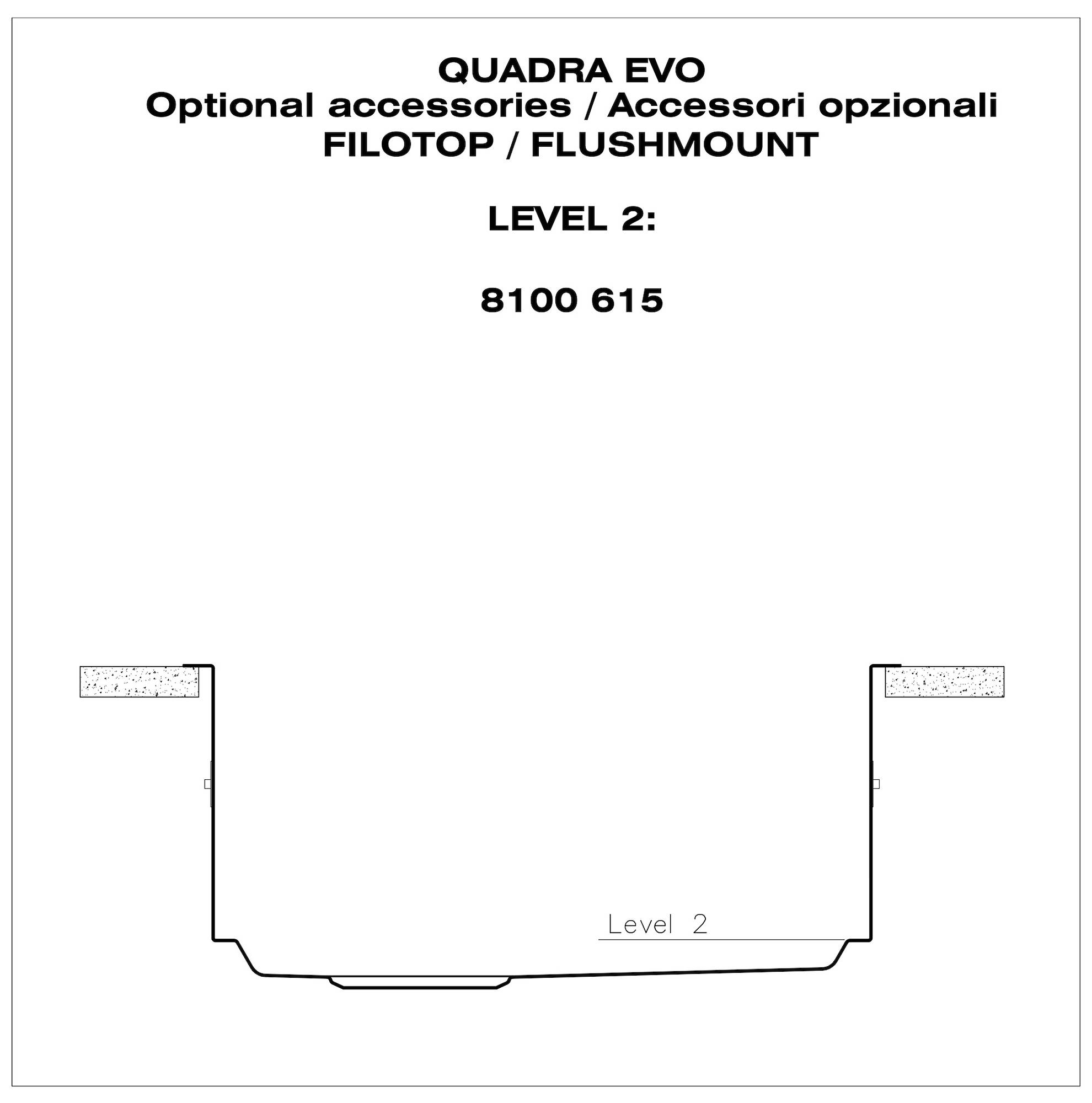

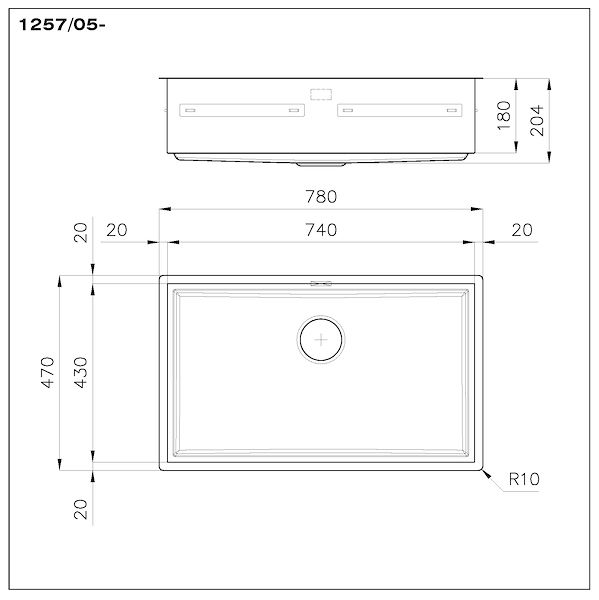

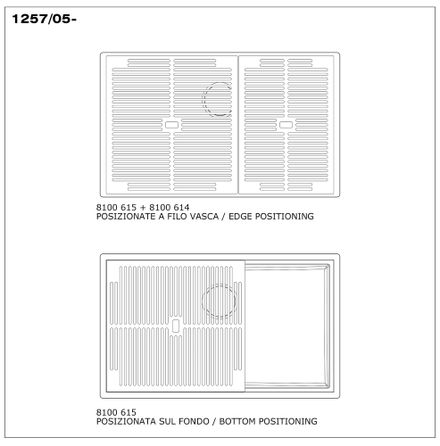

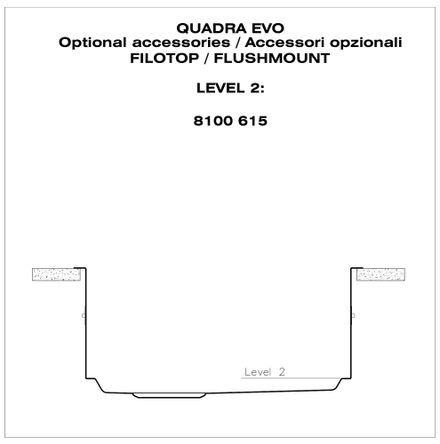

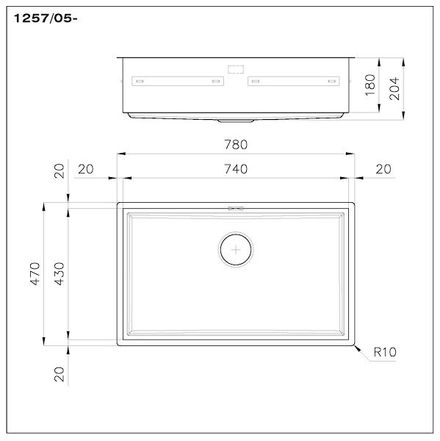

TECHNICAL DRAWINGS
TECHNICAL DIAGRAM
