Tuttovetro Floor is the frameless collapsible glazed unit that gives maximum brightness to your setting.

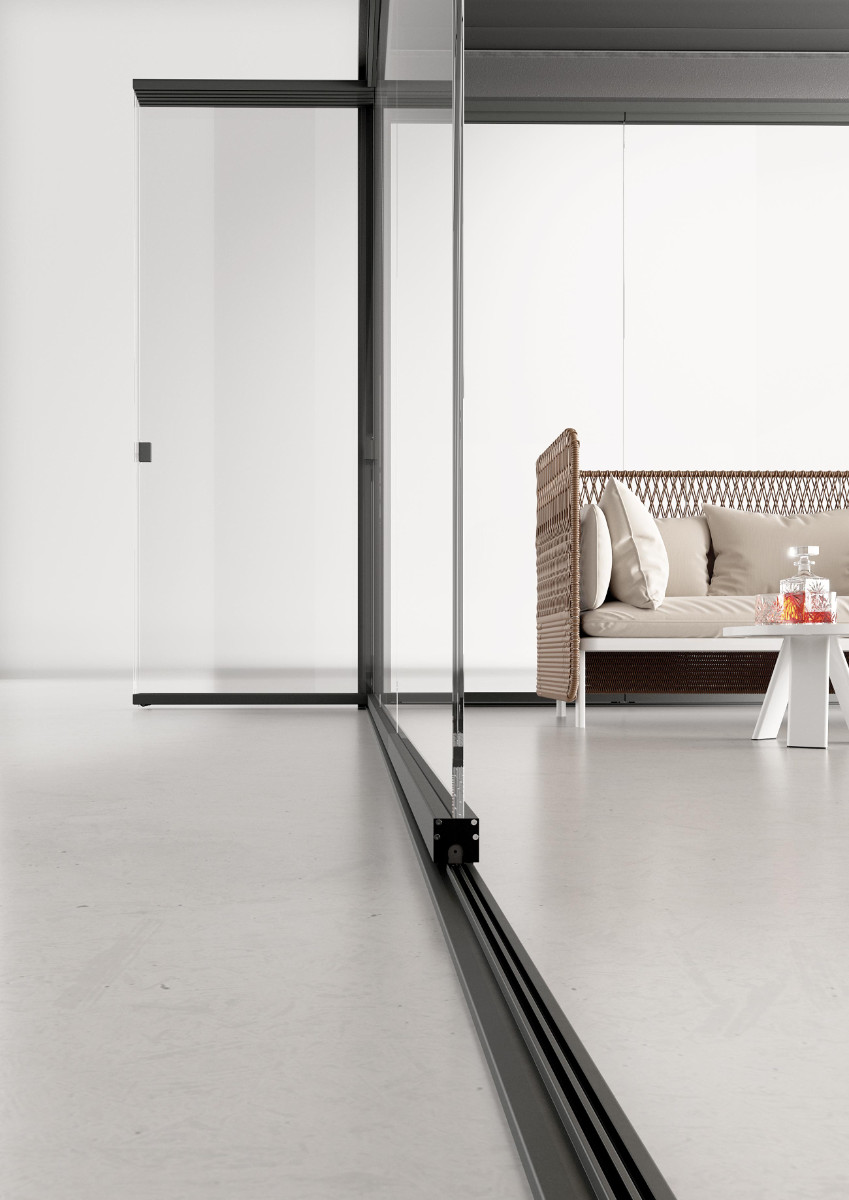

The bottom sliding system improves panel opening, also ensuring greater stability even if the installation frame is slightly irregular. Each panel can be opened individually and folded on one side, allowing for a smooth and seamless indoors-outdoors continuum. The extremely thin upper track and the less-than-20 mm-thick lower track lighten the aesthetics and make Tuttovetro Floor almost invisible.
INFORMATION
BRAND
Sunroom
PRODUCT TYPE
Sliding Doors
MAXIMUM PANEL WEIGHT
60 kg
COLLECTION
Tuttovetro
PRODUCTION
Made in Italy
DIMENSIONS
- Maximum Panel Width : 900 mm
- Maximum Panel Height : 3000 mm
HINGED PANEL LOCK
1 Point (Upon Request)
PANEL ADJUSTMENTS
Yes
WEIGHT OF GLAZED UNIT
-25+5 kg/m2 including glazing 10 mm -20+5 kg/m2 including glazing 8 mm
PRODUCT PLUS
- Minimum : Footprint
- Bottom : Running
CLOSURES
Top And Bottom
COLOUR OF ACCESSORIES
Silver
SLIDING
Lower
RIGHT / LEFT PACKING
Yes
OPENING FROM OUTSIDE WITH A KEY
Upon Request
CHARACTERISTICS
Completely clear collapsible system fitted with a lower roller. A made-to-measure, practical and high-performance glazed unit, ideal for closing off balconies or pergolas, without giving up the view. The possibility of collapsing the panels reduces the structure’s footprint to a minimum.
GASKETS
Upon Request
HEIGHT OF BOTTOM TRACK
21 mm
GLAZING
- 8 mm
- 10 mm
USE
- Indoors
- Outdoors
INSTALLATION
Tuttovetro Floor is characterised by an innovative, minimalist and modern bottom panel sliding system, which improves panel opening, making installation possible even when the installation frame is irregular.
DESIGN
Tuttovetro is pure design and practicality, ideal for enclosing your bioclimatic pergola, Greenhouse, balcony, or portico. Cherished moments, practicality, and crossing the border between indoors and outdoors are the key points of our Tuttovetro frameless glazed unit in its collapsible version.
INWARD / OUTWARD OPENING
Yes
DOWNLOAD
↓ Technical Data Sheet
UPPER TRACK PROFILE THICKNESS
66 mm
GATHERED GLAZED UNIT DIMENSIONS
9%
AIR PERMEABILITY CERTIFICATION EN 1026 - EN 12207
Class 2
PANEL

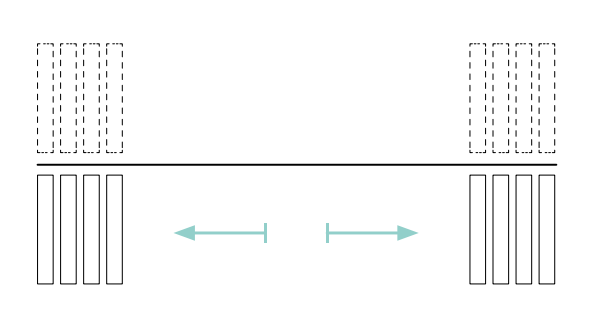

Each panel can be packed individually to the left or right or, for larger glazed units, even divided on both sides.

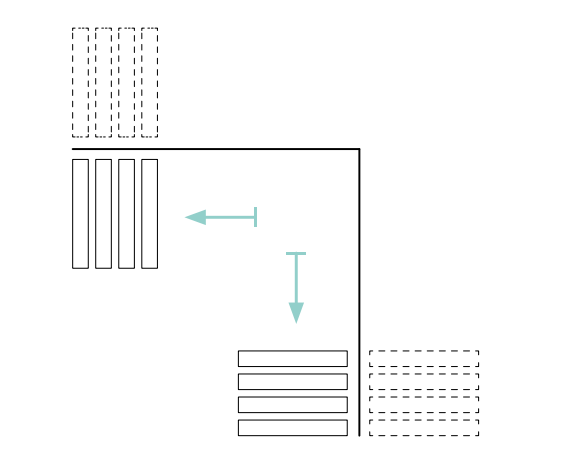

OPENING MODULE SET UP
INWARD OPENING
OUTWARD OPENING
