Simonin Wooden Glulam Structures
WOODEN GLULAM STRUCTURES
WOODEN GLULAM STRUCTURES
We are a designer and manufacturer of wooden components and glulam structures since 1967, SIMONIN continues to develop and innovate to meet your projects requirements.
INFORMATION
BRAND
Simonin
PRODUCT TYPE
Glulam Structures
ATTENTION TO DETAIL
As glued-laminated timber specialists we are thorough with every process to ensure the highest quality finished product.
TIMBER SELECTION
We procure our timber from sustainability managed forests in accordance with PEFC or FSC.

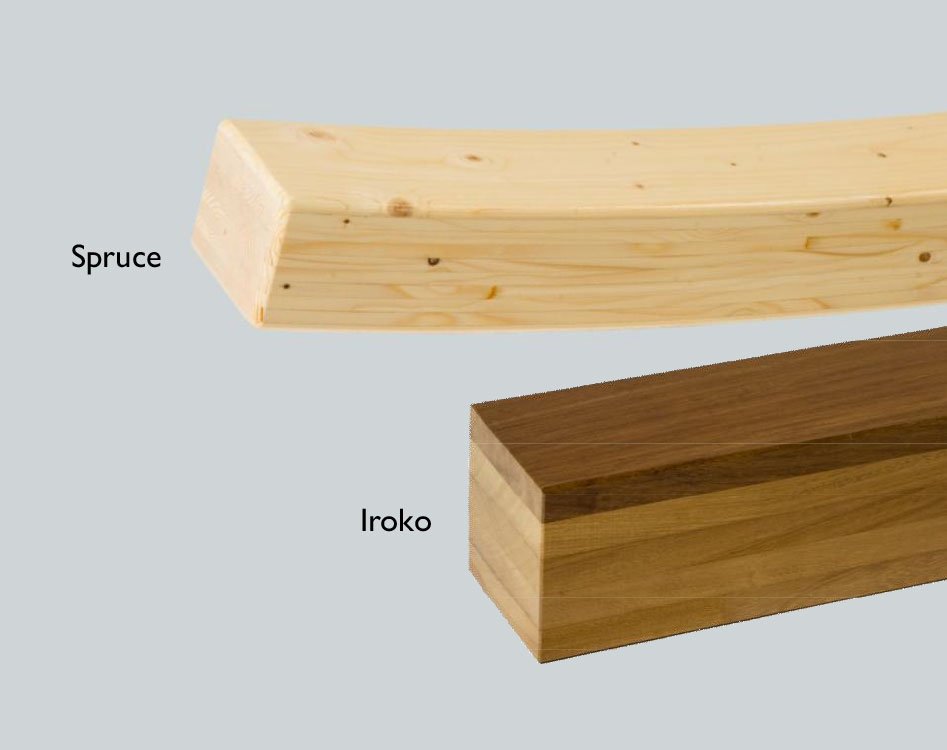

SOFTWOODS
- High quality spruce
- High-pressure-treated red pine
- Austrian Larch without sapwood
- Red Cedar (other species on demand).
TIMBER SELECTION

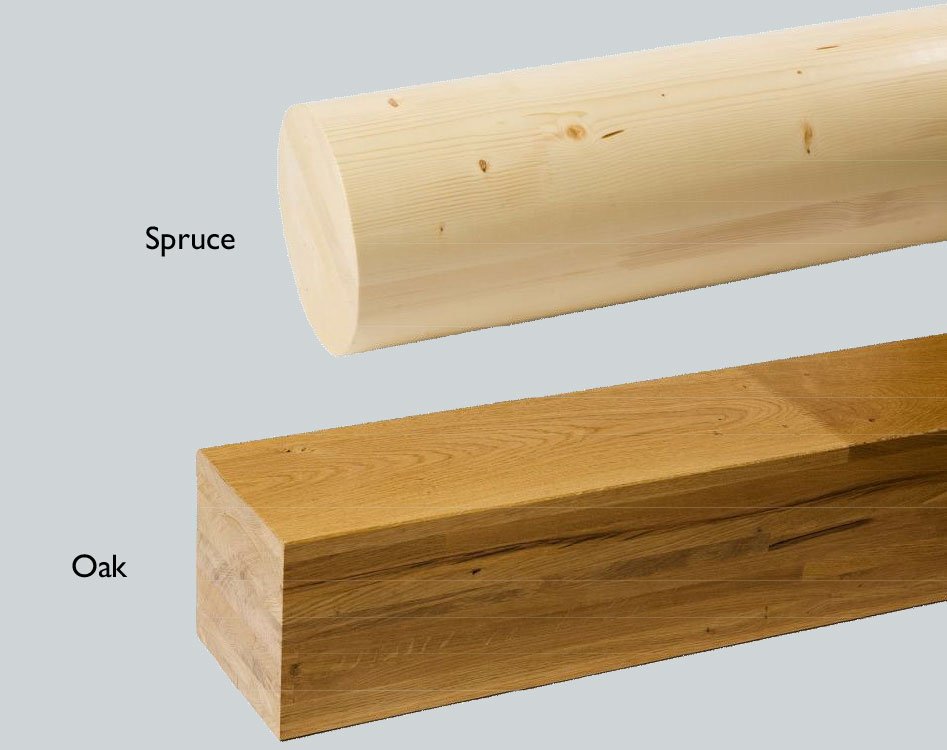

Most Glulam projects tend to be manufactured from Spruce. We have found that some projects require a different species whether for the final appearance or for an external solution. Not only can we supply your project in Spruce but also Larch, Oak, Beech, Ash, Chestnut, Red Cedar. If you have another preference we can most likely supply it.
MANAGEMENT
Logistics Management
DESIGN
Bespoke design with 3D

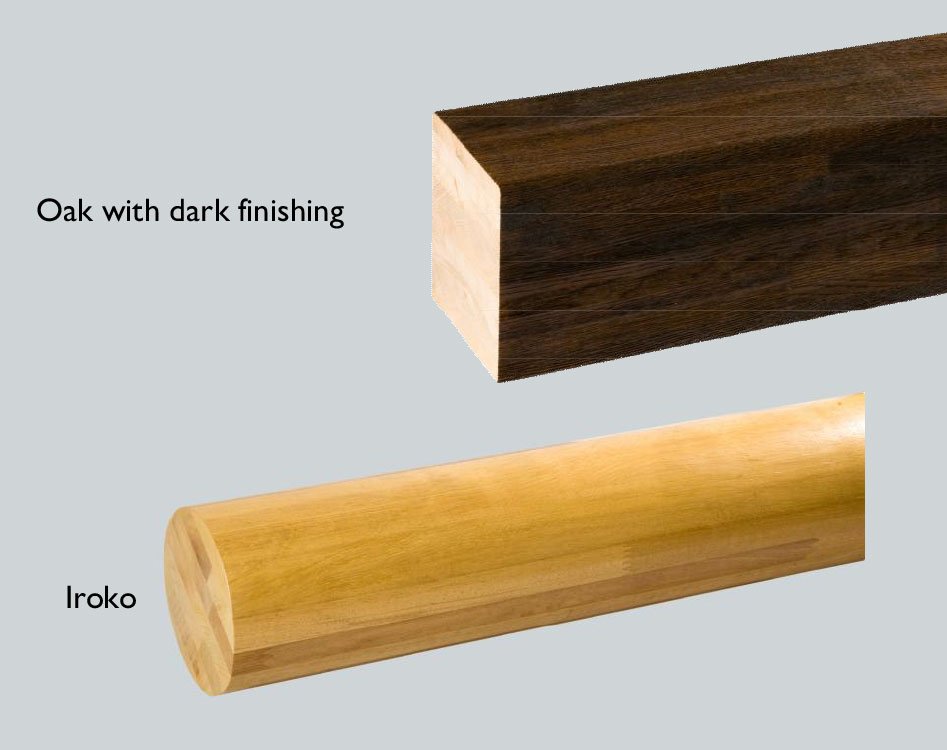

HARDWOODS
- Ash
- Iroko
- Beech
- Chestnut
- Oak without sapwood
TEXTURES
- Sawed
- Planed
- Brushed
- Old finishing
EXAMPLES OF WHAT WE CAN MANUFACTURE

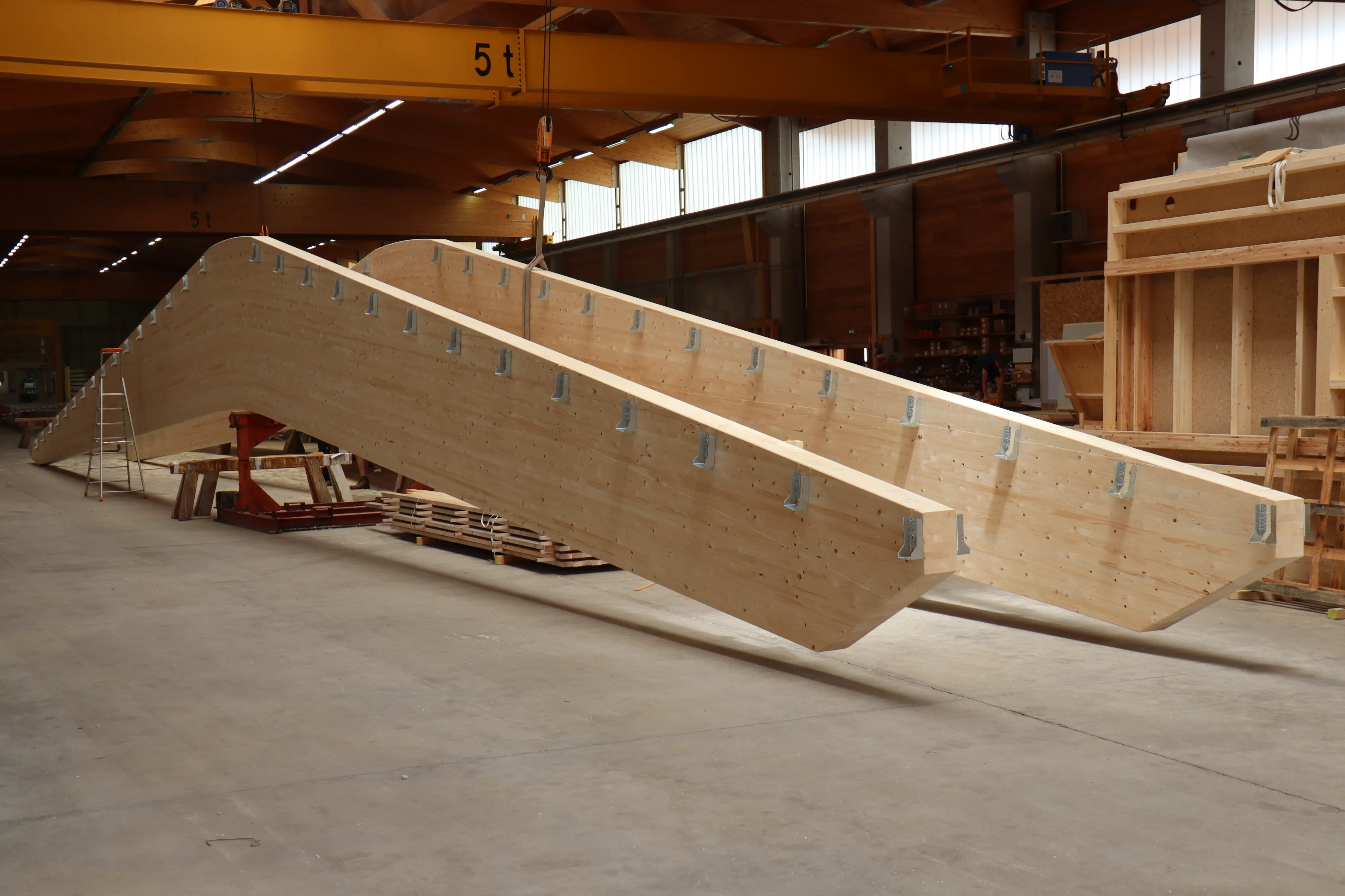

We make the following columns, beams, timber frames, cladding, mezzanine structures, stairs, steps and panels.
SERVICES
We can service all bespoke projects using knowledge gained over many years, many that have used our large range of products, whether the requirement is simple or complex, straight or curved…
INNOVATION
Our Resix® system was developed so that we could design and build complex projects requiring a high degree of expertise therefore making more difficult designs feasible.
OUR TEAM TAKES CARE
- CNC milling on 5-axis machines
- Concealed connections with Resix system
- Meeting your aesthetic and economic criteria
- Custom-made steel brackets with laser cutting
- Engineered design with structural calculations
TREATMENTS
Our range of glulam products can be treated as following.
- Class 1: insecticidal and anti-blue stain treatment, water repellent
- Class 2: insecticidal, fungicidal et anti-termites treatment
- Class 3: (red pine only) high pressure treatment against insects, fungi and termites (class 4 prior to gluing)
- Larch without sapwood is naturally class3.
- Wood treatment choice should be made according to regional requirements and environmental risk factors.
SHAPES AND SIZES
DIFFERENT SHAPES AND SIZES

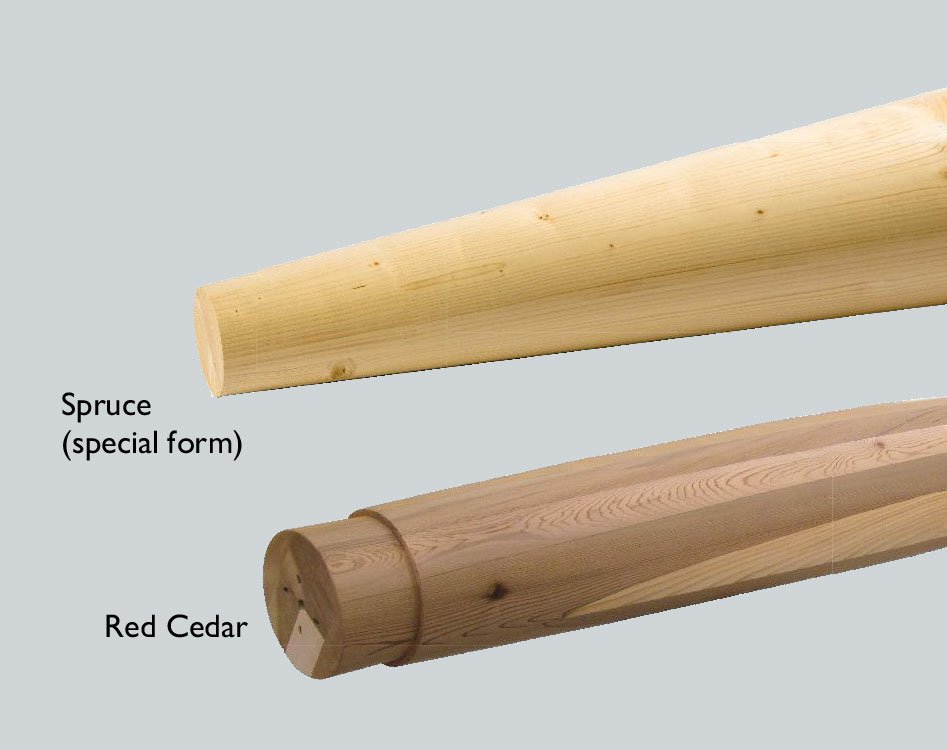

- Straight beams

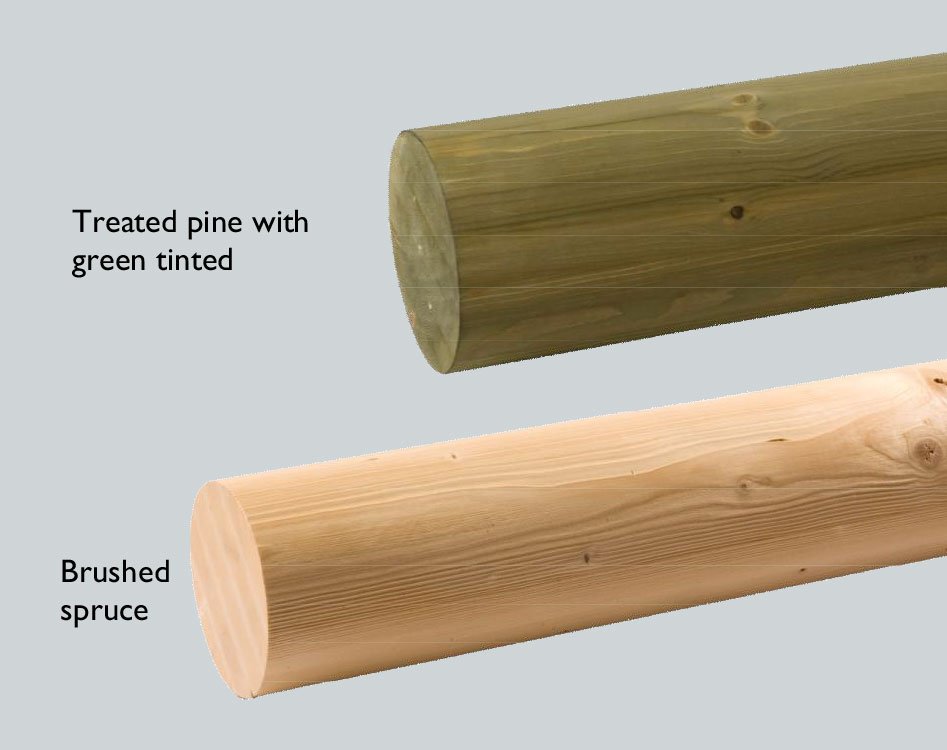

- Cylindrical, columns
- Cone, double tapered columns, special shapes on demand
TECHNICAL DATA

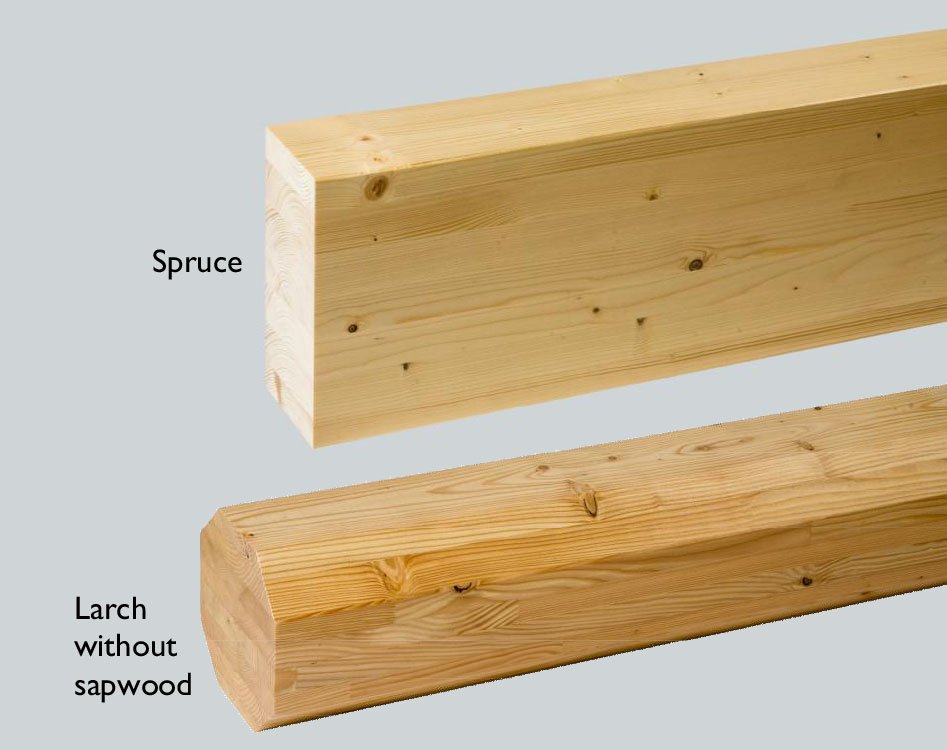

GLUED LAMINATED TIMBER IN SPRUCE VISIBLE QUALITY
- Square cut
- Melamine glue
- 4 sides planed
- Chamfered edges
- Strenght class GL 24 h (GL 28 h on request)
- For thickness : > 24 cm
- Thickness b : 8, 10, 12, 14, 16, 18, 20, 22, 24 cm
- Height h : 10, 12, 14, 16, 18, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80, 84, 88, 92, 96, 100, 104, 108, 112, 116, 120, 124, 128 cm

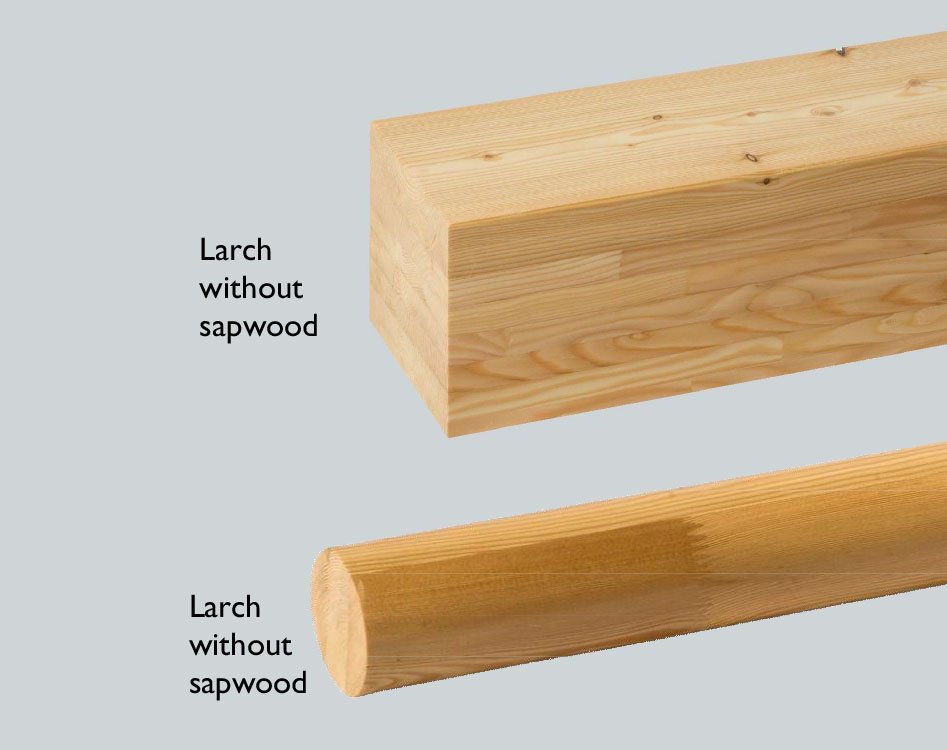

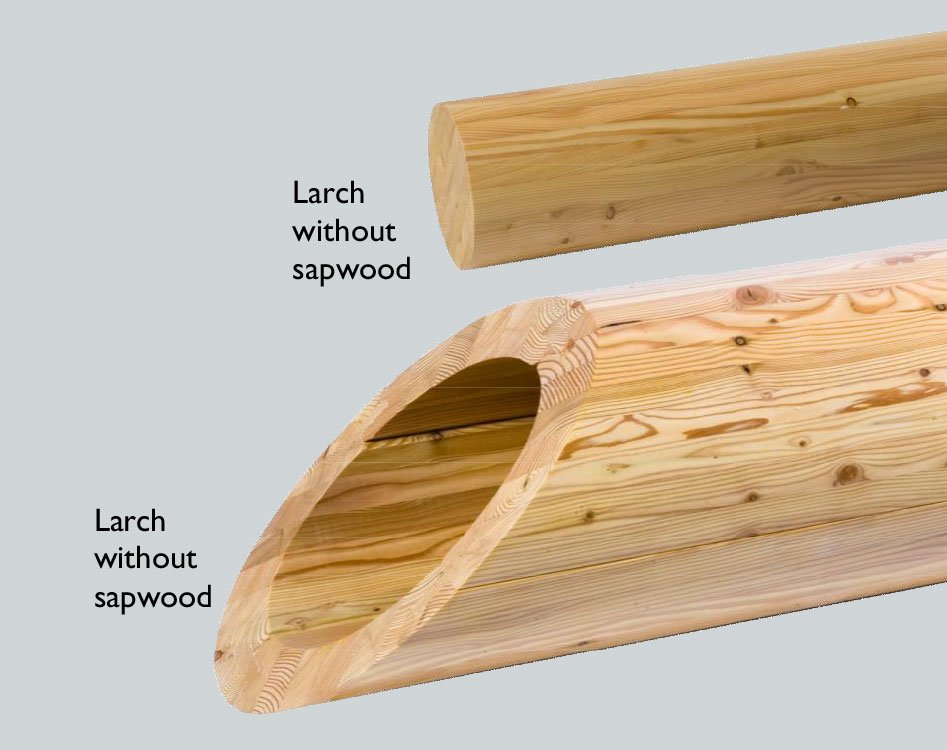

GLUED LAMINATED TIMBER IN LARCH WITHOUT SAPWOOD
- Square cut
- 4 sides planed
- Melamine glue
- Chamfered edges
- Strenght class GL 24 h
- Wooden slats : 31.3 mm, 26 mm
- Thickness b : 11,5 – 14 cm, 21 cm
- Height h in : 5.5, 9.0, 12.0, 15.0, 18.0, 21.5, 24.5, 27.5, 31.0, 34.0, 37.0, 40.0, 43.5, 46.5, 49.5, 52,5, 56.0, 59.0, 62.0, 65.0, 68.5, 71.5, 74.5, 77.5, 81.0, 84.0, 87.0, 90.0, 93.5, 96.5, 99.5, 103.0, 106.0, 109.0, 112.0, 115.5, 118.5, 121.5, 124.5 cm

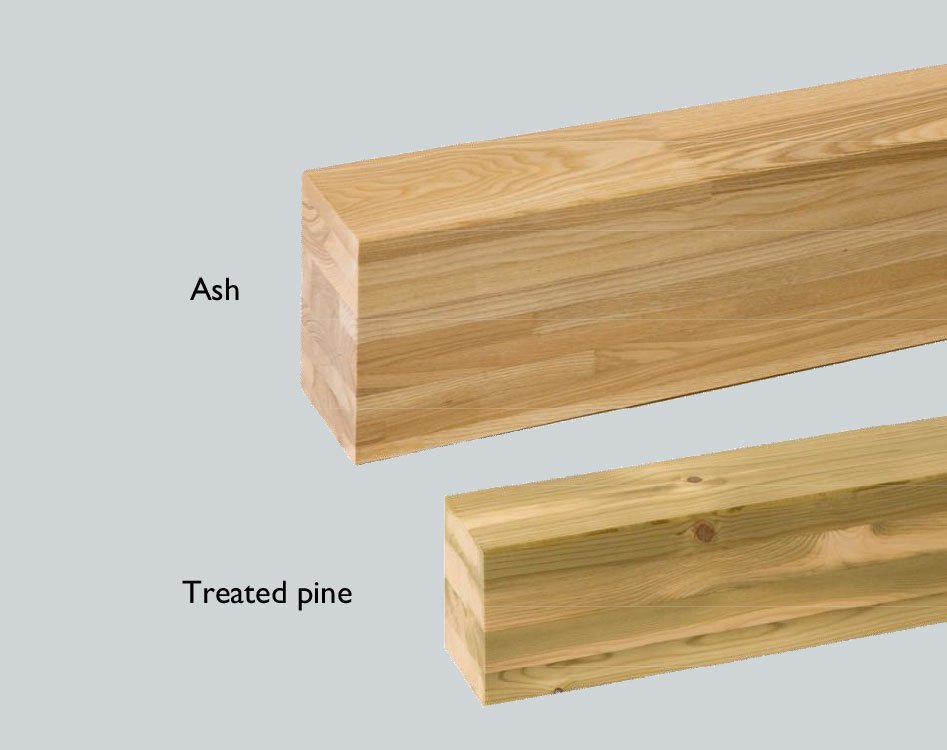

GLUED LAMINATED TIMBER IN PRESSURE TREATED PINE
- Square cut
- Melamine glue
- 4 sides planed
- Chamfered edges
- Strenght class GL 24 h
- Pressure treated red pine class IV before gluing
- Wooden slats : 31,3 mm
- Thickness b : 9 – 11,5 – 14 – 16 – 21 cm
- Height h : 5.5, 9.0, 12.0, 15.0, 18.0, 21.5, 24.5, 27.5, 31.0, 34.0, 37.0, 40.0, 43.5, 46.5, 49.5, 52,5, 56.0, 59.0, 62.0, 65.0, 68.5, 71.5, 74.5, 77.5, 81.0, 84.0, 87.0, 90.0, 93.5, 96.5, 99.5, 103.0, 106.0, 109.0, 112.0, 115.5, 118.5, 121.5, 124.5 cm
