Peri Rundflex Circular Wall Formwork
RUNDFLEX CIRCULAR WALL FORMWORK
RUNDFLEX CIRCULAR WALL FORMWORK
Continuous and quickly adjustable circular wall formwork for radii with diameters greater than 1.00 m

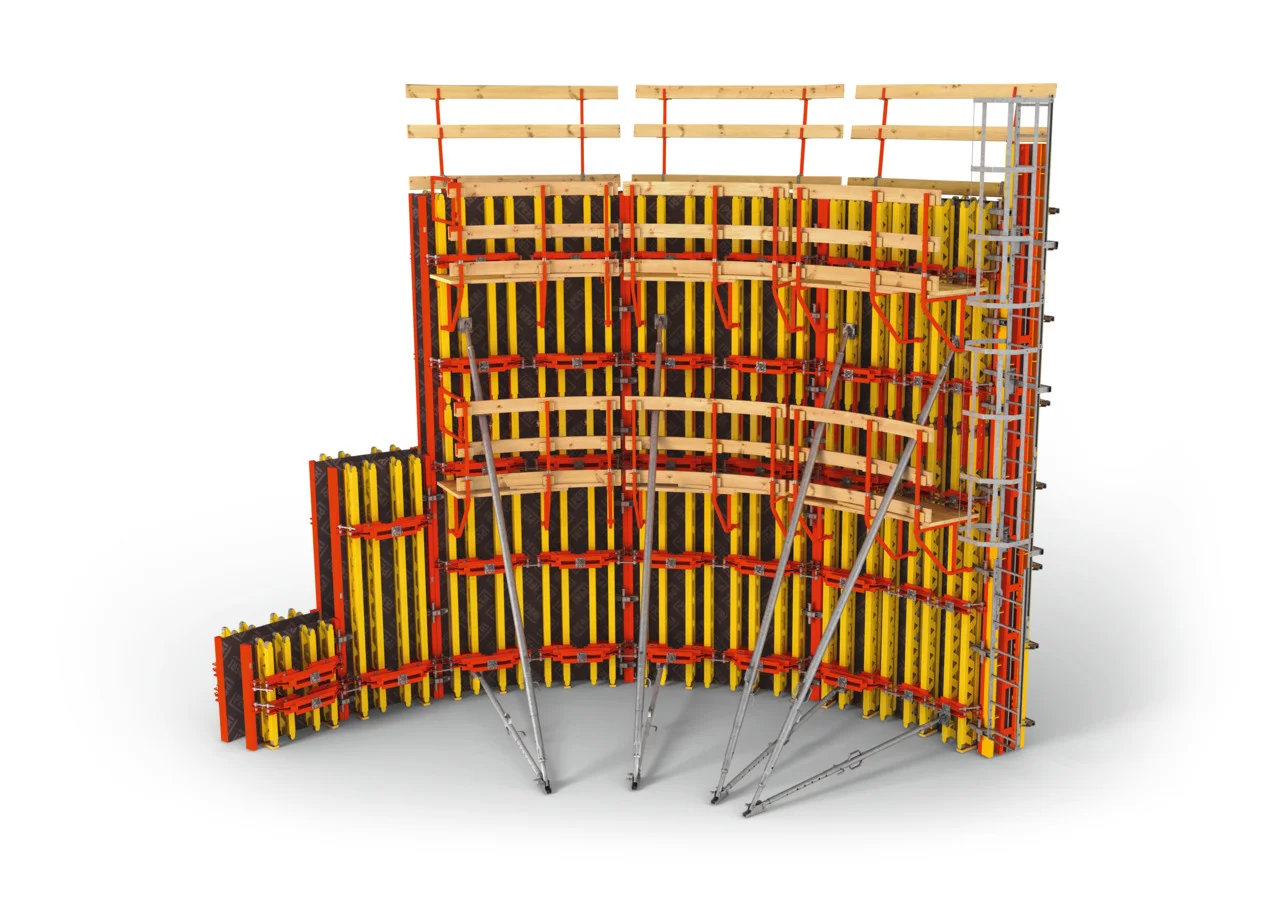

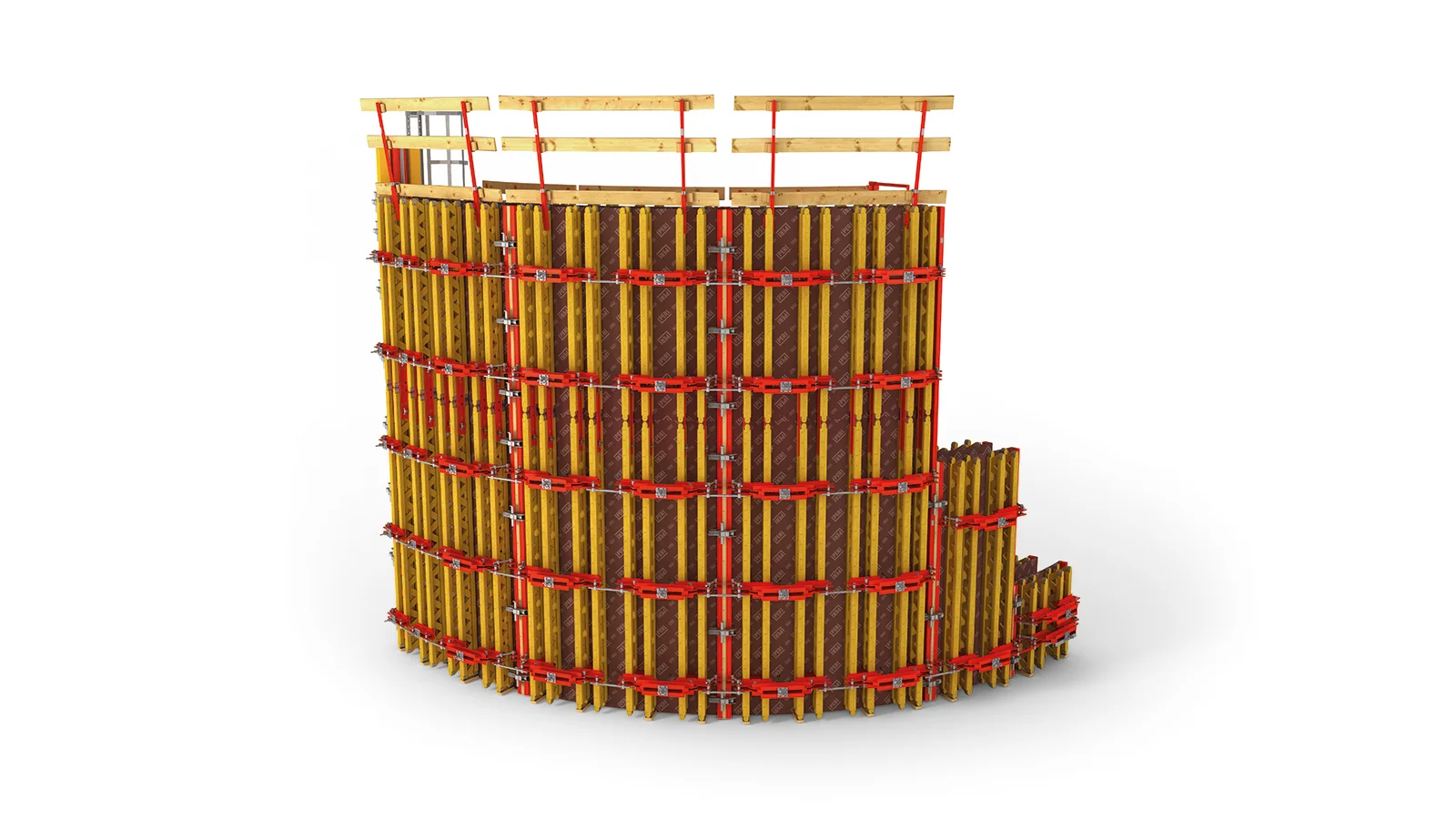

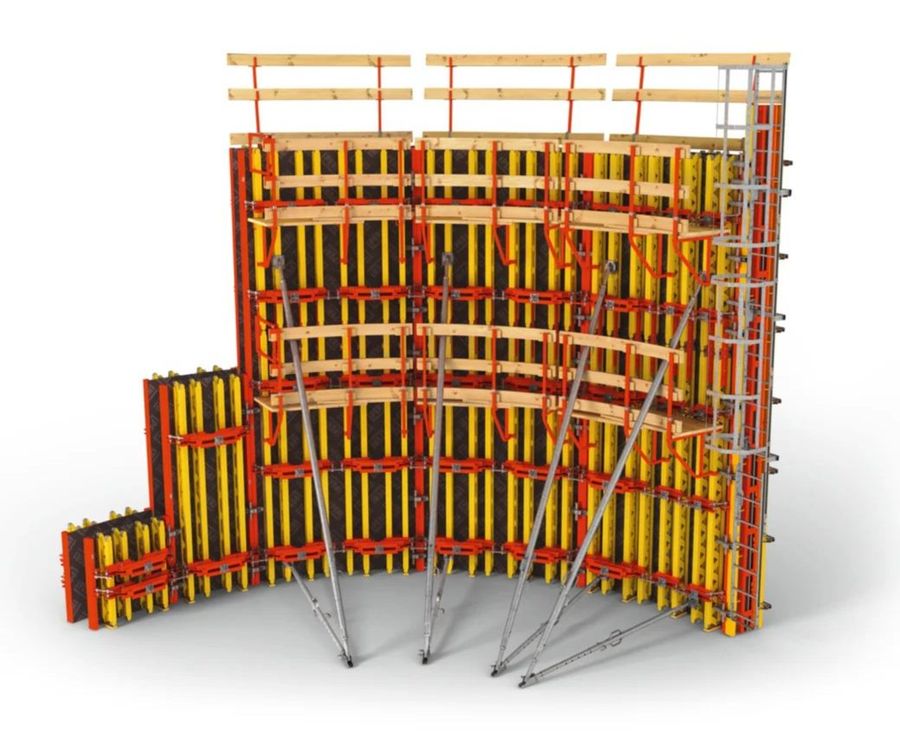

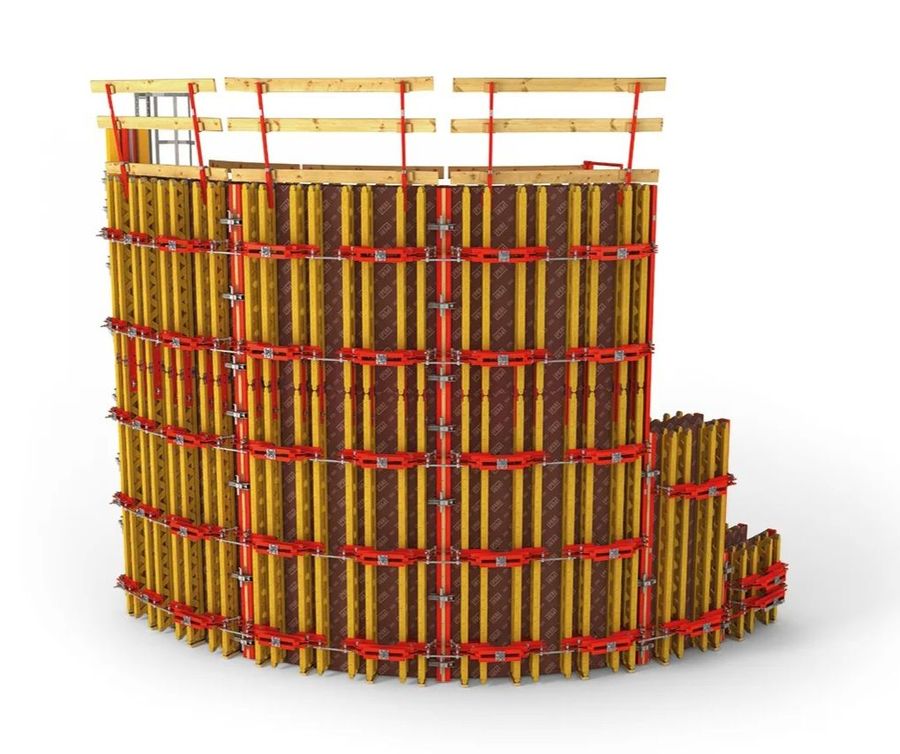

The rundflex wall formwork provides pre-assembled standard panels for curved walls. These can be quickly adjusted to suit the required radius and without any modification work on the panel.
INFORMATION
BRAND
Peri
PRODUCT TYPE
Formwork
FORMLINING
- Elements for radii ≥ 4.00 m formwork : 21 mm
- Elements for radii ≥ 2.5 m formwork : 18 mm
- Elements for radii ≥ 1.00 m formwork : 2x 9 mm
LESS INSTALLATION EFFORT
With pre-assembled units and the proven BFD Alignment Coupler.
COLLECTION
Rundflex
PRODUCTION
Made in United Kingdom
SYSTEM TYPE
Panel Formwork
MATERIAL
Formwork girders made of wood, spindles made of steel
FRESH CONCRETE PRESSURE
- Table 3
- Din 18202
- Load class 2
- Perm. Payload of the platform 150 kN/m²
- Anchor share : from 0.54 anchors per m² wall area
- Permitted Fresh concrete pressure 60kN/m² Line 6
FULFILLED STANDARD
- Row 6
- Table 3
- DIN 18202
ESPECIALLY VARIABLE
Through the flexible adjustment of wall internal radii of 1.00 m and larger.
DETAIL

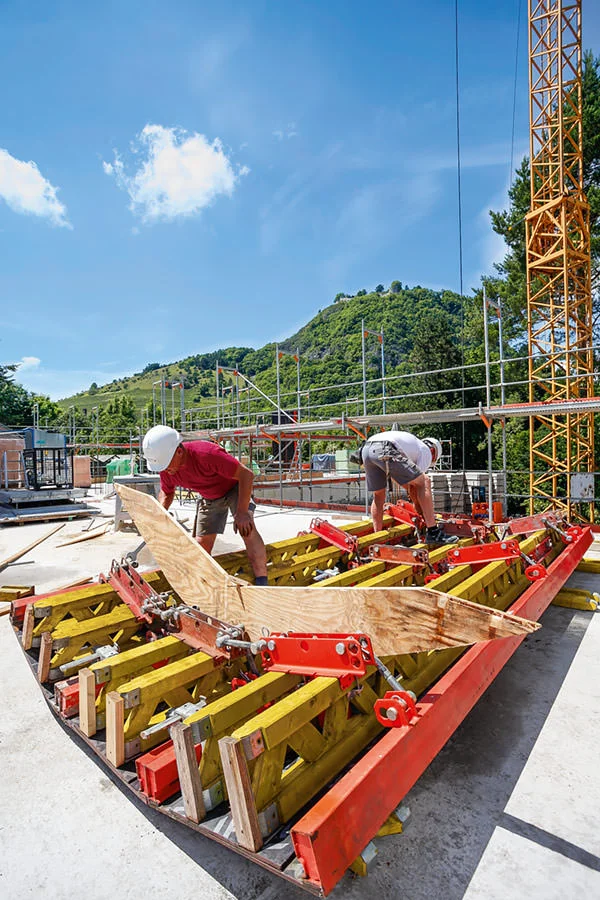

Cut radius templates available. On request, the rundflex elements can also be ordered with a preset radius. The rundflex can also be used "Horizontally" for special arches with variable radii.
FAST ADJUSTMENT

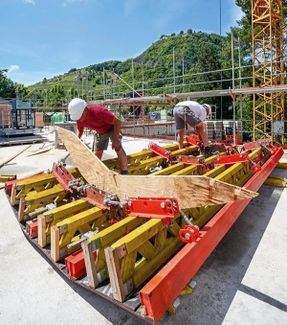

Through a simple adjustment procedure by means of a template and spindles with self-cleaning hexagonal threads.
STRUCTURE

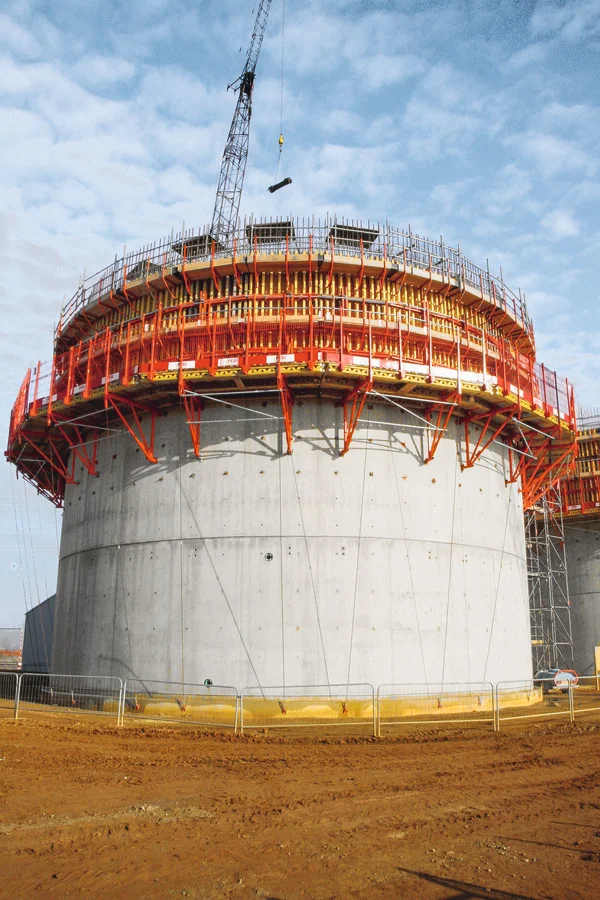

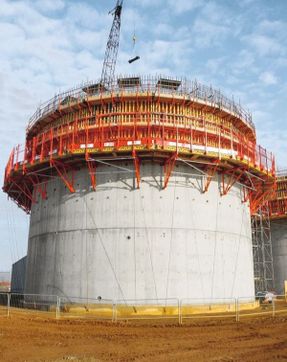

Therefore, rundflex is especially effective for realizing structures such as wastewater treatment plants, spiral ramps for multi-storey parking facilities or silos where radii are constantly changing.
DIMENSIONS
- Element widths inside : 0.72 m | 1.23m | 2.40m
- Element widths outside : 0.85 m | 1.28m | 2.50 m
- Element heights : 0.60 m | 1.20m | 1.80m | 2.40m | 3.00m | 3.60m
A WELL-ROUNDED SUCCESS

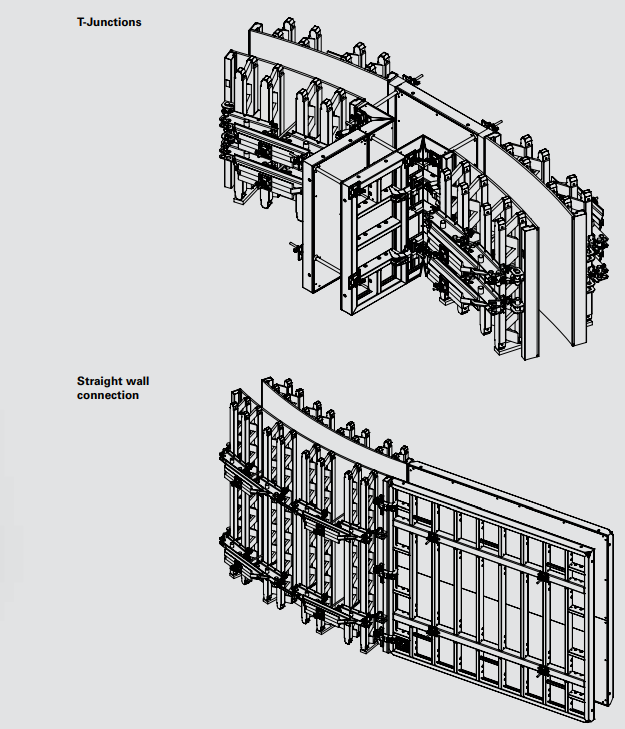

Rundflex provides a fast solution in the system for all standard applications. The right accessories are available for height extensions and stopend formwork as well as wall connections. Last but not least, the portfolio includes system supplements for realizing safe working and concreting platforms on the formwork.

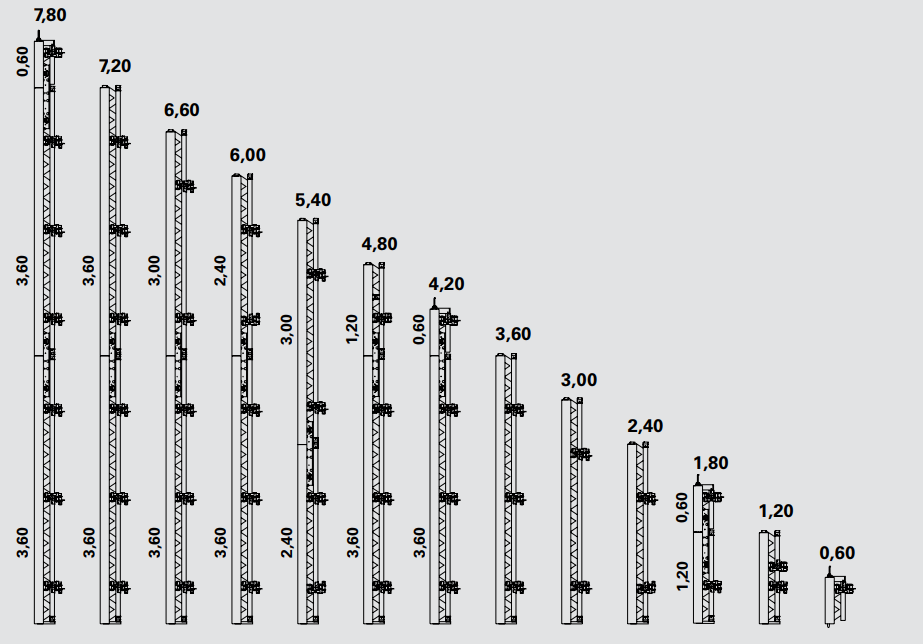

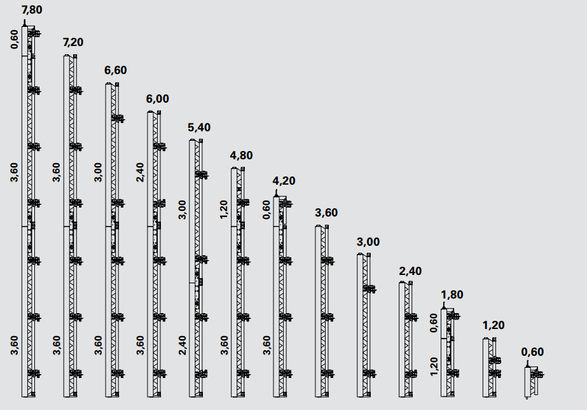

HEIGHT EXTENSIONS
Rundflex elements can be extended in 60 cm increments.
Rundflex elements can be extended horizontally up to a length of 7.80 m and then erected as one unit. For extending in a vertical position as well as transporting vertically, higher units are also possible. Horizontal extensions take place in a straight line; one extension splice is to be mounted per girder joint.
