SEMI-AUTOMATIC PARKING SYSTEM TRENDVARIO 6300 E 6300+
SEMI-AUTOMATIC PARKING SYSTEM TRENDVARIO 6300 E 6300+
The Trendvario 6300 semi-automatic parking system is equipped with 3 parking levels. The entrance to the TrendVario 6300 is on the ground floor.

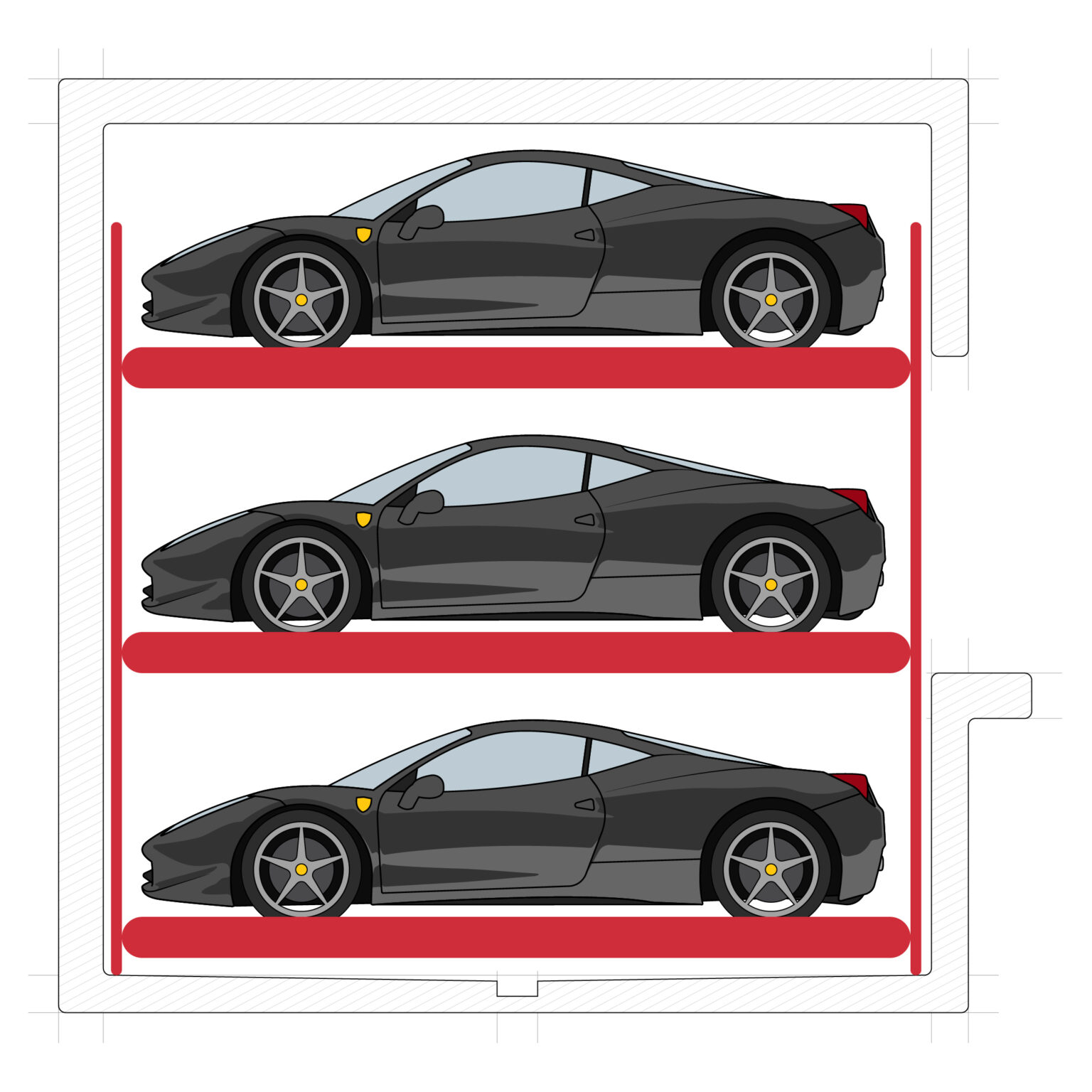

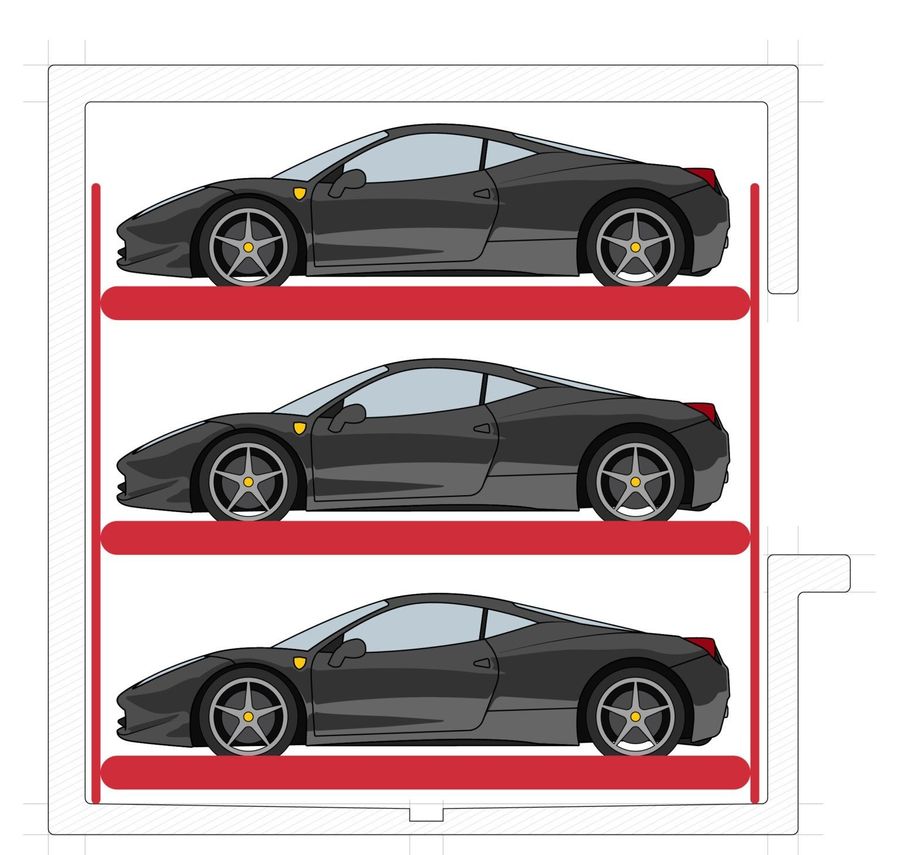

Unlike the other models, the system houses three vehicles one above the other: a platform is located in the pit, the second at street level and finally the third level of parking in the upper floor.
INFORMATION
BRAND
Carmec
PRODUCT TYPE
Parking System
STANDARD LOAD
2,000 kg for parking space, optionally max. 2,600 kg or max. 3,000 kg single platform
COLLECTION
Semi - Automatic
PRODUCTION
Made in Italy
USE
Car parking
PLACEMENT
Indoor/Outdoor
ORIENTATION
- Vertically
- Horizontaly
REQUIRED HEIGHT
From 335 cm to 460 cm in 5 cm increment
PIT DEPTH
200 cm to 250 cm in 5 cm increment
MAXIMUM LOAD
2000 kg
DRIVER ON BOARD
Semi-automatic operation
DETAIL
Parking spaces are moved vertically and horizontally: this means that in the surface of a traditional parking area, with sufficient height and possibility of excavation, the number of parking spaces is potentially tripled.
DOWNLOAD
↓ Technical Sheet
PARKING LEVELS
3
PARKING SPACE
For maximum operational security, the access level is protected by the entire system via gates. This also protects vehicles from theft and vandalism. The semi-automatic parking system offers up to 29 parking spaces in total. In situations where it is difficult to obtain the number of parking spaces required by law, or providing the property with parking spaces is a profitable investment, the TrendVario system is the viable alternative to the creation of parking spaces.
APPLICATION
- Creation of the highest number of parking spaces on the available space
- Multi-family garages, garages, hotels, multi-family villas, private collection garages, showrooms, car dealers
REQUIRED EXCAVATION
Yes
MANUFACTURER
KLAUS Multiparking
BENEFITS
- It is spread over three levels
- Creation of independent car parks
- Possible combinations with other types of TrendVario
- Possibility of integration (optional) with badges and Apps
- Can be developed on several lanes one behind the other, up to 15 doors one after the other, up to 29 parking spaces
