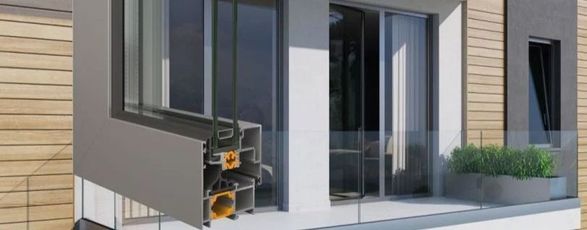

Alumil Hinged insulated system SMARTIA M9660 PHOS
HINGED INSULATED SYSTEM SMARTIA M9660 PHOS
HINGED INSULATED SYSTEM SMARTIA M9660 PHOS
SMARTIA M9660 PHOS offers concealed sash typologies.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Insulation
PRODUCTION
Made in Greece
WINDOW TYPE
Hinged
COLLECTION
Hinged
DOWNLOADS
↓ Dwg Files
↓ Bim Objects
↓ Product Brochure
↓ Technical Brochure
↓ System Specification
↓ Technical Catalouges
SEALING METHOD
Perimetrical at 3 levels with EPDM & foam EPDM gaskets
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
70.5 mm
FRAME DEPTH
56 mm
THERMAL INSULATION
Yes
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
101 mm
TYPE OF THERMAL INSULATION
Polyamides12mm width
FRAME DEPTH
56 mm
AIR PERMEABILITY
CLASS 4
TYPES OF TYPOLOGY
For all tilt & turn typologies
EXTERIOR SHAPE
Flat
WIND LOAD RESISTANCE
C3/B3
UF
from 2,5up to 3,6 W/m²K
MECHANISM
Euro-nut
GLAZING TYPE
Double
MAXIMUM GLAZING THICKNESS
26mm
DETAIL
Thanks to its minimal design, it maximizes natural light and further reduces the visible aluminium width whistle maintaining the high thermal insulation and waterproofing performance that characterize all opening thermal insulation systems.
ADVANTAGES
-Excellent value for money rate -Enhanced natural light thanks to the system's minimal design. -Ease of use and high functionality -Elegant appearance thanks to straight lines of profiles. -Suitable for all climatic zones thanks to high level of thermal insulation. -Ideal for new and renovated residential and office buildings. -High certified performance.
SASH WEIGHT
up to 130 Kg
WATER TIGHTNESS
Class 7A (300Pa)
SECTIONS & TYPOLOGIES
SECTONS

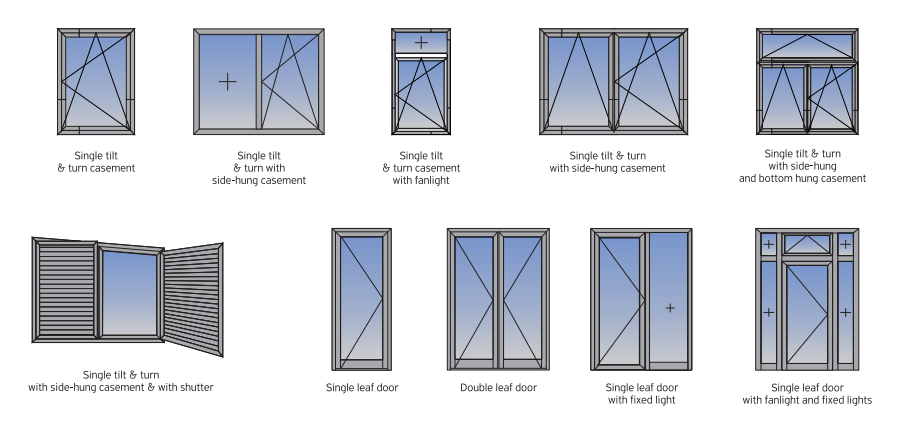

TYPOLOGIES
