Omp Tea Emyflow Shower Channel
EMYFLOW SHOWER CHANNEL
EMYFLOW SHOWER CHANNEL
With only one visible, continuous and unobstructed surface, Emyflow is the shower channel particularly easy to clean and maintain as it offers also a large and direct access to the trap from the central removable grid.
INFORMATION
BRAND
Omp Tea
PRODUCT TYPE
Drain System
ACCESS
Direct Access To The Extractable Trap
SPACE
Reduced Space Under The Floor, Only 70 Mm
STRUCTURE
The trap and the rest of the channel structure that are built-in into the screed are in ABS while the exposed parts of the cover and central grid are in AISI 316 stainless steel, an excellent quality particularly resistant against wear and corrosion by chemical agents or brackish water.
EMYFLOW IS AVAILABLE IN THE FOLLOWING LENGTHS
- 400 mm
- 600 mm
- 800 mm
- 1.000 mm
PRODUCTION
Made in Italy
COLLECTION
Emyflow
IN ADDITION TO THE WATERPROOFING KIT IN THE PACKAGE YOU CAN ALSO FIND
- Cover Grid
- instruction sheet
- Everything you need for siphoning (including hairs-stop grids)
- Supports to ease the installation and allow a handy adjustment adapting to any roughness of the surface
DETAIL

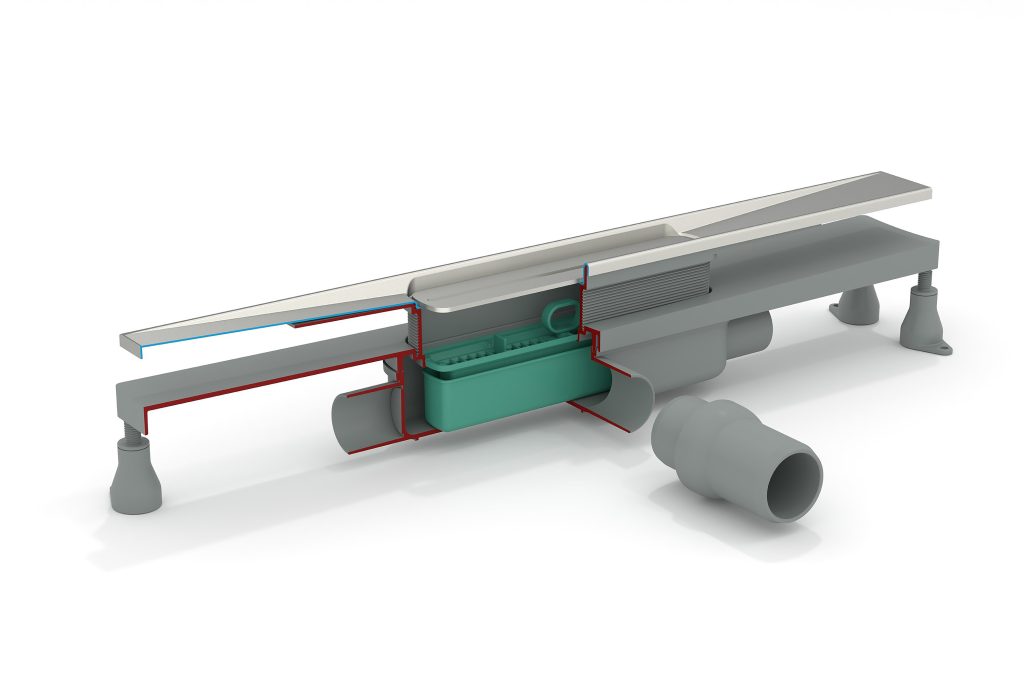

It is supplied with a three exits DN40 ABS Trap ( the two lateral ones are to be opened according to the positioning in the plant). For installation with larger diameter pipes, included in the package there is a DN50 jointed outlet to be glued at the central exit through special glue TCF (included also in the package).
MODEL
Two Grid
JOINTED
ABS DN50 jointed outlet
MATERIAL
Stainless Steel
ENVIRONMENT
Indoor
INSULATION LAYER
Made By Cement Glues Waterproofing Or Technical Fabrics.
WATERPROOFING
As for the other shower channels of OMP TEA floor range, also Emyflow is supplied with kit for the drain perimeter waterproofing that secures the contact area between the shower channel and the screed and serves as a basis for the completion of the insulation layer to be made by cement glues waterproofing or technical fabrics.
GRID
AISI 316 steel grid and exposed surface
BED SYSTEM
Thin bed system perimetric waterproofing
CONTENTS OF THE BOX

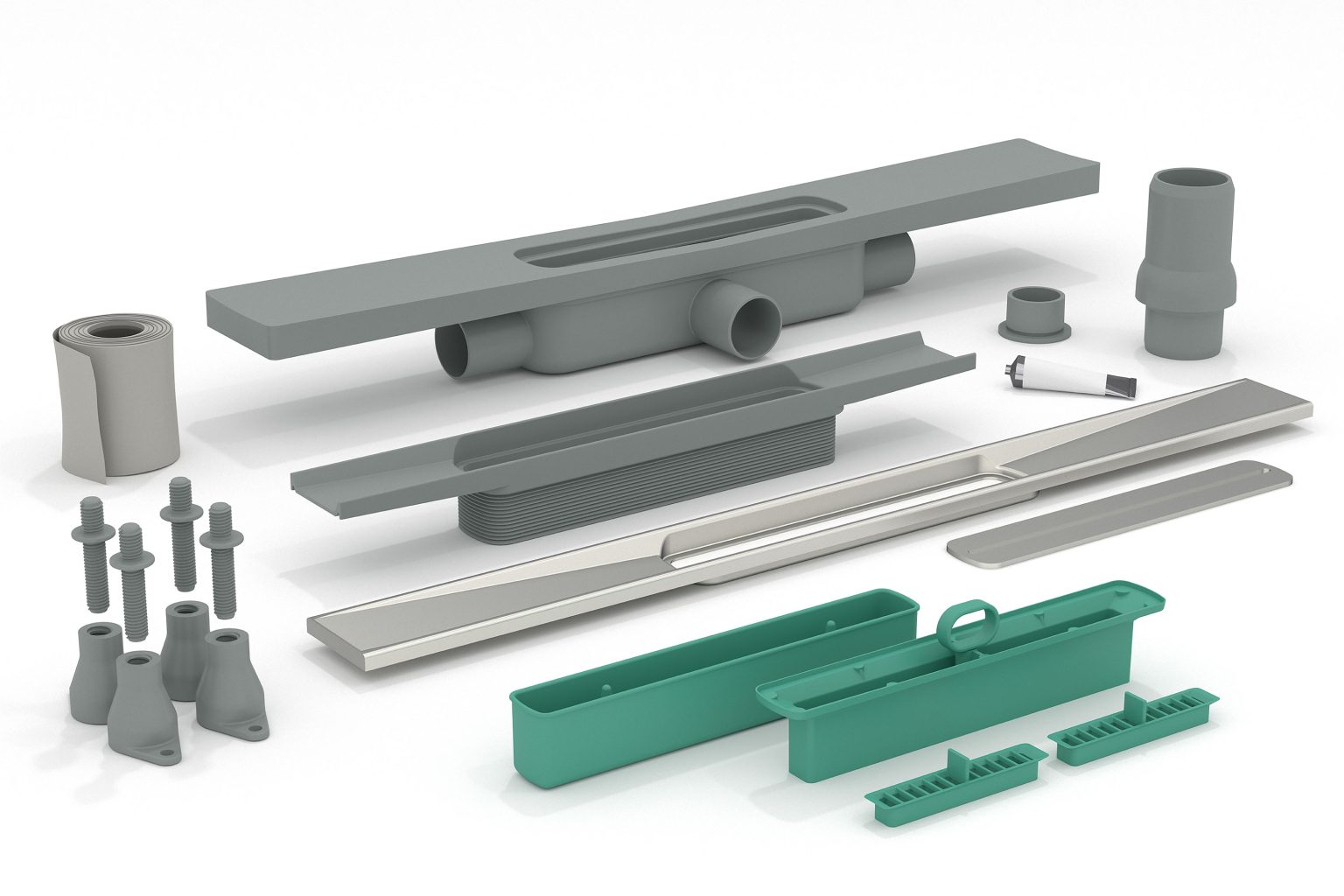

-1 ✕ ABS Grid holder -1 ✕ removable AISI 316 stainless steel grid (2 models) -1 ✕ AISI 316 stainless steel cover (4 lenghts) -1 ✕ ABS Trap with 3 DN40 exits (of which 2 closed) -1 ✕ ABS DN50 jointed outlet -1 ✕ closure cap of the central outlet if not used -1 ✕ TCF glue to glue the jointed outlet or cap -4 ✕ Adjustable supports to ease the installation (feet) -1 ✕ siphon kit (2 pcs + 2 hairs stop grids) -1 ✕ kit for the perimeter waterproofing of the drain -1 ✕ instruction sheet
TRAP
ABS Trap with two additional DN40 ABS exits
INSTALLATION

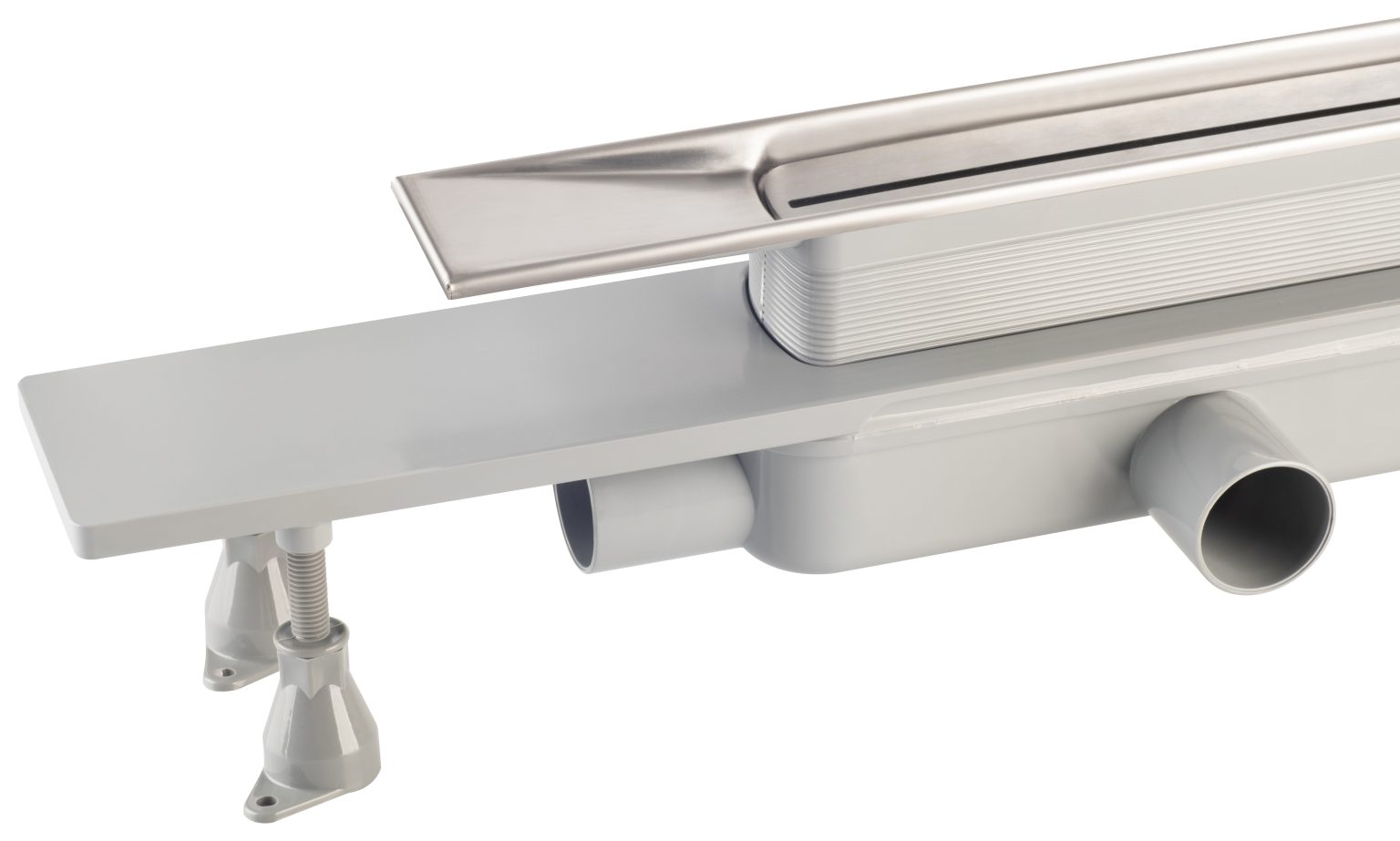

Adjustable supports to ease the installation
CLEAN
Easy To Clean And Maintain As It Consists Of A Single Surface
TILES THICKNESS
Height Adjustable For Tiles Thickness From 15 To 35 Mm

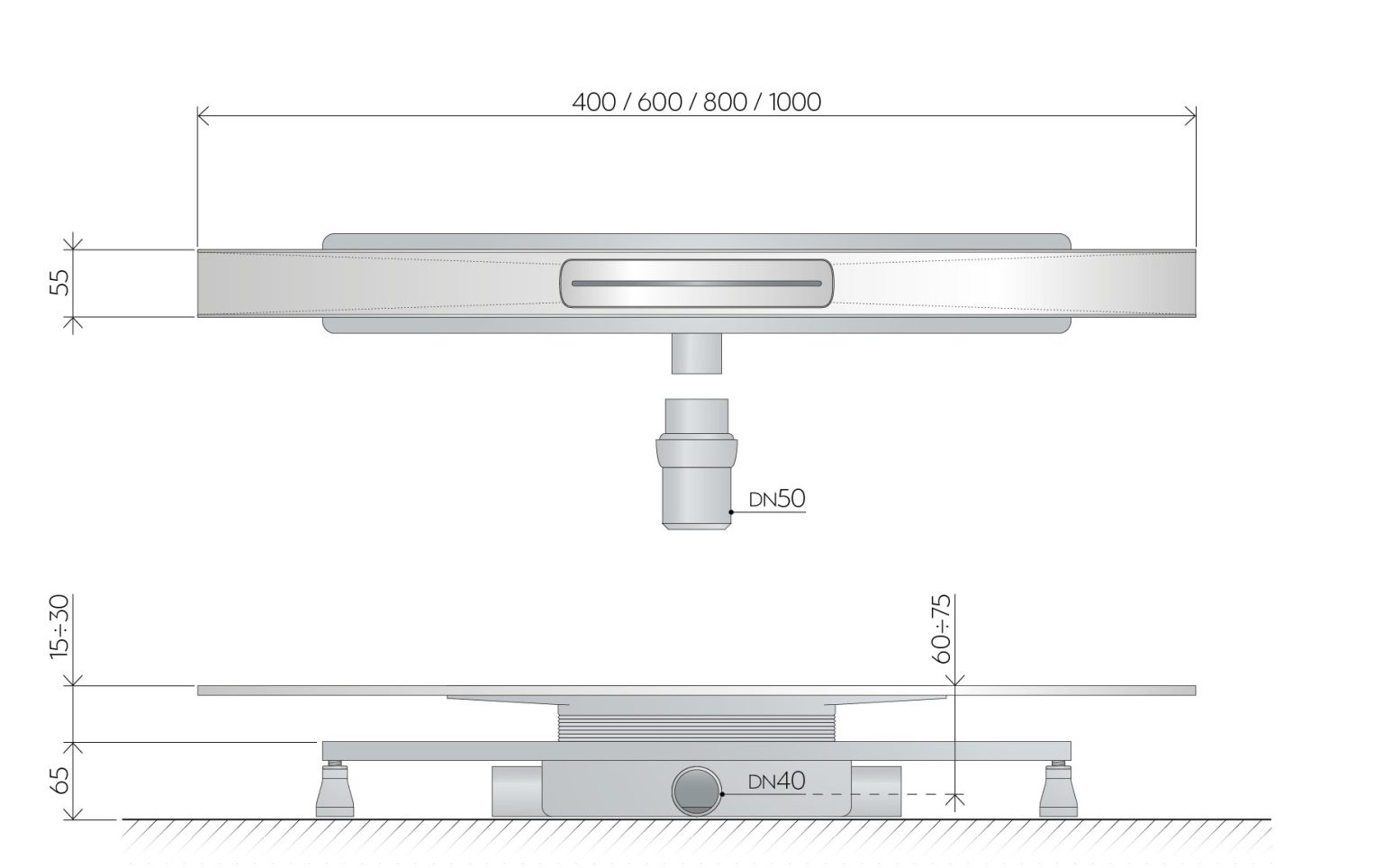

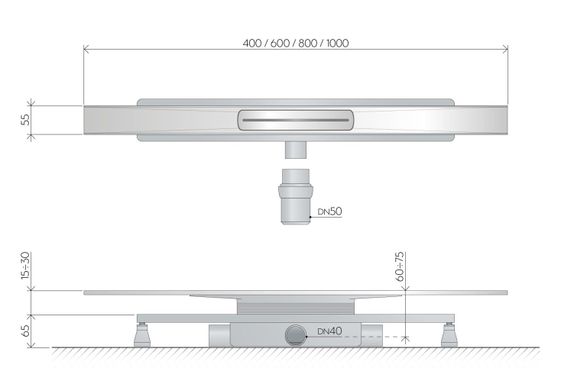

THE DIMENSIONS OF EMYFLOW ARE
- Only 65 mm of space under the floor
- Height Adjustable Floor Covering From A Minimum Of 15 Mm To A Maximum Of 35 Mm
AVAILABLE RANGE

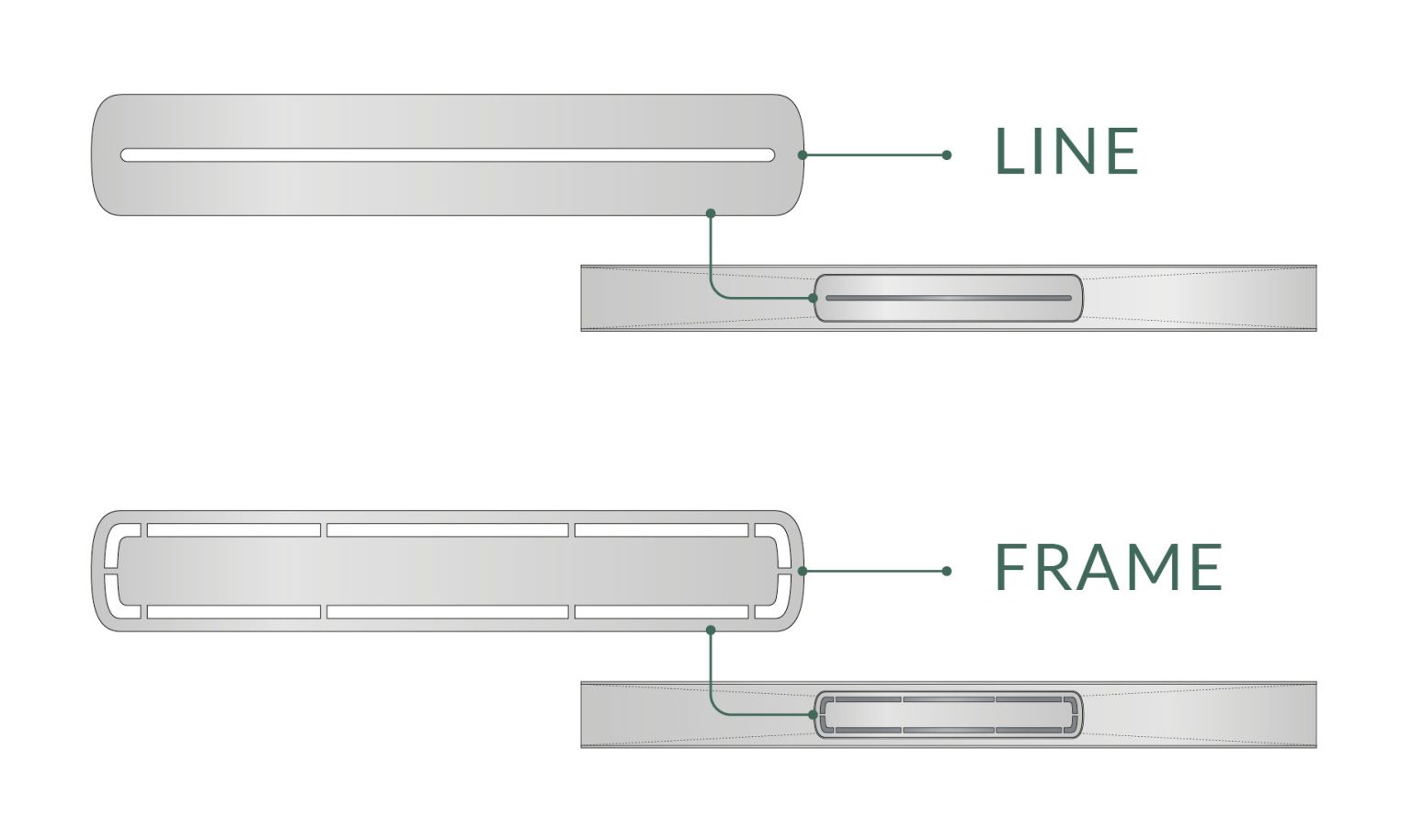

| ARTICLE | GRID MODEL | LENGTH |
|---|---|---|
| 5963.504.8 | Line | L. 400 mm |
| 5963.804.8 | Line | L. 600 mm |
| 5963.204.8 | Line | L. 800 mm |
| 5963.404.8 | Line | L. 1.000 mm |
| 5963.404.8 | Frame | L. 400 mm |
| 5963.803.8 | Frame | L. 600 mm |
| 5963.203.8 | Frame | L. 800 mm |
| 5963.403.8 | Frame | L. 1.000 mm |
