Salvatore Indriolo, 2018

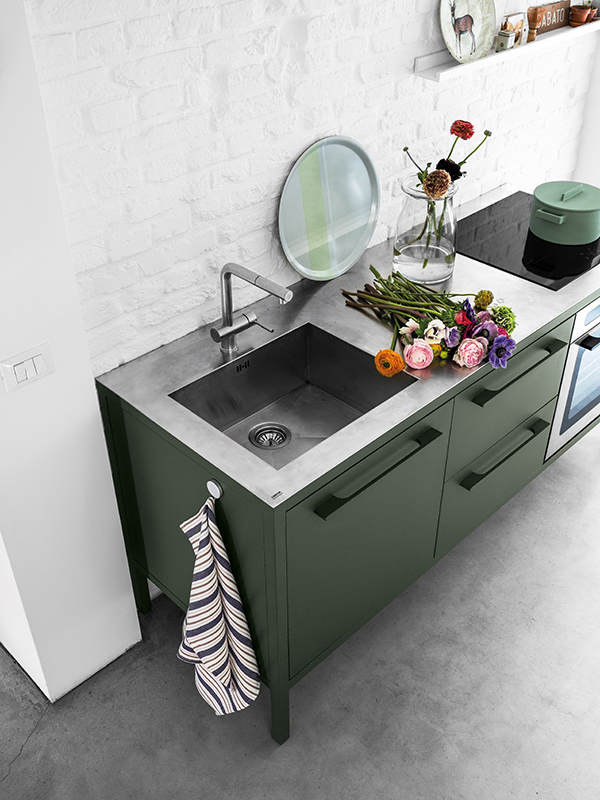

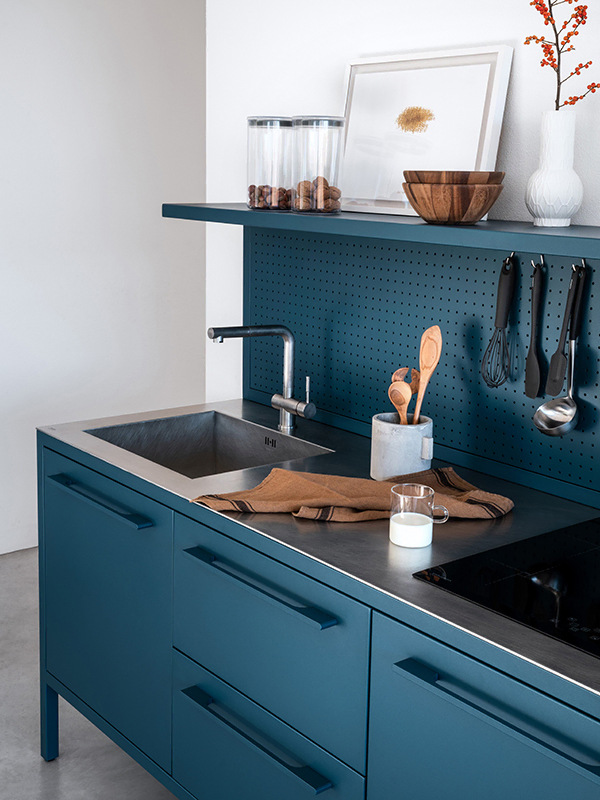

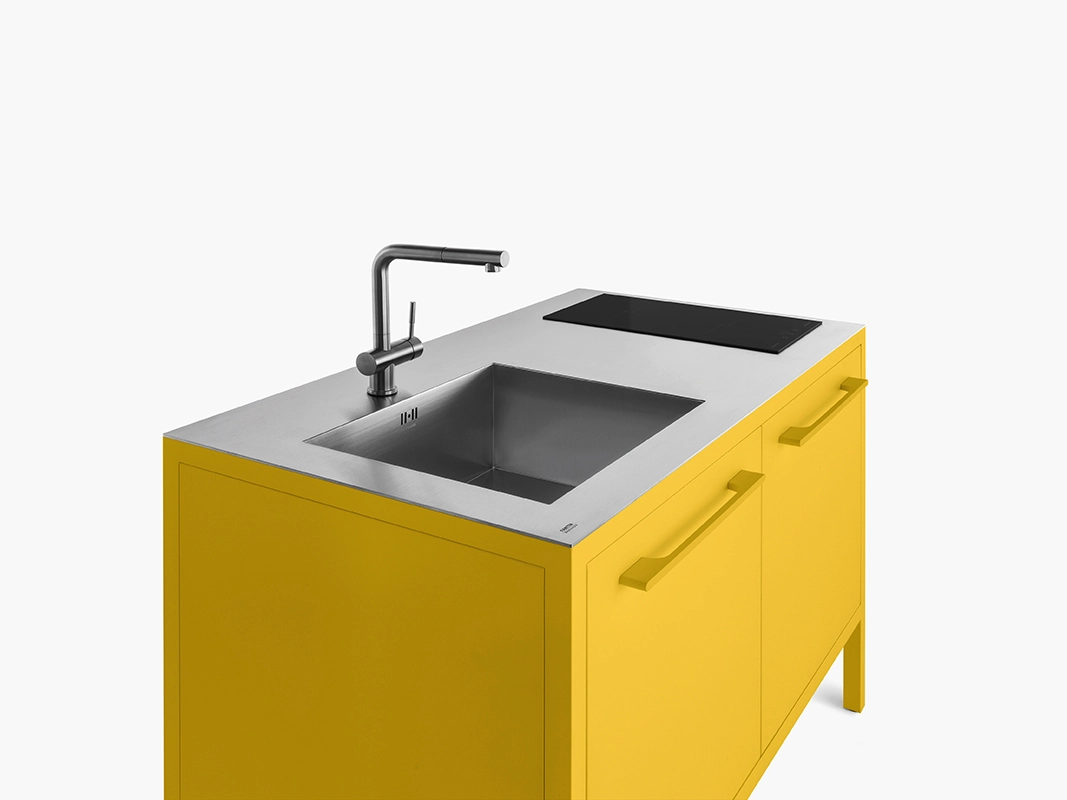

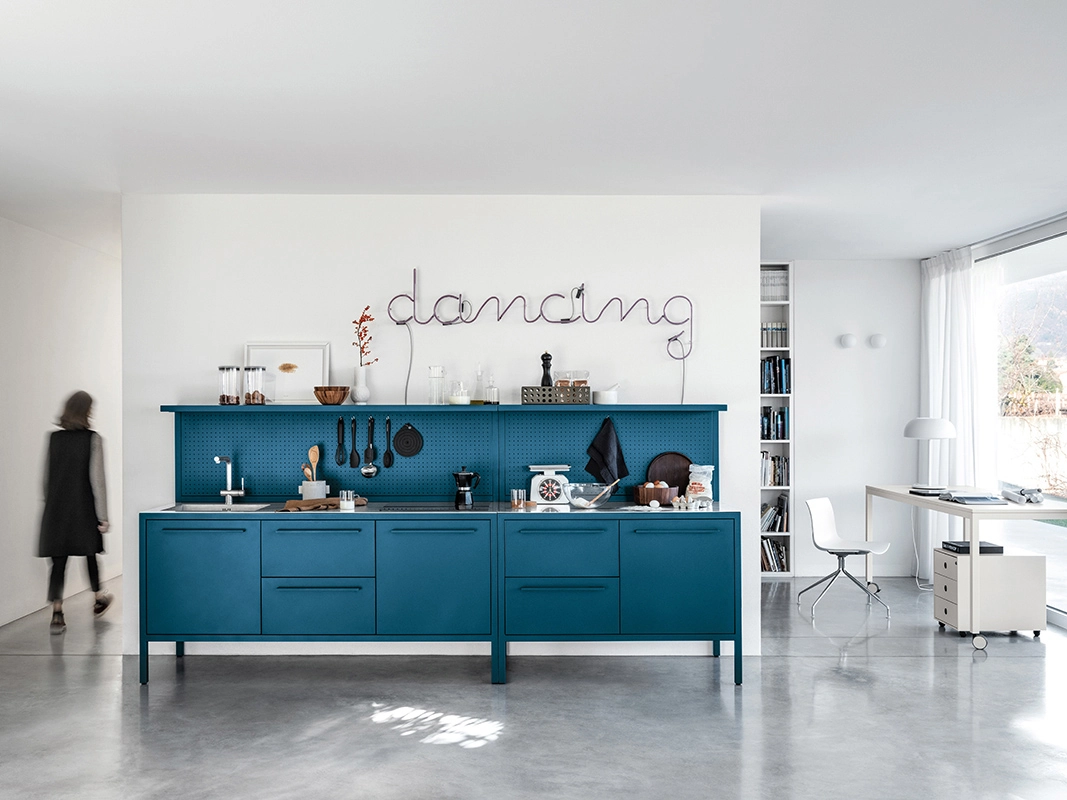

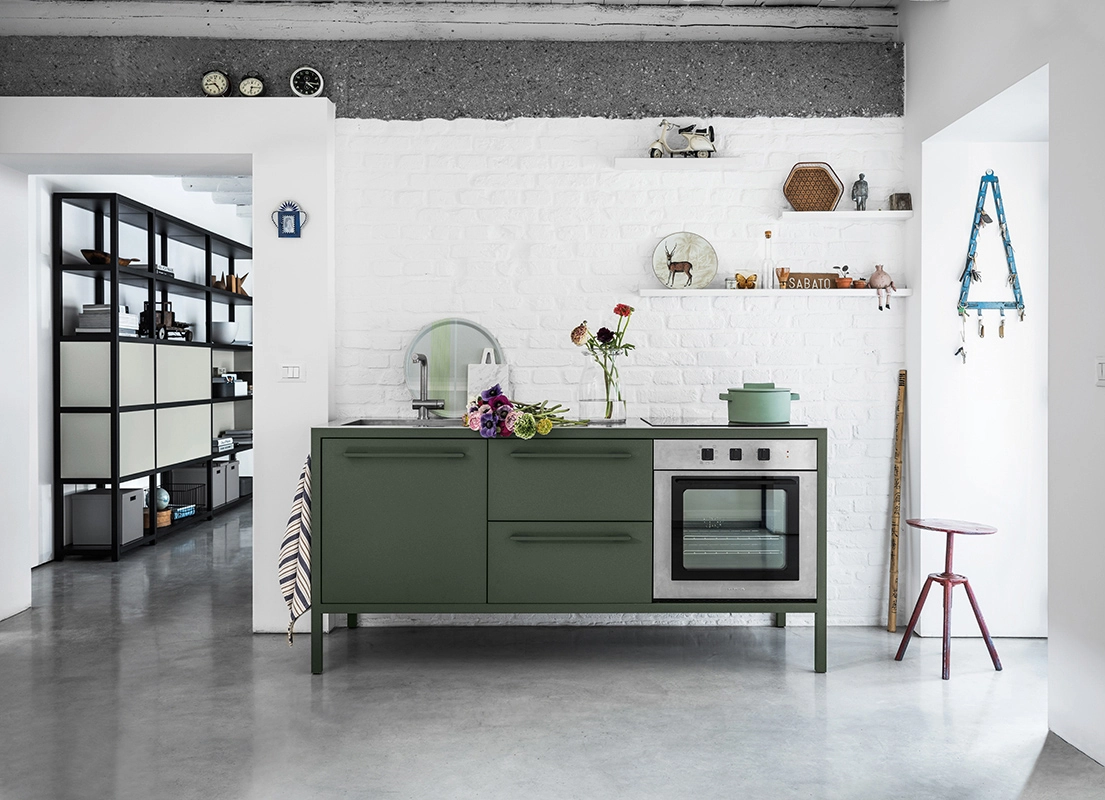

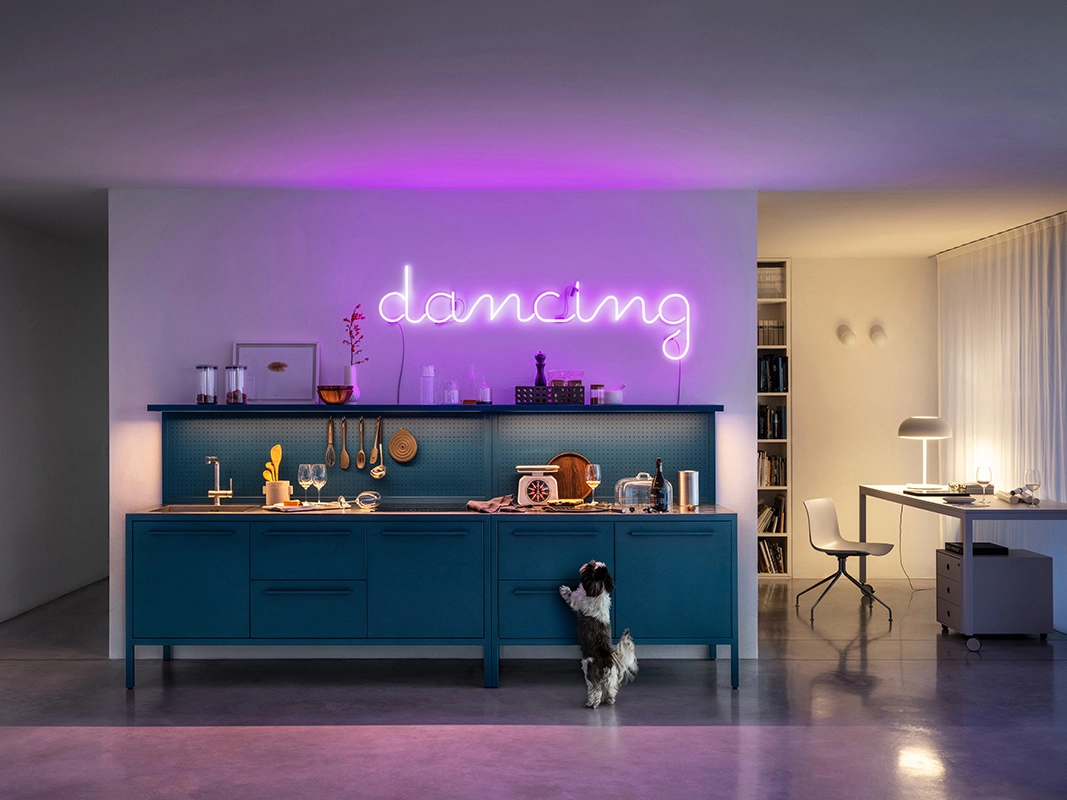

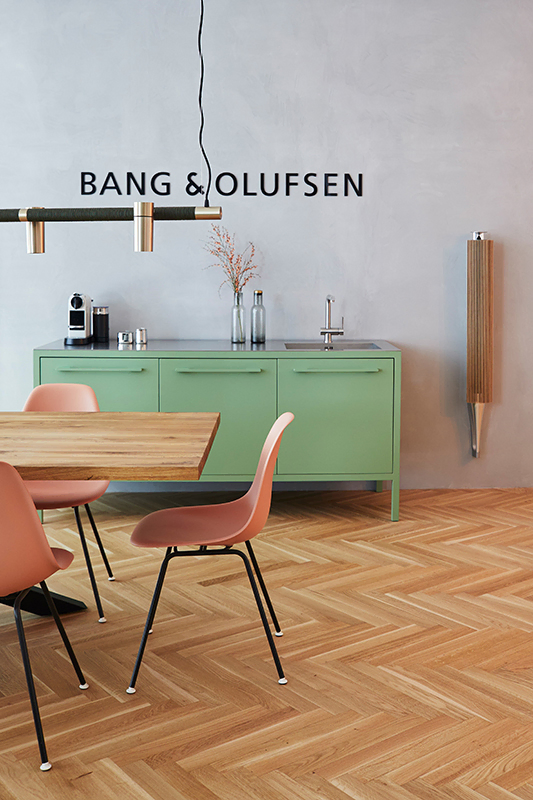

Frame kitchens come with 2 or 3 units and feature tops made of Barazza steel or Fenix NTM. There is a choice of a vintage or satin finish for the 4 mm steel tops, which can be matched with all Fantin finishes.
The Fenix NTM tops are for use in conjunction with frames with Ultra-matt finishes because they are the perfect match in terms of colour, opacity and softness to the touch.
This allows for monochrome products using Fantin solid metal structures and Fenix NTM resistant and restorable tops.
INFORMATION
BRAND
Fantin
PRODUCT TYPE
Kitchen System
OPTIONAL BACKBOARDS
Optional backboards inset in the frame, made of metal.
INSIDE SHELVES
Inside shelves made of bent sheet metal.
PRODUCTION
Made in Italy
ENVIRONMENT
Indoor
FRAME
Frame made of 35 x 35 mm (1.38" x 1.38") square tubes. Concealed levelling feet, laterally adjustable.
WIDTH
128-188 cm
DEPTH
67 cm
OPTIONAL HOBS
Optional hobs : Electric induction and gas – from Barazza, Electrolux, Elica
SIDES AND BASES
Sides and bases inset in the frame, made of bent sheet metal; filled sides.
OPTIONAL ACCESSORIES
Optional accessories : Stainless steel sinks, roll-up draining mat, taps. Shelves, open compartments, panelling
MATERIAL
- Steel
- Glass
COLLECTION
Frame
DOWNLOADS
↓ Data Sheet
HEIGHT
89 cm
OPTIONAL APPLIANCES
Optional appliances with custom installation kit, from AEG, Barazza, Electrolux, Falmec.
GLASS
Extra-clear glass, with a thickness of 6 mm (0.24"), etched on the top, ground with a matt edge. Coated on the back with water-based paint in the 35 Fantin finishes.
AISI 304 STAINLESS STEEL
Kitchen top with a thickness of 4 mm (0.16") with Vintage (exclusive Barazza manual processing, making it quicker and easier to maintain) or satin finish.
DRAWERS
Drawers with fronts inset in the frame, made of a double layer of bent sheet metal. Drawer front thickness: 20 mm (0.79"). Metal handles with a coating in a colour to match the drawer fronts. Drawers with Hettich runners and built-in stabilization and soft-close systems. Capacity: 40 kg (88.18 lb).
TOP
-Top made of extra-clear glass, with a thickness of 6 mm (0.24"), etched on the top, ground with a matt edge. Coated on the back with water-based paint in the 35 Fantin finishes. -Top made of AISI 304 stainless steel filler panel with a thickness of 4 mm (0.16") with satin or Vintage finish (with exclusive Barazza manual processing). Also available with integrated sinks and equipment channels. -Top (only for workbenches) made of metal with a thickness of 3 mm (0.12") and a bottom fibreboard filler panel.
DOORS
Doors inset in the frame, made of a double layer of bent sheet metal. Door thickness: 20 mm (0.79"). Metal handles with a coating in a colour to match the doors. Soft-close dampening hinges. 95° door opening.
METAL
Non-toxic powder coating for interior use, with no heavy metals. Cured in an oven at 190 °C, following degreasing and phosphating. Guaranteed minimum thickness of 50 microns. Minimum resistance to salt spray of 200 hours (in accordance with the ASTM B117 standard). Some finishes are suitable for direct contact with food as required by Italian Law Decree D.M. 21/03/73 and subsequent updates.
Requests for other RAL finishes can be considered. On some finishes, any partial discolouration following rubbing and/or abrasion has absolutely no effect on the technical, appearance/colour and chemical/physical characteristics of the product. This phenomenon tends to diminish over the useful life of the product and does not in any case present a health hazard to users.
FINISHES
STRUCTURE AND DOORS
TOP
