AWARD LOW-LEVEL BATHROOM PANELS
AWARD LOW-LEVEL BATHROOM PANELS

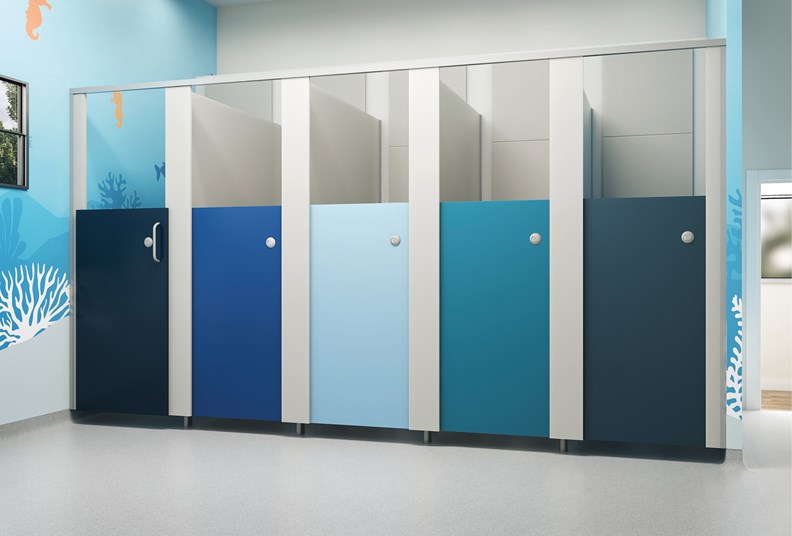

A perfect choice for nurseries and primary schools with child friendly low level cubicles.
INFORMATION
BRAND
Venesta
PRODUCT TYPE
Bathroom Panels
PANELS AND DOORSE
- MFC
- HPL
- SGL
OVERALL HEIGHT
- MFC : 2100mm
- HPL : 2100mm
- SGL : 2100mm
MAXIMUM DEPTH
- MFC : 2097mm.
- HPL : 2067mm.
- SGL : 1921mm.
FLOOR CLEARANCE
100mm.
COLLECTION
Award Low-Level
COLLECTION
Award Low-Level
ENVIRONMENT
Indoor
DOOR HEIGHT OPTIONS
- Children's option 1 : 1300mm.
- Children's option 2 : 1100mm.
- Standard height : 2000mm
EDGE TREATMENT
- MFC and HPL : Matching ABS lipping.
- SGL : Polished black radiused edge.
CUBICLE HARDWARE
Light Grey ABS, satin anodised aluminium or satin anodised effect powder coated zinc.
MFC
For dry environments with low risk of vandalism. Panels are manufactured from 19mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
HPL
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 19mm nominal thickness. Edges lipped with ABS.
MATERIAL
Satin anodised aluminium wall channels and headrail for additional rigidity.
ACCESSORIES
Coat hooks and toilet roll holders available.
CLEAN
Minimal design with clean lines.
HINGE
Anti-finger trap satin anodised aluminium rise and fall butt hinge. Outward opening hinge option available.
PEDESTALS
Set back pedestals give Award Low Level toilet cubicles their "floating" appearance.
EMERGENCY
Emergency release indicator bolts as standard for added peace of mind.
WASHROOMS
Low level door height options for education washrooms.
PERFECT
Perfect for nurseries and primary school washrooms.

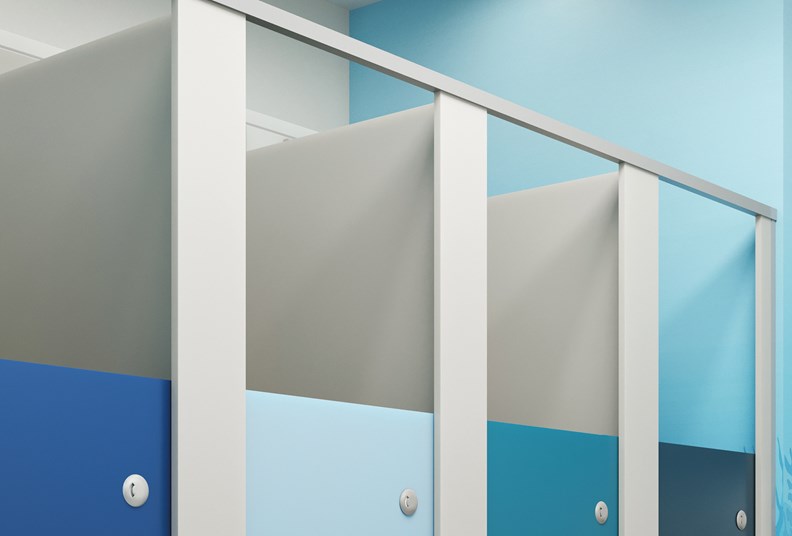

HEADRAIL
Rigid satin anodised aluminium headrail with matching end cap.

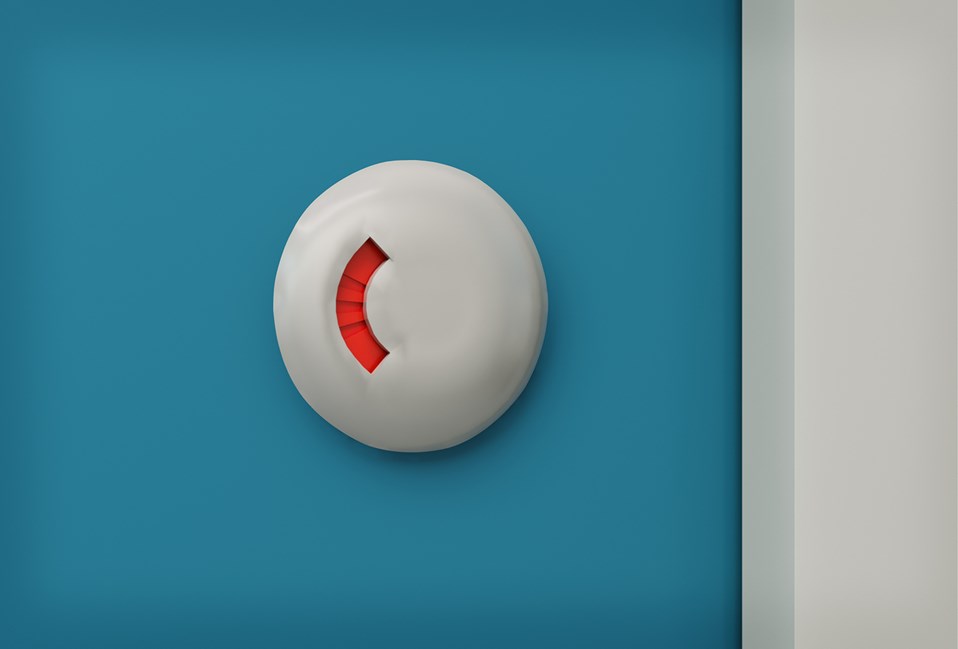

INDICATOR BOLT
Easy grip sliding bolt with emergency release facility and concealed fixings. Available in satin anodised effect powder coated zinc or Light Grey ABS.
FEATURES
-V1 - Entry level, low cost cubicle range. -Streamlined, "floating" appearance.
BALANCING PRIVACY AND SUPERVISION
-Balancing privacy with the need to supervise children is something to consider when designing education washrooms. The option of low height doors ensures you can achieve both. -With two different heights to choose from, Award Low-Level is simple to install and gives you great design flexibility. Available in 34 vibrant colours, Award Low-Level can be specified with ABS, satin anodised aluminium or satin anodised effect powder coated zinc fittings. -These toilet cubicles can be manufactured in MFC, HPL or SGL so you can choose the panelling that's completely appropriate for your site's setting, budget and style.
SAFETY
Robust fittings with child friendly safety features

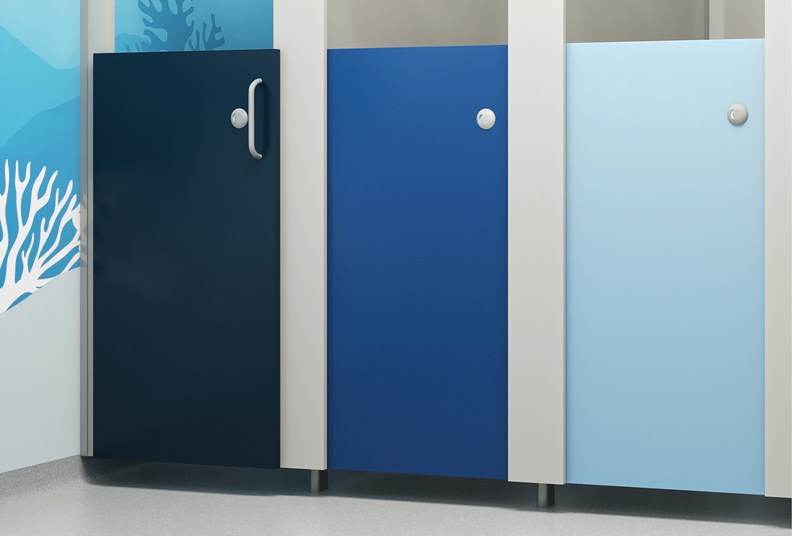

CUBICLES
Low level cubicles with a choice of door heights.
SGL
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
FIXINGS
- Partition to wall: Continuous satin anodised aluminium U-channel.
- Pilaster to partition: Continuous satin anodised aluminium U-channel.
- Pilaster to wall: Continuous satin anodised aluminium U-channel.
PEDESTAL
Height adjustable for uneven floors, with concealed fixings, available in Light Grey ABS or satin anodised effect powder coated zinc. Where possible, pedestals are located on partitions to give a floating appearance.

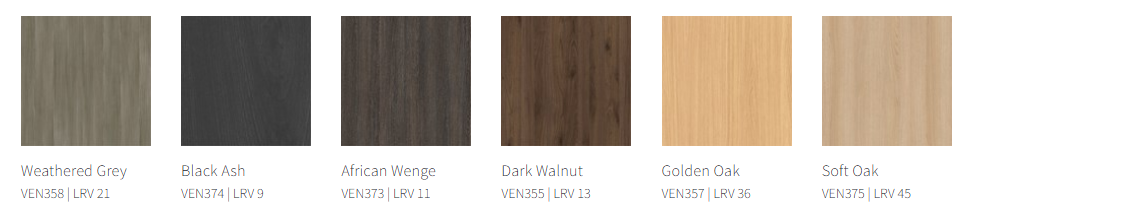

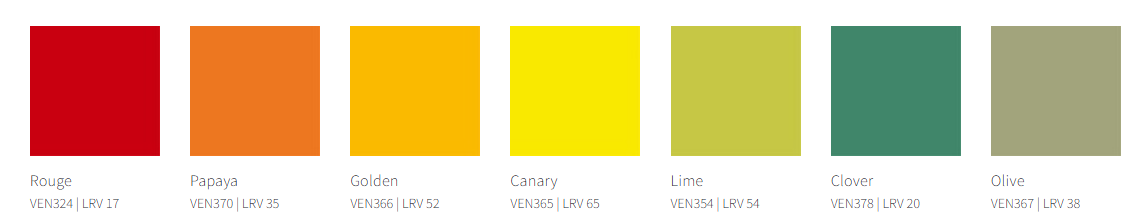

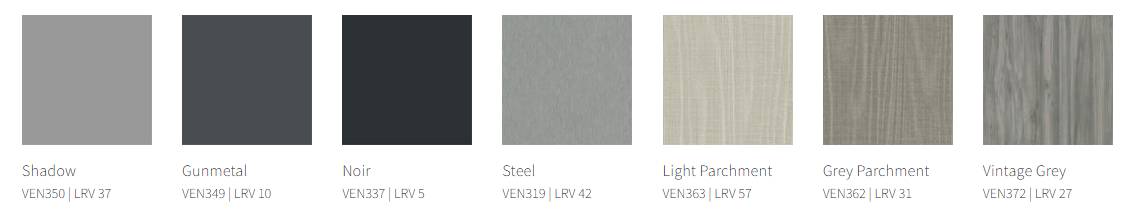

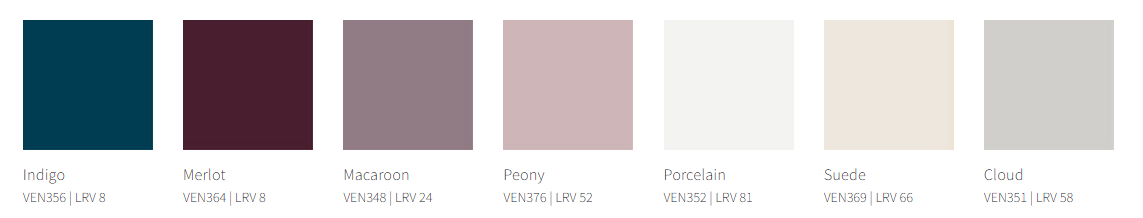

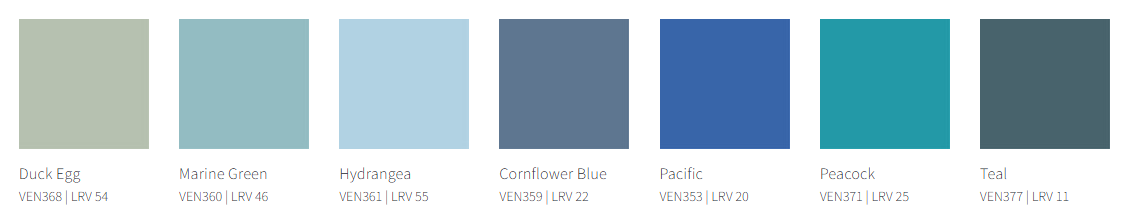

COLORS
COLOUR FINISH
MFC, HPL and SGL: 34 colours from the standard range.
