Isolgomma Rewall 40 Insulation Accessories
REWALL 40 INSULATION ACCESSORIES
REWALL 40 INSULATION ACCESSORIES
High performance acoustic and thermal insulation panel composed of polyester fibre and plasterboard layer.
INFORMATION
BRAND
Isolgomma
PRODUCT TYPE
Insulation Accessories
INSTALLATION
- Dry
- Glue
USE
- Wall
- Ceiling
DIMENSIONS
- Length : 2 m
- Width : 1.20 m
COLLECTION
Rewall
PRODUCTION
Made in Italy
PRODUCT STANDARD
EN 14190:2014
REACTION TO FIRE
E
APPLICATION
- Ceiling
- CLT wall
- Single Wall
HIGH RESISTANCE
Acoustic and thermal correction of partition walls and ceilings in homes
DOWNLOADS
↓ Technical data
↓ Declaration of performance
↓ Cat. Solutions for acoustic insulation in building construction
↓ Acoustic insulation in building construction
EASY
Easy installation
THICKNESS
40 mm
FLEXIBILITY
Rewall 40 can be applied to any wall with acoustic and vibration-damping functions. High performances in little space. Resistant to moisture.
CERTIFIED ACOUSTIC IMPROVEMENT
CE product for acoustic insulation of existing walls, Rewall 40 reduces airborne noise between different apartments by improving acoustic comfort
APPLICATION'S FIELDS
- Applicable in existing environments where building works cannot be carried out
- Relining of existing walls without having to use the traditional metal structure
ACOUSTIC INSULATION

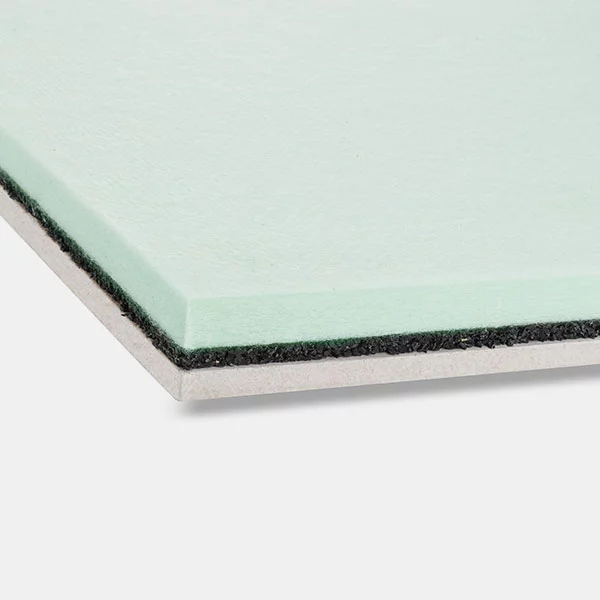

Airborne noise wall insulation in 40 mm-thick preassembled panels, made of a 8 mm-thick rubber granules from End-of-Life Tyres (ELTs) hot pressed with a polyurethane binder, density of 800 kg/m³, a 20 mmthick polyester fiber panel, density of 100 kg/m³, and a 12.5 mm-thick plasterboard.
TO BE USED WITH
In renovations to improve the acoustic performance of existing walls, thanks to its low thickness and comfortable dry laying. Elevator compartments.
SUPERFICIAL WEIGHT
18.00 (kg/m²)
THERMAL RESISTANCE R
0.761 m² K/W
LAYING COSTS REDUCTION
Supplied already coupled to a plasterboard layer, Rewall 40 ensures rapid and minimally invasive interventions in terms of dirt and dust production in environments,

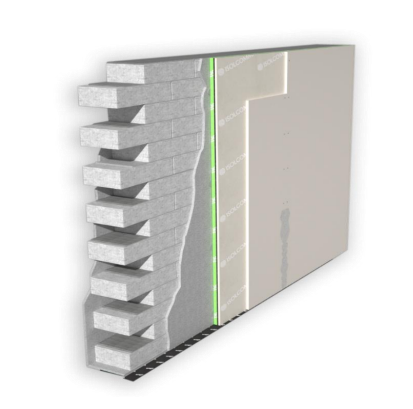

WALL COMPOSITION
165 mm thickness
WALL ACOUSTIC PERFORMANCE RW (DB)
≥ 63
DETAIL
INSTALLATION TEST
Acoustic performances of the intervention can be tested on site by a competent technician
ACOUSTIC CERTIFICATE
Product acoustic certificates are available and allow to comply with the limits imposed by law
ACOUSTIC REPORT
Our technical staff is able to give you the proper support in all the project phases, supporting you in the identification of materials
LAYING ASSISTANCE
Thanks to our extensive commercial technicians network, we are at your disposal for the coordination of the first laying phases on site
INSTALLATION INSTRUCTIONS FOR ACOUSTIC

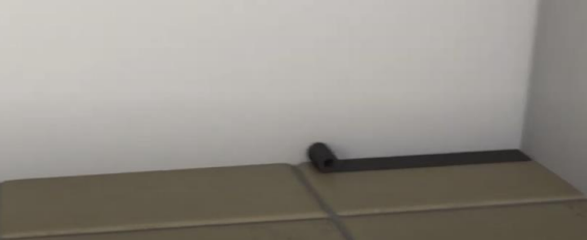

WALL STRIPE
Lay the under wall stripe

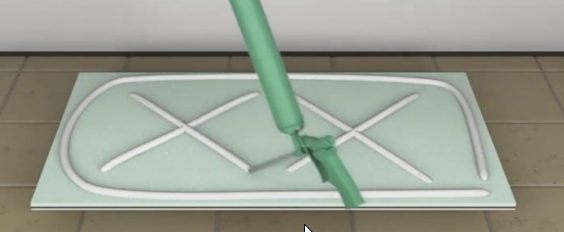

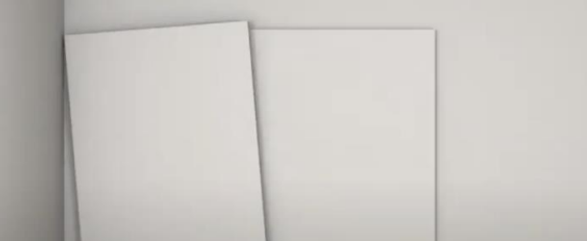

GLUE THE PANEL
Glue the panel to the wall pressing lightly

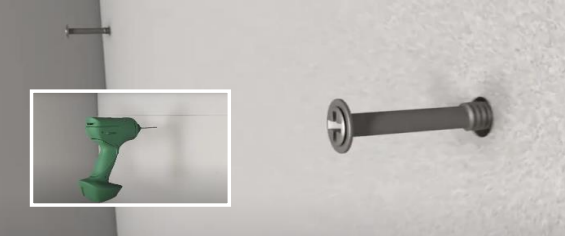

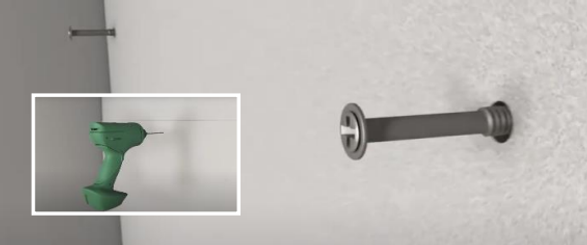

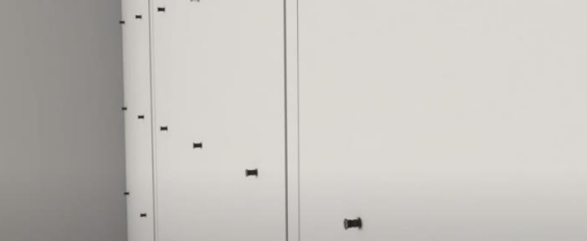

TWO SAFETY PLUGS
Attach two safety plugs to the top of the panel

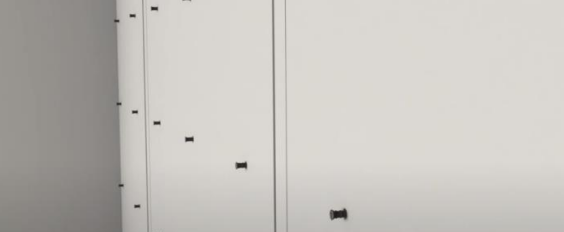

SCREWS

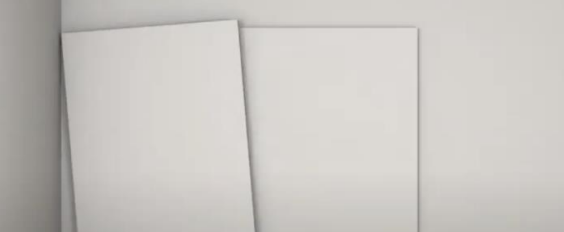

Fix the second gypsum board with the glue and/or appropriate screws

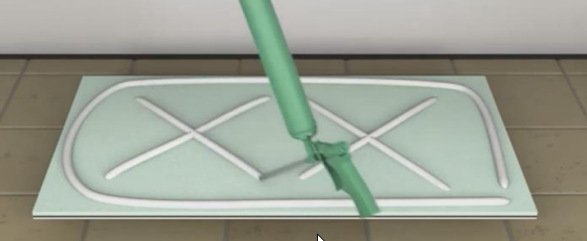

GROUND PANEL
Lay points of a gypsum-based glue on the ground panel or use a low-expansion polyurethane glue

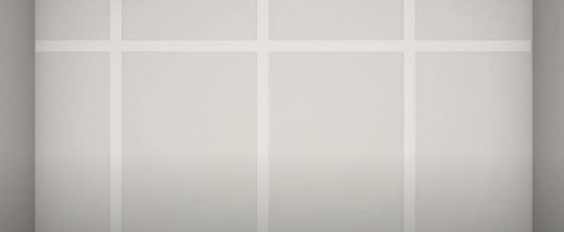

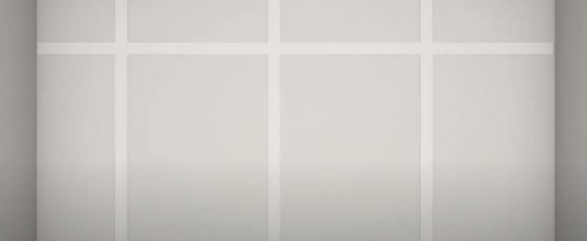

GROUTING
Apply the plastic mesh tape in the gypsum boards jointing lines. Grouting
