Venesta Sahara Glass Bathroom Panels
SAHARA GLASS
SAHARA GLASS
Meeting the needs of the most exclusive washrooms environments.
INFORMATION
BRAND
Venesta
PRODUCT TYPE
Bathroom Panels
GLASS
4mm toughened double back painted safety glass available in timeless black or white.
SAHARA GLASS FEATURES & BENEFITS
- V3 - Premium toilet cubicles.
- Flush fronted and floating appearance.
- Hidden soft self-closing pivot hinge system.
- Hardwearing and scratch resistant glass surface.
- All-new mortice lock with emergency release feature.
- Choose from a timeless monochrome colour palette.
- Robust satin anodised aluminium pilasters clad in complementing glass.
COLLECTION
Sahara
SURFACE
Glass Surface
INDICATOR BOLT

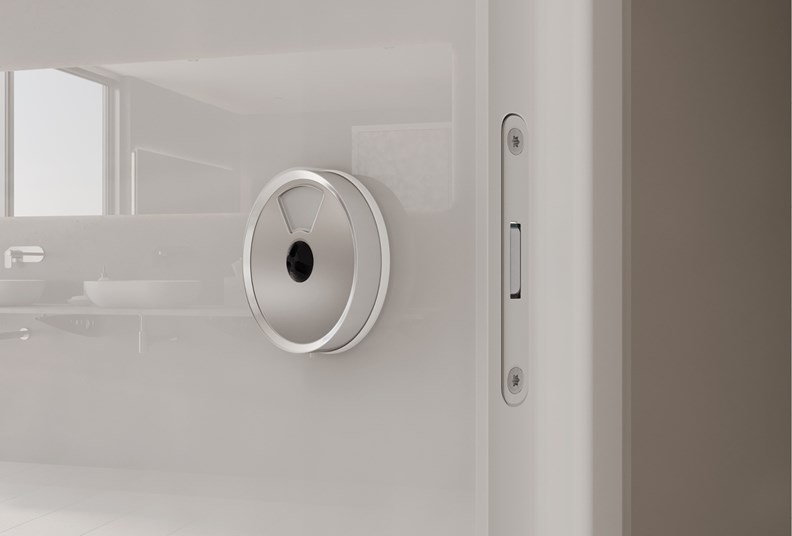

Stainless steel indicator bolt with slimline mortice lock and unique emergency release function.
EDGE TREATMENT
- Glass : Polished.
- Core : Lipped with 0.5mm matching ABS.
PANELS AND DOORS
High performance Medium Density Fibreboard core clad in 4mm toughened double back painted safety glass.
PILASTERS
High strength, slimline extruded satin anodised aluminium pilasters clad in glass, specially designed to conceal fixings.
LOOK

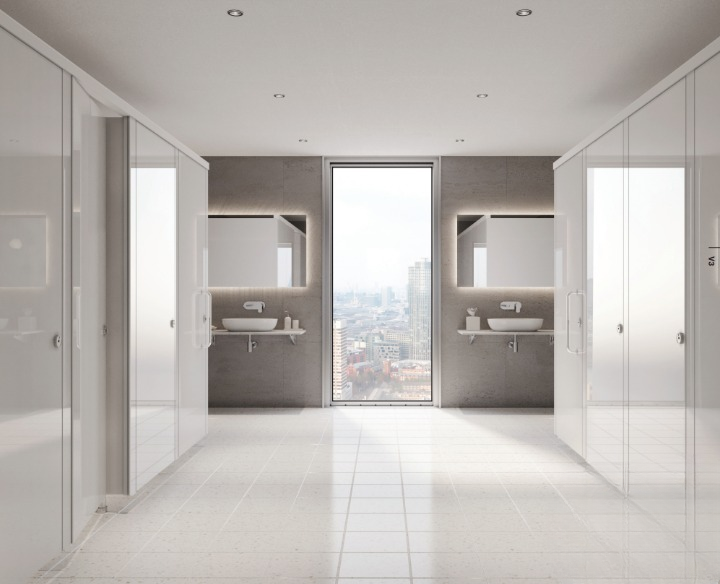

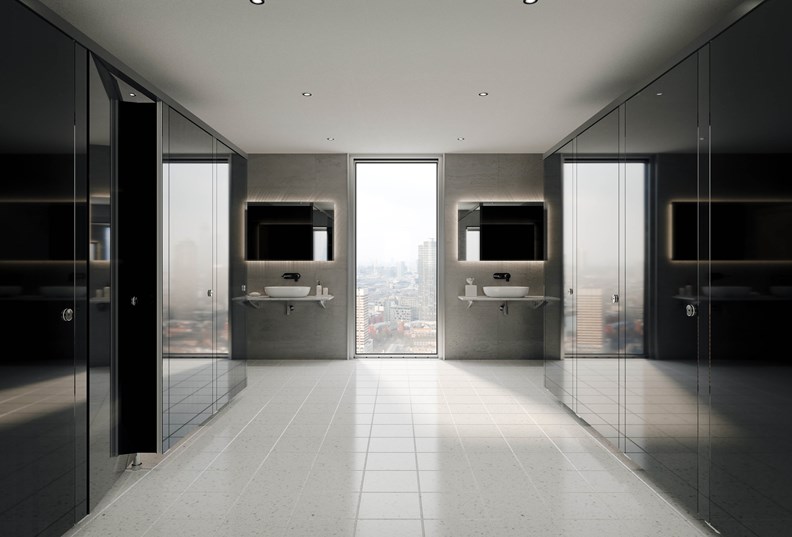

Sahara Glass features glass doors, panels and pilasters in timeless black or white, for a seamless all glass cubicle design.
COLOR FINISHES
- Glass : Black or white.
- Core : Noir or Porcelain
FLOOR CLEARANCE
- 100mm as standard.
- Also a choice of 20mm, 50mm or 150mm.
ACCESSORIES
Coat Hooks Available
ENVIRONMENT
Indoor
HEADRAIL
40mm slimline powder coated aluminium in black or white with matching end cap.
DOOR THICKNESS
44mm
AVAILABLE COLORS
2
MATERIAL
Toughened safety glass
4mm double back painted toughened safety glass.
COREBOARD
-High performance Medium Density 720kg/m³ grade Fibreboard (MDF) - 660kg/m³. -Doors are 44mm nominal thickness high performance Medium Density Fibreboard (MDF) clad with double back painted safety glass. Partitions are 35mm nominal thickness clad with double back painted safety glass.
PRODUCTION
Made in United Kingdom
MINIMUM CEILING CLEARANCE
20mm

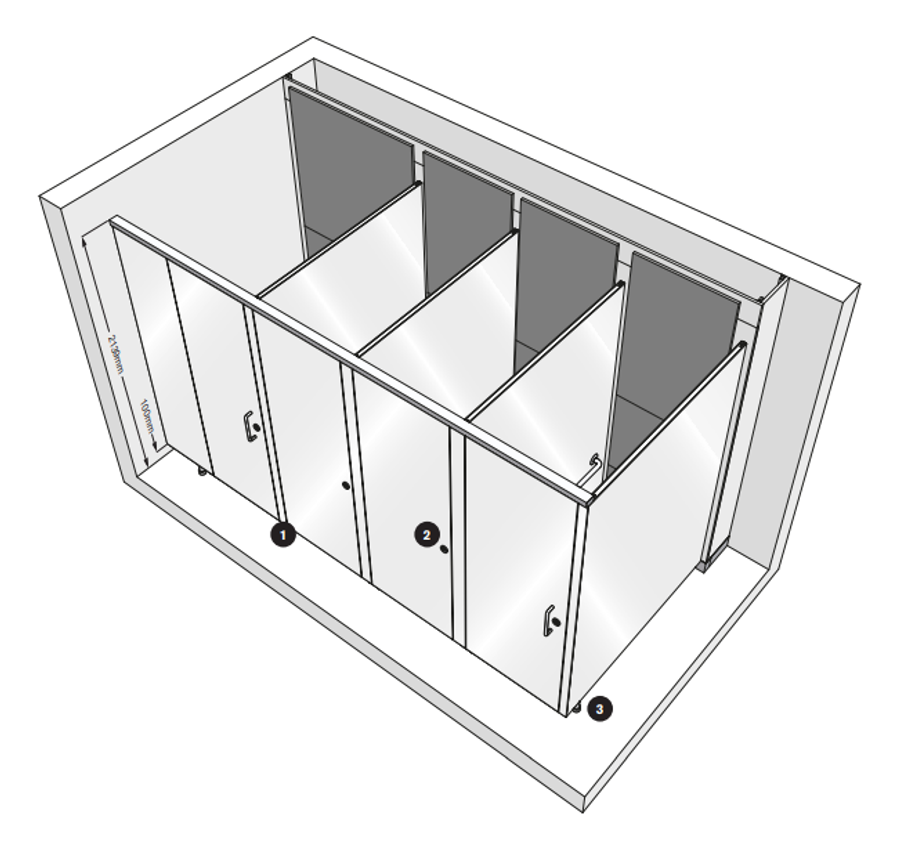

DIMENSIONS
- Overall Height : 2139 mm
- Maximum Height : 2905mm
- Maximum Depth : 2086 mm
COLORS
- White
- Black
PEDESTAL

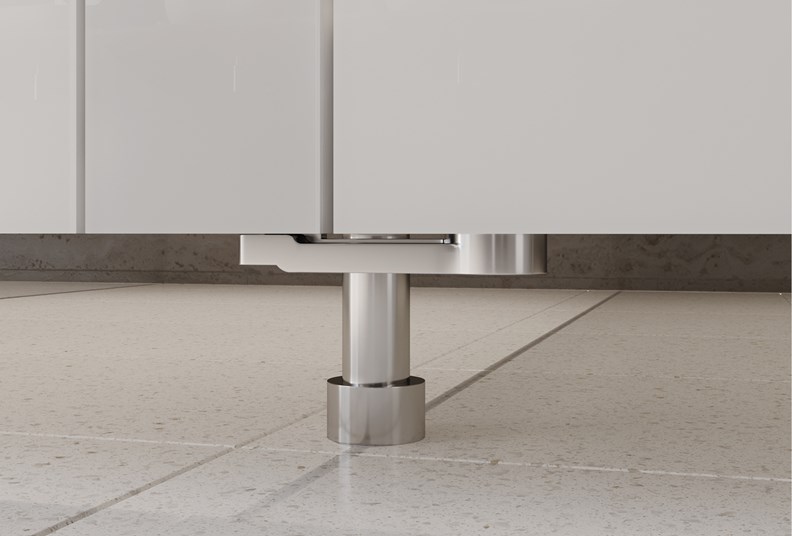

Stainless steel 100mm height adjustable (+10mm) as standard. Also a choice of 50mm or 150mm height pedestals.
FIXINGS
- Partition to wall: Satin anodised aluminium T-section.
- Pilaster to partition: Satin anodised aluminium T-section.
- Pilaster to wall: Satin anodised aluminium channel and Z-clip.
HINGE
Stainless steel soft self-closing pilaster mounted pivot hinges, supplied as an assembly.
DETAIL
OPULENT COMMERCIAL WASHROOM DESIGN
-Unique to the Sahara toilet cubicle range, the doors boast our innovative floating pivot hinge system. Synonymous with opulent design, the pivot hinge creates a smooth, elegant door movement, which means doors are easy to open and self-close, helping to showcase the flush design of the cubicle fronts.
-With a slimline profile, flush fronted design and all the same sleek hardware features as Sahara, Sahara Glass presents an undisputable premium look. The rebated, flush fronted doors create a modern, minimal design while the lustrous stainless steel pedestals are set-back on partitions so the toilet cubicles appear to float. -For a modern and minimal design, that doesn't compromise on durability, Sahara Glass' doors, pilasters and partitions are clad in black or white double back painted 4mm toughened safety glass.
