Pilosio MP HD Slabs & Beam
MP HD SLABS & BEAM
MP HD SLABS & BEAM
Ideal for when there is a need to reinforce slabs, beams or any other structure cast at a height.
INFORMATION
BRAND
Pilosio
PRODUCT TYPE
Slabs & Beam
PRODUCTION
Made in Italy
VERTICAL ELEMENT

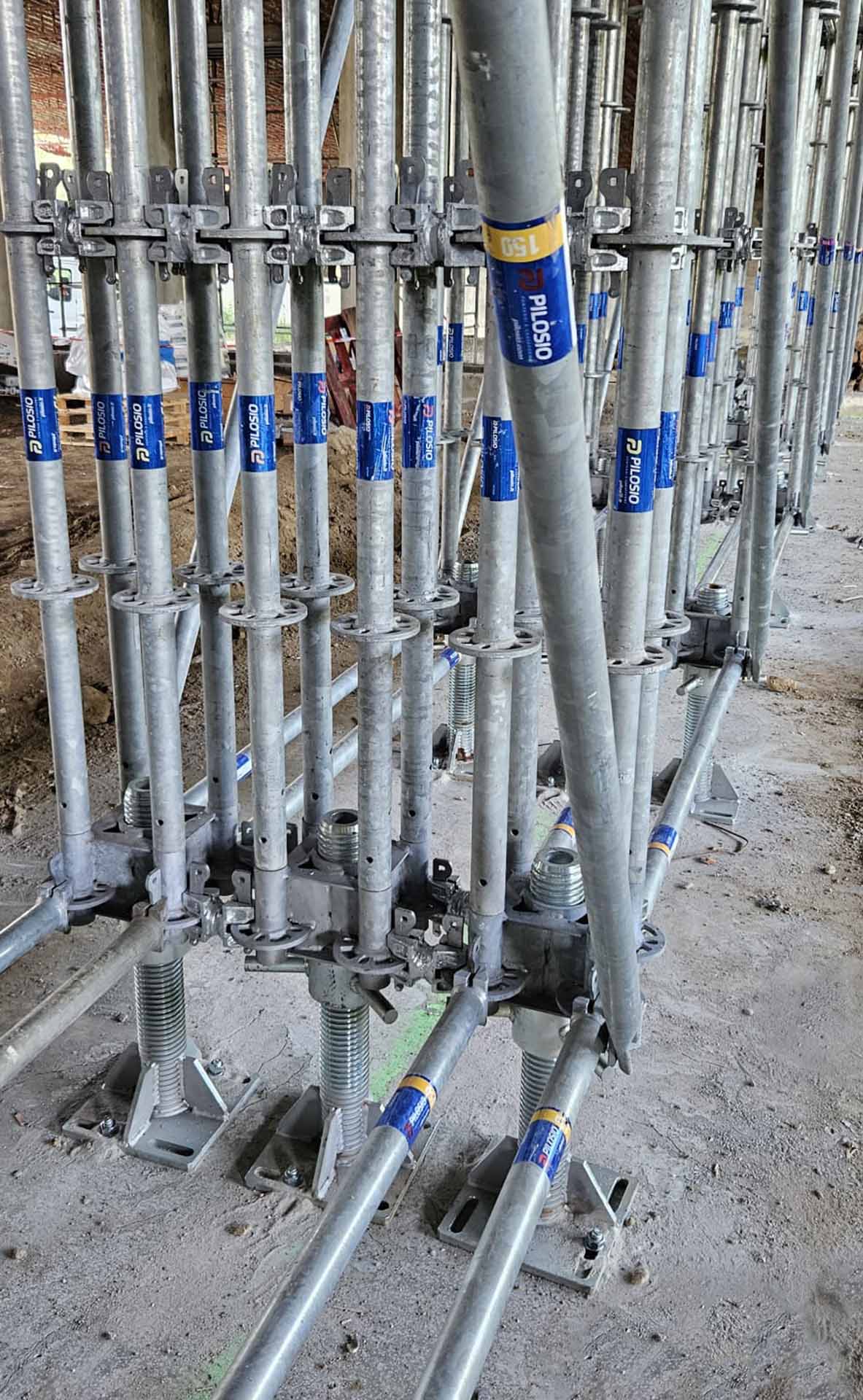

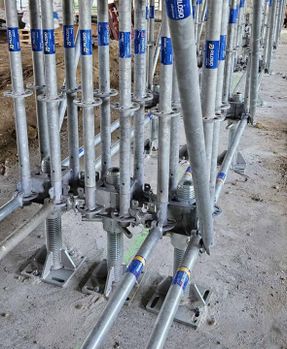

Each vertical element consists of 4 MP vertical standards connected to each other by double wedge couplers. The legs are connected four by four to build the tower and provided with lower and upper adjustable collars.
MATERIAL
Steel
DOWNLOAD
↓ Catalogue
APPLICATIONS

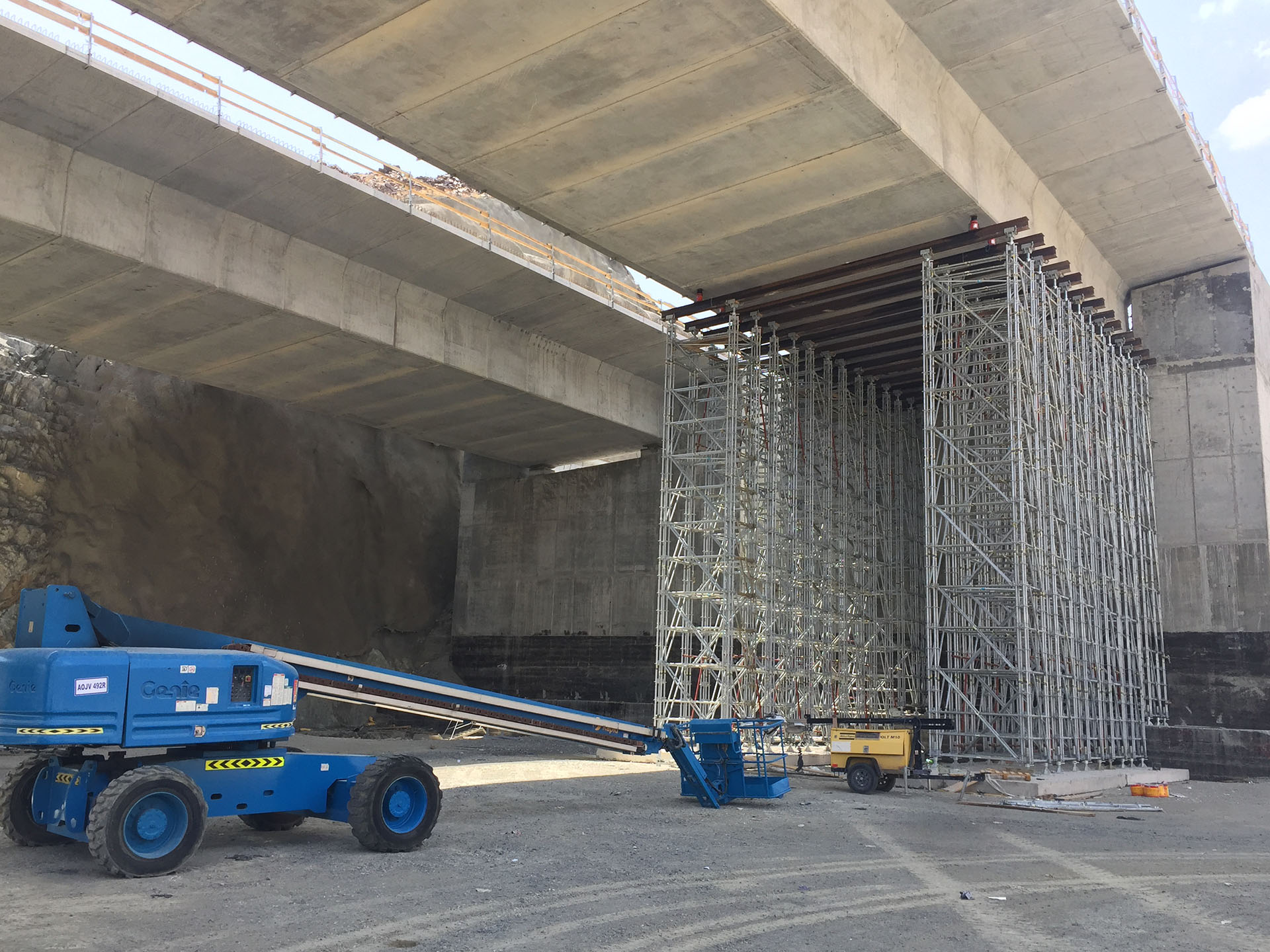

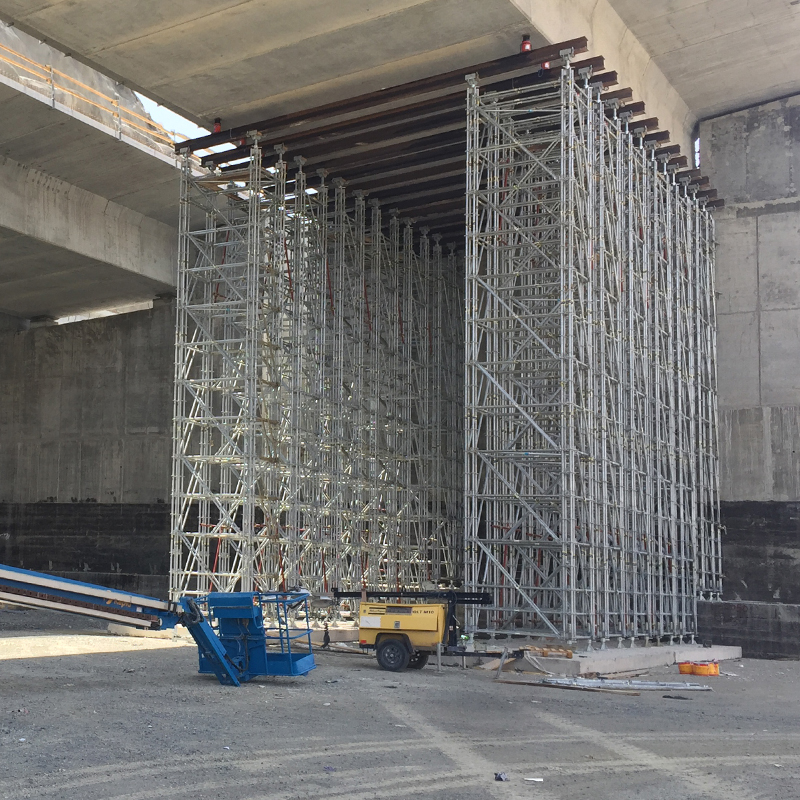

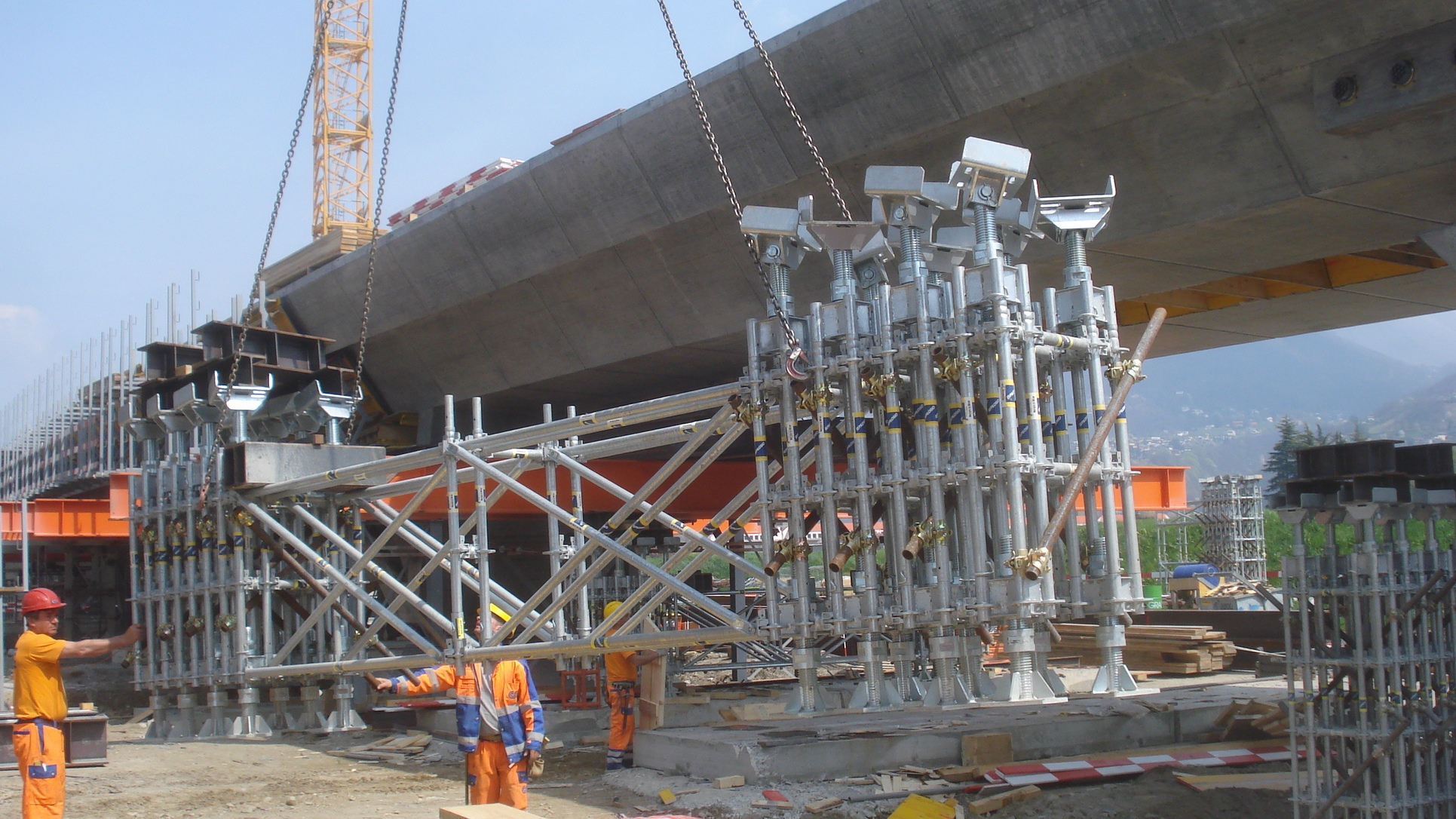

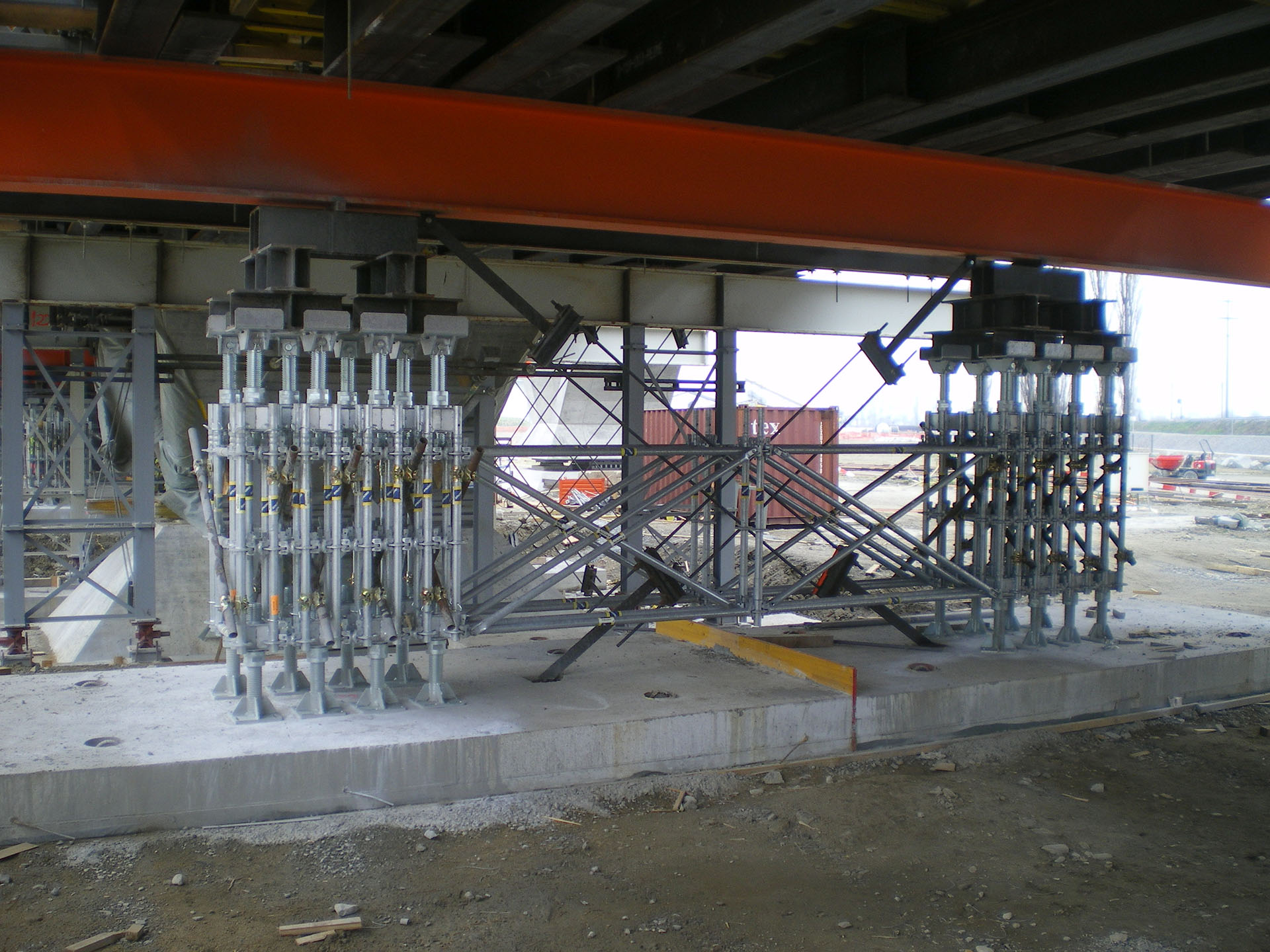

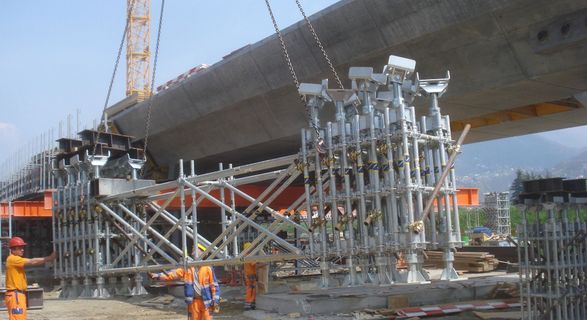

- Bridge Construction
- Industrial Construction
ADVANTAGES
- Very heavy load capacity
- Can be completely dismantled
- Can be used for shoring sloped structures

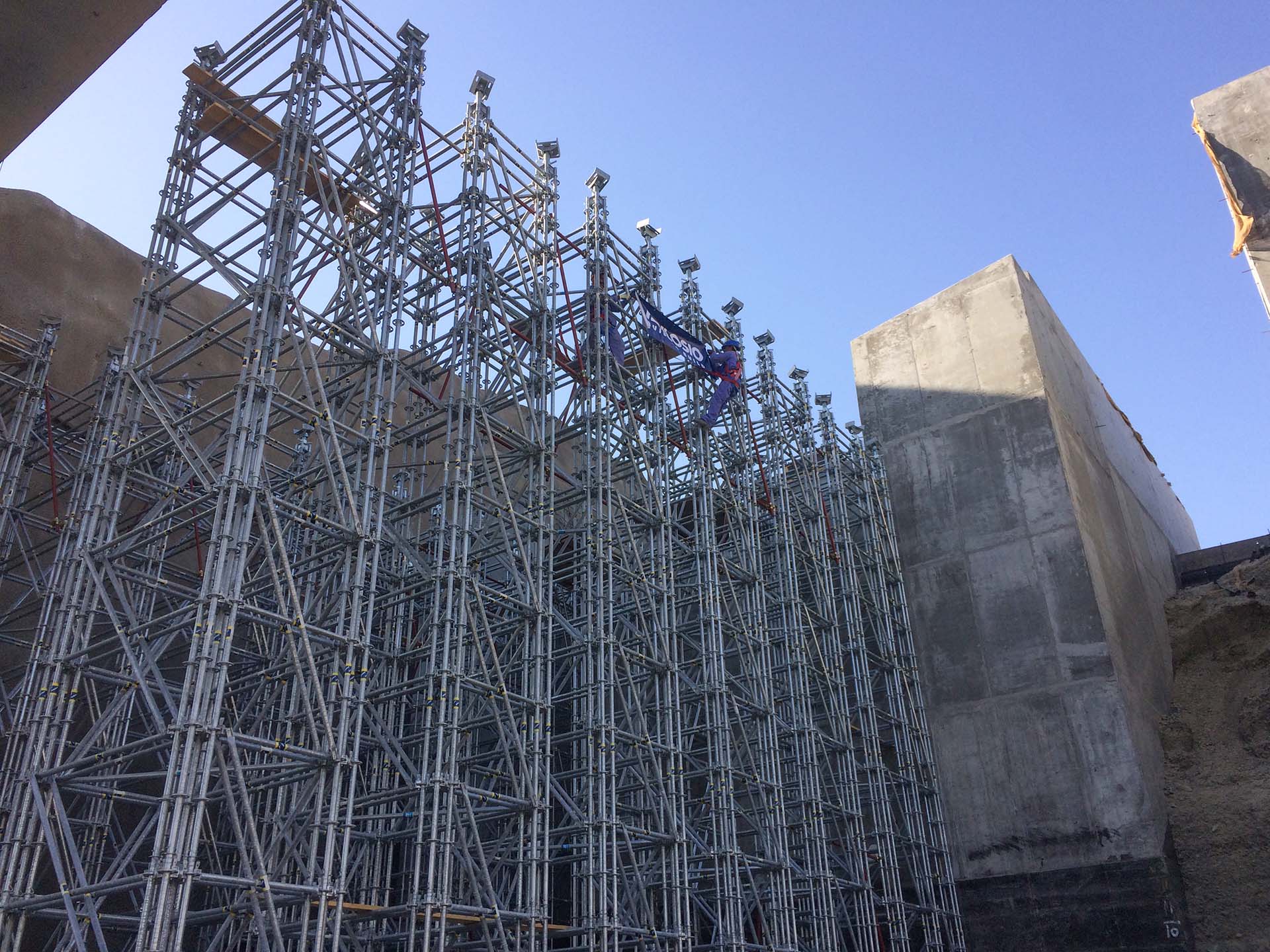

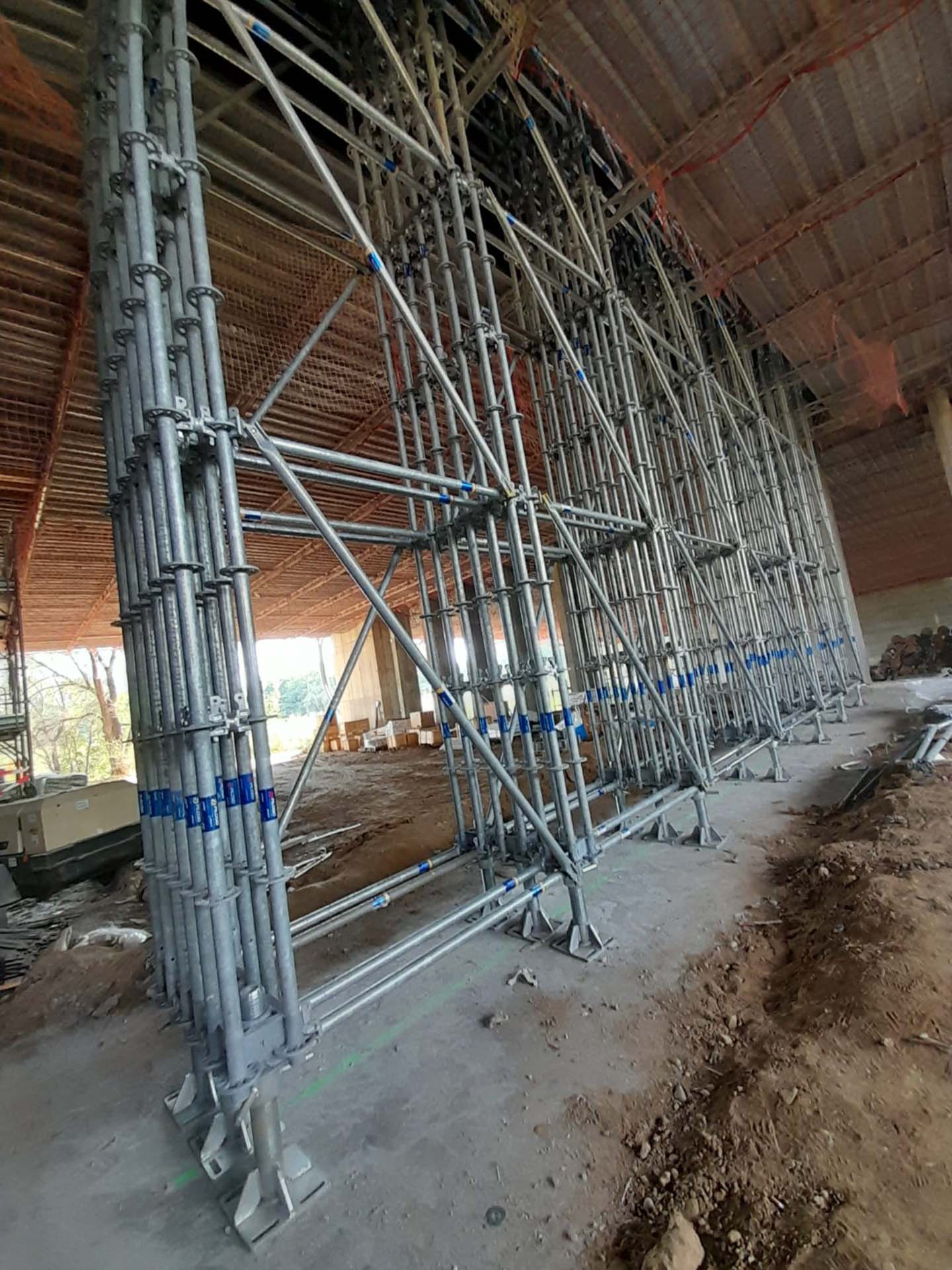

- Supporting towers can be assembled to great heights

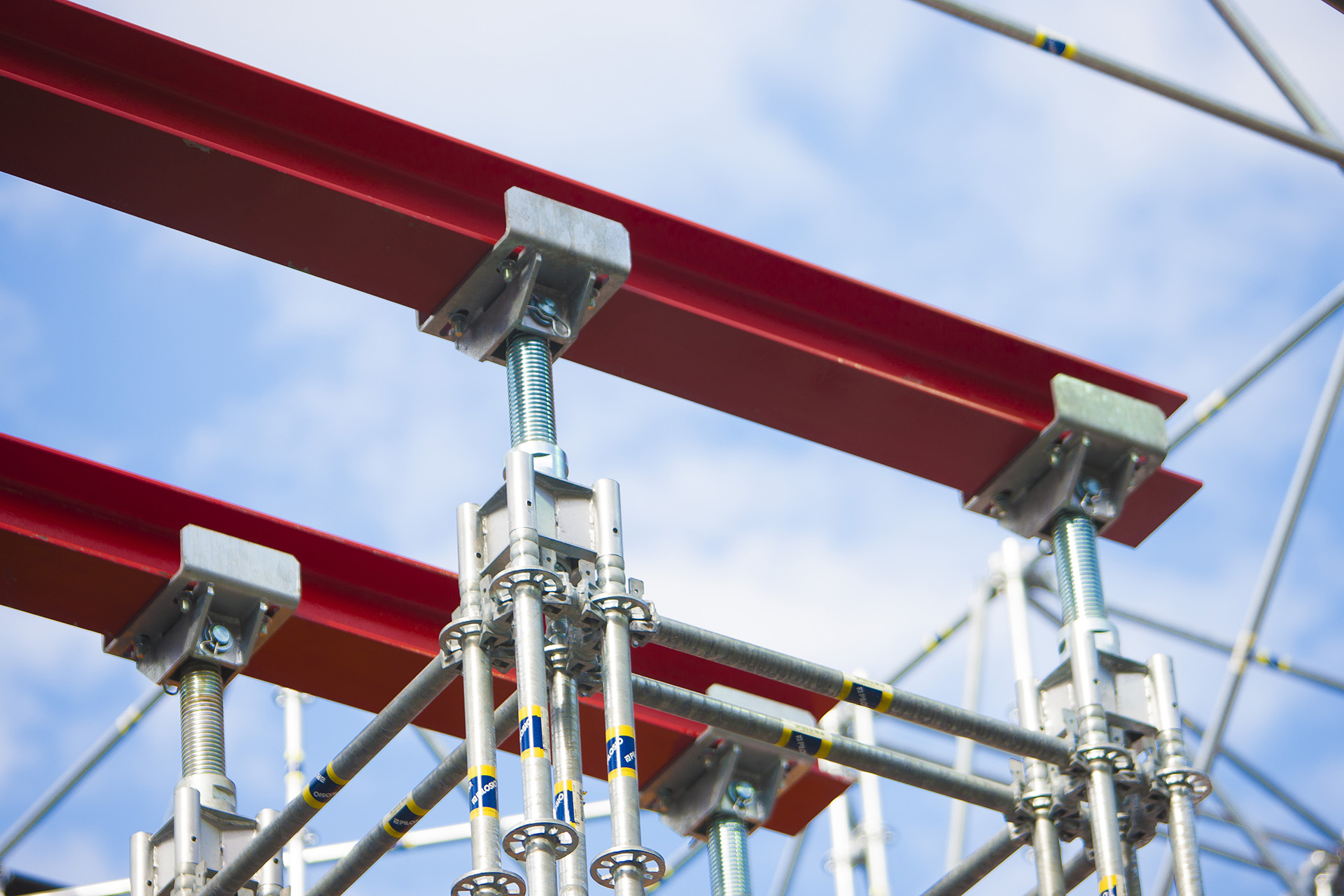

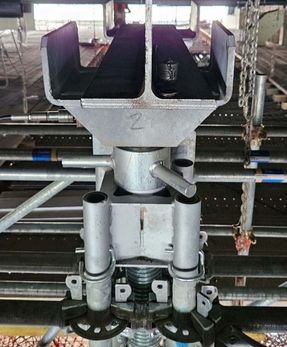

- Permitted ranges of base plates and head jacks able to cover any height
LOAD CAPACITY
Up to 200 kN per leg (max 800 kN for whole tower 1.0 x 1.0 m)
COMPONENTS
Great flexibility achieved with only a small number of basic components
LEGS CONNECTED
Four by four
COUPLERS
Double Wedge Couplers
CHARACTERISTICS

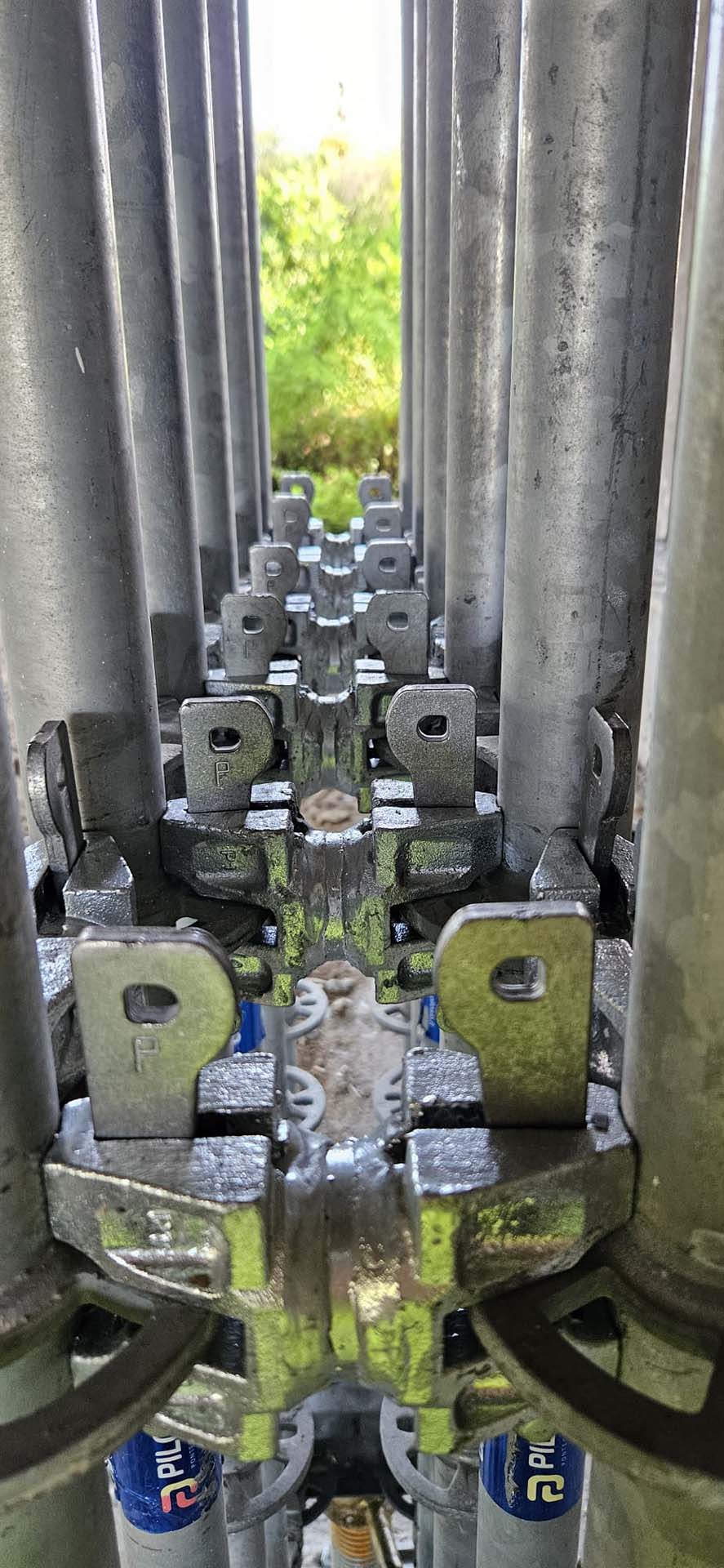

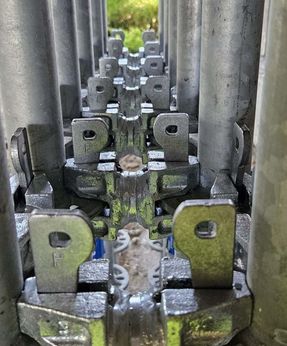

Great versatility thanks to rosettes welded to the vertical uprights every 50cm allowing for 8 independent connections in 360°.
CONNECTION
Fast and safe assembly thanks to a combination of light steel modular elements with high-load bearing connection capacities and bolt-free connection
USE

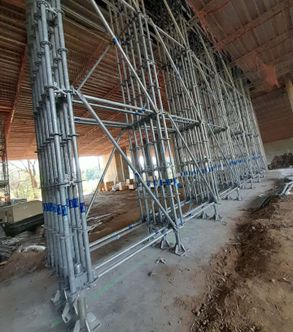

The use of support towers with high capacities makes even heavy duty loads possible with components of the MP multidirectional scaffolding combined with specialized accessories.
THICKNESS
MP HD towers suit a wide range of reinforcements of slabs and beams of any thickness and can be combined to create towers or walls of any size.
GALLERY
