AGS COMMERCIAL 601 NARROWLINE OFFSET SINGLE GLAZED (150MM) WINDOWS
AGS COMMERCIAL 601 NARROWLINE OFFSET SINGLE GLAZED (150MM) WINDOWS
The AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance.
information
FRAMING SYSTEM
150mm x 44mm offset pocket framing system
BRAND
Capral
PRODUCT TYPE
Window Syatem
DESIGN
Designed to match the external appearance of AGS 400 Narrowline
COMPATIBLE
Compatible door and window suites are available
CAPTIVE
Captive glazing wedge options for easier on-site glazing
APPLICATION
It suits most commercial applications requiring more strength than the AGS 400 Narrowline but with the same look and product compatibility
FRAME DIMENSIONS
- Frame Depth : 150 mm
- Face Width : 44 mm
COLLECTION
AGS
FRAME
Sub-frame options
MAXIMUM PRODUCT SIZES
- Panel Height : 5000 mm
- Panel Width : 2200 mm

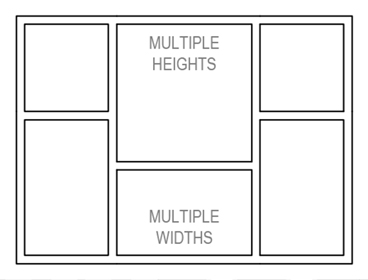

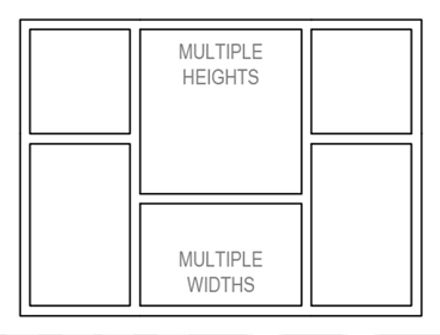

CONFIGURATIONS
DESIGN
Mullion options for design flexibility
KEY FEATURES
Crisp, unbroken lines for clean aesthetics
GLAZING DETAILS
Single Glazed : 4 - 10
CERTIFIED SMELTER
ASI Certified Smelter
MAXIMUM PRODUCT PERFORMANCE
- SLS (Pa) : 4500
- ULS (Pa) : 1100
- Water (Pa) : 900
PERFORMANCE
Modelled on the highly successful AGS 400 Narrowline framing system, the AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance by matching its 44mm face dimension and glass set-back.
The offset glazing pocket allows the AGS 601 & AGS 400 Narrowline framing systems to be easily combined on various elevations. Also, it will enable the AGS 601 Narrowline to incorporate all AGS 400 Narrowline sash and door options.

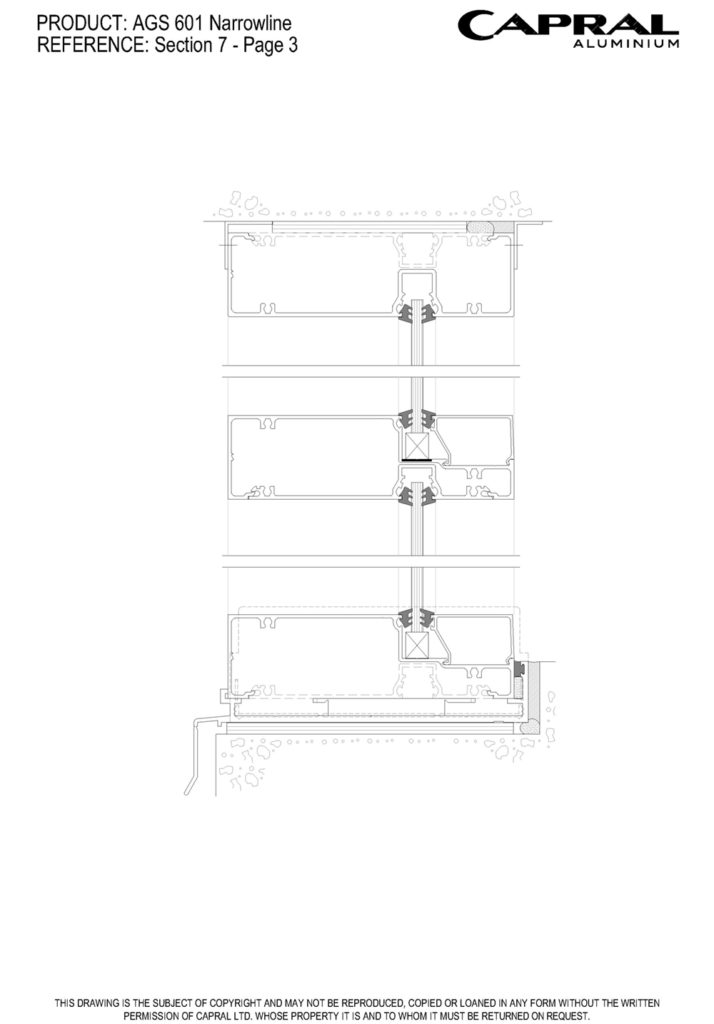

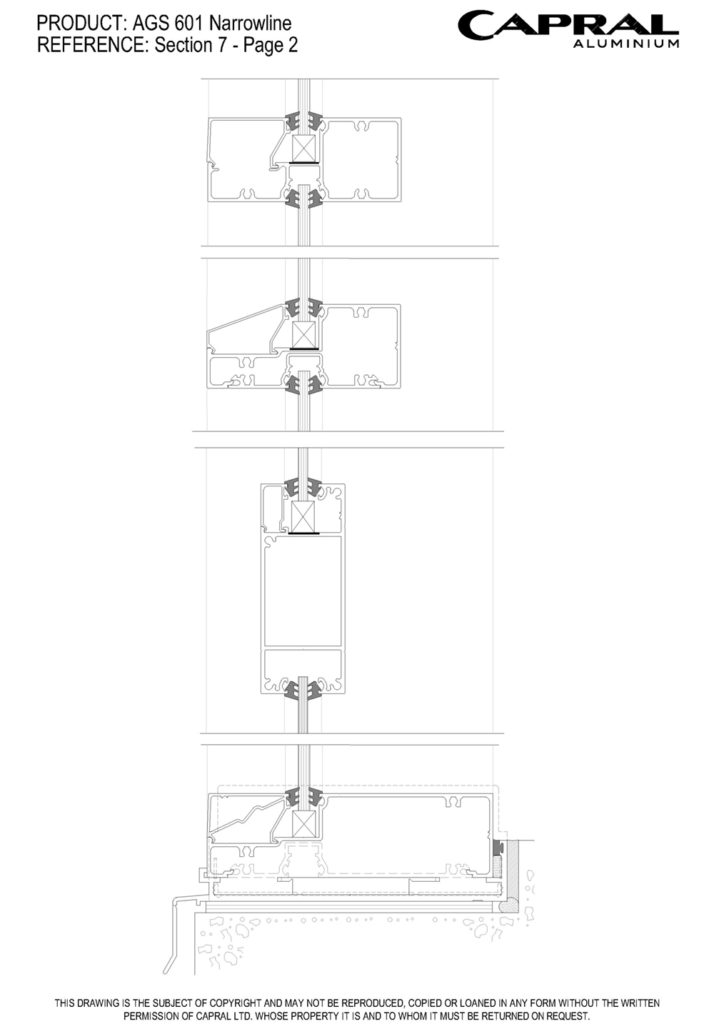

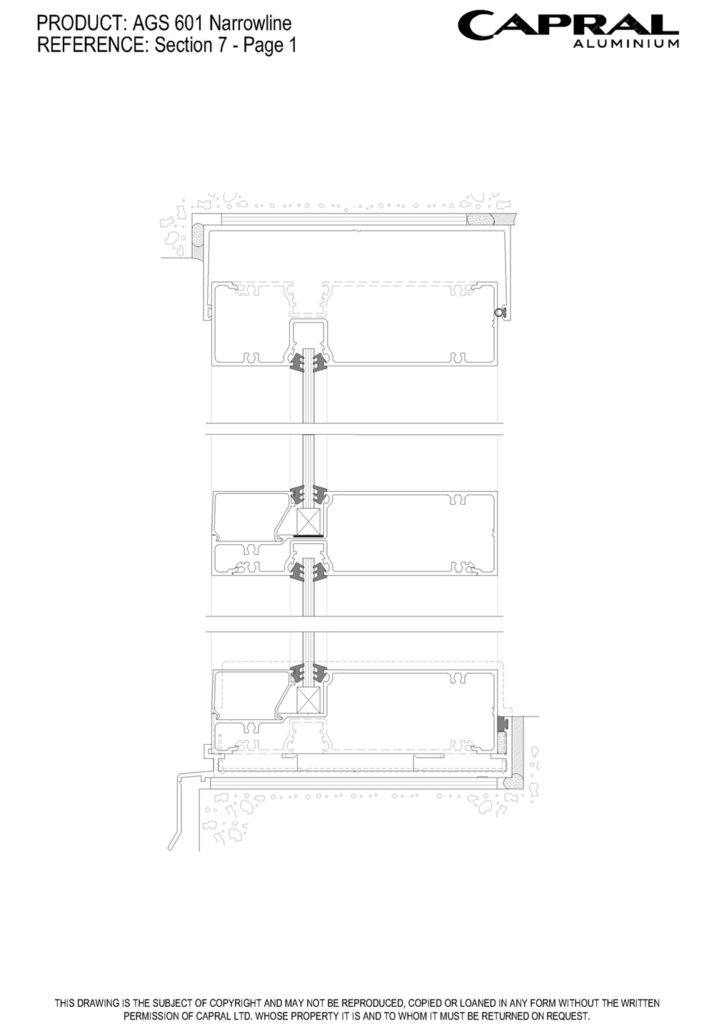

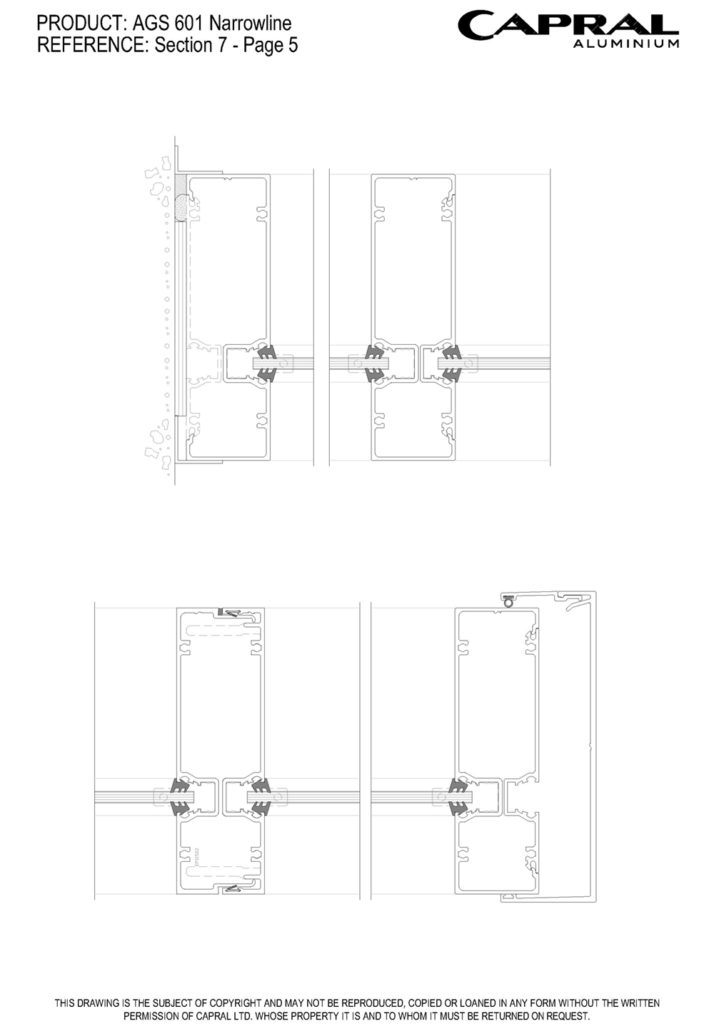

DETAILS
