LATERLITE MATERASSINO CS: UNDER-TILE SOUND PROOFING ACOUSTIC UNDERLAY
MATERASSINO CS: UNDER-TILE SOUND PROOFING ACOUSTIC UNDERLAY
MATERASSINO CS: UNDER-TILE SOUND PROOFING ACOUSTIC UNDERLAY

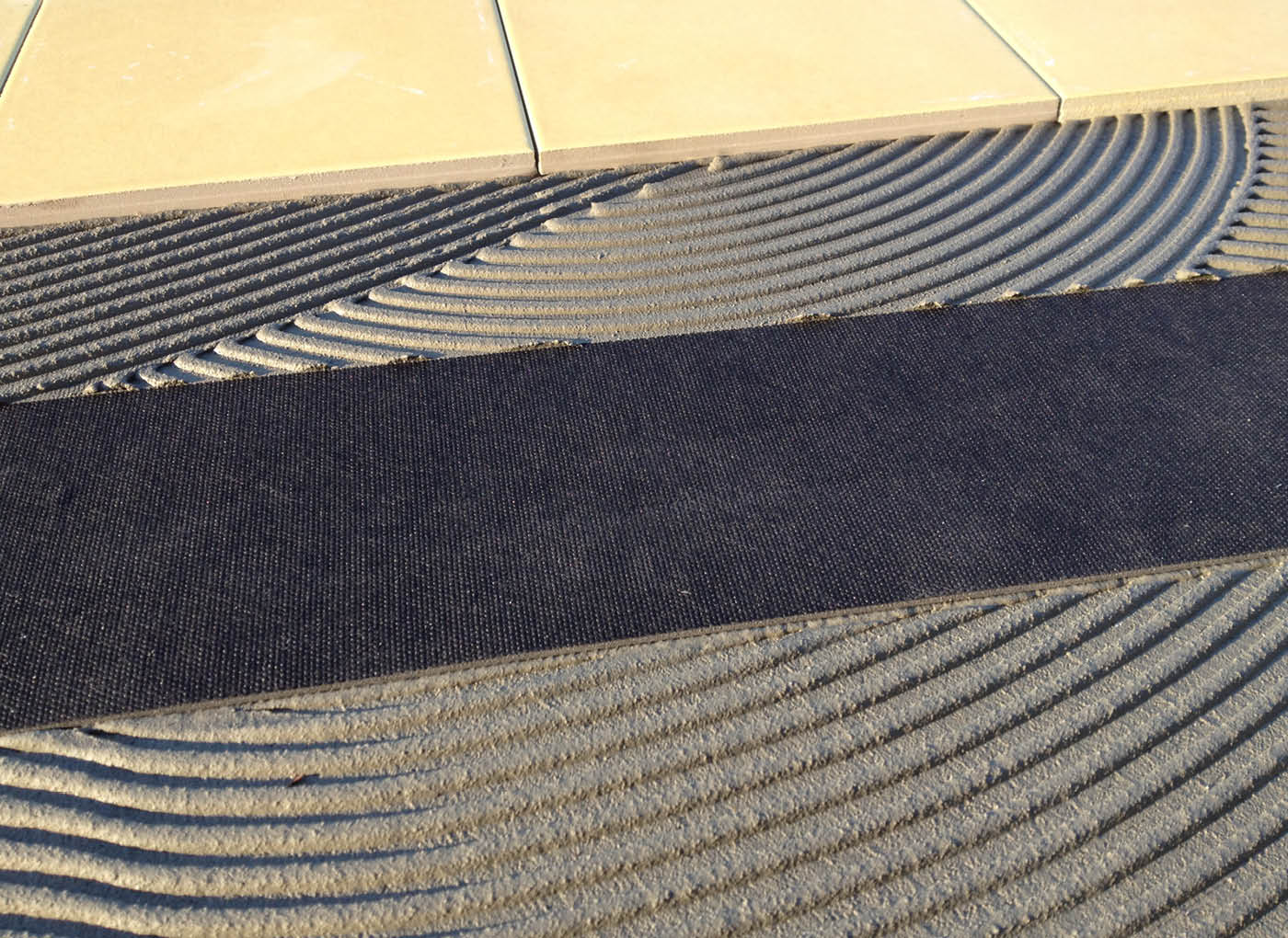

Materassino CentroStorico is an under-tile sound proofing acoustic underlay mat that is applied between the screed and the floor finish (tiles, wood, etc.), reducing the transmission of impact noise (footfall noise and falling objects) transmitted to storeys below; sound proofing with Materassino requires a minimum thickness, without the need to realize a floating screed.

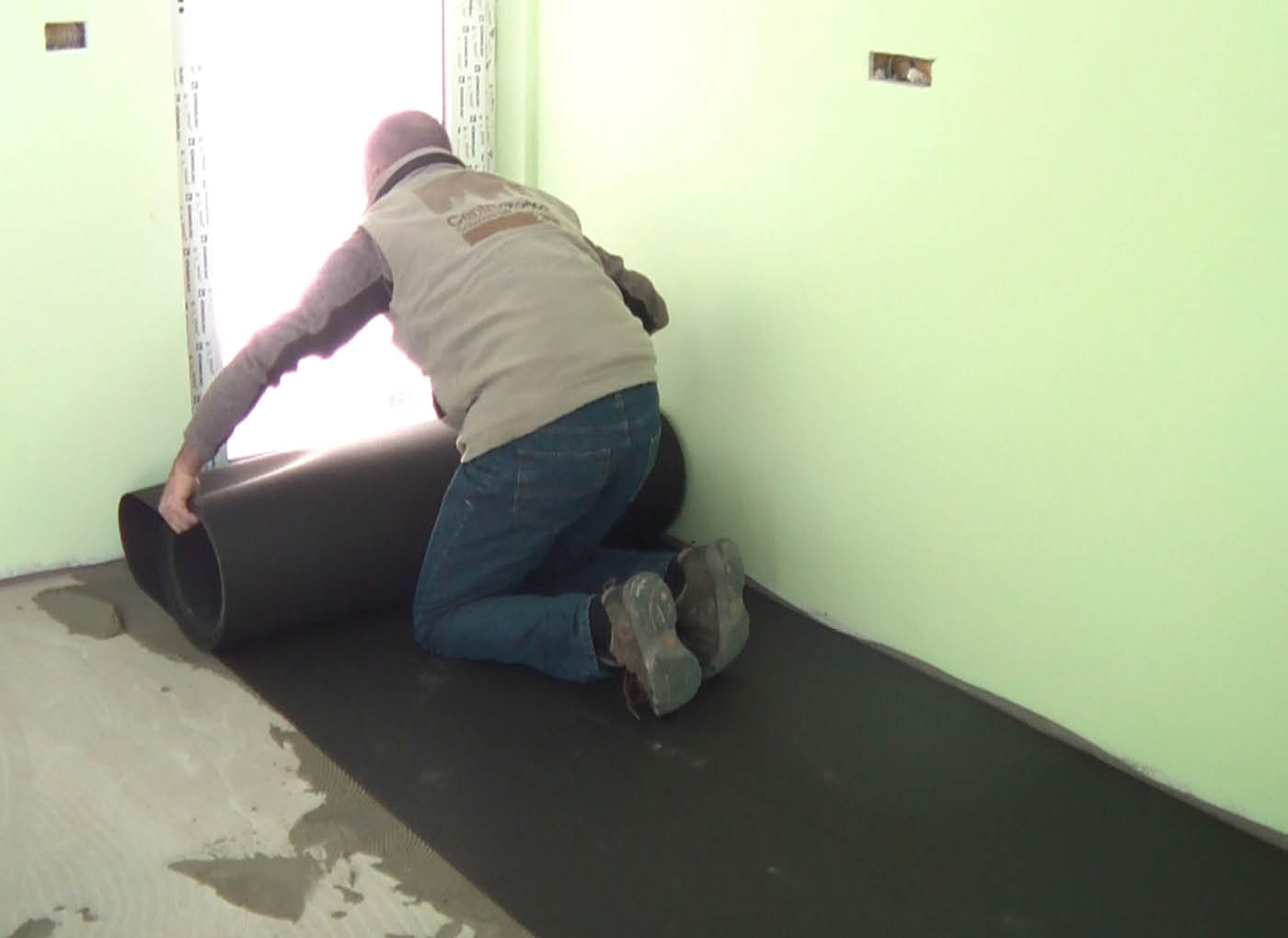

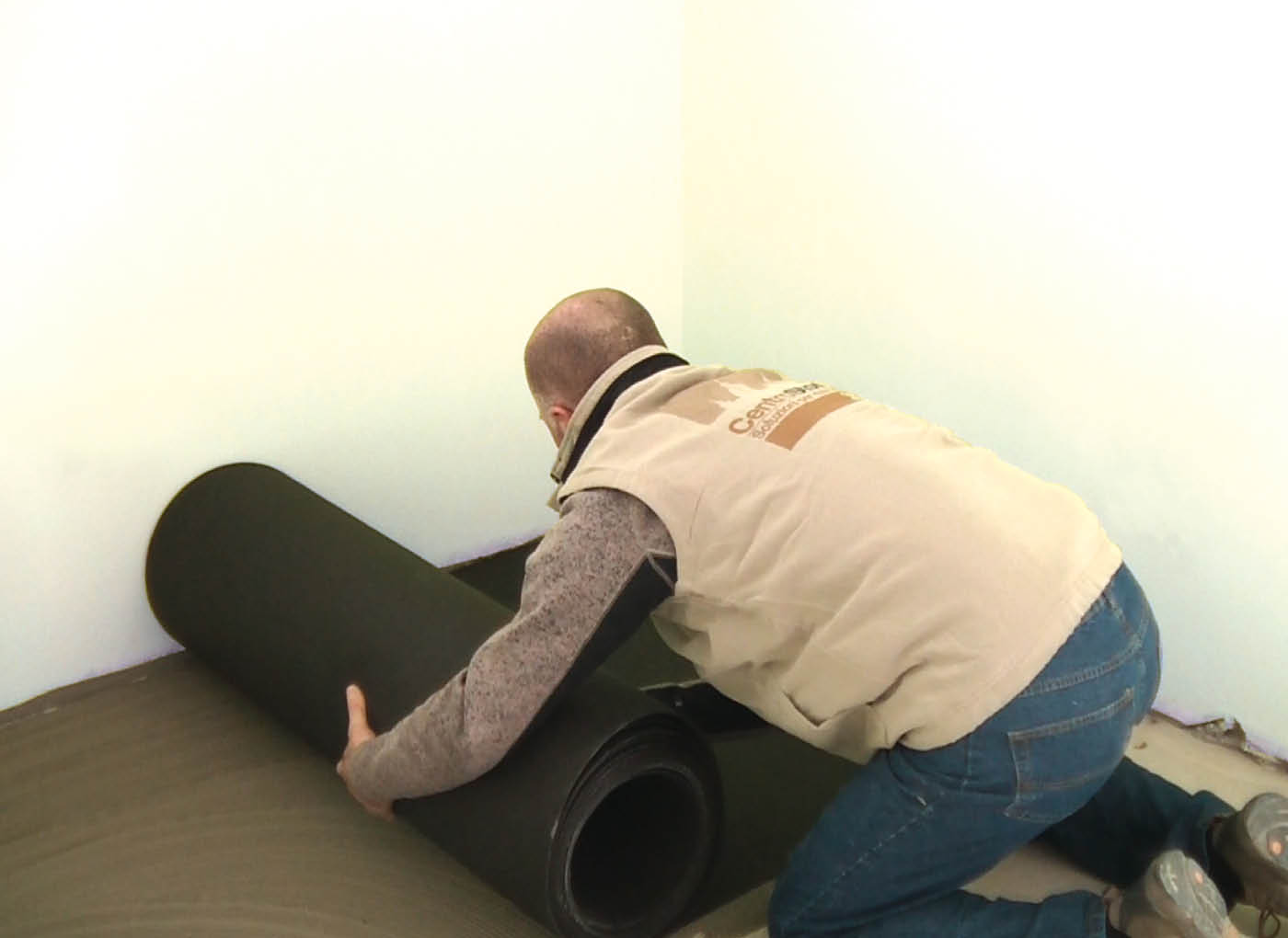

The flexible acoustic underlay Materassino is applied by gluing it on both sides: a first gluing to adhere the underlay to the substrate (screed, or existing flooring in certain conditions, etc.) and then a second gluing to stick the floor finish (tiles, wood, etc.) to the Materassino underlay.
information
BRAND
Laterlite
PRODUCTION
Made in USA
PRODUCT TYPE
Waterproofing MaterialS
PERFORMANCEv
This technique allows a considerable increase in acoustic performance in a very small extra thickness (a few millimetres).
THICKNESS APPROX
2 mm
DENSITY APPROX
77 kg/m3
THERMAL CONDUCTIVITY (EN 12667)
λ= 0,037 W/mK
SOUND ATTENUATION INDEX
∆Lw = 16 dB
DYNAMIC STIFFNESS
s’=350 MN/m3
DOWNLOAD
↓ Geotechnics & Infrastructure
APPLY
Materassino CentroStorico is easy to apply and is supplied in a kit with its accessories (flanking band and an overlapping tape) to ensure satisfactory insulation without acoustic bridges.
FLEXIBLE
Flexible acoustic mat consisting of a closed cell expanded polyolefin foam, physically cross-linked, faced on both sides with a technical polypropylene geotextile.
PACKAGE
Kit mat + accessories
MAT
Roll: 1 m x 20 m = 20 m2
THERMAL RESISTANCE (R-VALUE)
Rt = 0,054 m2K/W
OVERLAP TAPE
Roll w 7,5 cm x l 20 m
FLANKING BAND
Roll W 3 cm x L 20 m
SELF-ADHESIVE
Supplied in rolls, in a kit with a self-adhesive flanking band and a self-adhesive overlap tape.
CHARACTERISTICS AND ADVANTAGES
AN IDEAL COMPLEMENT TO LATERLITE SCREEDS AND CONCRETES.
The Materassino acoustic underlay is compatible with Laterlite’s range of lightweight and technical screed mortars and concretes, for acoustic insulation solutions that are both slim and effective.
SIGNIFICANT IMPROVEMENT IN SOUND INSULATION AGAINST IMPACT NOISE.
Significant increase in the floor impact sound performance ΔLw* = 16 dB at very low thickness.
EASY TO APPLY
The acoustic mat is applied using with the same tile adhesives or glues used for floor finishes and is carried out with a traditional technique.
IDEAL IN CASE OF LIMITED AVAILABLE THICKNESS
-The application of the acoustic matting directly under the flooring makes it possible to considerably reduce the thickness of the solution: Materassino is therefore ideal for renovation or refurbishment work where available thicknesses are often low. -It is also very useful when replacing a flexible and resilient finish, such as carpet or vinyl, with tiles.
FIELDS OF USE
-Acoustic insulation against impact noise between the screed and the flooring in intermediate floors. -Direct laying of any flooring (ceramic tiles, adhered or floating wood floorboards and similar) using the usual adhesives. -Ideal in case of low available thickness and in the renovation of existing slabs and floors where there is not enough thickness to realize a floating screed.
